VOLVO EC700B EXCAVATOR Travel gearbox 8279230,SN 10467--None VOE8279230 `

VOLVO EC700B EXCAVATOR Travel gearbox 8279230,SN 10467--None VOE8279230 `

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

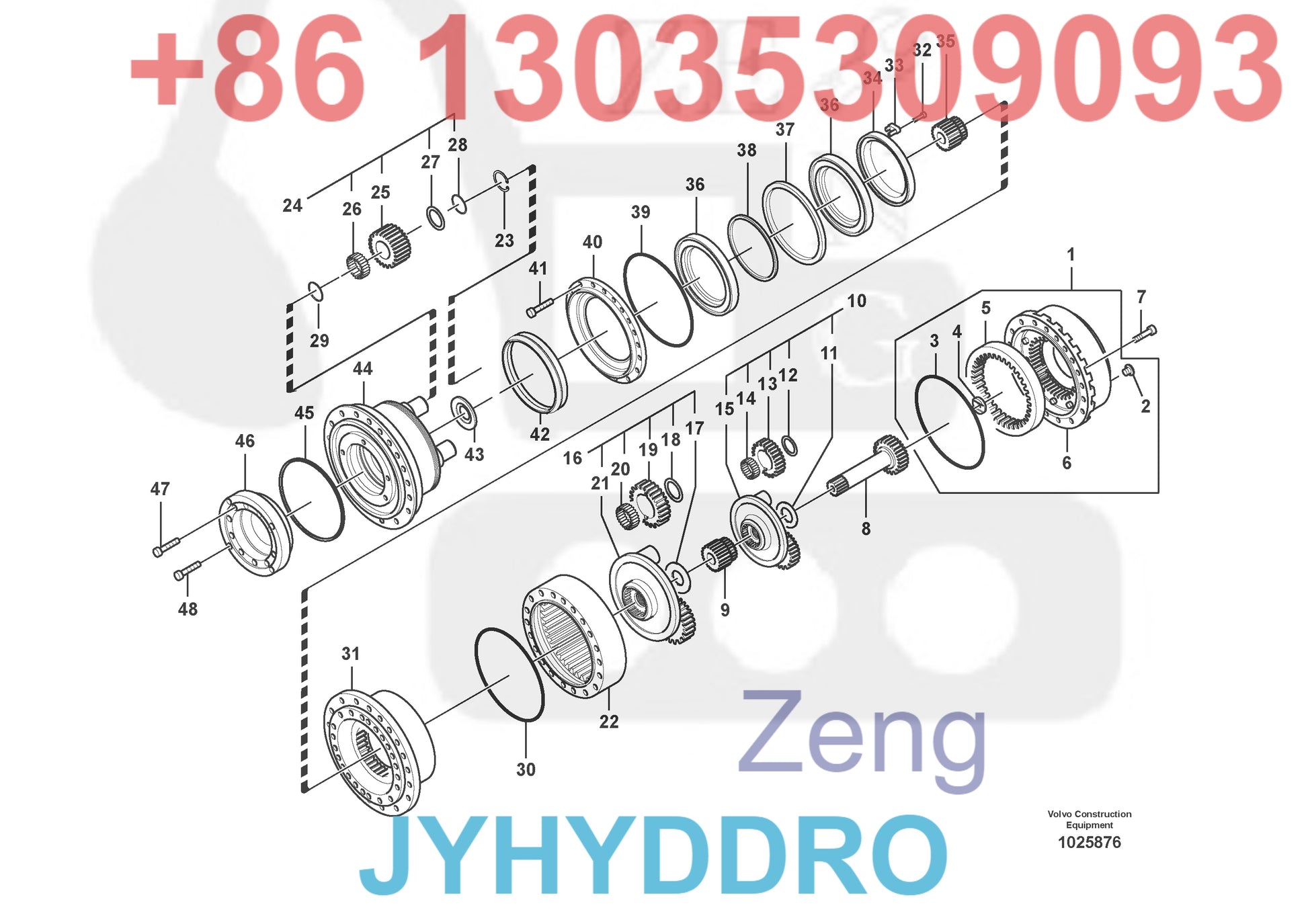

Parts on group Travel gearbox:
Pos. Part No Qty Parts name Comments
  VOE14592003   [1]   Reduction gear   S/N 10467-10606
  VOE14613278   [1]   Travel gearbox   S/N 10607-
1   VOE14593926   [1]   Cover
2   VOE14617552   [2]   Plug
3   VOE14535315   [1]   O-ring
4   VOE11701193   [1]   Friction washer
5   VOE14541721   [1]   Ring
6   VOE14594657   [1]   Cover
7   VOE14535302   [21]   Screw
8   VOE14535307   [1]   Gear
9   VOE14535308   [1]   Gear   S/N 10467-10606
  VOE14613363   [1]   Gear   S/N 10607-
10   VOE14593927   [1]   Reduction gear   S/N 10467-10606
  VOE14613364   [1]   Planet carrier   S/N 10607-
11   VOE14541725   [1]   Ring
12   VOE14541726   [3]   Clip
13   VOE14541727   [3]   Planetary gear
14   VOE14541728   [3]   Bearing
15       [1]   Case
16   VOE14535310   [1]   Reduction gear   S/N 10467-10606
  VOE14613365   [1]   Planet carrier   S/N 10607-
17   VOE14541725   [1]   Ring
18   VOE14541732   [4]   Clip
19   VOE14541729   [4]   Planetary gear
20   VOE14541731   [4]   Bearing
21   VOE14541730   [1]   Case
22   VOE14535311   [1]   Ring   S/N 10467-10606
  VOE14613366   [1]   Ring   S/N 10607-
23   VOE14535312   [5]   Clip   ID=70MM
23   VOE14594974   [5]   Clip   ID=80MM
24   VOE14593928   [5]   Planetary gear
25   VOE14594971   [1]   Planetary gear
26   VOE14594972   [1]   Bearing
27   VOE14594973   [1]   Spacer
28   VOE14594974   [1]   Clip
29   VOE14535314   [5]   Spacer   ID=77MM
29   VOE14594973   [5]   Spacer   ID=80MM
30   VOE14535315   [1]   O-ring
31   VOE14593929   [1]   Housing
32   VOE14593930   [1]   Screw
33   VOE14593931   [1]   Bar
34   VOE14593932   [1]   Nut
35   VOE14535320   [1]   Gear
36   VOE14535321   [2]   Bearing
37   VOE14535322   [1]   Spacer
38   VOE14535323   [1]   Spacer
39   VOE14535324   [1]   O-ring
40   VOE14535325   [1]   Cover
41   VOE14535326   [24]   Screw
42   VOE14535327   [1]   Seal
43   VOE14593933   [1]   Ring
44   VOE14593934   [1]   Hub
45   VOE14535331   [1]   O-ring
46   VOE14593935   [1]   Adapter
47   VOE14593936   [12]   Screw
48   VOE14535334   [4]   Screw
