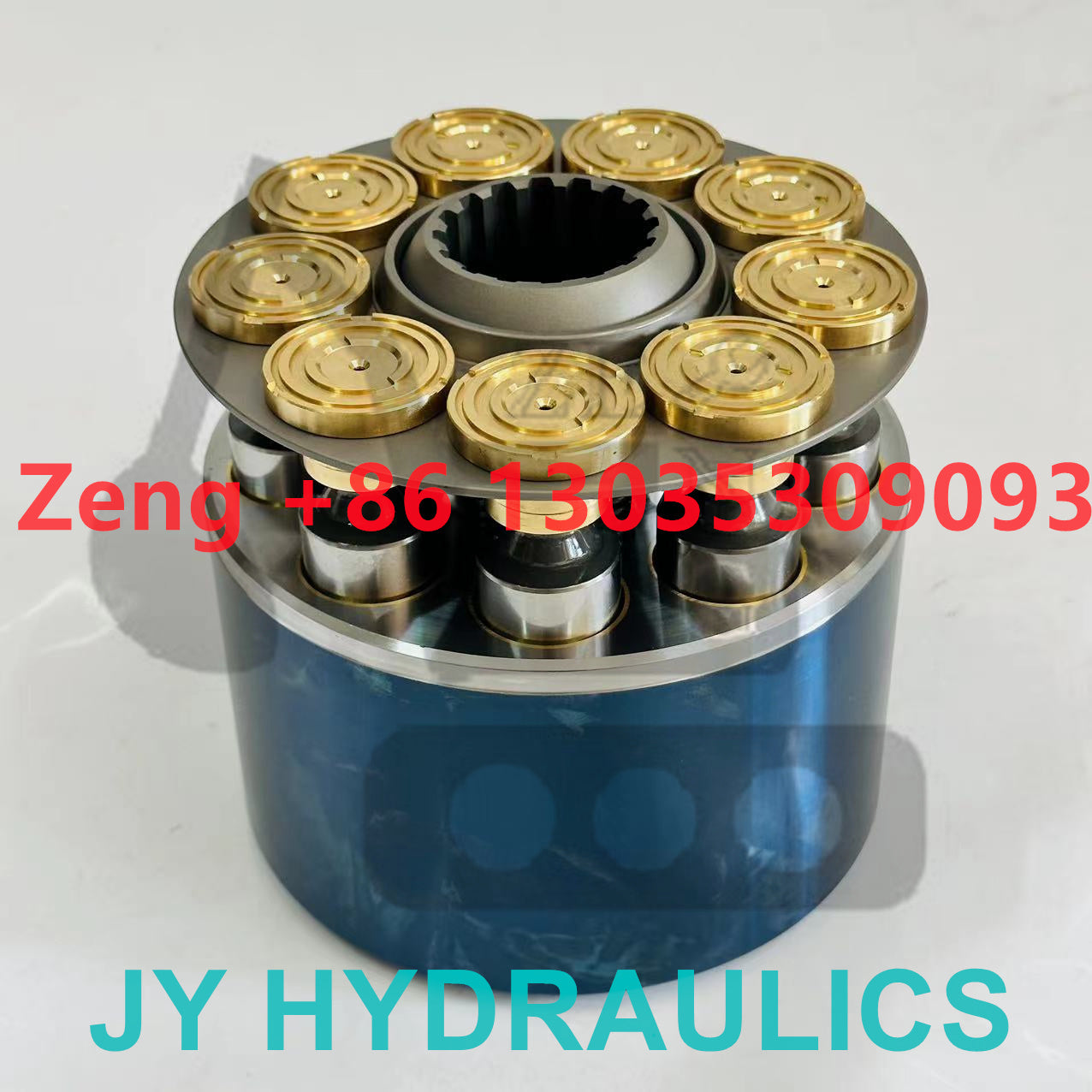

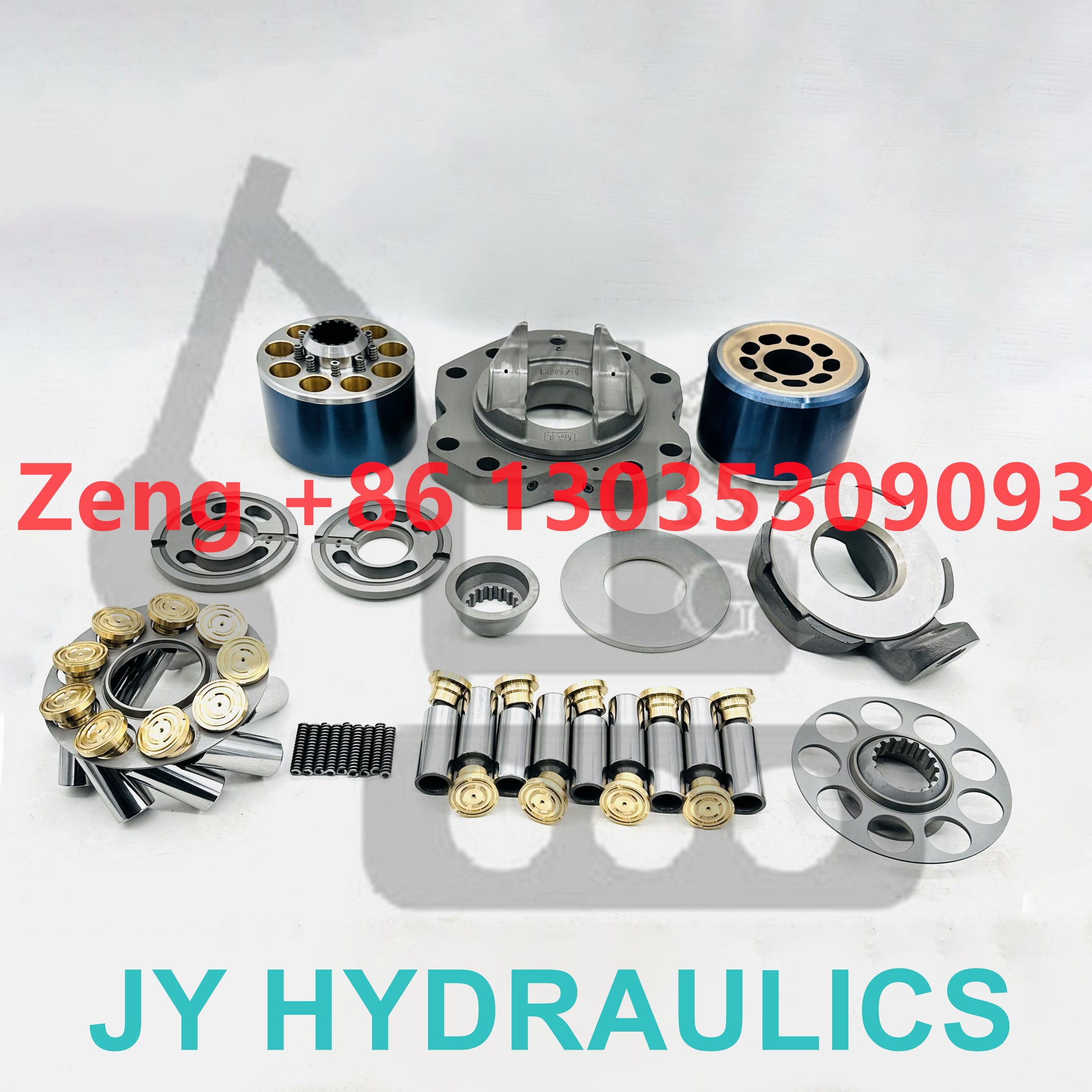

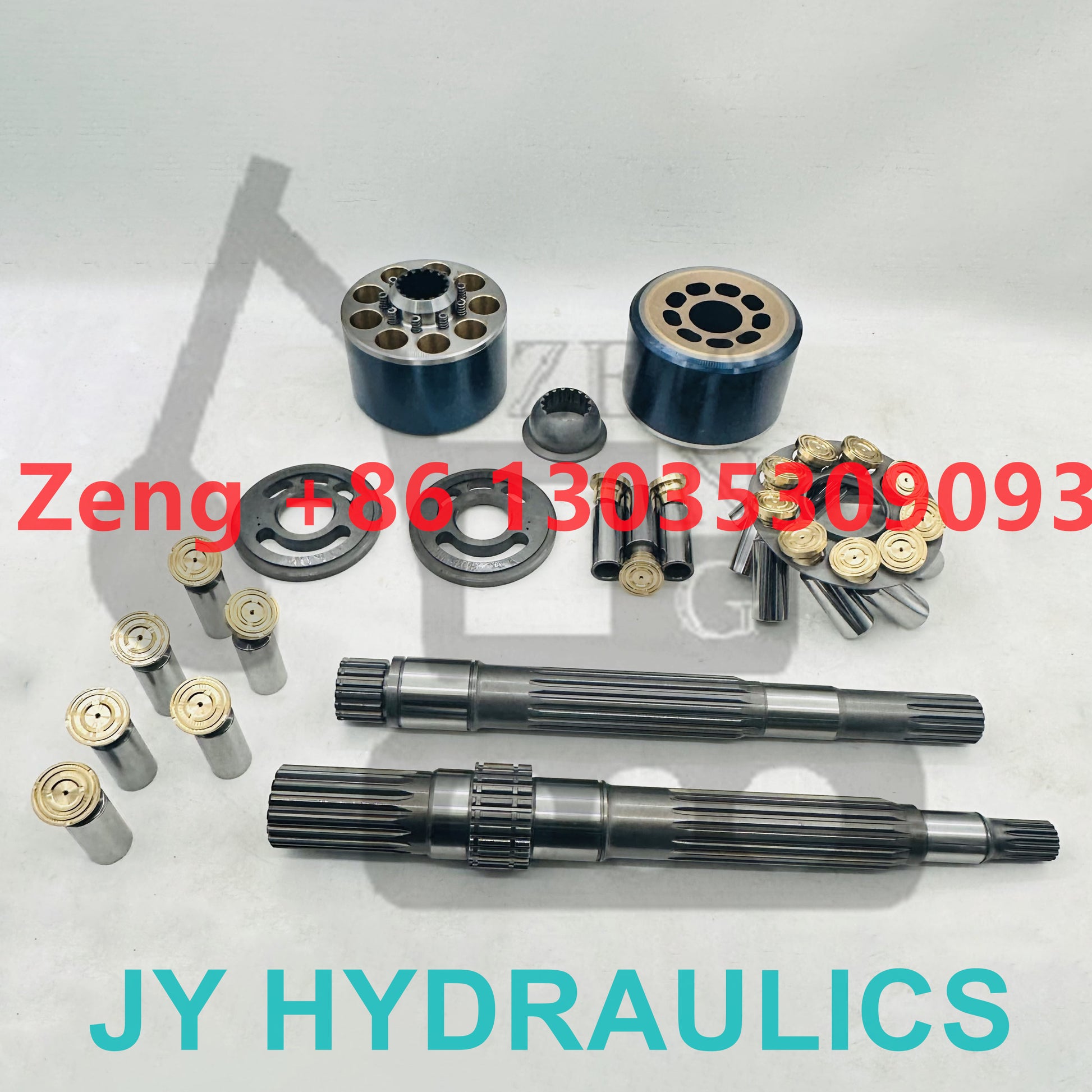

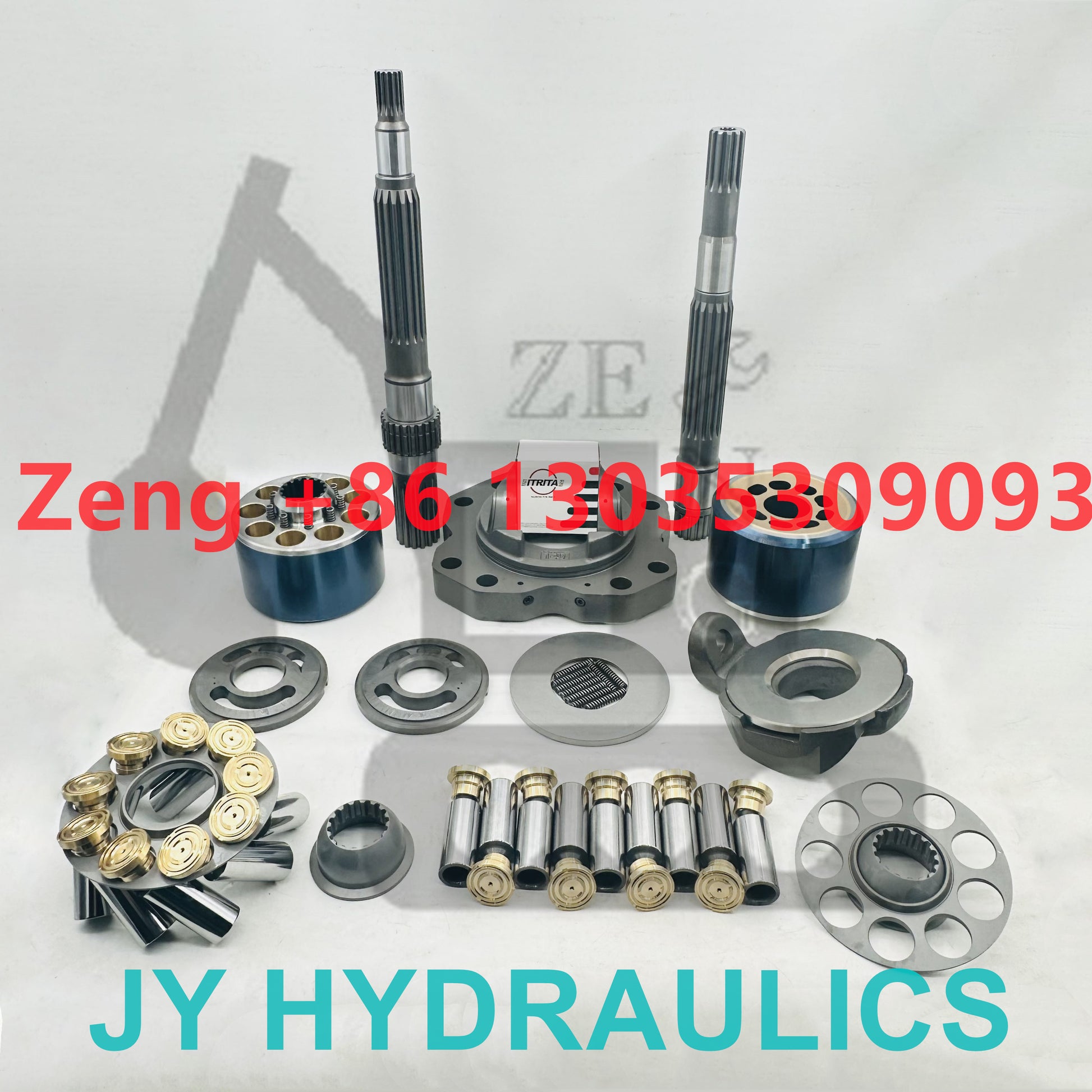

VOLVO EC360 excavator SA7220-00700 hydraulic pump parts

VOLVO EC360 excavator SA7220-00700 hydraulic pump parts

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
  SA7220-00700 EC360
Pos. Part No Qty Parts name Comments
  SA7220-00700   [1]   Pump
1   SA7223-00140   [2]   Piston
2   SA7223-00150   [9]   Piston
3   SA7223-00160   [9]   Pad
4   VOE14563795   [1]   Cylinder
5   SA7223-00090   [1]   Block
6   SA7223-00360   [1]   Plate
7   SA7223-00790   [1]   Cylinder
8   SA7223-00090   [1]   Block
9   SA7223-00370   [1]   Plate
10   VOE14532653   [1]   Valve
11   SA7223-00010   [1]   Shaft
12   SA7223-00020   [1]   Shaft
13   SA7223-00030   [1]   Connector
14   SA7223-00040   [2]   Roller bearing
15   SA7223-00050   [2]   Needle bearing
16   SA7223-00060   [3]   Spacer
17   SA7242-10210   [2]   Plate
18   SA7242-10150   [2]   Bushing
19   SA7223-00180   [18]   Spring
20   SA7223-00200   [2]   Spacer
21   SA7223-00210   [2]   Plate
22   SA14506635   [2]   Plate
23   SA7223-00220   [1]   Plate
24   SA7223-00240   [1]   Bushing
25   VOE14551796   [1]   Cover
26   SA7223-00290   [2]   Casing
27   SA7223-00310   [1]   Block
28   VOE14506634   [2]   Pin
29   SA7223-00400   [1]   Pin
30   SA7223-00570   [1]   Pin
31   SA9415-11051   [3]   Plug
32   VOE14560637   [29]   Plug
33   SA7223-00390   [8]   Hex. socket screw
34   SA7223-00410   [2]   Piston
35   SA7223-00420   [2]   Stop
36   SA7223-00430   [2]   Stop
37   SA7223-00480   [2]   Non-return valve
38   SA7223-00510   [1]   Seat
39   SA7223-00530   [1]   Stop
40   SA9676-73200   [1]   Ball
41   SA7223-00490   [2]   Check valve
42   SA7223-00510   [1]   Seat
43   SA7223-00550   [1]   Stop
44   SA9676-73200   [1]   Ball
45   VOE13967630   [4]   Allen Hd Screw
46   SA7223-00690   [2]   O-ring
47   VOE990597   [1]   O-ring
48   SA7223-00590   [2]   O-ring
49   SA7223-00600   [2]   O-ring
50   VOE983495   [16]   O-ring
51   VOE983502   [3]   O-ring
52   VOE983524   [3]   O-ring
53   SA7223-00700   [2]   O-ring
54   SA7223-00710   [1]   Seal
55   VOE14692341   [2]   Ring
56   SA7223-00650   [2]   Ring
57   SA9111-12000   [4]   Nut
58   VOE914470   [2]   Snap ring
59   SA7242-10560   [2]   Pin
60   SA7223-00660   [4]   Spring pin
61   VOE14880555   [2]   Eye bolt
62   SA7223-00670   [2]   Set screw
63   SA7223-00680   [2]   Set screw
64   SA7223-00260   [2]   Support
65   VOE14883837   [1]   Plug
100   VOE14534297   [1]   Sealing Kit
Pos. Part No Qty Parts name Comments
  SA7220-00430   [2]   Regulator
Pos. Part No Qty Parts name Comments
  SA7220-00510   [1]   Gear pump
