VOLVO EC160C EC160D EC160E EC170D EC180C EC180D EC180E EXCAVATOR VOE14538587 VOE14538545 SWING MOTOR PARTS

VOLVO EC160C EC160D EC160E EC170D EC180C EC180D EC180E EXCAVATOR VOE14538587 VOE14538545 SWING MOTOR PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
VOE14538587 VOE14538545 EC160C EC160D EC160E EC170D EC180C EC180D EC180E
Pos. Part No Qty Parts name Comments
1   VOE14538587   [1]   Drive unit
2   VOE14538545   [1]   Swing motor
3   VOE14540719   [1]   Swing gearbox

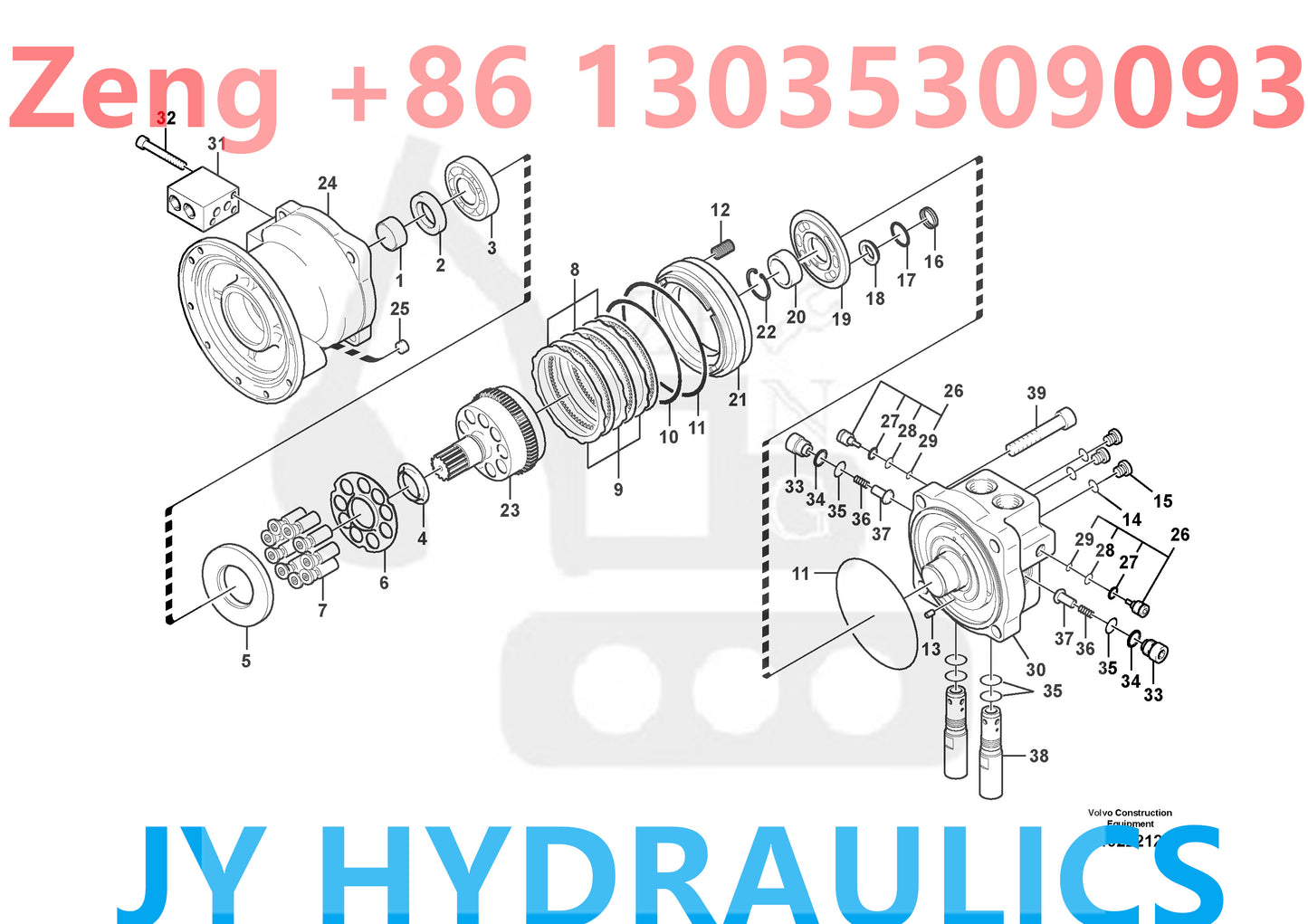

Pos. Part No Qty Parts name Comments
  VOE14538545   [1]   Swing motor
1   SA8230-04420   [1]   Inner race
2   SA8220-15630   [1]   Seal
3   SA8230-00790   [1]   Roller bearing
4   SA8230-04320   [1]   Spring
5   SA8230-04360   [1]   Plate
6   SA8230-04410   [1]   Plate
7   VOE14519350   [9]   Piston
8   SA8230-22900   [3]   Plate
9   SA8230-22910   [3]   Friction plate
10   SA8230-25140   [1]   O-ring
11   SA8230-02411   [2]   O-ring
12   SA8230-04230   [10]   Spring
13   SA8230-31150   [2]   Pin
14   VOE993320   [3]   O-ring
15   VOE14552099   [3]   Cap
16   SA8230-04240   [4]   Spring
17   SA8230-00891   [4]   Sealing ring
18   SA8230-04330   [4]   Bushing
19   SA8230-03990   [1]   Plate
20   SA8230-00820   [1]   Needle Bearing
21   VOE14519351   [1]   Piston
22   SA8230-01030   [1]   Ring
23   VOE14508587   [1]   Cylinder
24   VOE14508589   [1]   Housing
25   SA8230-23350   [1]   Plug
26   VOE14508590   [2]   Valve
27   VOE14625246   [1]   Ring
28   VOE990557   [1]   O-ring
29   VOE983503   [1]   O-ring
30   VOE14534867   [1]   Cover
31   VOE14534868   [1]   Valve
32   SA8230-00610   [3]   Bolt
33   SA8230-11610   [2]   Cap
34   VOE14880821   [2]   Back-up ring
35   VOE983525   [4]   O-ring
36   VOE14596241   [2]   Spring
37   SA8230-11110   [2]   Non-return valve
38   VOE14508592   [2]   Relief valve
39   VOE984135   [4]   Hex. socket screw
100   VOE14534869   [1]   Seal
