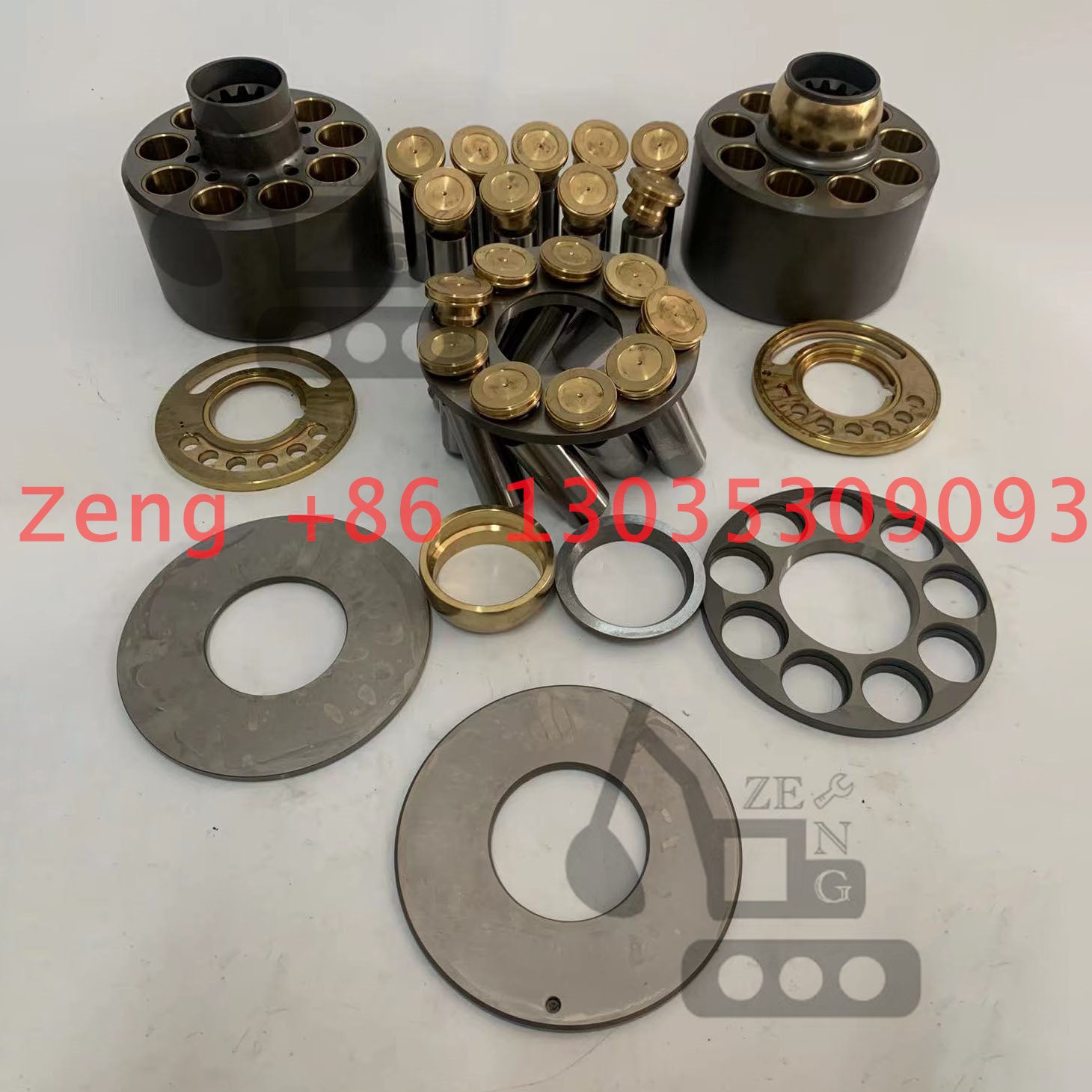

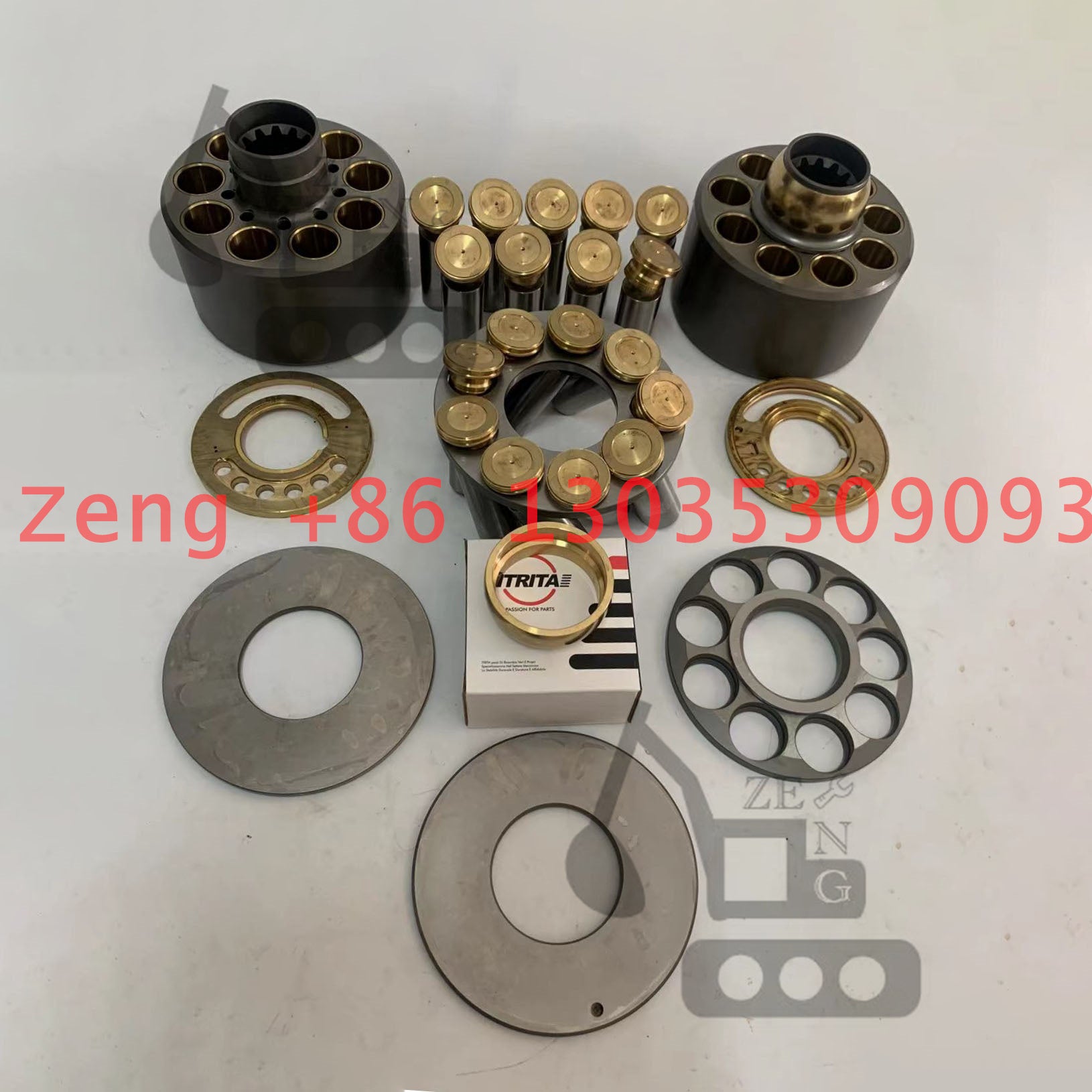

SBS140 AP-14 (E325C/D)
233-1115 272-6959 CAT325D CAT325DFM CAT325DFMLL CAT325DL CAT325DMH CAT328DLCR CAT329D CAT329DL CAT329DLN |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
4I-1022 |
[2] |
ORIFICE |
|
| 2 |
7Y-4215 |
[2] |
SPACER |
|
| 3 |
096-3983 |
[1] |
RING-RETAINING |
|
| 4 |
096-4389 |
[18] |
SPRING |
|
| 5 |
126-2016 |
[1] |
PUMP GP-GEAR (PILOT) |
|
|
9T-0835 |
[1] |
RING-RETAINING |
|
|
250-2503 |
[1] |
KIT-SEAL (PILOT GEAR PUMP) |
|
|
|
|
(INCLUDES GASKETS, SEALS & RETAINING-RING) |
| 6 |
129-7854 |
[1] |
CASE |
|
| 7 |
129-7855 |
[1] |
GASKET |
|
| 8 |
129-7857 |
[1] |
GASKET |
|
| 9 |
194-8325 |
[2] |
SET-BEARING |
|
| 10 |
129-7863 |
[1] |
COVER |
|
| 11 |
129-7921 |
[2] |
RING-RETAINING |
|
| 12 |
341-2862 |
[1] |
SEAL-LIP TYPE |
|
| 13 |
129-7927 |
[2] |
BEARING |
|
| 14 |
129-7979 |
[4] |
DOWEL |
|
| 15 |
150-5782 |
[2] |
COVER |
|
| 16 |
225-4541 |
[1] |
SHAFT-DRIVE |
|
| 17 |
173-3427 |
[2] |
GUIDE-BALL |
|
| 18 |
129-7853 |
[2] |
PLATE |
|
| 19 |
256-0081 |
[1] |

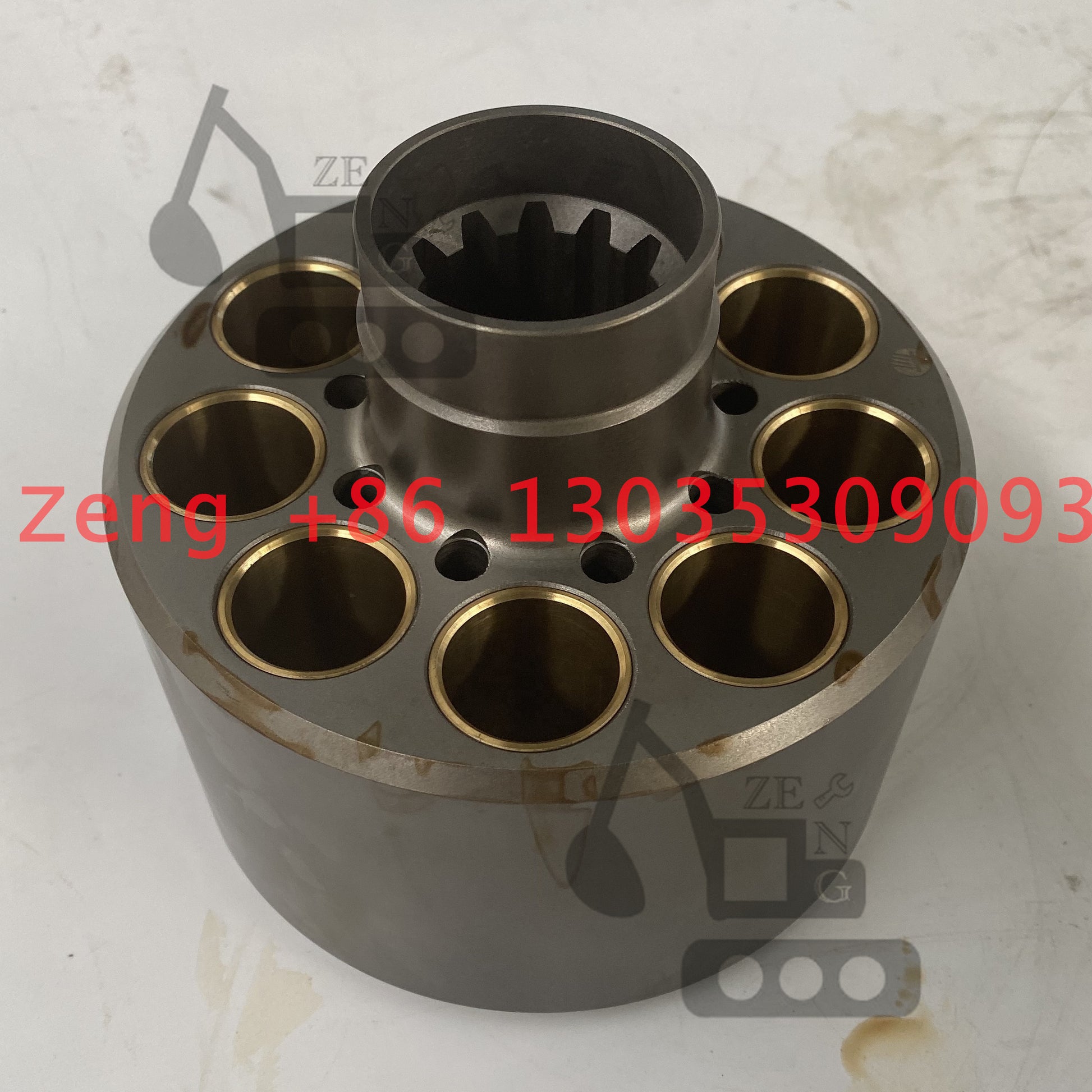

BARREL AS-DRIVE |
|
| 20 |
256-0083 |
[1] |
BARREL AS-PUMP |
|
| 21 |
177-2470 |
[1] |
COVER |
|
| 22 |
177-2471 |
[1] |
COVER |
|
| 23 |
273-8314 |
[1] |
SEAL-O-RING |
|
| 24 |
179-9763 |
[1] |
FLANGE |
|
| 25 |
188-4210 |
[2] |
PISTON AS |
|
| 26 |
192-0573 |
[4] |
PIN-DOWEL |
|
| 27 |
200-3333 |
[1] |
HEAD-PUMP |
|
| 28 |
200-3334 |
[1] |
COVER |
|
| 29 |
225-4542 |
[1] |
SHAFT-DRIVEN |
|
| 30 |
256-0074 Y |
[1] |
ACTUATOR GP-PUMP (DRIVE) |
|
| 31 |
256-0077 Y |
[1] |
ACTUATOR GP-PUMP (DRIVEN) |
|
| 32 |
373-9516 |
[2] |
SWASHPLATE AS |
|
|
|
|
(EACH INCLUDES) |
|
094-1875 |
[1] |
DOWEL |
|
| 32A. |
173-3428 |
[1] |
BUSHING |
|
|
242-6803 |
[2] |
PIN-DOWEL |
|
| 33 |
373-9518 |
[4] |
BEARING AS |
|
|
|
|
(INCLUDES INNER & OUTER BEARINGS) |
| 34 |
9S-4185 |
[2] |
PLUG (3/4-16-THD) |
|
| 35 |
247-8782 |
[1] |
BODY |
|
| 36 |
247-8920 |
[2] |
ORIFICE |
|
| 37 |
094-1875 |
[6] |
DOWEL |
|
| 38 |
094-1882 |
[16] |
PLUG |
|
| 39 |
095-0946 |
[2] |
RING-RETAINING |
|
| 40 |
8T-4196 M |
[2] |
BOLT (M10X1.5X35-MM) |
|
| 41 |
096-3944 |
[1] |
SEAL-O-RING |
|
| 42 |
189-9763 |
[8] |
SEAL-O-RING |
|
| 43 |
190-4896 |
[2] |
PLUG |
|
| 44 |
193-1736 |
[4] |
SEAL-O-RING |
|
| 45 |
3K-0360 |
[2] |
SEAL-O-RING |
|
| 46 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 47 |
7X-2557 M |
[1] |
BOLT (M16X2X140-MM) |
|
| 48 |
8J-4645 |
[2] |
PLUG (STRAIGHT THREAD O-RING) |
|
| 49 |
273-8315 |
[2] |
SEAL-O-RING |
|
| 50 |
8T-4136 M |
[18] |
BOLT (M10X1.5X25-MM) |
|
| 51 |
8T-4137 M |
[2] |
BOLT (M10X1.5X20-MM) |
|
| 52 |
8T-4139 M |
[10] |
BOLT (M12X1.75X30-MM) |
|
| 53 |
8T-4140 M |
[4] |
BOLT (M16X2X60-MM) |
|
| 54 |
8T-4175 M |
[2] |
BOLT (M16X2X90-MM) |
|
| 55 |
8T-4176 M |
[2] |
BOLT (M12X1.75X90-MM) |
|
| 56 |
8T-4192 M |
[10] |
BOLT (M12X1.75X25-MM) |
|
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |
