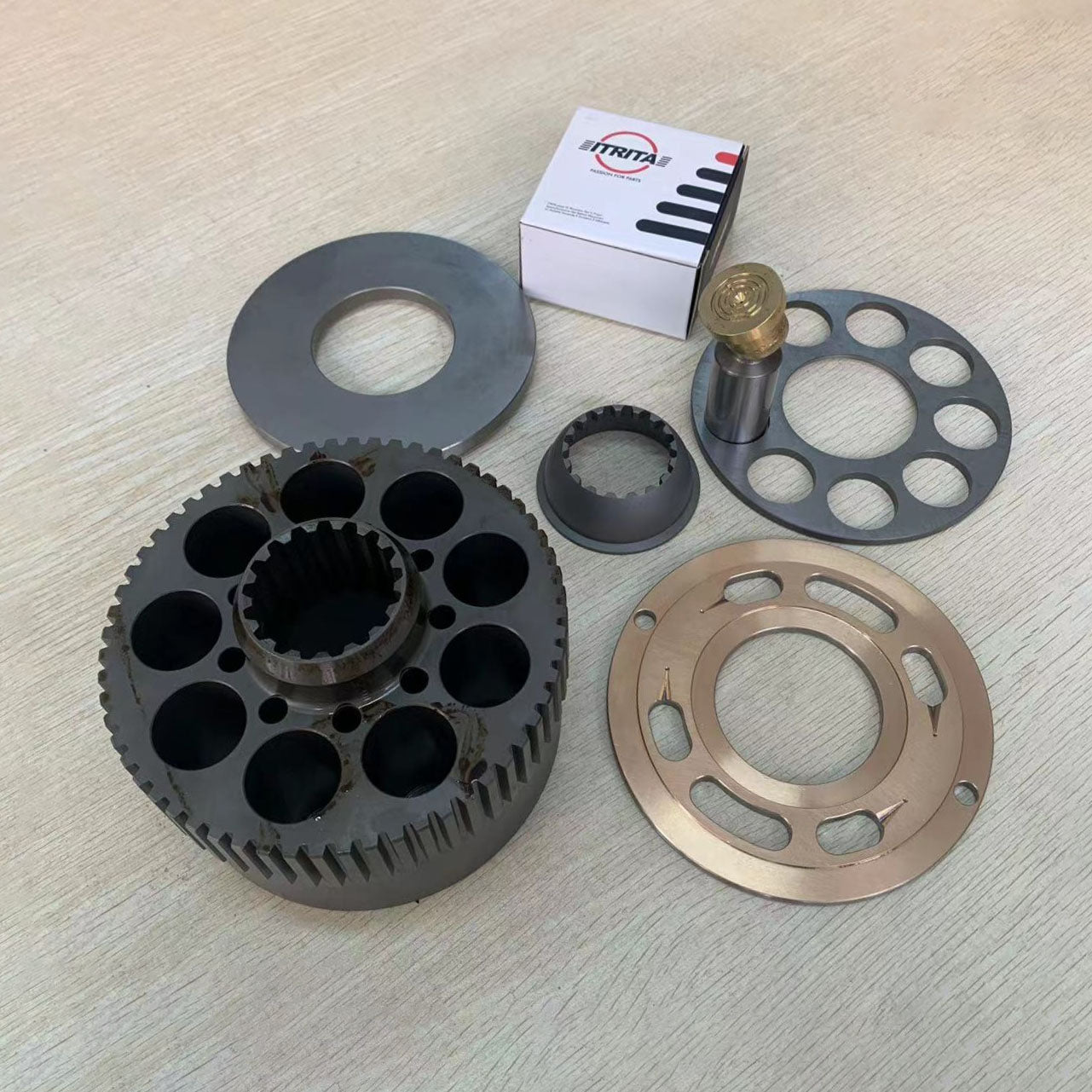

R215VS swing motor parts

R215VS swing motor parts

定價 $2,000.00 USD
定價 售價 $2,000.00 USD
特價 售罄
結帳時計算運費
R215VSHM
R290LC-7A HX300 38K8-11100 38N8-10150 38K8-11100
R290LC-9 R290LC-9MH R300LC-9A R300LC-9S R300LC-9SH 39Q8-10150 39Q8-10151 39Q8-11100 39Q8-11101
39Q8-11150 39Q6-11170 39Q8-11160
R480 R500
Pos. Part No Qty Parts name Comments
*. 39Q8-10150 [1]   SWING MOTOR ASSY      TYPE 3
*. 39Q8-10151 [1]   SWING MOTOR ASSY      TYPE 3
*. 38Q8-10150 [1]   SWING MOTOR ASSY      TYPE 4
*. 38Q8-10151 [1]   SWING MOTOR ASSY      TYPE 4
*-1. 39Q8-11100 [1]   SWING MOTOR      TYPE 3
*-1. 39Q8-11101 [1]   SWING MOTOR      TYPE 3
*-1. 38Q8-11100 [1]   SWING MOTOR      TYPE 4
*-1. 38Q8-11101 [1]   SWING MOTOR      TYPE 4
1 39Q8-11110 [1]   CASING
K2. 39Q6-11660 [1]   SEAL-OIL
3 39Q8-11120 [1]   SHAFT
4 S601-040004 [1]   RING-SNAP
5 39Q8-11130 [1]   BEARING-ROLLER(R/GEAR)
6 39Q8-11140 [1]   BEARING-ROLLER(COVER)
7 39Q6-11150 [1]   PLATE-SWASH
K8. 39Q6-11180 [1]   BLOCK-CYLINDER
K9. 39Q6-41290 [9]   SPRING
K10. 39Q8-11170 [1]   GUIDE-BALL
K11. 39Q6-11210 [1]   PLATE-RETAINER
K12. 39Q6-11220 [9]   PISTON ASSY
13 39Q6-41361 [5]   PLATE-FRICTION
14 39Q6-41370 [5]   PLATE-SEPERATED
15 39Q6-11250 [1]   PISTON-PARKING
16 39Q8-11180 [26]   SPRING
17 S471-800454 [1]   PIN-SPRING
K18. Y172-043004 [1]   O-RING
K19. Y172-041004 [1]   O-RING
20 39QB-11270 [1]   PLATE-VALVE
21 S471-800224 [2]   PIN-SPRING
K22. Y172-042004 [1]   O-RING
23 39Q6-11281 [1]   CASING A-VALVE
24 39Q6-11290 [2]   VALVE-CHECK
25 39Q6-11300 [2]   SPRING-CHECK VALVE
26 39Q6-11671 [2]   PLUG
K27. S631-040004 [2]   O-RING
28 39Q6-41750 [3]   PLUG
K29. S631-011004 [3]   O-RING
30 39Q8-11190 [2]   RELIEF VALVE ASSY
31 39Q8-11300 [2]   ANTI ROTATING VLV ASSY
32 39Q6-11500 [2]   PLUG
K33. S631-012004 [2]   O-RING
K34. S631-018004 [2]   O-RING
35 39Q6-11510 [1]   VALVE ASSY-TIME DELAY
36 39Q6-11601 [1]   GAUGE-LEVEL
37 S109-180456 [2]   BOLT-SOCKET
38 S109-180556 [4]   BOLT-SOCKET
39 P220-430202 [1]   PLUG-HEX
40 39Q8-11320 [1]   NAME PLATE      TYPE 3
40 39Q8-11321 [1]   NAME PLATE      TYPE 3
40 38Q8-11321 [1]   NAME PLATE      TYPE 4
41 39Q6-41800 [2]   RIVET
K. 39Q8-11150 [1]   ROTARY KIT      SEE ILLUST
K. 39Q6-11170 [1]   BLOCK KIT-CYLINDER      SEE ILLUST
K. 39Q8-11160 [1]   RETAINER KIT      SEE ILLUST
K. 39Q6-11700 [1]   SEAL KIT      SEE ILLUST
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4117
Pos. Part No Qty Parts name Comments
*. 38N8-10150 [1]   SWING MOTOR ASSY      TYPE 3
*. 38K8-11100 [1]   SWING MOTOR      TYPE 3
1 39Q8-11110 [1]   CASING
K2. 39Q6-11660 [1]   SEAL-OIL
3 39Q8-11120 [1]   SHAFT
4 S601-040004 [1]   RING-SNAP
5 39Q8-11130 [1]   BEARING-ROLLER(R/GEAR)
6 39Q8-11140 [1]   BEARING-ROLLER(COVER)
7 39Q6-11150 [1]   PLATE-SWASH
K8. 39Q6-11180 [1]   BLOCK-CYLINDER
K9. 39Q6-41290 [9]   SPRING
K10. 39Q8-11170 [1]   GUIDE-BALL
K11. 39Q6-11210 [1]   PLATE-RETAINER
K12. 39Q6-11220 [9]   PISTON ASSY
13 39Q6-41361 [5]   PLATE-FRICTION
14 39Q6-41370 [5]   PLATE-SEPARATED
15 39Q6-11250 [1]   PISTON-PARKING
16 39Q8-11180 [26]   SPRING
17 S471-800454 [1]   PIN-SPRING
K18. Y172-043004 [1]   O-RING
K19. Y172-041004 [1]   O-RING
20 39KB-11270 [1]   PLATE-VALVE
21 S471-800254 [2]   PIN-SPRING
K22. Y172-042004 [1]   O-RING
23 39Q6-11281 [1]   CASING A-VALVE
24 39Q6-11290 [2]   VALVE-CHECK
25 39Q6-11300 [2]   SPRING-CHECK VALVE
26 39Q6-11671 [2]   PLUG
K27. S631-040004 [2]   O-RING
28 39Q6-41750 [3]   PLUG
K29. S631-011004 [3]   O-RING
30 39Q8-11190 [2]   RELIEF VALVE ASSY
31 39Q8-11300 [2]   ANTI ROTATING VLV ASSY
32 39Q6-11500 [2]   PLUG
K33. S631-012004 [2]   O-RING
K34. S631-018004 [2]   O-RING
35 39Q6-11510 [1]   VALVE ASSY-TIME DELAY
36 39Q6-11602 [1]   GAUGE ASSY-LEVEL
37 S109-180456 [2]   BOLT-SOCKET
38 S109-180556 [4]   BOLT-SOCKET
39 P220-430202 [1]   PLUG-HEX
K. 39Q8-11150 [1]   ROTARY KIT      SEE ILLUST
K. 39Q6-11170 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-11160 [1]   RETAINER KIT      SEE ILLUST
K. 39Q6-11700 [1]   SEAL KIT      SEE ILLUST
K. 38K8-11710 [1]   VALVE CASING KIT      SEE ILLUST
