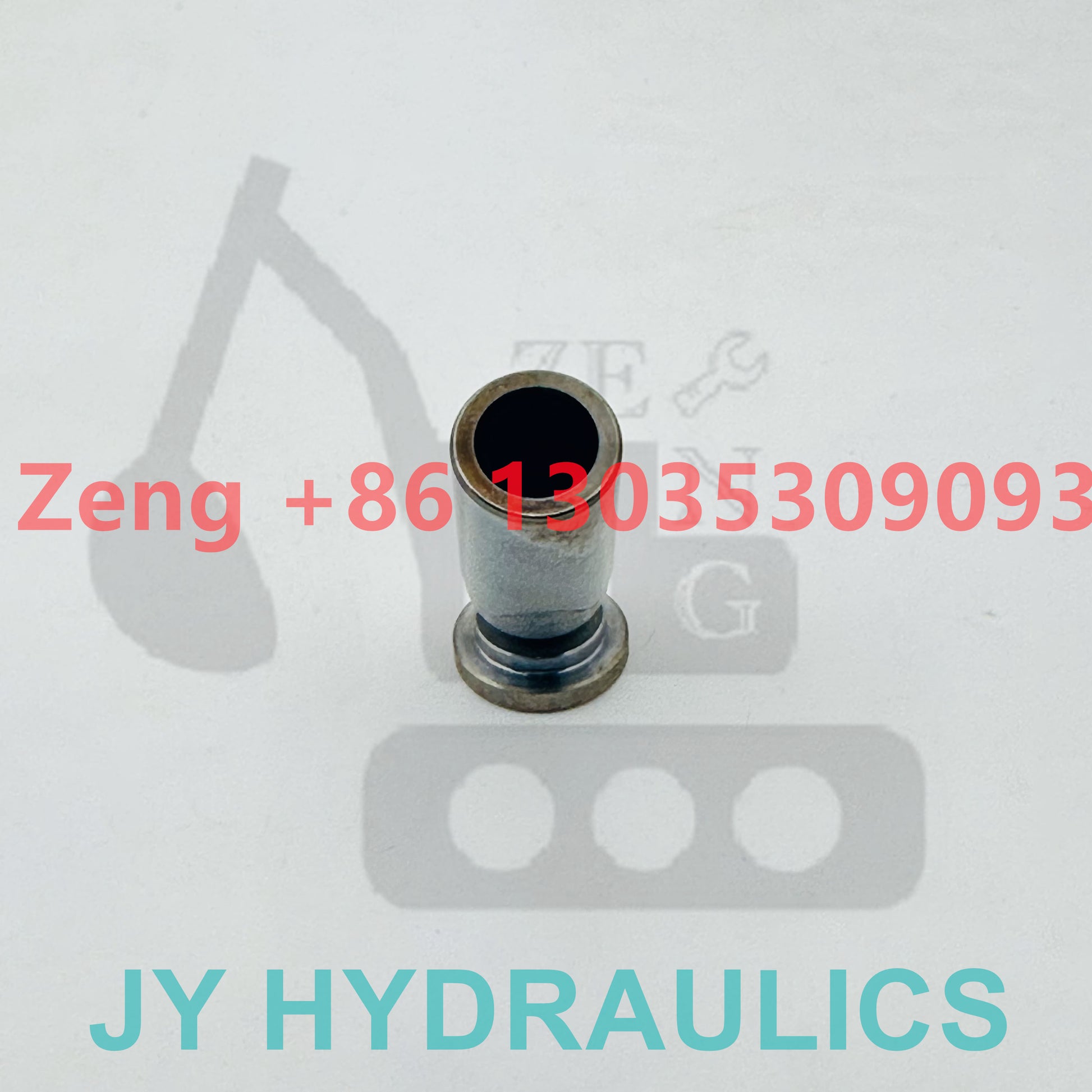

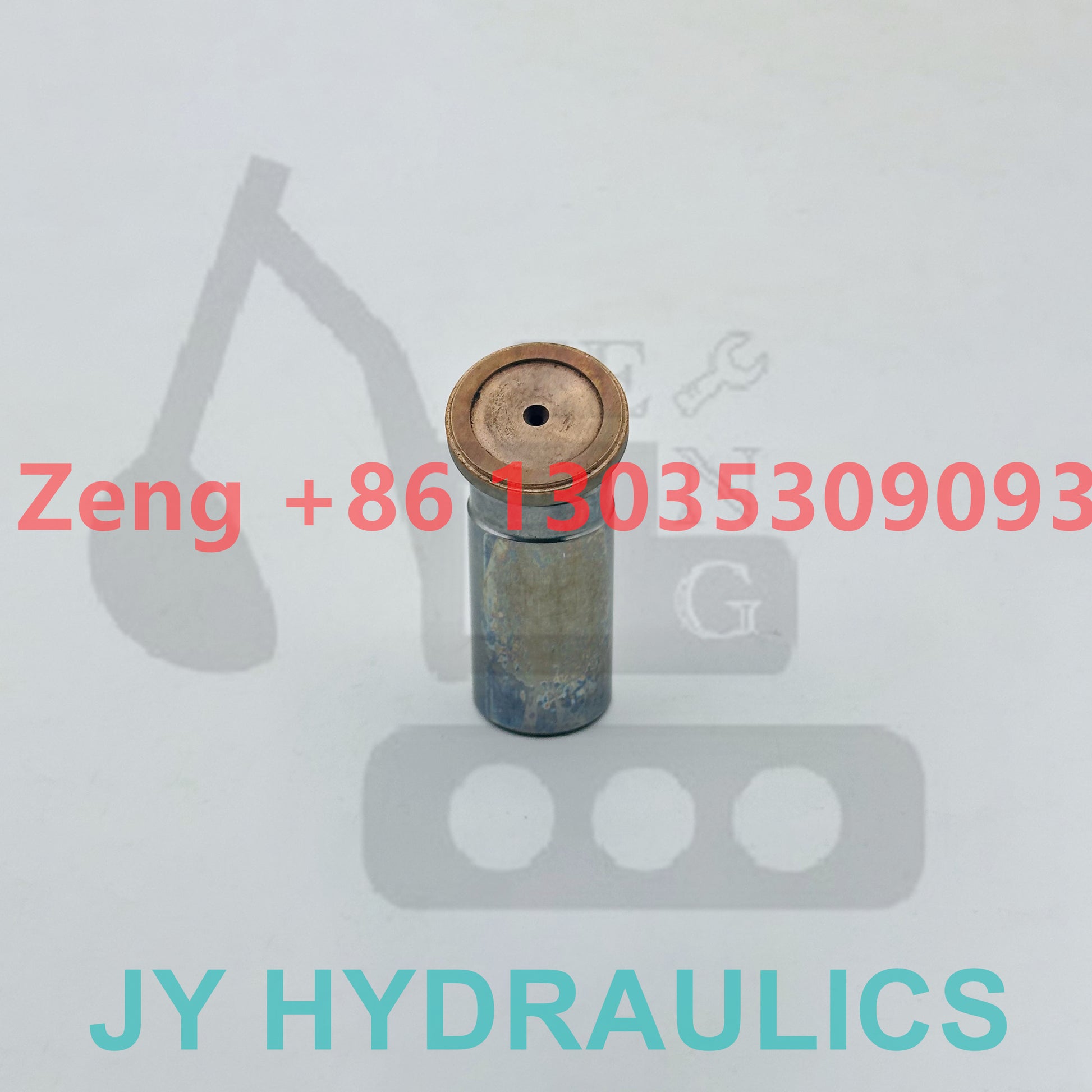

KOMATSU KMF41 swing motor piston shoe piston subassembly piston kit

KOMATSU KMF41 swing motor piston shoe piston subassembly piston kit

定價 $2,000.00 USD
定價 售價 $2,000.00 USD
特價 售罄
結帳時計算運費
KMF41 PC55MR-3 PC60-7 SWING MOTOR
 22M-26-31000  708-7R-00421  708-7R-00420  PC45MR-3 PC55MR-3
Pos. Part No Qty Parts name Comments
     22M-26-31000   [1]   Swing Machinery Assembly Komatsu China
  ["SN: 15001-UP"] |$0.
        708-7R-00421   [1]   Motor Assembly Komatsu China
  ["SN: 15022-UP"] |$1.
        708-7R-00420   [1]   Motor Assembly Komatsu China
  ["SN: 15001-15021", "SCC: A2"] |$2.
     708-7R-04141   [1]   Housing Subassembly Komatsu China
  ["SN: 15022-UP", "SCC: C2"] |$7.
     708-7R-04140   [1]   Housing Subassembly Komatsu China
  ["SN: 15001-15021", "SCC: C2"] |$8.
6   708-7R-11220   [1]   Plug Komatsu China
  ["SN: 15001-UP"] analogs:["890001927"]
7   07002-11223   [1]   O-ring Komatsu China 0.001 kg.
  ["SN: 15001-UP"] analogs:["0700201223"]
8   708-7R-11210   [2]   Valve Komatsu 0.07 kg.
  ["SN: 15001-UP"]
9   722-10-91130   [2]   Spring Komatsu China
  ["SN: 15001-UP"]
10   708-7R-11290   [2]   Plug Komatsu China
  ["SN: 15001-UP"]
11   07002-11823   [2]   O-ring Komatsu 0.36 kg.
  ["SN: 15001-UP"] analogs:["0700201823"]
     708-7R-03020   [2]   Valve Subassembly Komatsu China
  ["SN: 15001-UP"] analogs:["7087R11240", "7087R11230"] |$18.
14   708-7R-11250   [1]   Plug Komatsu China
  ["SN: 15001-UP"]
16   708-7R-11270   [2]   Plug Komatsu China
  ["SN: 15001-UP"]
18   431-40-11210   [1]   O-ring Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["0289102126"]
19   720-68-19610   [2]   Pin Komatsu 0.002 kg.
  ["SN: 15001-UP", "SCC: C2"]
20   01252-61230   [4]   Bolt, Hexagon Socket Head Komatsu 0.044 kg.
  ["SN: 15001-UP", "SCC: C2"]
Pos. Part No Qty Parts name Comments
     22M-26-31000   [1]   Swing Machinery Assembly Komatsu China
  ["SN: 15001-UP"] |$0.
        708-7R-00421   [1]   Motor Assembly Komatsu China
  ["SN: 15022-UP"] |$1.
        708-7R-00420   [1]   Motor Assembly Komatsu China
  ["SN: 15001-15021", "SCC: A2"] |$2.
1   708-7R-12130   [1]   Shaft Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["7087R12111"]
2   708-7R-12140   [1]   Bearing Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
3   708-7R-12150   [1]   Bearing Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
4   04065-04218   [1]   Ring, Snap Komatsu 0.005 kg.
  ["SN: 15001-UP"]
5   708-7R-13130   [1]   Cylinder Block Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
6   708-7R-13272   [1]   Plate Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["7087R13270"]
7   720-68-19610   [1]   Pin Komatsu 0.002 kg.
  ["SN: 15001-UP", "SCC: C2"]
8   708-7R-13540   [3]   Pin Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
9   708-7R-13530   [2]   Washer Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
10   708-7R-13560   [1]   Spring Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
11   04065-03012   [1]   Ring, Snap Komatsu 0.002 kg.
  ["SN: 15001-UP", "SCC: C2"] analogs:["802250530", "YM22252000300"]
12   708-7R-13590   [1]   Guide, Retainer Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["7087R13510"]
13   708-7R-13370   [1]   Retainer, Shoe Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
14   708-7R-13320   [7]   Piston Subassembly Komatsu 0.56 kg.
  ["SN: 15001-UP", "SCC: C2"]
15   708-7R-13420   [1]   Plate Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
16  708-7R-15131 3
17   708-7R-15122   [2]   Disc Komatsu 0.033 kg.
  ["SN: 15001-UP", "SCC: C2"]
18   708-7R-15211   [1]   Piston Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["7087R15210"]
19   07000-12115   [1]   O-ring Komatsu OEM 0.004 kg.
  ["SN: 15001-UP", "SCC: C2"] analogs:["0700002115"]
20   07000-12085   [1]   O-ring Komatsu China 0.03 kg.
  ["SN: 15001-UP", "SCC: C2"] analogs:["0700002085", "YM24321000850", "R0700012085"]
21   708-7R-15241   [1]   Ring Komatsu China
  ["SN: 15001-UP", "SCC: C2"] analogs:["7087R15220", "7087R15240"]
22   07000-12100   [2]   O-ring Komatsu China 0.01 kg.
  ["SN: 15001-UP", "SCC: C2"] analogs:["0700002100"]
23   708-7R-15230   [10]   Spring Komatsu China
  ["SN: 15001-UP", "SCC: C2"]
1   702-73-04360   [1]   Valve, Relief Komatsu China
  ["SN: 15022-UP"]
1   702-73-04270   [1]   Valve, Relief Komatsu China
