Nabtesco GM35VL travel motor parts

Name: Nabtesco GM35VL travel motor parts
Brand: +8613035309093
Price: 2000.0 USD
Availability: InStock

Nabtesco GM35VL travel motor parts

$2,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

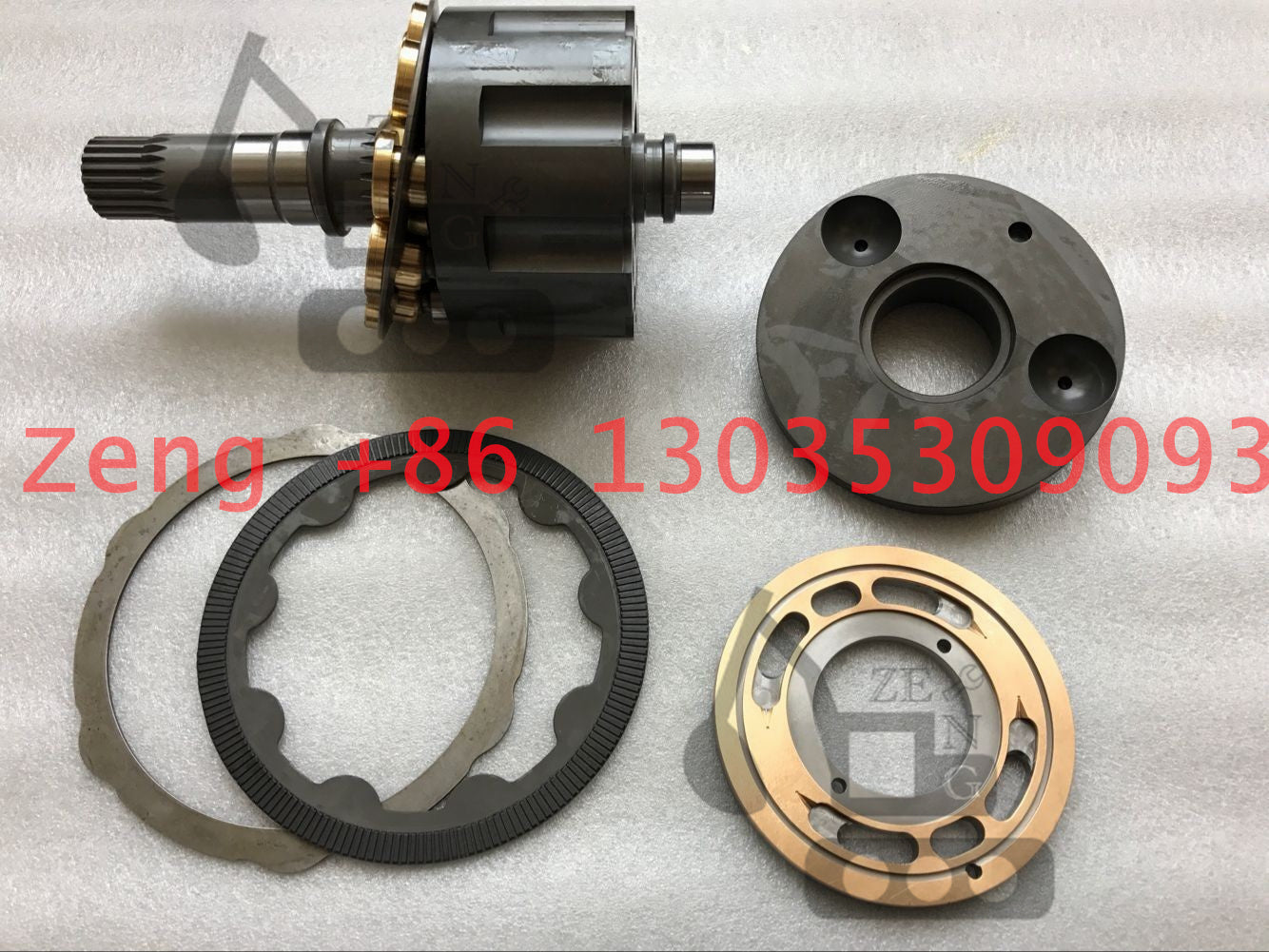

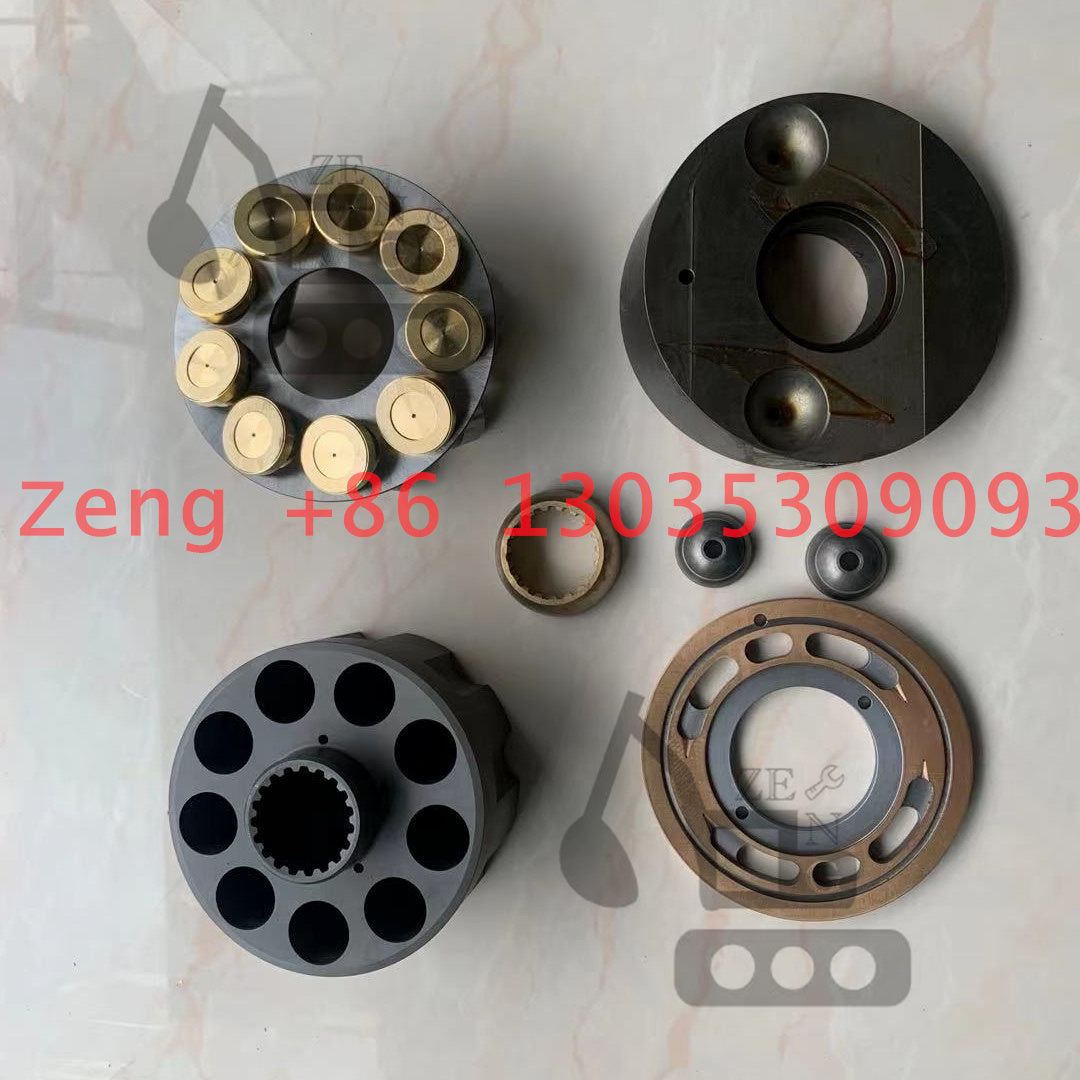

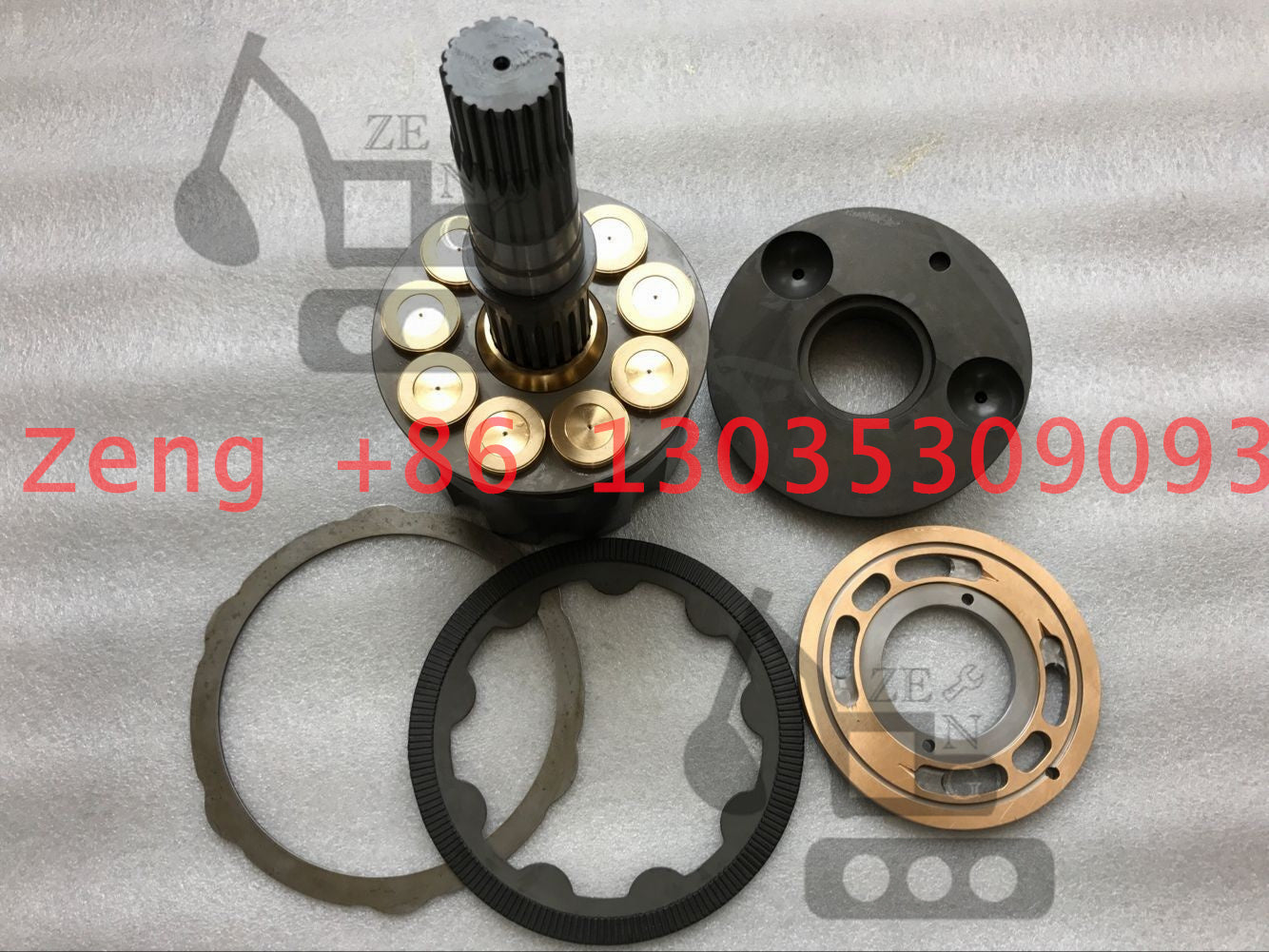

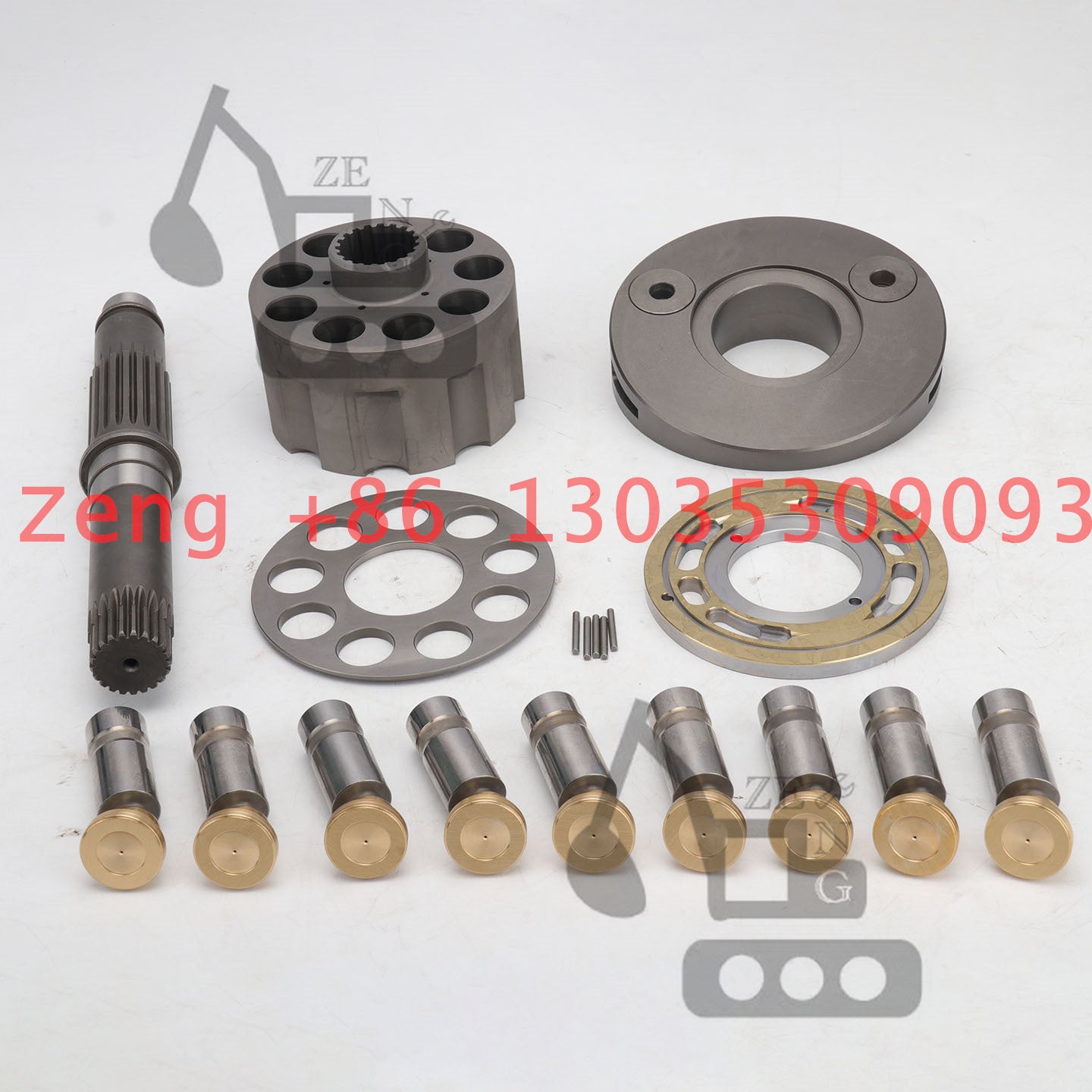

GM35VL R210LC-7 (EM140 & ￠25.5) 31N6-40010 31N6-40011 31EM-40011 XKAH-00373 XKAH-00455 CYLINDER KIT&PISTON KIT XKAH-00321 R210LC-3 R210LC-3H R210LC-7 R210NLC-7 Komatsu PC200-6 PC200-7 PC200-8 Hyundai R210-5 R210-7,Volvo EC210 EC240B,Daewoo DH220-3 DH220-5 DH225-5,Kobelco SK200-6 excavator
Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE ILLUST
*-1.	@	[1]	TRAVEL MOTOR UNIT	SEE 4150
*-6.	XKAH-00321	[1]	C/BLOCK & PISTON KIT
K*61.	XKAH-00068	[1]	PISTON ASSY
N105.	XKAH-00069	[9]	PISTON
N106.	XKAH-00070	[9]	SHOE
104	XKAH-00071	[1]	BLOCK-CYLINDER
107	XKAH-00072	[1]	PLATE-RETAINER
108	XKAH-00073	[1]	BALL-THRUST
110	XKAH-00074	[2]	WASHER
111	XKAH-00318	[1]	COLLAR
114	XKAH-00076	[1]	SPRING
145	XKAH-00091	[1]	RING-SNAP
151	XKAH-00077	[5]	ROLLER
102	XKAH-00081	[1]	SHAFT-MAIN
103	XKAH-00082	[1]	PLATE-SWASH
109	XKAH-00083	[1]	PLATE-TIMING
112	XKAH-00084	[1]	PISTON-PARKING
113	XKAH-00085	[12]	SPRING
115	XKAH-00086	[2]	PLATE-FRICTION
116	XKAH-00087	[2]	PLATE-MATING
K132.	XKAH-00088	[1]	SEAL-OIL
K135.	XKAH-00089	[1]	O-RING
K139.	XKAH-00090	[1]	O-RING
149	XKAH-00092	[1]	BEARING-BALL
150	XKAH-00093	[1]	BEARING-BALL
167	XKAH-00095	[2]	PIVOT
171	XKAH-00034	[2]	PIN-PARALLEL
193	XKAH-00094	[1]	SPRING
*-7.	XKAH-00078	[1]	PISTON KIT-2 SPEED
N161.	XKAH-00079	[1]	PISTON-2 SPEED
N162.	XKAH-00080	[1]	SHOE-2 SPEED
N.	@	[AR]	NOT INDIVIDUALLY SUPPLIED
K.	XKAH-00111	[1]	SEAL KIT	SEE ILLUST
Pos.	Part No	Qty	Parts name	Comments
*.	31N6-40010	[1]	TRAVEL MOTOR ASSY
*.	31N6-40011	[1]	TRAVEL MOTOR ASSY	SEE ILLUST
*.	31EM-40011	[1]	TRAVEL MOTOR ASSY	SEE 4300-4310
*.	31N6-40011	[1]	TRAVEL MOTOR ASSY	SEE ILLUST,4151
N*-1.	XKAH-00373	[1]	TRAVEL MOTOR UNIT
N*-1.	XKAH-00455	[1]	TRAVEL MOTOR UNIT	SEE 4300-4310
N*-1.	XKAH-00373	[1]	TRAVEL MOTOR UNIT
*-8.	XKAH-00096	[2]	RELIEF VALVE ASSY
*-81.	XKAH-00097	[2]	RELIEF VALVE KIT
201	XKAH-00098	[2]	VALVE
202	XKAH-00099	[2]	SLEEVE
203	XKAH-00100	[2]	RETAINER-SPRING
204	XKAH-00101	[2]	PLUG
205	XKAH-00102	[2]	SHIM
206	XKAH-00103	[2]	SPRING
K208.	XKAH-00104	[2]	O-RING
K209.	XKAH-00105	[2]	O-RING
K210.	XKAH-00035	[2]	O-RING
K211.	XKAH-00106	[4]	RING-BACK UP
K217.	XKAH-00107	[4]	RING-BACK UP
K219.	XKAH-00108	[1]	O-RING
K220.	XKAH-00109	[1]	SEAL-PISTON
*-5.	XKAH-00036	[1]	REAR FLANGE ASSY
*-51.	XKAH-00374	[1]	REAR FLANGE KIT
301	XKAH-00038	[1]	REAR FLANGE
323	XKAH-00039	[1]	SPOOL
324	XKAH-00041	[2]	PLUG
325	XKAH-00042	[2]	STOPPER
326	XKAH-00043	[2]	PLUG
327	XKAH-00044	[2]	VALVE-CHECK
328	XKAH-00045	[2]	SPRING
330	XKAH-00046	[2]	SPRING
K336.	XKAH-00047	[2]	O-RING
K337.	XKAH-00048	[2]	O-RING
341	XKAH-00065	[1]	PIN-PARALLEL
343	XKAH-00066	[12]	BOLT-SOCKET
346	XKAH-00049	[2]	PLUG-PT
352	XKAH-00050	[2]	PLUG-RO
354	XKAH-00051	[8]	PLUG-NPTF
K355.	XKAH-00035	[2]	O-RING
357	XKAH-00032	[2]	PLUG-RO
K358.	XKAH-00052	[2]	O-RING
K359.	XKAH-00053	[2]	O-RING
363	XKAH-00054	[1]	SPOOL-2 SPEED
366	XKAH-00055	[1]	SPRING
368	XKAH-00056	[2]	BALL-STEEL
379	XKAH-00057	[1]	FILTER
380	XKAH-00058	[2]	PLUG
381	XKAH-00040	[1]	PISTON
382	XKAH-00059	[2]	PLUG
K383.	XKAH-00060	[2]	O-RING
K384.	XKAH-00027	[2]	O-RING
385	XKAH-00061	[2]	BALL-STEEL
397	XKAH-00062	[1]	ORIFICE
398	XKAH-00063	[4]	PLUG-PT
399	XKAH-00064	[1]	PLATE-NAME
N.	@	[AR]	NOT SUPPLIED PARTS
