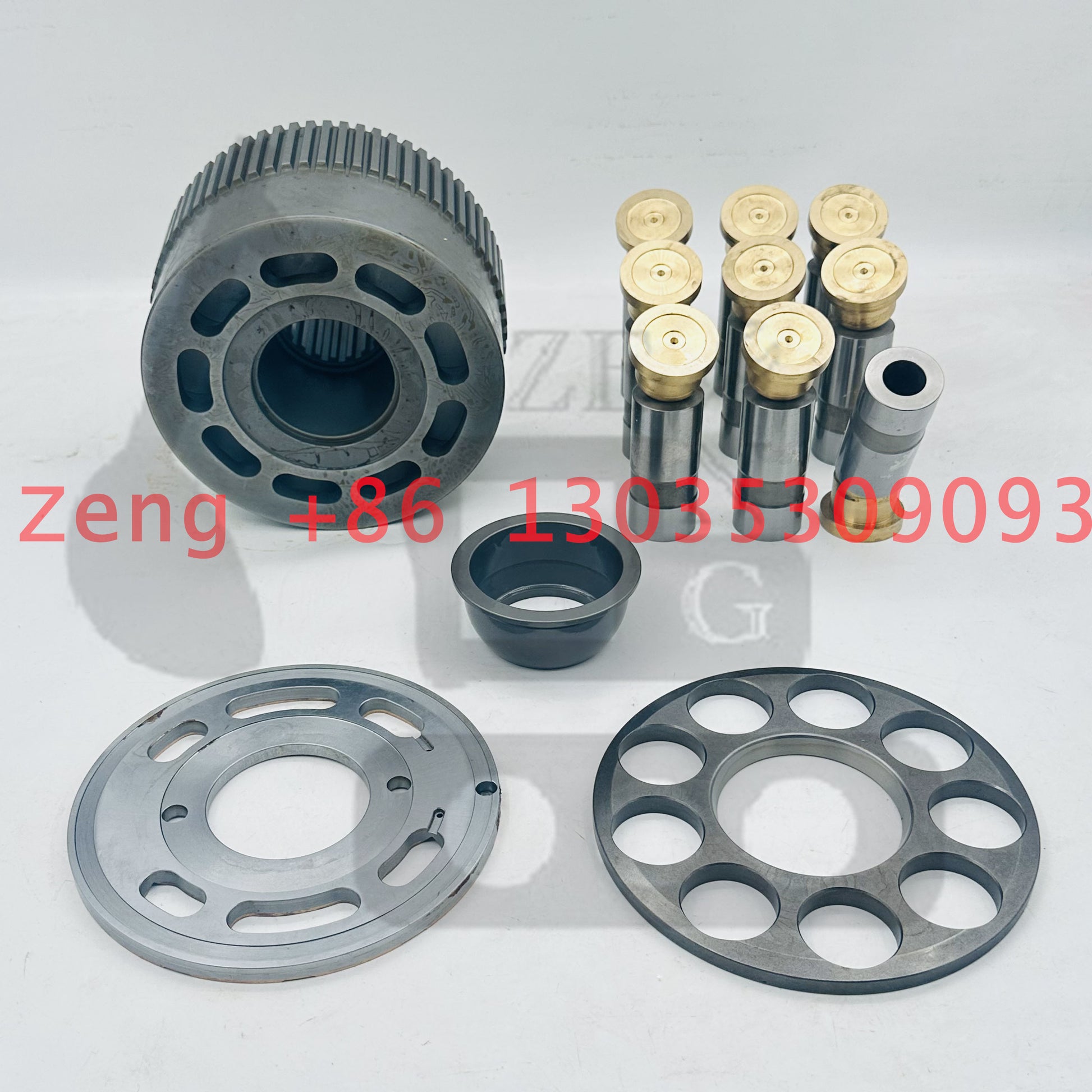

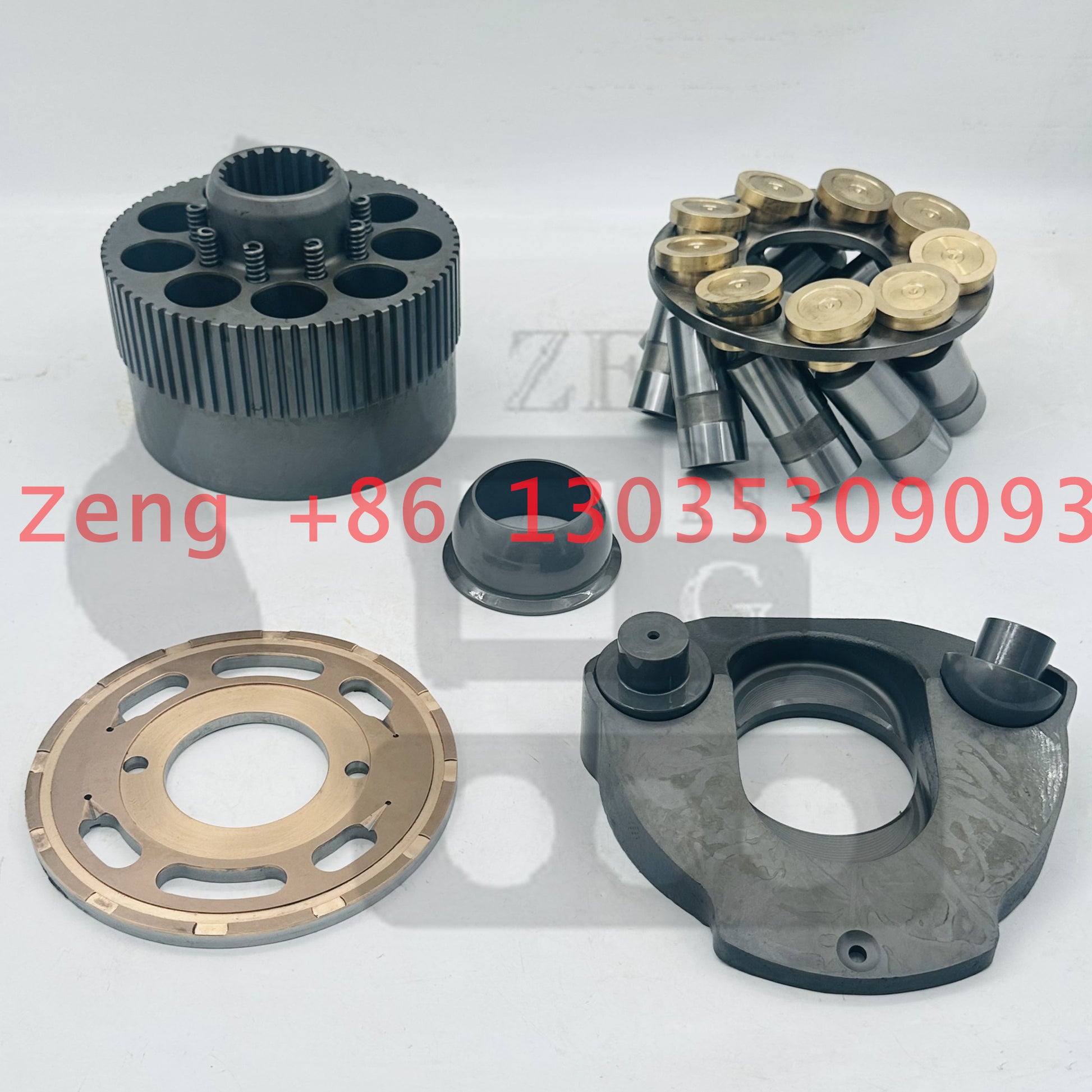

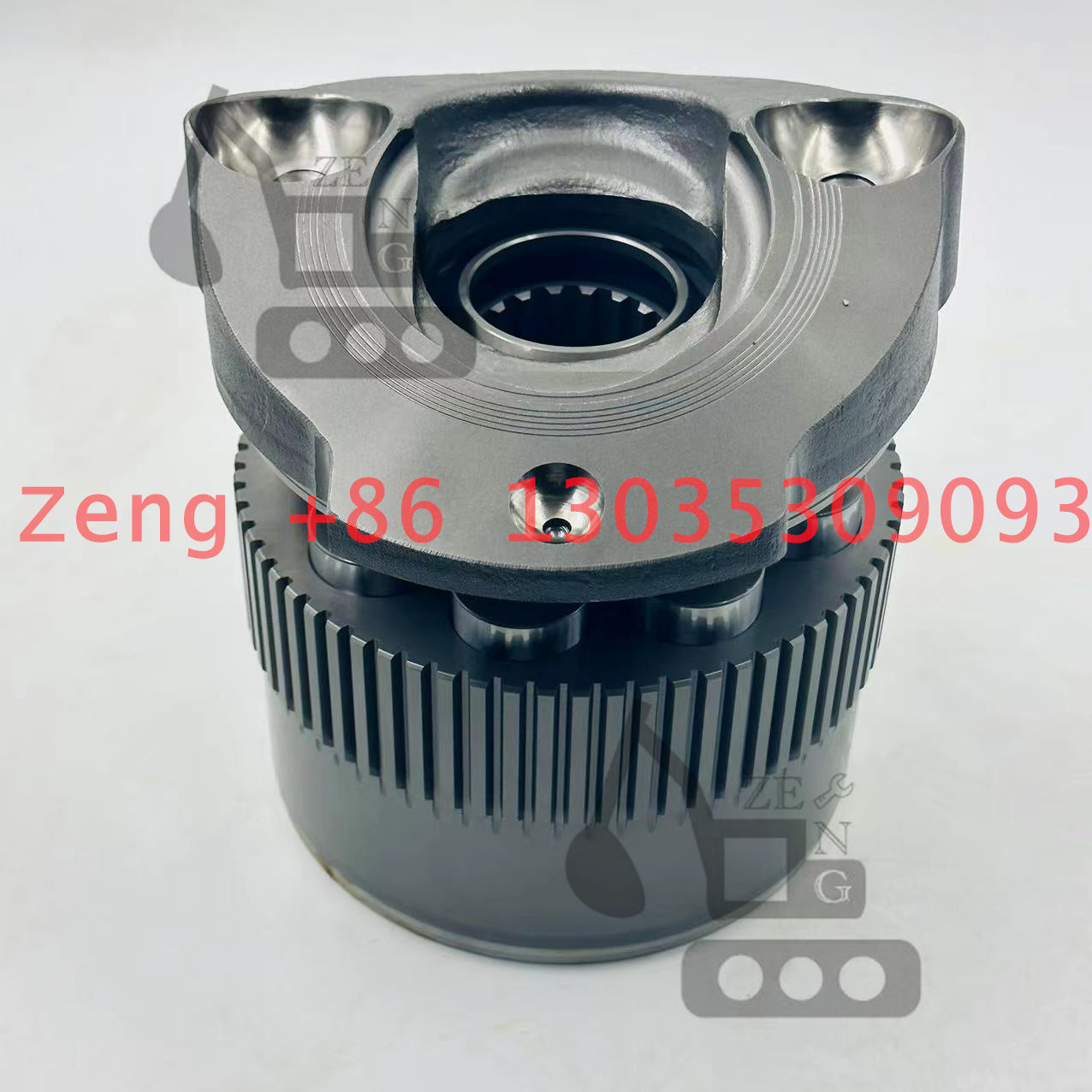

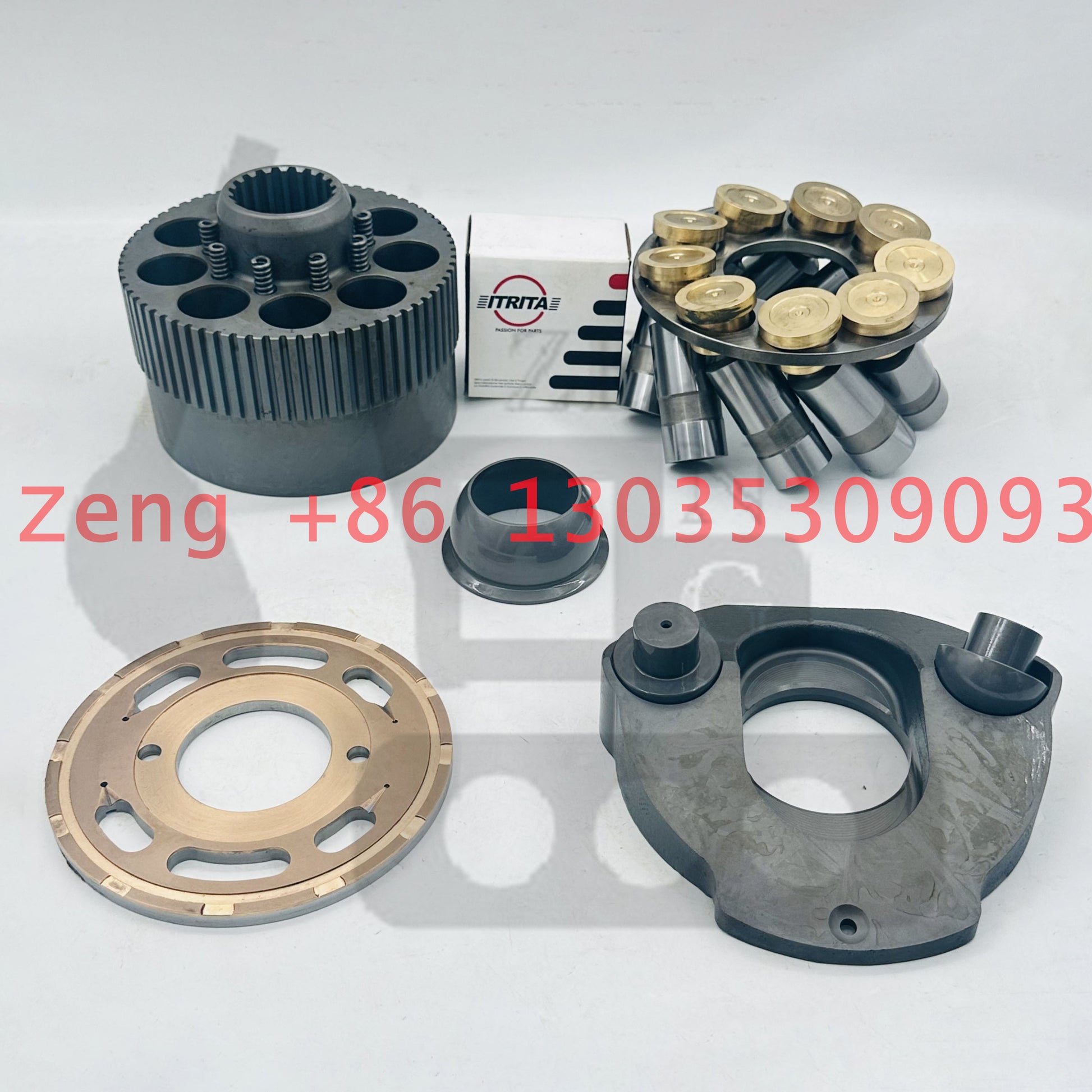

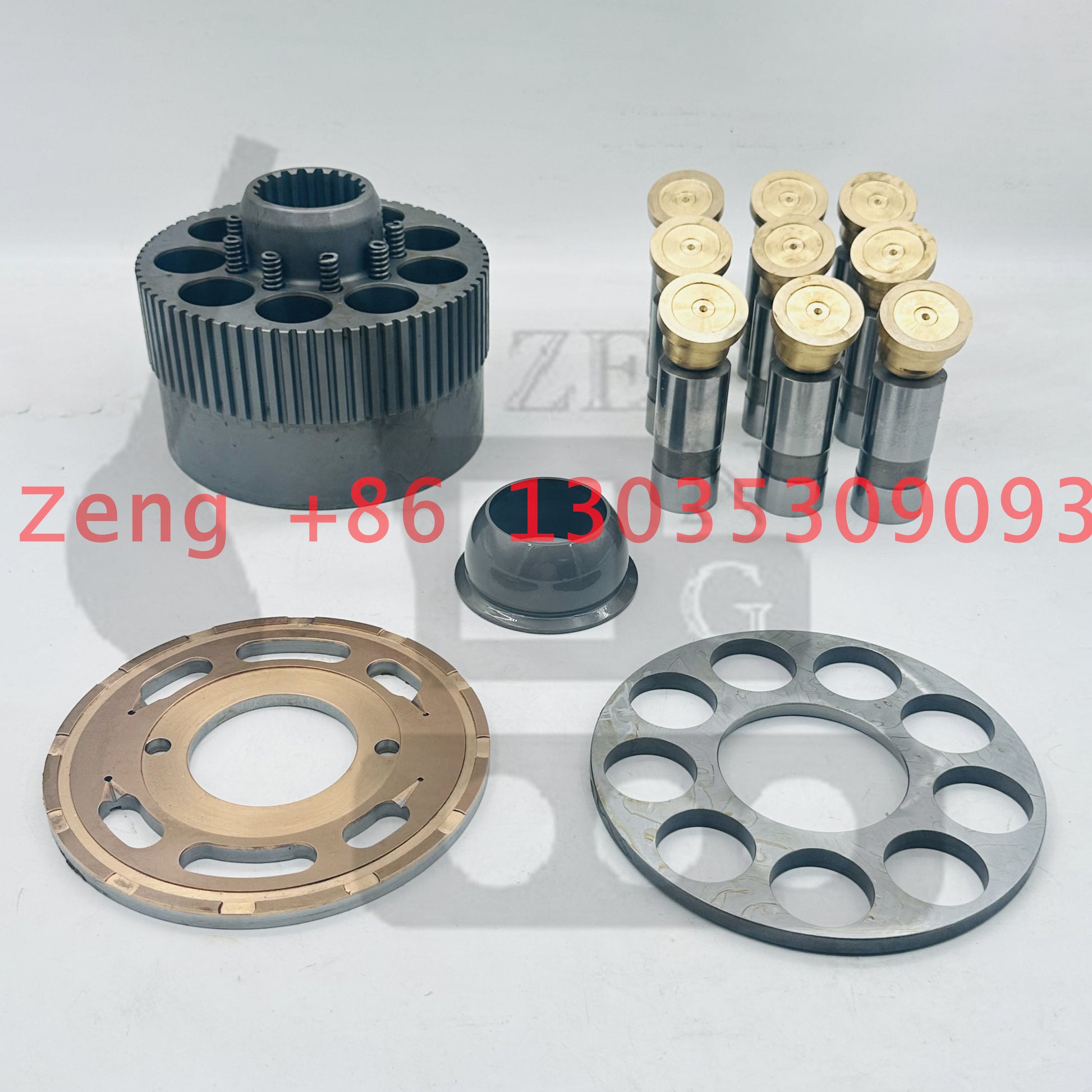

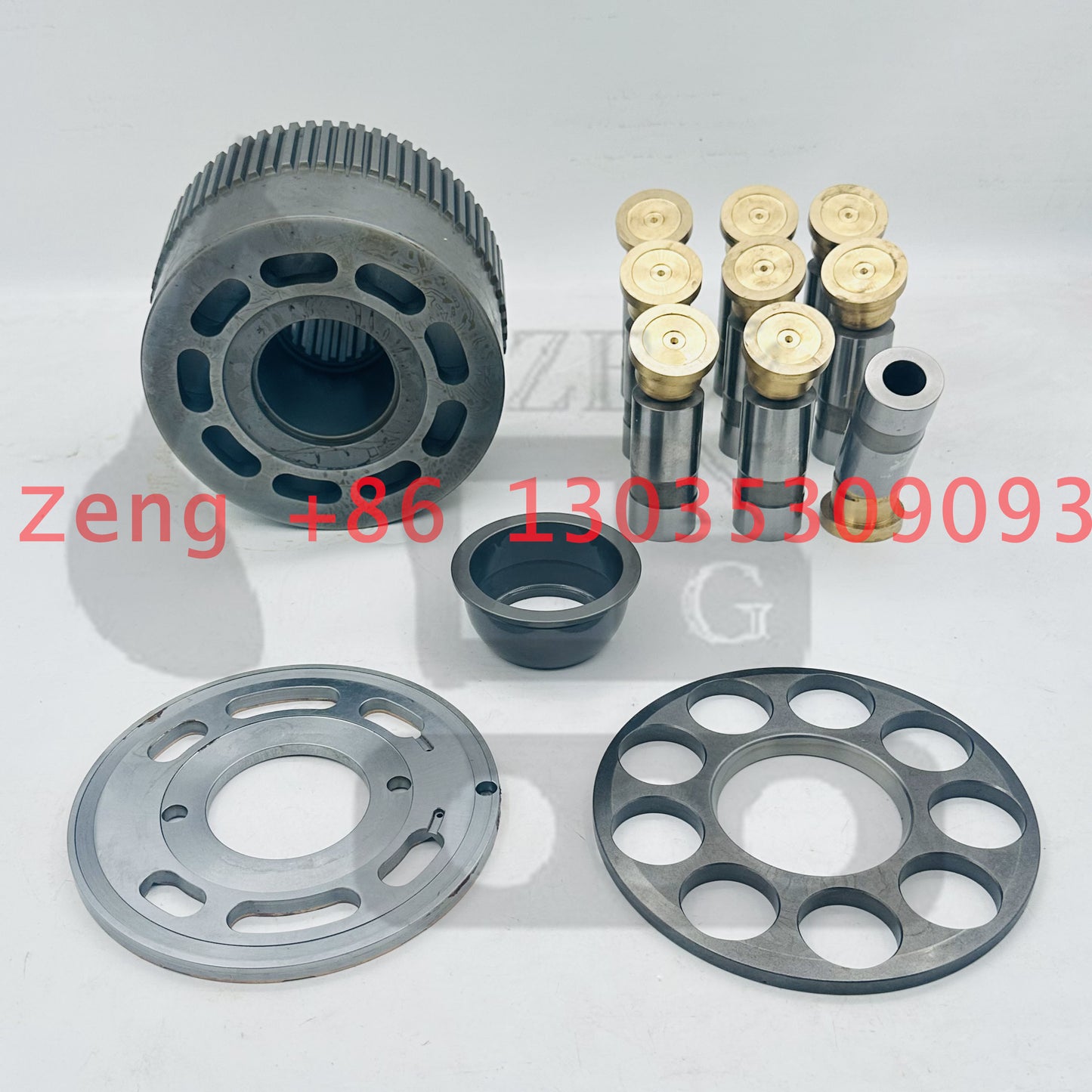

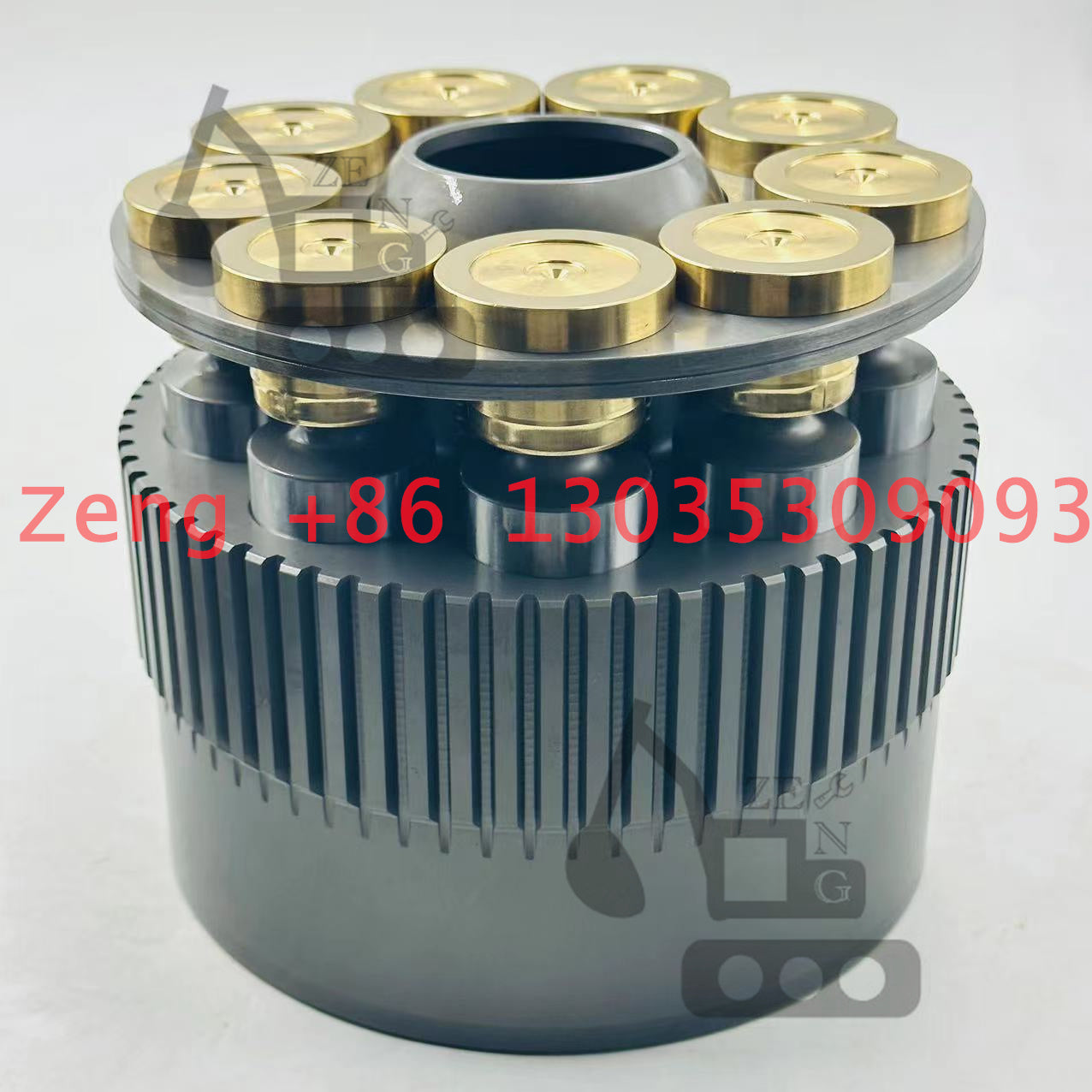

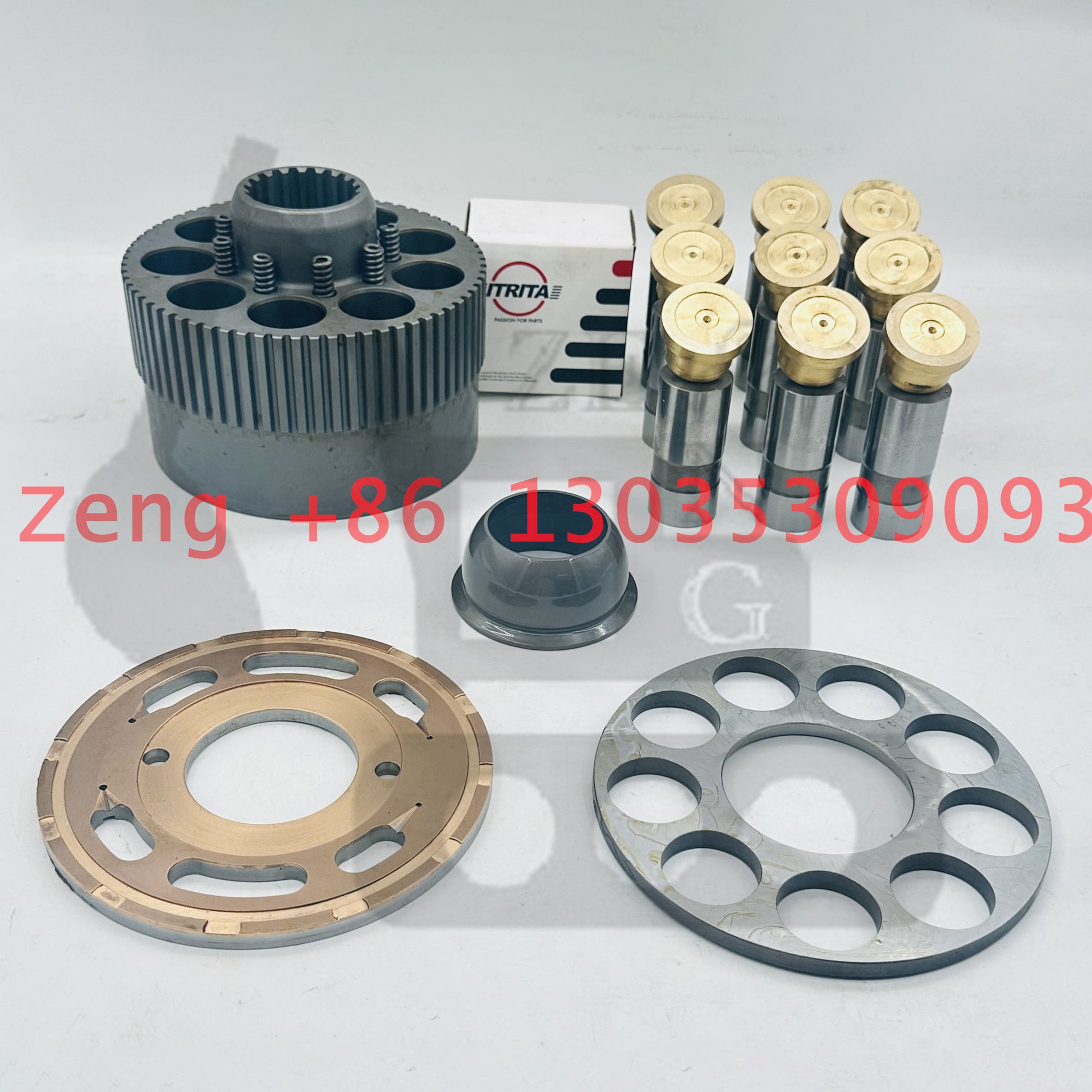

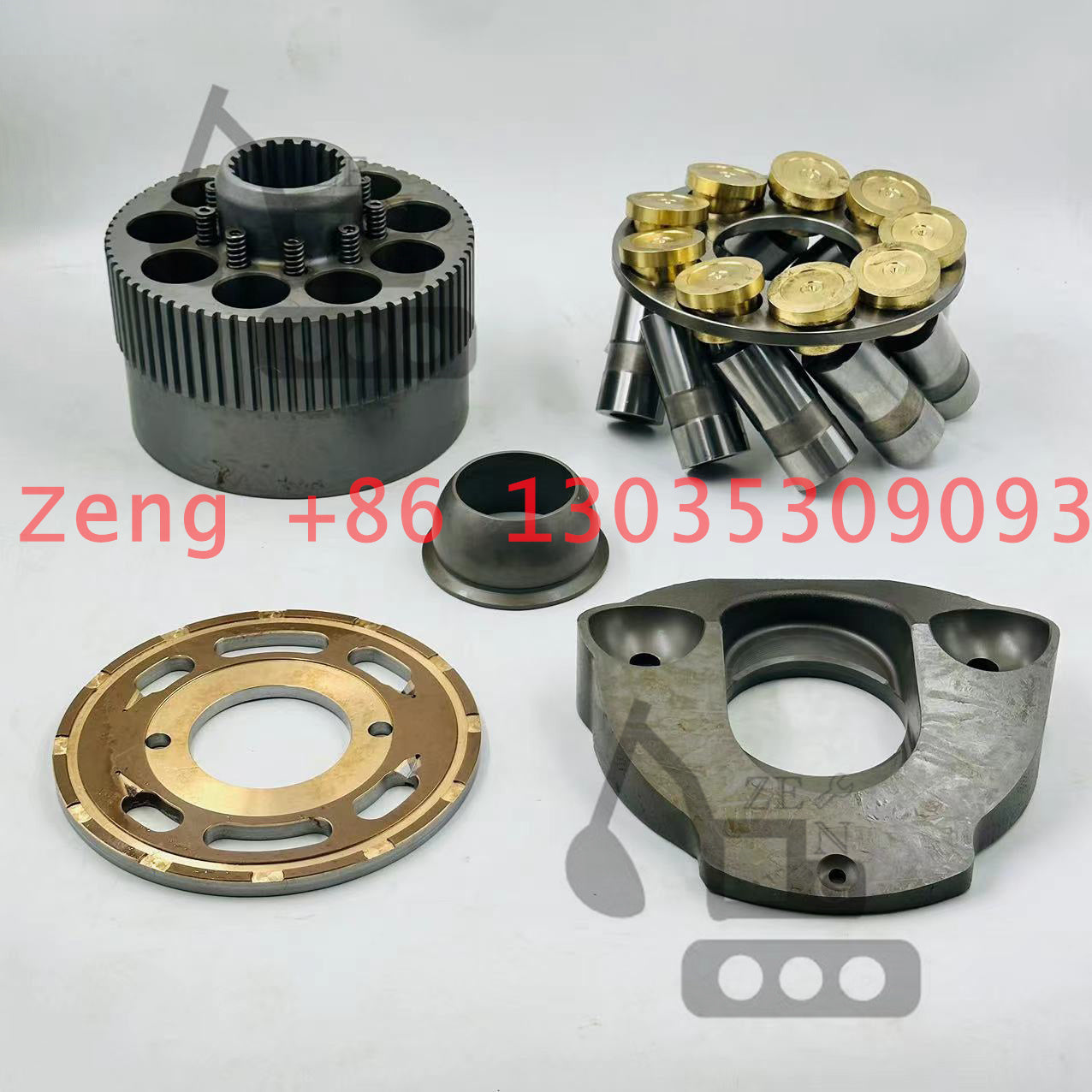

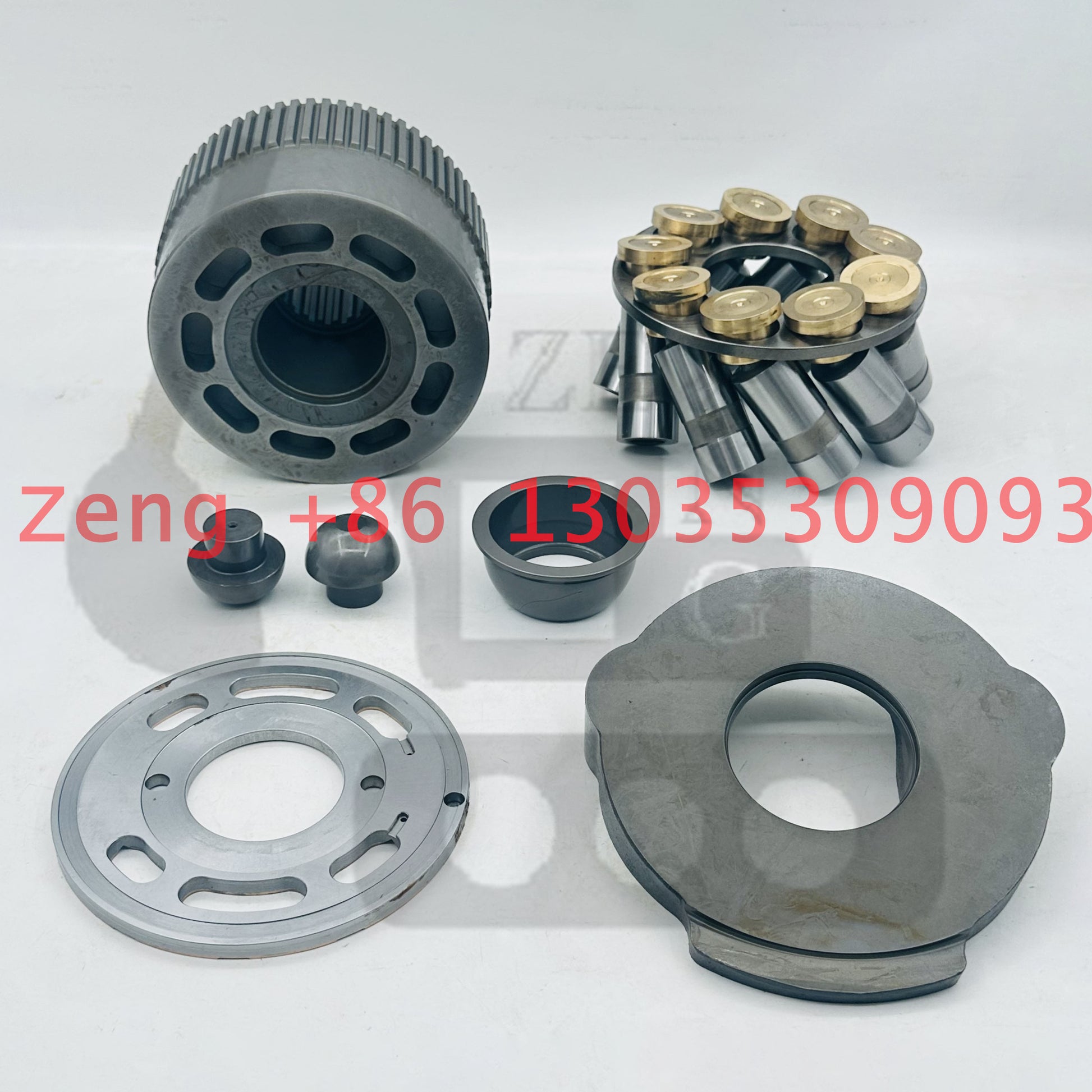

Nabetesco M4V290 19T hydraulic final drive travel motor rotory group and spare parts for Hyundai R260 R300 R330 R320LC-9 R330LC-9A R330LC-9S R330LC-9SH excavator

Nabetesco M4V290 19T hydraulic final drive travel motor rotory group and spare parts for Hyundai R260 R300 R330 R320LC-9 R330LC-9A R330LC-9S R330LC-9SH excavator

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
R300-9 travel motor
39Q8-41100 R250LC-9 R260LC-9A R260LC-9S R290LC-7A R290LC-9 R290LC-9MH R300LC-9A R300LC-9S R300LC-9SH R340LC-7(INDIA)
39Q8-41250 39Q8-41260 39Q8-41290
38K8-41100 38K8-40101 38K8-41100 HX260 L HX300 L R320LC-9 R330LC-9A R330LC-9S R330LC-9SH
R300-9 R320-9 R330-9 R350-9
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4135
*-1. 39Q8-41100 [1]   TRAVEL MOTOR UNIT      TYPE 2
*-1. 38Q8-41100 [1]   TRAVEL MOTOR      TYPE 3
1 39Q8-41110 [1]   CASING
K2. 39Q6-41120 [13]   PLUG
K3. 39Q8-41120 [1]   SEAL-OIL
K4. 39Q8-41130 [1]   BLOCK-THRUST
NK5. S632-095004 [1]   O-RING
6 S602-100001 [1]   RING-RETAINING,C TYPE
NK7. 39Q8-41150 [1]   PISTON
NK8. 39Q8-41160 [1]   SEAL-PISTON
9 39Q8-41170 [1]   SHAFT
10 39Q8-41180 [1]   BEARING-CYL.ROLLER
K11. 39Q8-41190 [1]   BEARING-NEEDLE
12 S601-055001 [1]   RING-RETAINING,C TYPE
13 S751-040004 [1]   RING-RETAINING,C TYPE
14 39Q8-41210 [1]   PLATE-THRUST
15 39Q8-41220 [1]   BALL-STEEL
16 39Q8-41230 [2]   PIVOT
17 39Q8-41240 [1]   PLATE-SWASH
NK18. 39Q8-41270 [1]   BLOCK-CYLINDER
NK19. 39Q8-41280 [9]   SPRING
NK20. 39Q8-41300 [1]   GUIDE-BALL
NK21. 39Q8-41310 [1]   PLATE-RETAINER
NK22. 39Q8-41320 [9]   PISTON ASSY
NK22. 39Q8-41321 [9]   PISTON ASSY
N22-1. 39Q8-41330 [1]   PISTON
N22-1. 39Q8-41331 [1]   PISTON
N22-1. 39Q8-41332 [1]   PISTON
N22-2. 39Q8-41340 [1]   SHOE
23 39Q8-41351 [5]   PLATE-FRICTION
23 39Q8-41351 [6]   PLATE-FRICTION
24 39Q8-41360 [6]   PLATE-SEPARATE
24 39Q8-41360 [7]   PLATE-SEPARATE
25 39Q8-41370 [1]   PISTON-PARKING      SB-I-2013-41.PDF
25 39Q8-41370T1 [1]   PISTON-PARKING      FOR A/S
NK26. 39Q8-41380 [1]   D-RING
NK27. 39Q8-41390 [1]   D-RING
28 39Q8-41400 [1]   PLATE-VALVE
28 39Q8-41600 [1]   PLATE-VALVE
*-2. @ [1]   TRAVEL REDUCTION GEAR      SEE 4137
K. 39Q8-41140 [1]   PLUG KIT      SEE ILLUST
K. 39Q8-41250 [1]   ROTARY KIT      SEE ILLUST
K. 39Q8-41260 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-41290 [1]   RETAINER KIT      SEE ILLUST
K. 39Q8-41440K [1]   COVER KIT-REAR      SEE ILLUST
K. 38Q8-41440K [1]   COVER KIT-REAR      SEE ILLUST
Pos. Part No Qty Parts name Comments
*. 39Q8-40100 [1]   TRAVEL MOTOR ASSY      SEE 4136,4137
*. 39Q8-40101 [1]   TRAVEL MOTOR ASSY      SEE 4136,4137
*. 38Q8-40100 [1]   TRAVEL MOTOR ASSY      TYPE 3
*. 38Q8-40101 [1]   TRAVEL MOTOR ASSY      TYPE 3
*-1. 39Q8-41100 [1]   TRAVEL MOTOR UNIT      TYPE2
*-1. 38Q8-41100 [1]   TRAVEL MOTOR      TYPE 3
K2. 39Q6-41120 [3]   PLUG
K29. 39Q8-41410 [1]   PIN-PARALLEL
30 39Q8-41420 [14]   SPRING
NK31. Y172-049004 [1]   O-RING
K32. S471-800404 [1]   PIN-SPRING
K33. 39Q6-41450 [2]   PIN-PARALLEL
*. 39Q8-41440K [1]   COVER ASSY-REAR      NEW
K34. 39Q8-41440 [1]   COVER-REAR      OLD
K34. 39Q8-41440AS [1]   COVER-REAR      NEW
K35. 39Q8-41450 [1]   MAIN SPOOL ASSY
K36. 39QB-41200 [2]   SEAT-SPRING
K37. 39Q8-41500 [2]   PLUG
K38. 39Q6-41540 [2]   SPRING
NK39. S632-040004 [2]   O-RING
K40. 39Q8-41510 [2]   RESTRICTOR
K41. 39Q8-41520 [2]   SPRING
42 39Q6-41780 [5]   PLUG
K42. 39Q6-41780 [2]   PLUG
NK43. S631-008004 [5]   O-RING
NK44. S631-011004 [2]   O-RING
NK45. S631-012004 [1]   O-RING
NK46. S631-016004 [1]   O-RING
K47. 39Q8-41580 [2]   RELIEF VALVE ASSY
47-3. S631-12S004 [1]   O-RING
47-8. S631-021004 [1]   O-RING
47-12. S631-015004 [1]   O-RING
47-16. 39Q6-41890 [1]   O-RING
K48. 39Q8-41530 [1]   SPOOL
K49. 39Q8-41540 [1]   PLUG
K50. 39Q6-41710 [1]   SEAT-SPRING
K51. 39Q6-41720 [1]   PIN-PARALLEL
K52. 39Q6-41730 [1]   SPRING
K53. 39Q6-41740 [1]   CONNECTOR
NK54. S631-014004 [2]   O-RING
55 S109-180556 [10]   BOLT-SOCKET
K56. 39Q6-41760 [3]   VALVE-CHECK
K57. 39Q6-41770 [3]   SPRING
K58. 39Q6-41750 [2]   PLUG
K59. 39Q6-41880 [1]   RESTRICTOR
K60. 39Q6-41860 [1]   RESTRICTOR
K61. 39Q8-41550 [1]   NAME PLATE      TYPE 2
K61. 38Q8-41550 [1]   NAME PLATE      TYPE 3
K62. 39Q6-41800 [2]   RIVET
K63. 39QB-41340 [3]   PLUG
K64. P220-110104 [2]   PLUG-HEX
NK65. S631-018004 [2]   O-RING
*-2. @ [1]   TRAVEL REDUCTION GEAR      SEE 4137
K. 39Q8-41140 [1]   PLUG KIT      SEE ILLUST
K. 39Q8-41250 [1]   ROTARY KIT      SEE ILLUST
K. 39Q8-41260 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-41290 [1]   RETAINER KIT      SEE ILLUST
K. 39Q8-41560 [1]   O-RING KIT      SEE ILLUST
K. 39Q8-41570 [1]   D-RING KIT      SEE ILLUST
K. 39Q6-41840 [1]   RELIEF VALVE O-RING KIT      SEE ILLUST
K. 39Q8-41440K [1]   COVER KIT-REAR      SEE ILLUST
K. 38Q8-41440K [1]   COVER KIT-REAR      SEE ILLUST
Pos. Part No Qty Parts name Comments
*. 38K8-40100 [1]   TRAVEL MOTOR ASSY
*. 38K8-40101 [1]   TRAVEL MOTOR ASSY
*-1. 38K8-41100 [1]   TRAVEL MOTOR
2 39Q6-41120 [2]   PLUG
K29. 39Q8-41410 [1]   PIN-PARALLEL
NK31. Y172-049004 [1]   O-RING
K32. S471-800404 [1]   PIN-SPRING
K33. 39Q6-41450 [2]   PIN-PARALLEL
K34. 39Q8-41440 [1]   COVER-REAR
K35. 39Q8-41450 [1]   MAIN SPOOL ASSY
K36. 39QB-41200 [2]   SEAT-SPRING
K37. 39Q8-41500 [2]   PLUG
K38. 39Q6-41540 [2]   SPRING
NK39. S632-040004 [2]   O-RING
K40. 39Q8-41510 [2]   RESTRICTOR
K41. 39Q8-41520 [2]   SPRING
K42. 39Q6-41780 [2]   PLUG
NK43. S631-008004 [5]   O-RING
NK44. S631-011004 [2]   O-RING
NK45. S631-012004 [1]   O-RING
NK46. S631-016004 [1]   O-RING
K47. 39Q8-41580 [2]   RELIEF VALVE ASSY
K47-3. S631-12S004 [1]   O-RING
K47-8. S631-021004 [1]   O-RING
K47-12. S631-015004 [1]   O-RING
K47-16. 39Q6-41890 [1]   O-RING
K48. 39Q8-41530 [1]   SPOOL
K49. 39Q8-41540 [1]   PLUG
K50. 39Q6-41710 [1]   SEAT-SPRING
K51. 39Q6-41720 [1]   PIN-PARALLEL
K52. 39Q6-41730 [1]   SPRING
K53. 39Q6-41740 [1]   CONNECTOR
NK54. S631-014004 [2]   O-RING
55 S109-180556 [10]   BOLT-SOCKET
K56. 39Q6-41760 [3]   VALVE-CHECK
K57. 39Q6-41770 [3]   SPRING
K58. 39Q6-41750 [2]   PLUG
K59. 39Q6-41880 [1]   RESTRICTOR
K60. 39Q6-41860 [1]   RESTRICTOR
K61. 38K8-41550 [1]   NAME PLATE
K62. 39Q6-41800 [2]   RIVET
K63. 39QB-41340 [3]   PLUG
K64. P220-110104 [2]   PLUG-HEX
NK65. S631-018004 [2]   O-RING
N*-2. 39Q8-42100 [1]   TRAVEL REDUCTION GEAR
N*-2. 39Q8-42101 [1]   TRAVEL REDUCTION GEAR
K. 39Q8-41140 [1]   PLUG KIT      SEE ILLUST
K. 39Q8-41250 [1]   ROTARY KIT      SEE ILLUST
K. 39Q8-41260 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-41290 [1]   RETAINER KIT      SEE ILLUST
K. 39Q8-41560 [1]   O-RING KIT      SEE ILLUST
K. 39Q8-41570 [1]   D-RING KIT      SEE ILLUST
K. 39Q6-41840 [1]   RELIEF VALVE O-RING KIT      SEE ILLUST
K. 38K8-41440K [1]   COVER KIT-REAR      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
Pos. Part No Qty Parts name Comments
*. 38K8-40100 [1]   TRAVEL MOTOR ASSY
*. 38K8-40101 [1]   TRAVEL MOTOR ASSY
*-1. 38K8-41100 [1]   TRAVEL MOTOR
1 39Q8-41110 [1]   CASING
K2. 39Q6-41120 [13]   PLUG
3 39Q8-41120 [1]   SEAL-OIL
4 39Q8-41130 [1]   BLOCK-THRUST
NK5. S632-095004 [1]   O-RING
6 S602-100001 [1]   RING-RETAINING,C TYPE
NK7. 39Q8-41150 [1]   PISTON
NK8. 39Q8-41160 [1]   SEAL-PISTON
9 39Q8-41170 [1]   SHAFT
10 39Q8-41180 [1]   BEARING-CYL.ROLLER
K11. 39Q8-41190 [1]   BEARING-NEEDLE
12 S601-055001 [1]   RING-RETAINING,C TYPE
13 S751-040004 [1]   RING-RETAINING,C TYPE
14 39Q8-41210 [1]   PLATE-THRUST
15 39Q8-41220 [1]   BALL-STEEL
16 39Q8-41230 [2]   PIVOT
17 39Q8-41240 [1]   PLATE-SWASH
NK18. 39Q8-41270 [1]   BLOCK-CYLINDER
NK19. 39Q8-41280 [9]   SPRING
NK20. 39Q8-41300 [1]   GUIDE-BALL
NK21. 39Q8-41310 [1]   PLATE-RETAINER
NK22. 39Q8-41321 [9]   PISTON ASSY
N22-1. 39Q8-41332 [1]   PISTON
N22-2. 39Q8-41340 [1]   SHOE
23 39Q8-41351 [6]   PLATE-FRICTION
24 39Q8-41360 [7]   PLATE-SEPARATE
25 39Q8-41370 [1]   PISTON-PARKING
25 39Q8-41370T1 [1]   PISTON-PARKING
NK26. 39Q8-41380 [1]   D-RING
NK27. 39Q8-41390 [1]   D-RING
28 39Q8-41600 [1]   PLATE-VALVE
30 39Q8-41420 [14]   SPRING
*-2. @ [1]   TRAVEL REDUCTION GEAR
K. 39Q8-41140 [1]   PLUG KIT      SEE ILLUST
K. 39Q8-41250 [1]   ROTARY KIT      SEE ILLUST
K. 39Q8-41260 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-41290 [1]   RETAINER KIT      SEE ILLUST
K. 39Q8-41560 [1]   O-RING KIT      SEE ILLUST
K. 39Q8-41570 [1]   D-RING KIT      SEE ILLUST
K. 38K8-41440K [1]   COVER KIT-REAR      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
34E7-03050 34E7-03051 31NB-40030 39QB-40100 XKAH-01558 CYLINDER BLOCK KIT XKAH-01336 R450LC-7 R450LC-7A R480LC-9 R480LC-9A R480LC-9MH R480LC-9S R500LC-7 R500LC-7A R520LC-9 R520LC-9A R520LC-9S
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4155,4175
N*-3. XKAH-01558 [1]   HYD MOTOR UNIT
*-31. XKAH-01336 [1]   CYLINDER BLOCK KIT
N*-32. XKAH-01337 [9]   PISTON ASSY
N205. XKAH-01338 [1]   PISTON
N206. XKAH-01339 [1]   SHOE
204 XKAH-01574 [1]   BLOCK-CYLINDER
207 XKAH-01341 [1]   PLATE-RETAINER
208 XKAH-01342 [1]   BALL-THRUST
214 XKAH-01343 [9]   SPRING-CYL BLOCK
*-33. XKAH-01559 [1]   PISTON ASSY
N261. XKAH-01570 [1]   PISTON
N262. XKAH-01561 [1]   SHOE
N202. XKAH-01347 [1]   SHAFT-DRIVE
203 XKAH-01571 [1]   PLATE-SWASH
209 XKAH-01572 [1]   PLATE-TIMING
210 XKAH-00094 [1]   SPRING-2 SPEED
N212. XKAH-01573 [1]   PISTON-PACKING
213 XKAH-00085 [14]   SPRING
215 XKAH-01351 [4]   PLATE-FRICTION
216 XKAH-01352 [3]   PLATE-MATING
230 XKAH-01353 [1]   O-RING
231 XKAH-01354 [1]   O-RING
232 XKAH-00968 [1]   SEAL-OIL
233 XKAH-00194 [1]   O-RING
236 XKAH-00141 [1]   RING-SNAP
237 XKAH-01562 [1]   RING-SNAP
249 XKAH-01356 [1]   BEARING-ROLLER
71 XKAH-00980 [1]   ORIFICE
267 XKAH-01357 [2]   PIVOT
*-1. @ [1]   CONTROL PART ASSY      SEE 4155
*-2. @ [1]   RELIEF VALVE ASSY      SEE 4155
*-4. @ [1]   TRAVEL REDUCTION GEAR      SEE 4175
N. @ [AR]   NOT SUPPLIED PARTS
38QB-40100 38QB-40101 39QB-40100 39QB-40101 39QB-41100  R450LC-7 R480LC-9 R480LC-9A R480LC-9S R480LC-9MH R500LC-7R520LC-9 R520LC-9A R520LC-9S
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4158
*-1. @ [1]   TRAVEL MOTOR UNIT      SEE 4158
1 39QB-41110 [1]   CASING-SHAFT
2 39Q6-41120 [1]   PLUG
K3. P220-430231 [1]   PLUG
K4. 39Q8-41120 [1]   SEAL-OIL
5 S602-100001 [1]   RING-RETAINING,C TYPE
NK6. 39Q8-41150 [1]   PISTON
NK7. 39Q8-41160 [1]   SEAL-PISTON
8 39Q8-41171 [1]   SHAFT
9 39Q8-41180 [1]   BEARING-CYL.ROLLER
10 39Q8-41191 [1]   BEARING-NEEDLE
11 S601-055001 [1]   RING-RETAINING,C TYPE
12 39Q8-41210 [1]   PLATE-THRUST
13 39Q8-41220 [1]   BALL-STEEL
14 39Q8-41230 [2]   PIVOT
15 39QB-41130 [1]   PLATE-SWASH
NK16. 39Q8-41270 [1]   BLOCK-CYLINDER
K17. 39Q8-41280 [9]   SPRING
K18. 39Q8-41300 [1]   GUIDE-BALL
K19. 39Q8-41310 [1]   PLATE-RETAINER
K20. 39Q8-41320 [9]   PISTON ASSY      TYPE 3
K20. 39Q8-41321 [9]   PISTON ASSY      TYPE 4
21 39Q8-41351 [6]   PLATE-FRICTION
22 39Q8-41360 [7]   PLATE-SEPARATE
23 39QA-41370 [1]   PISTON-PARKING
K24. 39Q8-41380 [1]   D-RING
K25. 39Q8-41390 [1]   D-RING
26 39Q8-41400 [1]   PLATE-VALVE      TYPE 3
26 39Q8-41600 [1]   PLATE-VALVE      TYPE 4
*-2. @ [1]   TRAVEL REDUCTION GEAR      SEE 4176
K. 39Q8-41140 [1]   PLUG KIT      SEE ILLUST
K. 39Q8-41250 [1]   ROTARY KIT      SEE ILLUST
K. 39Q8-41260 [1]   CYLINDER BLOCK KIT      SEE ILLUST
K. 39Q8-41290 [1]   RETAINER KIT      SEE ILLUST
K. 39Q8-41560 [1]   O-RING KIT      SEE ILLUST
K. 39Q8-41570 [1]   D-RING KIT      SEE ILLUST
39QB-41220 2 RELIEF VALVE ASSY

Materials

Shipping & Returns

Dimensions

Care Instructions

查看完整資訊

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Kawasaki Best Selling Series

檢視全部

Komatsu Best Selling Series

檢視全部

Caterpillar Best Selling Series

檢視全部
