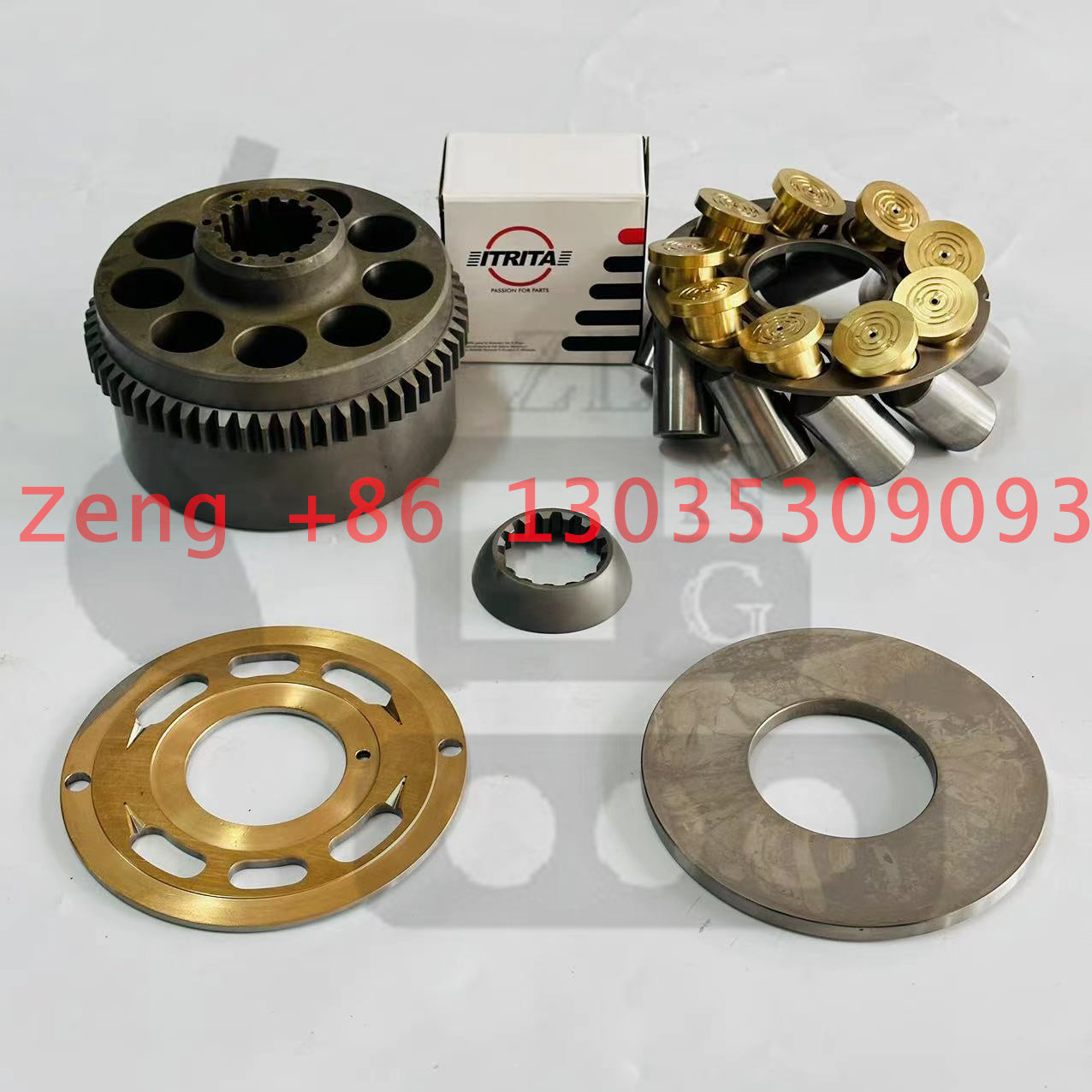

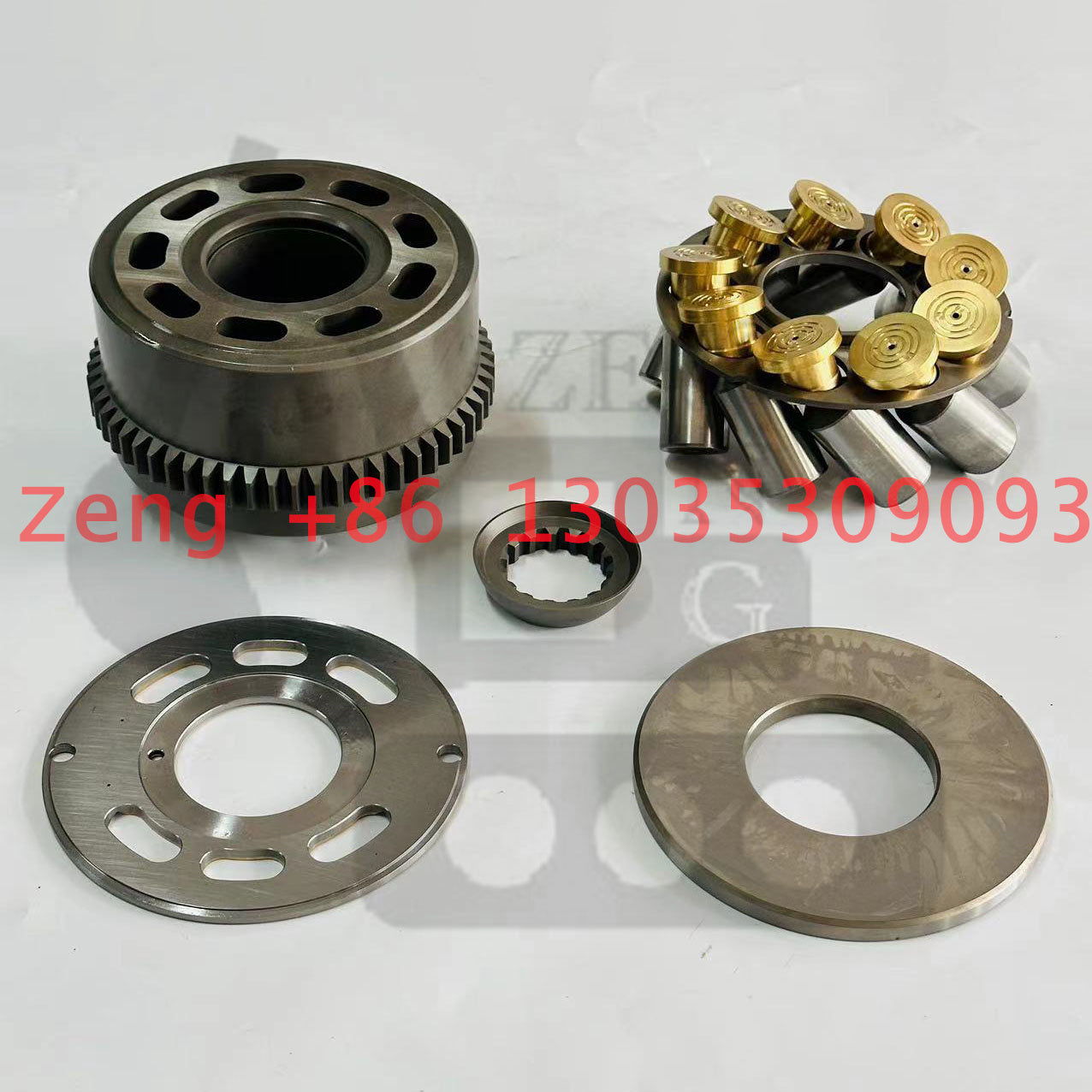

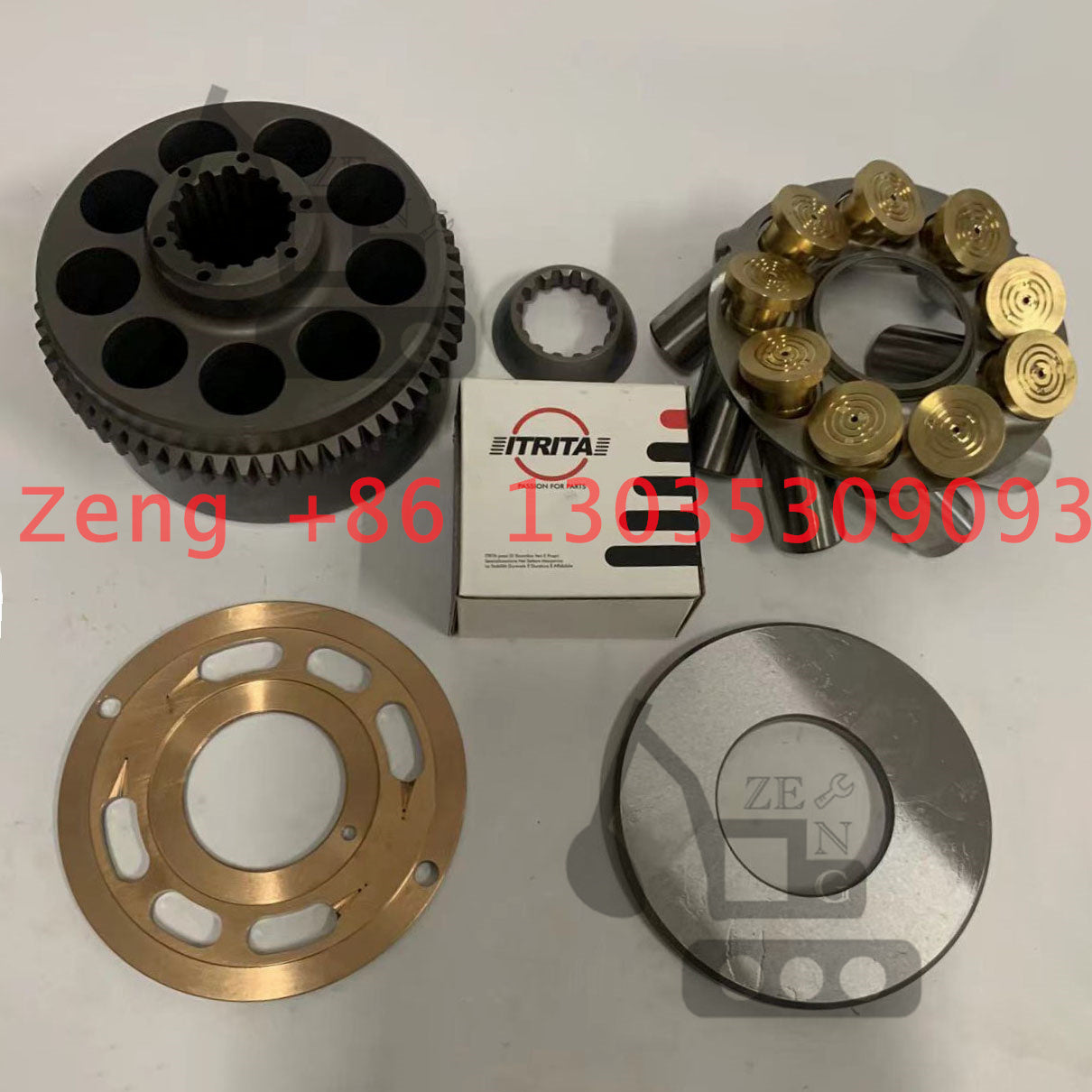

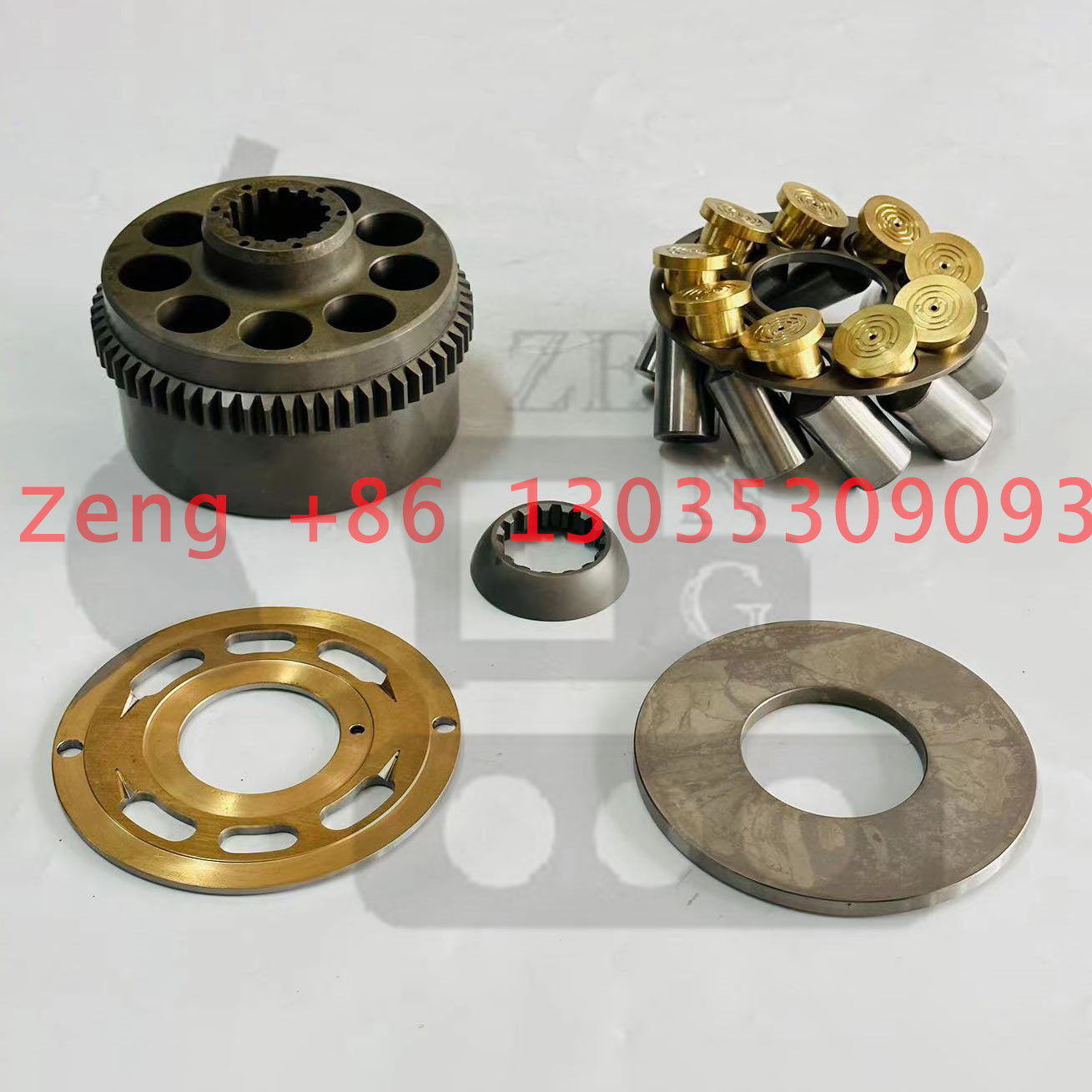

M2X150 swing motor parts

M2X150 swing motor parts

$1,000.00 USD
$1,000.00 USD
特價 售罄
結帳時計算運費。

Kawasaki M2X128 M2X150 M2X170 hydraulic swing motor parts used for
Hitachi EX200-1 EX220 EX400-3 EX400-5
Caterpillar CAT322BL/L CAT325/B/BL/L/LN CAT330/B/BL/L CAT350/L CAT375/L CAT5080 TK1051
Hyundai R160LC-7/9 R170W-7 R180LC-7 R290LC-7 R305LC-7 R320LC-7
Sumitomo S170W-3 S220LC-3 S280LC-3
Kobelco SK200-1/3 SK220-3
Volvo EC290BLC
John Deere J790D J793D excavator

M2X128 M2X150 M2X170(S=18.0)
31N8-10122 31N8-10123 31N8-10200 31N8-10270  31N8-12010
31NB-11141 31NB-11161 31NB-11162
31N9-10291
31Q8-10170 31Q8-10170AR 31Q8-10200 31Q8-10200SG8
31Q9-19150 31Q9-19150SG8
R290LC-7 R290LC7H R300LC-7 R305LC-7 R320LC-7 R450LC-7 R500LC-7 R510LC-7
R290LC-7A R320LC-7A R450LC-7A R500LC-7A
R290LC-9 R320LC-9
R300LC-9A R320LC-9A R330LC-9A R300LC-9S R300LC-9SHR330LC-9S R330LC-9SH
Pos. Part No Qty Parts name Comments
N*. 31N8-10122 [1]   SWING MOTOR ASSY
N*. 31N8-10123 [1]   SWING MOTOR ASSY
*-1. 31N8-12010 [1]   SWING MOTOR UNIT
31 XKAH-00121 [1]   VALVE-BRAKE
51 XKAH-00122 [2]   VALVE-RELIEF
52 XKAH-00115 [1]   BLOCK
101 XKAH-00162 [1]   SHAFT-DRIVE
106 XKAH-00161 [3]   SPACER
111 XKAH-00160 [1]   BLOCK-CYLINDER
113 XKAH-00159 [1]   BUSHING-SPHERICAL
114 XKAH-00158 [1]   SPRING
116 XKAH-00157 [12]   ROD-PUSH
117 XKAH-00156 [1]   SPACER F
118 XKAH-00155 [1]   SPACER R
NS121. XKAH-00154 [9]   PISTON
NS122. XKAH-00153 [9]   SHOE
123 XKAH-00152 [1]   RETAINER
124 XKAH-00151 [1]   PLATE-SHOE
131 XKAH-00150 [1]   PLATE-VALVE
301 XKAH-00149 [1]   CASING
303 XKAH-00546 [1]   CASING-VALVE
304 XKAH-00147 [1]   COVER-FRONT
304 XKAH-00930 [1]   COVER-FRONT
351 XKAH-00146 [2]   PLUNGER
355 XKAH-00145 [2]   SPRING
401 XKAH-00144 [4]   BOLT-SOCKET
432 XKAH-00143 [2]   RING-SNAP
433 XKAH-00142 [1]   RING-SNAP
437 XKAH-00141 [1]   RING-SNAP
438 XKAH-00140 [1]   RING-SNAP
443 XKAH-00139 [1]   BEARING-ROLLER
444 XKAH-00138 [1]   BEARING-ROLLER
451 XKAH-00137 [2]   PIN-SPRING
464 XKAH-00136 [1]   PLUG-VP
468 XKAH-00136 [2]   PLUG-VP
469 XKAH-00135 [2]   PLUG
K471. XKAH-00134 [1]   O-RING
K472. XKAH-00133 [1]   O-RING
K485. XKAH-00052 [1]   O-RING
K487. XKAH-00052 [2]   O-RING
K488. XKAH-00132 [2]   O-RING
K491. XKAH-00131 [1]   SEAL-OIL
K491. XKAH-00929 [1]   SEAL-OIL
702 XKAH-00130 [1]   PISTON-BRAKE
K706. XKAH-00129 [1]   O-RING
K707. XKAH-00128 [1]   O-RING
712 XKAH-00127 [20]   SPRING-BRAKE
742 XKAH-00126 [2]   PLATE-FRICTION
743 XKAH-00125 [3]   PLATE-SEPERATION
744 XKAH-00120 [2]   PLUG
745 XKAH-00119 [1]   PLUG
746 XKAH-00118 [1]   PLUG
841 XKAH-00114 [2]   BOLT-SOCKET
993 XKAH-00124 [1]   PLUG
994 XKAH-00123 [1]   PLUG
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4110
K. XKAH-00465 [1]   SEAL KIT      SEE ILLUST
S. XKAH-00615KT [1]   PISTON ASSY      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
Pos. Part No Qty Parts name Comments
*. 31N9-10291 [1]   SWING MOTOR ASSY
*-1. 31N8-10270 [1]   SWING MOTOR UNIT
1 XKAY-01929 [1]   BODY
2 XKAY-01520 [1]   SHAFT
3 XKAY-01521 [3]   RING-SNAP
4 XKAY-01522 [3]   PLATE
5 XKAY-01523 [1]   BEARING-ROLL
6 XKAY-01524 [1]   COVER
k7. XKAY-01525 [1]   SEAL-OIL
k8. XKAY-01526 [1]   O-RING
9 XKAY-00523 [1]   RING-SNAP
10 XKAY-01527 [1]   PLATE-SHOE
*-11. XKAY-01528 [1]   ROTORY KIT
*-111. XKAY-01529 [1]   BLOCK KIT-CYL
11 XKAY-01530 [1]   BLOCK-CYLINDER
12 XKAY-01531 [1]   SEAT-SPRING
13 XKAY-01532 [1]   SPRING-CYLINDER
14 XKAY-01533 [1]   RING-SNAP
15 XKAY-01534 [1]   PIN
*-112. XKAY-01535 [1]   RETAINER KIT
16 XKAY-01536 [1]   GUIDE-BALL
17 XKAY-01537 [11]   PLATE-SET
*-113. XKAY-01538 [1]   PISTON KIT
18 XKAY-01539 [9]   PISTION ASSY
19 XKAY-01540 [3]   PLATE
20 XKAY-01541 [2]   PLATE-FRICTION
k21. XKAY-01542 [1]   O-RING
k22. XKAY-01543 [1]   O-RING
23 XKAY-01544 [1]   PISTON-BRAKE
24 XKAY-01545 [20]   SPRING-B/P
25 XKAY-01546 [1]   COVER-REAR
k26. XKAY-01547 [1]   O-RING
27 XKAY-01875 [1]   BEARING-ROLLER
28 XKAY-01549 [1]   RING-SNAP
29 XKAY-00510 [2]   PIN
30 XKAY-01550 [1]   PLATE-VALVE
31 XKAY-01551 [4]   BOLT-WRENCH
32 XKAY-00188 [2]   PLUG
k33. XKAY-01150 [2]   O-RING
34 XKAY-00186 [2]   POPPET
35 XKAY-00187 [2]   SPRING
36 XKAY-01552 [2]   REACTIONLESS VLV ASSY
37 XKAY-01553 [2]   PLUG
k38. XKAY-01554 [2]   RING-BACK UP
k39. XKAY-00320 [2]   O-RING
k40. XKAY-01555 [2]   O-RING
41 XKAY-01995 [2]   RELIEF VALVE ASSY
42 XKAY-00150 [2]   PLUG
k43. XKAY-00151 [2]   O-RING
44 XKAY-00975 [1]   PLUG
45 XKAY-00548 [1]   PLUG
46 XKAY-00315 [1]   TIME DELAY VALVE ASSY
47 XKAY-00149 [3]   BOLT-WRENCH
48 XKAY-02141 [1]   GAUGE-LEVEL
49 XKAY-01930 [1]   NAME PLATE
50 XKAY-00277 [2]   RIVET
51 XKAY-01219 [1]   PLUG
*-12. XKAY-01558 [1]   SEAL KIT      SEE ILLUST
Pos. Part No Qty Parts name Comments
*. 31NB-11161 [1]   SWING MOTOR ASSY
*. 31NB-11162 [1]   SWING MOTOR ASSY
*-1. 31NB-11141 [1]   SWING MOTOR
101 XKAH-01078 [1]   SHAFT-DRIVE
106 XKAH-00161 [3]   SPACER
111 XKAH-00160 [1]   BLOCK-CYLINDER M2X150
113 XKAH-00159 [1]   BUSHING-SPHERICAL M2X150
114 XKAH-00158 [1]   SPRING
116 XKAH-01079 [12]   ROD-PUSH
117 XKAH-00156 [1]   SPACER F
118 XKAH-00155 [1]   SPACER R
NS121. XKAH-01080 [9]   PISTON
NS122. XKAH-00153 [9]   SHOE
123 XKAH-01081 [1]   RETAINER
124 XKAH-00151 [1]   PLATE-SHOE M2X150
131 XKAH-01082 [1]   PLATE-VALVE
301 XKAH-01083 [1]   CASING(F)
303 XKAH-01084 [1]   CASING-VALVE,R
304 XKAH-00930 [1]   COVER-FRONT
351 XKAH-01085 [2]   PLUNGER
355 XKAH-00145 [2]   SPRING
401 XKAH-00144 [4]   BOLT-SOCKET
432 XKAH-00143 [2]   RING-SNAP
433 XKAH-00142 [1]   RING-SNAP
437 XKAH-00141 [1]   RING-SNAP
438 XKAH-00140 [1]   RING-SNAP
443 XKAH-00139 [1]   BEARING-ROLLER
444 XKAH-00138 [1]   BEARING-ROLLER
451 XKAH-00137 [2]   PIN-SPRING
464 XKAH-00136 [1]   PLUG-VP
468 XKAH-00136 [2]   PLUG-VP
469 XKAH-00135 [2]   PLUG
K471. XKAH-00134 [1]   O-RING
K472. XKAH-00133 [1]   O-RING
K485. XKAH-00052 [1]   O-RING
K487. XKAH-00052 [2]   O-RING
K488. XKAH-00132 [2]   O-RING
K491. XKAH-00929 [1]   SEAL-OIL
702 XKAH-00130 [1]   PISTON-BRAKE
K706. XKAH-00129 [1]   O-RING
K707. XKAH-00128 [1]   O-RING
712 XKAH-00127 [18]   SPRING-BRAKE
742 XKAH-00549 [2]   PLATE-FRICTION
743 XKAH-00125 [3]   PLATE-SEPERATION
993 XKAH-00124 [1]   PLUG
994 XKAH-00123 [1]   PLUG
51 XKAH-01086 [2]   RELIEF VALVE
051-1. XKAH-01616 [2]   O-RING
31 XKAH-01087 [1]   BRAKE VALVE
031-1. XKAH-01630 [2]   O-RING
031-2. XKAH-01631 [1]   O-RING
744 XKAH-00120 [2]   PLUG
745 XKAH-00119 [1]   PLUG
746 XKAH-00118 [1]   PLUG
52 XKAH-01088 [1]   S/REACTIONLESS VALVE
052-1. XKAH-01628 [1]   O-RING
052-2. XKAH-01629 [1]   O-RING
501 XKAH-01089 [1]   ADAPTER
502 XKAH-00865 [8]   BOLT SOCKET
503 XKAH-00256 [2]   O-RING
S. XKAH-00615KT [1]   PISTON ASSY M2X150
K. XKAH-01060 [1]   SEAL KIT      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
401-00391 SOLAR 225LC-V SOLAR 230LC-V
Pos. Part No Qty Parts name Comments
*. 2401-9242KT [1]   SEAL KIT;SWING MOTOR
*. 704502 [1]   PISTON ASS'Y
-. 401-00391 [1]   MOTOR;SWING
101 132528A [1]   SHAFT;DRIVE
106 113372 [3]   SPACER
111 116635A [1]   BLOCK;CYLINDER
113 113374B [1]   BUSH;SPHERICAL
114 211949A [1]   SPRING;CYLINDER
116 113375A [12]   ROD;PUSH
117 113376 [1]   SPACER(F)
118 113350 [1]   SPACER(R)
121 113351 [9]   PISTON
122 113352B [9]   SHOE
123 113353 [1]   RETAINER
124 113354C [1]   PLATE;SHOE
131 135306 [1]   PLATE;VALVE
301 142696 [1]   CASING;F10
303 142683 [1]   CASING VALVE R
304 113360 [1]   COVER;FRONT
31 722901 [1]   VALVE;BRAKE
351 135309 [2]   PLUNGER
355 214337A [2]   SPRING
401 200741 [4]   BOLT;SOCKET M20X2.5X45
432 202608 [2]   RING;STOP
433 202599 [1]   RING;STOP
437 202558 [1]   RING;LOCK
438 212014 [1]   RING;LOCK
443 225681 [1]   BEARING;ROLLER
444 225680 [1]   BEARING;ROLLER
451 212881 [2]   PIN;SPRING
464 108844 [1]   PLUG;VP
468 108844 [2]   PLUG;VP
469 108892 [2]   PLUG;RO
471 201630 [1]   O-RING
472 212009 [1]   O-RING
485 201689 [1]   O-RING 1BP11
487 201689 [2]   O-RING 1BP11
488 201727 [2]   O-RING
491 211952 [1]   SEAL;OIL
51 233457 [2]   VALVE;RELIEF
52 722944 [1]   VALVE
702 113363 [1]   PISTON;BRAKE
706 212008 [1]   O-RING
707 212010 [1]   O-RING
712 211953A [18]   SPRING;BRAKE
742 125812 [2]   PLATE;FRICTION
743 113365 [3]   PLATE;SEPARATION
993 206699 [1]   PLUG;PT
994 208276 [1]   PLUG;PT
170303-00064 DX300LC-5
Pos. Part No Qty Parts name Comments
*. K9002875A [1]
-. 170303-00064 [1]
101 *NA00342 [1]   CASING
102 405-00013 [1]   SHAFT;DRIVE
103 412-00011 [1]   PLATE;SHOE
104 409-00009 [1]   PISTON ASS'Y
105 223-00024 [1]   RETAINER
106 131002-00290 [1]
107 410102-00023 [1]
108 150102-00438 [1]
109 412-00013 [2]   PLATE,FRICTION
110 352-00014 [3]   PLATE,SEPARATION
111 454-00007 [12]   ROD;PUSH
112 400901-00056 [1]
113 114-00240 [3]   SPACER
114 430221-00070 [2]   PLUG
115 423-00053 [1]   CASING;VALVE
116 129-00060 [1]   SPRING;CYLINDER
117 114-00242 [1]   SPACER
118 129-00062 [20]   SPRING;BRAKE
119 452-00020 [1]   PISTON;BRAKE
121 114-00241 [1]   SPACER
122 113360A [1]   COVER;FRONT
123 430221-00449 [2]
124 129-00061 [2]   SPRING
125 424-00049 [2]   PLUNGER
126 410116-00375 [1]
126-3. S8010300 [2]   O-RING
126-4. 430221-00070 [2]   PLUG
126-5. S2212766 [2]   BOLT;SOCKET M10X1.5X55
127 410127-00214 [2]
128 430221-00070 [1]   PLUG
129 S6511000 [1]   RING;LOCK
130 401106-00181 [1]
132 S5741162 [2]   PIN;SPRING
133 109-00110 [1]   BEARING;ROLLER
135 S6500250 [1]   RING;RETAINING
137 S6510580 [1]   RING;LOCK
140 2180-1217D156 [1]   O-RING
141 180-00221 [1]   O-RING
142 180-00220 [1]   O-RING
143 S6500450 [2]   RING;SNAP
144 109-00099 [1]   BEARING;ROLLER
145 S8011001 [1]   . O-RING
146 S2227561 [4]   BOLT;SOCKET
147 S0506053 [2]   BOLT M6x1.0x70
229 S6500400 [1]   RING,RETAINING
231 800108-00098 [1]
233 420210-00632 [1]
233-1. 110910-00378 [1]
233-2. 2181-1920D4 [1]   ADAPTER PT1/2-PFO1/2
