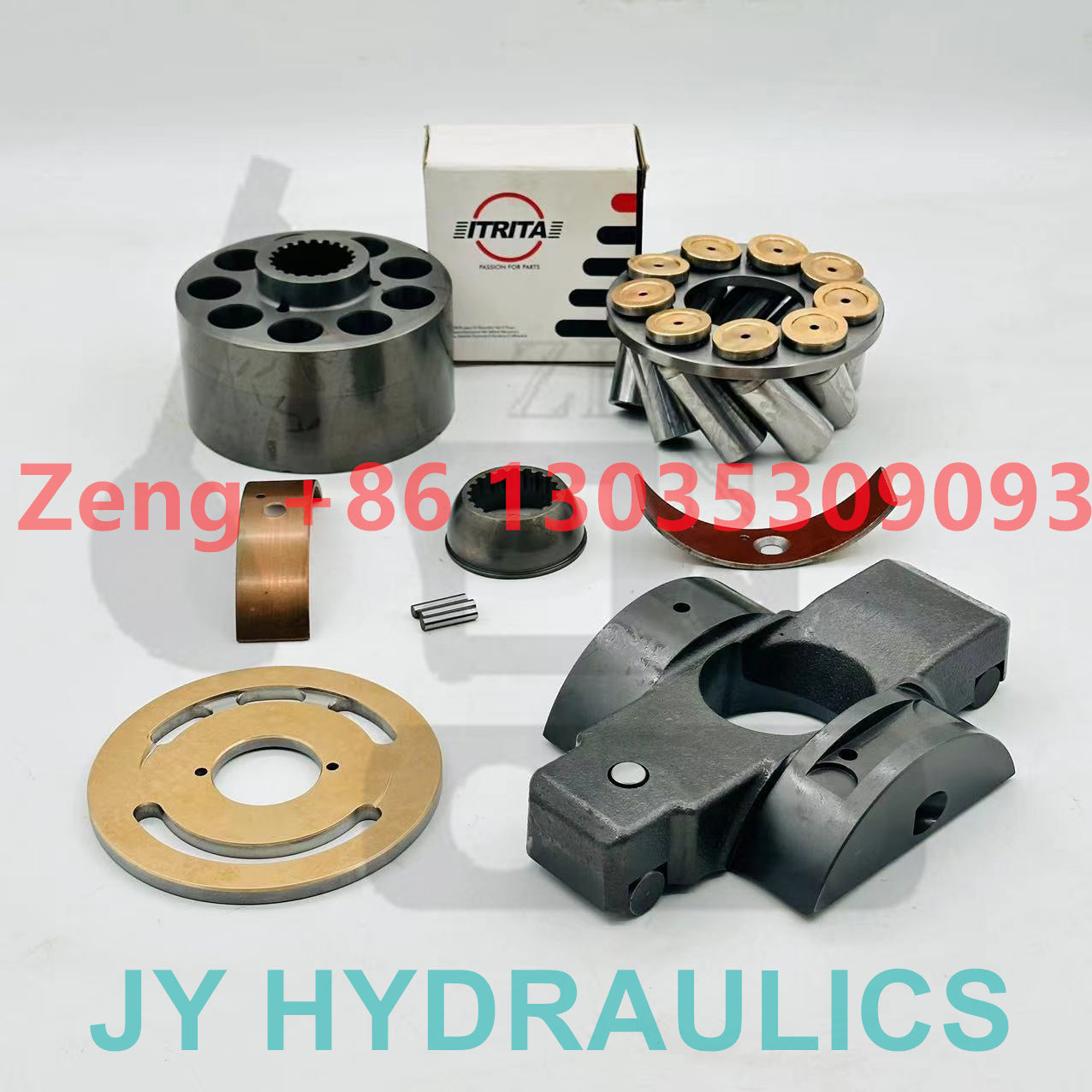

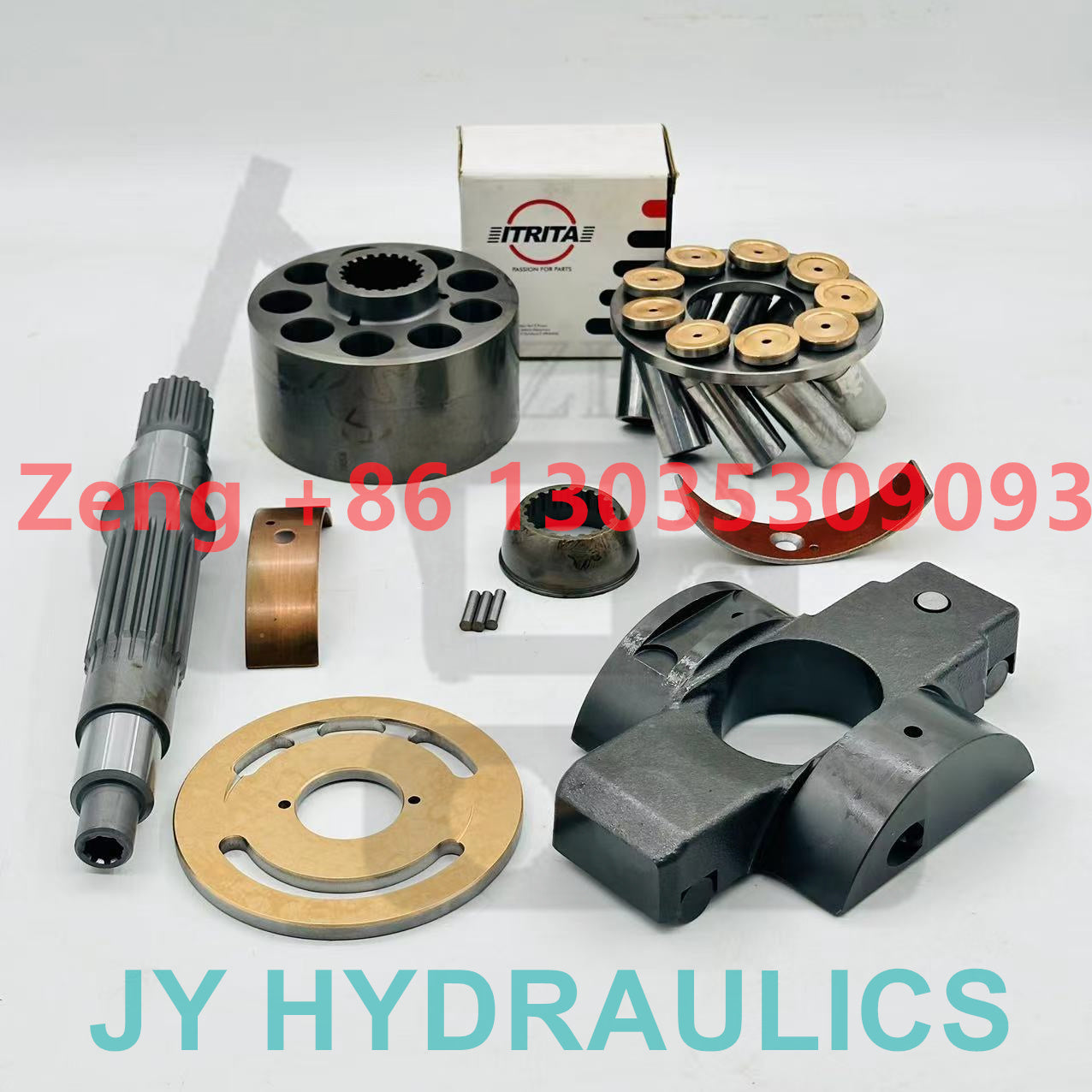

KUBOTA KX161-3 U45-3 EXCAVATOR RD411-61113 PISTON PUMP ASSY PARTS ROTARY GROUP AND SPARE PARTS

KUBOTA KX161-3 U45-3 EXCAVATOR RD411-61113 PISTON PUMP ASSY PARTS ROTARY GROUP AND SPARE PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
RD411-61113 KX161-3 U45-3
50 RC601-42620 [1]   COUPLING
70 RD411-61113 [1]   ASSY PUMP PISTON
Pos. Part No Qty Parts name Comments
10 RD411-61113 [1]   ASSY PUMP PISTON
20 RP801-79080 [1]   BEARING,NEEDLE
30 RD411-69210 [1]   BEARING,NEEDLE
40 RP401-79090 [1]   SEAL,OIL
50 04611-00420 [1]   CIR-CLIP,INTERNAL
60 RD411-69220 [1]   SHAFT
70 RD201-69210 [1]   WASHER,THRUST
80 RD101-69560 [1]   WASHER,THRUST
90 RD411-69232 [1]   GASKET
100 68493-71450 [3]   PIN,STRAIGHT
105 04810-00030 [1]   O RING
110 RD411-69242 [2]   BUSH
120 RD411-69250 [2]   BOLT
130 RD411-69260 [1]   PLATE VALVE
140 RD411-69272 [1]   PIN
150 04810-00080 [6]   O-RING
160 RD201-69420 [17]   PLUG
170 RD118-69280 [1]   ORIFICE
180 RD411-69290 [1]   STOPPER
190 RD118-69310 [1]   PIN
200 RD411-69320 [1]   SPRING
210 RD411-69330 [1]   SPRING
220 RD411-69340 [2]   SEAT,SPRING
230 04810-00110 [3]   O - RING 2,4*10,8
240 04810-00210 [1]   O - RING
250 RD411-69350 [1]   NUT
260 RD118-69400 [1]   PUMP,GEAR
270 RD118-69380 [1]   O RING
280 01311-10845 [2]   BOLT,SOCKET HEAD
290 04012-50080 [2]   WASHER,PLAIN
300 01311-11235 [6]   BOLT,SOCKET HEAD
310 68651-72380 [2]   PLUG
320 RD411-69500 [1]   ASSY VALVE
330 RP401-70800 [1]   PLUG
340 04810-00080 [1]   O-RING
350 04810-00110 [1]   O - RING 2,4*10,8
360 04810-00200 [1]   O RING
370 04810-07220 [1]   O-RING
380 01311-10625 [2]   BOLT,SOCKET HEAD
390 01311-10645 [2]   BOLT,SOCKET HEAD
400 RD411-69360 [1]   STOPPER
410 04810-00140 [1]   O RING
415 04810-00080 [1]   O-RING
416 68651-72450 [1]   PLUG
420 RD411-69372 [1]   PIN
430 RD118-69430 [1]   O-RING
440 RD411-69602 [1]   KIT SEAL
450 RD411-69702 [1]   KIT SEAL
460 RD411-69800 [1]   KIT SEAL VALVE
470 RD411-69102 [1]   KIT PLATE
480 RD411-69200 [1]   ASSY CYLINDER
490 RD411-69302 [1]   ASSY VALVE
