KOMATSU PW160-7K PW160-7 PW160-7E0 EXCAVATOR 20G-60-31101 TRAVEL MOTOR ROTARY GROUP AND SPARE PARTS

KOMATSU PW160-7K PW160-7 PW160-7E0 EXCAVATOR 20G-60-31101 TRAVEL MOTOR ROTARY GROUP AND SPARE PARTS

$5,000.00 USD
$5,000.00 USD
特價 售罄
結帳時計算運費。
20G-60-31101
PW160-7K PW160-7 PW160-7E0

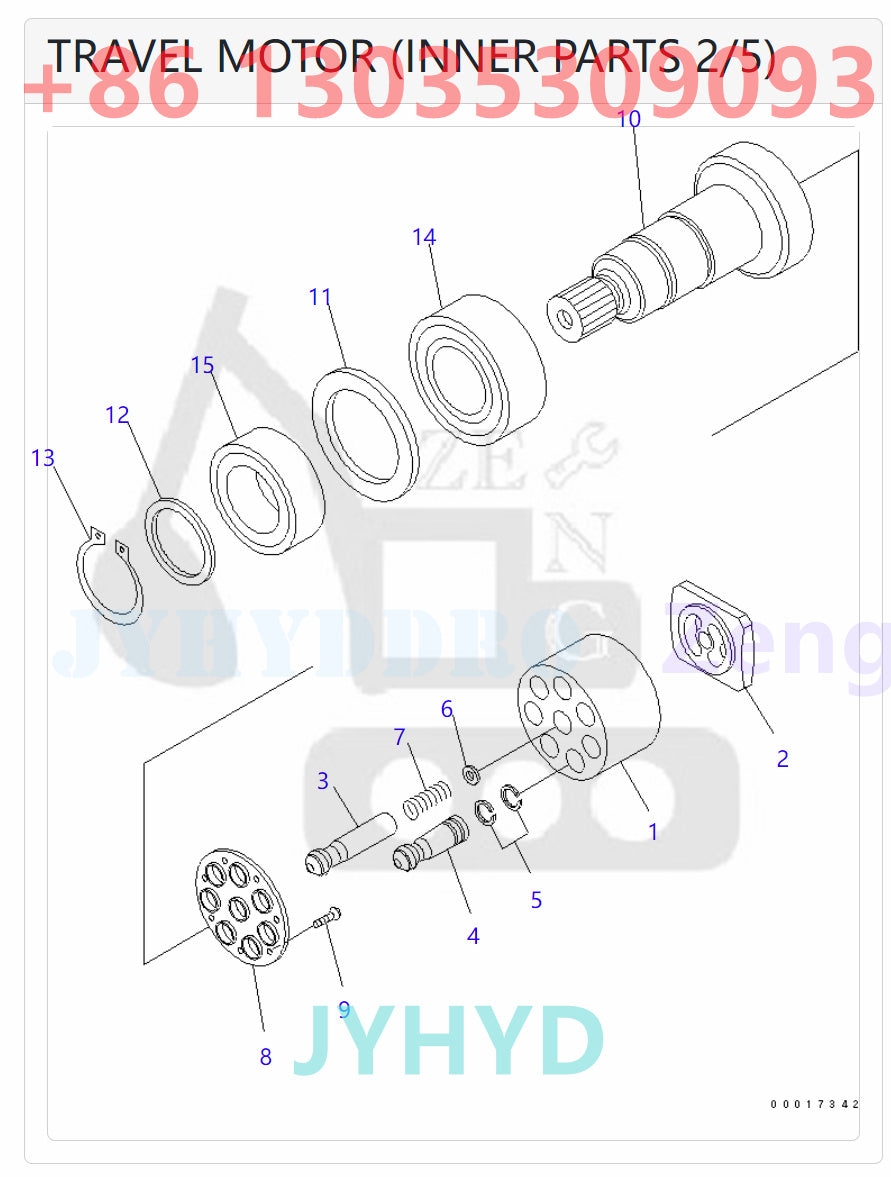

Pos. Part No Qty Parts name Comments
     20G-60-31101   [1]   TRAVEL MOTOR Komatsu 0.000 kg.
  ["SN: H50051-UP"] analogs:["20G6031102", "20G6031102XC"] |$1.
        20G-60-31630   [1]   ROTARY GROUP Komatsu 0.000 kg.
  ["SN: H50051-UP"] |$3.
1   20E-60-K4430   [1]   CYLINDER Komatsu 0.000 kg.
  ["SN: H50051-UP"]
2   20E-60-K4440   [1]   LENS, CONTROL Komatsu 0.000 kg.
  ["SN: H50051-UP"]
3   20E-60-K4450   [1]   PIN, CENTER Komatsu China
  ["SN: H50051-UP"]
4   42W-17-H0P18   [1]   PISTON Komatsu China
  ["SN: H50051-UP"]
5   42W-17-H0P19   [1]   RING Komatsu China
  ["SN: H50051-UP"]
7   42W-17-H0P16   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
8   20E-60-K4490   [1]   RETAINING PLATE Komatsu China
  ["SN: H50051-UP"]
9   20G-60-K4680   [7]   SCREW Komatsu China
  ["SN: H50051-UP"]
   10.   20G-60-31650   [1]   DRIVE SHAFT Komatsu China
  ["SN: H50051-UP"]
   11.   20E-60-K2620   [1]   SHIM Komatsu China
  ["SN: H50051-UP"]
   13.   20E-60-K2640   [1]   RING, RETAINING Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0R68"]
   14.   20E-60-K2650   [1]   BEARING, ROLLER Komatsu China
  ["SN: H50051-UP"]
   15.   20E-60-K4420   [1]   BEARING, ROLLER Komatsu 0.000 kg.
  ["SN: H50051-UP"]

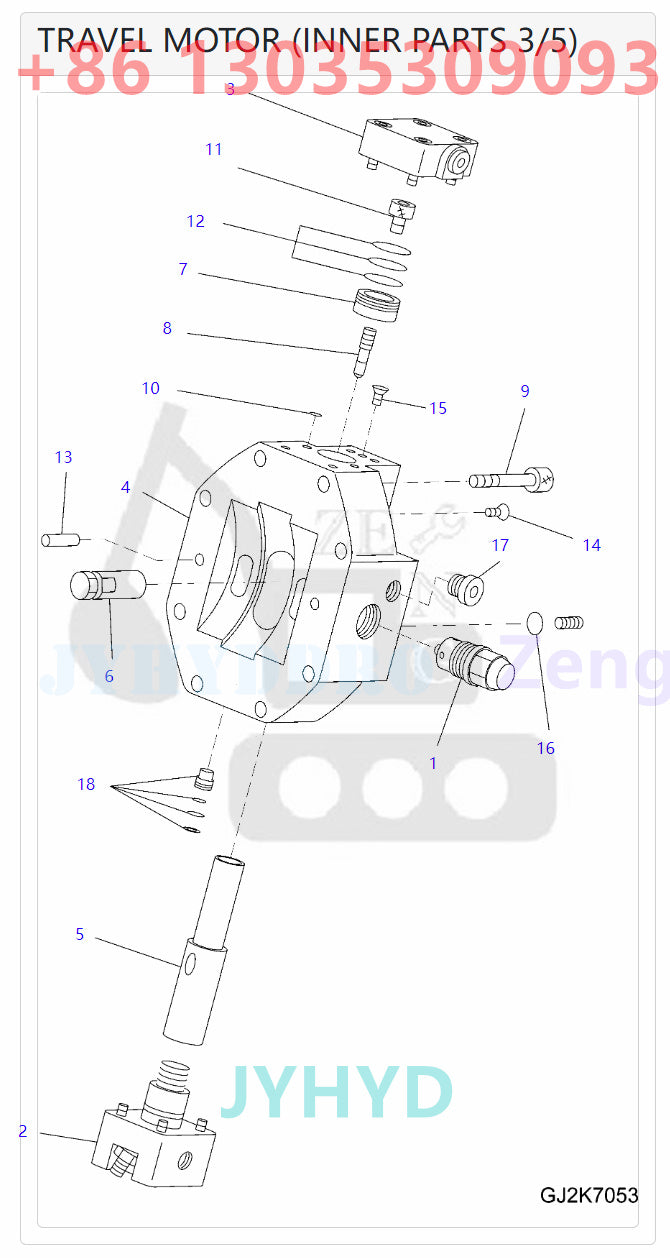

Parts on group :
Pos. Part No Qty Parts name Comments
     20G-60-31101   [1]   TRAVEL MOTOR Komatsu 0.000 kg.
  ["SN: H50051-UP"] analogs:["20G6031102", "20G6031102XC"] |$1.
        20G-60-31640   [1]   CONTROL ASSEMBLY Komatsu 0.000 kg.
  ["SN: H50051-UP"] |$3.
1   20K-60-32280   [2]   VALVE ASSEMBLY Komatsu China
  ["SN: H50051-UP"]
2   20G-60-31660   [1]   CONTROL ASSEMBLY Komatsu China
  ["SN: H50051-UP"]
3   20G-60-31670   [1]   COVER ASSEMBLY Komatsu China
  ["SN: H50051-UP"]
4   20G-60-31680   [1]   PLATE Komatsu China
  ["SN: H50051-UP"]
5   20E-60-K4540   [1]   PISTON Komatsu China
  ["SN: H50051-UP"]
6   20E-60-K4550   [1]   TRUNNION Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0R78", "42U17H0S04", "4919906M", "20E60K1960"]
7   20E-60-K4560   [1]   PISTON Komatsu China
  ["SN: H50051-UP"]
8   20G-60-K4770   [1]   PIN, THREAD Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0R73", "20G60K2550", "20E60K3160"]
9   20E-60-K4820   [8]   SCREW Komatsu 0.000 kg.
  ["SN: H50051-UP"]
10   20G-60-K4220   [2]   O-RING Komatsu 0.002 kg.
  ["SN: H50051-UP"]
11   20G-60-K4230   [3]   O-RING Komatsu 0.002 kg.
  ["SN: H50051-UP"] analogs:["21P60K1510"]
12   20G-60-K4240   [2]   O-RING Komatsu 0.001 kg.
  ["SN: H50051-UP"]
13   20K-60-32230   [2]   RING, BACK-UP Komatsu 0.02 kg.
  ["SN: H50051-UP"]
14   20G-60-K4850   [1]   SCREW Komatsu China
  ["SN: H50051-UP"]
15   20E-60-K4570   [3]   RING Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0R81", "4912665M"]
16   20G-60-K4870   [2]   PIN Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0R83", "4915113M", "20K6032260"]
17   20G-60-K4270   [1]   PIN Komatsu China
  ["SN: H50051-UP"] analogs:["20G60K1270", "21P60K3760", "21P60K2250", "21P60K3540"]
18   20K-60-32270   [2]   PLUG Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0S38", "20E60K3180", "20G60K4190"]
19   20G-60-K2570   [1]   PIN Komatsu China
  ["SN: H50051-UP"]
20   20G-60-K4280   [1]   O-RING Komatsu 0.01 kg.
  ["SN: H50051-UP"]
21   20G-60-K3950   [2]   SCREW Komatsu China

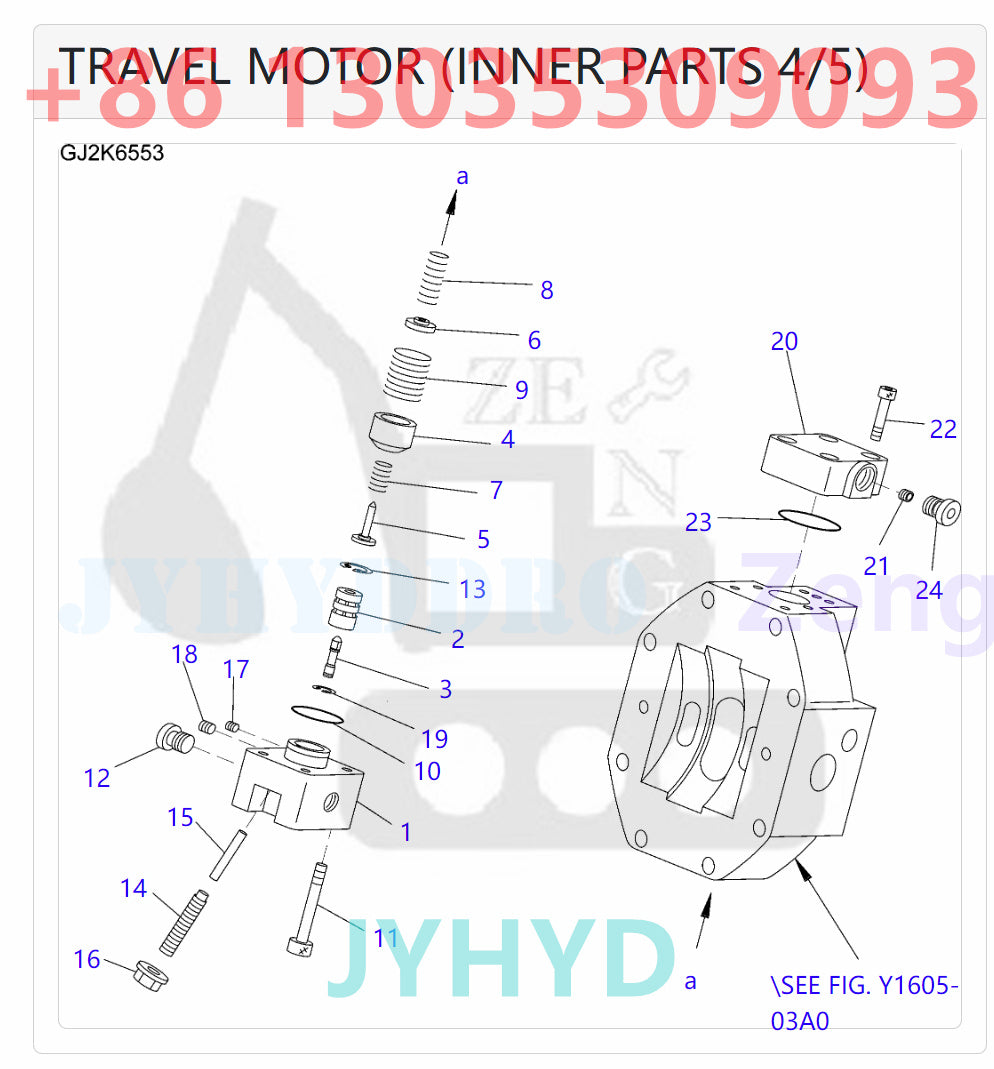

Parts on group :
Pos. Part No Qty Parts name Comments
     20G-60-31101   [1]   TRAVEL MOTOR Komatsu 0.000 kg.
  ["SN: H50051-UP"] analogs:["20G6031102", "20G6031102XC"] |$1.
        20G-60-31640   [1]   CONTROL ASSEMBLY Komatsu 0.000 kg.
  ["SN: H50051-UP"] |$3.
1   20E-60-K4520   [1]   HOUSING,CONTROL Komatsu China
  ["SN: H50051-UP"]
2   20G-60-K2640   [1]   BUSHING, CONTROL Komatsu China
  ["SN: H50051-UP"] analogs:["4905796M", "4920062M"]
3   20K-20-32290   [1]   PISTON, CONTROL Komatsu China
  ["SN: H50051-UP"]
4   20G-60-K4920   [1]   BUSHING, ADJUSTING Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0R76"]
5   20K-60-32310   [1]   COLLAR Komatsu China
  ["SN: H50051-UP"]
6   20G-60-31710   [1]   COLLAR Komatsu China
  ["SN: H50051-UP"]
7   20G-60-K4290   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
8   20G-60-31720   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
9   20E-60-K4580   [1]   SPRING Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0R99"]
10   20G-60-K4940   [1]   O-RING Komatsu 0.001 kg.
  ["SN: H50051-UP"]
11   20G-60-K4950   [4]   SCREW Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0S41", "20E60K4950"]
12   20G-60-K4320   [1]   SCREW Komatsu China
  ["SN: H50051-UP"] analogs:["42U17H0P11", "42U17H0R96", "4919882M", "21P60K2210"]
13   20G-60-K2730   [1]   RING, RETAINING Komatsu China
  ["SN: H50051-UP"] analogs:["20E60K2730", "42R17H0R93", "42U17H0P23", "4918622M", "20E60K2260"]
14   20G-60-K1490   [1]   STUD Komatsu 0.000 kg.
  ["SN: H50051-UP"]
15   20G-60-K4960   [1]   PIN Komatsu 0.000 kg.
  ["SN: H50051-UP"]
16   20G-60-K1520   [1]   NUT, LOCK Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0R27", "3031961M", "3075626M", "4903247M", "4903378M", "4912671M", "4918341M", "21P60K4620"]
17   20G-60-K2750   [1]   PIN Komatsu 0.000 kg.
  ["SN: H50051-UP"]
18   20G-60-K2590   [1]   PIN Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0P79", "20E60K2130"]
19   20G-60-K2760   [1]   DISC, RETAINING Komatsu China
  ["SN: H50051-UP"] analogs:["20E60K2320", "20E60K2760"]
20   20G-60-K4970   [1]   COVER Komatsu China
  ["SN: H50051-UP"] analogs:["42R17H0S81"]
21   20K-60-32340   [1]   SCREW Komatsu China
  ["SN: H50051-UP"] analogs:["20E60K3520", "20G60K4340"]
22   20E-60-K5010   [4]   SCREW Komatsu China
  ["SN: H50051-UP"]
23   20G-60-K5020   [1]   O-RING Komatsu 0.01 kg.
  ["SN: H50051-UP"]

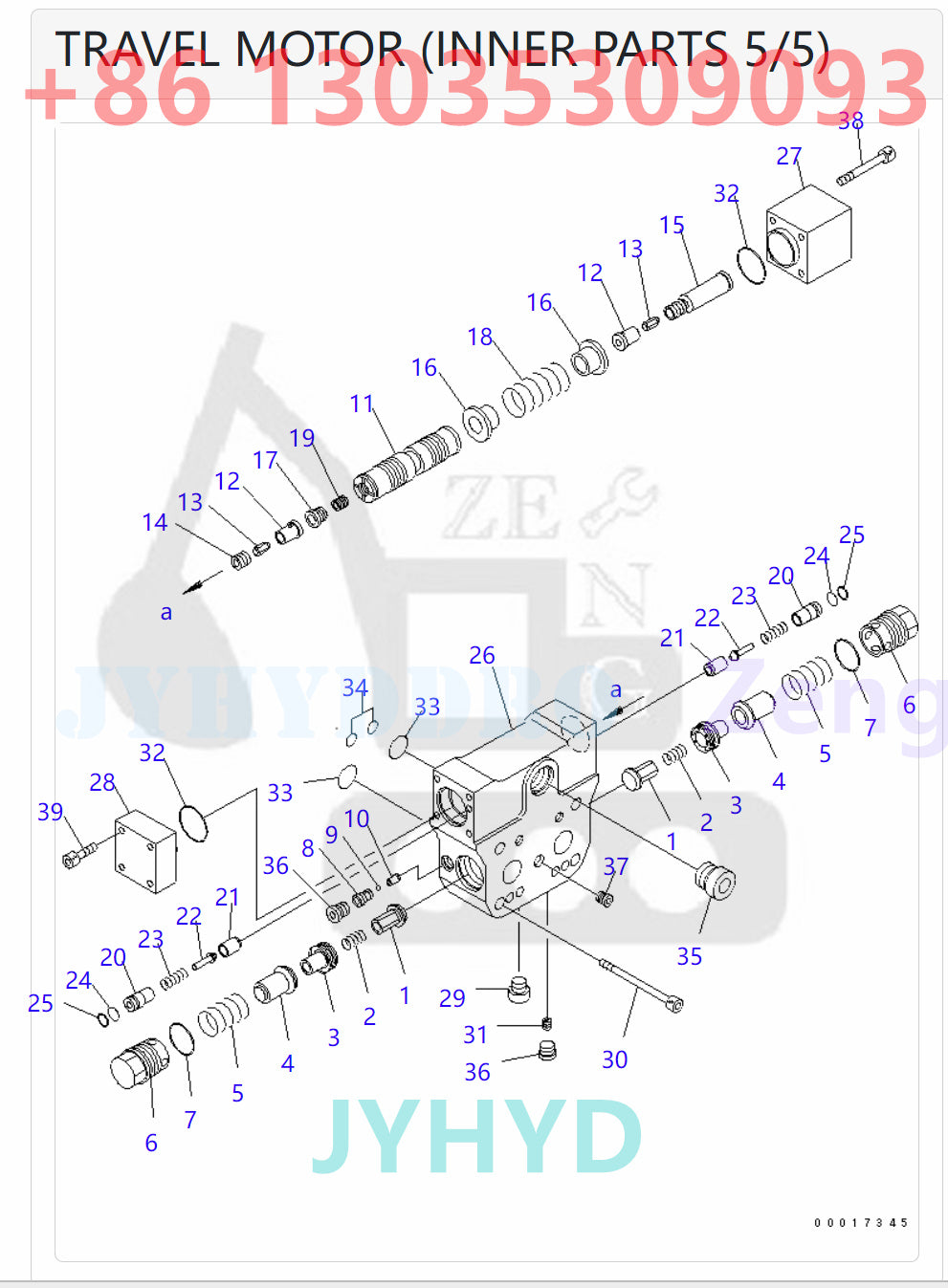

Parts on group :
Pos. Part No Qty Parts name Comments
     20G-60-31101   [1]   TRAVEL MOTOR Komatsu 0.000 kg.
  ["SN: H50051-UP"] analogs:["20G6031102", "20G6031102XC"] |$1.
        20K-60-31850   [1]   END COVER SUB ASSEMBLY Komatsu 17.65 kg.
  ["SN: H50051-UP"] |$3.
     20K-60-32370   [2]   VALVE ASSEMBLY Komatsu China
  ["SN: H50051-UP"] |$4.
1   20K-60-32580   [1]   POPPET, VALVE Komatsu China
  ["SN: H50051-UP"]
2   20K-60-32590   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
3   20K-60-32610   [1]   SEAT Komatsu China
  ["SN: H50051-UP"]
4   20K-60-32620   [1]   POPPET, VALVE Komatsu China
  ["SN: H50051-UP"]
5   20K-60-32630   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
6   20K-60-32640   [1]   SCREW Komatsu China
  ["SN: H50051-UP"]
7   20K-60-32650   [1]   O-RING Komatsu China
  ["SN: H50051-UP"]
     20K-60-32380   [1]   SHUTTLE VALVE A. Komatsu China
  ["SN: H50051-UP"] |$12.
8   20K-60-32660   [1]   SCREW, VALVE Komatsu China
  ["SN: H50051-UP"] analogs:["21P60K2090"]
9   20K-60-32670   [1]   BALL Komatsu China
  ["SN: H50051-UP"] analogs:["21P60K2280"]
10   20K-60-32680   [1]   BUSHING Komatsu China
  ["SN: H50051-UP"] analogs:["21P60K2130"]
     20K-60-32390   [1]   PISTON ASSEMBLY, BRAKE Komatsu China
  ["SN: H50051-UP"] |$16.
11   20K-60-32690   [1]   PISTON, BRAKE Komatsu China
  ["SN: H50051-UP"]
12   20K-60-32710   [2]   BUSHING, VALVE Komatsu China
  ["SN: H50051-UP"]
13   20K-60-32720   [2]   PIN, THROTTLE Komatsu China
  ["SN: H50051-UP"]
14   20K-60-32730   [1]   SCREW, VALVE Komatsu China
  ["SN: H50051-UP"]
15   20K-60-32740   [1]   BOLT Komatsu China
  ["SN: H50051-UP"]
16   20K-60-32750   [2]   COLLAR Komatsu China
  ["SN: H50051-UP"]
17   20K-60-32760   [1]   SCREW Komatsu China
  ["SN: H50051-UP"]
18   20K-60-32770   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
19   20K-60-32780   [1]   ORIFICE Komatsu China
  ["SN: H50051-UP"]
     20K-60-32410   [2]   CHECK VALVE ASSEMBLY Komatsu China
  ["SN: H50051-UP"] |$26.
20   20K-60-32790   [1]   HOUSING,VALVE Komatsu China
  ["SN: H50051-UP"]
21   20K-60-32810   [1]   HOUSING, VALVE Komatsu China
  ["SN: H50051-UP"]
22   20K-60-32820   [1]   PISTON, VALVE Komatsu China
  ["SN: H50051-UP"]
23   20K-60-32830   [1]   SPRING Komatsu China
  ["SN: H50051-UP"]
24   20K-60-32840   [1]   O-RING Komatsu China
  ["SN: H50051-UP"]
25   20K-60-32850   [1]   RING, BACK-UP Komatsu China
  ["SN: H50051-UP"]
26   20K-60-32420   [1]   HOUSING Komatsu China
  ["SN: H50051-UP"]
27   20K-60-32430   [1]   COVER Komatsu China
  ["SN: H50051-UP"]
28   20K-60-32440   [1]   COVER Komatsu China
  ["SN: H50051-UP"]
29   20K-60-32450   [1]   SCREW Komatsu China
  ["SN: H50051-UP"]
30   20K-60-32460   [2]   SCREW Komatsu China
  ["SN: H50051-UP"]
31   20K-60-32470   [1]   PLUG Komatsu China
  ["SN: H50051-UP"]
32   20K-60-32480   [2]   O-RING Komatsu China
  ["SN: H50051-UP"]
33   20G-60-K5020   [2]   O-RING Komatsu 0.01 kg.
  ["SN: H50051-UP"]
34   20K-60-32510   [2]   O-RING Komatsu China
  ["SN: H50051-UP"]
35   20K-60-32520   [1]   SCREW Komatsu China
  ["SN: H50051-UP"]
36   20K-60-32530   [2]   SCREW Komatsu China
  ["SN: H50051-UP"]
37   20G-60-K2750   [1]   PIN Komatsu 0.000 kg.
  ["SN: H50051-UP"]
38   20K-60-32550   [4]   SCREW Komatsu China
  ["SN: H50051-UP"]
39   20K-60-32560   [4]   SCREW Komatsu China
  ["SN: H50051-UP"]
