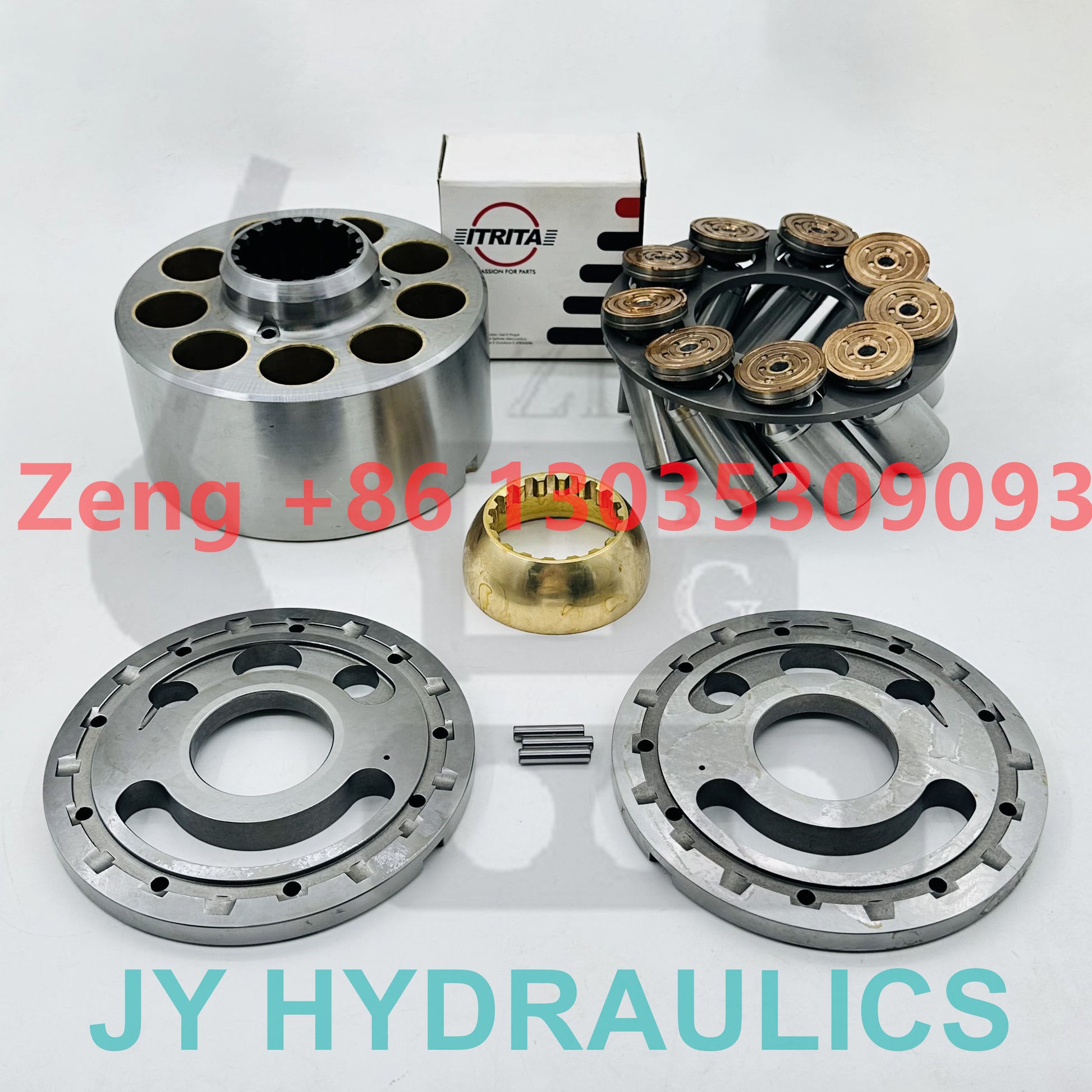

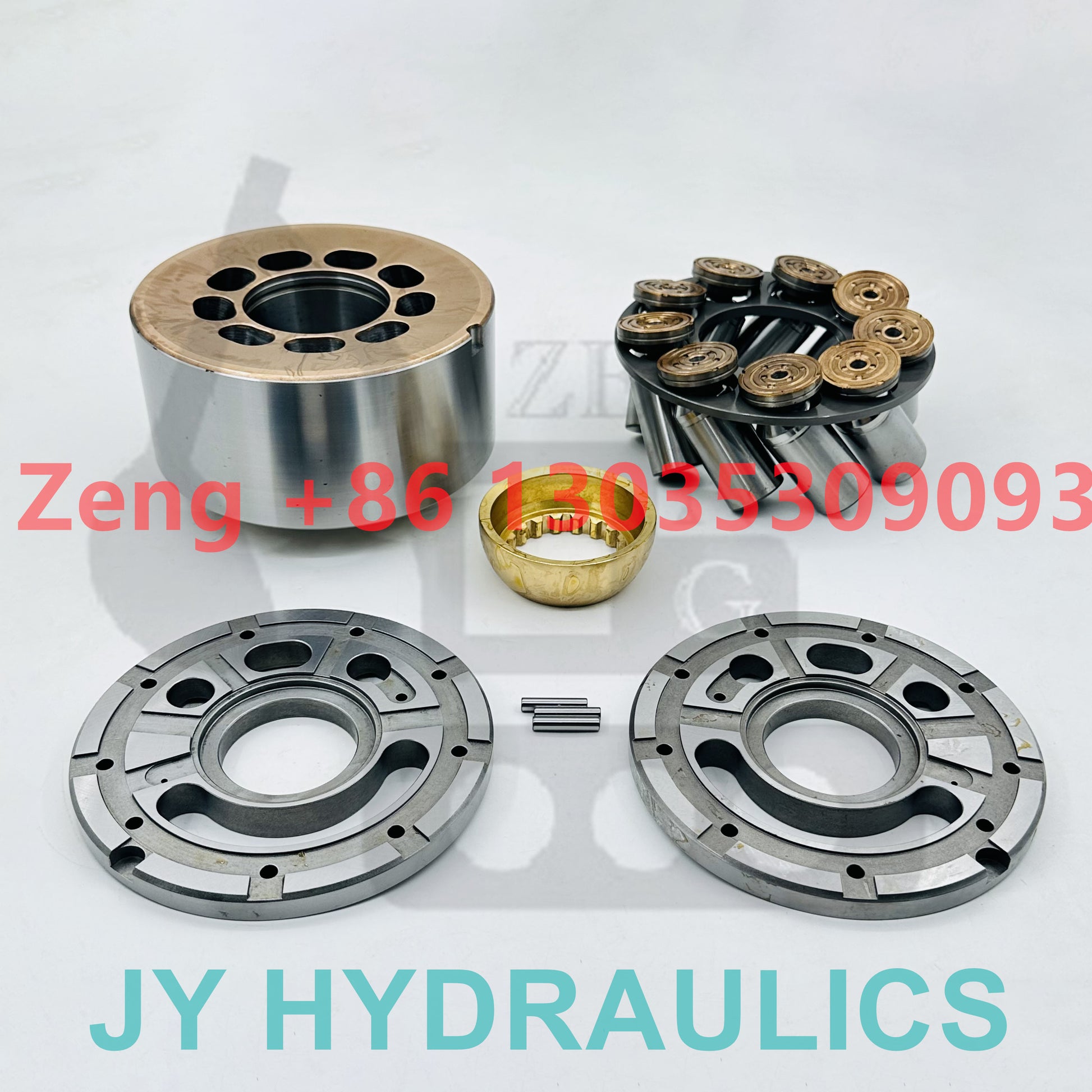

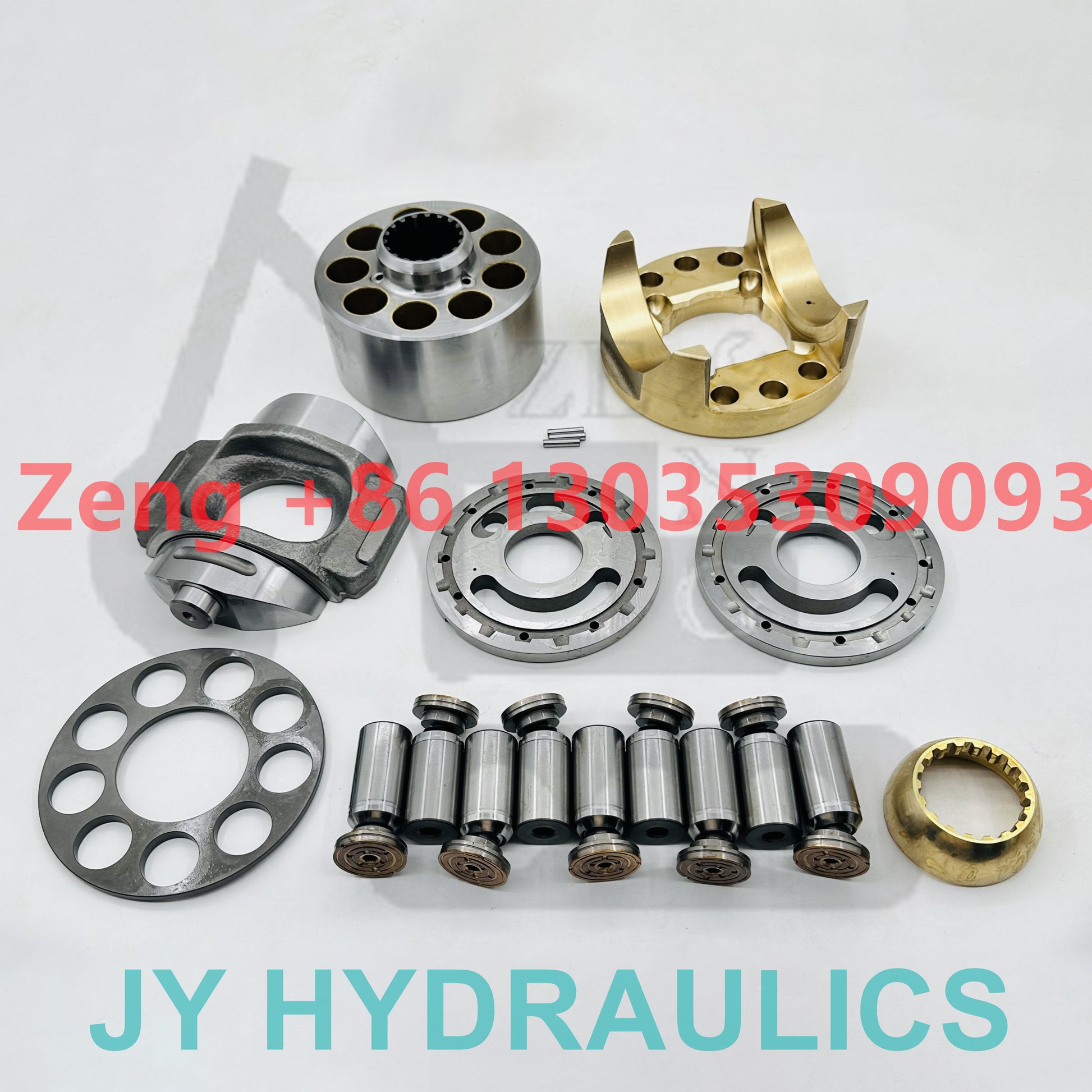

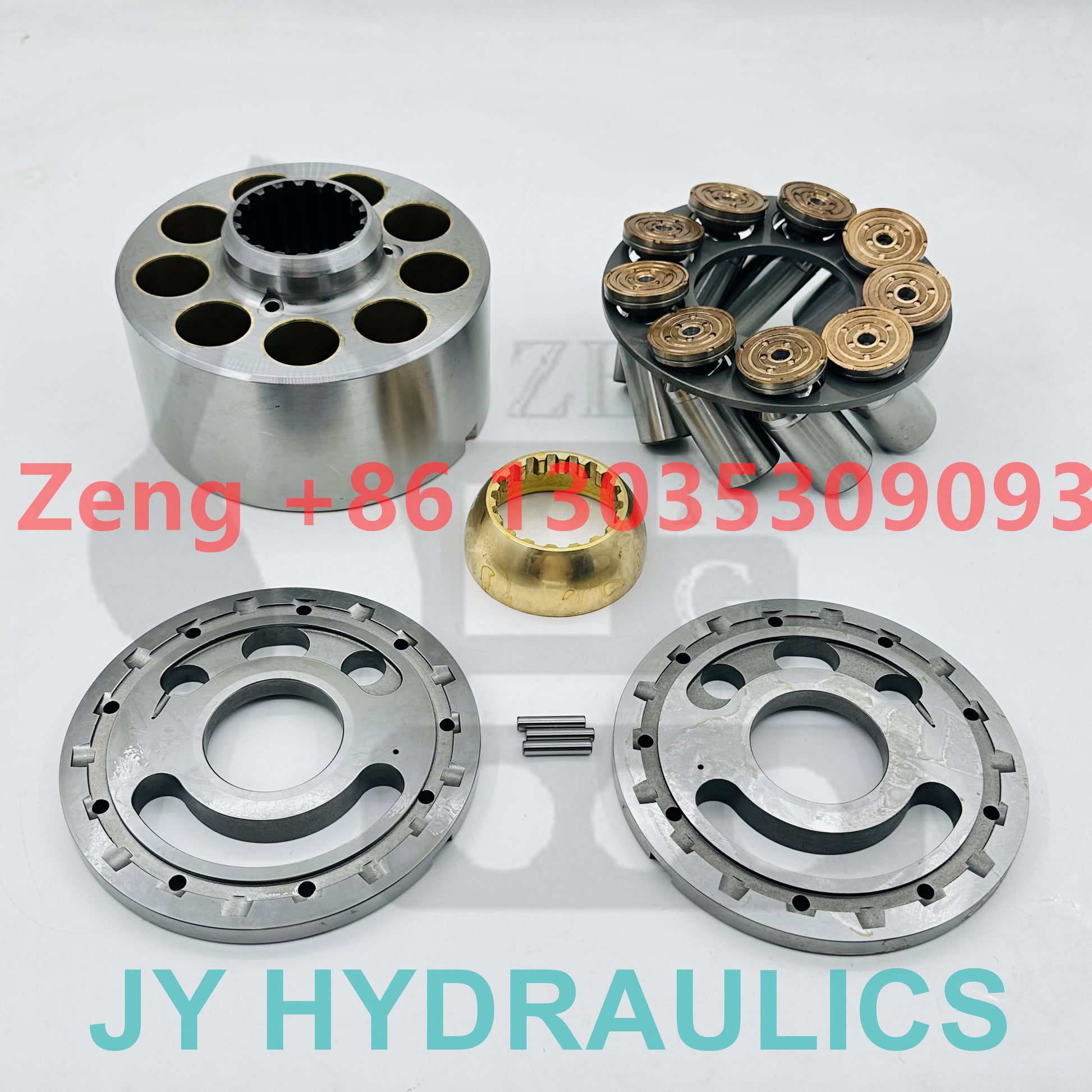

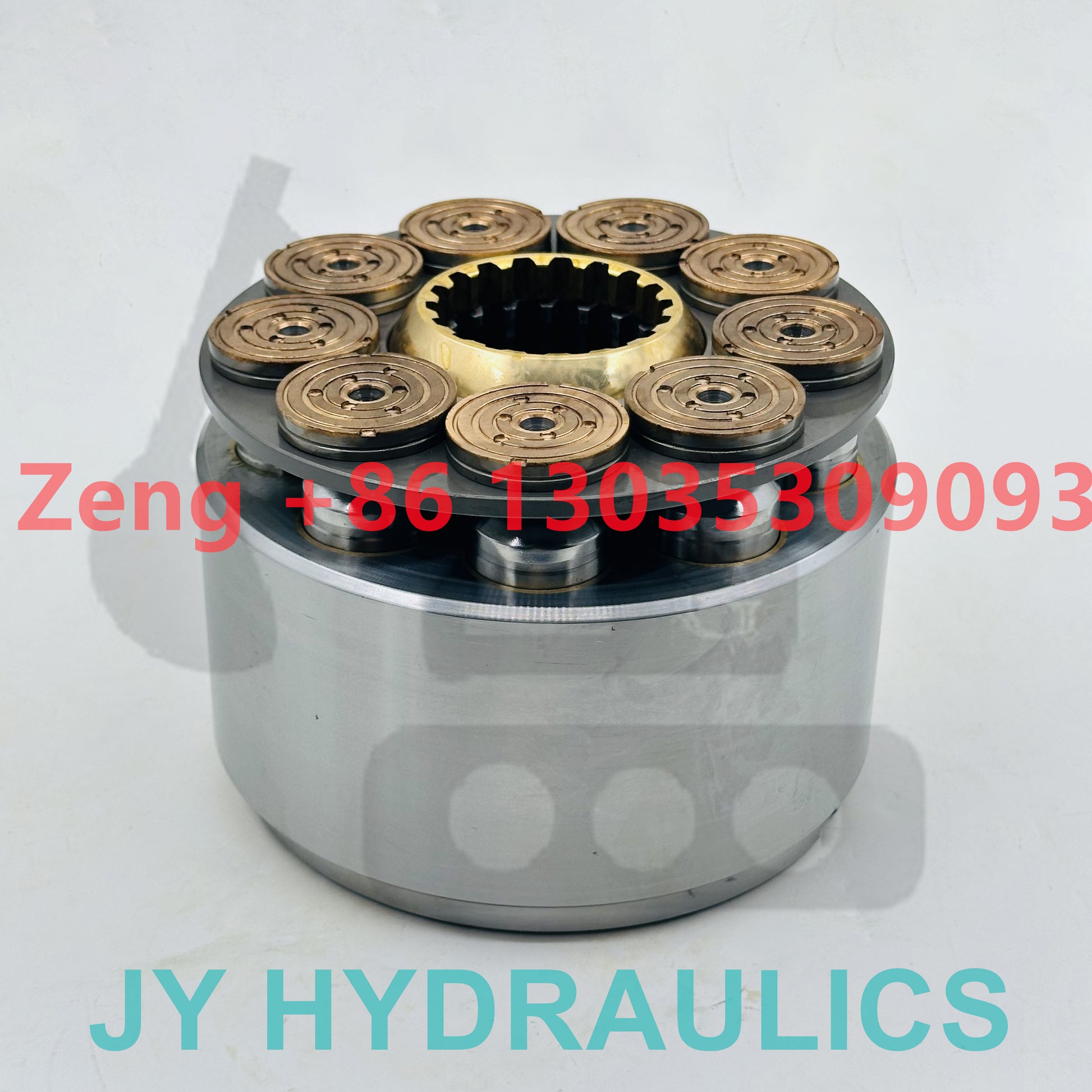

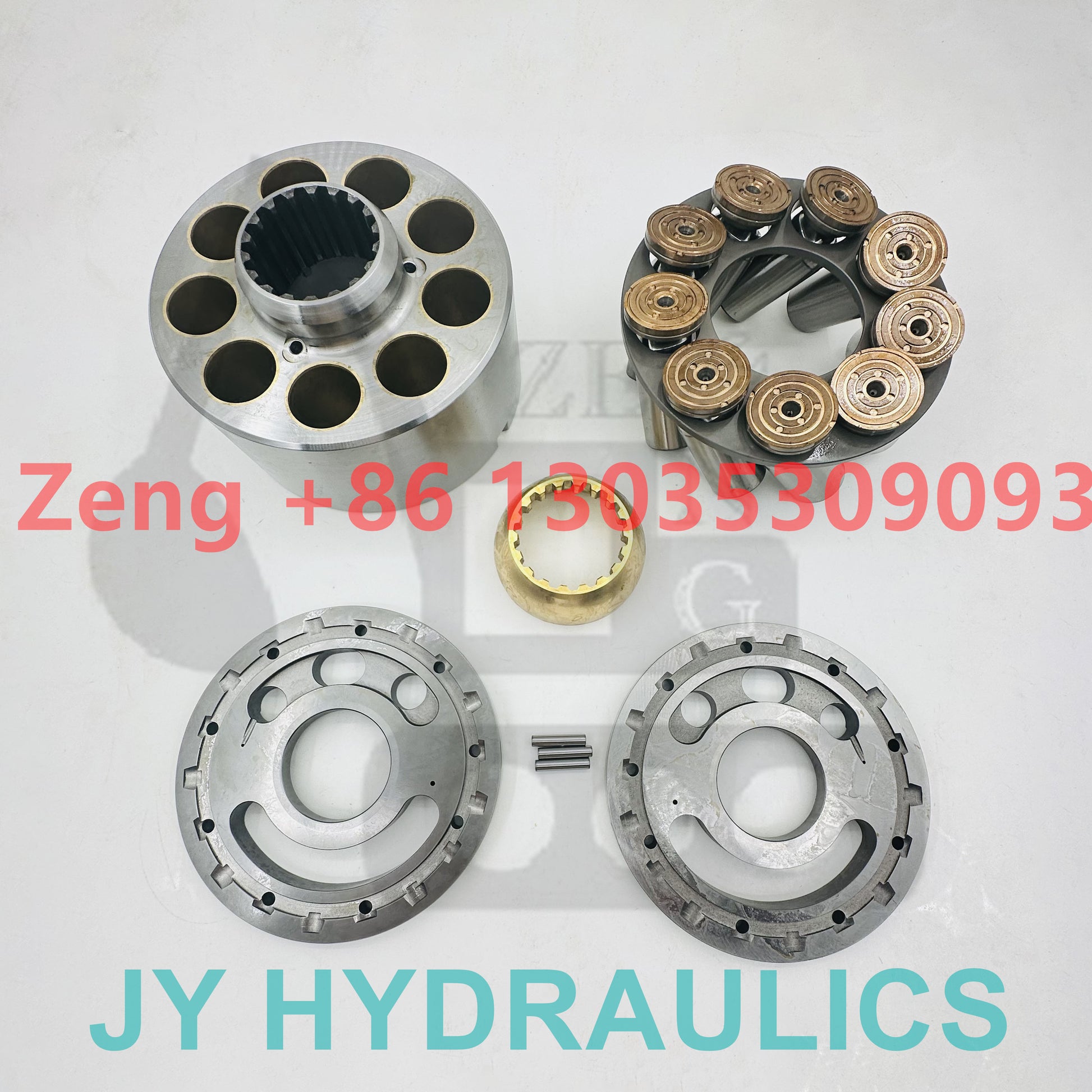

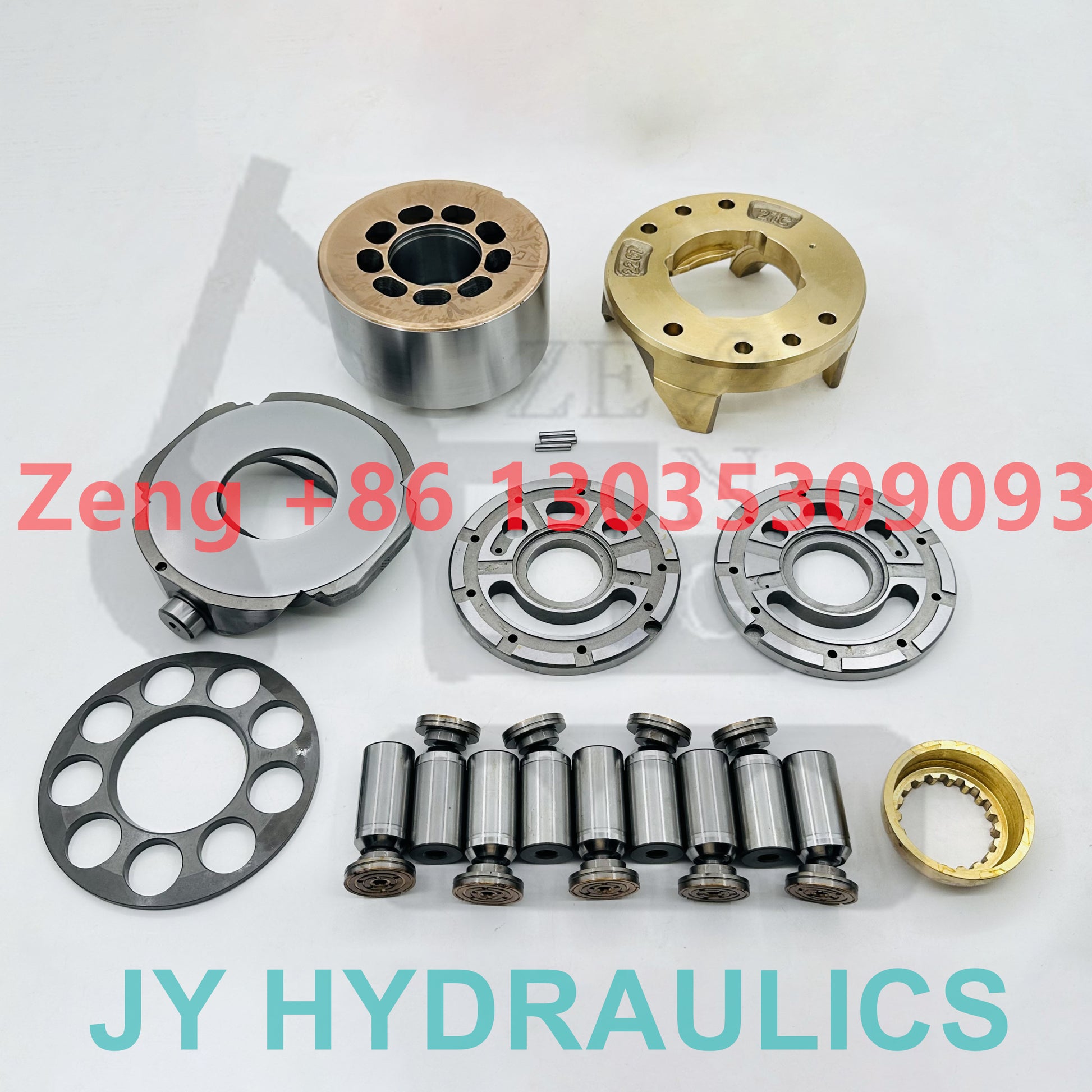

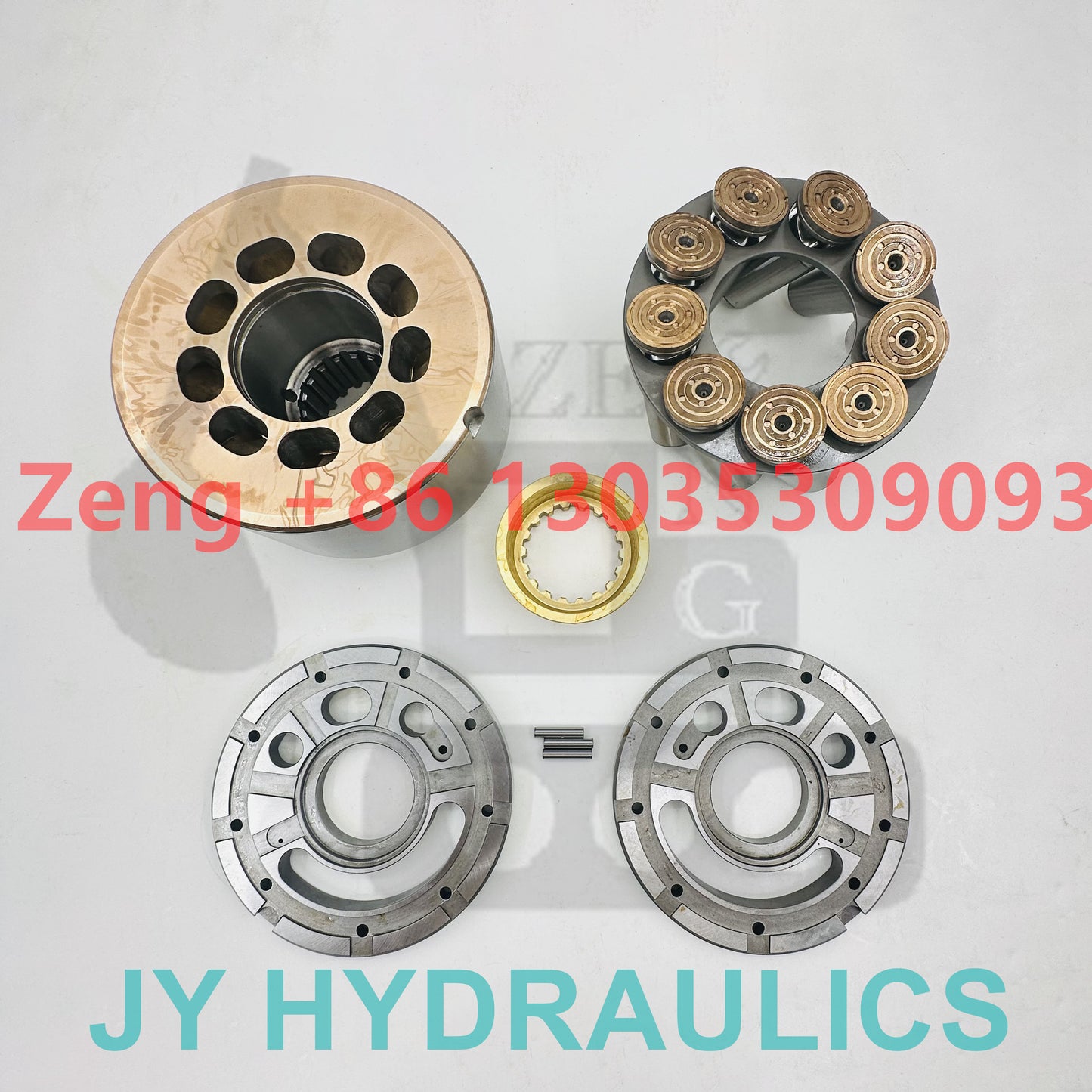

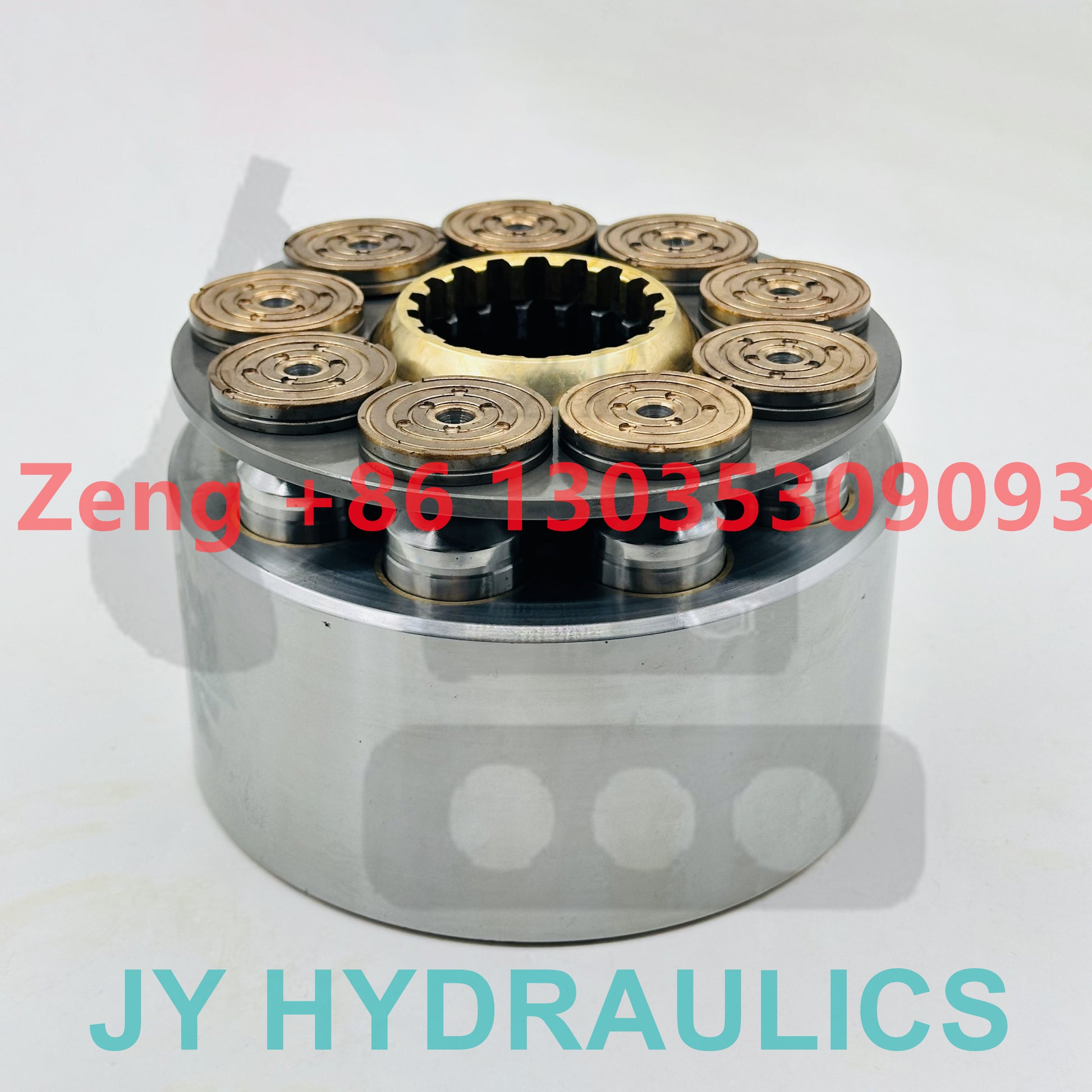

KOMATSU PC210-10 PC210LC-10 excavator 708-2G-00320 708-2G-01320 hydraulic pump rotary group and spare parts

Name: KOMATSU PC210-10 PC210LC-10 excavator 708-2G-00320 708-2G-01320 hydraulic pump rotary group and spare parts
Brand: +8613035309093
Price: 2000.0 USD
Availability: InStock

KOMATSU PC210-10 PC210LC-10 excavator 708-2G-00320 708-2G-01320 hydraulic pump rotary group and spare parts

$2,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

708-2G-00320 708-2G-01320 PC210-10 PC210LC-10
Pos.	Part No	Qty	Parts name	Comments
	708-2G-00320	[1]	Pump Assembly Komatsu China
			["SN: K60001-UP"] \|$0.
	708-2G-01320	[1]	Pump Subassembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$1.
	708-2G-04630	[1]	Cap Assembly, End Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$2.
3	708-1L-29340	[2]	Orifice Komatsu	0.001 kg.
			["SN: K60001-UP", "SCC: C2"]
4	708-2L-42150	[2]	Bearing Komatsu	0.24 kg.

Pos.	Part No	Qty	Parts name	Comments
	708-2G-00320	[1]	Pump Assembly Komatsu China
			["SN: K60001-UP"] \|$0.
	708-2G-01320	[1]	Pump Subassembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$1.
1	708-2G-12610	[1]	Shaft, Front Komatsu China
			["SN: K60001-UP", "SCC: C2"]
2	708-2L-42250	[1]	Bearing Komatsu	0.42 kg.
			["SN: K60001-UP", "SCC: C2"]
3	708-2E-05040	[1]	Washer Kit Komatsu	0.101 kg.
			["SN: K60001-UP", "SCC: C2"] analogs:["7082E12190"]
4	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
			["SN: K60001-UP", "SCC: C2"]
5	708-2L-32460	[1]	Seal, Oil Komatsu	0.000 kg.
			["SN: K60001-UP"]
6	708-2L-22160	[1]	Spacer Komatsu	0.047 kg.
			["SN: K60001-UP"]
7	04065-06825	[1]	Ring, Snap Komatsu	0.018 kg.
			["SN: K60001-UP"]
	708-2G-04640	[1]	Block Assembly, Front Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$13.
10	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: K60001-UP", "SCC: C2"]
11	04065-05820	[1]	Ring, Snap Komatsu	0.01 kg.
			["SN: K60001-UP", "SCC: C2"]
12	708-2L-43130	[1]	Seat Komatsu	0.03 kg.
			["SN: K60001-UP", "SCC: C2"]
13	708-2G-13760	[1]	Spring Komatsu China
			["SN: K60001-UP", "SCC: C2"]
14	708-2H-23141	[1]	Seat Komatsu	0.03 kg.
			["SN: K60001-UP", "SCC: C2"]
15	708-2G-13740	[1]	Guide, Retainer Komatsu China
			["SN: K60001-UP", "SCC: C2"]
16	708-2L-43360	[3]	Pin Komatsu	0.000 kg.
			["SN: K60001-UP", "SCC: C2"]
17	708-2G-13750	[1]	Retainer, Shoe Komatsu China
			["SN: K60001-UP", "SCC: C2"]
18	708-2L-43311	[9]	Piston Subassembly Komatsu	0.28 kg.
			["SN: K60001-UP", "SCC: C2"]
	708-2G-04660	[1]	Cradle Assembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$25.
21	04020-01228	[1]	Pin, Dowel Komatsu	0.026 kg.
			["SN: K60001-UP", "SCC: C2"] analogs:["21T3016190"]
22	01252-61025	[6]	Bolt Komatsu	0.028 kg.
			["SN: K60001-UP", "SCC: C2"]

Pos.	Part No	Qty	Parts name	Comments
	708-2G-00320	[1]	Pump Assembly Komatsu China
			["SN: K60001-UP"] \|$0.
	708-2G-01320	[1]	Pump Subassembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$1.
1	708-2G-14610	[2]	Slider Komatsu China
			["SN: K60001-UP", "SCC: C2"]
	708-2G-03350	[1]	Valve Assembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$3.
	708-2G-03320	[2]	Piston Assembly, Servo Komatsu China

Pos.	Part No	Qty	Parts name	Comments
	708-2G-00320	[1]	Pump Assembly Komatsu China
			["SN: K60001-UP"] \|$0.
	708-2G-01320	[1]	Pump Subassembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$1.
1	708-2G-12620	[1]	Shaft, Rear Komatsu China
			["SN: K60001-UP", "SCC: C2"]
2	708-2L-42250	[1]	Bearing Komatsu	0.42 kg.
			["SN: K60001-UP", "SCC: C2"]
3	708-2E-05040	[1]	Washer Kit Komatsu	0.101 kg.
			["SN: K60001-UP", "SCC: C2"] analogs:["7082E12190"]
4	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
			["SN: K60001-UP", "SCC: C2"]
	708-2G-04650	[1]	Block Assembly, Rear Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$10.
7	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: K60001-UP", "SCC: C2"]
8	04065-05820	[1]	Ring, Snap Komatsu	0.01 kg.
			["SN: K60001-UP", "SCC: C2"]
9	708-2L-43130	[1]	Seat Komatsu	0.03 kg.
			["SN: K60001-UP", "SCC: C2"]
10	708-2G-13760	[1]	Spring Komatsu China
			["SN: K60001-UP", "SCC: C2"]
11	708-2H-23141	[1]	Seat Komatsu	0.03 kg.
			["SN: K60001-UP", "SCC: C2"]
12	708-2G-13740	[1]	Guide Komatsu China
			["SN: K60001-UP", "SCC: C2"]
13	708-2L-43360	[3]	Pin Komatsu	0.000 kg.
			["SN: K60001-UP", "SCC: C2"]
14	708-2G-13750	[1]	Retainer Komatsu China
			["SN: K60001-UP", "SCC: C2"]
15	708-2L-43311	[9]	Piston Subassembly Komatsu	0.28 kg.
			["SN: K60001-UP", "SCC: C2"]
	708-2G-04660	[1]	Cradle Assembly Komatsu China
			["SN: K60001-UP", "SCC: C2"] \|$22.
18	04020-01228	[1]	Pin, Dowel Komatsu	0.026 kg.
			["SN: K60001-UP", "SCC: C2"] analogs:["21T3016190"]
19	01252-61025	[6]	Bolt Komatsu	0.028 kg.
			["SN: K60001-UP", "SCC: C2"]
