KOMATSU 708-3T-00120 708-3T-00140 708-3T-01120 708-3T-01130 HYDRAULIC PUMP PARTS

KOMATSU 708-3T-00120 708-3T-00140 708-3T-01120 708-3T-01130 HYDRAULIC PUMP PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
708-3T-00120 708-3T-00140
708-3T-01120 708-3T-01130
PC78MR-6 PC78US-6

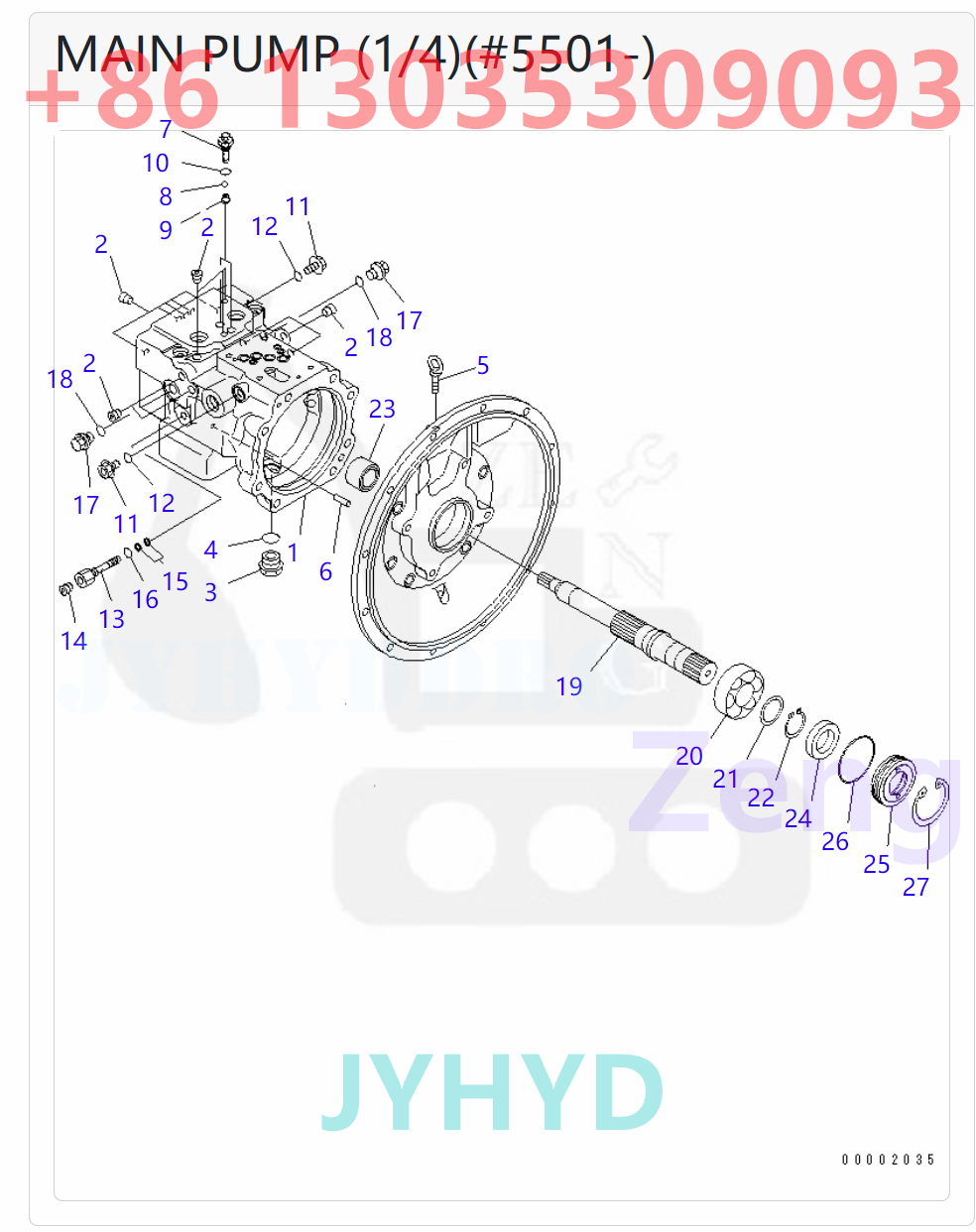

Pos. Part No Qty Parts name Comments
     708-3T-00140   [1]   PUMP ASS'Y Komatsu 64 kg.
  ["SN: 6501-UP"] |1.
     708-3T-00120   [1]   PUMP ASS'Y Komatsu China
  ["SN: 5501-6500"] analogs:["7083T00114"] |1.
        708-3T-01130   [1]   PUMP SUB ASS'Y Komatsu China
  ["SN: 6501-UP"] |1.
        708-3T-01120   [1]   PUMP SUB ASS'Y Komatsu China
  ["SN: 5501-6500"] |1.
     708-3T-04170   [1]   CASE ASS'Y Komatsu China
  ["SN: 5501-UP"] |1.
3   07044-12412   [1]   PLUG Komatsu 0.09 kg.
  ["SN: 4001-UP"] analogs:["0704402412", "R0704412412"]
4   07002-62434   [1]   O-RING Komatsu 0.001 kg.
  ["SN: 4001-UP"] analogs:["7081W28910"]
5   04530-11018   [1]   BOLT,EYE Komatsu 0.079 kg.
  ["SN: 4001-UP"]
6   720-68-19610   [1]   PIN Komatsu 0.002 kg.
  ["SN: 4001-UP"]
7   708-3T-14151   [2]   PLUG Komatsu China
  ["SN: 4001-UP"] analogs:["7083T14150"]
8   708-3T-14170   [2]   BALL Komatsu China
  ["SN: 4001-UP"]
9   708-3T-14160   [2]   SEAT Komatsu China
  ["SN: 4001-UP"]
10   07002-61023   [2]   O-RING Komatsu 0.22 kg.
  ["SN: 4001-UP"] analogs:["7082L23920"]
11   708-8E-16150   [2]   PLUG Komatsu 0.02 kg.
  ["SN: 5501-UP"]
     708-3T-04190   [1]   PLUG SUB ASS'Y Komatsu China
  ["SN: 5501-UP"] |13.
16   07002-11223   [1]   O-RING Komatsu China 0.001 kg.
  ["SN: 5501-UP"] analogs:["0700201223"]
17   708-1L-25210   [2]   PLUG Komatsu 0.3 kg.
  ["SN: 5501-UP"]
18   07002-11423   [2]   O-RING Komatsu China 0.001 kg.
  ["SN: 5501-UP"] analogs:["0700201423"]
19   708-3T-12220   [1]   SHAFT Komatsu China
  ["SN: 6501-UP"]
     708-3T-12120   [1]   SHAFT Komatsu China
  ["SN: 5501-6500"] |19.
20   708-1W-22140   [1]   BEARING Komatsu 0.431 kg.
  ["SN: 4001-UP"]
21   708-23-05011   [1]   WASHER KIT Komatsu 0.05 kg.
  ["SN: 4001-UP"]
22   708-23-12840   [1]   RING,SNAP Komatsu China
  ["SN: 4001-UP"] analogs:["890001295"]
23   708-1W-22320   [1]   BEARING Komatsu 0.25 kg.
  ["SN: 4001-UP"]
24   708-8D-12221   [1]   SEAL,OIL Komatsu 0.053 kg.
  ["SN: 4001-UP"] analogs:["7088D12220"]
25   708-3T-12210   [1]   CASE Komatsu China
  ["SN: 4001-UP"]
26   07000-12065   [1]   O-RING Komatsu 0.03 kg.
  ["SN: 4001-UP"] analogs:["YM24321000650"]
27   04065-07225   [1]   RING,SNAP Komatsu 0.02 kg.
  ["SN: 4001-UP"]

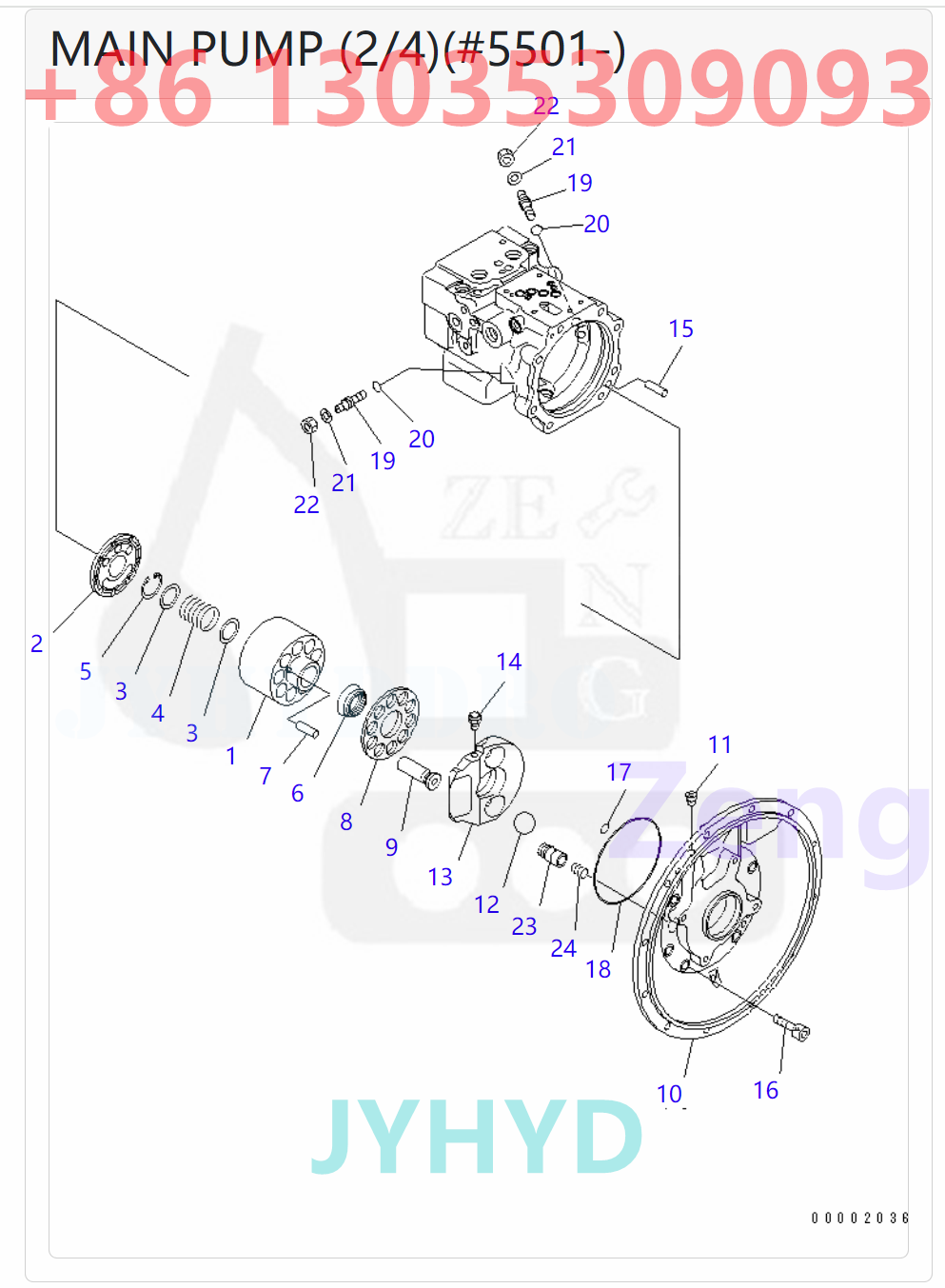

Parts on group :
Pos. Part No Qty Parts name Comments
     708-3T-00140   [1]   PUMP ASS'Y Komatsu 64 kg.
  ["SN: 6501-UP"] |1.
     708-3T-00120   [1]   PUMP ASS'Y Komatsu China
  ["SN: 5501-6500"] analogs:["7083T00114"] |1.
        708-3T-01130   [1]   PUMP SUB ASS'Y Komatsu China
  ["SN: 6501-UP"] |1.
        708-3T-01120   [1]   PUMP SUB ASS'Y Komatsu China
  ["SN: 5501-6500"] |1.
     708-3T-04210   [1]   CYLINDER BLOCK ASS'Y Komatsu 4.08 kg.
  ["SN: 5501-UP"] |1.
3   708-1W-23130   [2]   SEAT Komatsu 0.016 kg.
  ["SN: 4001-UP"]
4   708-3T-13150   [1]   SPRING Komatsu China
  ["SN: 4001-UP"]
5   04065-04218   [1]   RING,SNAP Komatsu 0.005 kg.
  ["SN: 4001-UP"]
6   708-3T-13351   [1]   GUIDE,RETAINER Komatsu China
  ["SN: 4001-UP"]
7   708-3T-13360   [3]   PIN Komatsu 0.006 kg.
  ["SN: 4001-UP"]
8   708-3T-13340   [1]   RETAINER,SHOE Komatsu China
  ["SN: 4001-UP"]
9   708-3T-13312   [10]   PISTON SUB ASS'Y Komatsu 0.15 kg.
  ["SN: 4605-UP"]
     708-3T-04220   [1]   FLANGE ASS'Y Komatsu China
  ["SN: 6501-UP"] |10.
     708-3T-04111   [1]   FLANGE ASS'Y Komatsu China
  ["SN: 4001-6500"] |10.
12   708-3T-13421   [2]   BALL Komatsu 0.42 kg.
  ["SN: 4001-UP"]
13   708-3T-13412   [1]   CAM,ROCKER Komatsu China
  ["SN: 4767-UP"]
14   708-3T-13451   [1]   STUD,BALL Komatsu China
  ["SN: 4001-UP"] analogs:["7083T13450"]
15   04020-01024   [1]   PIN Komatsu 0.015 kg.
  ["SN: 4001-UP"] analogs:["PZF890001197"]
16   01252-61235   [8]   BOLT Komatsu 0.048 kg.
  ["SN: 4001-UP"] analogs:["801105554", "0125231235"]
17   07000-B2012   [1]   O-RING Komatsu China 0.001 kg.
  ["SN: 4001-UP"]
18   708-7T-51210   [1]   O-RING Komatsu 0.01 kg.
  ["SN: 4001-UP"]
19   708-3T-14222   [2]   PLUG Komatsu China
  ["SN: 4001-UP"]
20   07000-12010   [2]   O-RING Komatsu 0.001 kg.
  ["SN: 4001-UP"] analogs:["YM24311240100", "0700002010"]
21   01643-51232   [2]   WASHER Komatsu 0.024 kg.
  ["SN: 4001-UP"]
22   01582-11210   [2]   NUT Komatsu 0.015 kg.
  ["SN: 4001-UP"]
23   708-3T-14114   [2]   PISTON SUB ASS'Y Komatsu 0.112 kg.
  ["SN: 4767-UP"]
24   708-3T-14120   [2]   SPRING Komatsu 0.002 kg.
  ["SN: 4001-UP"]

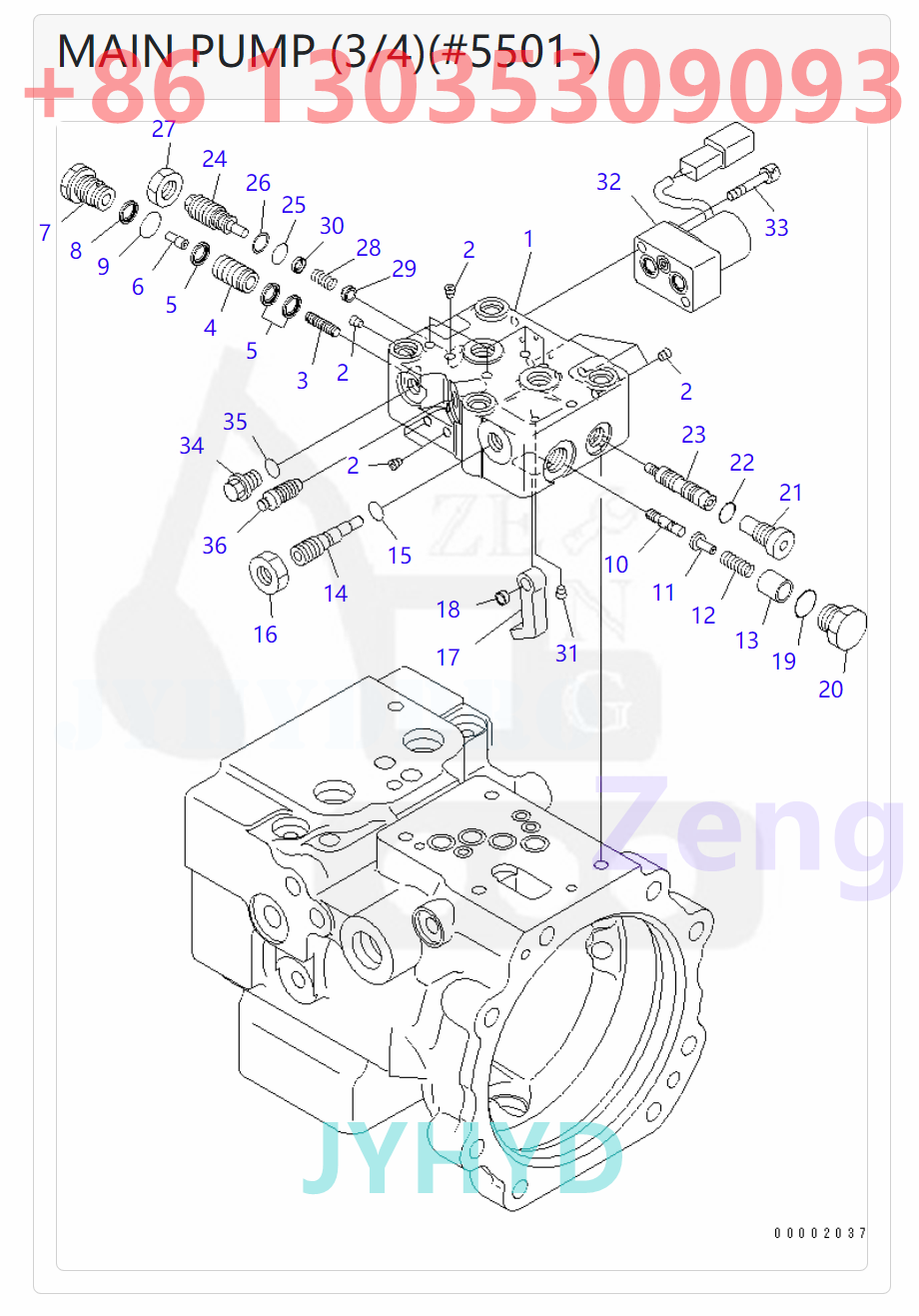

Parts on group :
Pos. Part No Qty Parts name Comments
     708-3T-00140   [1]   PUMP ASS'Y Komatsu 64 kg.
  ["SN: 6501-UP"] |1.
     708-3T-00120   [1]   PUMP ASS'Y Komatsu China
  ["SN: 5501-6500"] analogs:["7083T00114"] |1.
        708-3T-03212   [1]   VALVE ASS'Y Komatsu 4 kg.
  ["SN: 4001-UP"] |1.
     708-3T-04310   [1]   BODY ASS'Y Komatsu China
  ["SN: 4001-UP"] |1.
     708-3T-04320   [1]   PISTON SUB ASS'Y Komatsu China
  ["SN: 4001-UP"] |3.
5   708-1S-15390   [3]   SEAL Komatsu 0.001 kg.
  ["SN: 4001-UP"]
     708-3T-04331   [1]   PISTON SUB ASS'Y Komatsu China
  ["SN: 4001-UP"] |6.
9   07002-11623   [1]   O-RING Komatsu China 0.001 kg.
  ["SN: 4001-UP"] analogs:["0700201623"]
10   708-3T-15280   [1]   SPOOL Komatsu China
  ["SN: 4001-UP"]
11   708-3T-15310   [1]   SEAT Komatsu China
  ["SN: 4001-UP"]
12   708-3T-15241   [1]   SPRING Komatsu China
  ["SN: 4001-UP"]
13   708-3T-15290   [1]   RETAINER Komatsu China
  ["SN: 4001-UP"]
14   708-3T-15250   [1]   PLUG Komatsu China
  ["SN: 4001-UP"]
15   07000-11006   [1]   O-RING Komatsu 0.01 kg.
  ["SN: 4001-UP"] analogs:["0700001006"]
16   01583-11207   [1]   NUT Komatsu 0.013 kg.
  ["SN: 4001-UP"] analogs:["0158301207"]
17   708-3T-15260   [1]   LEVER Komatsu China
  ["SN: 4001-UP"]
18   708-1S-15280   [1]   SPACER Komatsu China
  ["SN: 4001-UP"]
20   708-1S-15290   [1]   PLUG Komatsu China
  ["SN: 4001-UP"]
21   708-3T-15510   [1]   PLUG Komatsu China
  ["SN: 4001-UP"]
22   07002-11223   [1]   O-RING Komatsu China 0.001 kg.
  ["SN: 4001-UP"] analogs:["0700201223"]
23   708-3T-15541   [1]   SPOOL Komatsu China
  ["SN: 4001-UP"]
24   708-3T-15521   [1]   PLUG Komatsu China
  ["SN: 4001-UP"]
25   07000-11008   [1]   O-RING Komatsu China 0.01 kg.
  ["SN: 4001-UP"] analogs:["0700001008", "2016018950"]
26   07001-01008   [1]   RING Komatsu 0.001 kg.
  ["SN: 4001-UP"]
27   01583-51408   [1]   NUT Komatsu 0.016 kg.
  ["SN: 4001-UP"]
28   708-3T-15530   [1]   SPRING Komatsu China
  ["SN: 4001-UP"] analogs:["7081W45430"]
29   708-1S-15350   [1]   SEAT Komatsu China
  ["SN: 4001-UP"] analogs:["7083S15870"]
30   708-1S-15360   [1]   SEAT Komatsu China
  ["SN: 4001-UP"]
31   708-3T-15811   [1]   ORIFICE Komatsu China
  ["SN: 4001-UP"]
32   702-21-55901   [1]   PILOT VALVE Komatsu OEM 0.442 kg.
  ["SN: 4001-UP"] analogs:["7022157400"]
33   01252-60635   [2]   BOLT Komatsu 0.011 kg.
  ["SN: 4001-UP"]
34   708-8E-16150   [1]   PLUG Komatsu 0.02 kg.
  ["SN: 4001-UP"]
35   07002-11023   [1]   O-RING Komatsu China 0.025 kg.
  ["SN: 4001-UP"] analogs:["0700201023"]
36   20B-27-11210   [1]   BLEEDER Komatsu 0.02 kg.
  ["SN: 4001-UP"]

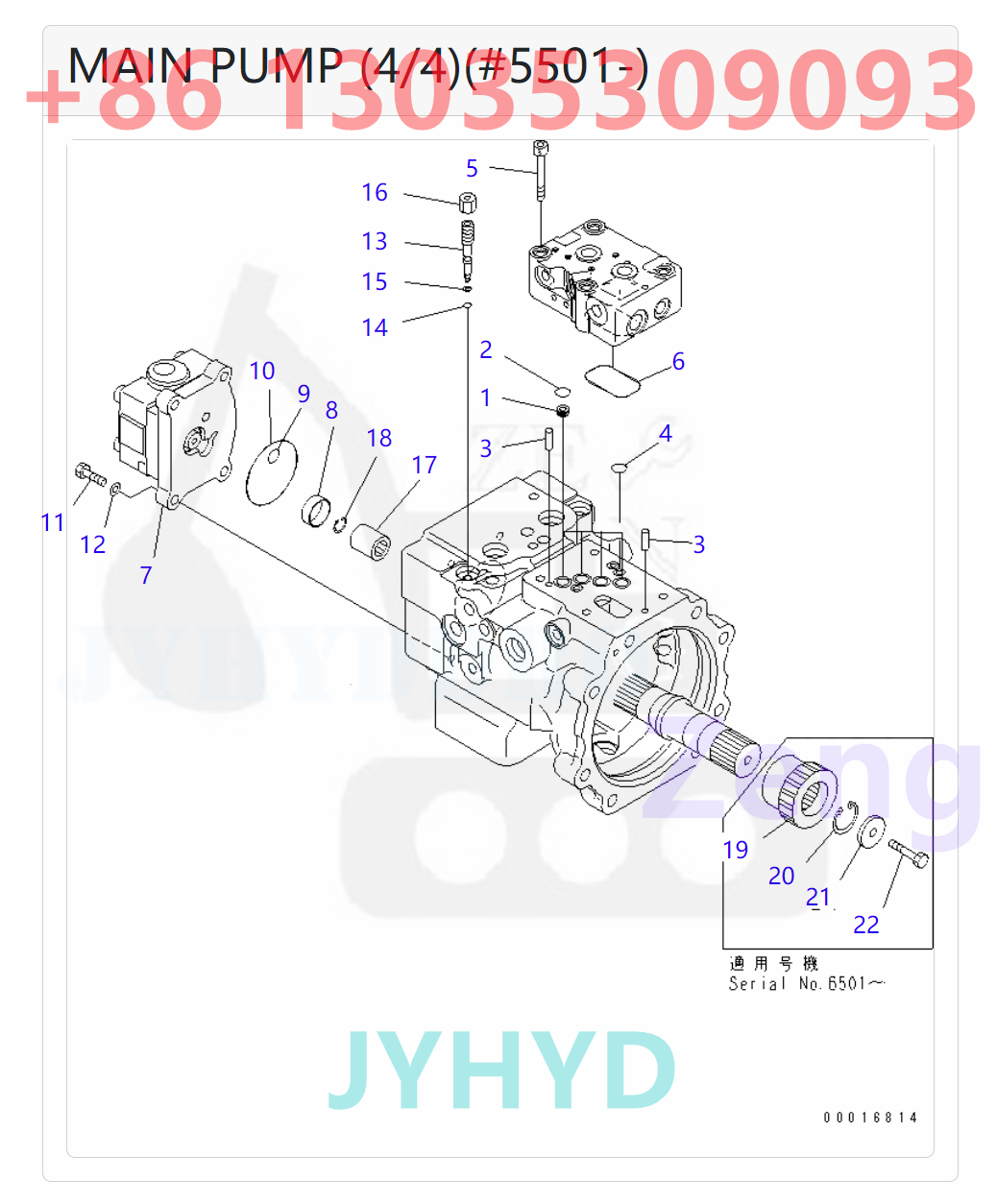

Parts on group :
Pos. Part No Qty Parts name Comments
     708-3T-00140   [1]   PUMP ASS'Y Komatsu 64 kg.
  ["SN: 6501-UP"] |1.
     708-3T-00120   [1]   PUMP ASS'Y Komatsu China
  ["SN: 5501-6500"] analogs:["7083T00114"] |1.
   1.   708-2L-25480   [4]   FILTER Komatsu OEM 0.5 kg.
  ["SN: 4001-UP"]
   2.   708-2L-25490   [4]   O-RING Komatsu 0.001 kg.
  ["SN: 4001-UP"]
   3.   04020-00616   [2]   PIN,DOWEL Komatsu 0.004 kg.
  ["SN: 4001-UP"]
   4.   07000-11008   [3]   O-RING Komatsu China 0.01 kg.
  ["SN: 4001-UP"] analogs:["0700001008", "2016018950"]
   5.   01252-60855   [4]   BOLT Komatsu China
  ["SN: 4001-UP"] analogs:["0125230855"]
   6.   07000-13042   [1]   O-RING Komatsu China 0.01 kg.
  ["SN: 4001-UP"] analogs:["0700003042"]
   7.   708-3T-04512   [1]   PUMP ASS'Y Komatsu China
  ["SN: 4001-UP"] analogs:["7083T04520"]
   8.   708-1T-19230   [1]   RING Komatsu China
  ["SN: 4001-UP"] analogs:["890001675", "7081T19220"]
   9.   07000-12014   [1]   O-RING Komatsu China 0.01 kg.
  ["SN: 4001-UP"] analogs:["0700002014"]
   10.   07000-12060   [1]   O-RING Komatsu China 0.002 kg.
  ["SN: 4001-UP"] analogs:["0700002060"]
   11.   01010-80830   [4]   BOLT Komatsu 0.017 kg.
  ["SN: 4001-UP"] analogs:["6735511120", "0101050830", "0737200830", "1240145H1"]
   12.   01643-30823   [4]   WASHER Komatsu 0.004 kg.
  ["SN: 4001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
        708-3T-04160   [2]   PLUG ASS'Y Komatsu China
  ["SN: 4001-UP"] |13.
13   708-3S-15810   [1]   PLUG Komatsu China
  ["SN: 4001-UP"]
14   07000-11003   [1]   O-RING Komatsu 0.001 kg.
  ["SN: 4001-UP"] analogs:["0700001003"]
15   07001-01003   [1]   RING,BACK-UP Komatsu 0.001 kg.
  ["SN: 4001-UP"]
   16.   708-3S-15820   [2]   NUT Komatsu China
  ["SN: 4001-UP"]
   17.   708-1T-19210   [1]   COUPLING Komatsu China
  ["SN: 4001-UP"] analogs:["890001673"]
   18.   700-30-63140   [1]   RING,SNAP Komatsu China
  ["SN: 4001-UP"] analogs:["890001674"]
   19.   708-3T-12170   [1]   COUPLING Komatsu China
  ["SN: 6501-UP"]
   20.   04065-03212   [1]   RING Komatsu 0.002 kg.
  ["SN: 6501-UP"] analogs:["4174317180"]
   21.   708-3T-12180   [1]   RETAINER Komatsu China
  ["SN: 6501-UP"]
   22.   01010-80825   [1]   BOLT Komatsu 0.015 kg.
  ["SN: 6501-UP"] analogs:["0101050825", "01010D0825", "801015087"]
