KOMATSU 708-2J-00010 708-2J-01010 HYDRAULIC PUMP PARTS

KOMATSU 708-2J-00010 708-2J-01010 HYDRAULIC PUMP PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
708-2J-00010 708-2J-01010
PC490-10 PC490LC-10
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
     708-2J-04110   [1]   Case Assembly, Front Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
3   708-1L-29340   [1]   Orifice Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
4   07000-B1009   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7082L23910"]
5   07000-B2012   [5]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
6   07000-B2014   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-8E-16150   [5]   Plug Komatsu 0.02 kg.
  ["SN: 80001-UP"]
8   07002-61023   [5]   O-Ring Komatsu 0.22 kg.
  ["SN: 80001-UP"] analogs:["7082L23920"]
9   07044-12412   [1]   Plug Komatsu 0.09 kg.
  ["SN: 80001-UP"] analogs:["0704402412", "R0704412412"]
10   07002-62434   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7081W28910"]
11   20B-27-11210   [1]   Bleeder Komatsu 0.02 kg.
  ["SN: 80001-UP"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
     708-2J-04130   [1]   Cap Assembly, End Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
3   708-1L-29340   [2]   Orifice Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
4   708-2J-12320   [2]   Bearing Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
5   07000-A5210   [2]   O-Ring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   04020-01434   [2]   Pin, Dowel Komatsu 0.044 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-2L-25480   [4]   Filter Komatsu OEM 0.5 kg.
  ["SN: 80001-UP"]
8   01010-62275   [8]   Bolt Komatsu 0.304 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101052275", "0101082275", "0101032275"]
9   01643-22245   [8]   Washer Komatsu 0.04 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0164302245"]
10   708-2J-13370   [1]   Plug Komatsu China
  ["SN: 80001-UP"]
11   07002-61423   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7082L23950"]
12   04530-11628   [1]   Bolt, Eye Komatsu 0.23 kg.
  ["SN: 80001-UP"] analogs:["0453001628"]
13   04530-11222   [1]   Bolt, Eye Komatsu 0.122 kg.
  ["SN: 80001-UP"]
14   708-8E-16150   [2]   Plug Komatsu 0.02 kg.
  ["SN: 80001-UP"]
15   07002-61023   [2]   O-Ring Komatsu 0.22 kg.
  ["SN: 80001-UP"] analogs:["7082L23920"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
1   708-2J-12110   [1]   Shaft, Front Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   708-2J-12310   [1]   Bearing Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
3   708-2J-05110   [1]   Washer Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   04064-06525   [1]   Ring, Snap, for Shaft Side Komatsu China 0.021 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-12140   [1]   Seal, Oil Komatsu China
  ["SN: 80001-UP"]
6   708-2J-12130   [1]   Spacer Komatsu China
  ["SN: 80001-UP"]
7   04065-09030   [1]   Ring, Snap, for Hole Side Komatsu 0.03 kg.
  ["SN: 80001-UP"] analogs:["2324013250", "R0406509030"]
     708-2J-04140   [1]   Block Assembly, Front Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$14.
10   708-18-13230   [1]   Pin Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
11   04065-06525   [1]   Ring, Snap Komatsu 0.017 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   708-2J-13130   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-2J-13150   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-2J-13140   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-2J-13350   [1]   Guide, Retainer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   708-2H-23360   [3]   Pin Komatsu 0.006 kg.
  ["SN: 80001-UP", "SCC: C2"]
17   708-2J-13340   [1]   Retainer, Shoe Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
18   708-2J-13310   [9]   Piston Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
     708-2J-04160   [1]   Cradle Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$26.
21   04020-01434   [1]   Pin, Dowel Komatsu 0.044 kg.
  ["SN: 80001-UP", "SCC: C2"]
22   01252-61235   [6]   Bolt Komatsu 0.048 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801105554", "0125231235"]
Parts on group :

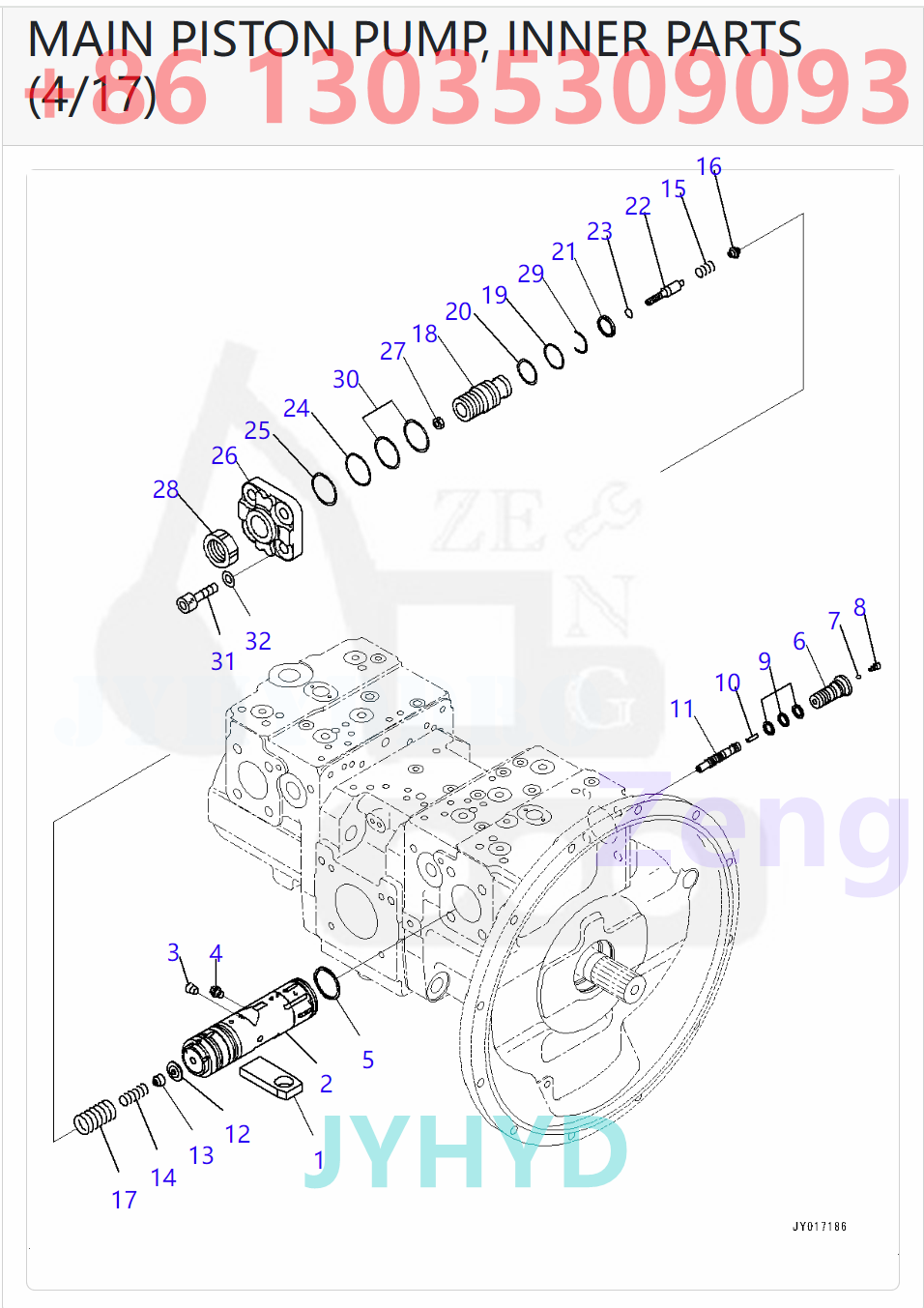

Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
1   708-2J-14110   [1]   Slider Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
1   708-2J-03110   [1]   Valve Assembly, PC Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
1   708-2J-04170   [1]   Piston Assembly, Servo Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-2J-14130   [5]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-14140   [1]   Seal Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   708-2J-15110   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
7   708-2L-35760   [1]   Ball Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
8   708-2L-35770   [1]   Plug Komatsu 0.005 kg.
  ["SN: 80001-UP", "SCC: C2"]
9   708-2L-35690   [3]   Seal Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
10   708-2J-15120   [1]   Pin Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
11   708-3M-15670   [1]   Spool Komatsu 0.03 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   708-2J-15130   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-2J-15140   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-2J-15150   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-2J-15160   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   708-2J-15180   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
17   708-2J-15170   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
18   708-2J-14250   [1]   Screw Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
19   07000-B3042   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
20   708-2J-14230   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
21   708-2J-14270   [1]   Seal Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
22   708-2J-15190   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
23   07000-B2014   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
24   07000-B2055   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
25   708-2J-14240   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
26   708-2J-14210   [1]   Cover Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
27   01580-10806   [1]   Nut Komatsu 0.005 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801920104"]
28   708-2L-35290   [1]   Nut Komatsu 0.12 kg.
  ["SN: 80001-UP", "SCC: C2"]
29   708-2J-14260   [1]   Ring, Wear Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
30   708-2J-14150   [2]   Seal Ring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
31   01010-61860   [4]   Bolt Komatsu 0.17 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101031860", "0101081860", "0104031860"]
32   01643-31845   [4]   Washer Komatsu China 0.02 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0164321845", "R0164331845"]
Parts on group :

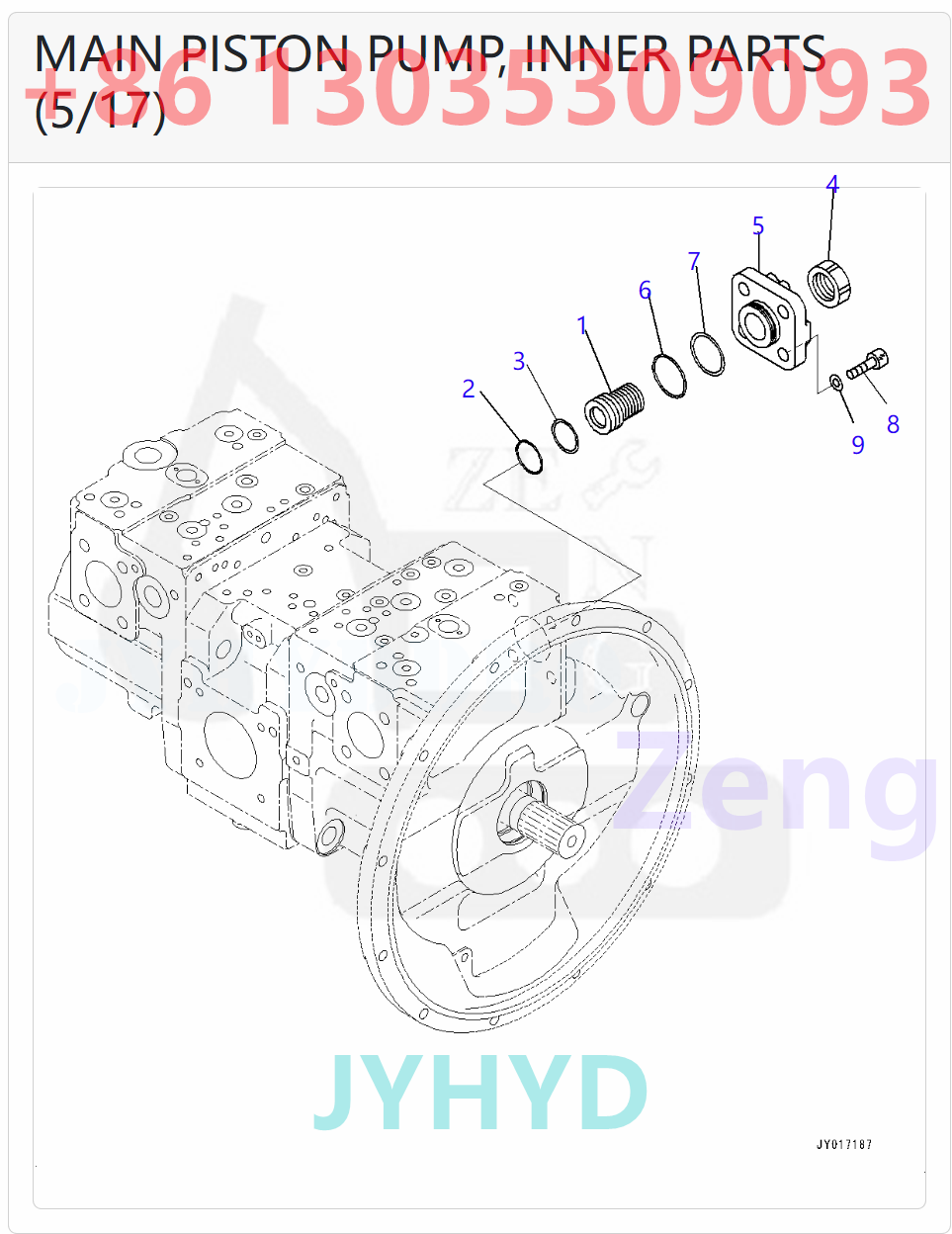

Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
     708-2J-04220   [1]   Cover Assembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
1   708-2J-14220   [1]   Screw Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   07000-B3042   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
3   708-2J-14230   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-2L-35290   [1]   Nut Komatsu 0.12 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-14210   [1]   Cover Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   07000-B2055   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-2J-14240   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
8   01010-61860   [4]   Bolt Komatsu 0.17 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101031860", "0101081860", "0104031860"]
9   01643-31845   [4]   Washer Komatsu China 0.02 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0164321845", "R0164331845"]
Parts on group :

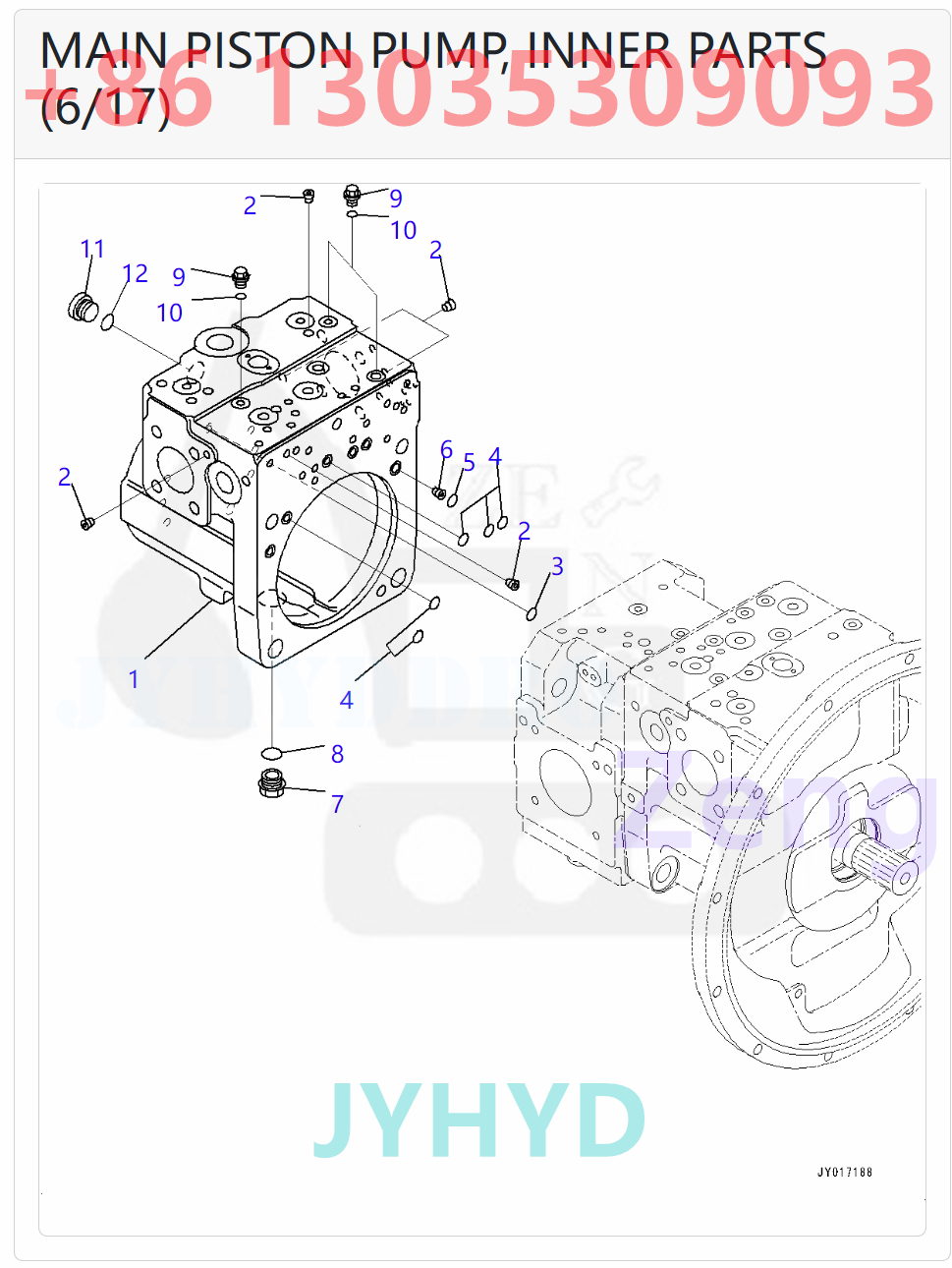

Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
     708-2J-04120   [1]   Case Assembly, Rear Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
3   07000-B1009   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7082L23910"]
4   07000-B2012   [5]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   07000-B2014   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
6   708-1L-29340   [1]   Orifice Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   07044-12412   [1]   Plug Komatsu 0.09 kg.
  ["SN: 80001-UP"] analogs:["0704402412", "R0704412412"]
8   07002-62434   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7081W28910"]
9   708-8E-16150   [3]   Plug Komatsu 0.02 kg.
  ["SN: 80001-UP"]
10   07002-61023   [3]   O-Ring Komatsu 0.22 kg.
  ["SN: 80001-UP"] analogs:["7082L23920"]
11   07040-13016   [1]   Plug Komatsu 0.171 kg.
  ["SN: 80001-UP"]
12   07002-63034   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7081W28920"]
Parts on group :

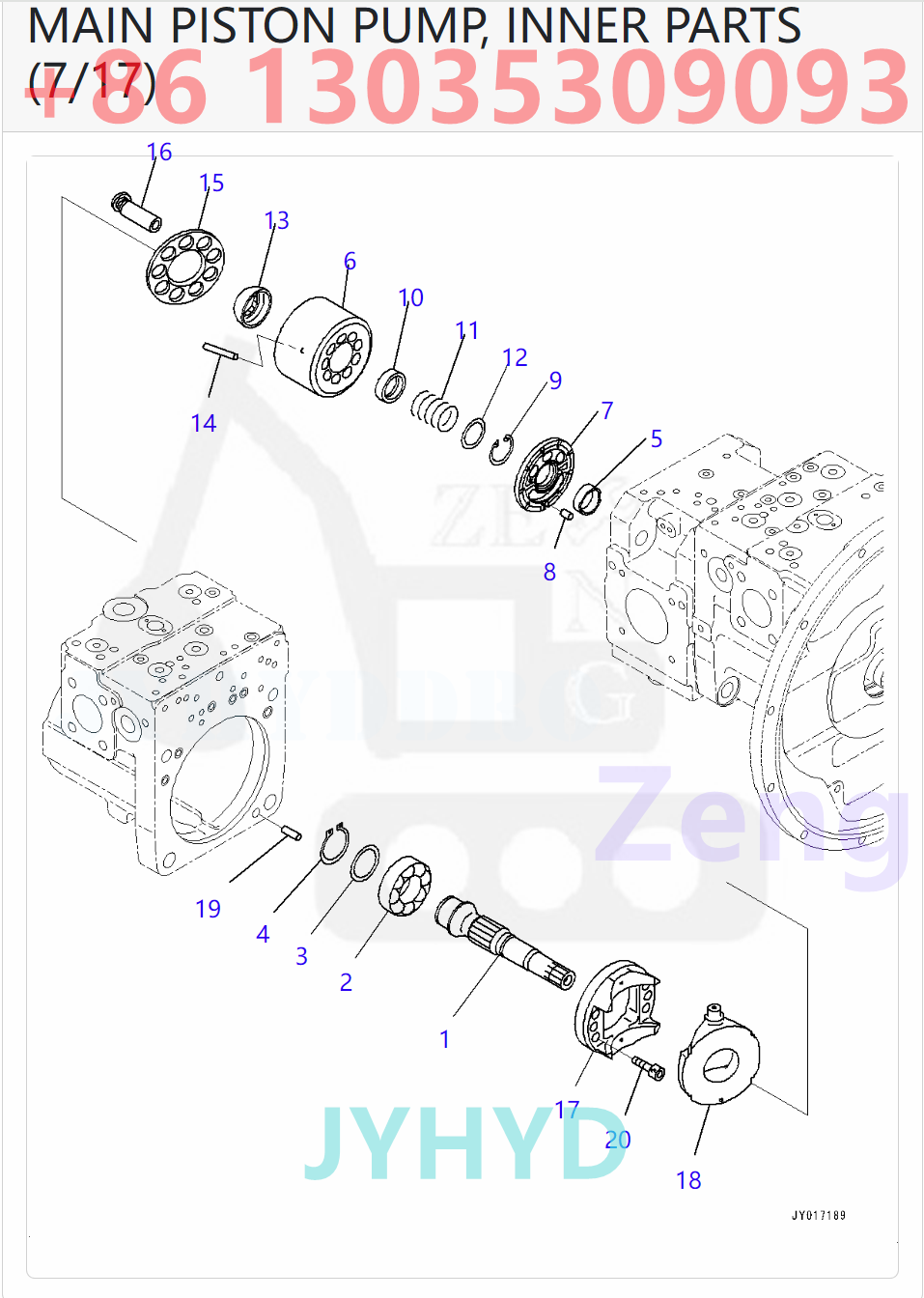

Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
1   708-2J-12120   [1]   Shaft, Rear Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   708-2J-12310   [1]   Bearing Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
3   708-2J-05110   [1]   Washer Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   04064-06525   [1]   Ring, Snap, for Shaft Side Komatsu China 0.021 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-12160   [1]   Sleeve Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
     708-2J-04150   [1]   Block Assembly, Rear Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$12.
8   708-18-13230   [1]   Pin Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
9   04065-06525   [1]   Ring, Snap Komatsu 0.017 kg.
  ["SN: 80001-UP", "SCC: C2"]
10   708-2J-13130   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
11   708-2J-13150   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
12   708-2J-13140   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-2J-13350   [1]   Guide, Retainer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-2H-23360   [3]   Pin Komatsu 0.006 kg.
  ["SN: 80001-UP", "SCC: C2"]
15   708-2J-13340   [1]   Retainer, Shoe Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   708-2J-13310   [9]   Piston Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
     708-2J-04160   [1]   Cradle Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$24.
19   04020-01434   [1]   Pin, Dowel Komatsu 0.044 kg.
  ["SN: 80001-UP", "SCC: C2"]
20   01252-61235   [6]   Bolt Komatsu 0.048 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801105554", "0125231235"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
1   708-2J-14110   [1]   Slider Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
1   708-2J-03110   [1]   Valve Assembly, PC Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
1   708-2J-04170   [1]   Piston Assembly, Servo Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-2J-14130   [5]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-14140   [1]   Seal Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   708-2J-15110   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
7   708-2L-35760   [1]   Ball Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
8   708-2L-35770   [1]   Plug Komatsu 0.005 kg.
  ["SN: 80001-UP", "SCC: C2"]
9   708-2L-35690   [3]   Seal Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
10   708-2J-15120   [1]   Pin Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
11   708-3M-15670   [1]   Spool Komatsu 0.03 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   708-2J-15130   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-2J-15140   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-2J-15150   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-2J-15160   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   708-2J-15180   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
17   708-2J-15170   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
18   708-2J-14250   [1]   Screw Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
19   07000-B3042   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
20   708-2J-14230   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
21   708-2J-14270   [1]   Seal Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
22   708-2J-15190   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
23   07000-B2014   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
24   07000-B2055   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
25   708-2J-14240   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
26   708-2J-14210   [1]   Cover Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
27   01580-10806   [1]   Nut Komatsu 0.005 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801920104"]
28   708-2L-35290   [1]   Nut Komatsu 0.12 kg.
  ["SN: 80001-UP", "SCC: C2"]
29   708-2J-14260   [1]   Ring, Wear Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
30   708-2J-14150   [2]   Seal Ring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
31   01010-61860   [4]   Bolt Komatsu 0.17 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101031860", "0101081860", "0104031860"]
32   01643-31845   [4]   Washer Komatsu China 0.02 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0164321845", "R0164331845"]

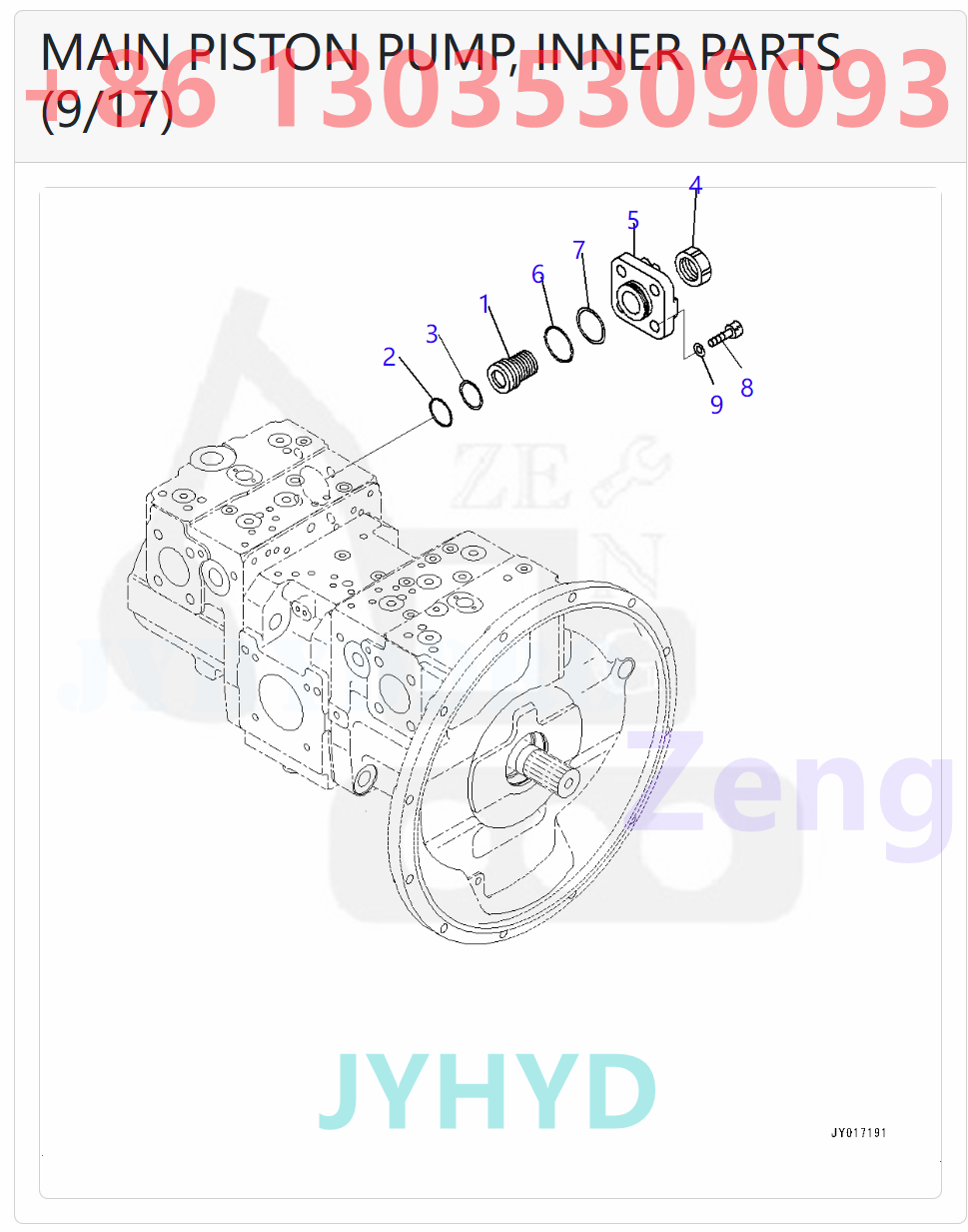

Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
     708-2J-04220   [1]   Cover Assembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
1   708-2J-14220   [1]   Screw Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   07000-B3042   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
3   708-2J-14230   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-2L-35290   [1]   Nut Komatsu 0.12 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   708-2J-14210   [1]   Cover Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   07000-B2055   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-2J-14240   [1]   Ring, Back-Up Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
8   01010-61860   [4]   Bolt Komatsu 0.17 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101031860", "0101081860", "0104031860"]
9   01643-31845   [4]   Washer Komatsu China 0.02 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0164321845", "R0164331845"]

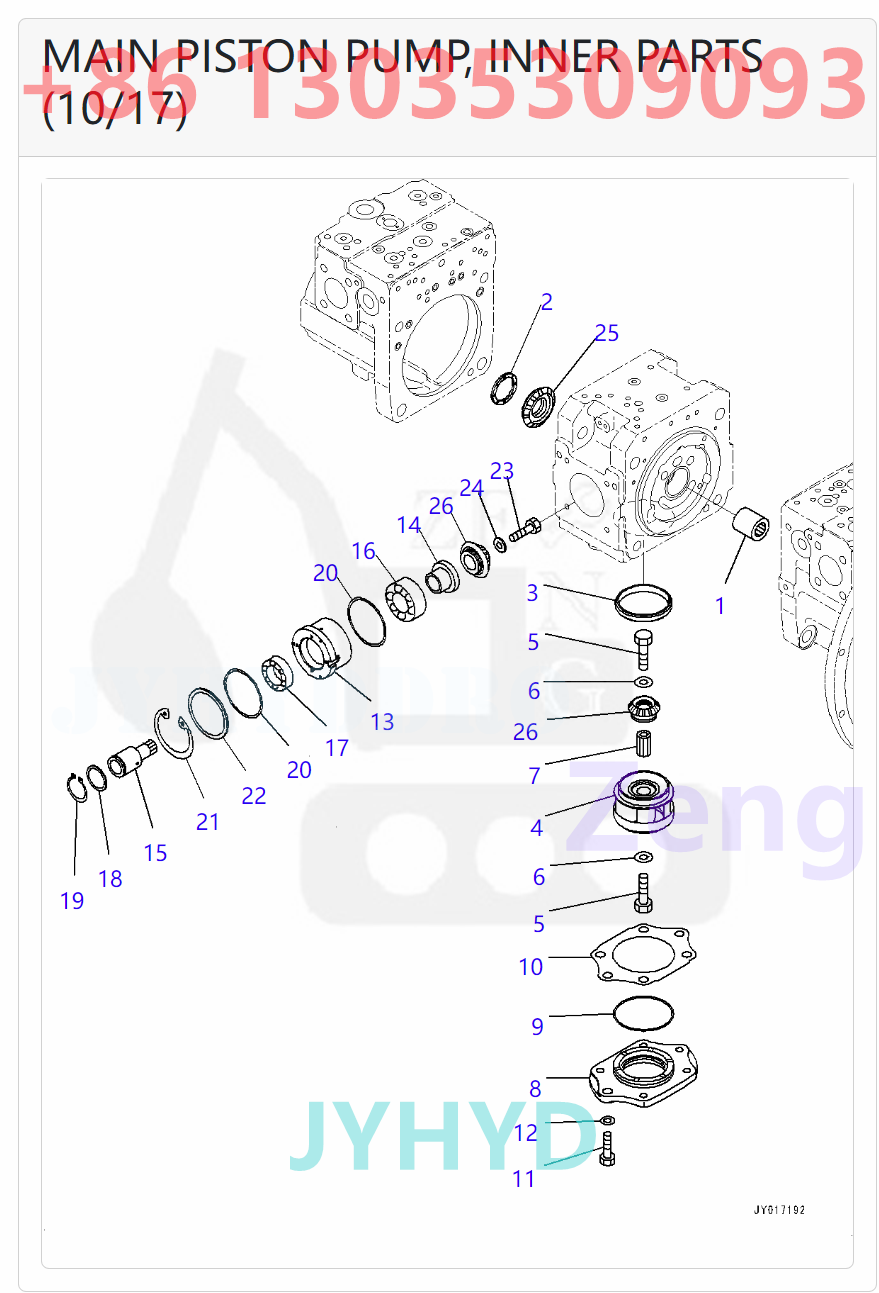

Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-01010   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$1.
1   708-2J-12150   [1]   Coupling Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   708-2J-13530   [1]   Bearing, Thrust Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
3   708-2H-32320   [1]   Bushing Komatsu 0.000 kg.
  ["SN: 80001-UP", "SCC: C2"]
4   708-2J-13360   [1]   Impeller Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
5   01010-E1220   [2]   Bolt Komatsu 0.035 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0101031220"]
6   708-2H-32350   [2]   Washer Komatsu 0.000 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-2H-32360   [1]   Shaft Komatsu 0.000 kg.
  ["SN: 80001-UP", "SCC: C2"]
8   708-2J-11140   [1]   Cover Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
9   07000-A2105   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
10   708-2H-05120   [1]   Shim Kit Komatsu 0.000 kg.
  ["SN: 80001-UP", "SCC: C2"]
11   01010-81235   [2]   Bolt Komatsu 0.048 kg.
  ["SN: 80001-UP"] analogs:["0101051235", "01010E1235", "801015136"]
12   01643-31232   [2]   Washer Komatsu 0.027 kg.
  ["SN: 80001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
     708-2J-04210   [1]   Case Assembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$17.
13   708-2J-12530   [1]   Case Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-2J-12540   [1]   Collar Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-2J-12510   [1]   Shaft Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   708-8H-22350   [1]   Bearing Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
17   708-2J-12520   [1]   Bearing Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
18   708-2J-05130   [3]   Spacer Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
19   04064-04018   [1]   Ring, Snap Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["802250040"]
20   708-2J-05120   [2]   Shim Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
21   04065-01030   [1]   Ring Komatsu 0.047 kg.
  ["SN: 80001-UP"]
22   708-2J-13540   [1]   Spacer Komatsu China
  ["SN: 80001-UP"]
     708-2J-05210   [1]   Gear Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$43.
25   708-2J-13510   [1]   Gear, Bevel Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
26   708-2J-13520   [2]   Pinion Komatsu China
  ["SN: 80001-UP", "SCC: C2"]

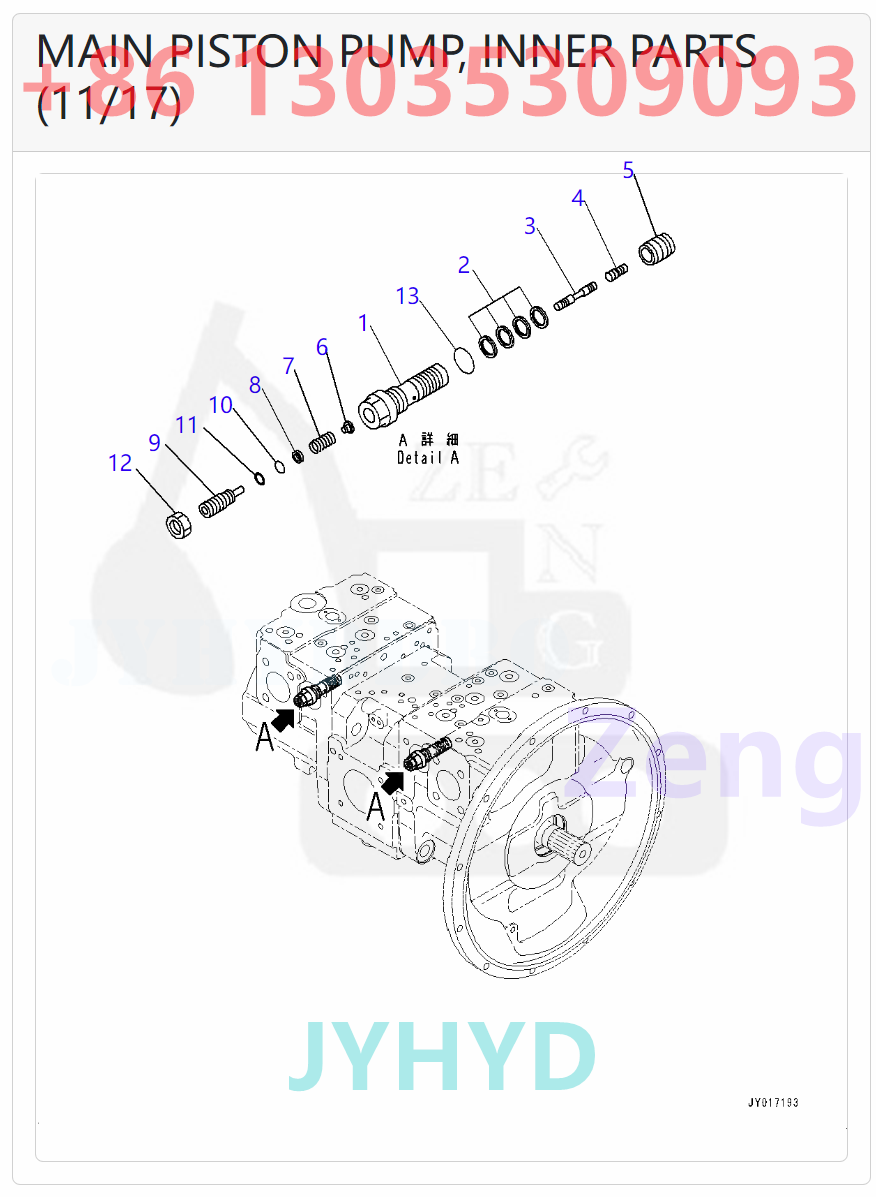

Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-2J-03210   [2]   Valve Assembly, LS Komatsu China
  ["SN: 80001-UP"] |$1.
1   708-2G-15920   [1]   Sleeve Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   708-2L-24680   [4]   Seal Komatsu 0.003 kg.
  ["SN: 80001-UP"]
3   708-2J-15310   [1]   Spool Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-2L-28540   [1]   Piston Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
5   708-2L-35360   [1]   Sleeve Komatsu 0.04 kg.
  ["SN: 80001-UP", "SCC: C2"]
6   708-2L-35341   [1]   Seat Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-2L-35410   [1]   Spring Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
8   708-2G-15420   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
9   708-2L-35351   [1]   Plug Komatsu 0.04 kg.
  ["SN: 80001-UP", "SCC: C2"]
10   07000-B1009   [1]   O-Ring Komatsu China 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7082L23910"]
11   07001-01009   [1]   Ring, Back-Up Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   01583-11408   [1]   Nut Komatsu 0.4 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801713411"]
13   07002-62434   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7081W28910"]

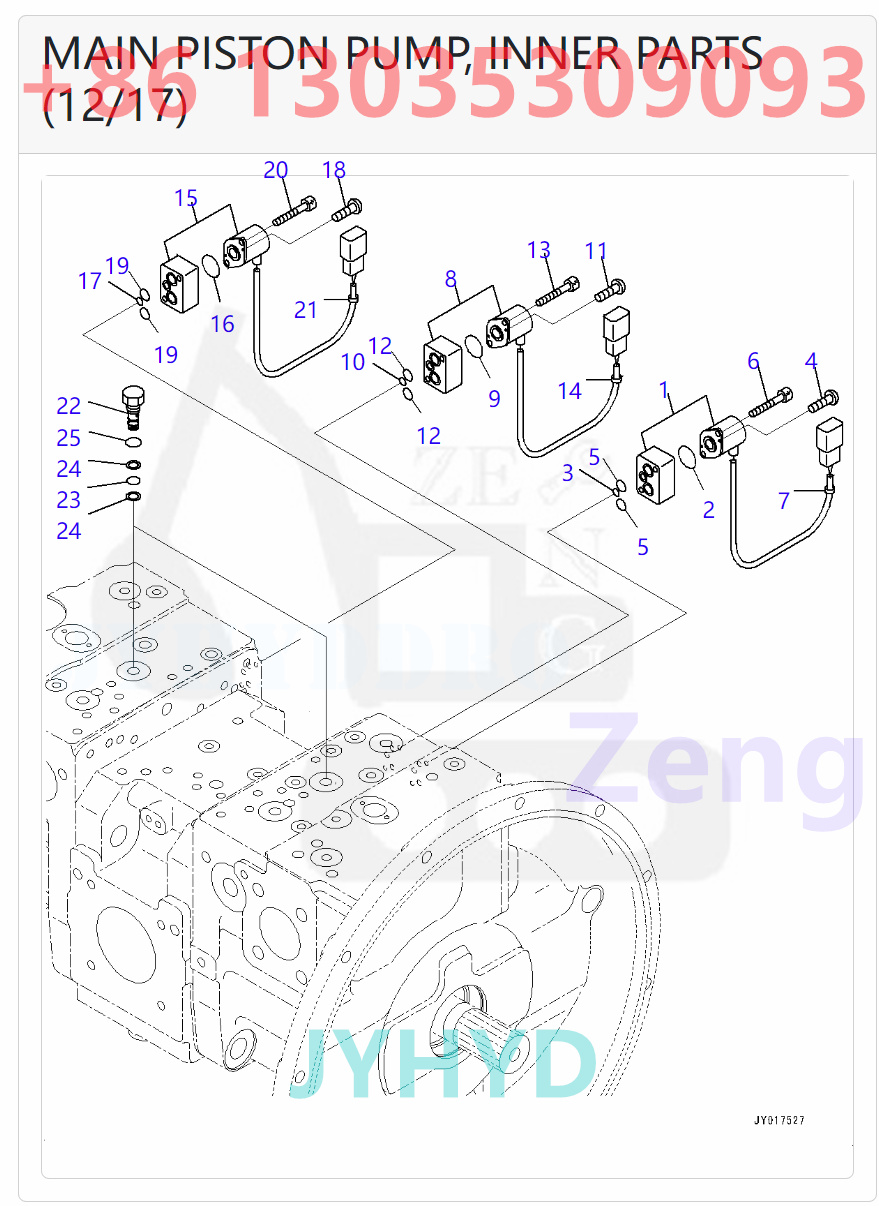

Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
   1.   702-21-61700   [1]   Valve, Pilot Komatsu China
  ["SN: 80001-UP"]
2   720-1L-15440   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"]
3   720-1L-15430   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"] analogs:["7291111170", "7291121140", "7291121000", "7291121120", "7291111110", "7291121130", "7291121160", "7291121110", "7291111160", "7291121100"]
4   702-21-54180   [2]   Screw Komatsu China
  ["SN: 80001-UP"]
5   702-16-58320   [2]   O-Ring Komatsu China
  ["SN: 80001-UP"]
   6.   01252-60635   [2]   Bolt Komatsu 0.011 kg.
  ["SN: 80001-UP"]
   7.   20Y-62-22790   [1]   Band, Red Komatsu 0.001 kg.
  ["SN: 80001-UP"]
   14.   20Y-62-22830   [1]   Band, White Komatsu 0.001 kg.
  ["SN: 80001-UP"]
   21.   20Y-62-22810   [1]   Band, Yellow Komatsu 0.001 kg.
  ["SN: 80001-UP"]
   22.   708-2J-15210   [2]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
   23.   07000-B1008   [2]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
   24.   07001-01008   [4]   Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
   25.   07002-61423   [2]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7082L23950"]

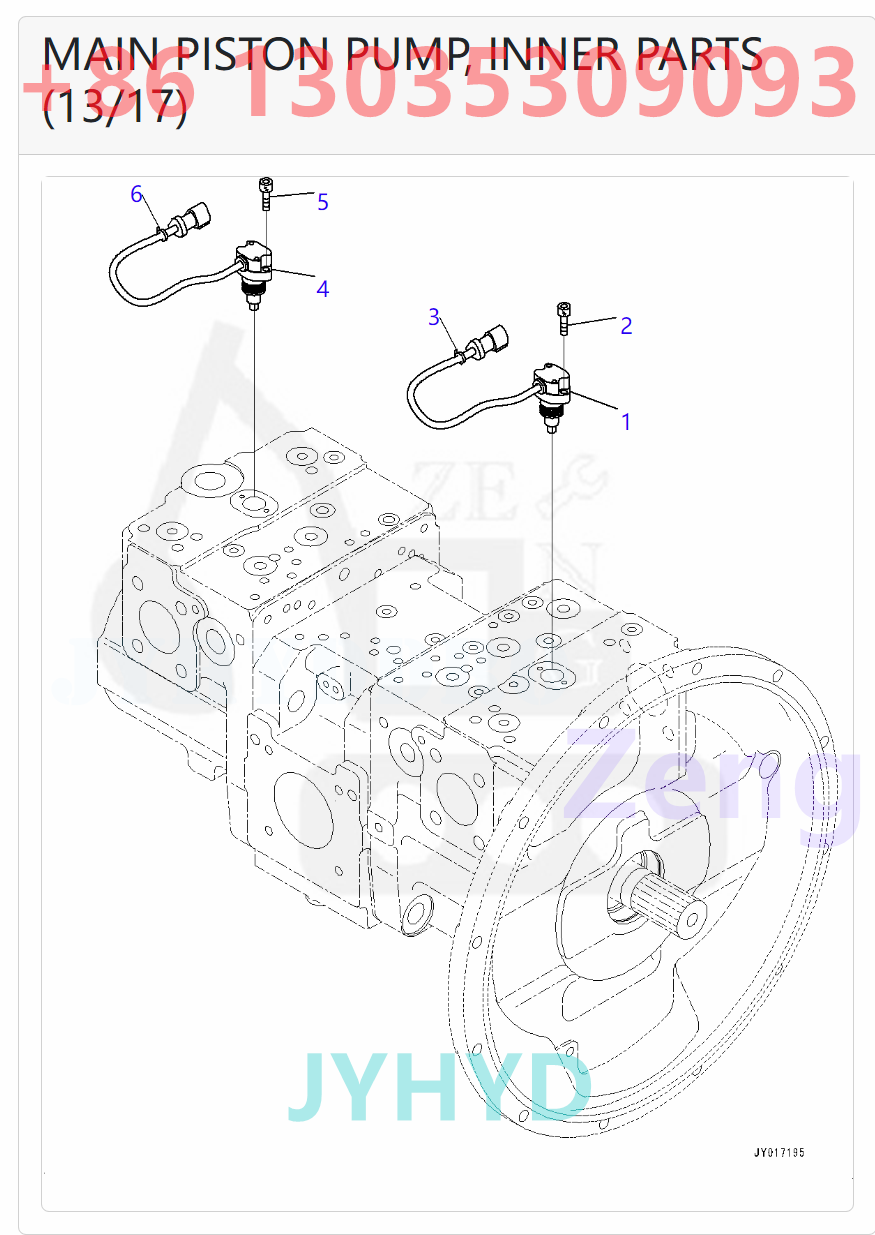

Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
   1.   729-12-21000   [1]   Sensor Assembly Komatsu China
  ["SN: 80001-UP"]
   2.   01252-60625   [2]   Bolt Komatsu China
  ["SN: 80001-UP"] analogs:["890001423", "890001607", "KB9260106251", "0125200625", "0125210625", "0125230625"]
   3.   20Y-62-22820   [1]   Band, Blue Komatsu 0.01 kg.
  ["SN: 80001-UP"]
   6.   20Y-62-22850   [1]   Band, Green Komatsu 0.001 kg.
  ["SN: 80001-UP"]
708-1T-00580 708-1T-01581
PC490-10 PC490LC-10
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$1.
        708-1T-00580   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$2.
     708-1T-01581   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$3.
     708-1T-04630   [1]   Case Assembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$4.
5   708-1T-13430   [1]   Cam, Rocker Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
6   04260-01270   [1]   Ball Komatsu OEM 0.009 kg.
  ["SN: 80001-UP", "SCC: C2"]
7   708-3S-14141   [1]   Spacer Komatsu 0.03 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7083S14140"]
8   708-1S-13420   [2]   Pin Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
9   01252-60616   [1]   Bolt Komatsu 0.007 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["0125230616"]
10   708-1T-33432   [1]   Ball, Retainer Komatsu 0.000 kg.
  ["SN: 80001-UP", "SCC: C2"]
11   708-1T-33470   [1]   Ball, Retainer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
12   01252-61235   [4]   Bolt Komatsu 0.048 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["801105554", "0125231235"]
13   04020-01024   [2]   Pin, Dowel Komatsu 0.015 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["PZF890001197"]
14   708-1T-19270   [1]   Plate Komatsu China
  ["SN: 80001-UP"]
15   07000-B2065   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP"]
16   01010-61025   [4]   Bolt Komatsu China 0.03 kg.
  ["SN: 80001-UP"] analogs:["0101031025", "01010E1025", "0104041025"]
17   01643-31032   [4]   Washer Komatsu 0.054 kg.
  ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
18   07002-61423   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7082L23950"]
19   07040-11409   [1]   Plug Komatsu 0.033 kg.
  ["SN: 80001-UP"]
     708-1T-04641   [1]   Cap Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$24.
22   708-1S-12260   [1]   Bearing Komatsu 0.12 kg.
  ["SN: 80001-UP", "SCC: C2"]
23   720-68-19610   [1]   Pin Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
24   708-7T-05030   [1]   Spacer Kit Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
25   708-1S-12280   [1]   Ring, Wear Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
26   708-1S-12330   [1]   Retainer Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
27   07000-B1006   [1]   O-Ring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
28   07000-B2130   [1]   O-Ring Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
29   708-3T-11310   [1]   Orifice Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
30   708-2L-25480   [1]   Filter Komatsu OEM 0.5 kg.
  ["SN: 80001-UP"]
31   708-2L-25490   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"]
32   708-1L-25210   [2]   Plug Komatsu 0.3 kg.
  ["SN: 80001-UP"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-1T-00580   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$1.
     708-1T-01581   [1]   Pump Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
1   708-1T-12430   [1]   Shaft Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
2   706-73-40890   [1]   Bearing Komatsu 0.26 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7088E12141"]
3   708-1S-12340   [1]   Case Komatsu 0.18 kg.
  ["SN: 80001-UP", "SCC: C2"]
4   708-21-12970   [1]   Seal, Oil Komatsu 0.046 kg.
  ["SN: 80001-UP"]
5   708-1S-12350   [1]   O-Ring Komatsu 0.003 kg.
  ["SN: 80001-UP"]
6   04065-06220   [1]   Ring, Snap Komatsu 0.013 kg.
  ["SN: 80001-UP"]
7   708-1T-13440   [1]   Cylinder Block Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
8   708-1T-13450   [1]   Plate, Valve Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
9   708-1T-13710   [2]   Washer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
10   708-3S-13430   [1]   Spring Komatsu 0.07 kg.
  ["SN: 80001-UP", "SCC: C2"]
11   04065-03515   [1]   Ring, Snap Komatsu 0.003 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   708-1T-13660   [1]   Guide, Retainer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-1S-13380   [3]   Pin Komatsu 0.06 kg.
  ["SN: 80001-UP", "SCC: C2"]
14   708-1T-13670   [1]   Retainer, Shoe Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-1S-13520   [10]   Piston Subassembly Komatsu 0.09 kg.
  ["SN: 80001-UP", "SCC: C2"]
16   708-3S-14290   [1]   Piston Subassembly Komatsu 0.087 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7081S14230", "7083S14250"]
17   708-1S-14241   [1]   Spring Komatsu 0.01 kg.
  ["SN: 80001-UP", "SCC: C2"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-1T-00580   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$1.
     708-1T-03550   [1]   Valve Assembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] |$2.
     708-1S-03930   [1]   Body Subassembly Komatsu China
  ["SN: 80001-UP", "SCC: C2"] analogs:["7081S15150"] |$3.
3   708-1S-15420   [1]   Piston Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
4   708-1S-15430   [1]   Sleeve Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
5   07002-61623   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
6   07000-B1010   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
7   708-1S-15470   [1]   Spool Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
8   708-1S-15240   [1]   Seat Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
9   708-1S-15441   [1]   Spring Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
10   723-56-31630   [1]   Plug Komatsu 0.02 kg.
  ["SN: 80001-UP", "SCC: C2"]
12   708-1S-15270   [1]   Lever Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-1S-15480   [1]   Retainer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   708-1S-15280   [1]   Spacer Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
15   708-1S-15490   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
16   01582-11210   [1]   Nut Komatsu 0.015 kg.
  ["SN: 80001-UP"]
17   07000-B1006   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"]
18   20B-27-11210   [1]   Bleeder Komatsu 0.02 kg.
  ["SN: 80001-UP"]
19   07040-11007   [2]   Plug Komatsu 0.014 kg.
  ["SN: 80001-UP"]
20   07002-61023   [2]   O-Ring Komatsu 0.22 kg.
  ["SN: 80001-UP"] analogs:["7082L23920"]
21   702-21-61500   [1]   Valve, Pilot Komatsu 0.000 kg.
  ["SN: 80001-UP"]
22   720-1L-15440   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"]
23   720-1L-15430   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"] analogs:["7291111170", "7291121140", "7291121000", "7291121120", "7291111110", "7291121130", "7291121160", "7291121110", "7291111160", "7291121100"]
24   702-21-54180   [2]   Screw Komatsu China
  ["SN: 80001-UP"]
25   702-16-58320   [2]   O-Ring Komatsu China
  ["SN: 80001-UP"]
26   01252-60635   [2]   Bolt Komatsu 0.011 kg.
  ["SN: 80001-UP"]
Parts on group :
Pos. Part No Qty Parts name Comments
     708-2J-00010   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$0.
        708-1T-00580   [1]   Pump Assembly, Piston Komatsu China
  ["SN: 80001-UP"] |$1.
1   708-2L-25480   [2]   Filter Komatsu OEM 0.5 kg.
  ["SN: 80001-UP"]
2   708-2L-25490   [2]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
3   708-1S-19710   [1]   Orifice Komatsu 0.002 kg.
  ["SN: 80001-UP", "SCC: C2"]
4   01252-60635   [3]   Bolt Komatsu 0.011 kg.
  ["SN: 80001-UP"]
5   01252-60650   [1]   Bolt Komatsu China
  ["SN: 80001-UP"]
6   07000-B3040   [1]   O-Ring Komatsu 0.002 kg.
  ["SN: 80001-UP"]
7   04020-00616   [2]   Pin, Dowel Komatsu 0.004 kg.
  ["SN: 80001-UP", "SCC: C2"]
8   708-1S-19930   [1]   Plug Komatsu 0.25 kg.
  ["SN: 80001-UP"]
9   723-60-22230   [1]   Ring, Back-Up Komatsu 0.001 kg.
  ["SN: 80001-UP"]
10   07000-B2016   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"]
11   07002-62434   [1]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP"] analogs:["7081W28910"]
12   708-3S-14240   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
13   708-3S-14261   [1]   Plug Komatsu China
  ["SN: 80001-UP", "SCC: C2"]
14   07002-61223   [2]   O-Ring Komatsu 0.001 kg.
  ["SN: 80001-UP", "SCC: C2"] analogs:["7082L23940"]
   15.   07000-A2110   [1]   O-Ring Komatsu China
  ["SN: 80001-UP"]
   16.   01010-81240   [4]   Bolt Komatsu 0.052 kg.
  ["SN: 80001-UP"] analogs:["801015573", "0101051240"]
   17.   01643-31232   [4]   Washer Komatsu 0.027 kg.
  ["SN: 80001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]

Materials

Shipping & Returns

Dimensions

Care Instructions

查看完整資訊

Kawasaki Best Selling Series

檢視全部

Komatsu Best Selling Series

檢視全部

Caterpillar Best Selling Series

檢視全部
