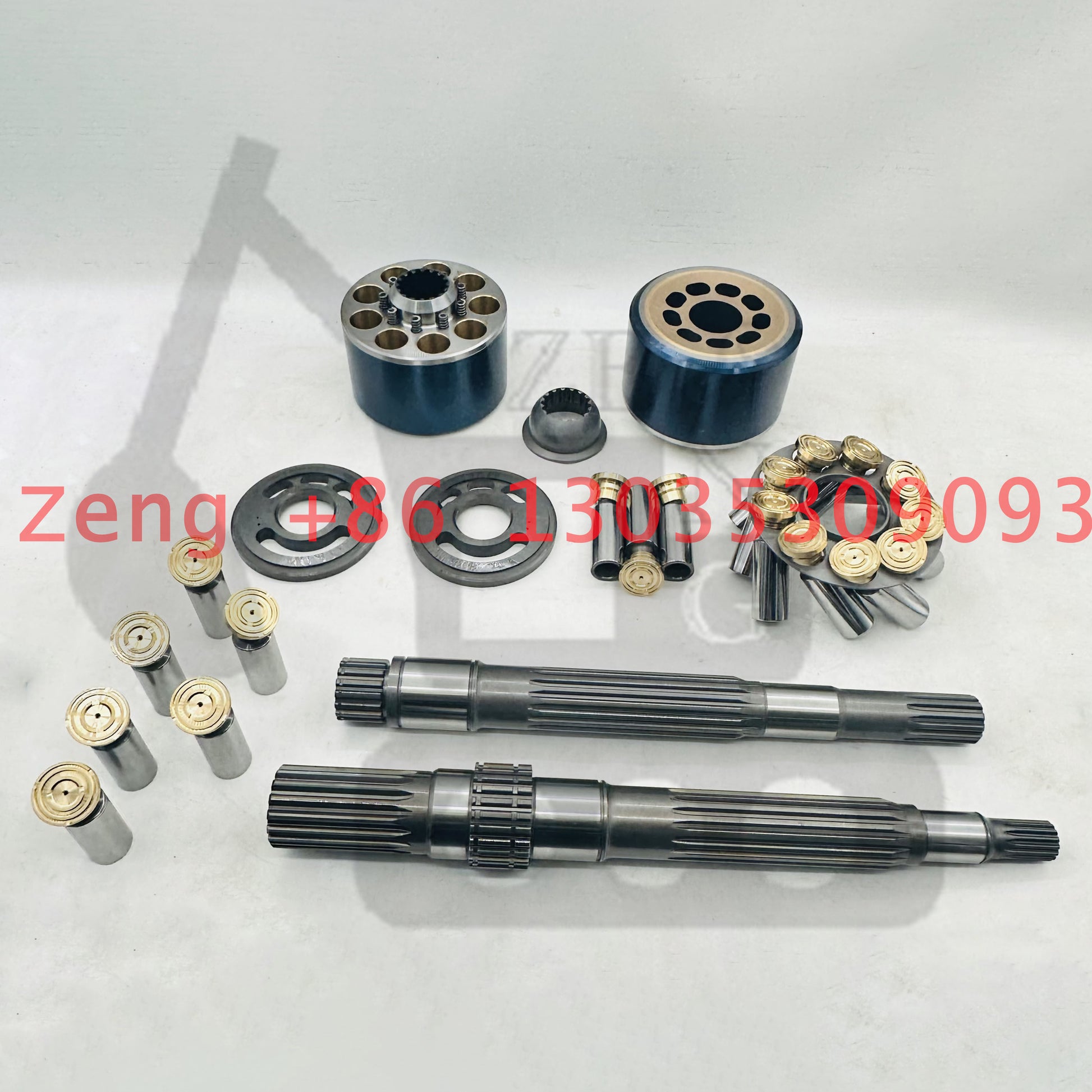

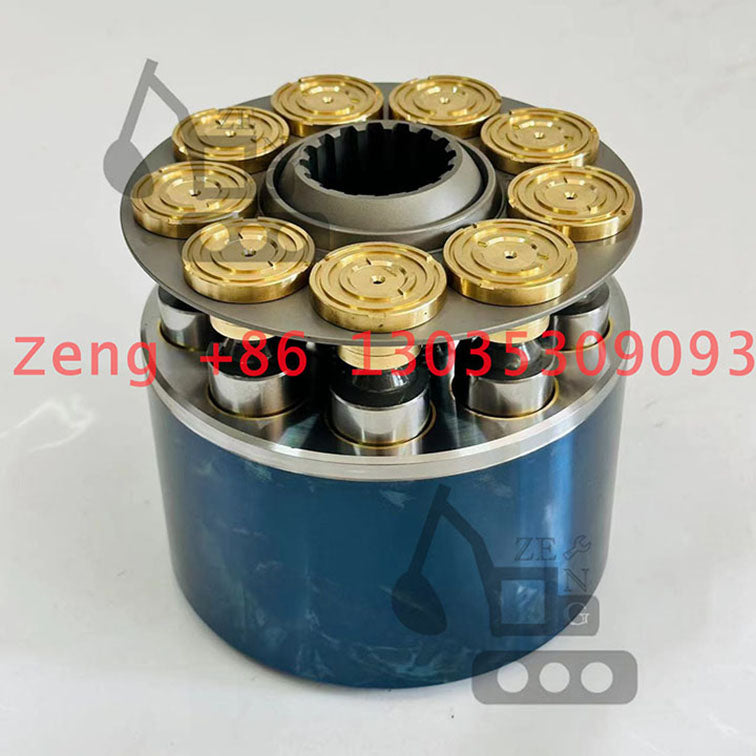

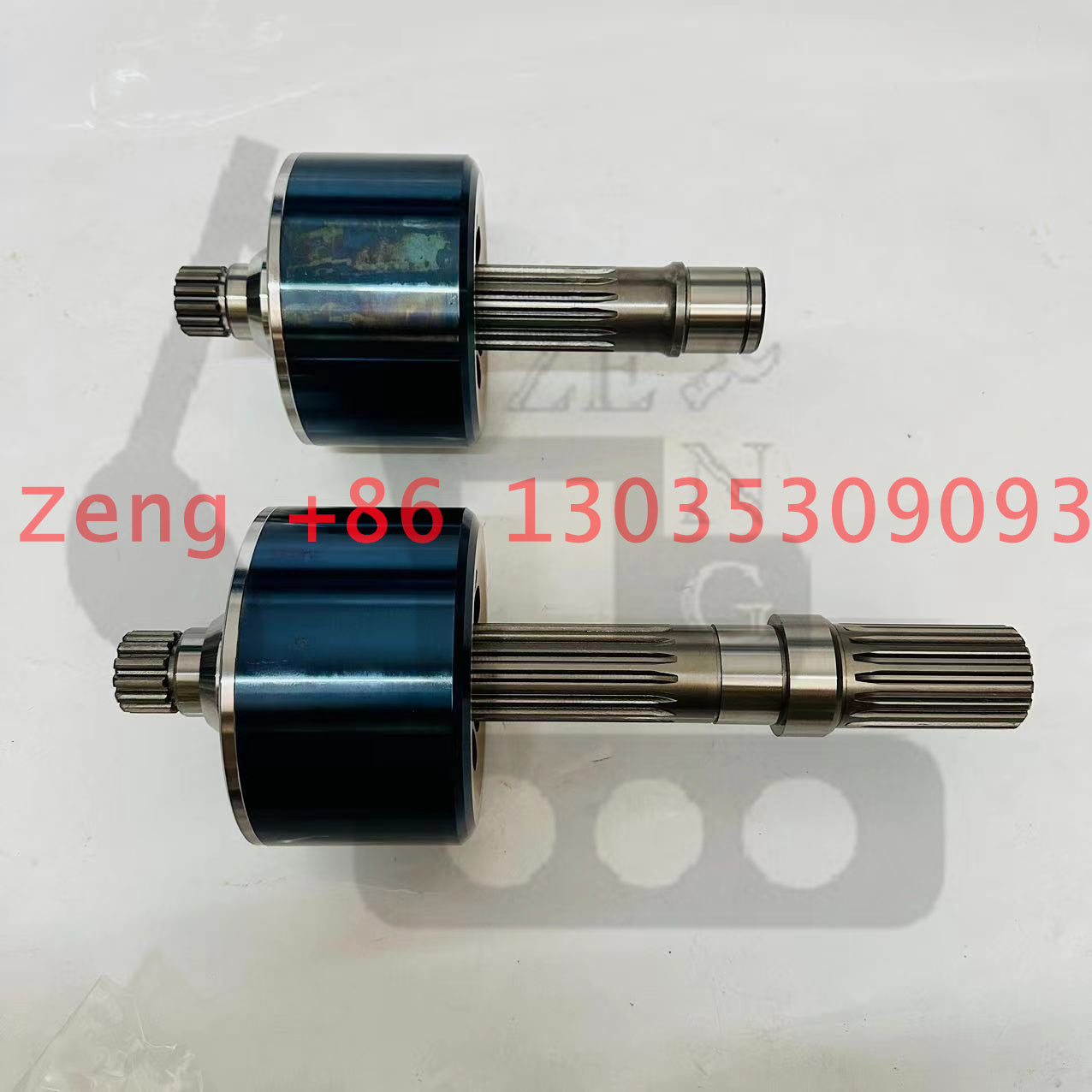

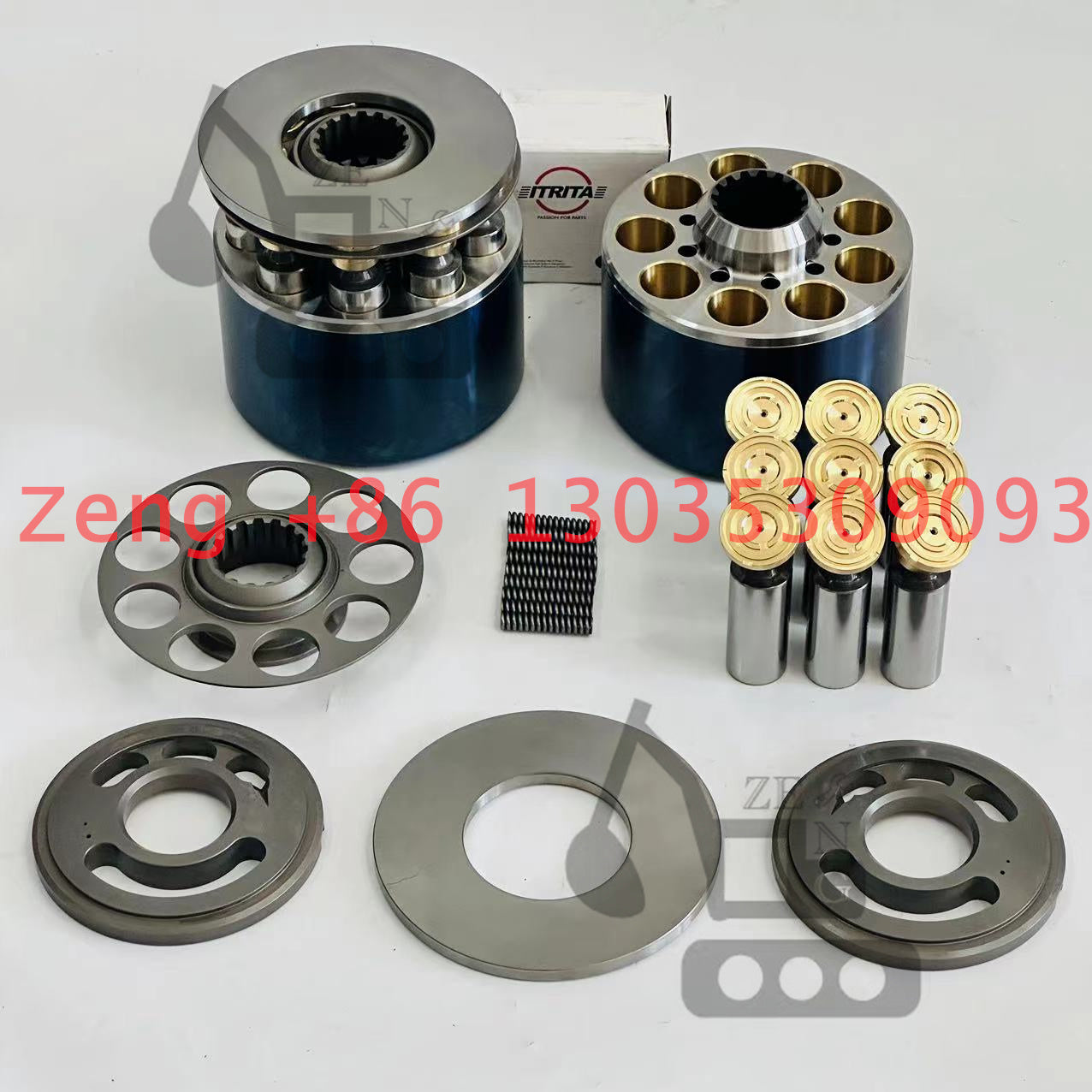

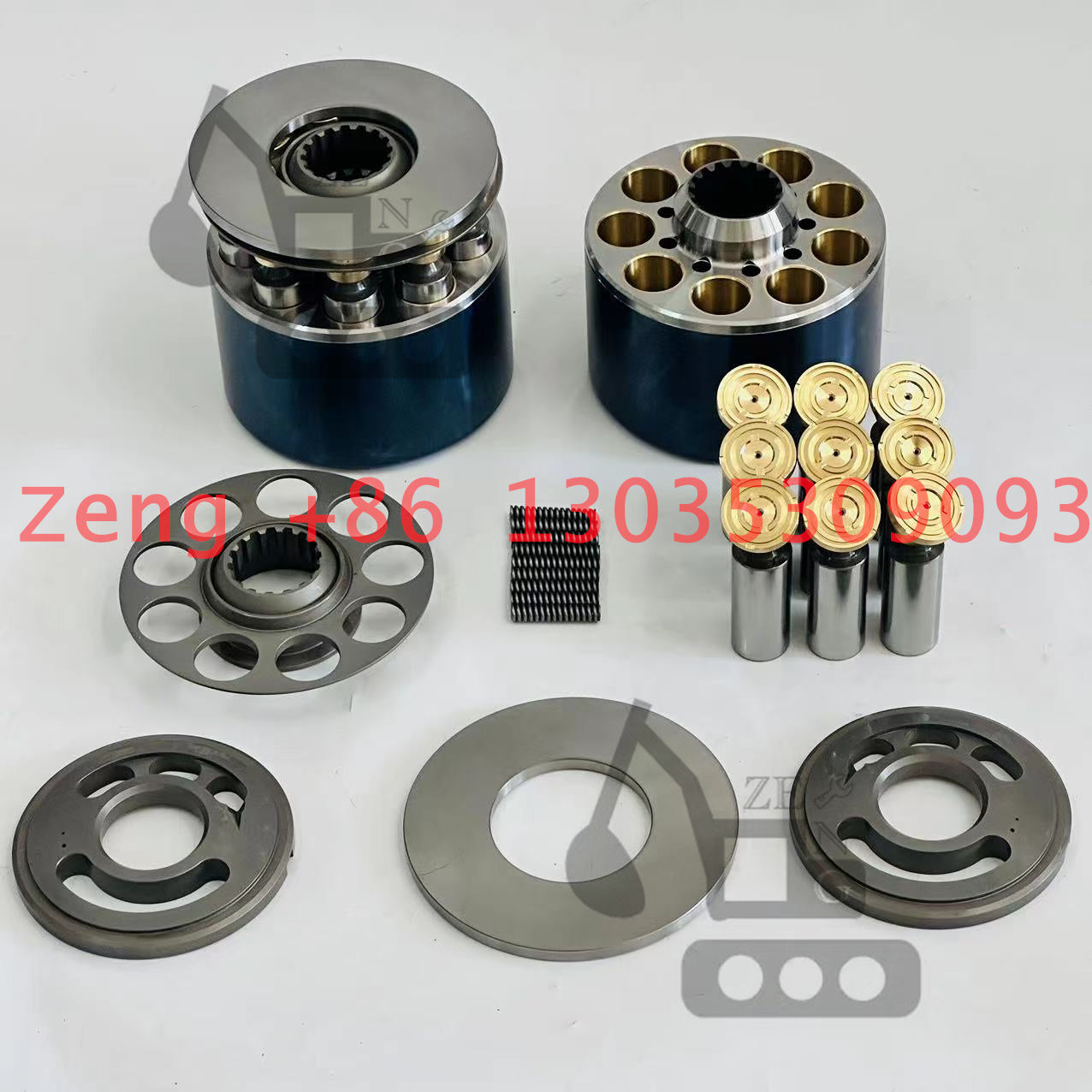

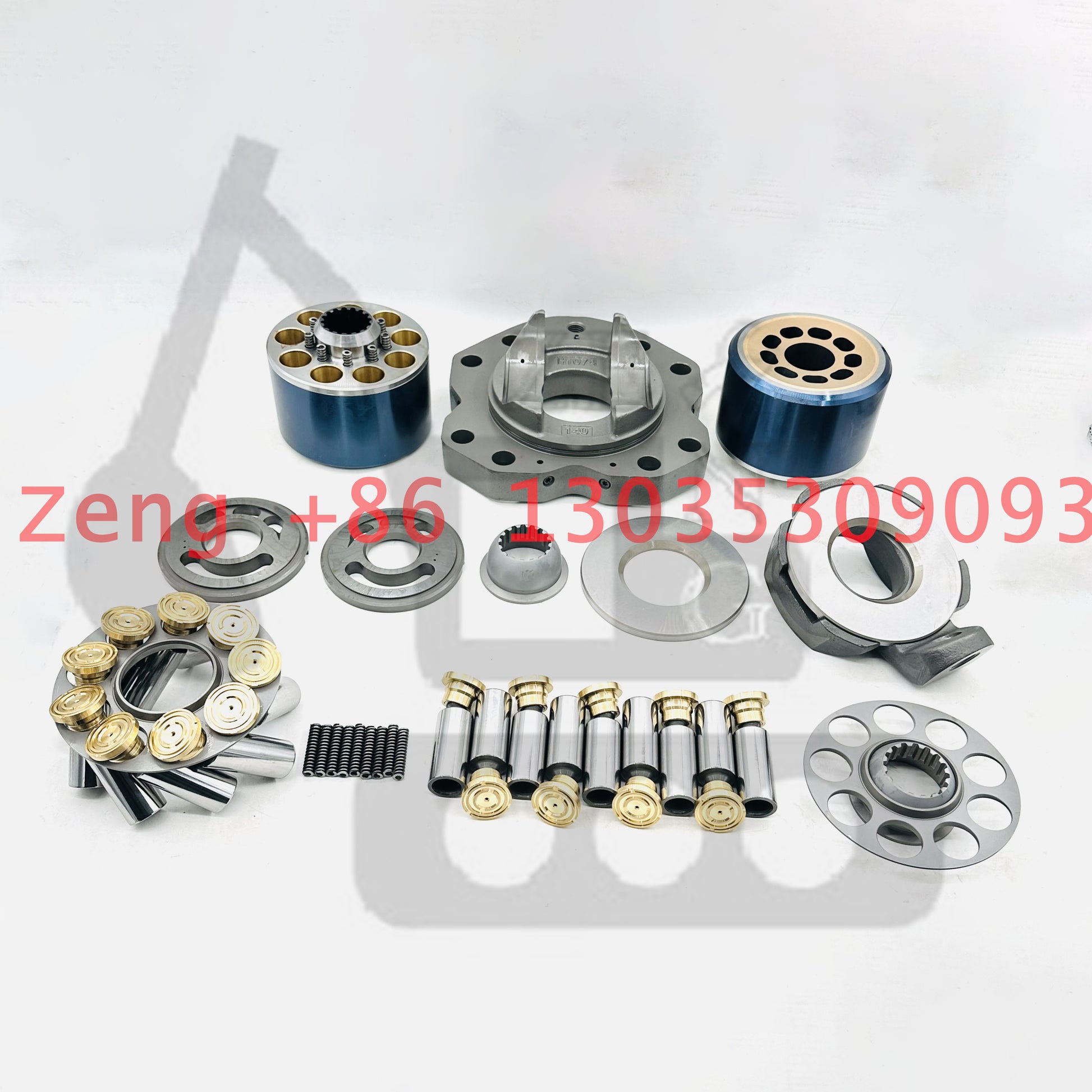

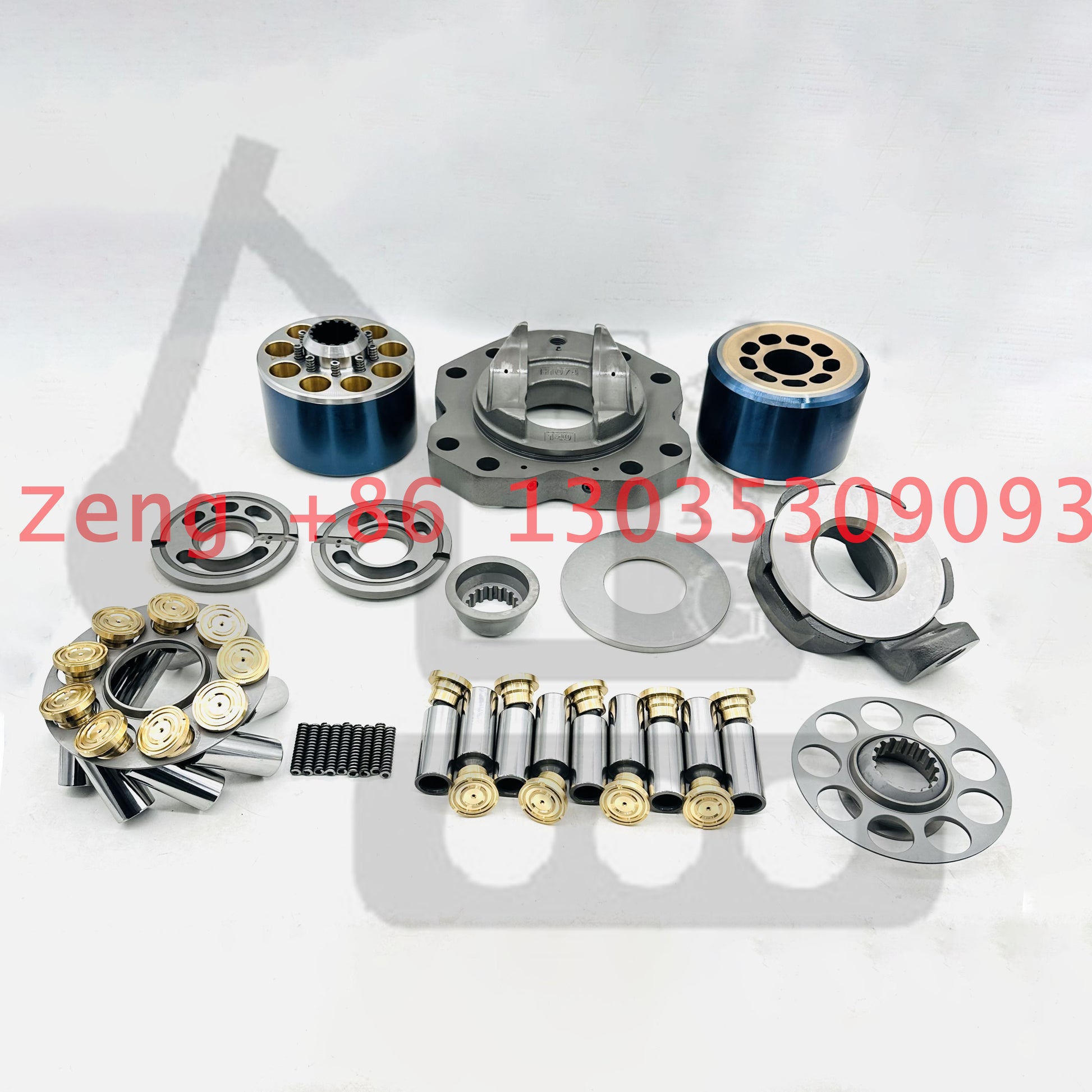

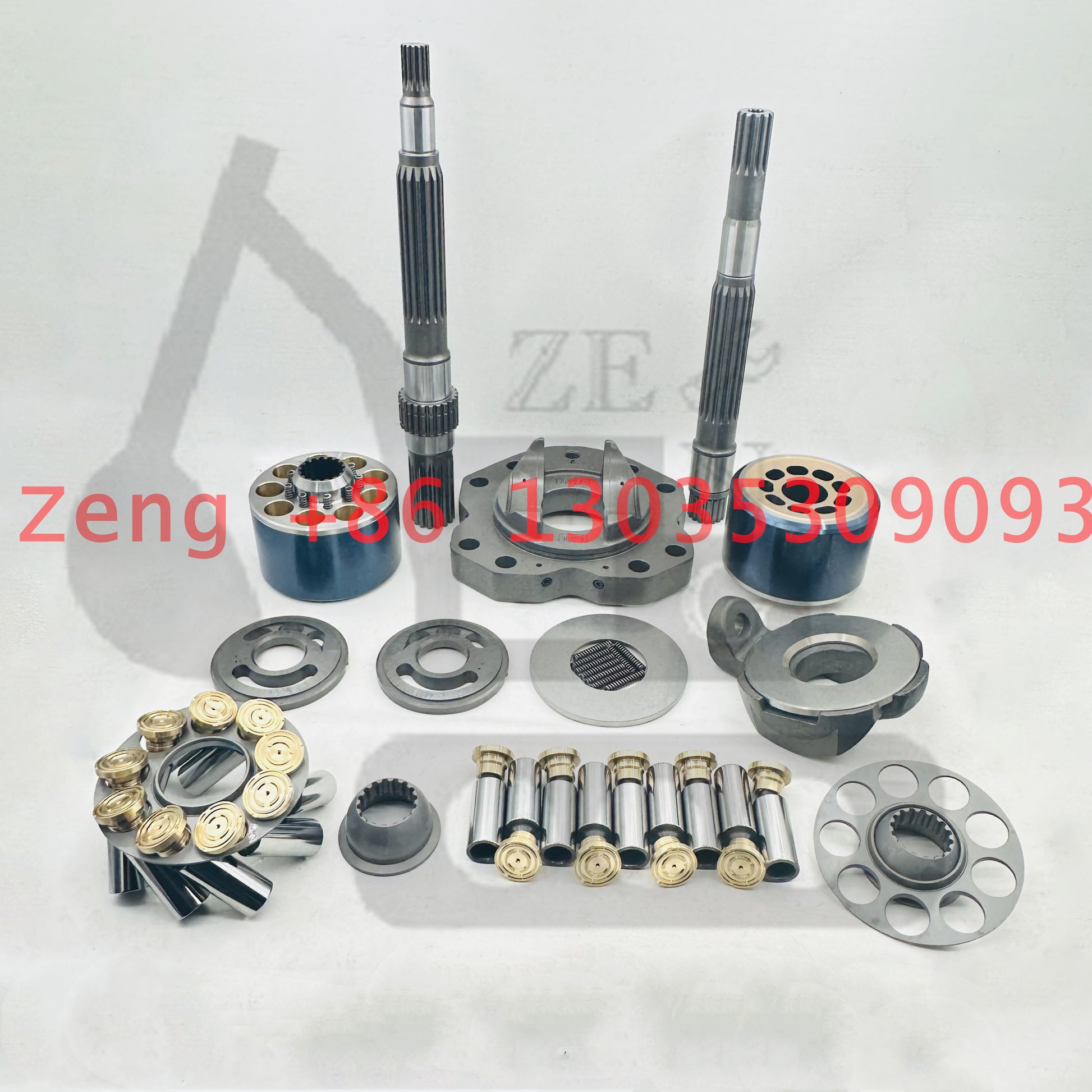

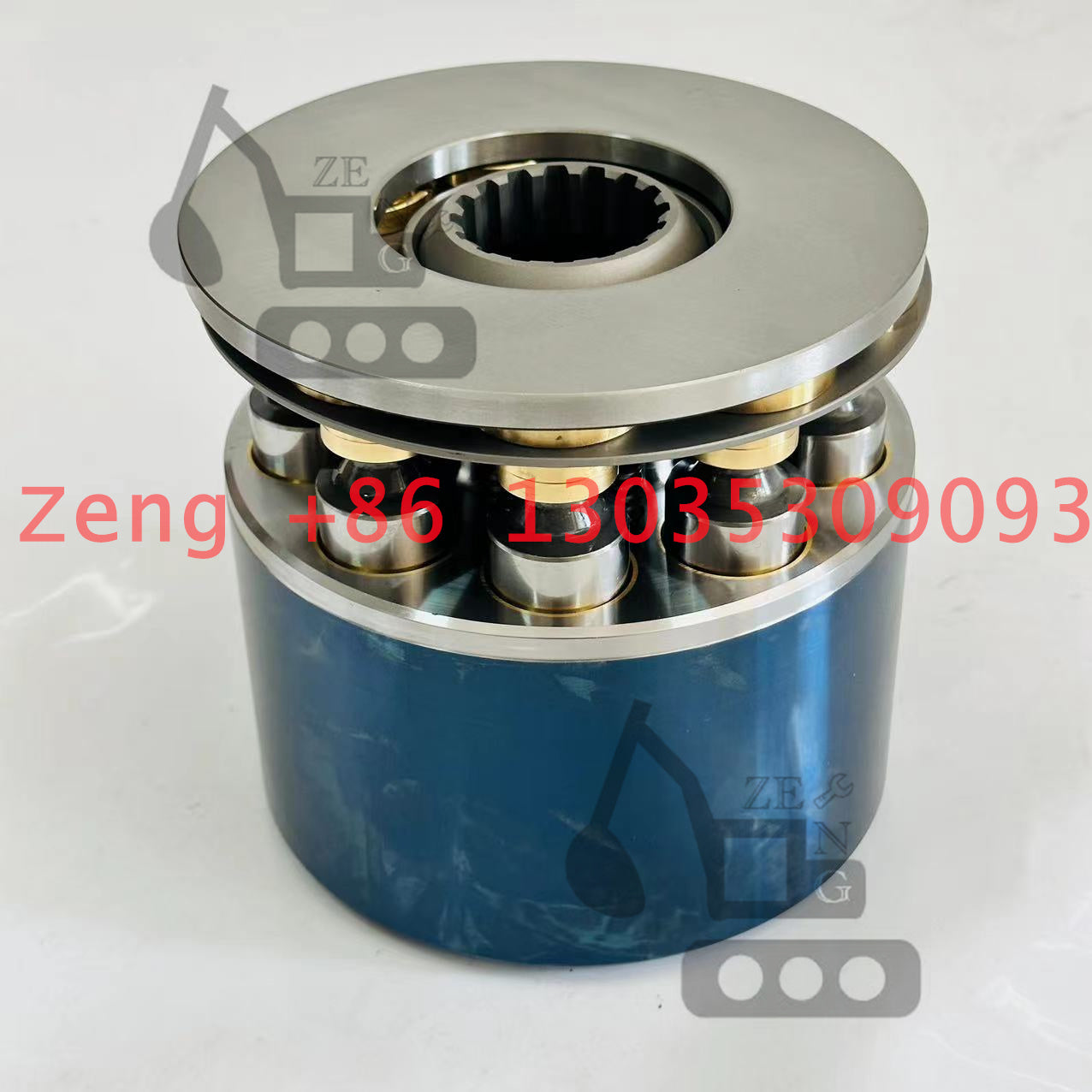

KAWASAKI K3V180 hydrualic pump rotary group

KAWASAKI K3V180 hydrualic pump rotary group

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
31QA-10010 K3V180DTH
31QA-10050 K3V180DT R380LC-9 R380LC-9A R380LC-9DM R380LC-9MH R430LC-9

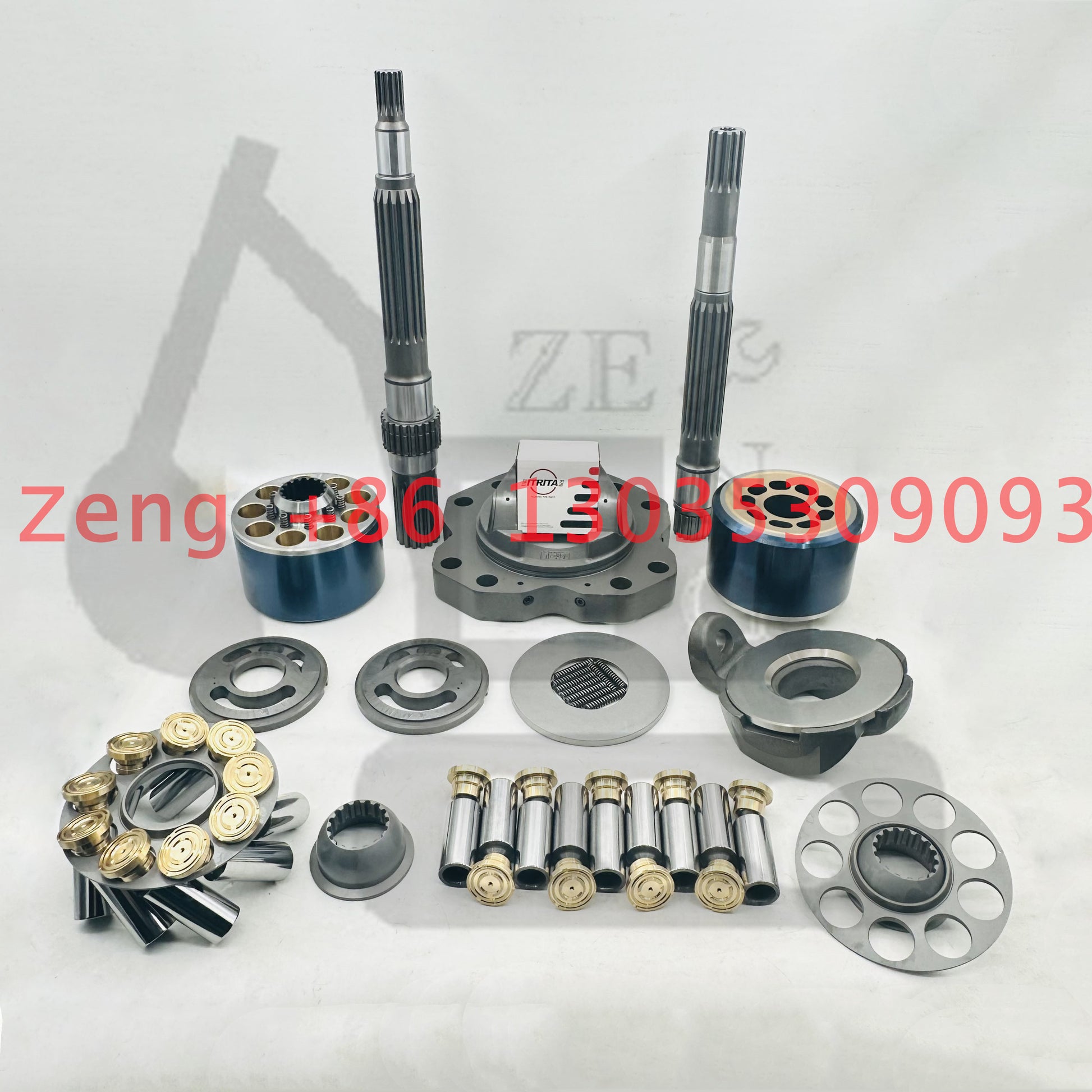

Pos. Part No Qty Parts name Comments
*. 31QA-10050 [1]   PUMP ASSY      *-1,-2,-3,-4
*-1. @ [1]   MAIN PUMP UNIT
NS012. XJBN-00680 [2]   BLOCK-CYLINDER
111 XJBN-00015 [1]   SHAFT-DRIVE(F)
113 XJBN-00153 [1]   SHAFT-DRIVE(R)
114 XJBN-00367 [1]   COUPLING-SPLINE
123 XJBN-00571 [2]   BEARING-ROLLER
124 XJBN-00018 [2]   BEARING-NEEDLE
127 XJBN-00569 [3]   SPACER-BEARING
NS151. XJBN-00681 [18]   PISTON
NS152. XJBN-01385 [18]   SHOE
153 XJBN-00020 [2]   PLATE-SET
156 XJBN-00564 [2]   BUSHING-SPHERICAL
157 XJBN-00541 [18]   SPRING-CYLINDER
211 XJBN-00023 [2]   PLATE-SHOE
NS212. XJBN-00012 [2]   PLATE-SWASH
NS214. XJBN-00013 [2]   BUSHING-TILTING
251 XJBN-00560 [2]   SUPPORT-S.P.
261 XJBN-00025 [1]   COVER(FR)-SEAL
271 XJBN-01386 [2]   CASING-PUMP
312 XJBN-00027 [1]   BLOCK-VALVE
NS313. XJBN-01387 [1]   PLATE(R)-VALVE
NS314. XJBN-01388 [1]   PLATE(L)-VALVE
401 XJBN-00028 [8]   SCREW
406 XJBN-00029 [4]   SCREW-HEX
466 XJBN-00030 [2]   PLUG
468 XJBN-00031 [4]   PLUG
490 XJBN-00032 [30]   PLUG
NS531. XJBN-00369 [2]   PIN-TILTING
532 XJBN-00033 [2]   PISTON-SERVO
534 XJBN-00034 [2]   STOPPER(L)
535 XJBN-00035 [2]   STOPPER(S)
N541. XJBN-00859 [4]   SEAT
N543. XJBN-00860 [2]   STOPPER 1
N544. XJBN-01002 [4]   STOPPER(2)
N545. XJBN-00038 [4]   BALL-STEEL
NS548. XJBN-00360 [2]   PIN-FEED BACK
702 XJBN-00040 [2]   O-RING
710 XJBN-00041 [1]   O-RING
717 XJBN-00042 [2]   O-RING
719 XJBN-00043 [2]   O-RING
724 XJBN-01808 [16]   RING-SQUARE
725 XJBN-00045 [4]   O-RING
728 XJBN-00046 [4]   O-RING
732 XJBN-00047 [2]   O-RING
774 XJBN-01595 [1]   SEAL-OIL
789 XJBN-00049 [2]   RING-BACK UP
792 XJBN-00050 [2]   RING-BACK UP
808 XJBN-00364 [4]   NUT-HEX
824 XJBN-00052 [2]   RING-SNAP
885 XJBN-00053 [2]   PIN 2
886 XJBN-00054 [4]   PIN-SPRING
901 XJBN-00055 [2]   BOLT-EYE
953 XJBN-00056 [2]   SCREW-SET
954 XJBN-00057 [2]   SCREW-SET
981 XJBN-01661 [1]   NAME PLATE
983 XJBN-00455 [2]   PIN
*-2. @ [1]   REGULATOR ASSY
*-3. @ [1]   REGULATOR ASSY
*-4. @ [1]   GEAR PUMP
S011. XJBN-01382 [2]   PISTON ASSY
S013. XJBN-01383 [1]   CYLINDER ASSY-RH
S014. XJBN-01384 [1]   CYLINDER ASSY-LH
S030. XJBN-00011 [2]   SWASH PLATE ASSY
S041. XJBN-00072 [2]   CHECK VALVE ASSY 1
S042. XJBN-01009 [2]   CHECK VALVE ASSY 3
S079. XJBN-00014 [1]   EPPR VALVE ASSY
S530. XJBN-00371 [2]   TILTING PIN ASSY
N. @ [AR]   NOT SUPPLIED PARTS
Pos. Part No Qty Parts name Comments
*-4. XJBN-01499 [1]   GEAR PUMP ASSY
*-4. XJBN-00847 [1]   GEAR PUMP
Pos. Part No Qty Parts name Comments
*-2. XJBN-01500 [1]   REGULATOR ASSY
*-2. XJBN-01924 [1]   REQULATOR ASSY
Pos. Part No Qty Parts name Comments
*-3. XJBN-01501 [1]   REGULATOR ASSY
*-3. XJBN-01924 [1]   REQULATOR ASSY
Pos. Part No Qty Parts name Comments
*. 31QA-10010 [1]   PUMP ASSY      *-1,-2,-3,-4
*-1. @ [1]   MAIN PUMP UNIT
*. 31QA-10010 [1]   PUMP ASSY      *-1,-2,-3,-4
*-1. @ [1]   MAIN PUMP UNIT
S012. XJBN-00680 [2]   BLOCK-CYLINDER
111 XJBN-00574 [1]   SHAFT-DRIVE(F)
113 XJBN-00573 [1]   SHAFT-DRIVE(R)
114 XJBN-00572 [1]   COUPLING-SPLINE
123 XJBN-00571 [2]   BEARING-ROLLER
124 XJBN-00570 [2]   BEARING-NEEDLE
127 XJBN-00569 [3]   SPACER-BEARING
130 XJBN-00568 [1]   BOOSTER
NS151. XJBN-00681 [18]   PISTON
NS152. XJBN-01385 [18]   SHOE
153 XJBN-00020 [2]   PLATE-SET
156 XJBN-00564 [2]   BUSHING-SPHERICAL
157 XJBN-00541 [18]   SPRING-CYLINDER
211 XJBN-00023 [2]   PLATE-SHOE
S212. XJBN-00012 [2]   PLATE-SWASH
S214. XJBN-00013 [2]   BUSHING-TILTING
251 XJBN-00560 [2]   SUPPORT-S.P.
261 XJBN-00025 [1]   COVER(FR)-SEAL
271 XJBN-01386 [2]   CASING-PUMP
311 XJBN-00559 [1]   COVER-VALVE(F)
312 XJBN-00558 [1]   COVER-VALVE(R)
S313. XJBN-01387 [1]   PLATE(R)-VALVE
S314. XJBN-01388 [1]   PLATE(L)-VALVE
401 XJBN-00028 [4]   SCREW
402 XJBN-00555 [4]   SCREW-HEX SOC HD
406 XJBN-00029 [4]   SCREW-HEX
466 XJBN-00030 [4]   PLUG
468 XJBN-00031 [4]   PLUG
490 XJBN-00032 [28]   PLUG
492 XJBN-00234 [1]   PLUG
492 XJBN-00234 [1]   PLUG
NS531. XJBN-00369 [2]   PIN-TILTING
532 XJBN-00033 [2]   PISTON-SERVO
534 XJBN-00034 [2]   STOPPER(L)
535 XJBN-00035 [2]   STOPPER(S)
NS548. XJBN-00360 [2]   PIN-FEED BACK
702 XJBN-00040 [2]   O-RING
706 XJBN-00554 [1]   O-RING
710 XJBN-00041 [1]   O-RING
717 XJBN-00042 [2]   O-RING
719 XJBN-00043 [3]   O-RING
724 XJBN-00361 [19]   O-RING
725 XJBN-00362 [6]   O-RING
706 XJBN-00554 [1]   O-RING
728 XJBN-00363 [4]   O-RING
732 XJBN-00047 [2]   O-RING
774 XJBN-00906 [1]   SEAL-OIL
789 XJBN-00049 [2]   RING-BACK UP
792 XJBN-00050 [2]   RING-BACK UP
808 XJBN-00364 [4]   NUT-HEX
824 XJBN-00052 [2]   RING-SNAP
885 XJBN-00053 [2]   PIN 2
886 XJBN-00054 [5]   PIN-SPRING
901 XJBN-00055 [2]   BOLT-EYE
953 XJBN-00056 [2]   SCREW-SET
954 XJBN-00553 [2]   SCREW-SET
981 XJBN-00156 [1]   NAME PLATE
983 XJBN-00341 [2]   PIN
*-2. @ [1]   REGULATOR ASSY
*-3. @ [1]   REGULATOR ASSY
*-4. @ [1]   GEAR PUMP
S011. XJBN-01382 [2]   PISTON ASSY
S013. XJBN-01383 [1]   CYLINDER ASSY-RH
S014. XJBN-01384 [1]   CYLINDER ASSY-LH
*-3. @ [1]   REGULATOR ASSY
S030. XJBN-00011 [2]   SWASH PLATE ASSY
S530. XJBN-00371 [2]   TILTING PIN SUB ASSY
S011. XJBN-01382 [2]   PISTON ASSY
S013. XJBN-01383 [1]   CYLINDER ASSY-RH
S014. XJBN-01384 [1]   CYLINDER ASSY-LH
S030. XJBN-00011 [2]   SWASH PLATE ASSY
S530. XJBN-00371 [2]   TILTING PIN ASSY
