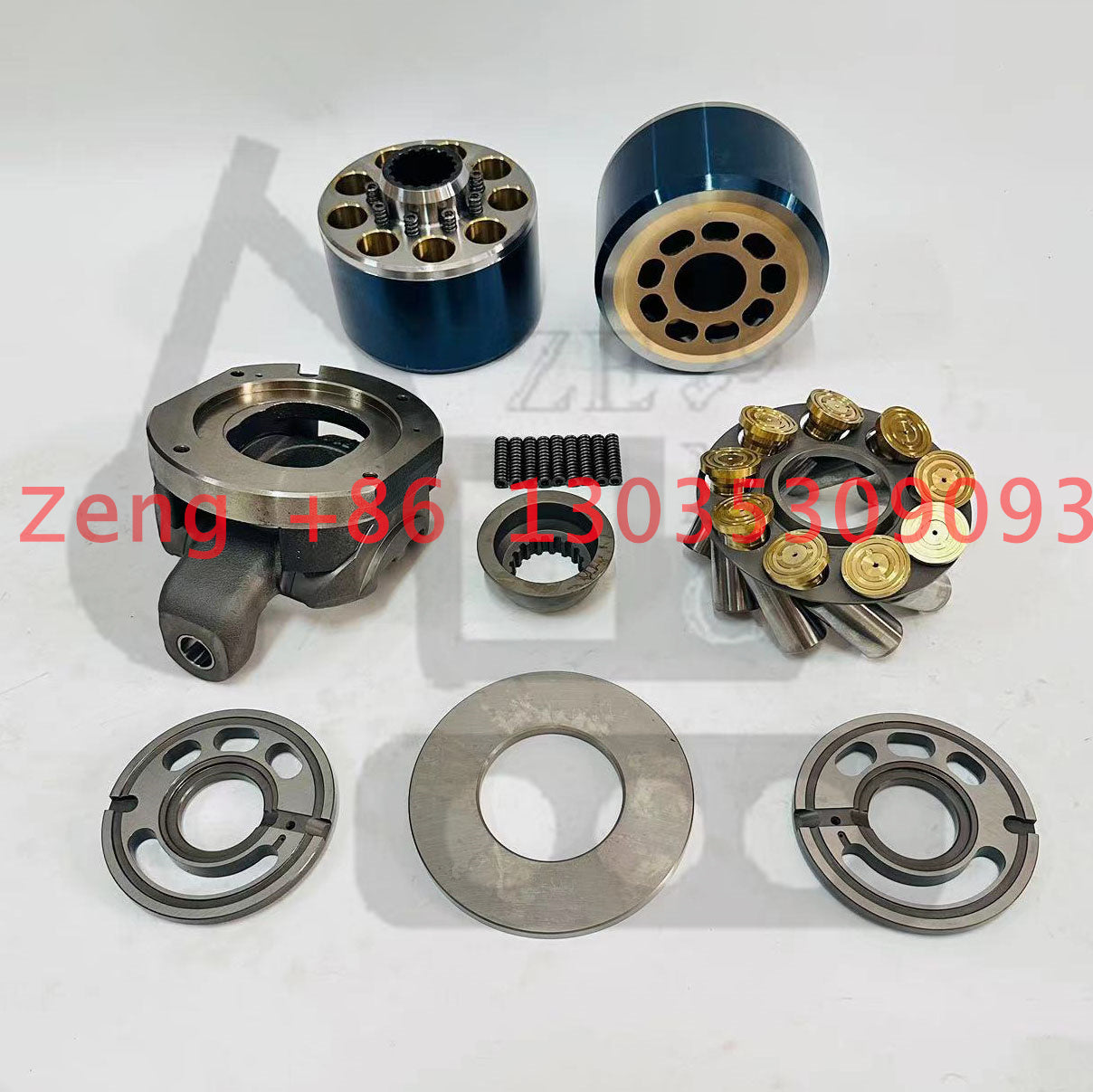

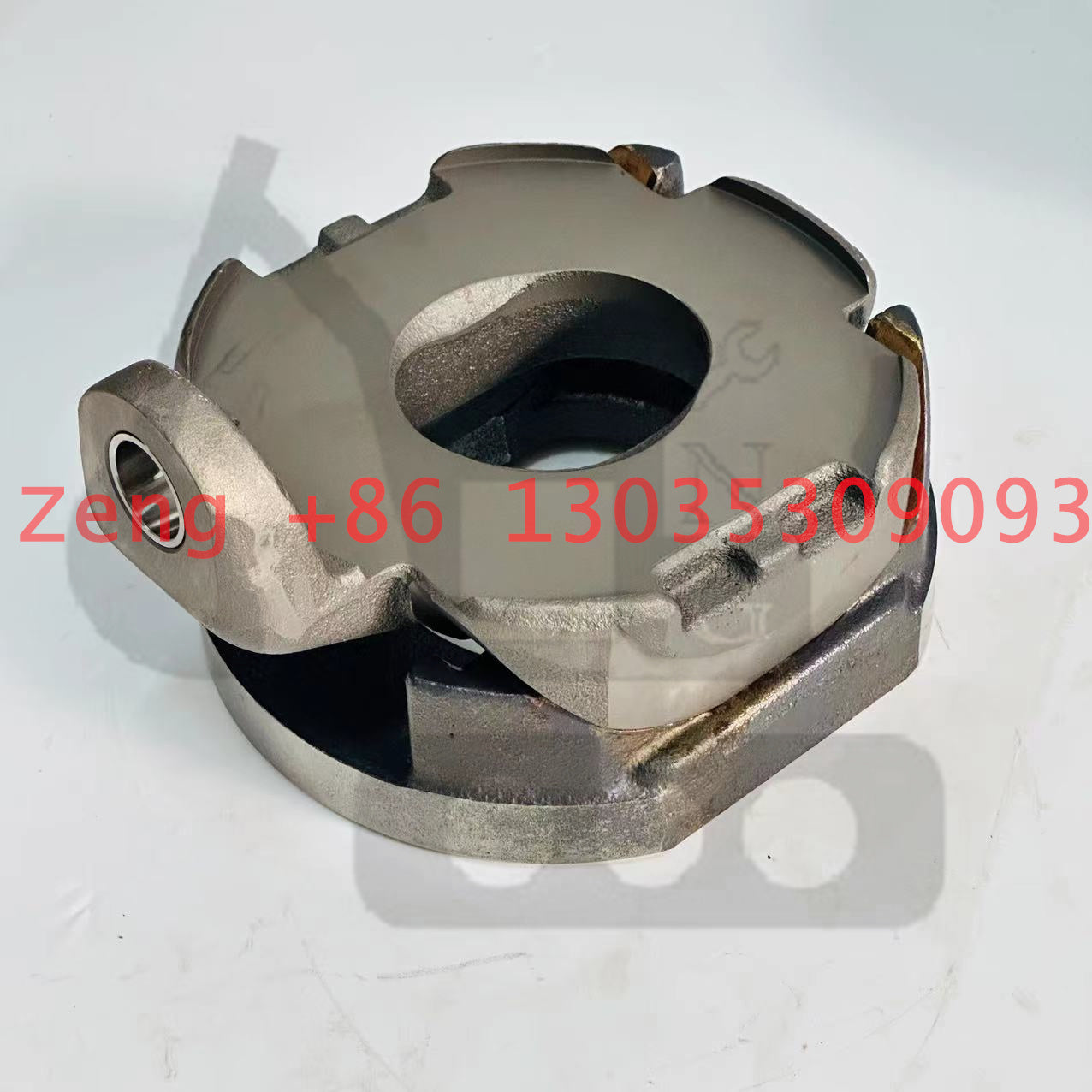

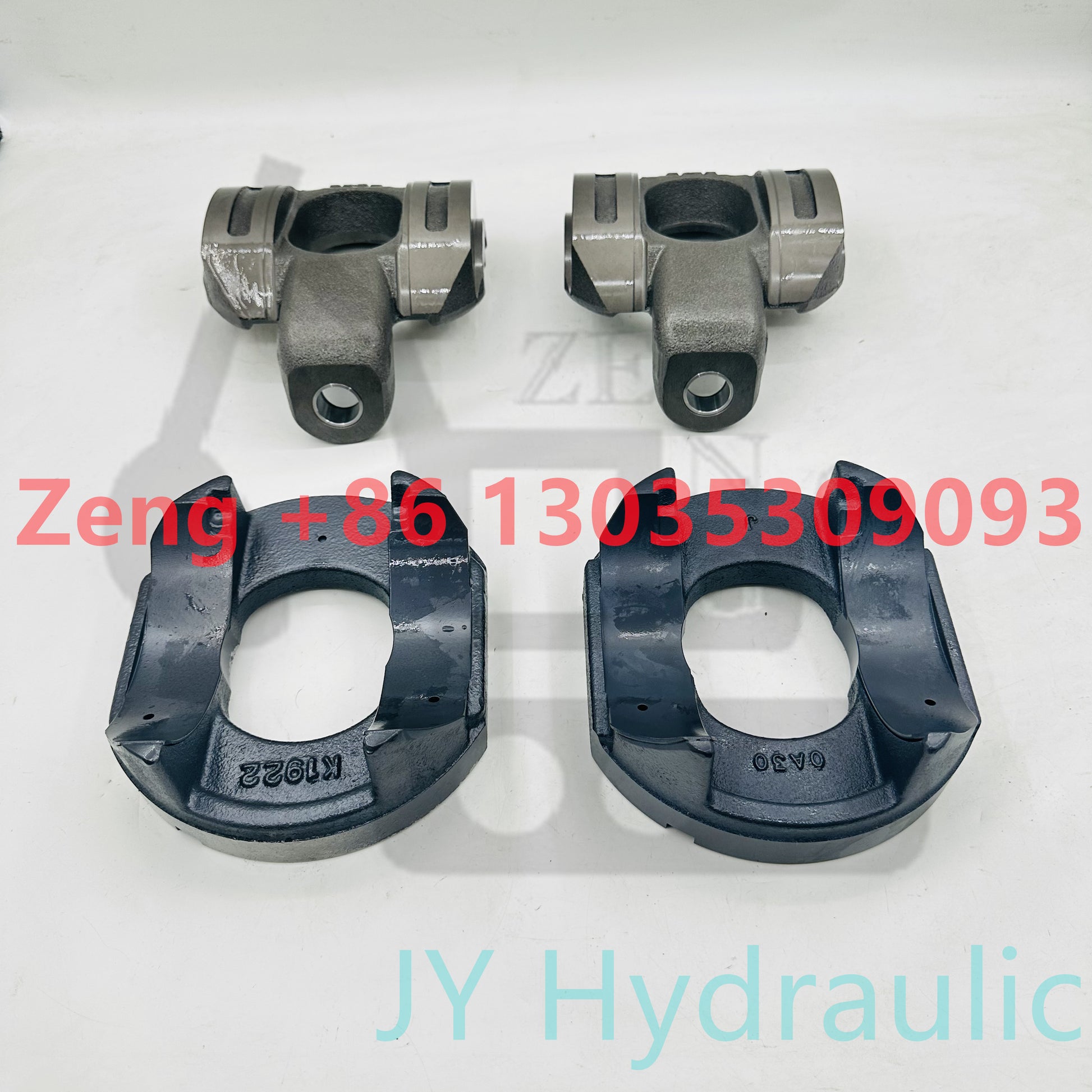

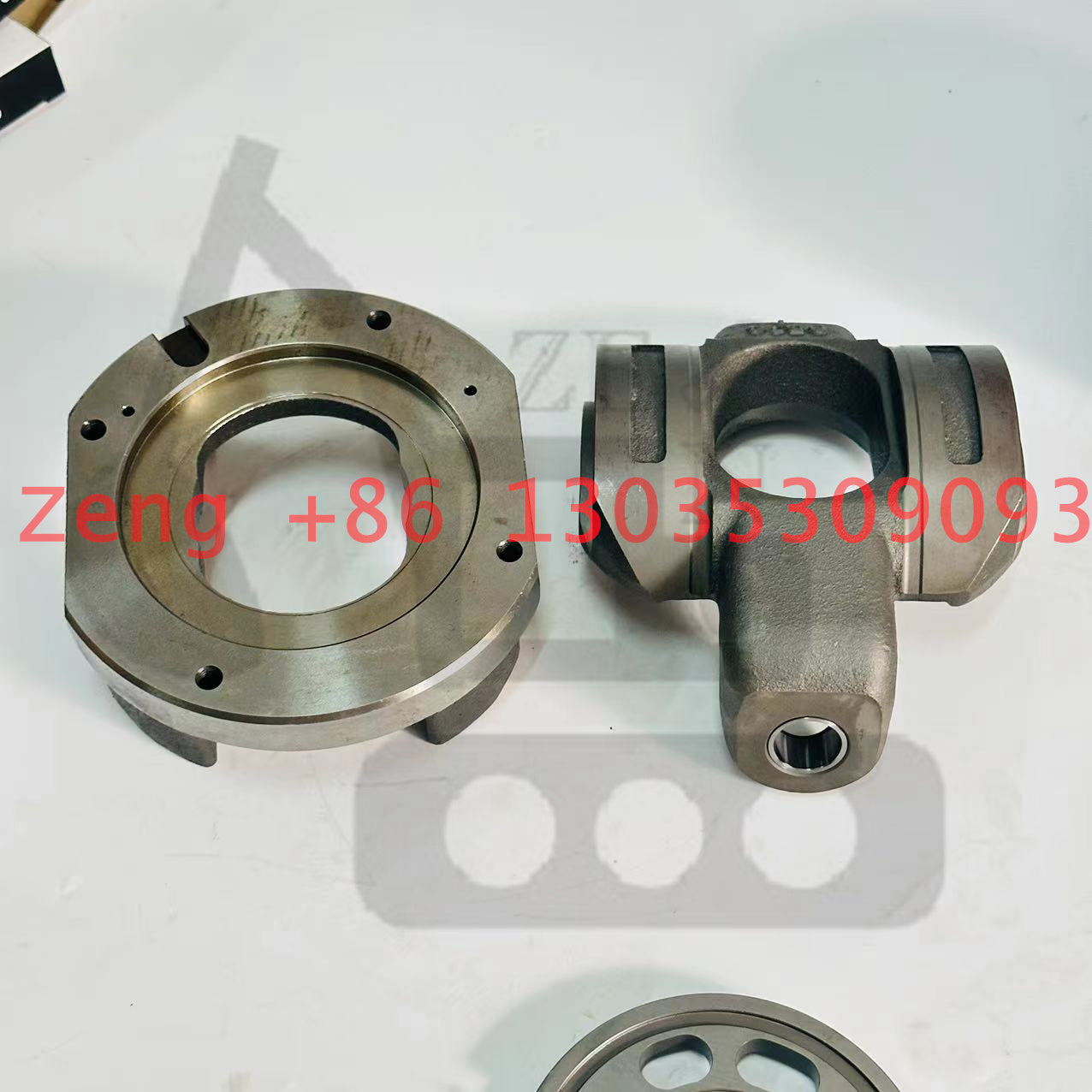

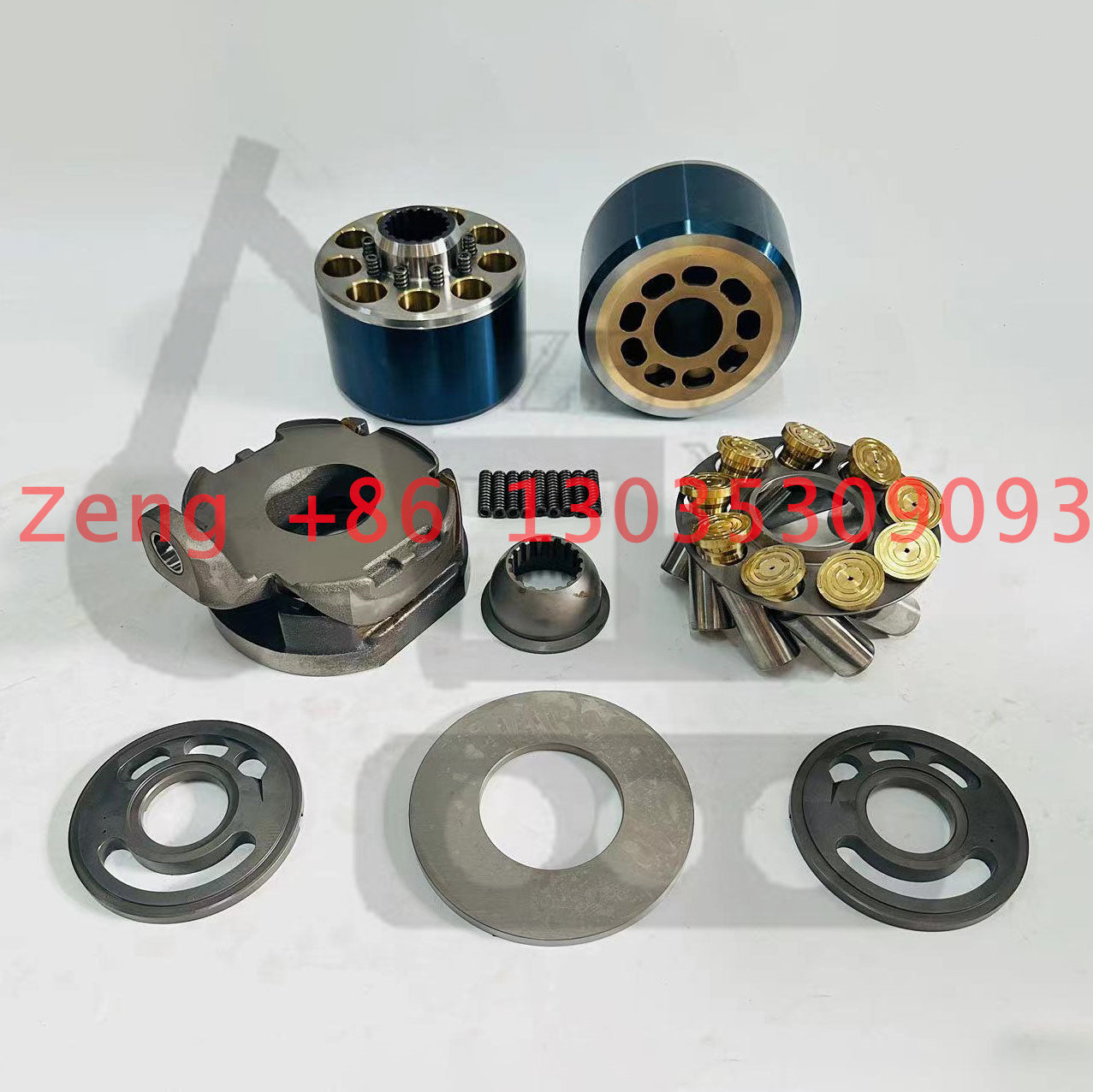

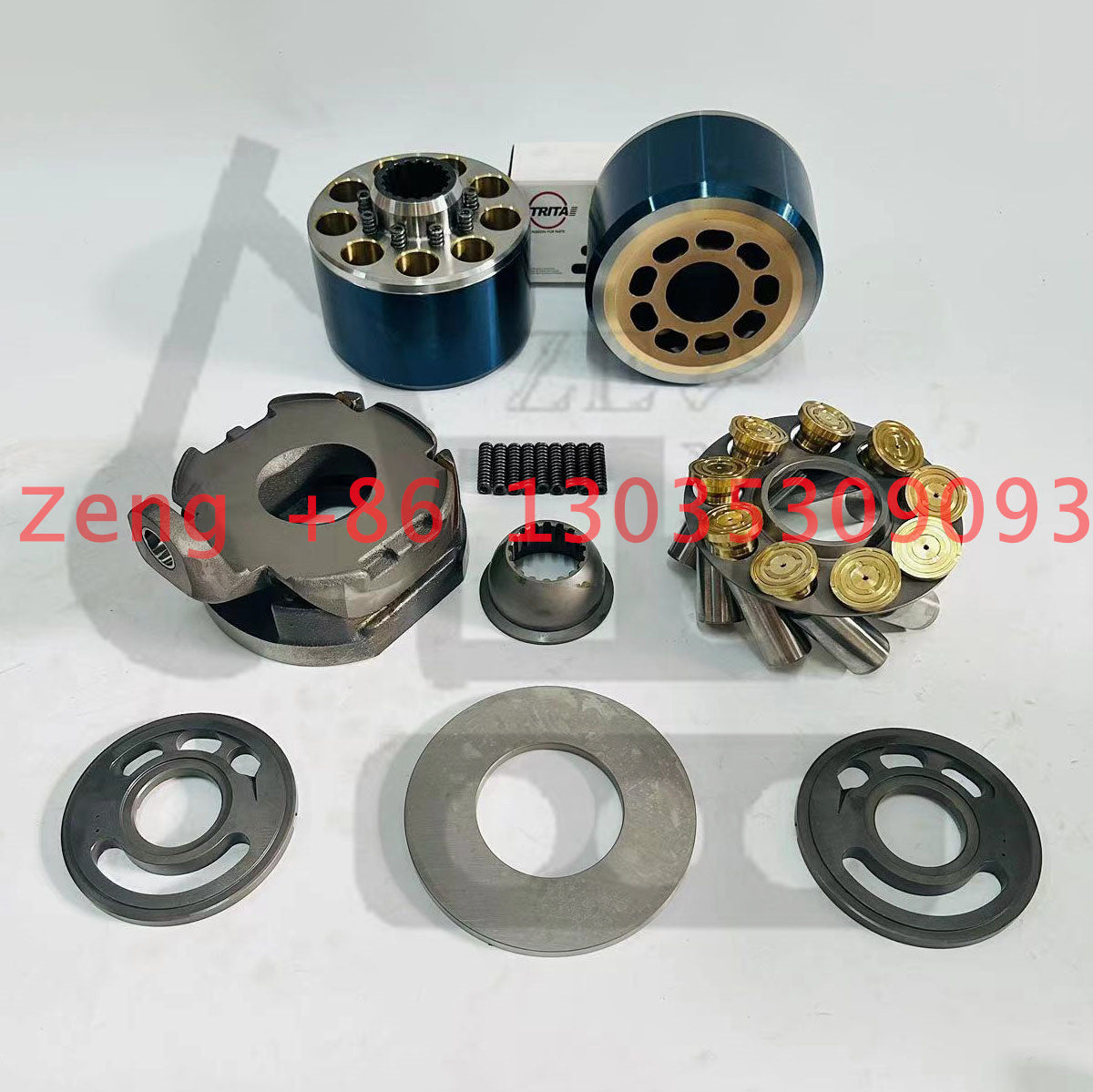

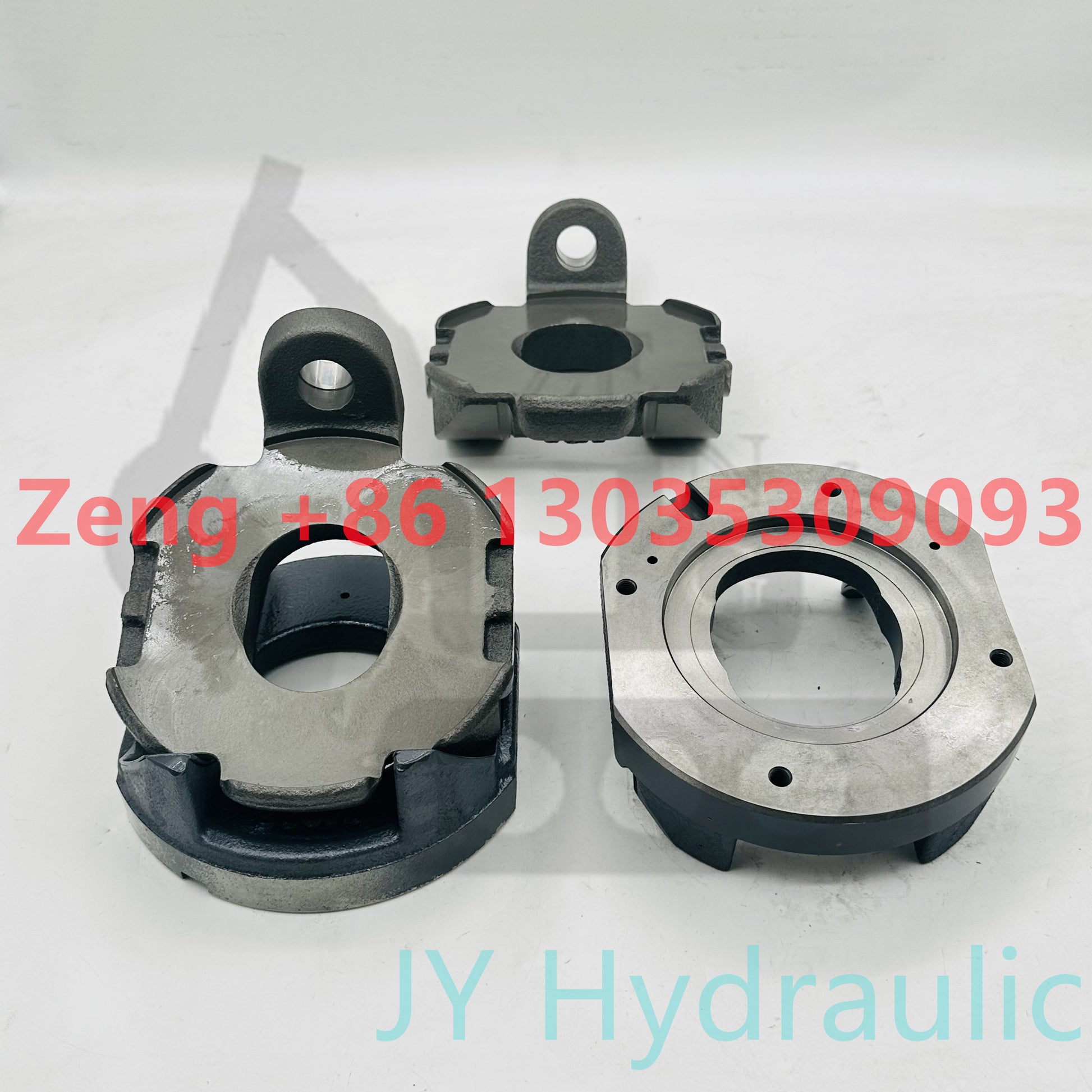

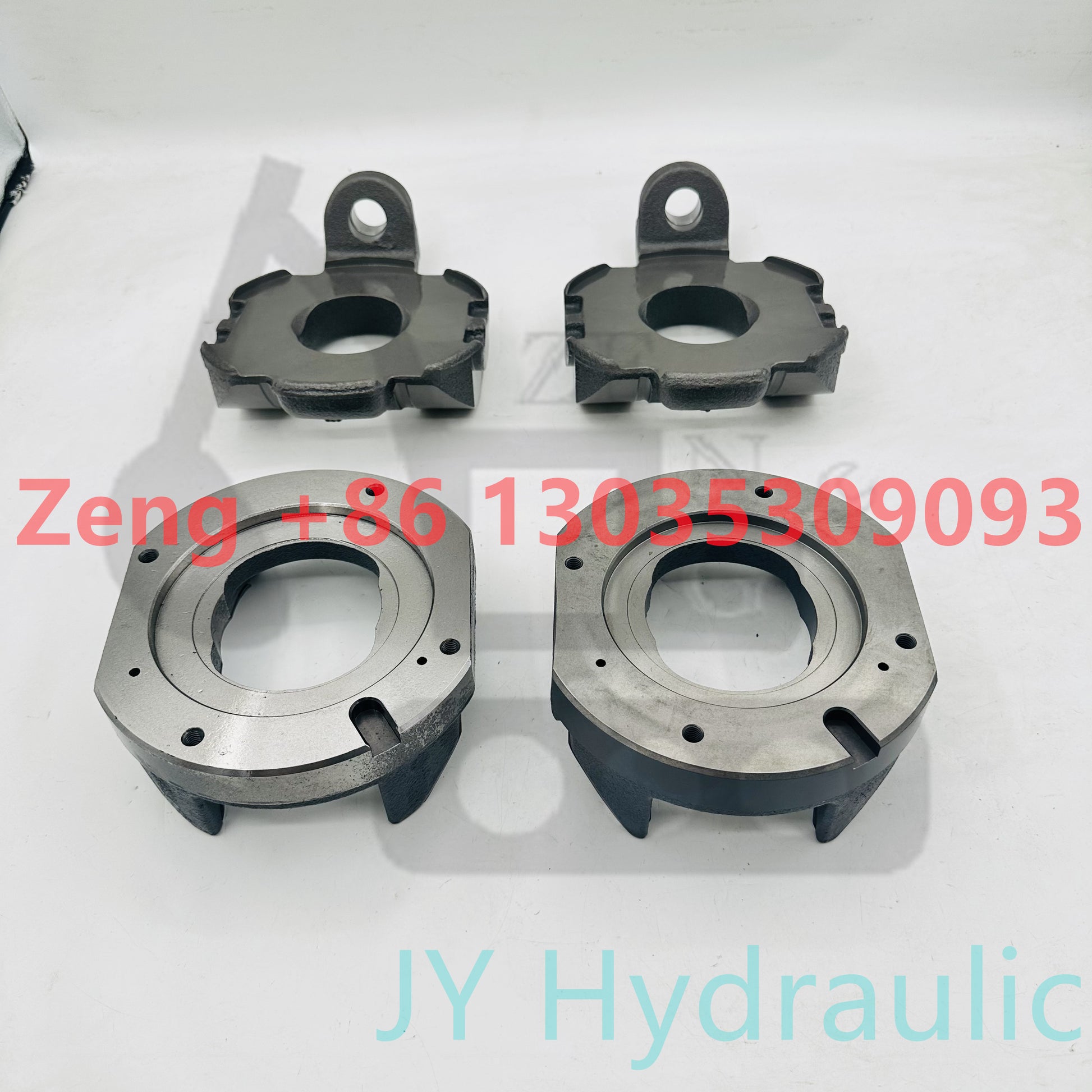

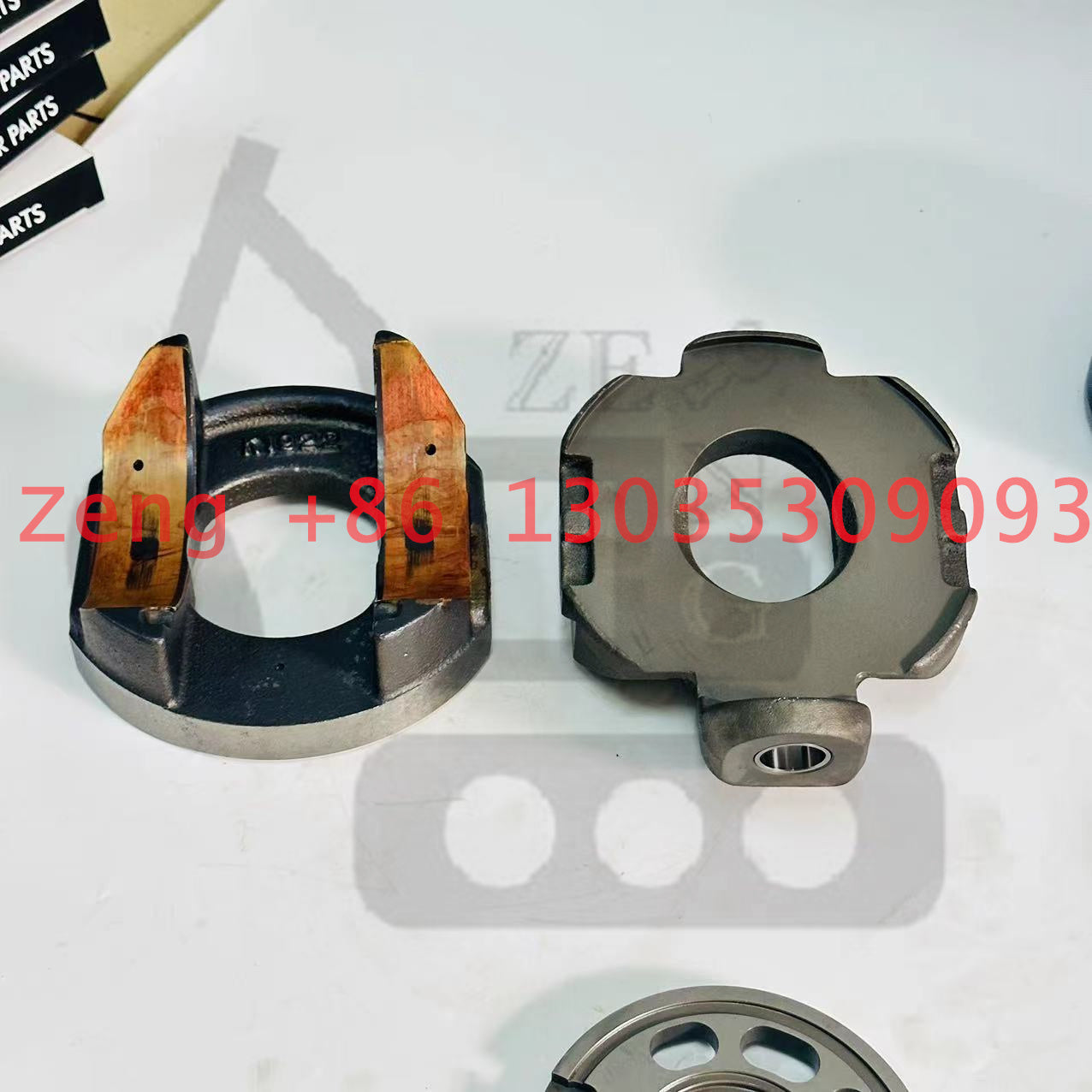

K5V212 hydraulic pump swash plate assy

K5V212 hydraulic pump swash plate assy

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
K5V212
CAT345D CAT345DL CAT345DLVG CAT349D CAT349E CAT349EL CAT349ELVG CAT349FL CAT352F
Pos. Part No Qty Parts name Comments
1 295-9693 [1] BEARING-NEEDLE
2 252-9167 M [8] BOLT-SOCKET HEAD (M8X1.25X30-MM)
3 247-8985 [4] DOWEL
4 247-8729 [2] COVER
5 242-6919 M [2] SETSCREW (M20X2.5X56-MM)
6 8T-4131 M [2] NUT (M20X2.5-THD)
7 6V-8200 M [8] BOLT-SOCKET HEAD (M12X1.75X35-MM)
8 7I-8166 [2] STOPPER
9 109-1296 [2] SEAL-O-RING
10 7I-8172 [2] RING-BACKUP
11 242-6914 [2] PISTON-SERVO
12 247-8712 [2] PIN AS
13 295-9506 [18] SPRING
14 109-1294 [2] SEAL-O-RING
15 7I-8171 [2] RING-BACKUP
16 242-6915 [2] STOPPER
17 095-0965 [12] PLUG
18 095-0966 [2] PLUG
19 242-6918 M [2] NUT (M20X2.5-THD)
20 200-3292 M [2] SETSCREW (M20X2.5X90-MM)
21 249-1308 M [1] BOLT-SOCKET HEAD (M22X2.5X180-MM)
22 234-4539 [2] DOWEL
23 249-1306 M [9] BOLT-SOCKET HEAD (M22X2.5X60-MM)
24 326-4415 [2] GASKET
25 295-9518 [2] PISTON AS
26 110-5525 [4] PLUG
27 214-7568 [4] SEAL-O-RING
28 295-9510 [2] PLATE
29 295-9504 [2] PLATE
30 295-9505 [2] RETAINER-BALL
31 295-9521 [2] SWASHPLATE AS
32 7I-8084 [21] PLUG
33 7I-8164 [4] ORIFICE (1/16-NPTF)
34 095-0882 [4] PIN-SPRING
35 247-8786 [2] DOWEL
36 206-9290 [9] SEAL-O-RING
37 295-9695 [1] SEAL-LIP TYPE
38 095-0944 [1] RING-RETAINING
39 249-6657 [1] SEAL-O-RING
40 295-9508 [1] GEAR-DRIVE (31-TEETH)
41 295-9509 [1] GEAR-DRIVEN (31-TEETH)
42 8T-4241 [2] RING-RETAINING
43 295-9501 [1] SPACER (49.5X73X3-MM THK)
44 295-9507 [1] FLANGE
45 096-5516 [2] RING-RETAINING (EXTERNAL)
46 8T-0343 M [11] BOLT-SOCKET HEAD (M12X1.75X55-MM)
47 295-9502 [2] SPACER (55X69X3-MM THK)
48 295-9516 [1] RING
49 295-9503 [1] SPACER (104X120X3.2-MM THK)
50 295-9500 [1] BEARING-ROLLER
51 295-9511 [1] PLATE
52 295-9499 [1] SHAFT-DRIVEN
53 322-8736 C [1] BODY
54 311-9506 [1] BARREL AS-PUMP
55 247-8715 [1] BEARING-NEEDLE
56 247-8721 [1] IMPELLER
57 247-8730 [1] RING-RETAINING
58 247-8944 [1] BUSHING
59 295-9694 [1] BLOCK-PORT
60 249-1307 M [2] BOLT-SOCKET HEAD (M22X2.5X95-MM)
61 311-9505 [1] BARREL AS-PUMP
62 247-8719 [1] SPACER (50X64X3-MM THK)
63 247-8725 [1] PLATE
64 247-8713 [1] BEARING-ROLLER
65 8T-9080 M [8] BOLT-SOCKET HEAD (M12X1.75X20-MM)
66 249-6670 [1] SEAL-O-RING
67 295-9512 [1] COVER
68 247-8720 [1] SPACER (95X110X3.2-MM THK)
69 247-8787 [1] RING-RETAINING
70 247-8717 [2] SPACER (65X90X1-MM THK)
71 095-0929 [2] RING-RETAINING
72 247-8726 [1] COVER
73 295-9498 [1] SHAFT-DRIVE
74 206-9291 [2] SEAL-O-RING
75 295-9517 [1] DOWEL
76 295-9497 Y [2] HEAD GP-PUMP
77 289-7912 CY [1] PUMP GP-GEAR (PILOT)
78 225-4518 Y [1] VALVE GP-SOLENOID (PUMP CONTROL)
C   CHANGE FROM PREVIOUS TYPE
M   METRIC PART
Y   SEPARATE ILLUSTRATION
Parts for your 352F EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 295-9497 Y [2] HEAD GP-PUMP
2 342-1907 [1] SHAFT-DRIVE
3 295-9499 [1] SHAFT-DRIVEN
4 247-8713 [1] BEARING-ROLLER
5 295-9500 [1] BEARING-ROLLER
6 295-9693 [1] BEARING-NEEDLE
7 247-8715 [1] BEARING-NEEDLE
8 247-8944 [1] BUSHING
9 247-8717 [2] SPACER (65X90X1-MM THK)
10 295-9501 [1] SPACER (49.5X73X3-MM THK)
11 247-8719 [1] SPACER (50X64X3-MM THK)
12 247-8720 [1] SPACER (95X110X3.2-MM THK)
13 295-9502 [2] SPACER (55X69X3-MM THK)
14 295-9503 [1] SPACER (104X120X3.2-MM THK)
15 247-8721 [1] IMPELLER
16 295-9504 [2] PLATE
17 295-9505 [2] RETAINER-BALL
18 295-9506 [18] SPRING
19 295-9507 [1] FLANGE
20 295-9508 [1] GEAR-DRIVE
21 295-9509 [1] GEAR-DRIVEN
22 295-9510 [2] PLATE
23 247-8725 [1] PLATE
24 295-9511 [1] PLATE
25 247-8726 [1] COVER
26 259-0813 [1] COVER
27 295-9512 [1] COVER
28 497-8506 [1] BODY AS
371-7201 [7] PLUG
29 497-8507 [1] BLOCK
30 252-9167 M [8] BOLT-SOCKET HEAD (M8X1.25X30-MM)
31 6V-8200 M [10] BOLT-SOCKET HEAD (M12X1.75X35-MM)
32 8T-0343 M [11] BOLT-SOCKET HEAD (M12X1.75X55-MM)
33 249-1306 M [9] BOLT-SOCKET HEAD (M22X2.5X60-MM)
34 249-1307 M [2] BOLT-SOCKET HEAD (M22X2.5X95-MM)
35 249-1308 M [1] BOLT-SOCKET HEAD (M22X2.5X180-MM)
36 8T-9080 M [8] BOLT-SOCKET HEAD (M12X1.75X20-MM)
37 110-5525 [4] PLUG
38 206-9290 [8] SEAL-O-RING
39 196-3784 [8] PLUG
40 7I-8164 [4] ORIFICE (1/16-NPTF)
41 170-9997 [2] PLUG
42 242-6914 [2] PISTON-SERVO
43 7I-8166 [2] STOPPER
44 242-6915 [2] STOPPER
45 247-8729 [2] COVER
46 109-1296 [2] SEAL-O-RING
47 236-6919 [1] SEAL-O-RING
48 249-6657 [1] SEAL-O-RING
49 347-6530 [9] SEAL-RECTANGULAR
50 206-9291 [2] SEAL-O-RING
51 214-7568 [4] SEAL-O-RING
52 109-1294 [2] SEAL-O-RING
53 249-6670 [1] SEAL-O-RING
54 326-4415 [2] GASKET
55 295-9695 [1] SEAL-LIP TYPE
56 7I-8171 [2] RING-BACKUP
57 7I-8172 [2] RING-BACKUP
58 451-2184 M [2] NUT (M20X2.5-THD)
59 242-6918 M [2] NUT (M20X2.5-THD)
60 8T-4241 [2] RING-RETAINING
61 095-0929 [2] RING-RETAINING
62 096-5516 [2] RING-RETAINING (EXTERNAL)
63 095-0944 [1] RING-RETAINING
64 247-8787 [1] RING-RETAINING
65 295-9516 [1] RING
66 247-8730 [1] RING-RETAINING
67 234-4539 [2] DOWEL
68 095-0882 [4] PIN-SPRING
69 295-9517 [1] DOWEL
70 247-8786 [2] DOWEL
71 247-8985 [4] DOWEL
72 242-6919 M [2] SETSCREW (M20X2.5X56-MM)
73 200-3292 M [2] SETSCREW (M20X2.5X90-MM)
74 373-9477 [11] WASHER
75 488-4578 [2] PIN AS
76 342-1906 Y [1] PUMP GP-GEAR (PILOT)
77 465-1024 [2] PISTON AS
78 311-9505 [1] BARREL AS-PUMP
79 311-9506 [1] BARREL AS-PUMP
80 295-9521 [2] SWASHPLATE AS
81 497-8514 Y [1] VALVE GP-SOLENOID (PUMP CONTROL)
82 206-9292 [2] SEAL-O-RING
M   METRIC PART
Y   SEPARATE ILLUSTRATION
