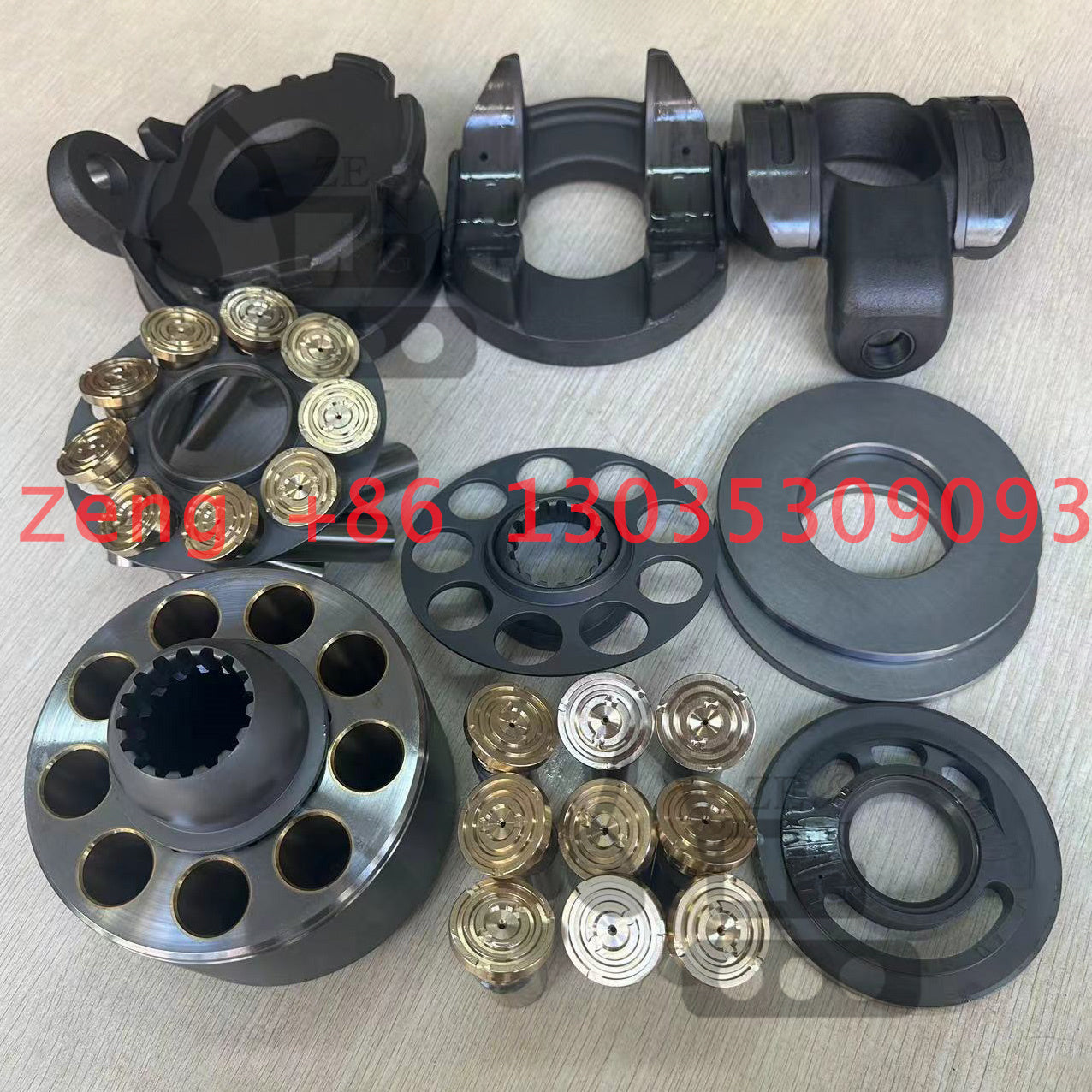

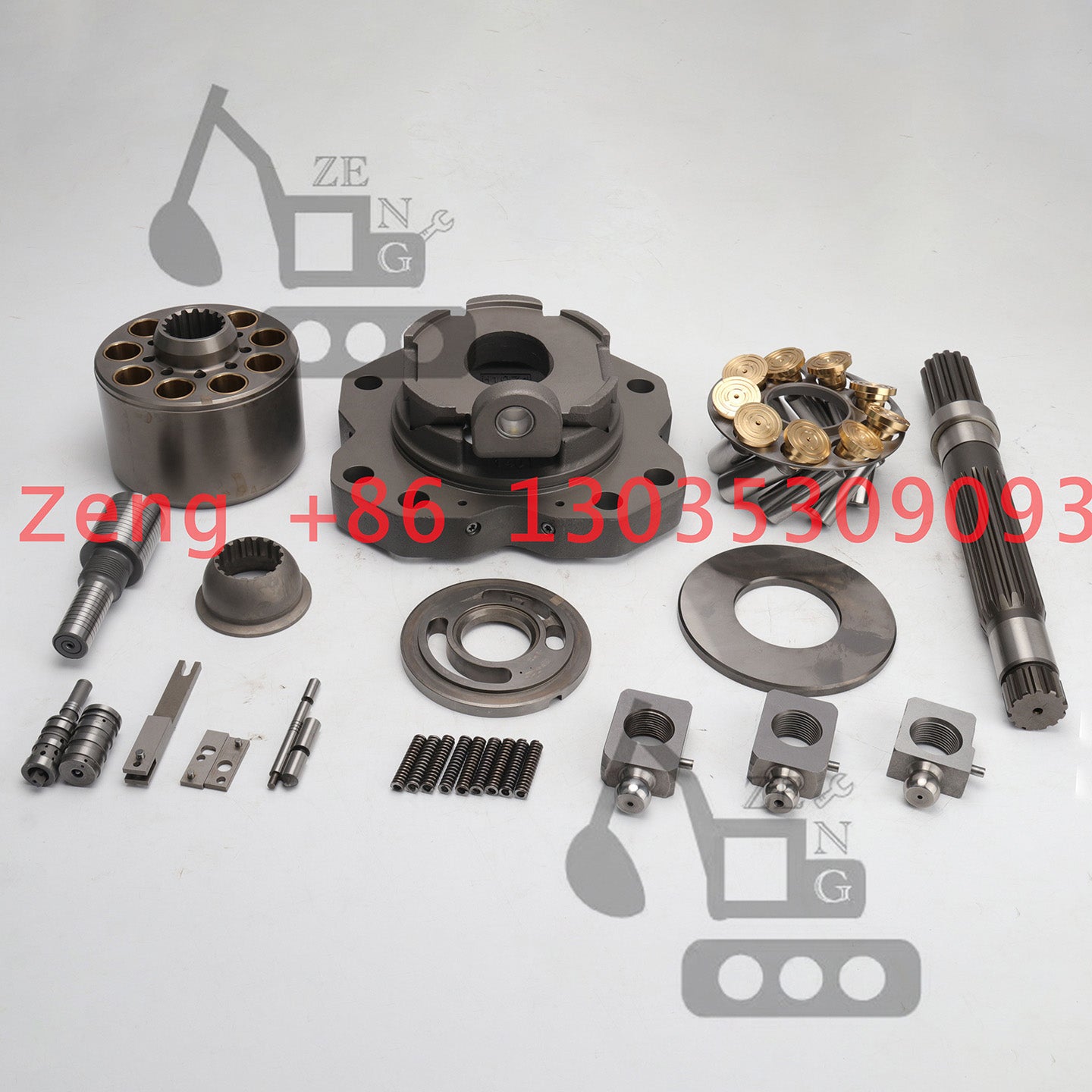

KAWASAKI K5V160 hydraulic pump parts

KAWASAKI K5V160 hydraulic pump parts

$1,000.00 USD
$1,000.00 USD
特價 售罄
結帳時計算運費。

Model：Kawasaki K5V160
Part number：
Application：Caterpillar CAT330D CAT336D，Daewoo DH370，Sumitomo SH350-5 excavator
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T
Warranty（in China）：3 months

K5V160
283-6116 CAT330D
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
2 242-6920 M [8] BOLT (M8X30-MM)
3 247-8985 [4] DOWEL
4 247-8729 [2] COVER
5 242-6919 M [2] SETSCREW (M20X2.5X56-MM)
6 8T-4131 M [2] NUT (M20X2.5-THD)
7 6V-8200 M [8] BOLT-SOCKET HEAD (M12X1.75X35-MM)
8 7I-8166 [2] STOPPER
9 109-1296 [2] SEAL-O-RING
10 7I-8172 [2] RING-BACKUP
11 242-6914 [2] PISTON-SERVO
12 247-8712 [2] PIN AS
13 7I-8152 [18] SPRING-CYLINDER
14 109-1294 [2] SEAL-O-RING
15 7I-8171 [2] RING-BACKUP
16 242-6915 [2] STOPPER
17 095-0965 [11] PLUG
18 095-0966 [2] PLUG
19 242-6918 M [2] NUT (M20X2.5-THD)
20 200-3292 M [2] SETSCREW (M20X2.5X90-MM)
21 264-8266 M [1] BOLT-SOCKET HEAD (M22X2.5X130-MM)
22 234-4539 [2] DOWEL
23 249-1306 M [10] BOLT-SOCKET HEAD (M22X2.5X60-MM)
24 242-6916 [2] GASKET
25 110-5525 [4] PLUG
26 153-4906 [4] SEAL-O-RING

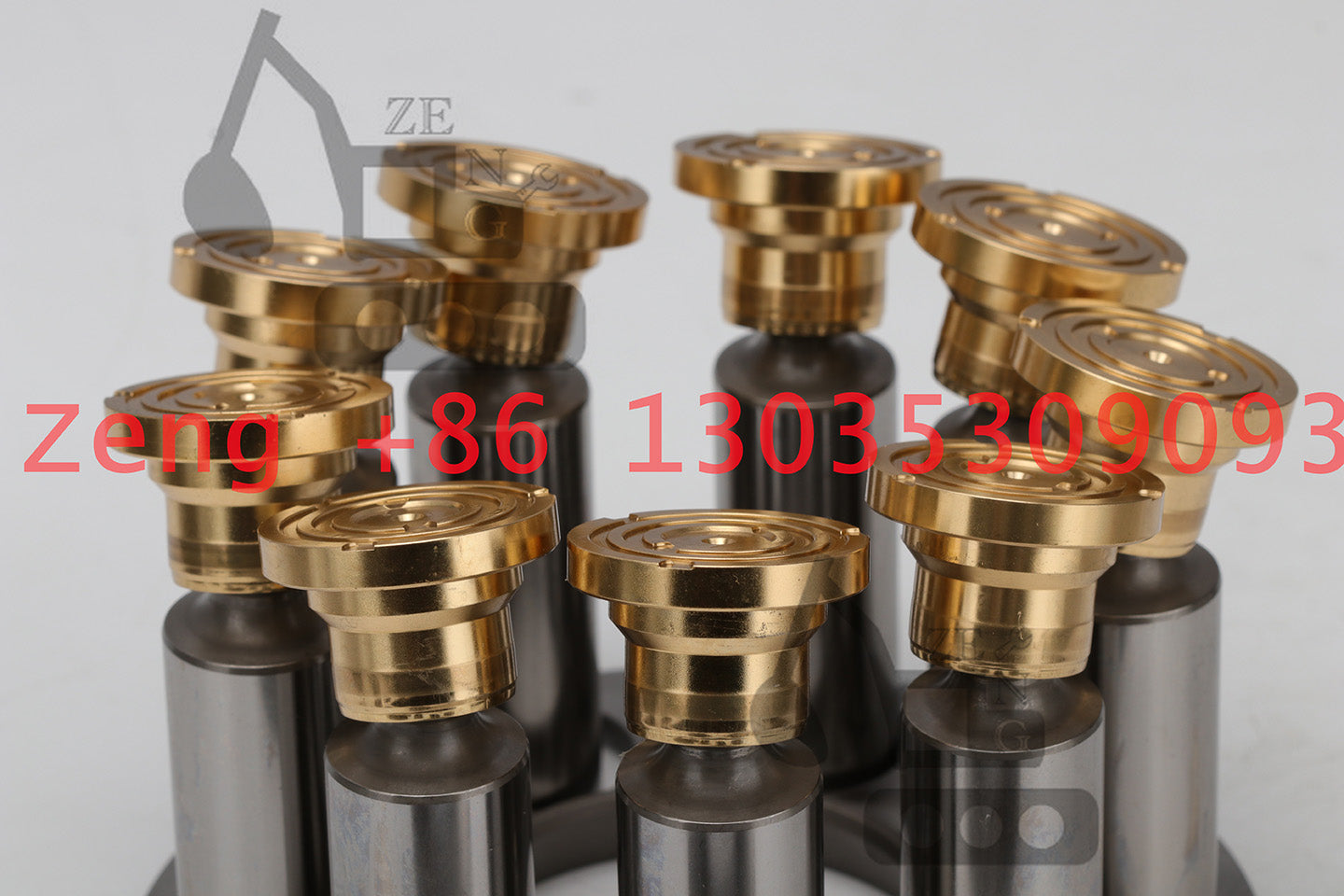

27 295-9691 [2] PISTON AS
28 7I-8154 [2] PLATE
29 242-6912 [2] PLATE

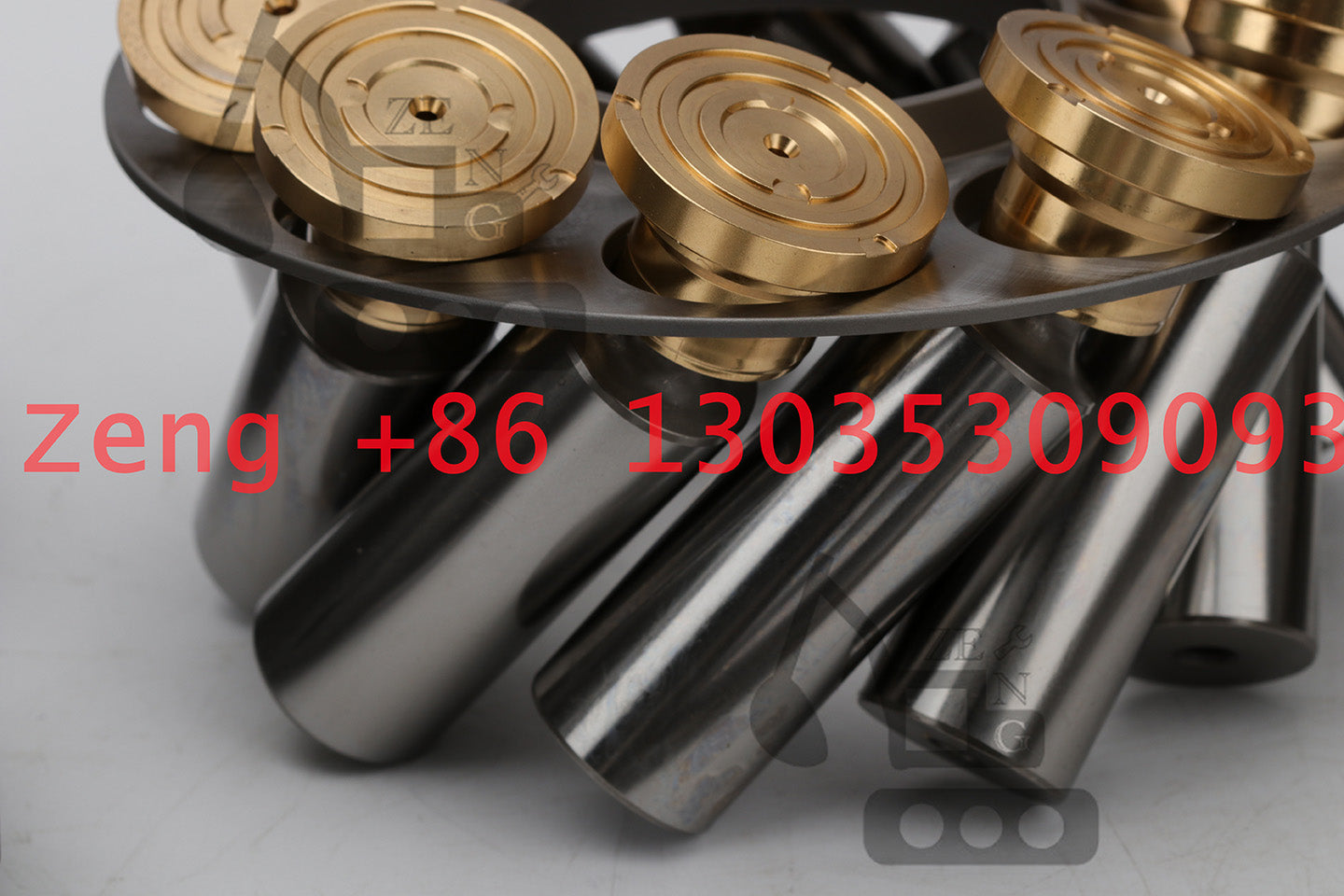

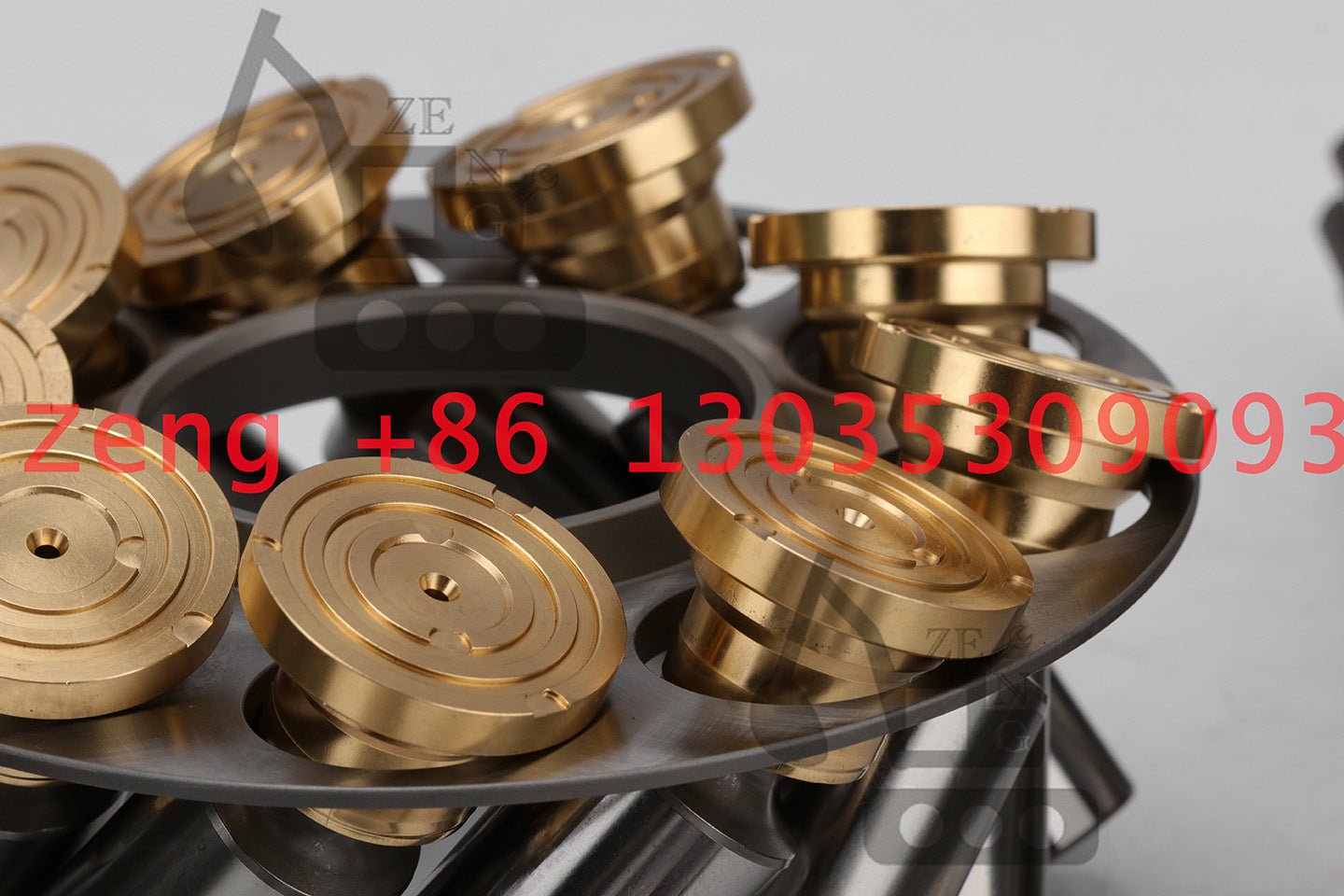

30 242-6913 [2] RETAINER-BALL
31 247-8927 [2] SWASHPLATE AS
32 7I-8084 [20] PLUG
33 7I-8164 [4] ORIFICE
34 247-8725 [2] PLATE
35 095-0882 [4] PIN-SPRING
36 247-8786 [2] DOWEL
37 206-9290 [9] SEAL-O-RING
38 295-9695 [1] SEAL-LIP TYPE
39 095-0944 [1] RING-RETAINING
40 249-6657 [1] SEAL-O-RING
41 259-0833 [1] GEAR-DRIVE
42 259-0834 [1] GEAR-DRIVEN
43 6V-5204 [1] RING-RETAINING
44 247-8718 [1] SPACER (44.5X68X3-MM THK)
45 247-8982 [1] FLANGE
46 8T-0343 M [11] BOLT-SOCKET HEAD (M12X1.75X55-MM)
47 8T-4241 [3] RING-RETAINING (EXTERNAL)
48 247-8787 [2] RING-RETAINING
49 247-8719 [3] SPACER (50X64X3-MM THK)
50 259-0835 [1] BODY

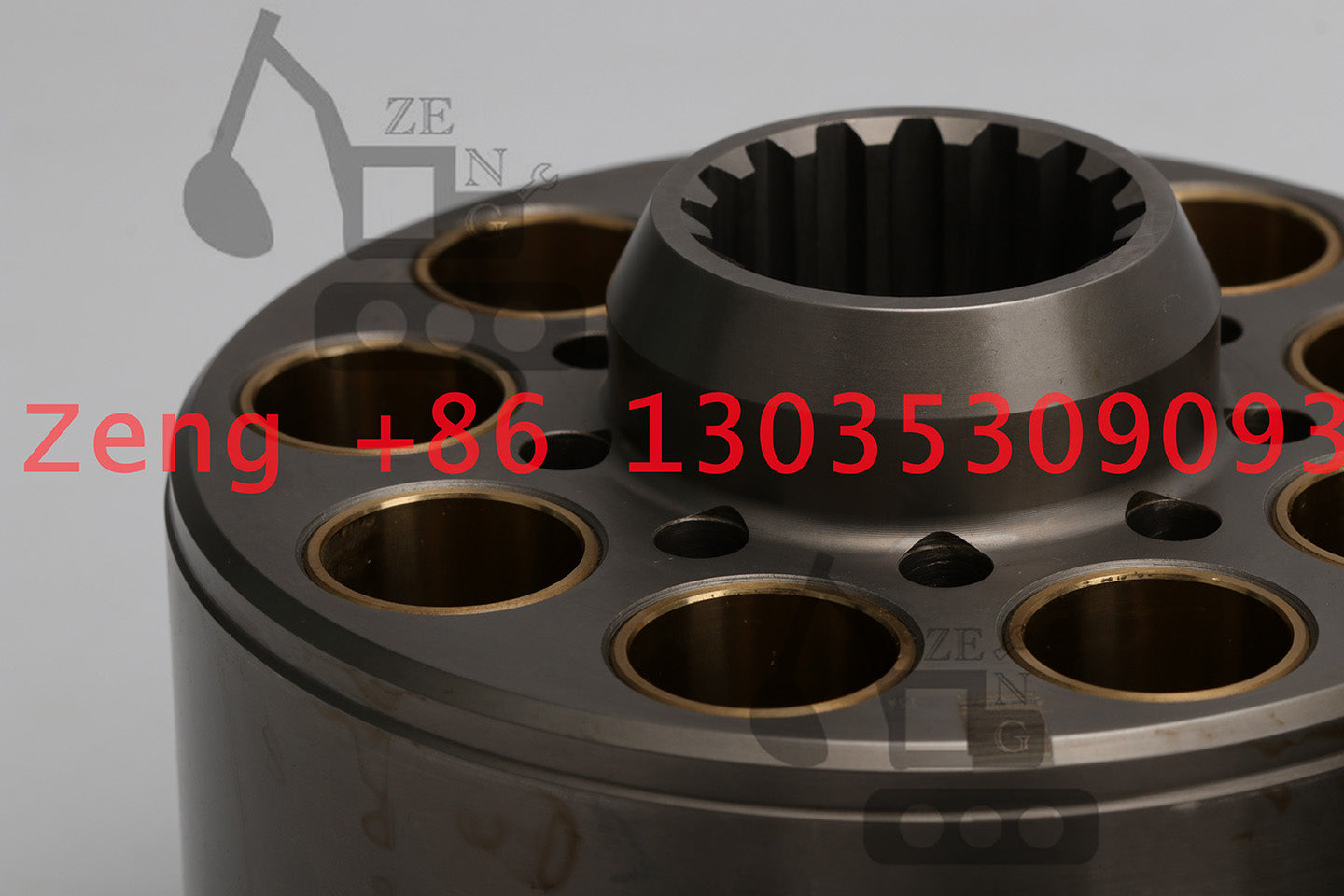

51 247-8710 [1] BARREL AS
52 259-0832 [1] SHAFT-DRIVEN
53 247-8715 [2] BEARING-NEEDLE
54 266-7955 [1] BLOCK-PORT
55 247-8709 [1] BARREL AS
56 249-1307 M [2] BOLT-SOCKET HEAD (M22X2.5X95-MM)
57 247-8713 [2] BEARING-ROLLER
58 8T-9080 M [8] BOLT-SOCKET HEAD (M12X1.75X20-MM)
59 225-4516 [1] PLATE
60 249-6670 [1] SEAL-O-RING
61 247-8720 [2] SPACER (95X110X3.2-MM THK)
62 247-8717 [2] SPACER (65X90X1-MM THK)
63 095-0929 [2] RING-RETAINING (EXTERNAL)
64 247-8726 [1] COVER
65 259-0831 [1] SHAFT-DRIVE
66 206-9291 [2] SEAL-O-RING
68 225-4518 Y [1] VALVE GP-SOLENOID (PUMP CONTROL)
69 259-0830 Y [2] HEAD GP-PUMP
70 274-2490 [1] PUMP GP-GEAR
246-9867 [1] SEAL-O-RING
247-8841 M [2] BOLT (M10X1.5X30-MM)
M   METRIC PART
Y   SEPARATE ILLUSTRATION
