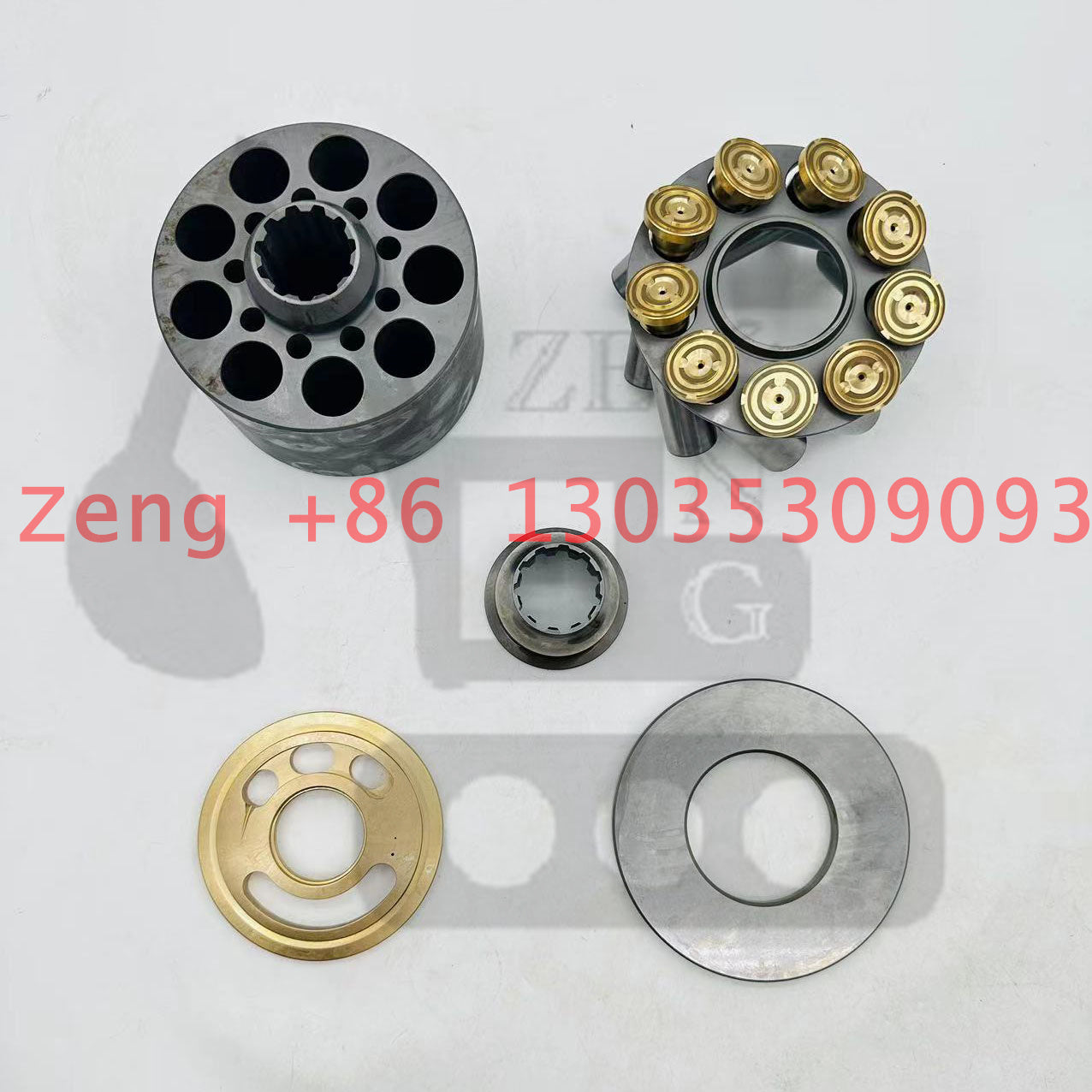

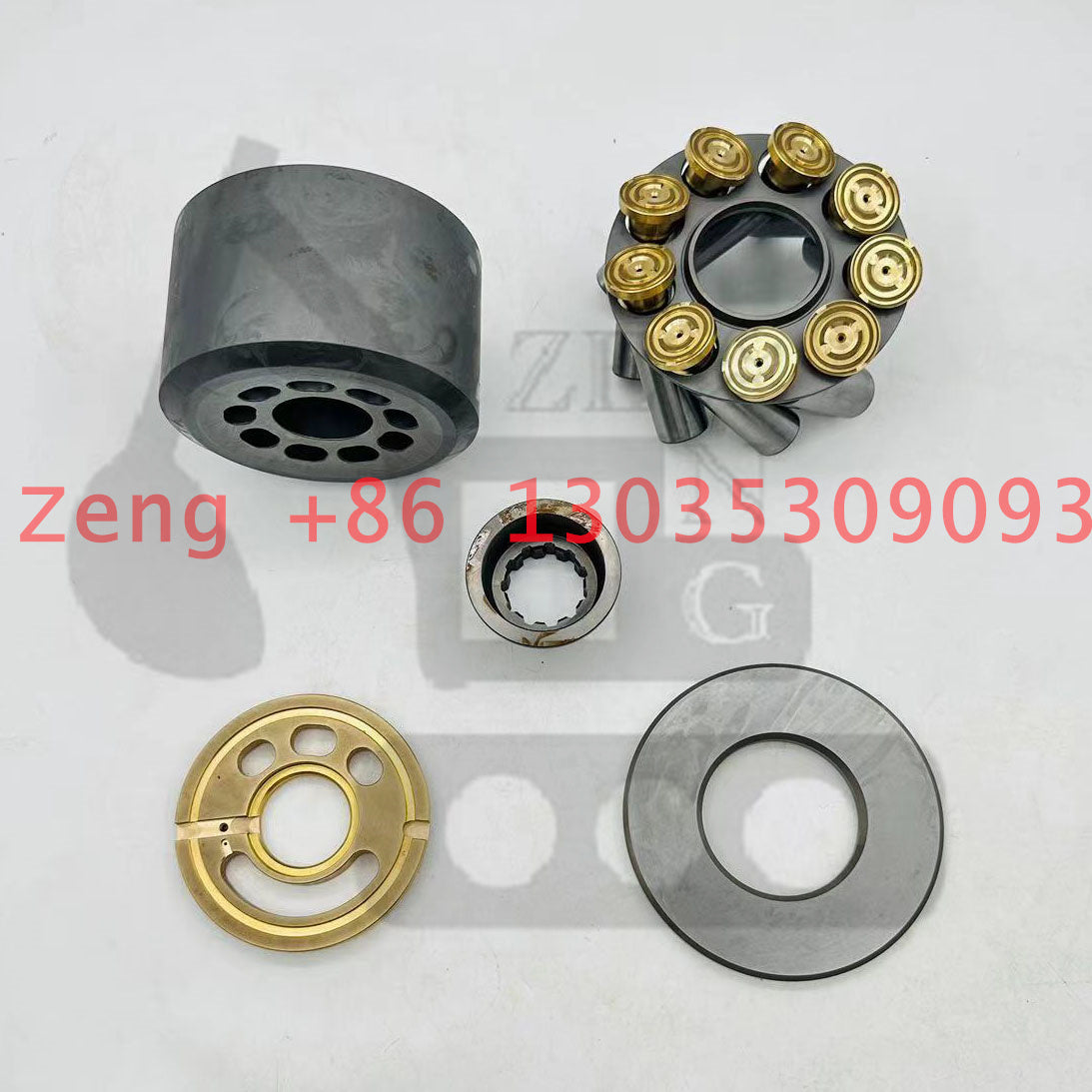

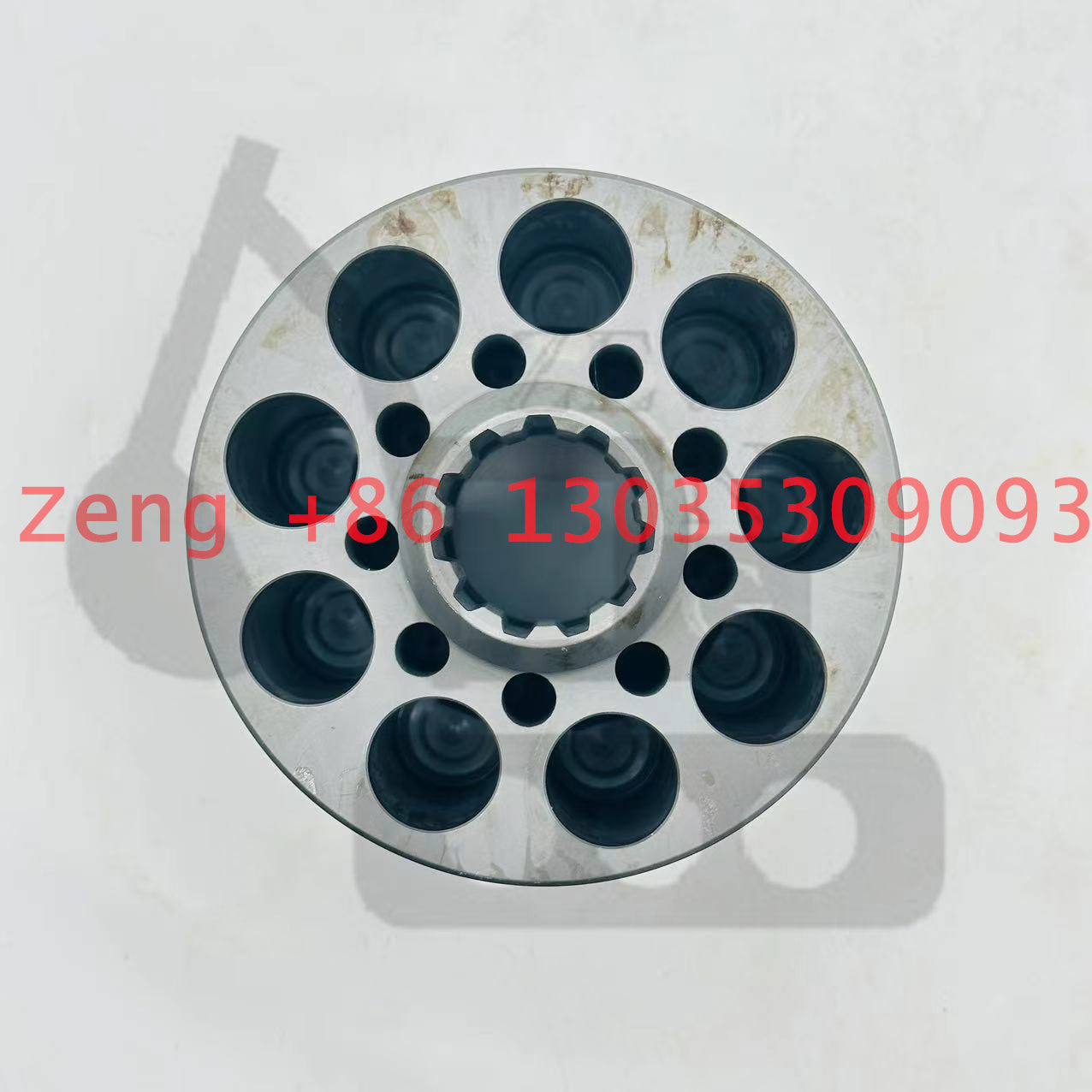

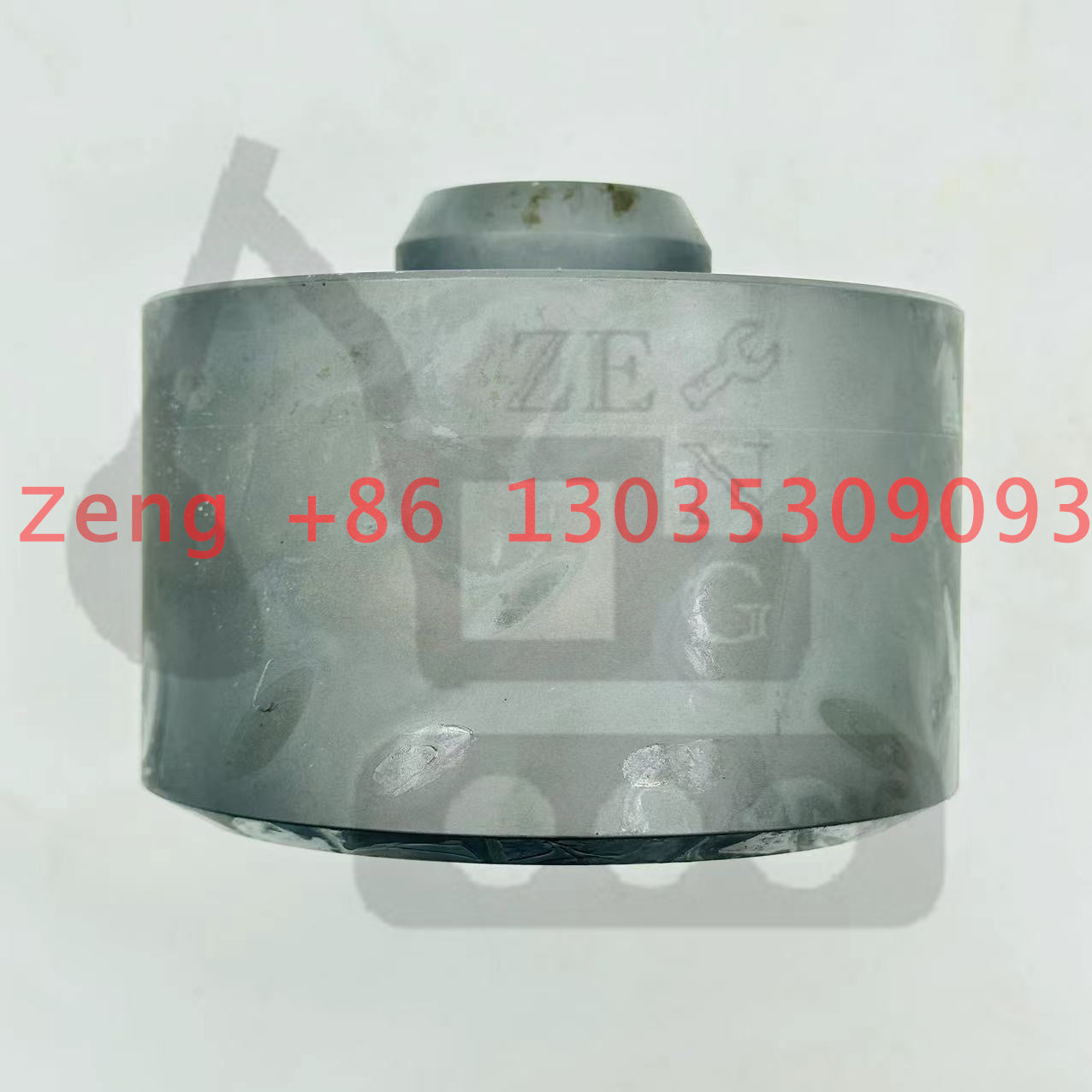

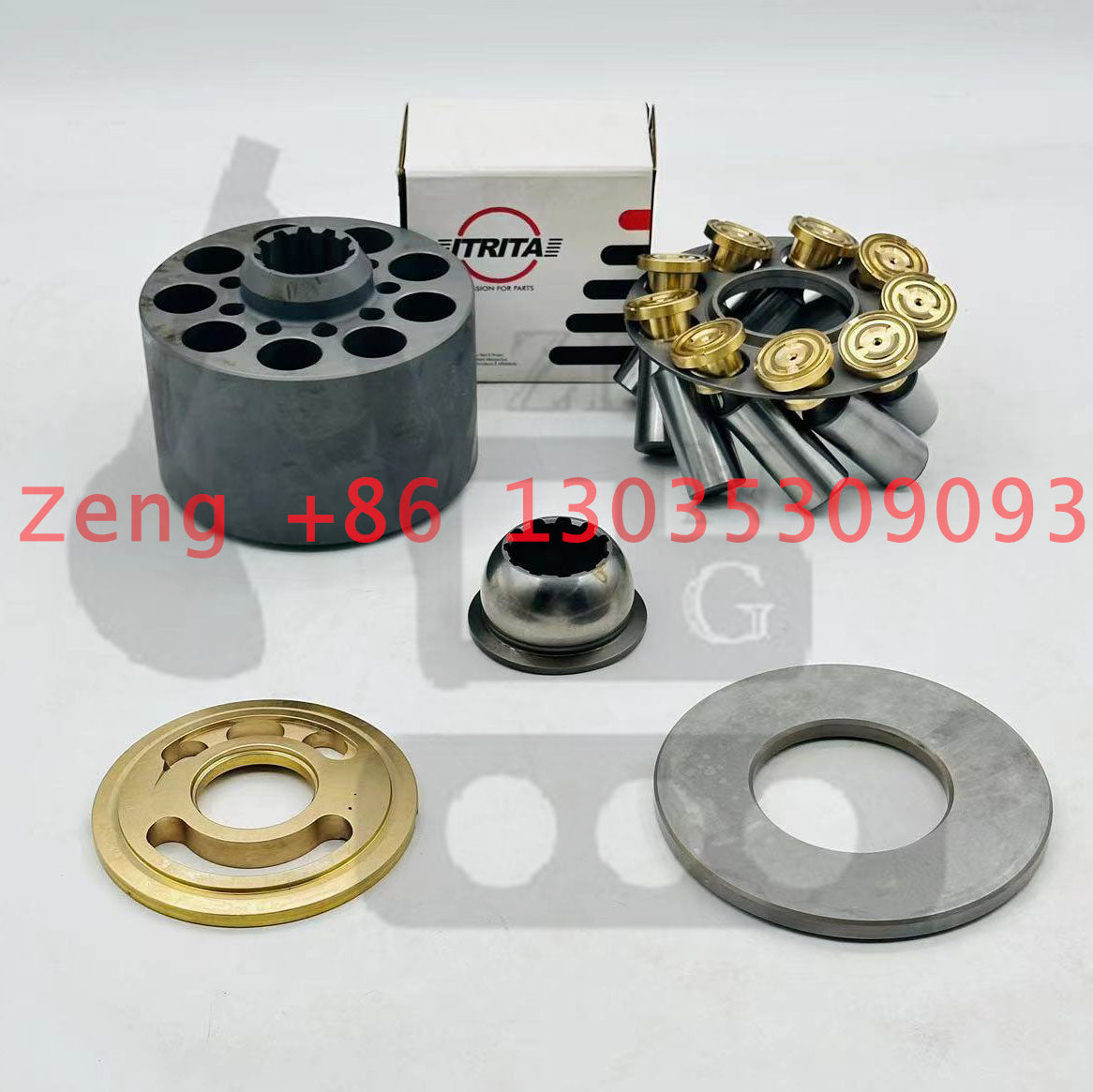

K3VL80 hydraulic pump cylinder block rotor barrel

K3VL80 hydraulic pump cylinder block rotor barrel

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
K3VL80
4633474 ZX120-3  ZX130K-3  ZX200-3 ZX210H-3 ZX210K-3 ZX225USR-3 ZX225USRK-3  ZX240-3 ZX250H-3 ZX250K-3 ZX330-3 ZX350H-3 ZX350K-3 ZX450-3 ZX450-3F ZX450LC-3-DH ZX470H-3 ZX470H-3-HCMC ZX470H-3F  ZX470R-3 ZX470R-3F ZX500LC-3 ZX500LC-3F ZX520LCH-3 ZX520LCH-3F ZX520LCR-3 ZX520LCR-3F
Pos. Part No Qty Parts name Comments
4633474 [1]   PUMP;PISTON
7 4658832 [1]   PUMP;REGULATOR
11 0928006 [1]   PISTON ASS'Y
011A. +++++++ [9]   PISTON
011B. +++++++ [9]   SHOE
13 0978701 [1]   CYL. ASS'Y
013A. +++++++ [1]   BLOCK;CYL.
013B. +++++++ [1]   PLATE;VALVE
30 0818503 [1]   PLATE ASS'Y
030A. +++++++ [1]   PLATE
030B. +++++++ [1]   BUSHING
111 0818504 [1]   SHAFT
123 0878107 [1]   BRG.;ROL.
124 0924003 [1]   BRG;NEEDL
127 0818508 [2]   SPACER
153 0818509 [1]   PLATE
156 0818510 [1]   BUSHING;SPH.
157 0818511 [9]   SPRING
211 0818512 [1]   PLATE
251 0818513 [1]   SUPPORT
261 0818514 [1]   COVER
271 0978702 [1]   CASING;PUMP
312 0928002 [1]   COVER
316 0820422 [1]   COVER
401 0818519 [4]   BOLT;SOCKET
406 0237902 [4]   BOLT;SOCKET
414 0820425 [2]   BOLT;SOCKET
466 0629404 [1]   PLUG
467 0818520 [2]   PLUG
490 0263019 [8]   PLUG
530 0818521 [1]   PIN ASS'Y
530A. +++++++ [1]   PIN
530B. +++++++ [1]   PIN
532 0878116 [1]   PISTON
534 0924006 [1]   STOPPER
535 0818524 [1]   STOPPER
702 0443404 [1]   O-RING
710 A811085 [2]   O-RING
717 A811120 [1]   O-RING
719 A811115 [1]   O-RING
724 4506408 [9]   O-RING
725 957366 [1]   O-RING
728 4506418 [2]   O-RING
732 0443407 [1]   O-RING
774 0924007 [1]   SEAL;OIL
789 4085607 [1]   RING;BACK-UP
792 0249148 [1]   RING;BACK-UP
801 0124811 [1]   NUT
808 0131108 [2]   NUT;LOCK
824 0991342 [1]   RING;RETAINING
885 0175241 [1]   PIN
886 0244604 [2]   PIN;SPRING
901 4163072 [1]   BOLT;EYE
953 0978703 [1]   SCREW;SET
954 0978704 [1]   SCREW;SET
4658832 [1]   REGULATOR;PUMP
79 4654325 [1]   VALVE;REDUCING
412 0135904 [2]   BOLT;SOCKET
413 0213208 [2]   BOLT;SOCKET
418 0667626 [2]   BOLT;SOCKET
436 0211510 [4]   BOLT;SOCKET
438 0102411 [8]   BOLT;SOCKET
466 0236014 [1]   PLUG
496 0263019 [11]   PLUG
601 +++++++ [1]   CASING
611 +++++++ [1]   LEVER
612 +++++++ [1]   LEVER
613 +++++++ [1]   LEVER
614 +++++++ [1]   PLUG
615 +++++++ [1]   PLUG
621 +++++++ [1]   PISTON
622 +++++++ [1]   CASE
623 +++++++ [1]   ROD
624 +++++++ [1]   SEAT;SPRING
625 +++++++ [1]   SPRING
626 +++++++ [1]   SPRING
627 +++++++ [1]   ROD
628 +++++++ [1]   SCREW;ADJUSTING
629 +++++++ [1]   COVER
630 +++++++ [1]   NUT;LOCK
631 +++++++ [1]   SLEEVE
641 +++++++ [1]   COVER
643 +++++++ [1]   PISTON
644 +++++++ [1]   SEAT;SPRING
645 +++++++ [1]   STOPPER
646 +++++++ [1]   SPRING
651 +++++++ [1]   SLEEVE
652 +++++++ [1]   SPOOL
653 +++++++ [1]   SEAT;SPRING
654 +++++++ [1]   SPRING;RETURN
655 +++++++ [1]   SPRING;SET
656 +++++++ [1]   COVER
708 A811075 [1]   O-RING
722 4506406 [3]   O-RING
724 4506408 [9]   O-RING
725 4506320 [1]   O-RING
728 4506418 [1]   O-RING
730 4509181 [1]   O-RING
732 0443407 [2]   O-RING
733 4506420 [1]   O-RING
734 A811025 [1]   O-RING
735 4140470 [1]   O-RING
755 957366 [3]   O-RING
756 4509182 [1]   O-RING
763 A811035 [1]   O-RING
801 124811 [2]   NUT;LOCK
814 991334 [1]   RING;RETAINING
836 +++++++ [1]   RING;RETAINING
858 0288704 [2]   RING;RETAINING
874 +++++++ [1]   PIN
875 +++++++ [2]   PIN
876 +++++++ [2]   PIN
887 +++++++ [1]   PIN
897 +++++++ [1]   PIN
898 +++++++ [1]   PIN
924 0218852 [1]   SCREW
925 +++++++ [1]   SCREW;ADJUSTING
