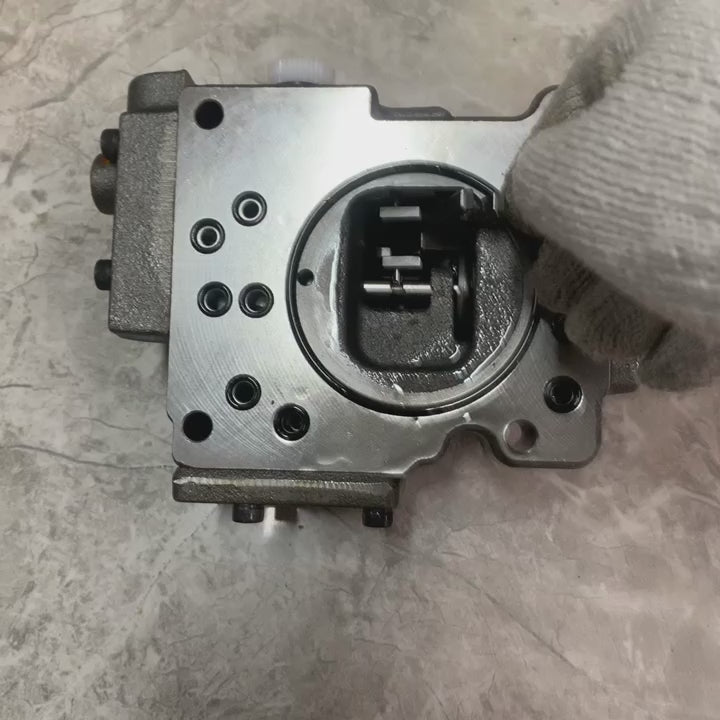

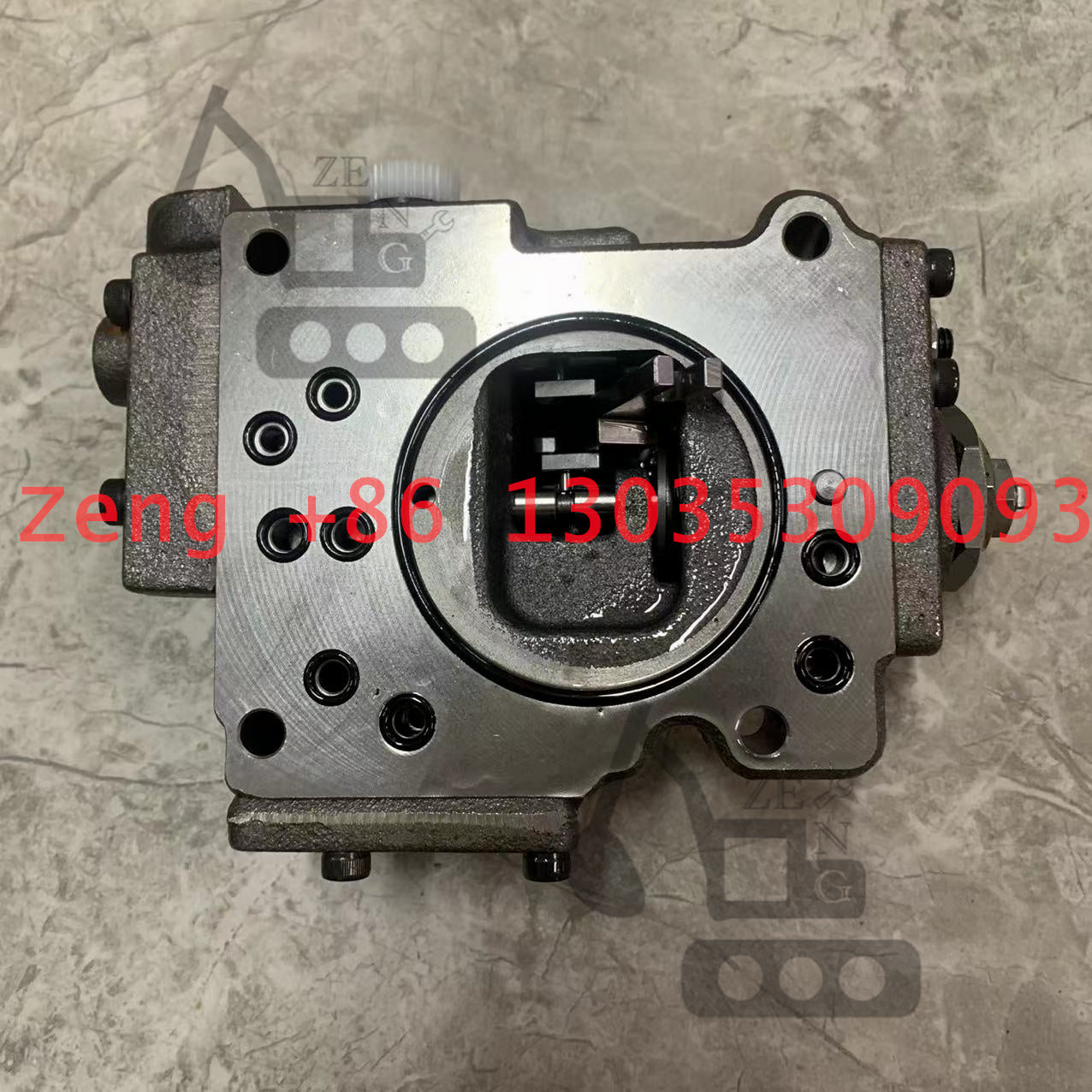

K3V63 hydraulic pump regulator

K3V63 hydraulic pump regulator

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

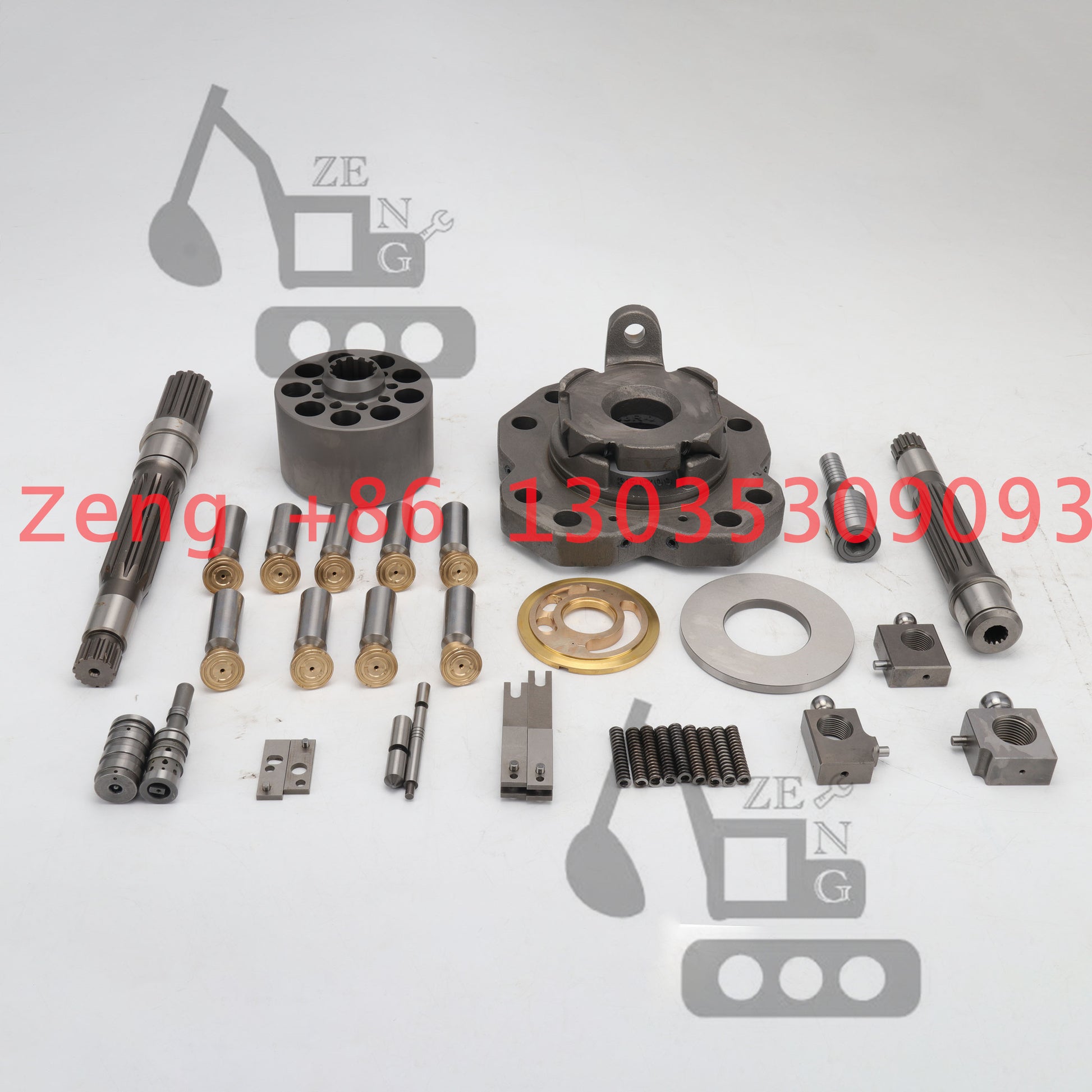

Pos. Part No Qty Parts name Comments
*. 31N4-15011 [1]   MAIN PUMP      STD
*. 31N4-15012 [1]   MAIN PUMP      STD
*. 31N4-15030 [1]   MAIN PUMP      LOW NOISE
*-1. XJBN-00848 [1]   MAIN PUMP UNIT      STD
*-1. XJBN-01028 [1]   MAIN PUMP UNIT
*-1. XJBN-00927 [1]   MAIN PUMP UNIT      LOW NOISE
111 XJBN-00432 [1]   SHAFT(F)-DRIVE
113 XJBN-00431 [1]   SHAFT(R)-DRIVE
116 XJBN-00804 [1]   GEAR-1ST
123 XJBN-00429 [2]   BEARING-ROLLER
124 XJBN-00428 [2]   BEARING-NEEDLE
127 XJBN-00806 [4]   SPACER-BEARING
NS141. XJBN-00807 [2]   BLOCK
NS151. XJBN-00425 [18]   PISTON
NS152. XJBN-00424 [18]   SHOE
153 XJBN-00423 [2]   PLATE-SET
156 XJBN-00422 [2]   BUSHING-SPHERICAL
157 XJBN-00421 [18]   SPRING-CYLINDER
211 XJBN-00420 [2]   PLATE-SHOE
S212. XJBN-00419 [2]   PLATE-SWASH
S214. XJBN-00418 [2]   BUSHING-TILTING
251 XJBN-00417 [2]   SUPPORT
261 XJBN-00416 [1]   COVER(F)-SEAL
262 XJBN-00810 [1]   COVER-RR
271 XJBN-00415 [2]   CASING-PUMP
312 XJBN-00812 [1]   BLOCK-VALVE
S313. XJBN-00413 [1]   PLATE(R)-VALVE
S314. XJBN-00412 [1]   PLATE(L)-VALVE
401 XJBN-00411 [8]   SCREW
406 XJBN-00410 [8]   SCREW
466 XJBN-00356 [2]   PLUG
467 XJBN-00409 [4]   PLUG
468 XJBN-00237 [2]   PLUG
490 XJBN-00032 [15]   PLUG
S531. XJBN-00408 [2]   PIN-TILTING
532 XJBN-00407 [2]   PISTON-SERVO
534 XJBN-00406 [2]   STOPPER(L)
535 XJBN-00405 [2]   STOPPER(S)
S548. XJBN-00404 [2]   PIN-FEED BACK
702 XJBN-00403 [2]   O-RING      STD
702 XJBN-00888 [2]   O-RING      LOW NOISE
710 XJBN-00402 [2]   O-RING
711 XJBN-00095 [1]   O-RING
717 XJBN-00401 [2]   O-RING
719 XJBN-00400 [2]   O-RING
724 XJBN-00361 [18]   O-RING
725 XJBN-00362 [2]   O-RING
727 XJBN-00233 [2]   O-RING
728 XJBN-00097 [4]   O-RING
732 XJBN-00879 [2]   O-RING      STD
732 XJBN-00820 [2]   O-RING      LOW NOISE
774 XJBN-00399 [1]   SEAL-OIL
789 XJBN-00398 [2]   RING-BACK UP
792 XJBN-00397 [2]   RING-BACK UP
808 XJBN-00396 [4]   NUT-HEX
824 XJBN-00395 [2]   RING-SNAP
885 XJBN-00394 [2]   PIN-VALVE PLATE
886 XJBN-00365 [4]   PIN-SPRING
901 XJBN-00393 [2]   BOLT-EYE
953 XJBN-00105 [2]   SCREW-SET
954 XJBN-00392 [2]   SCREW-SET
981 XJBN-00156 [1]   NAME PLATE      STD
981 XJBN-00867 [1]   NAME PLATE      LOW NOISE
983 XJBN-00341 [2]   PIN
*-2. @ [1]   REGULATOR ASSY      REAR
*-2. @ [1]   REGULATOR ASSY      FRONT
*-5. XJBN-00975 [1]   PTO UNIT      STD
*-5. XJBN-01018 [1]   PTO UNIT      STD
*-5. XJBN-00926 [1]   PTO UNIT      LOW NOISE
5 XJBN-00828 [1]   PTO ASSY      STD/LOW NOISE
5 XJBN-01020 [1]   PTO ASSY      STD
5 XJBN-00828 [1]   PTO ASSY      LOW NOISE
5-1. XJBN-00160 [2]   SCREW-SOCKET
5-2. XJBN-00725 [4]   SOCKET-FLANGE
5-3. XJBN-00357 [1]   PLUG
5-4. XJBN-00837 [1]   O-RING
5-5. XJBN-00402 [1]   O-RING
5-6. XJBN-00363 [1]   O-RING
5-7. XJBN-01023 [1]   PIN-SPRING      STD
*-51. @ [1]   GEAR PUMP
S. XJBN-00437 [1]   PISTON SUB ASSY
S. XJBN-00798 [1]   CYLINDER SUB ASSY-RH      SEE ILLUST
S. XJBN-00799 [1]   CYLINDER SUB ASSY-LH      SEE ILLUST
S. XJBN-00434 [1]   SWASH PLATE ASSY      SEE ILLUST
S. XJBN-00433 [1]   TILTING PIN ASSY      SEE ILLUST
*-2. XJBN-00453 [1]   REGULATOR(R) ASSY      REAR
*-2. XJBN-00452 [1]   REGULATOR(F) ASSY      FRONT
*-51. XJBN-00923 [1]   GEAR PUMP ASSY      STD
*-3. XJBN-00895 [1]   GEAR PUMP ASSY      STD
