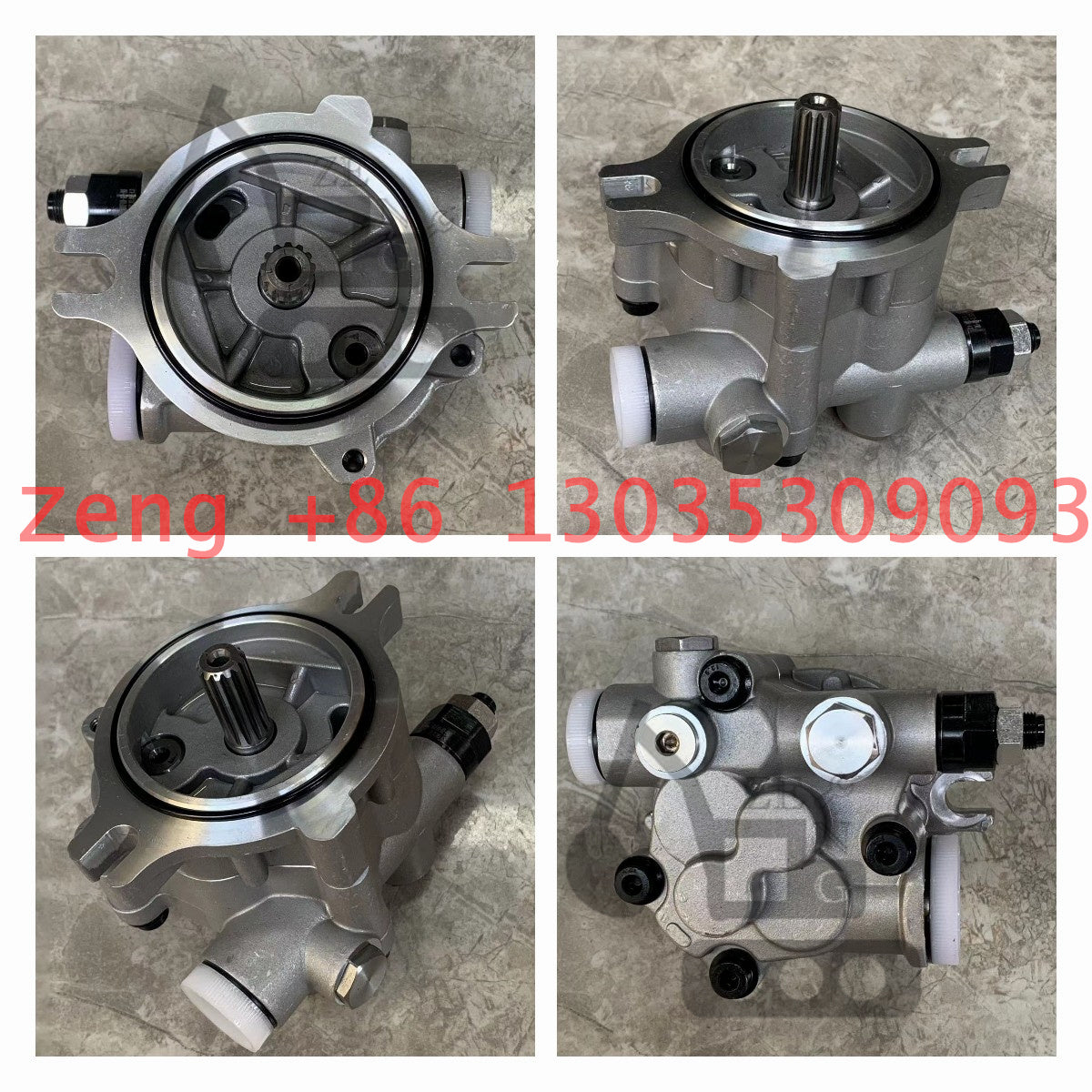

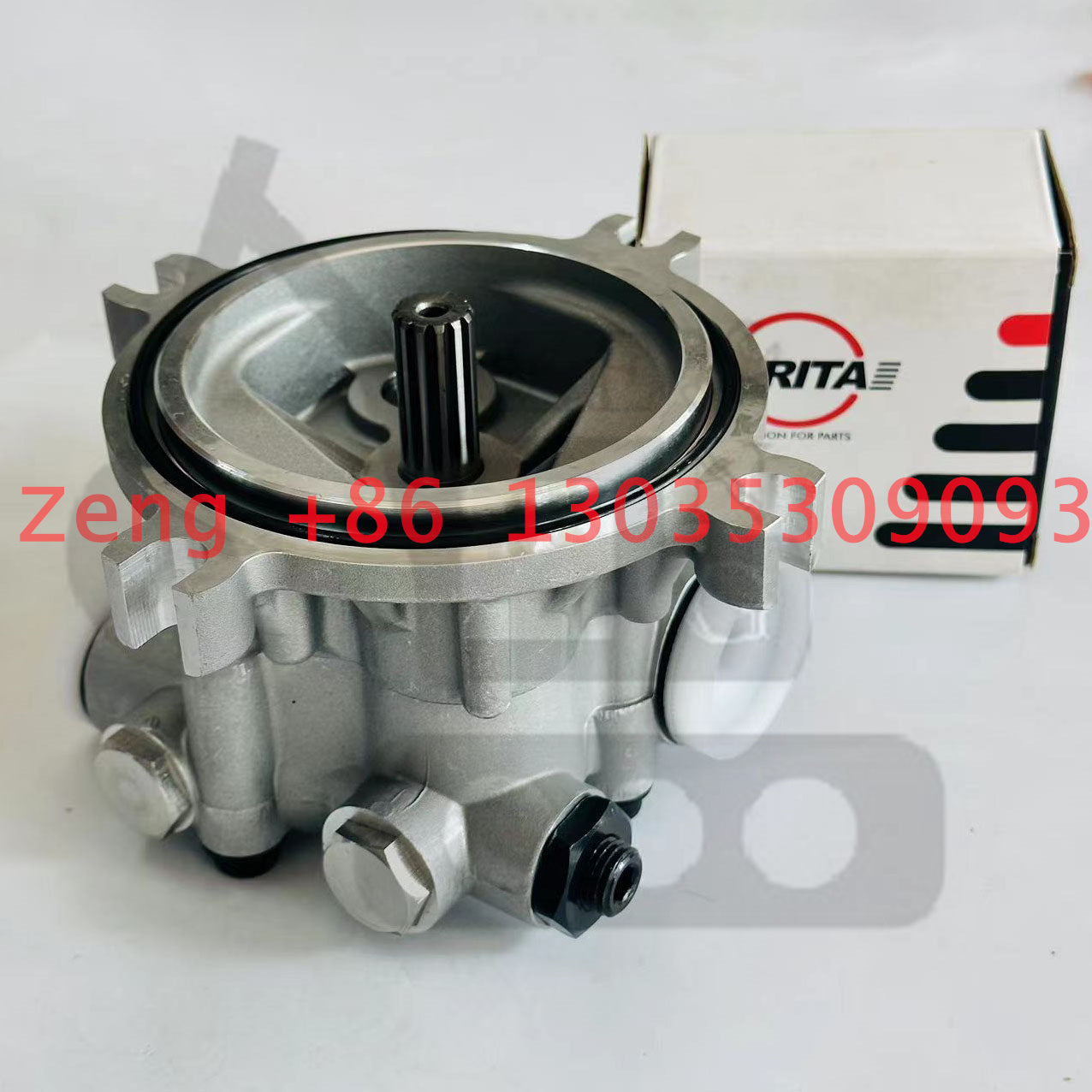

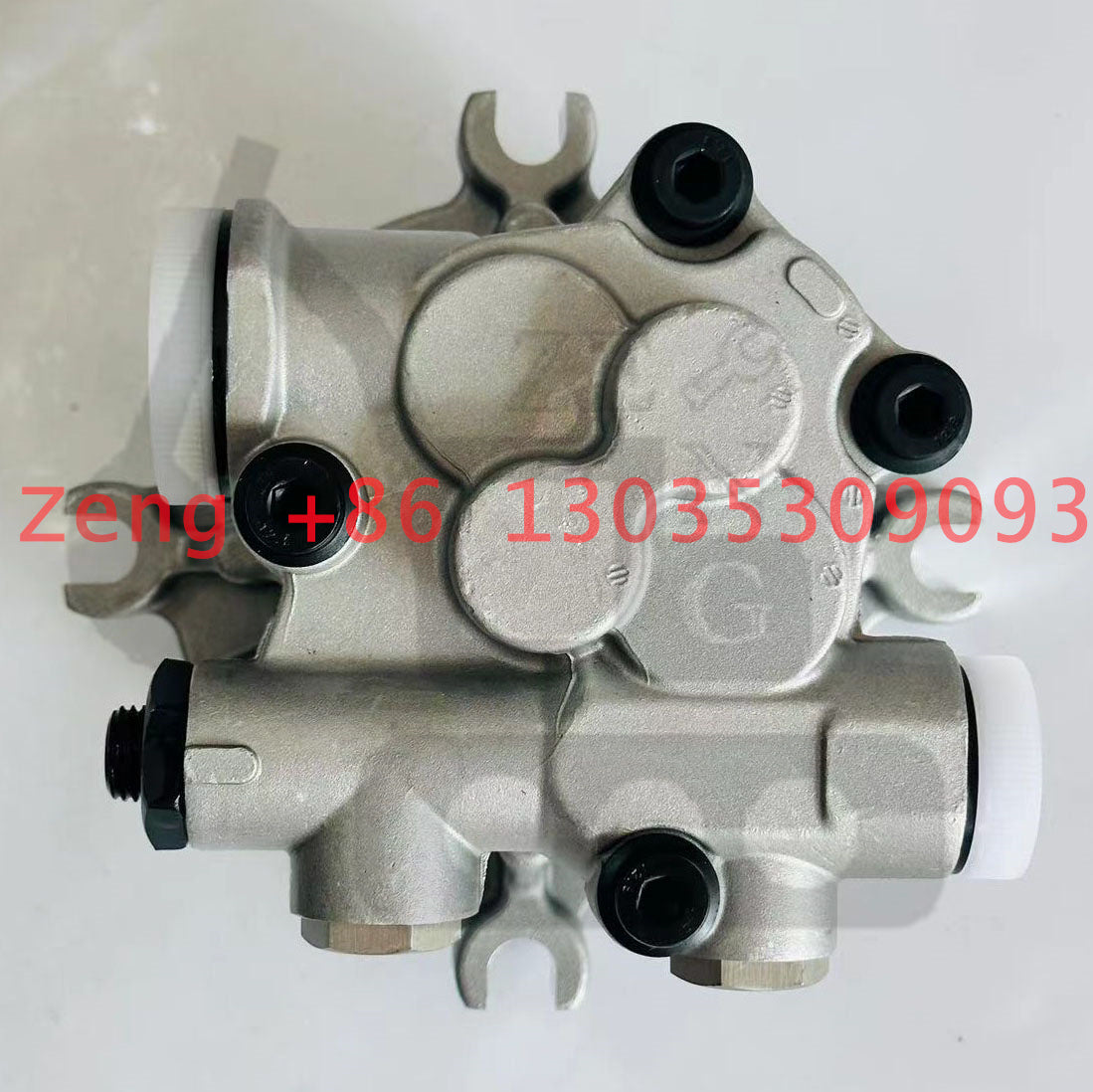

K3V140 K3V180 hydraulic pump pilot pump

K3V140 K3V180 hydraulic pump pilot pump

$60.00 USD
$60.00 USD
特價 售罄
結帳時計算運費。

Model：K3V140 K3V180
Part number：
Application：

EC290
R330 K3V180
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T
Warranty（in China）：3 months

K3V180DTP 31NA-10020 31NA-10021 R370LC-7
Pos. Part No Qty Parts name Comments
*. 31NA-10020 [1]   MAIN PUMP      TYPE 1
*. 31NA-10021 [1]   MAIN PUMP      TYPE 2
*-1. @ [1]   MAIN PUMP UNIT
111 XJBN-00998 [1]   SHAFT(F)-DRIVE
113 XJBN-00999 [1]   SHAFT(R)-DRIVE
114 XJBN-01000 [1]   GEAR(1)
123 XJBN-00571 [2]   BEARING-ROLLER
124 XJBN-00978 [2]   BEARING-NEEDLE
127 XJBN-00019 [3]   SPACER-BEARING
NS141. XJBN-00567 [2]   BLOCK-CYLINDER
NS151. XJBN-00566 [18]   PISTON
NS151. XJBN-00681 [18]   PISTON      TYPE 2
NS152. XJBN-00005 [18]   SHOE
NS152. XJBN-01385 [18]   SHOE      TYPE 2
153 XJBN-00020 [2]   PLATE-SET
156 XJBN-00564 [2]   BUSHING-SPHERICAL
157 XJBN-00541 [18]   SPRING-CYLINDER
211 XJBN-00023 [2]   PLATE-SHOE
S212. XJBN-00012 [2]   PLATE-SWASH
S214. XJBN-00013 [2]   BUSHING-TILTING
251 XJBN-00560 [2]   SUPPORT-S.P.
261 XJBN-00025 [1]   COVER(FR)-SEAL
263 XJBN-00979 [1]   COVER(RR)-SEAL
271 XJBN-00026 [2]   CASING-PUMP
271 XJBN-01386 [2]   CASING-PUMP      TYPE 2
312 XJBN-01001 [1]   BLOCK-VALVE
S313. XJBN-00557 [1]   PLATE-VALVE(R)
S314. XJBN-00556 [1]   PLATE-VALVE(L)
401 XJBN-00028 [8]   SCREW
406 XJBN-00355 [8]   SCREW
466 XJBN-00356 [2]   PLUG
468 XJBN-00357 [4]   PLUG
490 XJBN-00032 [27]   PLUG
492 XJBN-00234 [12]   PLUG
NS531. XJBN-00369 [2]   PIN-TILTING
532 XJBN-00033 [2]   PISTON-SERVO
534 XJBN-00034 [2]   STOPPER(L)
535 XJBN-00035 [2]   STOPPER(S)
NS541. XJBN-00859 [4]   SEAT
NS543. XJBN-00860 [2]   STOPPER
NS544. XJBN-01002 [2]   STOPPER(2)
S545. XJBN-00359 [4]   BALL-STEEL
NS548. XJBN-00360 [2]   PIN-FEED BACK
702 XJBN-00040 [2]   O-RING
710 XJBN-00041 [2]   O-RING
714 XJBN-01003 [1]   O-RING
717 XJBN-00042 [2]   O-RING
719 XJBN-00043 [2]   O-RING
724 XJBN-00361 [16]   O-RING
725 XJBN-00362 [6]   O-RING
728 XJBN-00363 [4]   O-RING
732 XJBN-00047 [2]   O-RING
774 XJBN-00906 [1]   SEAL-OIL
774 XJBN-01595 [1]   SEAL-OIL      TYPE 2
789 XJBN-00049 [2]   RING-BACK UP
792 XJBN-00050 [2]   RING-BACK UP
808 XJBN-00364 [4]   NUT
824 XJBN-00052 [2]   RING-SNAP
885 XJBN-00053 [2]   PIN-2
886 XJBN-00365 [4]   PIN-SPRING
901 XJBN-00055 [2]   BOLT-EYE
953 XJBN-00056 [2]   SCREW-SET
954 XJBN-00057 [2]   SCREW-SET
981 XJBN-00156 [1]   NAME PLATE
983 XJBN-00341 [2]   PIN
*-2. XJBN-01004 [2]   REGULATOR      SEE 4020
*-3. XJBN-01005 [1]   GEAR PUMP      SEE 4030
*-4. XJBN-00014 [1]   EPPR VALVE ASSY      SEE 4040
*-5. XJBN-01006 [1]   PTO UNIT
5-1. XJBN-01007 [8]   SCREW-HEX
5-2. XJBN-00031 [1]   PLUG
5-3. XJBN-01008 [1]   O-RING
5-4. XJBN-00046 [1]   O-RING
S011. XJBN-00563 [2]   PISTON ASSY      SEE ILLUST
S011. XJBN-01382 [2]   PISTON ASSY      TYPE 2
S013. XJBN-00562 [1]   CYLINDER ASSY-RH      SEE ILLUST
S014. XJBN-00561 [1]   CYLINDER ASSY-LH      SEE ILLUST
S030. XJBN-00011 [2]   SWASH PLATE ASSY      SEE ILLUST
S041. XJBN-00072 [2]   CHECK VALVE ASSY 1      SEE ILLUST
S042. XJBN-01009 [2]   CHECK VALVE ASSY 3      SEE ILLUST
S530. XJBN-00371 [2]   TILTING PIN SUB ASSY      SEE ILLUST
