JMV-155/89 JMV155 travel motor spring

JMV-155/89 JMV155 travel motor spring

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
JMV-155/89 JMV155
31N8-40050 31N8-40051 31N8-40051BG 31N8-40052 31N8-40053 31N8-40054 31N8-40060 31N8-40061 31N8-40061BG 31N8-40062 31N8-40063
R250LC-7 R290LC-7 R300LC-7 R305LC-7
R250LC-7A R290LC-7A
R290LC-7H
rotary kit XKAY-00218 XKAY-01510 XKAY-00218

31Q8-40040 31Q8-40061 31Q8-40062 31Q8-40063 31Q8-40041
R250LC-9 R260LC-9A R260LC-9S R290LC-9 R290LC-9MH R300LC-9A R300LC-9S R300LC-9SH
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4130
*-1. @ [1]   TRAVEL MOTOR UNIT      SEE 4130
1 XKAY-01129 [1]   CASING-SHAFT
1 XKAY-02052 [1]   CASING-SHAFT
2 XKAY-01415 [12]   PLUG
3 XKAY-00199 [2]   SCREW-ORIFICE
4 XKAY-00199 [1]   SCREW-ORIFICE
5 XKAY-00201 [2]   PIN-SUPPORT
6 XKAY-00202 [4]   PIN-BRAKE
7 XKAY-00203 [1]   STOPPER(S)
K8. XKAY-00204 [4]   O-RING
K9. XKAY-00205 [3]   RING-BACK UP
10 XKAY-00206 [1]   PISTON-SWASH
K10-4. @ [1]   SEAL      NOT SHOWN
11 XKAY-00207 [1]   SHAFT
12 XKAY-00208 [1]   SPACER-BEARING
13 XKAY-00209 [1]   BEARING-ROLLER
14 XKAY-00210 [1]   RING-STOP
*-11. XKAY-00211 [1]   SUPPORT KIT      INCL 15,16
N15. XKAY-00212 [1]   SUPPORT
N16. XKAY-00213 [1]   PLATE-SWASH
17 XKAY-00214 [1]   PISTON-SWASH
K17-4. @ [1]   SEAL      NOT SHOWN
18 XKAY-00215 [1]   STOPPER(L)
K19. XKAY-00216 [1]   O-RING
K20. XKAY-00217 [2]   RING-BACK UP

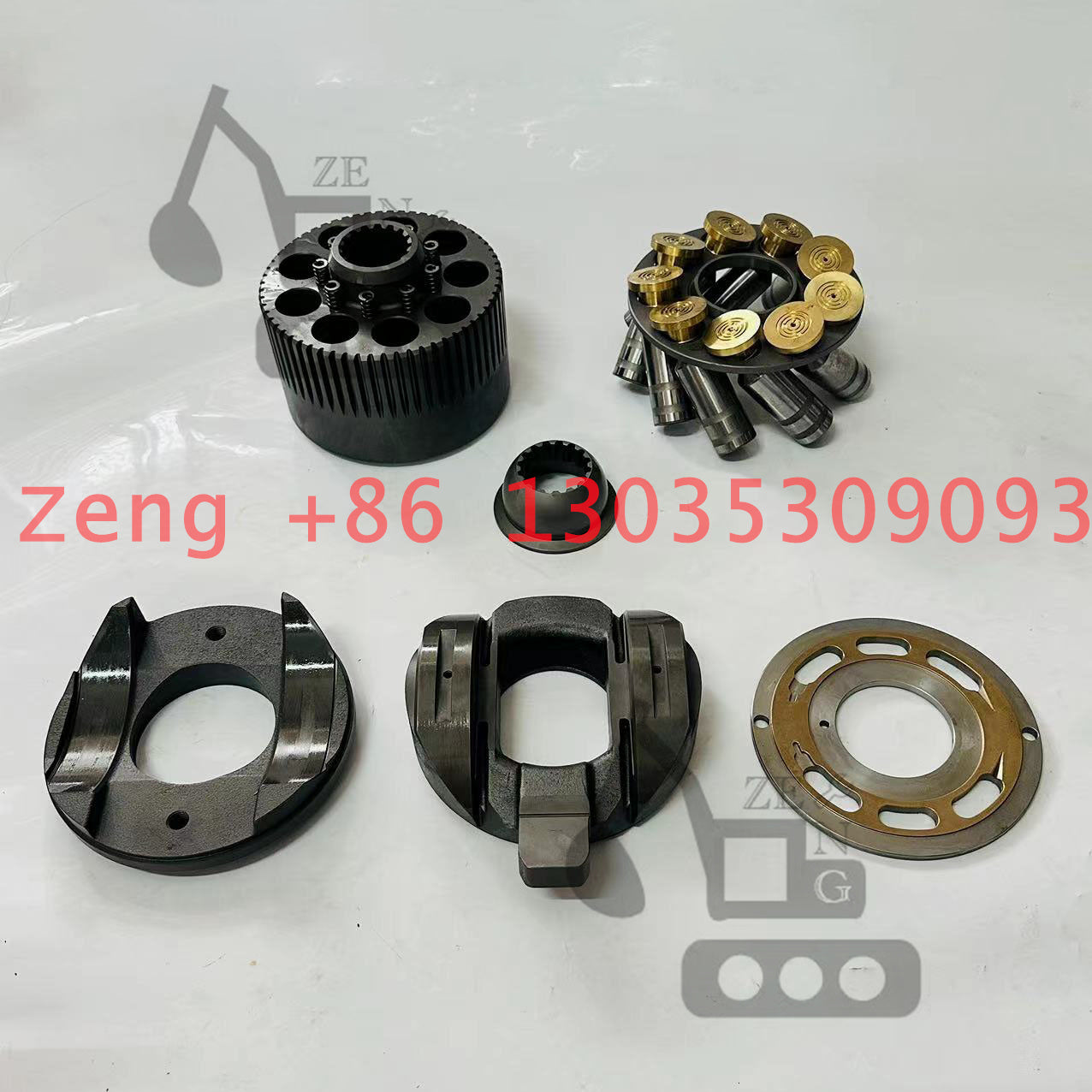

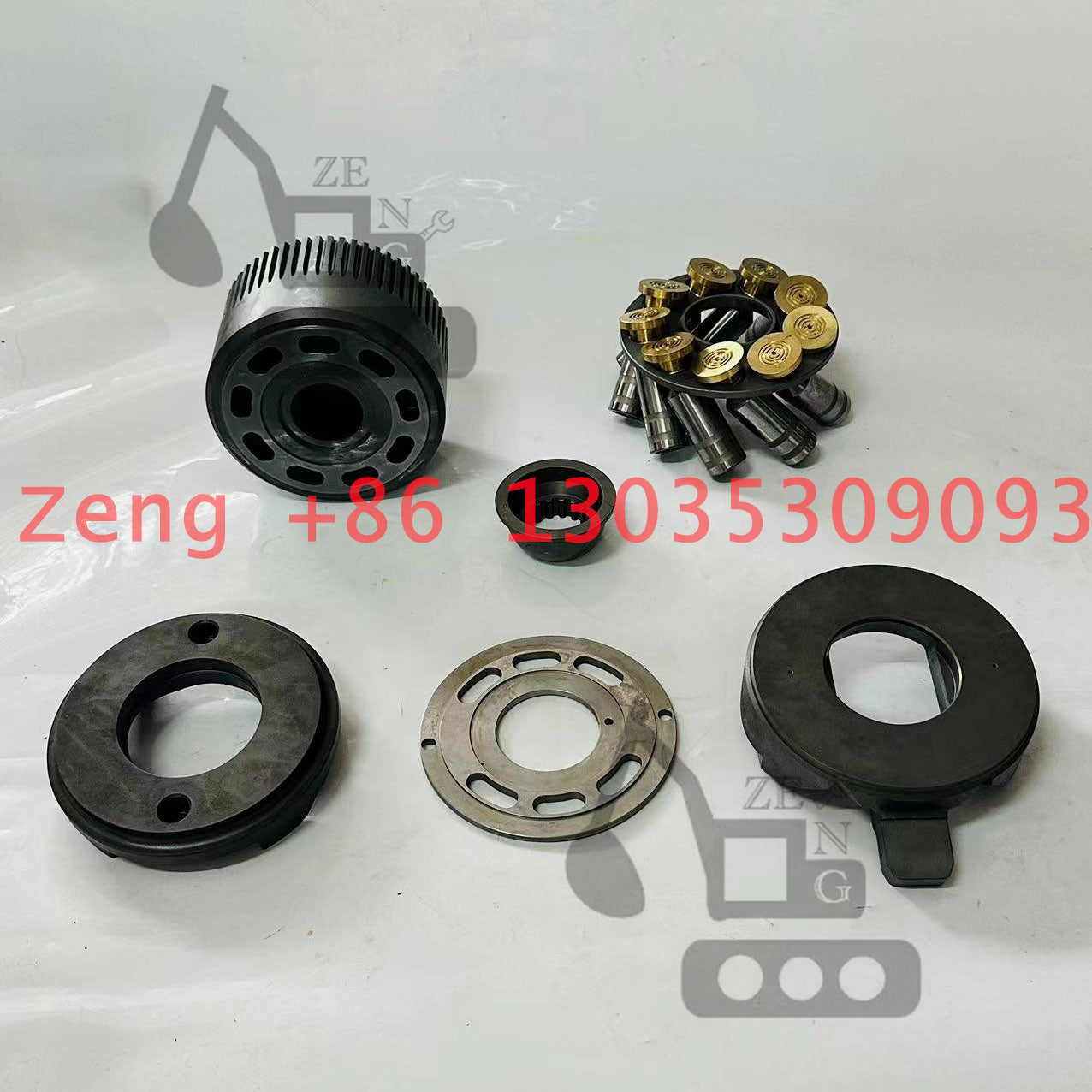

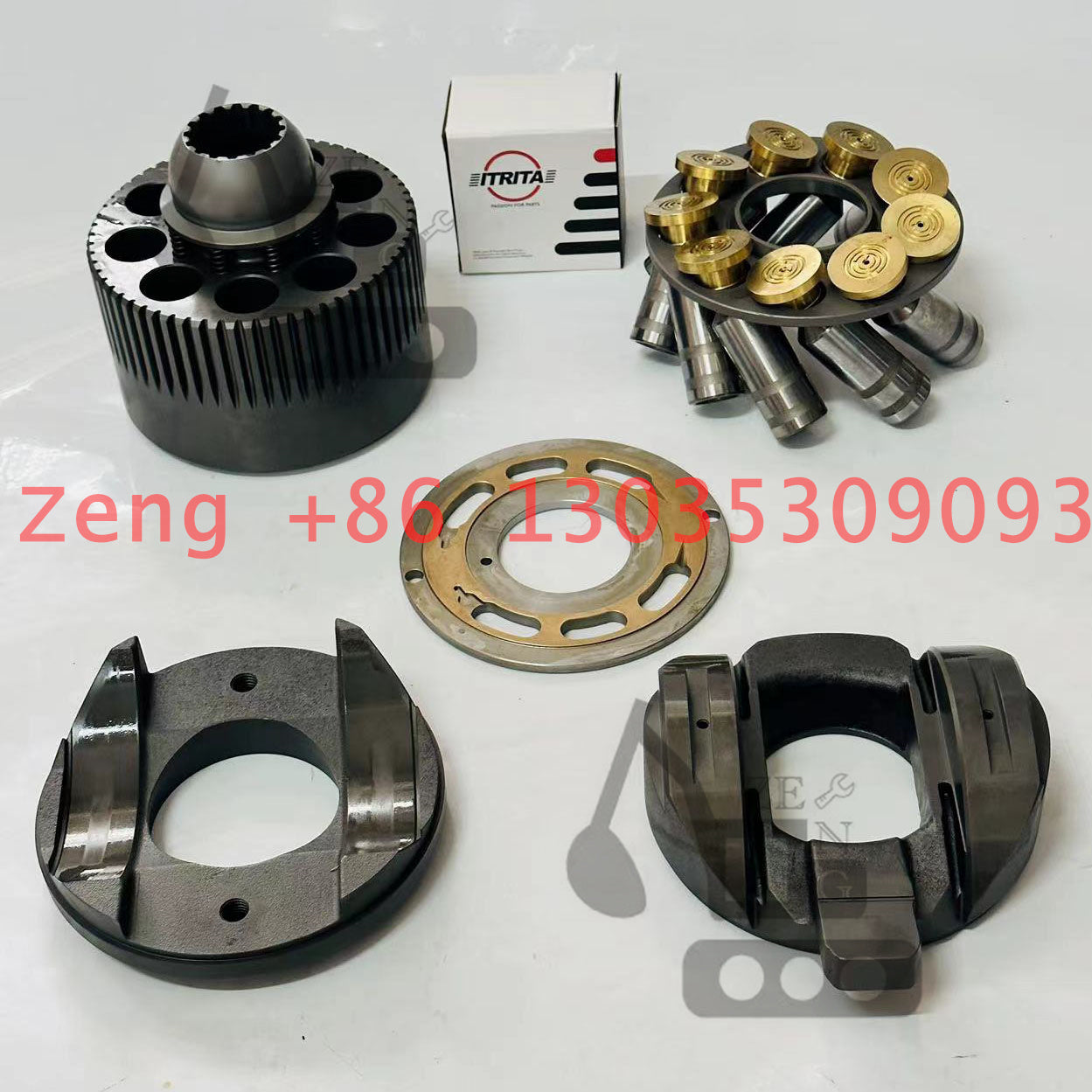

*-12. XKAY-00218 [1]   ROTARY KIT      INCL *-A,B,C
*-A. XKAY-00219 [1]   CYLINDER BLOCK KIT      INCL 21~23,67
N21. XKAY-00220 [1]   BLOCK-CYLINDER

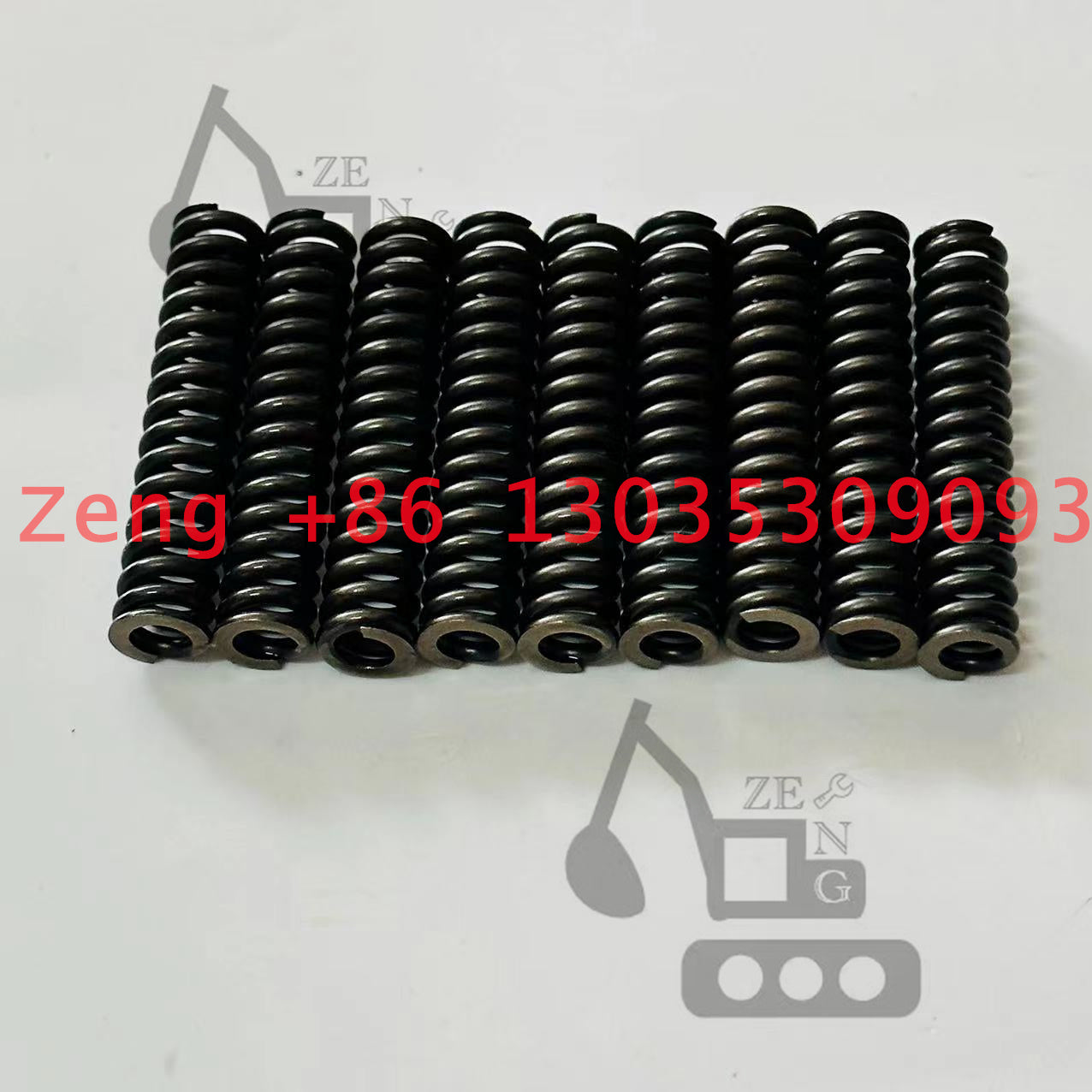

22 XKAY-00221 [9]   SPRING-CYLINDER
23 XKAY-00222 [1]   SPACER
67 XKAY-01505 [1]   PLATE-VALVE
*-B. XKAY-00223 [1]   RETAINER KIT      INCL 24,25
24 XKAY-00224 [1]   GUIDE-BALL
25 XKAY-00225 [1]   SET-PLATE
*-C. XKAY-00226 [1]   PISTON KIT      INCL 26
N26. XKAY-00227 [9]   PISTON & SHOE ASSY
27 XKAY-00228 [2]   PLATE-FRICTION
28 XKAY-00229 [1]   PLATE-SEPARATOR
29 XKAY-00973 [1]   BRAKE-PISTON
30 XKAY-00231 [1]   RING-PISTON 252
31 XKAY-00232 [1]   RING-PISTON 278
32 XKAY-00233 [10]   SPRING-BRAKE
34 XKAY-00235 [1]   BEARING-NEEDLE
36 XKAY-00237 [2]   PIN-VALVE PLATE
63 XKAY-00279 [1]   NUT-HEX
K69. XKAY-00270 [3]   O-RING
72 XKAY-00273 [1]   SCREW-LOCK
K73. XKAY-00274 [1]   SEAL-OIL
74 XKAY-00275 [1]   RING-LOCK
*-2. 31Q9-40020 [1]   TRAVEL REDUCTION GEAR      SEE 4135
K. XKAY-00278 [1]   SEAL KIT      SEE ILLUST
Pos. Part No Qty Parts name Comments
*. 31Q8-40061 [1]   TRAVEL MOTOR ASSY
*. 31Q8-40062 [1]   TRAVEL MOTOR ASSY
*. 31Q8-40063 [1]   TRAVEL MOTOR ASSY
*-1. 31Q8-40040 [1]   TRAVEL MOTOR UNIT
*-1. 31Q8-40041 [1]   TRAVEL MOTOR UNIT
2 XKAY-01415 [12]   PLUG
33 XKAY-01506 [1]   CASING-VALVE
K35. XKAY-00236 [1]   O-RING
*-12. XKAY-00238 [1]   SPOOL KIT-C/BLC VALVE      INCL 37, 38
37 XKAY-00239 [1]   SPOOL-C/BLC VALVE
38 XKAY-00240 [2]   SCREW-ORIFICE
39 XKAY-00241 [4]   DAMPING CHECK ASSY
40 XKAY-00242 [2]   SPRING-C/BLC VALVE
K41. XKAY-00243 [2]   O-RING
42 XKAY-00244 [2]   PLUNGER-C/BLC VALVE
43 XKAY-00245 [2]   SPRING-CHECK
44 XKAY-00246 [2]   STOPPER-CHECK
K45. XKAY-00247 [4]   O-RING
K46. XKAY-00248 [1]   RING-BACK UP
47 XKAY-00249 [1]   CAP-C/BLC VALVE(R)
48 XKAY-00250 [1]   CAP-C/BLC VALVE(L)
49 XKAY-00136 [8]   BOLT-SOCKET
50 XKAY-00251 [4]   BOLT-SOCKET
51 XKAY-00252 [2]   SEAT
52 XKAY-00253 [2]   BALL-STEEL
53 XKAY-00254 [2]   STOPPER
54 XKAY-00255 [7]   PLUG-HP
K55. XKAY-00256 [7]   O-RING
56 XKAY-00257 [2]   PLUG-HP
57 XKAY-01516 [1]   RELIEF VALVE ASSY
K58. XKAY-00259 [2]   O-RING
K59. XKAY-00260 [2]   RING-BACK UP
60 XKAY-00261 [1]   ROD-SWASH
K61. XKAY-00262 [1]   O-RING
62 XKAY-00263 [1]   SCREW-LOCK
63 XKAY-00279 [2]   NUT-HEX
64 XKAY-00265 [1]   SPOOL-SWASH
65 XKAY-00266 [1]   PLUG
K66. XKAY-00267 [1]   O-RING
68 XKAY-00269 [1]   SPRING-SWASH
70 XKAY-00271 [8]   BOLT-WRENCH
71 XKAY-00272 [4]   BOLT-SOCKET
76 XKAY-00277 [2]   RIVET
*-2. 31Q9-40020 [1]   TRAVEL REDUCTION GEAR      SEE 4135
K. XKAY-00278 [1]   SEAL KIT      SEE ILLUST
29 XJCK-00121 [1]   BLOCK-CYLINDER
30 XJCK-00042 [1]   RETAINER-SHOE
31 XJCK-00041 [4]   PLATE-FRICTION
32 XJCK-00040 [1]   PISTON-BRAKE
33 XJCK-00039 [5]   PLATE-SEPARATING
34 XJCK-00120 [1]   PLATE-VALVE
35 XJCK-00037 [1]   SHAFT
36 XJCK-00036 [1]   COUPLING
N37. XJCK-00035 [1]   PLATE-SWASH
N38. XJCK-00034 [2]   PIVOT
39 XJCK-00077 [1]   HOLDER-SPRING
40 XJCK-00119 [9]   PISTON ASSY
41 XJCK-00031 [1]   D-RING
42 XJCK-00030 [1]   D-RING
43 XJCK-00029 [3]   VALVE-CHECK
44 XJCK-00028 [1]   RING-RETAINER
45 XJCK-00027 [1]   RING-RETAINER
N46. XJCK-00026 [1]   SHIM
47 XJCK-00025 [1]   PISTON
48 XJCK-00024 [1]   BALL
49 XJCK-00023 [1]   JOINT-BALL
50 XJCK-00022 [1]   SEAL-PISTON
51 XJCK-00021 [1]   RESTRICTOR
52 XJCK-00020 [1]   RESTRICTOR
53 XJCK-00019 [1]   SEAL-OIL
54 XJCK-00018 [3]   SPRING-CHECK VLV
55 XJCK-00017 [9]   SPRING-CYLINDER
56 XJCK-00016 [12]   SPRING-BRAKE
57 XJCK-00015 [1]   BEARING
58 XJCK-00014 [1]   BEARING
59 XJCK-00013 [10]   SCREW-CAP
60 XJCK-00012 [1]   PIN-PARALLEL
61 XJCK-00011 [3]   O-RING
62 XJCK-00010 [2]   O-RING
63 XJCK-00009 [3]   O-RING
64 XJCK-00008 [1]   O-RING
65 XJCK-00007 [1]   O-RING
66 XJCK-00137 [2]   RELIEF VALVE
67 XJCK-00005 [1]   PILOT VALVE
68 XJCK-00138 [1]   BRAKE VALVE
69 XJCK-00003 [2]   PLUG
70 XJCK-00001 [2]   O-RING
71 XJCK-00076 [1]   PLUG-EXPANDER
72 XJCK-00075 [4]   PLUG
73 XJCK-00074 [1]   PLUG
*-2. @ [1]   T/REDUCTION GEAR      SEE 4130
31NA-40010 XJBN-00519 R360LC-7 R370LC-7
Pos. Part No Qty Parts name Comments
*. 31NA-40010 [1]   TRAVEL MOTOR      *-1,*-2
*-1. XJBN-00519 [1]   TRAVEL MOTOR UNIT
22 XJBN-00513 [1]   SPOOL-C/BALANCE
101 XJBN-00512 [1]   SHAFT-DRIVE
102 XJBN-00511 [1]   BEARING-ROLLER
103 XJBN-00510 [1]   BEARING-NEEDLE
106 XJBN-00509 [1]   SPACER-BEARING
107 XJBN-00600 [1]   RING-SNAP
NS111. XJBN-00507 [1]   BLOCK-CYLINDER
113 XJBN-00506 [1]   BUSHING-SPHERICAL
114 XJBN-00022 [9]   SPRING-CYLINDER
116 XJBN-00368 [1]   SPACER
NS121. XJBN-00504 [9]   PISTON
NS122. XJBN-00503 [9]   SHOE
123 XJBN-00020 [1]   PLATE-SET
NS131. XJBN-00638 [1]   PLATE-VALVE
161 XJBN-00403 [2]   O-RING
162 XJBN-00397 [2]   RING-BACK UP
201 XJBN-00502 [1]   PLATE-SWASH
202 XJBN-00501 [1]   SUPPROT
NS272. XJBN-00500 [1]   CASING
NS303. XJBN-00499 [1]   CASING-VALVE
304 XJBN-00498 [1]   COVER-SEAL
350 XJBN-00497 [2]   VALVE-RELIEF
361 XJBN-00496 [2]   WASHER
362 XJBN-00495 [2]   SPRING-C/BALANCE
364 XJBN-00494 [2]   COVER-C/BALANCE
K365. XJBN-00493 [2]   O-RING
366 XJBN-00492 [8]   BOLT-SOCKET
401 XJBN-00491 [8]   BOLT-SOCKET
402 XJBN-00490 [4]   BOLT-SOCKET
435 XJBN-00489 [1]   RING-SNAP
S451. XJBN-00053 [1]   PIN-2
S452. XJBN-00488 [2]   PIN-1
461 XJBN-00032 [10]   PLUG
464 XJBN-00409 [4]   PLUG
K471. XJBN-00286 [1]   O-RING
K472. XJBN-00486 [1]   O-RING
K485. XJBN-00097 [4]   O-RING
K491. XJBN-00485 [1]   SEAL-OIL
501 XJBN-00484 [1]   PISTON-TILTING
502 XJBN-00483 [1]   PISTON-TILTING
503 XJBN-00482 [1]   STOPPER
504 XJBN-00481 [1]   STOPPER-S
505 XJBN-00480 [1]   ROD-TILTING
506 XJBN-00479 [2]   SCREW
507 XJBN-00478 [2]   NUT
K508. XJBN-00477 [1]   O-RING
K509. XJBN-00283 [2]   O-RING
K510. XJBN-00398 [1]   RING-BACK UP
K511. XJBN-00475 [1]   O-RING
K512. XJBN-00474 [1]   RING-BACK UP
531 XJBN-00473 [1]   SPOOL-TILTING
533 XJBN-00472 [1]   SPRING-TILTING
541 XJBN-00471 [2]   SEAT
542 XJBN-00470 [2]   STOPPER
543 XJBN-00359 [2]   BALL-STEEL
545 XJBN-00469 [1]   ORIFICE
546 XJBN-00468 [2]   ORIFICE
K547. XJBN-00231 [3]   O-RING
567 XJBN-00356 [7]   PLUG
K568. XJBN-00362 [7]   O-RING
571 XJBN-00639 [1]   PLUG
K572. XJBN-00233 [1]   O-RING
702 XJBN-00640 [1]   PISTON-BRAKE
705 XJBN-00466 [10]   SPRING-BRAKE
K707. XJBN-00465 [1]   RING 252-PISTON
K708. XJBN-00464 [1]   RING 278-PISTON
S709. XJBN-00463 [4]   PIN-CENTER
710 XJBN-00462 [1]   GUIDE-SPRING
711 XJBN-00641 [1]   SPOOL
712 XJBN-00460 [1]   BUSHING
713 XJBN-00459 [1]   SPRING
714 XJBN-00458 [1]   PLUG
741 XJBN-00457 [1]   PLATE-SEPARATOR
742 XJBN-00456 [2]   PLATE-FRICTION
801 XJBN-00156 [1]   NAME PLATE
802 XJBN-00341 [2]   PIN
*-2. @ [1]   T/REDUCTION GEAR      SEE 4135
K. XJBN-00514 [1]   SEAL KIT      SEE ILLUST
11 XJBN-00515 [1]   VALVE CASING SUB ASSY      SEE ILLUST
12 XJBN-00516 [1]   CASING SUB ASSY      SEE ILLUST
13 XJBN-00517 [1]   CYLINDER SUB ASSY      SEE ILLUST
14 XJBN-00518 [1]   PISTON SUB ASSY      SEE ILLUST
31NA-40020BG 31NA-40021 31NA-40022 XKAH-00939 XKAH-01617 R360LC-7 R360LC-7A R370LC-7
Pos. Part No Qty Parts name Comments
*. 31NA-40020BG [1]   TRAVEL MOTOR      *-1,*-2
*. 31NA-40021 [1]   TRAVEL MOTOR      *-1,*-2
*. 31NA-40022 [1]   TRAVEL MOTOR      *-1,*-2
N*-1. XKAH-00939 [1]   TRAVEL MOTOR UNIT
N*-1. XKAH-01617 [1]   TRAVEL MOTOR UNIT
22 XKAH-00940 [1]   SPOOL-CBV
22 XKAH-01601 [1]   SPOOL-COUNTERBALANCE
101 XKAH-00941 [1]   SHAFT-DRIVE
101 XKAH-01602 [1]   SHAFT-DRIVE
102 XKAH-00942 [1]   BEARING-ROLLER
103 XKAH-00943 [1]   BEARING-NEEDLE
107 XKAH-00944 [1]   RING-SNAP
S111. XKAH-00945 [1]   BLOCK-CYLINDER
S111. XKAH-01603 [1]   BLOCK-CYLINDER
113 XKAH-00946 [1]   BUSHING-SPHERICAL
114 XKAH-00947 [9]   SPRING-CYLINDER
NS121. XKAH-00948 [9]   PISTON
NS122. XKAH-00949 [9]   SHOE
NS122. XKAH-00153 [9]   SHOE
123 XKAH-00950 [1]   PLATE-SET
S131. XKAH-00951 [1]   PLATE-VALVE
S131. XKAH-01604 [1]   PLATE-VALVE
201 XKAH-00952 [1]   PLATE-SWASH
NS272. XKAH-01436 [1]   CASING-SHAFT
NS303. XKAH-00954 [1]   CASING A-VALVE
NS303. XKAH-01599 [1]   CASING A-VALVE
350 XKAH-00955 [2]   VALVE-RELIEF
350 XKAH-01605 [2]   VALVE-RELIEF
351 XKAH-00956 [2]   VALVE-REDUCING
351 XKAH-00956 [1]   VALVE-REDUCING
352 XKAH-00957 [2]   COVER
352 XKAH-00957 [1]   COVER
361 XKAH-00958 [2]   WASHER
362 XKAH-00959 [2]   SPRING-COUNTERBALANCE
364 XKAH-00960 [2]   COVER-COUNTERBALANCE
K365. XKAH-00961 [2]   O-RING
366 XKAH-00962 [8]   BOLT-SOCKET
401 XKAH-00963 [2]   BOLT-SOCKET
402 XKAH-00964 [4]   BOLT-SOCKET
435 XKAH-00965 [1]   RING-SNAP
S451. XKAH-00187 [1]   PIN
S451. XKAH-00187 [2]   PIN
461 XKAH-00208 [14]   PLUG-PT
461 XKAH-00625 [14]   PLUG-PT
464 XKAH-00966 [2]   PLUG-VP
K472. XKAH-00967 [1]   O-RING
K485. XKAH-00035 [2]   O-RING
K491. XKAH-00968 [1]   SEAL-OIL
NS502. XKAH-00969 [1]   PISTON
NS503. XKAH-00153 [1]   SHOE
NS503. XKAH-01561 [1]   SHOE
504 XKAH-00970 [2]   BALL-PIVOT
504 XKAH-01606 [1]   BALL-PIVOT
K509. XKAH-00035 [1]   O-RING
531 XKAH-00971 [1]   SPOOL-TILTING
531 XKAH-01607 [1]   SPOOL-TILTING
533 XKAH-00972 [1]   SPRING-TILTING
541 XKAH-00973 [1]   SEAT-2A
542 XKAH-00974 [1]   STOPPER
543 XKAH-00199 [1]   BALL-STEEL
545 XKAH-00975 [1]   ORIFICE
545 XKAH-01566 [1]   ORIFICE
546 XKAH-00976 [1]   ORIFICE
546 XKAH-01565 [1]   ORIFICE
K547. XKAH-00261 [2]   O-RING
564 XKAH-00977 [2]   PLUG
567 XKAH-00136 [4]   PLUG-VP
569 XKAH-00710 [2]   PLUG-RO
K570. XKAH-00052 [6]   O-RING
571 XKAH-00978 [1]   PLUG-RO
K572. XKAH-00053 [1]   O-RING
K572. XKAH-00326 [1]   O-RING
702 XKAH-00979 [1]   PISTON-BRAKE
702 XKAH-01600 [1]   PISTON-BRAKE
703 XKAH-00980 [1]   ORIFICE
704 XKAH-00981 [1]   ORIFICE
705 XKAH-00127 [14]   SPRING-BRAKE
705 XKAH-00127 [18]   SPRING-BRAKE
K707. XKAH-00133 [1]   O-RING
K708. XKAH-00982 [1]   O-RING
741 XKAH-00983 [1]   PLATE-SEPARATION
741 XKAH-00983 [3]   PLATE-SEPARATION
742 XKAH-00984 [2]   PLATE-FRICTION
N801. XKAH-00985 [1]   NAME PLATE
801 XKAH-01482 [1]   NAME PLATE      SEE 4130
N802. XKAH-00986 [2]   SCREW-RIVET      SEE 4130
*-2. @ [1]   T/REDUCTION GEAR      SEE 4130
K. XKAH-01031 [1]   SEAL KIT      SEE ILLUST
11 XKAH-01030 [1]   SUB ASSY-TILTING PISTON      SEE ILLUST
12 XKAH-01029 [1]   SUB ASSY-VALVE CASING      SEE ILLUST
13 XKAH-01028 [1]   SUB ASSY-CYLINDER      SEE ILLUST
14 XKAH-01027 [1]   SUB ASSY-PISTON      SEE ILLUST
31NA-40010 XJBN-00519 R360LC-7 R370LC-7
Pos. Part No Qty Parts name Comments
*. 31NA-40010 [1]   TRAVEL MOTOR      *-1,*-2
*-1. XJBN-00519 [1]   TRAVEL MOTOR UNIT
22 XJBN-00513 [1]   SPOOL-C/BALANCE
101 XJBN-00512 [1]   SHAFT-DRIVE
102 XJBN-00511 [1]   BEARING-ROLLER
103 XJBN-00510 [1]   BEARING-NEEDLE
106 XJBN-00509 [1]   SPACER-BEARING
107 XJBN-00600 [1]   RING-SNAP
NS111. XJBN-00507 [1]   BLOCK-CYLINDER
113 XJBN-00506 [1]   BUSHING-SPHERICAL
114 XJBN-00022 [9]   SPRING-CYLINDER
116 XJBN-00368 [1]   SPACER
NS121. XJBN-00504 [9]   PISTON
NS122. XJBN-00503 [9]   SHOE
123 XJBN-00020 [1]   PLATE-SET
NS131. XJBN-00638 [1]   PLATE-VALVE
161 XJBN-00403 [2]   O-RING
162 XJBN-00397 [2]   RING-BACK UP
201 XJBN-00502 [1]   PLATE-SWASH
202 XJBN-00501 [1]   SUPPROT
NS272. XJBN-00500 [1]   CASING
NS303. XJBN-00499 [1]   CASING-VALVE
304 XJBN-00498 [1]   COVER-SEAL
350 XJBN-00497 [2]   VALVE-RELIEF
361 XJBN-00496 [2]   WASHER
362 XJBN-00495 [2]   SPRING-C/BALANCE
364 XJBN-00494 [2]   COVER-C/BALANCE
K365. XJBN-00493 [2]   O-RING
366 XJBN-00492 [8]   BOLT-SOCKET
401 XJBN-00491 [8]   BOLT-SOCKET
402 XJBN-00490 [4]   BOLT-SOCKET
435 XJBN-00489 [1]   RING-SNAP
S451. XJBN-00053 [1]   PIN-2
S452. XJBN-00488 [2]   PIN-1
461 XJBN-00032 [10]   PLUG
464 XJBN-00409 [4]   PLUG
K471. XJBN-00286 [1]   O-RING
K472. XJBN-00486 [1]   O-RING
K485. XJBN-00097 [4]   O-RING
K491. XJBN-00485 [1]   SEAL-OIL
501 XJBN-00484 [1]   PISTON-TILTING
502 XJBN-00483 [1]   PISTON-TILTING
503 XJBN-00482 [1]   STOPPER
504 XJBN-00481 [1]   STOPPER-S
505 XJBN-00480 [1]   ROD-TILTING
506 XJBN-00479 [2]   SCREW
507 XJBN-00478 [2]   NUT
K508. XJBN-00477 [1]   O-RING
K509. XJBN-00283 [2]   O-RING
K510. XJBN-00398 [1]   RING-BACK UP
K511. XJBN-00475 [1]   O-RING
K512. XJBN-00474 [1]   RING-BACK UP
531 XJBN-00473 [1]   SPOOL-TILTING
533 XJBN-00472 [1]   SPRING-TILTING
541 XJBN-00471 [2]   SEAT
542 XJBN-00470 [2]   STOPPER
543 XJBN-00359 [2]   BALL-STEEL
545 XJBN-00469 [1]   ORIFICE
546 XJBN-00468 [2]   ORIFICE
K547. XJBN-00231 [3]   O-RING
567 XJBN-00356 [7]   PLUG
K568. XJBN-00362 [7]   O-RING
571 XJBN-00639 [1]   PLUG
K572. XJBN-00233 [1]   O-RING
702 XJBN-00640 [1]   PISTON-BRAKE
705 XJBN-00466 [10]   SPRING-BRAKE
K707. XJBN-00465 [1]   RING 252-PISTON
K708. XJBN-00464 [1]   RING 278-PISTON
S709. XJBN-00463 [4]   PIN-CENTER
710 XJBN-00462 [1]   GUIDE-SPRING
711 XJBN-00641 [1]   SPOOL
712 XJBN-00460 [1]   BUSHING
713 XJBN-00459 [1]   SPRING
714 XJBN-00458 [1]   PLUG
741 XJBN-00457 [1]   PLATE-SEPARATOR
742 XJBN-00456 [2]   PLATE-FRICTION
801 XJBN-00156 [1]   NAME PLATE
802 XJBN-00341 [2]   PIN
*-2. @ [1]   T/REDUCTION GEAR      SEE 4135
K. XJBN-00514 [1]   SEAL KIT      SEE ILLUST
11 XJBN-00515 [1]   VALVE CASING SUB ASSY      SEE ILLUST
12 XJBN-00516 [1]   CASING SUB ASSY      SEE ILLUST
13 XJBN-00517 [1]   CYLINDER SUB ASSY      SEE ILLUST
14 XJBN-00518 [1]   PISTON SUB ASSY      SEE ILLUST
31QA-40040BG 31QA-40042BG XKAY-01623 XKAY-02144 R360LC-7A R370LC-7 R380LC-9 R380LC-9A R380LC-9DM R380LC-9MH R380LC-9SH R390LC-9(INDIA)
Pos. Part No Qty Parts name Comments
*. 31QA-40040BG [1]   TRAVEL MOTOR ASSY
*. 31QA-40042BG [1]   TRAVEL MOTOR ASSY
*-1. XKAY-01623 [1]   TRAVEL MOTOR
*-1. XKAY-02144 [1]   TRAVEL MOTOR
1 XKAY-01602 [1]   CASING-SHAFT
1 XKAY-02145 [1]   CASING-SHAFT
2 XKAY-01415 [12]   PLUG
3 XKAY-01603 [1]   ORIFICE
4 XKAY-00199 [1]   SCREW-ORIFICE
*-11. XKAY-01156 [1]   SWASH PISTON KIT
N5. XKAY-01604 [1]   PISTON-SWASH
6 XKAY-01158 [2]   BALL-SWASH
7 XKAY-01605 [4]   PIN-BRAKE
8 XKAY-01159 [1]   SHAFT
9 XKAY-00209 [1]   BEARING-ROLLER
10 XKAY-00210 [1]   RING-STOP
11 XKAY-00275 [1]   RING-LOCK
12 XKAY-01606 [1]   PLATE-SWASH
*-12. XKAY-01161 [1]   ROTARY KIT
*-A. XKAY-01162 [1]   CYLINDER BLOCK KIT
N13. XKAY-00220 [1]   BLOCK-CYLINDER
N14. XKAY-00221 [9]   SPRING-CYLINDER
N28. XKAY-01612 [1]   PLATE-VALVE
*-B. XKAY-01163 [1]   RETAINER KIT
N15. XKAY-01607 [1]   SPACER
N16. XKAY-01608 [1]   GUIDE-BALL
N17. XKAY-01164 [1]   PLATE-SET
*-C. XKAY-01165 [1]   PISTON KIT
N18. XKAY-01609 [9]   PISTON & SHOE ASSY
19 XKAY-00228 [2]   PLATE-FRICTION
20 XKAY-00229 [2]   PLATE-SEPARATOR
*-13. XKAY-01166 [1]   BRAKE PISTON KIT
21 XKAY-01610 [1]   PISTON-BRAKE
22 XKAY-00231 [1]   RING-PISTON 252
23 XKAY-00232 [1]   RING-PISTON 278
24 XKAY-00270 [3]   O-RING
25 XKAY-01611 [10]   SPRING-BRAKE
*. XKAY-02333 [1]   VALVE CASING ASSY      NEW
26 XKAY-01168 [1]   CASING-VALVE      OLD
26 XKAY-02335 [1]   CASING-VALVE      NEW
27 XKAY-00237 [2]   PIN-VALVE PLATE
29 XKAY-00235 [1]   BEARING-NEEDLE
30 XKAY-00236 [1]   O-RING
31 XKAY-01171 [1]   SPOOL-SWASH
32 XKAY-00269 [1]   SPRING-SWASH
33 XKAY-00266 [1]   PLUG
34 XKAY-00267 [1]   O-RING
35 XKAY-00204 [1]   O-RING
36 XKAY-00252 [2]   SEAT
37 XKAY-01174 [2]   BALL-STEEL
38 XKAY-00254 [2]   STOPPER
39 XKAY-00255 [7]   PLUG-HP
40 XKAY-00256 [7]   O-RING
41 XKAY-00257 [2]   PLUG-HP
42 XKAY-00247 [2]   O-RING
43 XKAY-01613 [2]   RELIEF VALVE ASSY
*-14. XKAY-01614 [1]   SPOOL KIT
N44. XKAY-01615 [1]   SPOOL-MAIN
N45. XKAY-00478 [2]   CHECK
N46. XKAY-00479 [2]   SPRING
N47. XKAY-01616 [2]   PLUG
N48. XKAY-00481 [2]   O-RING
49 XKAY-00482 [2]   SEAT-SPRING
50 XKAY-00483 [2]   SPRING
51 XKAY-01617 [2]   COVER
52 XKAY-00485 [2]   SPRING
53 XKAY-00486 [2]   SPOOL
54 XKAY-00487 [2]   BALL-STEEL
55 XKAY-00488 [2]   SPRING
56 XKAY-00489 [2]   PLUG
57 XKAY-00490 [2]   SEAT-SPRING
58 XKAY-00825 [2]   O-RING
59 XKAY-00519 [2]   ORIFICE
60 XKAY-00385 [8]   BOLT-WRENCH
61 XKAY-01618 [1]   NAME PLATE
61 XKAY-02146 [1]   NAME PLATE
62 XKAY-00517 [2]   RIVET
63 XKAY-01179 [1]   SEAL-OIL
64 XKAY-01180 [1]   RING-SNAP
65 XKAY-00271 [6]   BOLT-WRENCH
65 XKAY-00271 [8]   BOLT-WRENCH
66 XKAY-01619 [4]   BOLT-WRENCH
67 XKAY-01282 [1]   PIN-SPRING
80 XKAY-02013 [2]   O-RING
*-2. @ [1]   T/REDUCTION GEAR      SEE 4135
N. @ [AR]   NOT SUPPLIED PARTS

Materials

Shipping & Returns

Dimensions

Care Instructions

查看完整資訊

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Kawasaki Best Selling Series

檢視全部

Komatsu Best Selling Series

檢視全部

Caterpillar Best Selling Series

檢視全部
