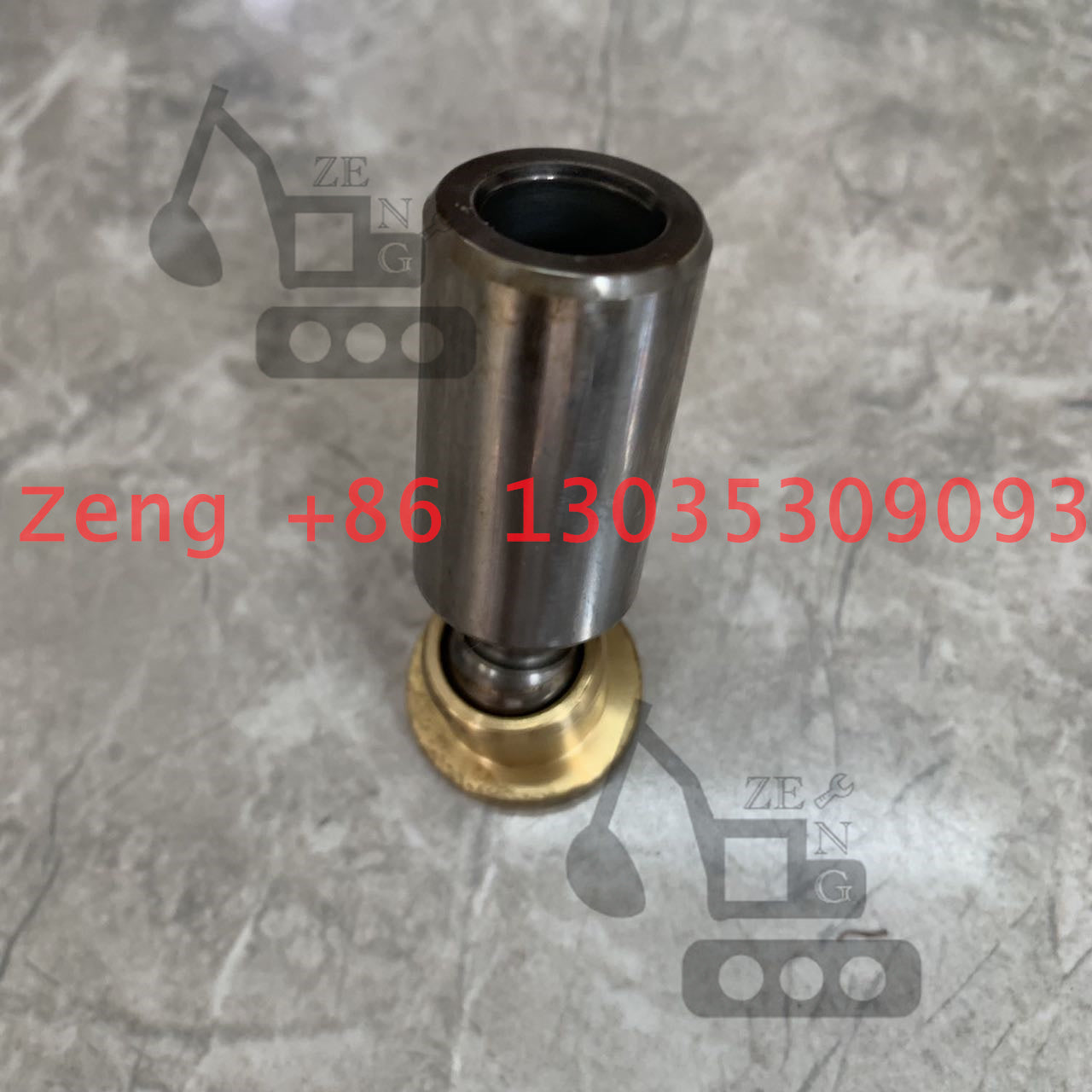

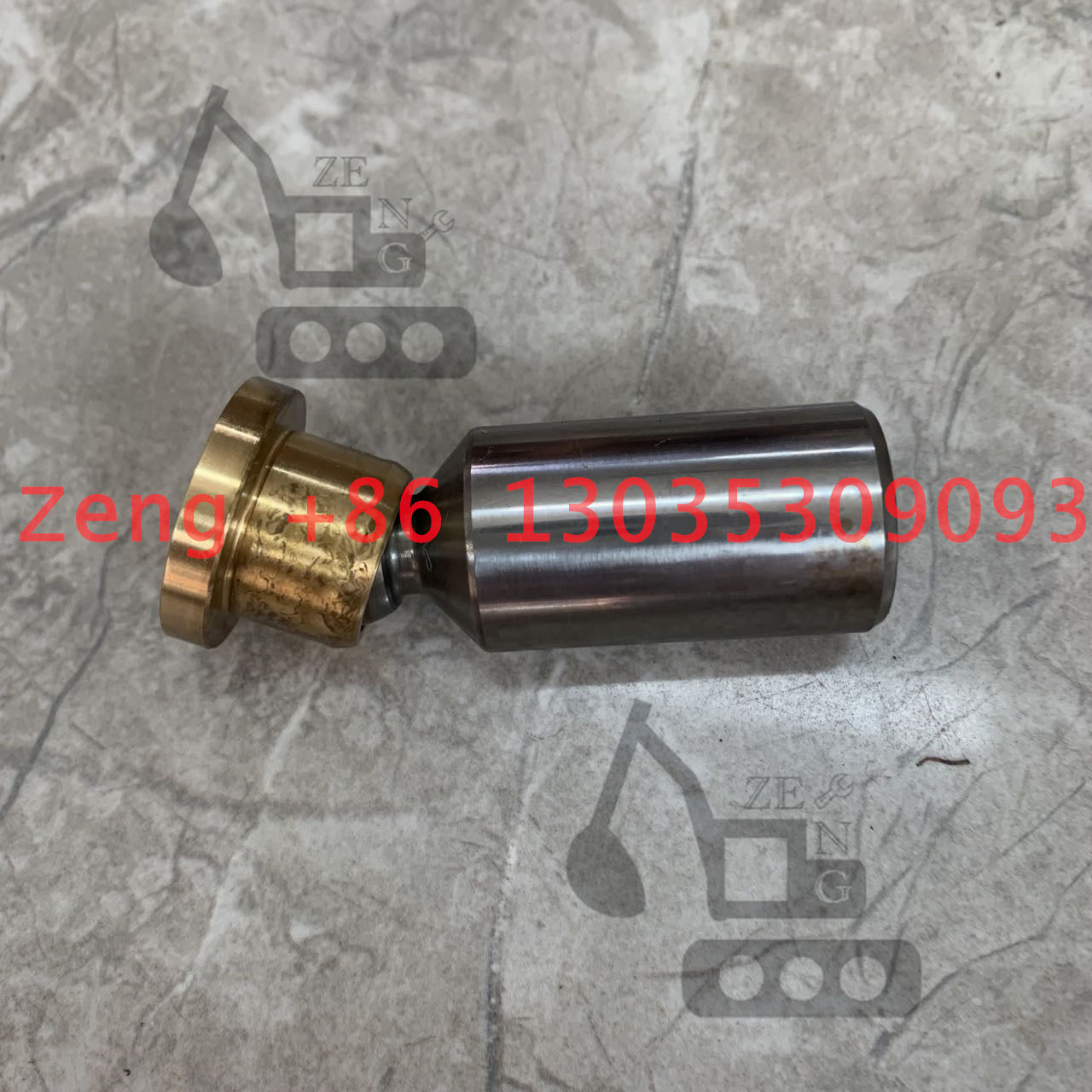

JMF64 R100S R150-9 DH150-9 swing motor piston shoe

JMF64 R100S R150-9 DH150-9 swing motor piston shoe

$200.00 USD
$200.00 USD
特價 售罄
結帳時計算運費。
Pos. Part No Qty Parts name Comments
N*. 31N4-10150 [1]   SWING MOTOR ASSY
*. 31N4-10151 [1]   SWING MOTOR ASSY
*. 31N4-10152 [1]   SWING MOTOR ASSY
*-1. 31N4-10130 [1]   SWING MOTOR UNIT
1 XKAY-00280 [1]   BODY
1 XKAY-00636 [1]   BODY
K2. XKAY-00281 [1]   SEAL-OIL
3 XKAY-00282 [1]   BEARING-ROLLER
4 XKAY-00283 [1]   RING-SNAP
5 XKAY-00284 [1]   SHAFT
5 XKAY-02042 [1]   SHAFT
6 XKAY-00285 [1]   BUSHING
7 XKAY-00286 [1]   PIN
7 XKAY-00625 [1]   PIN
8 XKAY-00287 [1]   PLATE-SHOE
9 XKAY-00288 [1]   ROTARY KIT
9 XKAY-00629 [1]   ROTARY KIT
9 XKAY-02043 [1]   ROTARY KIT
9-1. XKAY-00289 [1]   BLOCK KIT-CYLINDER
9-1. XKAY-00628 [1]   BLOCK KIT-CYLINDER
9-1. XKAY-02044 [1]   BLOCK KIT-CYLINDER
N9-11. XKAY-01925 [1]   BLOCK-CYLINDER
N9-11. XKAY-00290 [1]   BLOCK-CYLINDER
N9-11. XKAY-00627 [1]   BLOCK-CYLINDER
N9-11. XKAY-02045 [1]   BLOCK-CYLINDER
9-12. XKAY-00291 [9]   SPRING
9-2. XKAY-00292 [1]   RETAINER KIT
N9-21. XKAY-00293 [1]   GUIDE-BALL
N9-22. XKAY-00294 [1]   PLATE-SET
9-3. XKAY-00295 [1]   PISTON KIT
N9-31. XKAY-00296 [9]   PISTON ASSY
14 XKAY-00297 [2]   PLATE-FRICTION
15 XKAY-00298 [2]   PLATE
16 XKAY-00299 [1]   PISTON-BRAKE
16 XKAY-00624 [1]   PISTON-BRAKE
16 XKAY-00626 [1]   PISTON-BRAKE
K17. XKAY-00300 [1]   O-RING
K18. XKAY-00301 [2]   O-RING
19 XKAY-00302 [16]   SPRING
20 XKAY-00303 [1]   COVER-REAR
20 XKAY-00623 [1]   COVER-REAR
21 XKAY-00304 [1]   BEARING-NEEDLE
22 XKAY-00562 [2]   PIN
23 XKAY-00306 [1]   PLATE-VALVE
26 XKAY-00308 [4]   BOLT-WRENCH
27 XKAY-00309 [2]   PLUG
K28. XKAY-00141 [2]   RING-BACK UP
K29. XKAY-00310 [2]   O-RING
30 XKAY-00311 [2]   SPRING
31 XKAY-00312 [2]   CHECK
32 XKAY-00313 [2]   RELIEF VALVE ASSY
33 XKAY-00314 [2]   VLV ASSY-REACTIONLESS
34 XKAY-00315 [1]   TIME DELAY VALVE ASSY
35 XKAY-00149 [3]   BOLT-WRENCH
36 XKAY-00150 [3]   PLUG
K37. XKAY-00256 [3]   O-RING
38 XKAY-00140 [1]   PLUG
39 XKAY-00317 [1]   PLUG
40 XKAY-01983 [1]   GAUGE-LEVEL
40-1. XKAY-01985 [1]   PLUG
41 XKAY-00319 [1]   FLANGE
K42. XKAY-00320 [2]   O-RING
43 XKAY-00321 [1]   NAME PLATE
44 XKAY-00277 [2]   RIVET
45 XKAY-00322 [2]   PLUG
K46. XKAY-00324 [2]   O-RING
K47. XKAY-00247 [2]   O-RING
K48. XKAY-00605 [2]   RING-BACK UP
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4111
K. XKAY-00325 [1]   SEAL KIT      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
