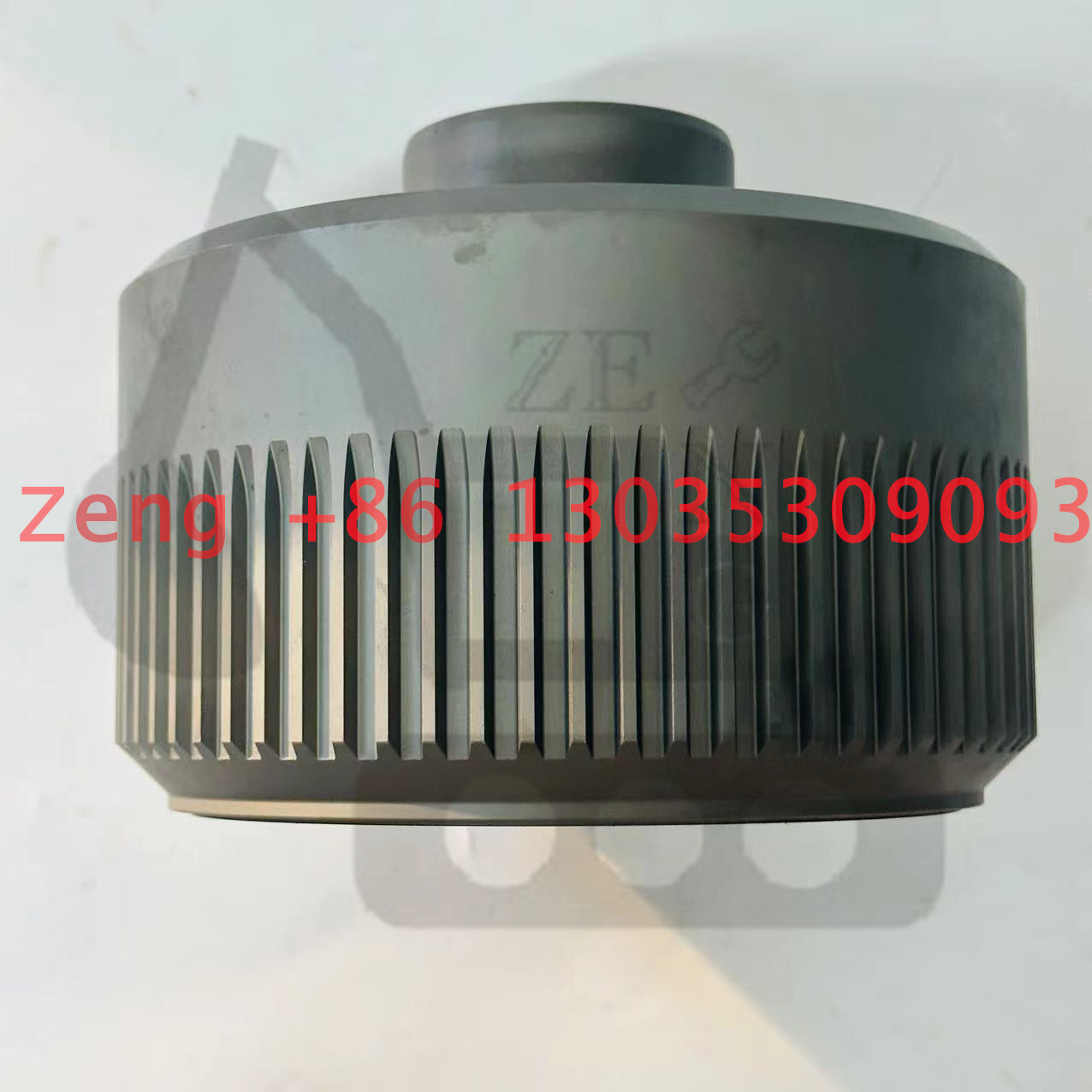

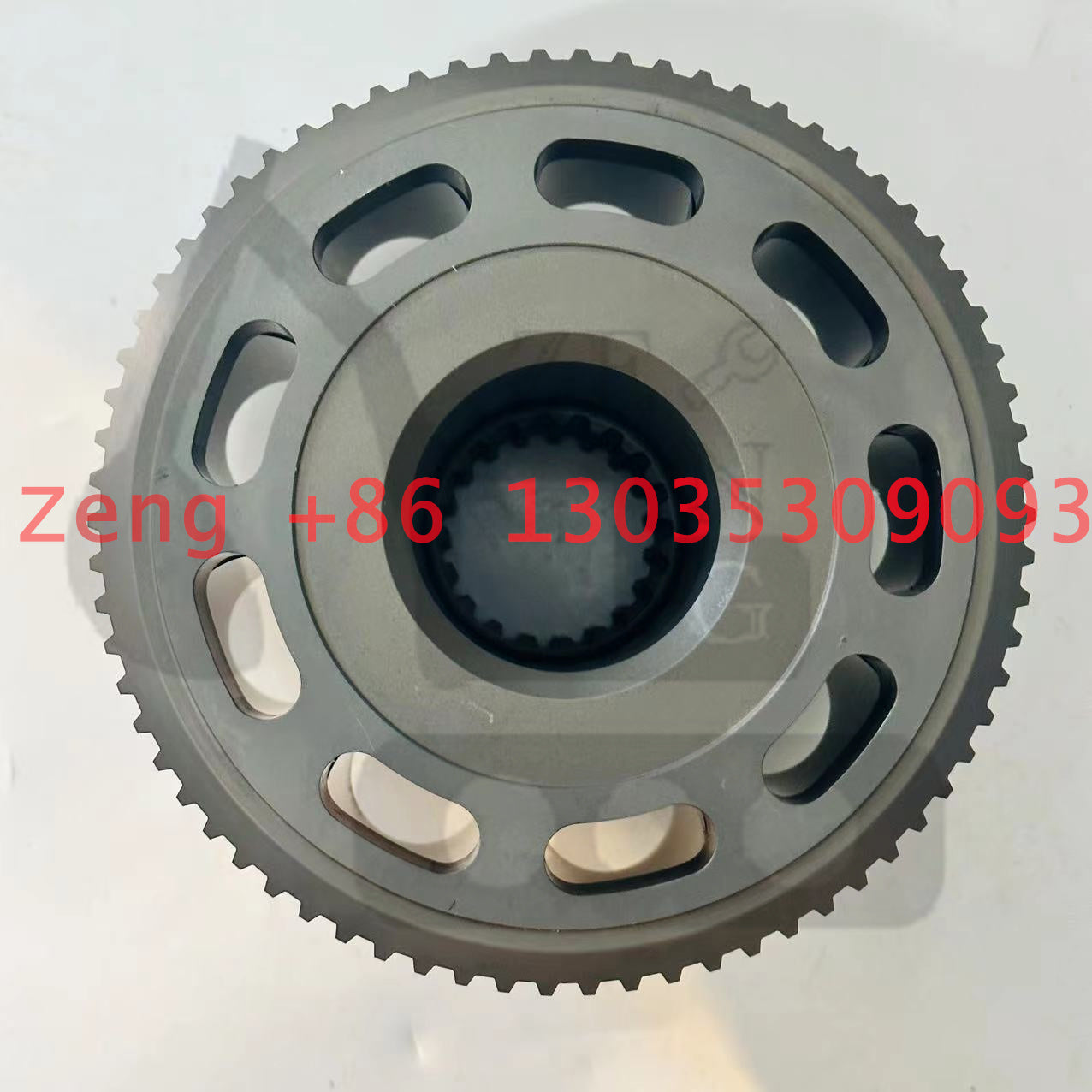

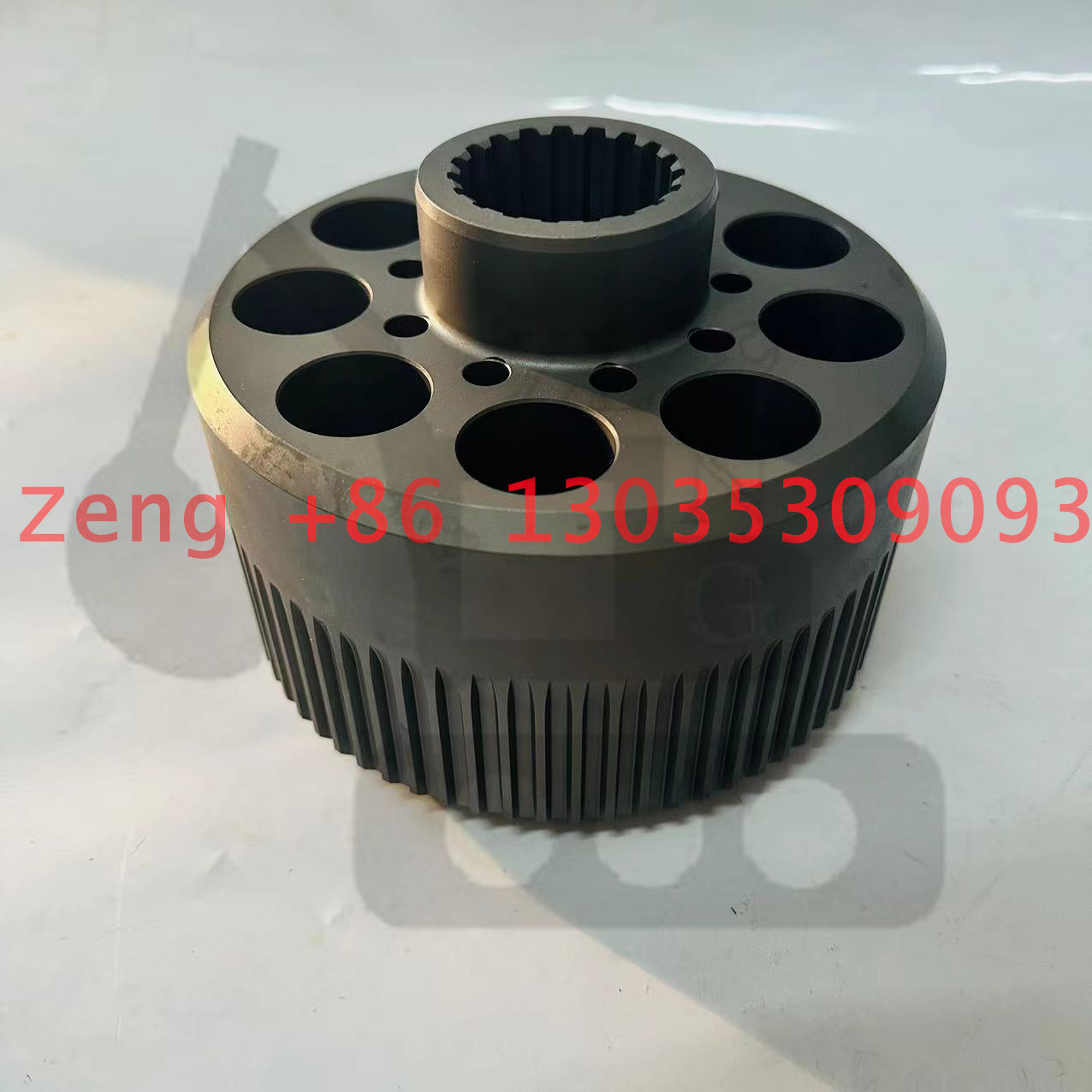

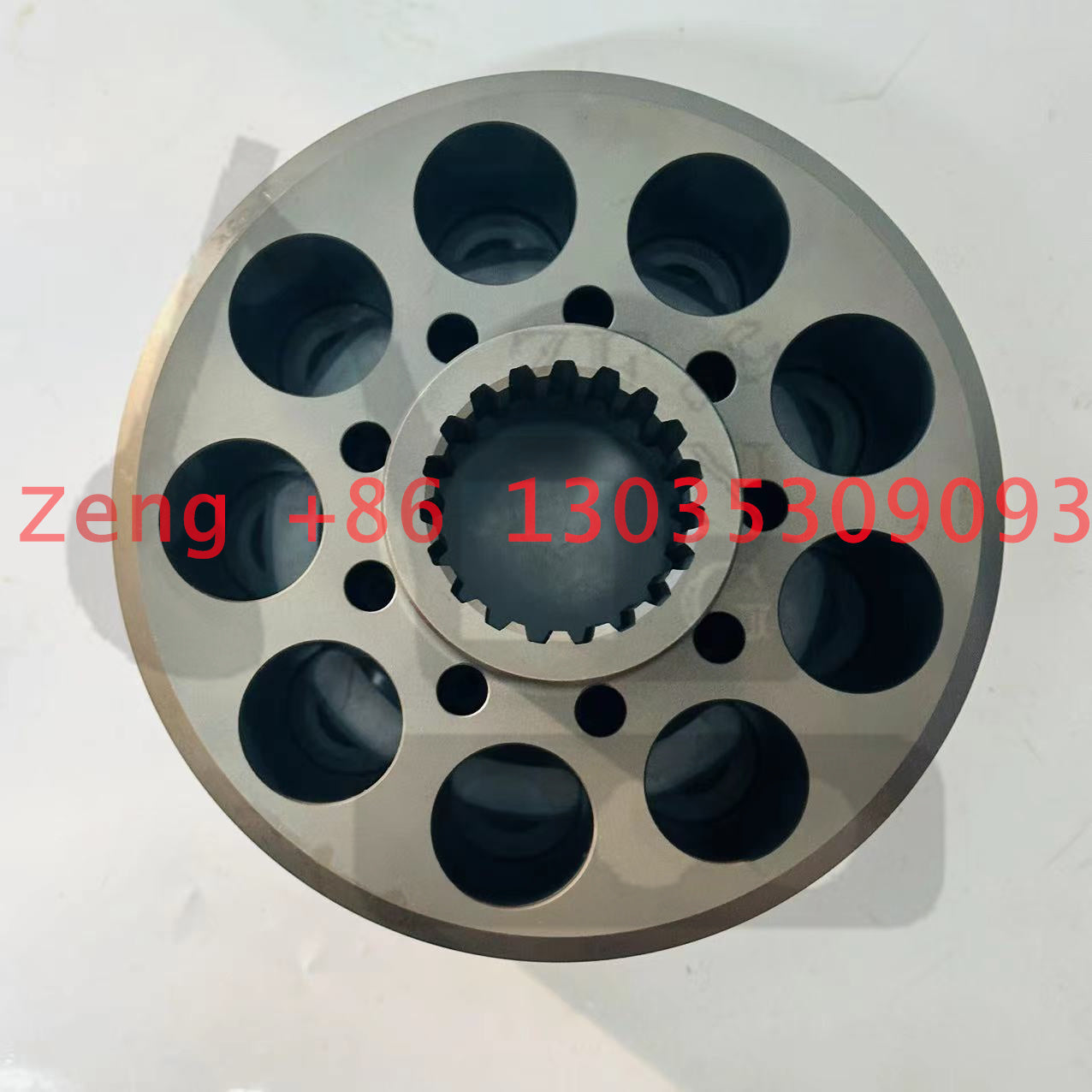

JEIL JMF250 swing motor cylinder block rotor barrel

JEIL JMF250 swing motor cylinder block rotor barrel

$200.00 USD
$200.00 USD
特價 售罄
結帳時計算運費。
JMF250

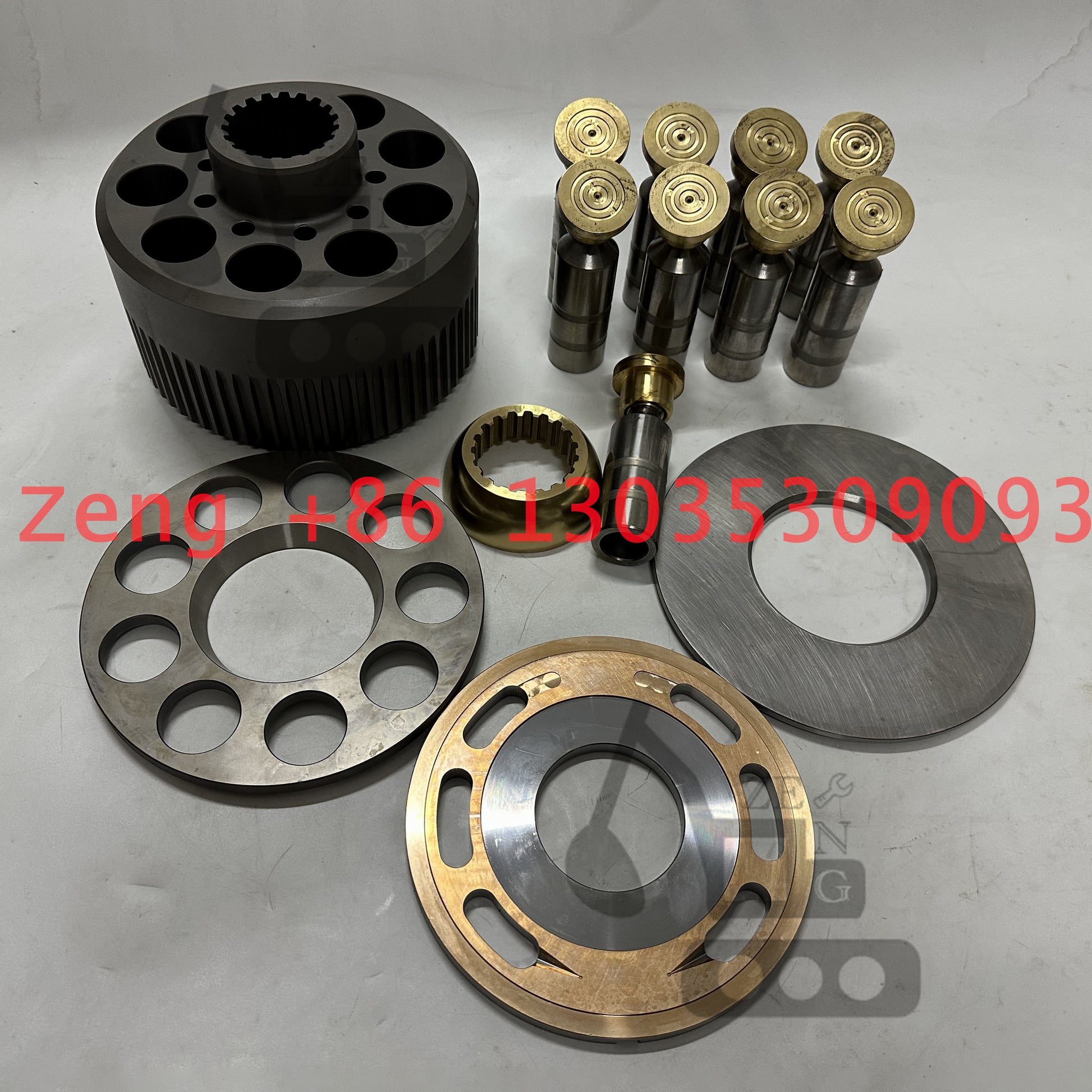

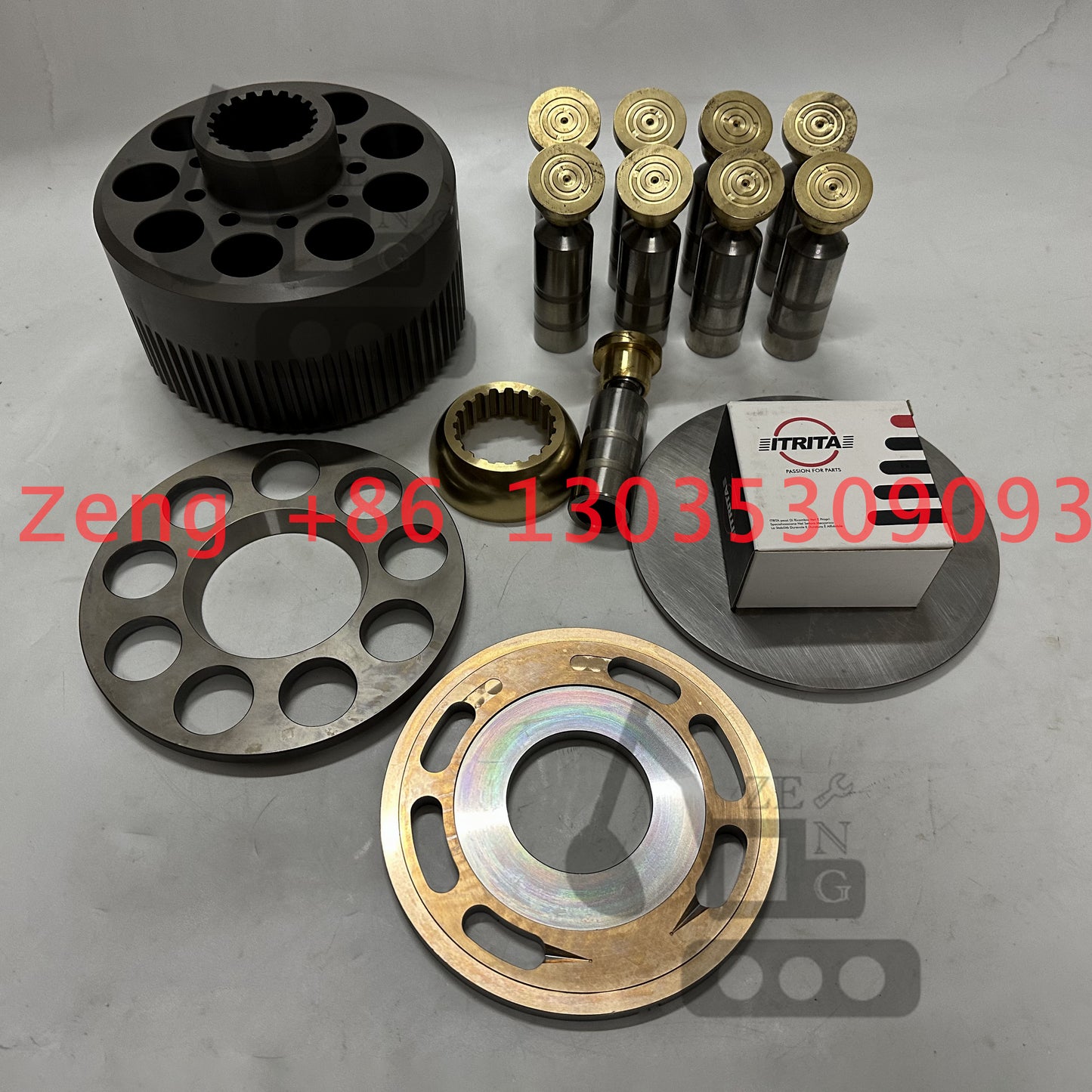

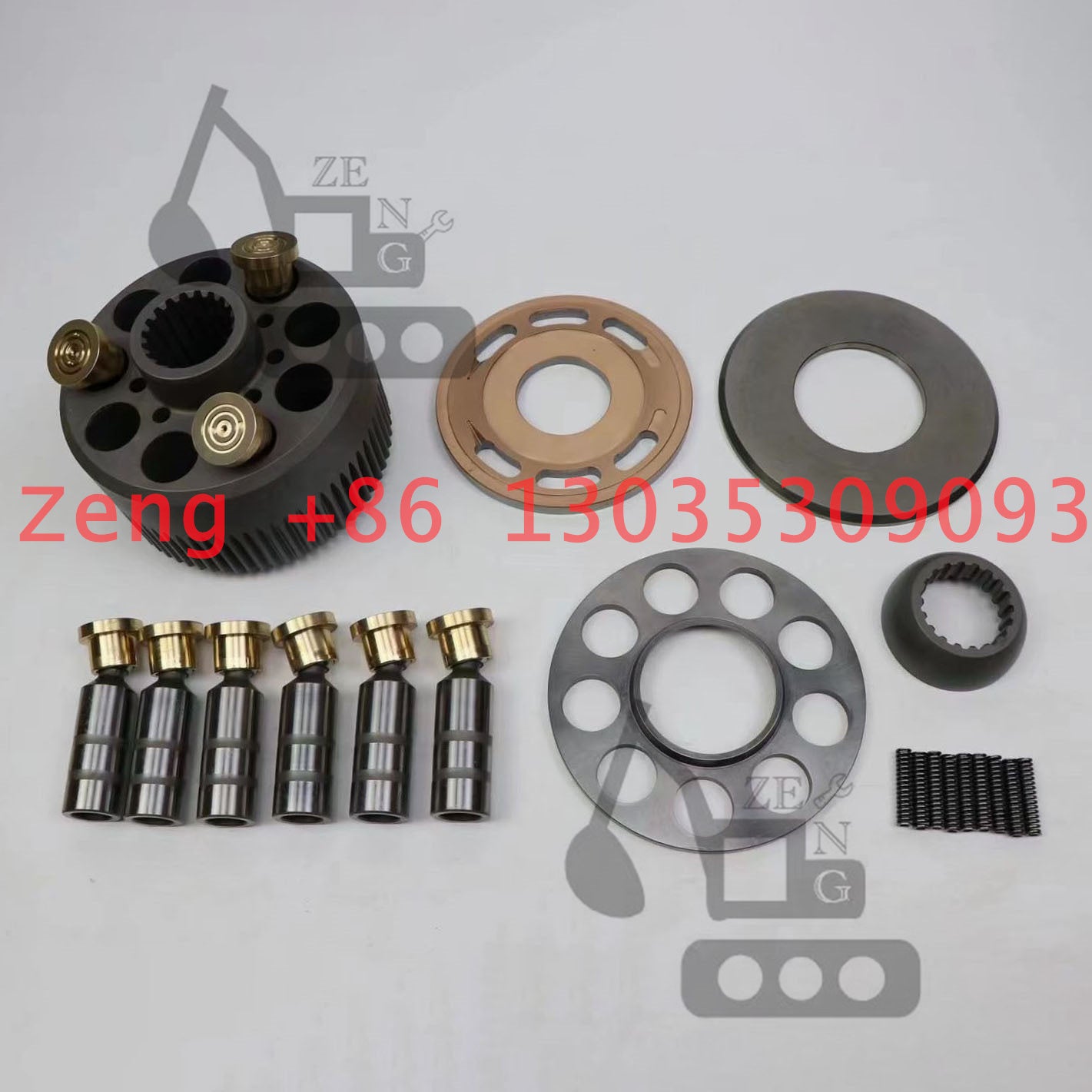

SWING MOTOR K1007543A DX340LC DX340LCA  DX350LC DX360LCA  DX420LC ROTARY KIT K9002107 CYLINDER BLOCK KIT K9002108 RETAINER KIT K9002109
DH370-7 DH400-7
Pos. Part No Qty Parts name Comments
*. K9002069 [1]   SEAL KIT;SWING MOTOR
-. K1007543A [1]   MOTOR;SWING
1 1.451-00145 [1]   BODY
10 1.131-00070 [9]   SPRING
11 1.427-00007 [1]   SEAT;BALL GUIDE
12 1.429-00008 [1]   GUIDE;BALL
13 *NA00834 [1]
14 1.409-00175 [1]   PISTON ASS'Y
15 1.412-00063 [4]   PLATE;FRICTION
16 1.412-00025 [4]   PLATE
17 1.409-00187 [1]   PISTON;BRAKE
18 2180-1217D160 [2]   O-RING
19 1.131-00071 [19]   SPRING
2 1.180-00523 [1]   SEAL;OIL
20 *NA00839 [1]   . HEAD
21 1.123-00042 [2]   PIN
22 1.109-00058 [1]   BEARING;NEEDLE
23 K9002105 [1]   COVER;REAR
24 S2218661 [7]   BOLT;SOCKET
25 S2219571 [1]   BOLT;SOCKET
26 1.426-00010 [2]   POPPET
27 1.131-00072 [2]   SPRING
28 1.181-00103 [2]   PLUG;DRAIN
29 S8000291 [2]   O-RING
3 1.109-00066 [1]   BEARING;ROLLER
30 1.420-00122 [2]   RELIEF VALVE ASS'Y
31 K9002106 [1]   VALVE;TIME DELAY
32 S2206161 [3]   BOLT;SOCKET
33 2181-1116D2 [3]   PLUG
34 K9000942 [2]   VALVE;SWING REACTIONLESS
35 K9000943 [2]   PLUG
36 S8000181 [2]   O-RING
37 K9000944 [2]   RING;BACK UP
38 S8000121 [2]   O-RING
39 2180-1217D159 [1]   O-RING
4 1.115-00100 [1]   RING;SNAP
40 1.110-00172 [1]   BUSHING
41 K9002107 [1]   ROTARY KIT
42 K9002108 [1]   CYLINDER BLOCK KIT
43 K9002109 [1]   RETAINER KIT
5 1.405-00025 [1]   SHAFT
6 1.123-00041 [1]   PIN
7 1.115-00371 [1]   RING;STOP
8 1.412-00113 [1]   PLATE;SHOE
9 *NA00427 [1]
RMF250 31NA-10160 31NA-10170 31NA-10172
R360LC-7 R360LC-7A R370LC-7 R800LC-7A
Pos. Part No Qty Parts name Comments
*. 31NA-10170 [1]   SWING UNIT      STD
N*. 31NA-10172 [1]   SWING UNIT      STD
*-1. 31NA-10160 [1]   SWING MOTOR UNIT
1 XKAY-00161 [1]   BODY
2 XKAY-00162 [1]   SEAL-OIL
3 XKAY-00163 [1]   BEARING-ROLLER
4 XKAY-00164 [1]   RING-SNAP
5 XKAY-00165 [1]   SHAFT
6 XKAY-00166 [1]   PIN
7 XKAY-00167 [1]   RING-STOP
8 XKAY-00168 [1]   PLATE-SHOE
9 XKAY-00169 [1]   BLOCK-CYLINDER
10 XKAY-00170 [9]   SPRING
11 XKAY-00171 [1]   GUIDE SEAT-BALL
12 XKAY-00172 [1]   GUIDE-BALL
13 XKAY-00173 [1]   PLATE-SET
14 XKAY-00174 [1]   PISTON ASSY
15 XKAY-00175 [4]   PLATE-FRICTION
16 XKAY-00176 [4]   PLATE
17 XKAY-00177 [1]   PISTON-BRAKE
18 XKAY-00178 [2]   O-RING
19 XKAY-00179 [19]   SPRING
20 XKAY-00180 [1]   PLATE-VALVE
21 XKAY-00181 [2]   PIN
22 XKAY-00182 [1]   BEARING-NEEDLE
23 XKAY-00183 [1]   COVER-REAR
24 XKAY-00184 [7]   BOLT-WRENCH
25 XKAY-00185 [1]   BOLT-WRENCH
26 XKAY-00186 [2]   POPPET
27 XKAY-00187 [2]   SPRING
28 XKAY-00188 [2]   PLUG
29 XKAY-00189 [2]   O-RING
30 XKAY-00190 [2]   RELIEF VALVE ASSY
31 XKAY-00148 [1]   VALVE-TIME DELAY
32 XKAY-00149 [3]   BOLT-WRENCH
33 XKAY-00140 [3]   PLUG
34 XKAY-00191 [2]   O-RING
35 XKAY-00192 [1]   O-RING
36 XKAY-00193 [1]   BUSHING
*-2. @ [1]   TRAVEL REDUCTION GEAR      SEE 4111
