JEIL JMF151 swing motor parts

JEIL JMF151 swing motor parts

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
JMF151
31N6-10210 R200W-7 R210-7 R210LC-7 R210NLC-7 R220LC-7
R200W-7A R210LC-7A R210NLC-7A R210LC-7H R220LC-7H

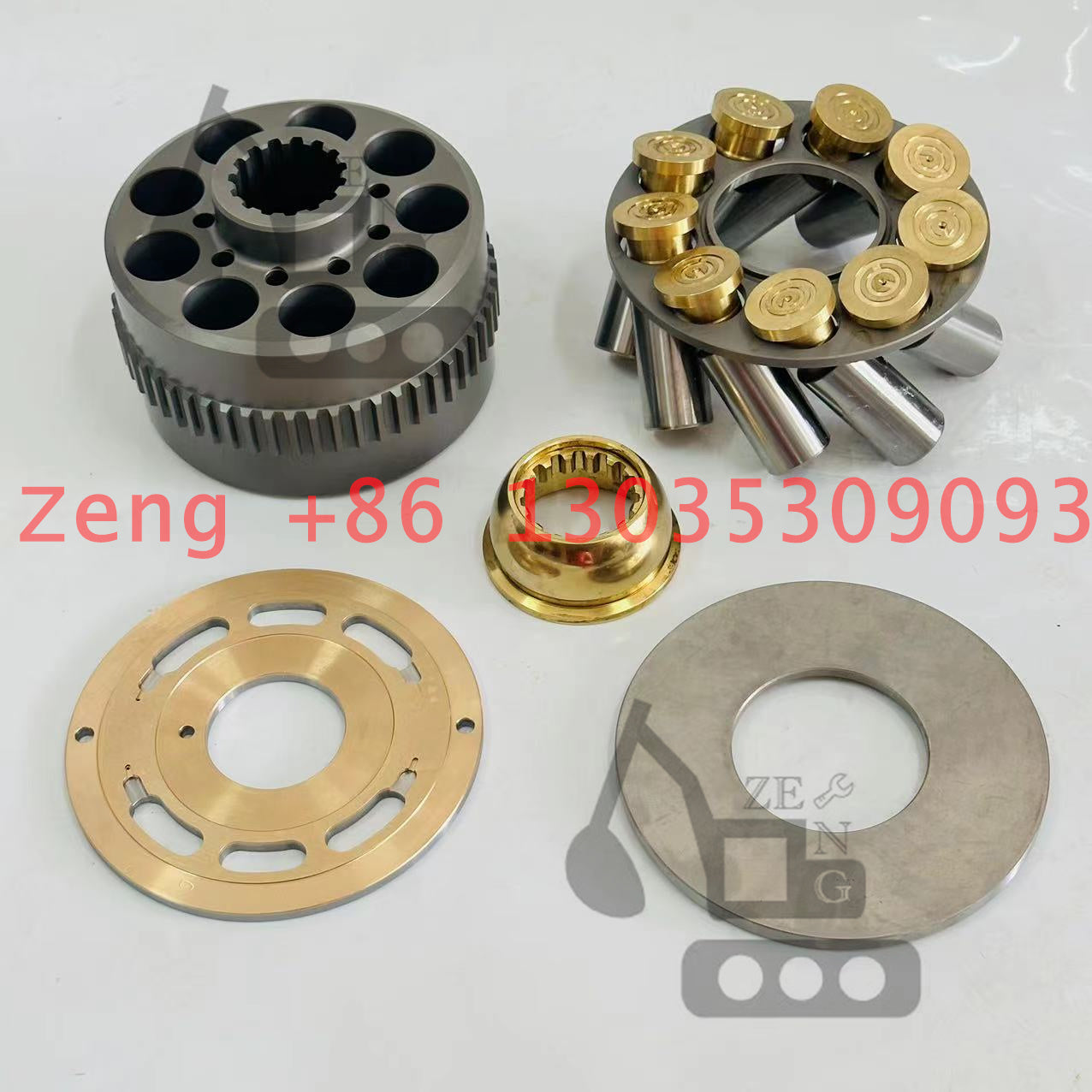

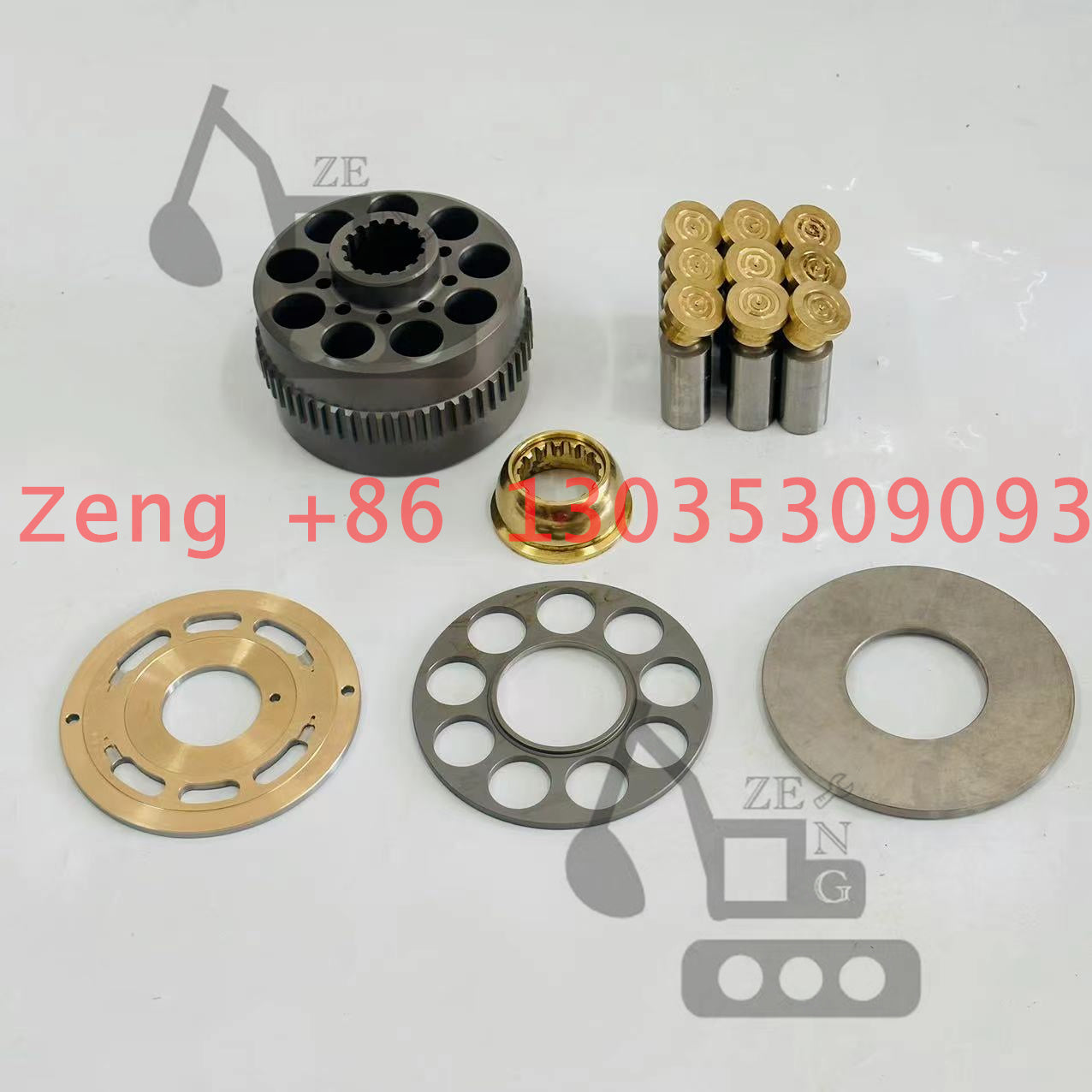

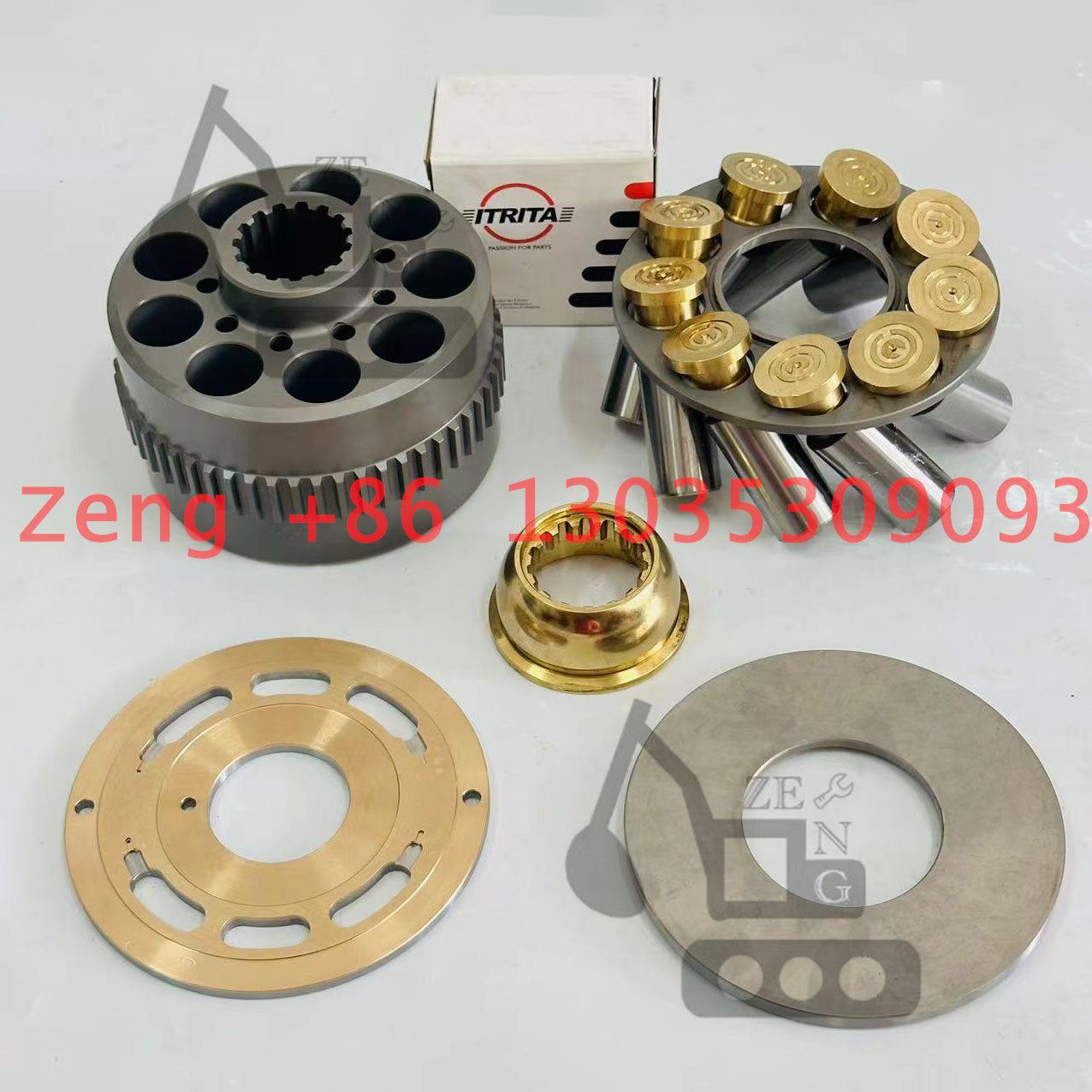

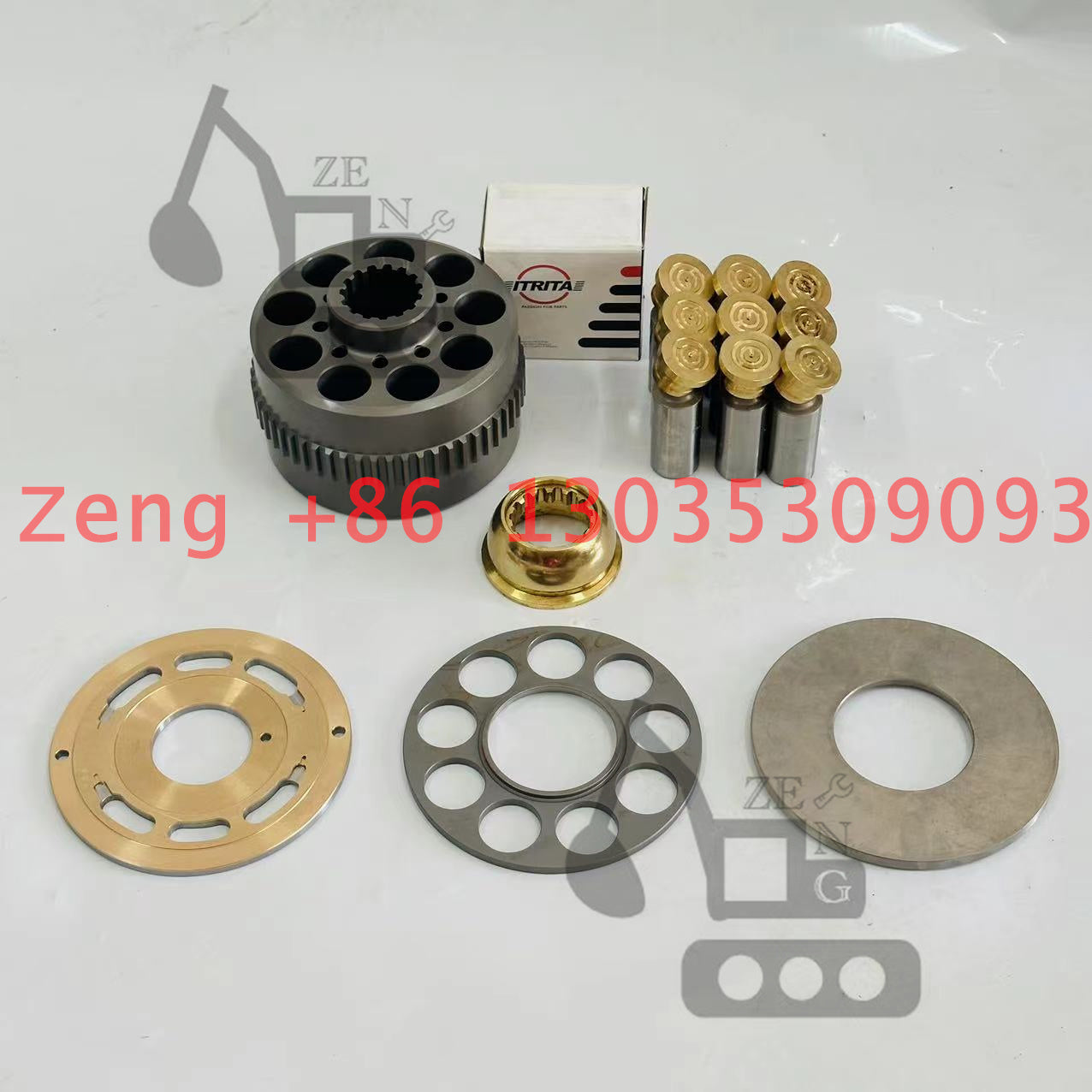

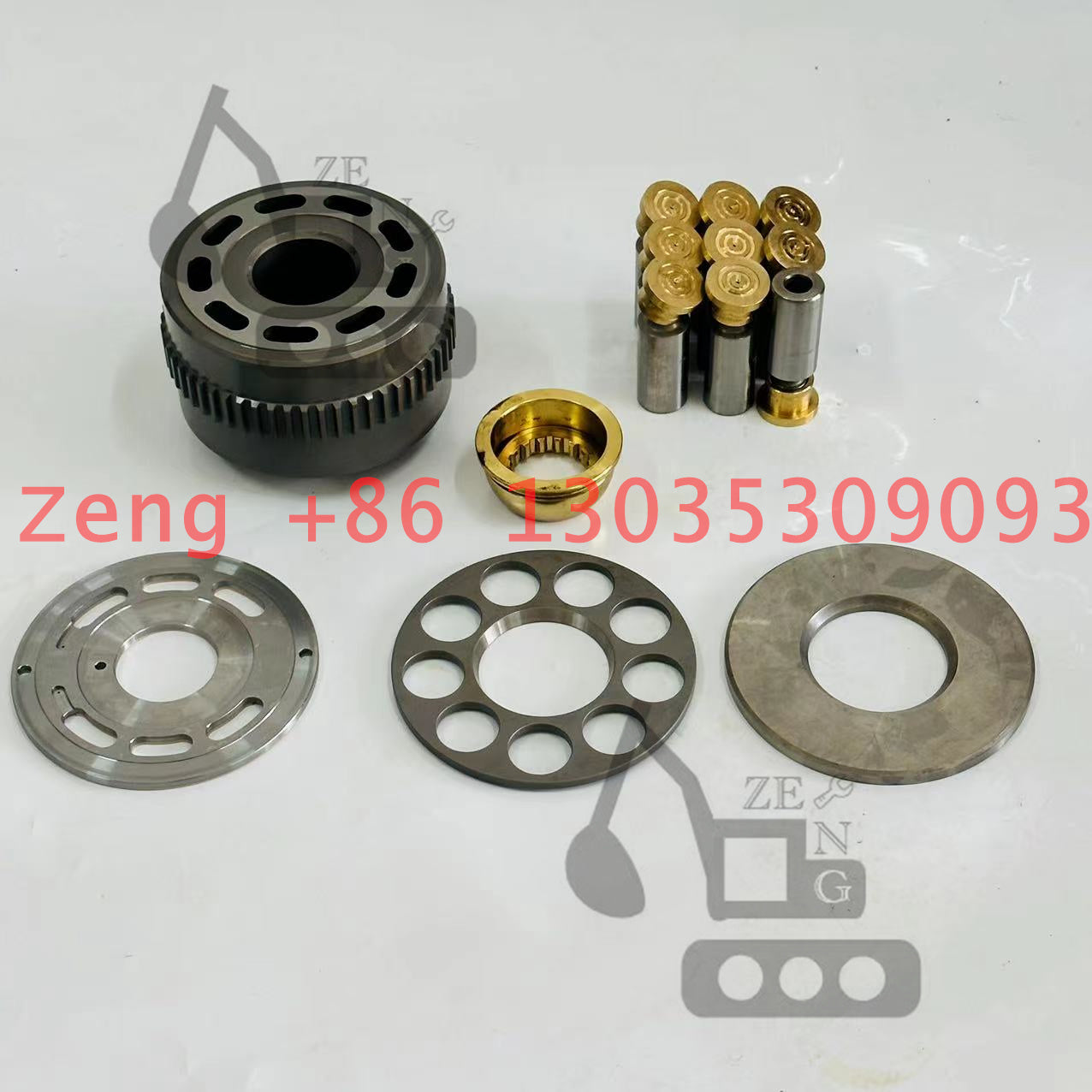

ROTARY KIT XKAY-00528 XKAY-00635 CYLINDER KIT XKAY-00529 XKAY-00634 RETAINER KIT XKAY-00532
For  Hyundai R210LC-7 R215-9 R220-7 R225-7 R225-9，Daewoo DH225-7 DH225-9，JCB JS210 excavator
Pos. Part No Qty Parts name Comments
N*. @ [1]   SWING MOTOR ASSY
*-1. 31N6-10210 [1]   SWING MOTOR      SEE ILLUST
*-1. 31N6-10210 [1]   SWING MOTOR      SEE ILLUST
*-1. 31N6-10210 [1]   SWING MOTOR      SEE ILLUST
1 XKAY-00520 [1]   BODY      31N6-10210-01
1 XKAY-00637 [1]   BODY      31N6-10210-02
1 XKAY-02096 [1]   BODY      31N6-10210-02
K2. XKAY-00521 [1]   SEAL-OIL
3 XKAY-00522 [1]   BEARING-ROLLER
4 XKAY-00523 [1]   RING-SNAP
5 XKAY-00524 [1]   SHAFT
6 XKAY-00525 [1]   BUSHING
7 XKAY-00526 [1]   RING-STOP
8 XKAY-00286 [1]   PIN      31N6-10210
8 XKAY-00625 [1]   PIN      31N6-10210-01
9 XKAY-00527 [1]   PLATE-SHOE
A. XKAY-00528 [1]   ROTARY KIT      31N6-10210-01
A. XKAY-00635 [1]   ROTARY KIT      31N6-10210-02
A-A. XKAY-00529 [1]   CYLINDER BLOCK KIT      31N6-10210-01
A-A. XKAY-00634 [1]   CYLINDER BLOCK KIT      31N6-10210-02
10 XKAY-00530 [1]   CYLINDER BLOCK      31N6-10210-01
10 XKAY-00633 [1]   BLOCK-CYLINDER      31N6-10210-02
11 XKAY-00531 [9]   SPRING
A-B. XKAY-00532 [1]   RETAINER KIT
12 XKAY-00533 [1]   GUIDE-BALL
13 XKAY-00534 [1]   PLATE-SET
A-C. XKAY-00535 [1]   PISTON KIT
N14. XKAY-00536 [9]   PISTON ASSY
15 XKAY-00537 [3]   PLATE-FRICTION
16 XKAY-00538 [3]   PLATE
17 XKAY-00539 [1]   PISTON-BRAKE
17 XKAY-00631 [1]   PISTON-BRAKE      31N6-10210-01
17 XKAY-00632 [1]   PISTON-BRAKE      31N6-10210-02
K18. XKAY-00468 [1]   O-RING
K19. XKAY-00540 [2]   O-RING
20 XKAY-00541 [20]   SPRING
21 XKAY-00542 [1]   COVER-REAR      31N6-10210
21 XKAY-00630 [1]   COVER-REAR      31N6-10210-01
22 XKAY-00543 [1]   BEARING-NEEDLE
23 XKAY-00382 [2]   PIN
24 XKAY-00544 [1]   PLATE-VALVE
27 XKAY-00546 [4]   BOLT-WRENCH
28 XKAY-00309 [2]   PLUG
K29. XKAY-00547 [2]   RING-BACK UP
K30. XKAY-00310 [2]   O-RING
31 XKAY-00311 [2]   SPRING
32 XKAY-00312 [2]   CHECK
33 XKAY-00313 [2]   RELIEF VALVE ASSY
34 XKAY-00314 [2]   VLV ASSY-REACTIONLESS
35 XKAY-00315 [1]   TIME DELAY VALVE ASSY
36 XKAY-00149 [3]   BOLT-WRENCH
37 XKAY-00316 [1]   PLUG
K38. XKAY-00151 [3]   O-RING
39 XKAY-00140 [1]   PLUG
41 XKAY-00548 [1]   PLUG
N42. XKAY-00549 [1]   NAME PLATE
43 XKAY-00277 [2]   RIVET
44 XKAY-01986 [1]   GAUGE-LEVEL
45 XKAY-00551 [1]   FLANGE
K46. XKAY-00552 [2]   O-RING
47 XKAY-00322 [2]   PLUG
K48. XKAY-00324 [2]   O-RING
K49. XKAY-00247 [2]   O-RING
K50. XKAY-00248 [2]   RING-BACK UP
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4111
K. XKAY-00553 [1]   SEAL KIT      SEE ILLUST
N. @ [AR]   NOT SUPPLIED PARTS
