HYUNDAI R290LC-9 EXCAVATOR SWING REDUCTION GEAR (TYPE 2)

HYUNDAI R290LC-9 EXCAVATOR SWING REDUCTION GEAR (TYPE 2)

$5,000.00 USD
$5,000.00 USD
特價 售罄
結帳時計算運費。

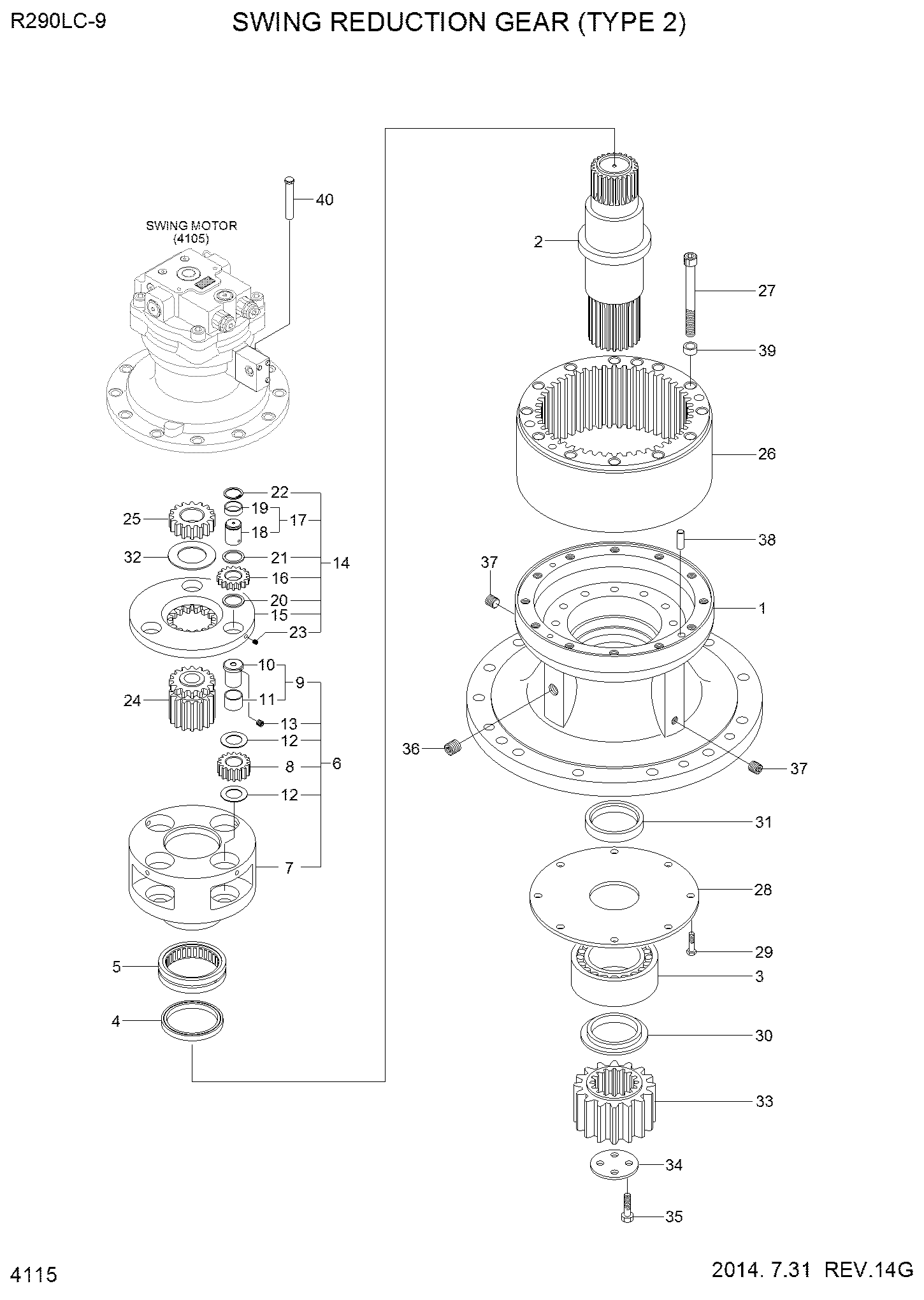

Parts on group SWING REDUCTION GEAR (TYPE 2):
Pos. Part No Qty Parts name Comments
*-2. 31Q8-11141 [1]   SWING REDUCTION GEAR
*-2. 31Q8-11141AR [1]   SWING REDUCTION GEAR
1 XKAQ-00451 [1]   CASING
2 XKAQ-00760 [1]   SHAFT-DRIVE
3 XKAQ-00146 [1]   BEARING-ROLLER
4 XKAQ-00149 [1]   SEAL-OIL
5 XKAQ-00027 [1]   BEARING-ROLLER
6 XKAQ-00467 [1]   CARRIER ASSY 2
7 XKAQ-00468 [1]   CARRIER 2
8 XKAQ-00469 [4]   GEAR-PLANET 2
9 XKAQ-00470 [4]   PIN ASSY 2
N10. XKAQ-00471 [1]   PIN 2
N11. XKAQ-00472 [1]   BUSHING 2
12 XKAQ-00435 [8]   WASHER-THRUST
13 XKAQ-00050 [4]   PIN-SPRING
14 XKAQ-00473 [1]   CARRIER ASSY 1
15 XKAQ-00453 [1]   CARRIER 1
16 XKAQ-00454 [3]   GEAR-PLANET 1
17 XKAQ-00440 [3]   PIN ASSY 1
N18. XKAQ-00441 [3]   PIN 1
N19. XKAQ-00079 [3]   BUSHING 1
20 XKAQ-00417 [3]   PLATE 1-SIDE
21 XKAQ-00416 [3]   PLATE 2-SIDE
22 XKAQ-00041 [3]   RING-STOP
23 XKAQ-00048 [3]   PIN-SPRING
24 XKAQ-00455 [1]   GEAR 2-SUN
25 XKAQ-00456 [1]   GEAR 1-SUN
26 XKAQ-00457 [1]   RING-GEAR
27 XKAQ-00466 [12]   BOLT-SOCKET
28 XKAQ-00626 [1]   COVER PLATE
29 XKAQ-00064 [8]   BOLT-HEX
30 XKAQ-00627 [1]   SPACER
31 XKAQ-00628 [1]   RING-SPACER
32 XKAQ-00447 [1]   PLATE 3-THRUST
33 XKAQ-00629 [1]   GEAR-PINION
34 XKAQ-00761 [1]   PLATE-LOCK
35 XKAQ-00756 [4]   BOLT-HEX
36 XKAQ-00049 [1]   PLUG
37 XKAQ-00066 [2]   PLUG
38 XKAQ-00072 [2]   PIN-KNOCK
N39. XKAQ-00631 [4]   BUSHING 2
40 XKAQ-00800 [1]   AIR BREATHER ASSY
N. @ [AR]   NOT SUPPLIED PARTS
