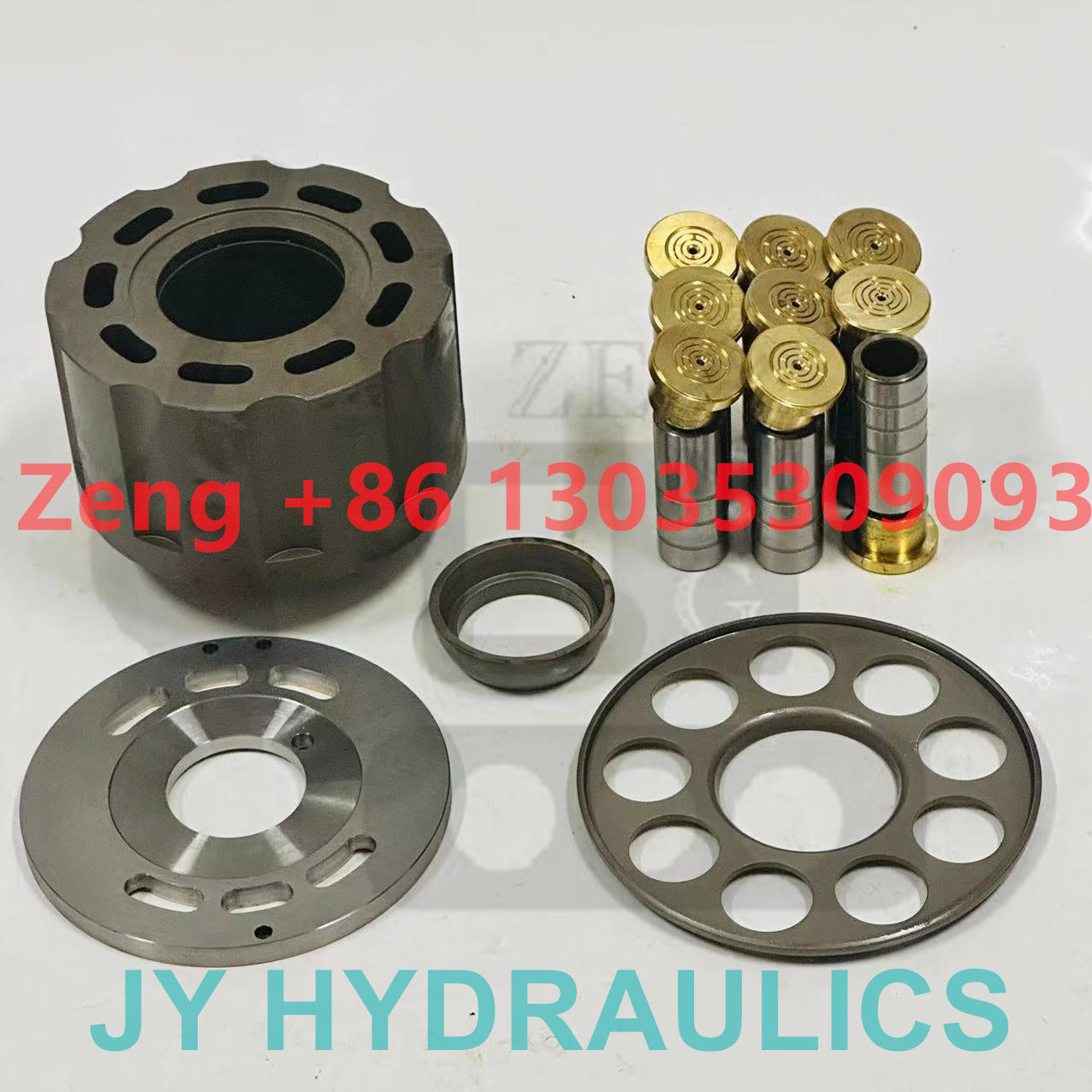

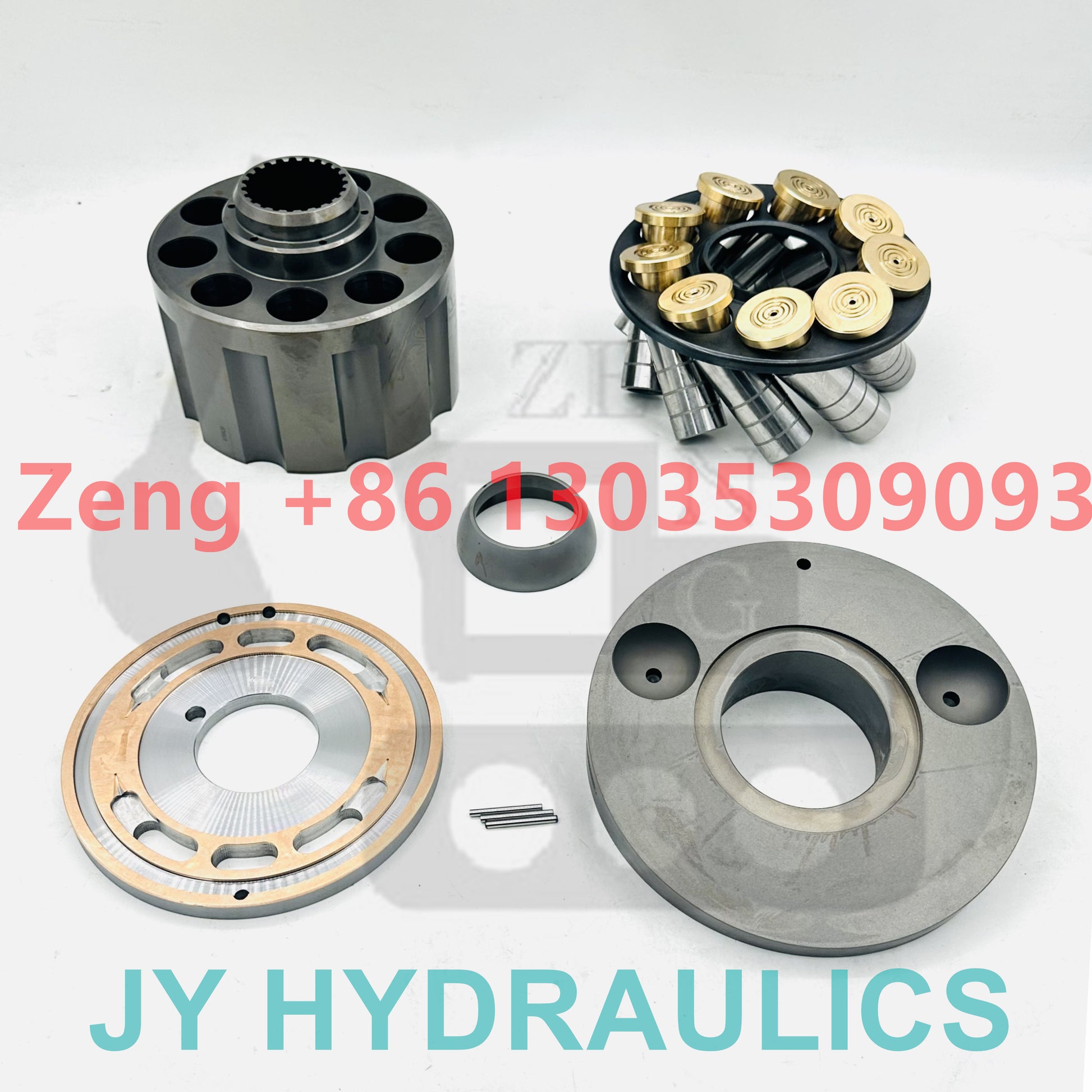

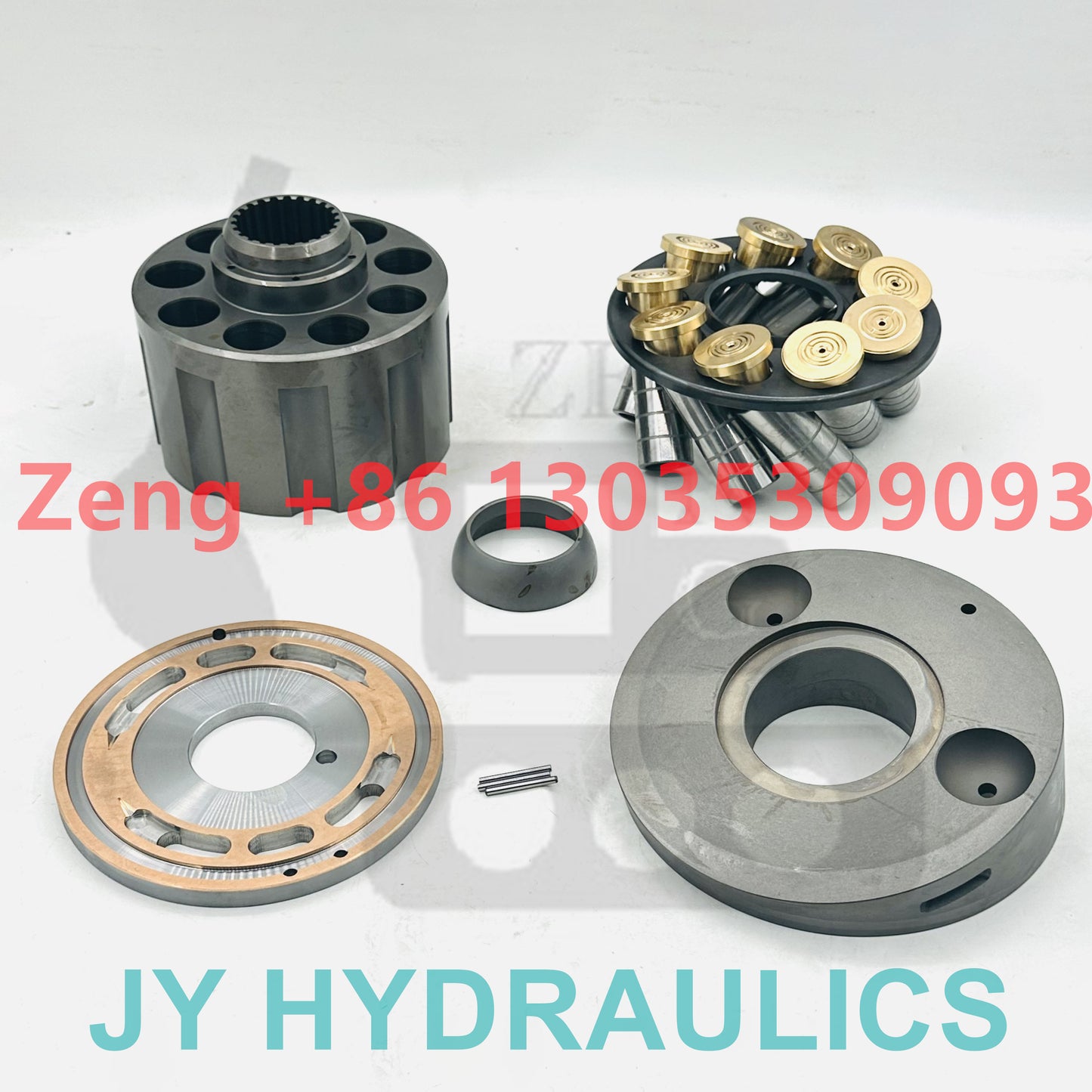

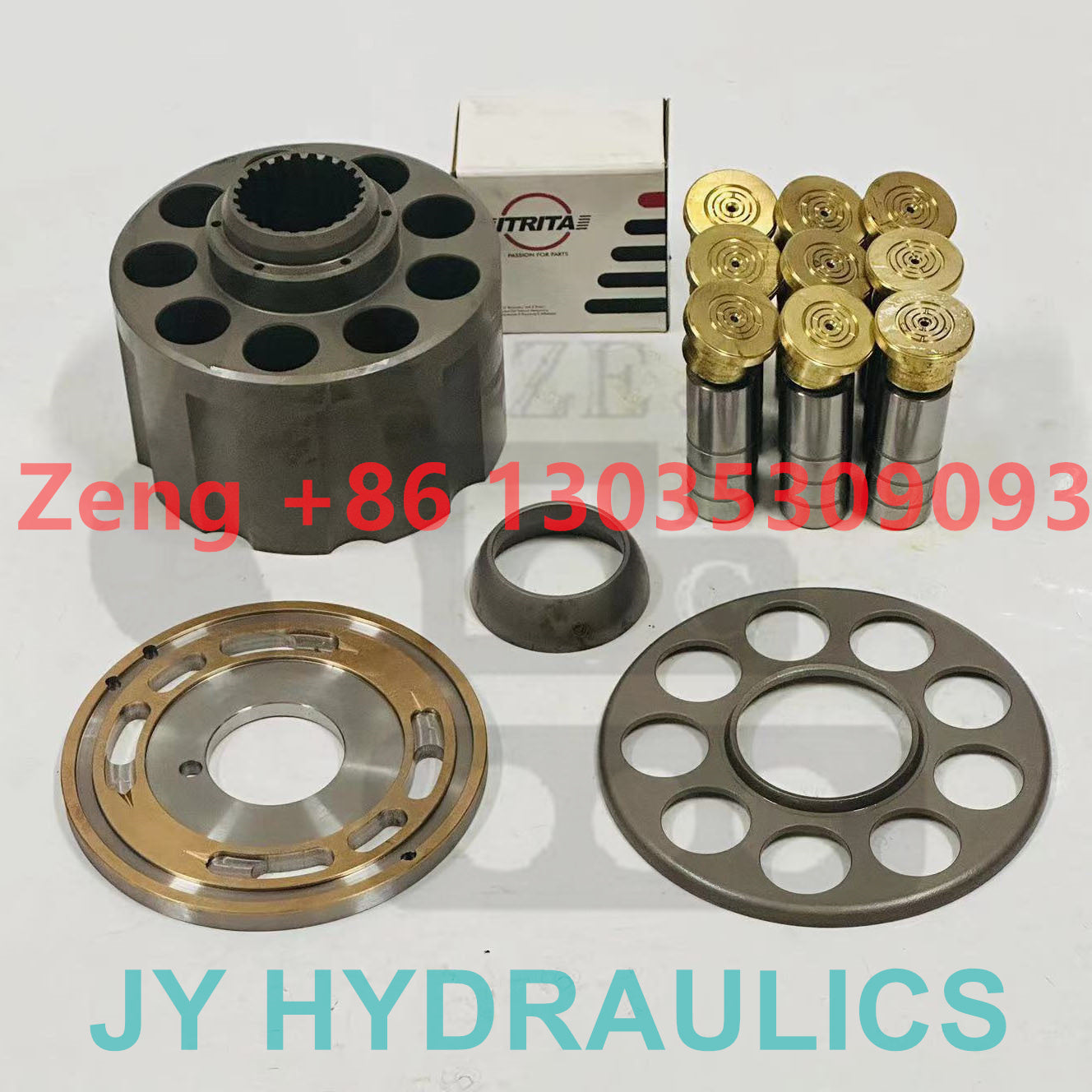

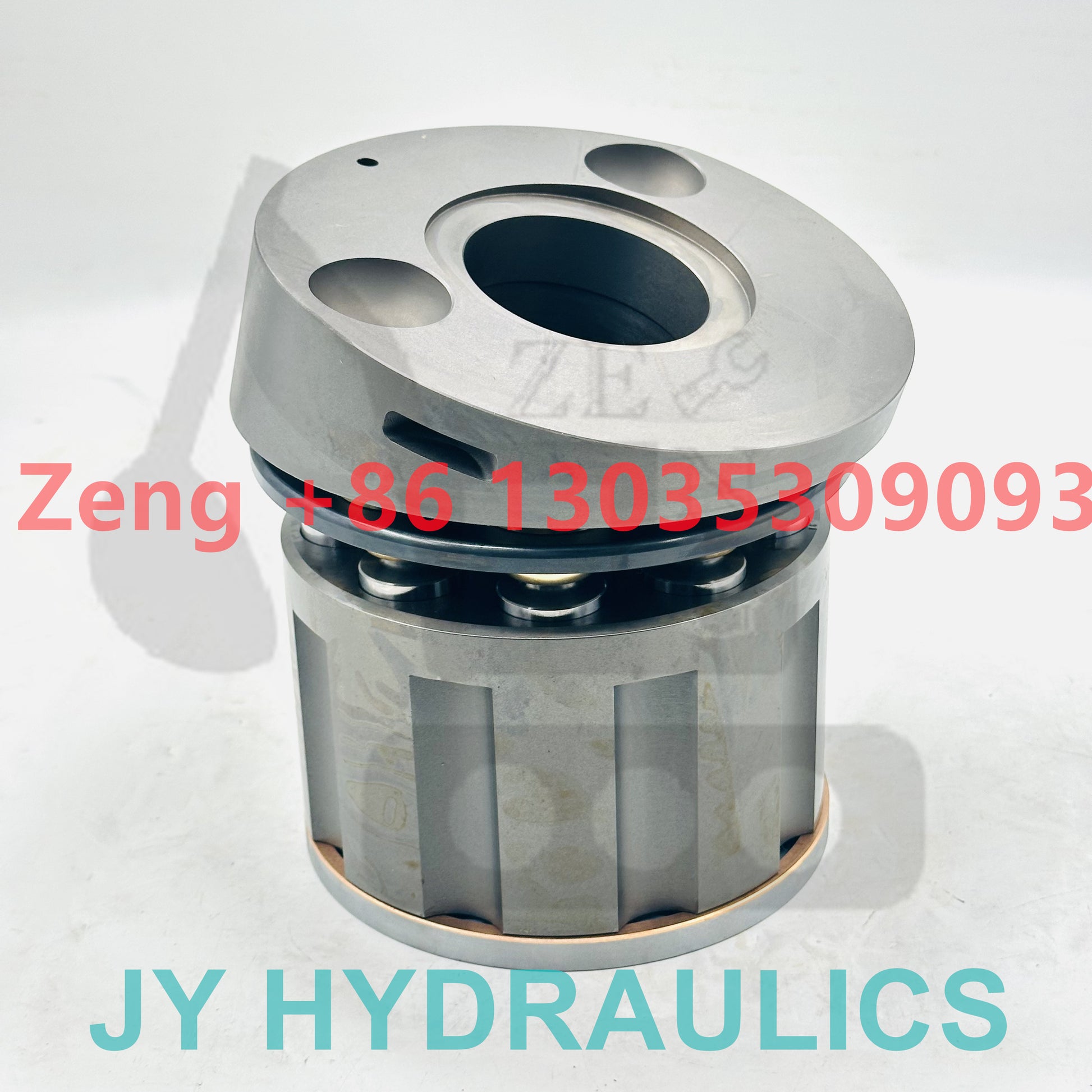

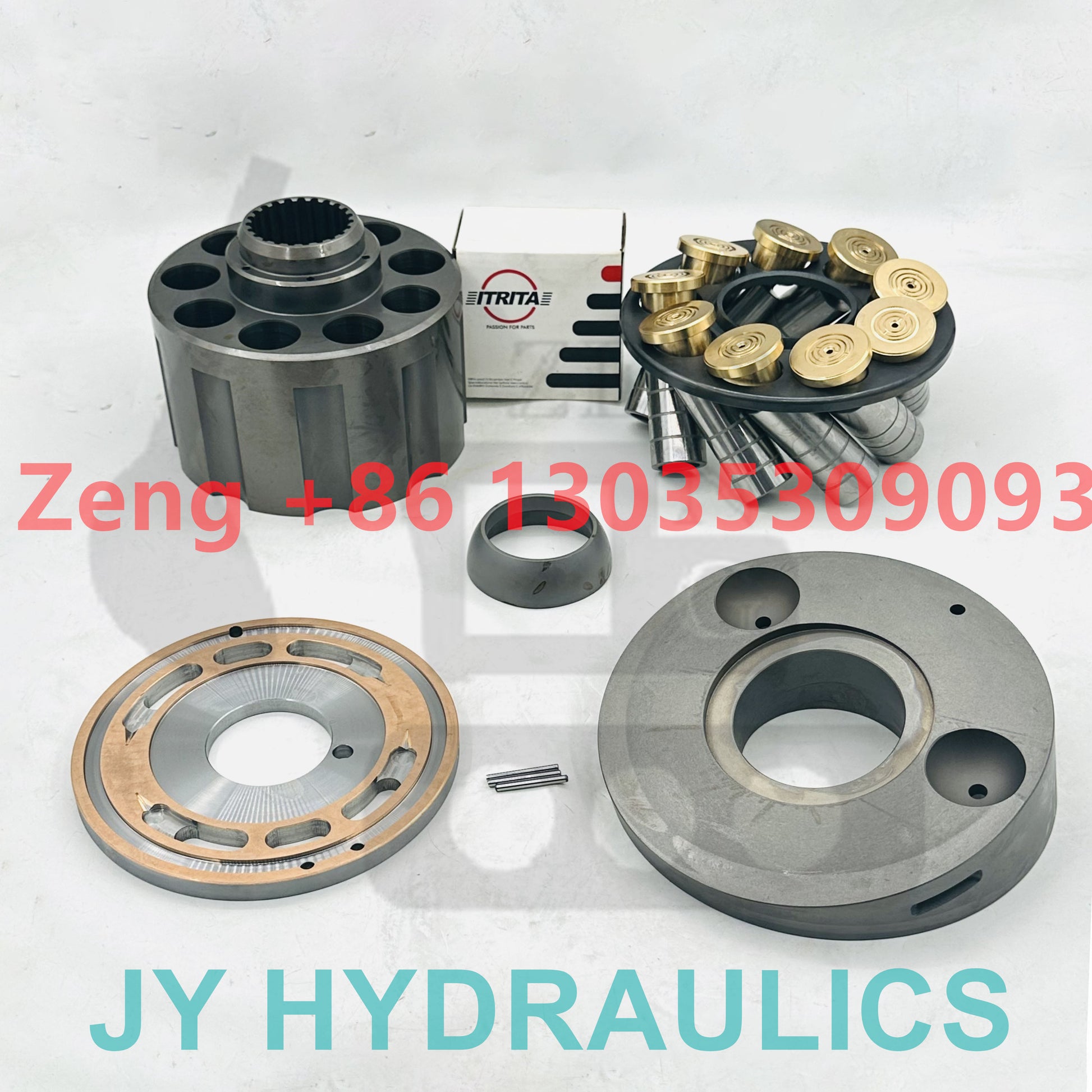

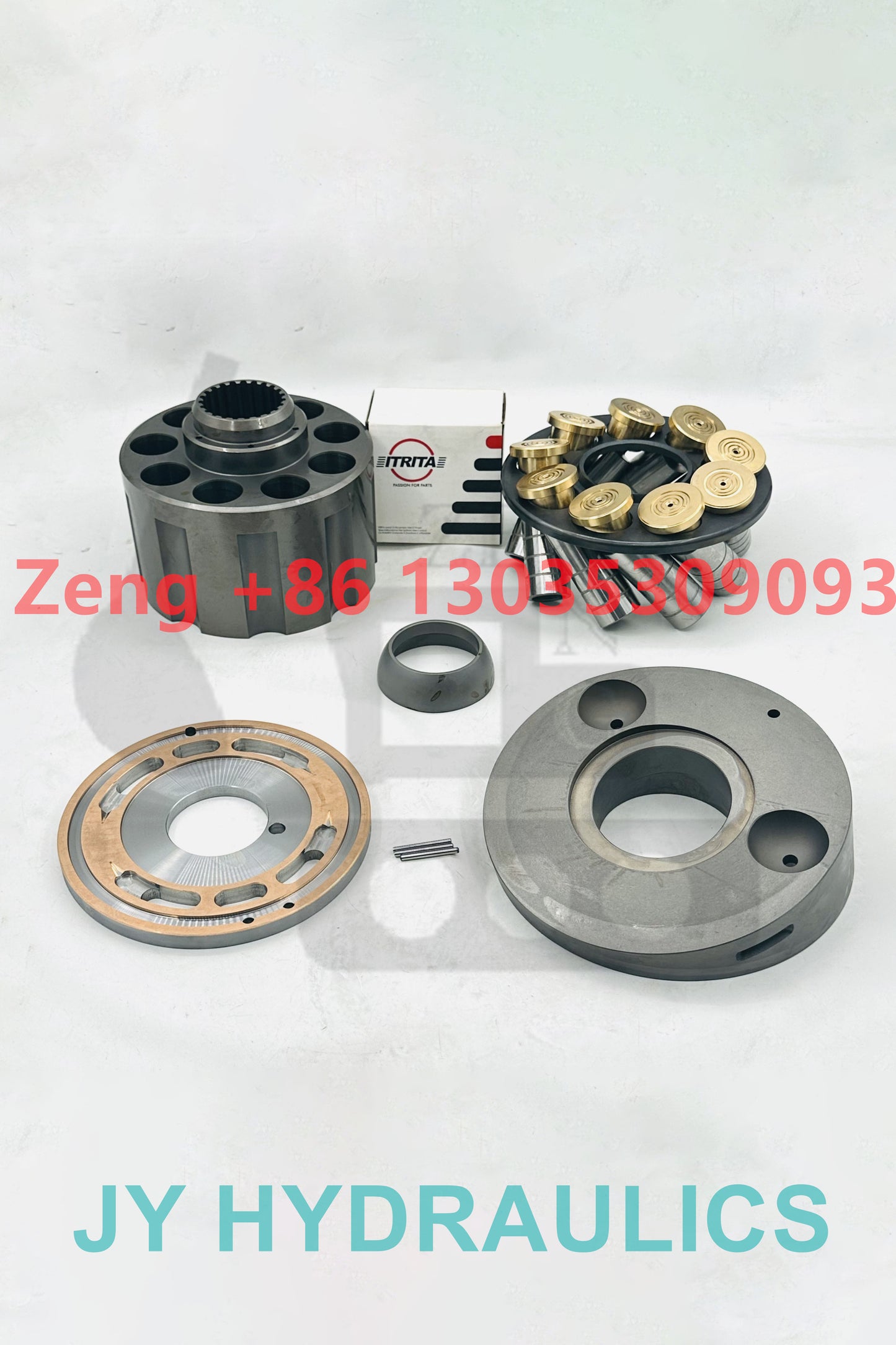

HYUNDAI R210ECONO R210LC-3 R210LC-3H excavator 31E1-0010 31EM-40010 travel motor parts

HYUNDAI R210ECONO R210LC-3 R210LC-3H excavator 31E1-0010 31EM-40010 travel motor parts

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
R210ECONO R210LC-3 R210LC-3H 31E1-0010 31EM-40010
Pos. Part No Qty Parts name Comments
*. 31EM-40010 [2]   TRACK MOTOR
N*-1. 703793 [1]   MOTOR UNIT
*-11. 703797 [1]   REAR FLANGE KIT
N101. 115299C [1]   REAR FLANGE
123 112575B [1]   SPOOL-MAIN
152 108061 [2]   PLUG
N154. 211665 [7]   EXPANDER
125 31EM-40999 [2]   STOPPER
128 211668A [2]   SPRING
179 201733 [2]   O-RING
124 204548 [2]   PLUG
121 112584 [1]   PLUG-DRAIN
138 201710 [1]   O-RING
127 105637 [2]   CHECK VALVE
130 203355 [2]   SPRING
134 201719 [2]   O-RING
126 104126A [2]   PLUG
144 108064 [2]   PLUG
*-12. 703798E [1]   PISTON ASSY
N161. 112576D [1]   PISTON
N162. 112577B [1]   SHOE
200 215393 [1]   SPRING
*-13. 160F2105-0000 [1]   PISTON KIT
N*-131. 703799B [9]   PISTON ASSY
N105. 203336C [1]   PISTON
N106. 112578A [1]   SHOE
*-14. 703968 [1]   BODY ASSY
N136. 107595A [1]   BODY
137 107042A [1]   SPOOL-BODY
124 204548 [1]   PLUG
157 112588 [1]   STOPPER
N183. 211675 [1]   SPRING
N185. 211676 [1]   SPRING
179 201733 [1]   O-RING
*-15. 703800 [1]   REDUCING VALVE ASSY
135 211666 [1]   SPRING PIN
142 112579A [1]   VALVE
143 211667 [1]   SPRING
158 200156 [2]   STEEL BALL
N169. 203331 [2]   EXPANDER
102 112580 [1]   MAIN SHAFT
103 112582B [1]   PLATE-SWASH
104 112583 [1]   CYLINDER-BLOCK
107 119885 [1]   PLATE-RETAINER
108 203339B [1]   BALL-THRUST
109 112910 [1]   PLATE-TIMING
110 104595B [2]   WASHER
112 203341B [1]   PISTON-PARKING
113 203352 [12]   SPRING
114 215392 [1]   SPRING
115 112911 [3]   PLATE-FRICTION
116 112912 [4]   PLATE-MATING
118 203344A [1]   SEAT-VALVE
119 114099 [1]   VALVE
120 203354 [1]   SPRING
122 104186A [1]   RING
132 203345 [1]   OIL SEAL
133 201768 [1]   O-RING
139 201717 [1]   O-RING
140 201765 [1]   O-RING
141 104045 [2]   PIN-PARALLEL
145 202582 [1]   RING-SNAP
149 211669 [1]   BEARING-ROLLER
150 200295 [1]   BEARING-BALL
151 120001 [6]   ROLLER
153 114098 [1]   PLATE-THRUST(M)
163 112589 [1]   VALVE
164 112590 [1]   STOPPER
165 112591 [1]   RING
166 211672 [1]   SPRING
167 212969 [2]   BALL-STEEL
168 200164 [2]   BALL-STEEL
170 200854 [4]   BOLT-SOCKET
171 105576 [4]   WASHER-SUPER LOCK
172 104589 [1]   SEAT-VALVE
175 211674 [1]   SPRING
176 104187 [1]   RING
178 203363 [1]   O-RING
180 201713 [2]   O-RING
181 104046 [2]   PIN-PARALLEL
182 200709 [9]   BOLT-SOCKET
199 118759 [1]   PLATE-NAME
*-2. 703791 [1]   REDUCTION GEAR      SEE 2151
*. 31E1-0010 [2]   TRAVEL MOTOR
