HYUNDAI R170W-9S R180W-9S WHEEL EXCAVATOR 31Q5-15030 HYDRAULIC PUMP PARTS

Name: HYUNDAI R170W-9S R180W-9S WHEEL EXCAVATOR 31Q5-15030 HYDRAULIC PUMP PARTS
Brand: +8613035309093
Price: 5000.0 USD
Availability: InStock

HYUNDAI R170W-9S R180W-9S WHEEL EXCAVATOR 31Q5-15030 HYDRAULIC PUMP PARTS

$5,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

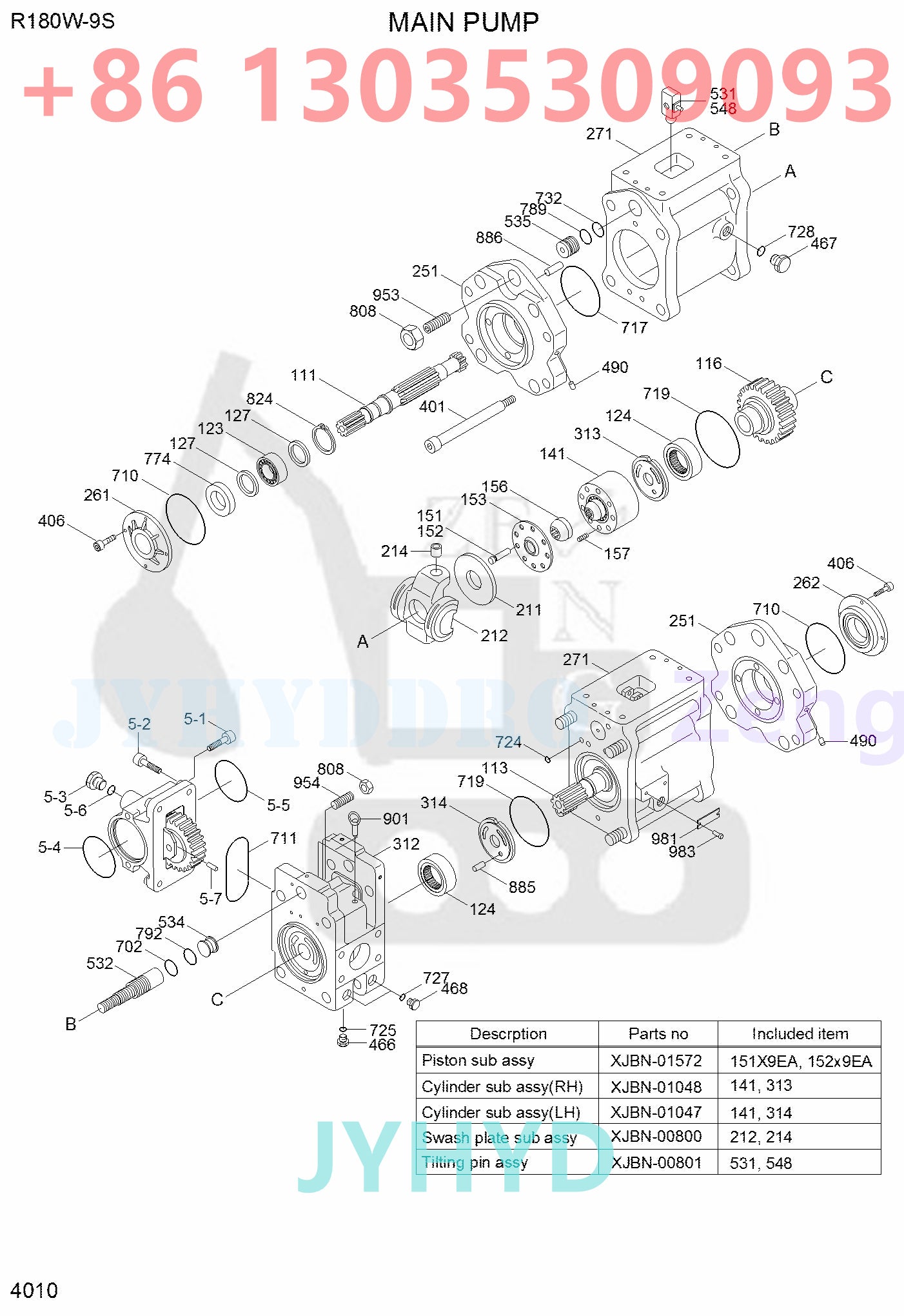

31Q5-15030 R170W-9S R180W-9S

Pos.	Part No	Qty	Parts name	Comments
*.	31Q5-15030	[1]	MAIN PUMP
*-1.	@	[1]	MAIN PUMP UNIT
111	XJBN-00802	[1]	SHAFT(F)-DRIVE
113	XJBN-00803	[1]	SHAFT(R)-DRIVE
116	XJBN-00804	[1]	GEAR-1ST
123	XJBN-00429	[2]	BEARING-ROLLER
124	XJBN-00805	[2]	BEARING-NEEDLE
127	XJBN-00806	[4]	SPACER-BEARING
NS141.	XJBN-00807	[2]	BLOCK-CYLINDER
NS151.	XJBN-00425	[18]	PISTON
NS152.	XJBN-01278	[18]	SHOE
153	XJBN-00808	[2]	PLATE-SET
156	XJBN-00422	[2]	BUSHING-SPHERICAL
157	XJBN-00421	[18]	SPRING-CYLINDER
211	XJBN-00420	[2]	PLATE-SHOE
NS212.	XJBN-00419	[2]	PLATE-SWASH
NS214.	XJBN-00418	[2]	BUSHING-TILTING
251	XJBN-00417	[2]	SUPPORT
261	XJBN-00809	[1]	COVER-FR
262	XJBN-00810	[1]	COVER-RR
271	XJBN-01046	[2]	CASING-PUMP
312	XJBN-00812	[1]	BLOCK-VALVE
NS313.	XJBN-01045	[1]	PLATE(R)-VALVE
NS314.	XJBN-01044	[1]	PLATE(L)-VALVE
401	XJBN-00411	[8]	SCREW
406	XJBN-00813	[8]	SCREW
466	XJBN-00030	[2]	PLUG
467	XJBN-00487	[4]	PLUG
468	XJBN-00814	[2]	PLUG
490	XJBN-00032	[15]	PLUG
NS531.	XJBN-00815	[2]	PIN-TILTING
532	XJBN-00407	[2]	PISTON-SERVO
534	XJBN-00816	[2]	STOPPER(L)
535	XJBN-00405	[2]	STOPPER(S)
NS548.	XJBN-00360	[2]	PIN-FEED BACK
702	XJBN-00817	[2]	O-RING
710	XJBN-00387	[2]	O-RING
711	XJBN-00095	[1]	O-RING
717	XJBN-00818	[2]	O-RING
719	XJBN-00819	[2]	O-RING
724	XJBN-00044	[18]	O-RING
725	XJBN-00045	[2]	O-RING
727	XJBN-00233	[2]	O-RING
728	XJBN-00097	[4]	O-RING
732	XJBN-00820	[2]	O-RING
774	XJBN-01029	[1]	SEAL-OIL
789	XJBN-00476	[2]	RING-BACK UP
792	XJBN-00454	[2]	RING BACK-UP
808	XJBN-00101	[4]	NUT-HEX
824	XJBN-00821	[2]	RING-SNAP
885	XJBN-00394	[2]	PIN-VALVE PLATE
886	XJBN-00054	[4]	PIN-SPRING
901	XJBN-00104	[2]	BOLT-EYE
953	XJBN-00105	[2]	SCREW-SET
954	XJBN-00392	[2]	SCREW-SET
981	XJBN-00156	[1]	NAME PLATE
983	XJBN-00455	[2]	PIN
79	@	[1]	EPPR VALVE	SEE 4020
*-2.	@	[1]	REGULATOR ASSY	SEE 4020
*-5.	XJBN-01018	[1]	PTO UNIT
5	XJBN-01020	[1]	PTO ASSY
5-1.	XJBN-00160	[2]	SCREW-SOCKET
5-2.	XJBN-00725	[4]	SOCKET-FLANGE
5-3.	XJBN-00031	[1]	PLUG
5-4.	XJBN-00837	[1]	O-RING
5-5.	XJBN-00387	[1]	O-RING
5-6.	XJBN-00046	[1]	O-RING
5-7.	XJBN-01023	[1]	PIN-SPRING
*-51.	@	[1]	PUMP-GEAR	SEE 4030
S.	XJBN-01572	[1]	PISTON SUB ASSY	SEE ILLUST
S.	XJBN-01048	[1]	CYLINDER SUB ASSY-RH	SEE ILLUST
S.	XJBN-01047	[1]	CYLINDER SUB ASSY-LH	SEE ILLUST
S.	XJBN-00800	[1]	SWASH PLATE SUB ASSY	SEE ILLUST
S.	XJBN-00801	[1]	TILTING PIN SUB ASSY	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS

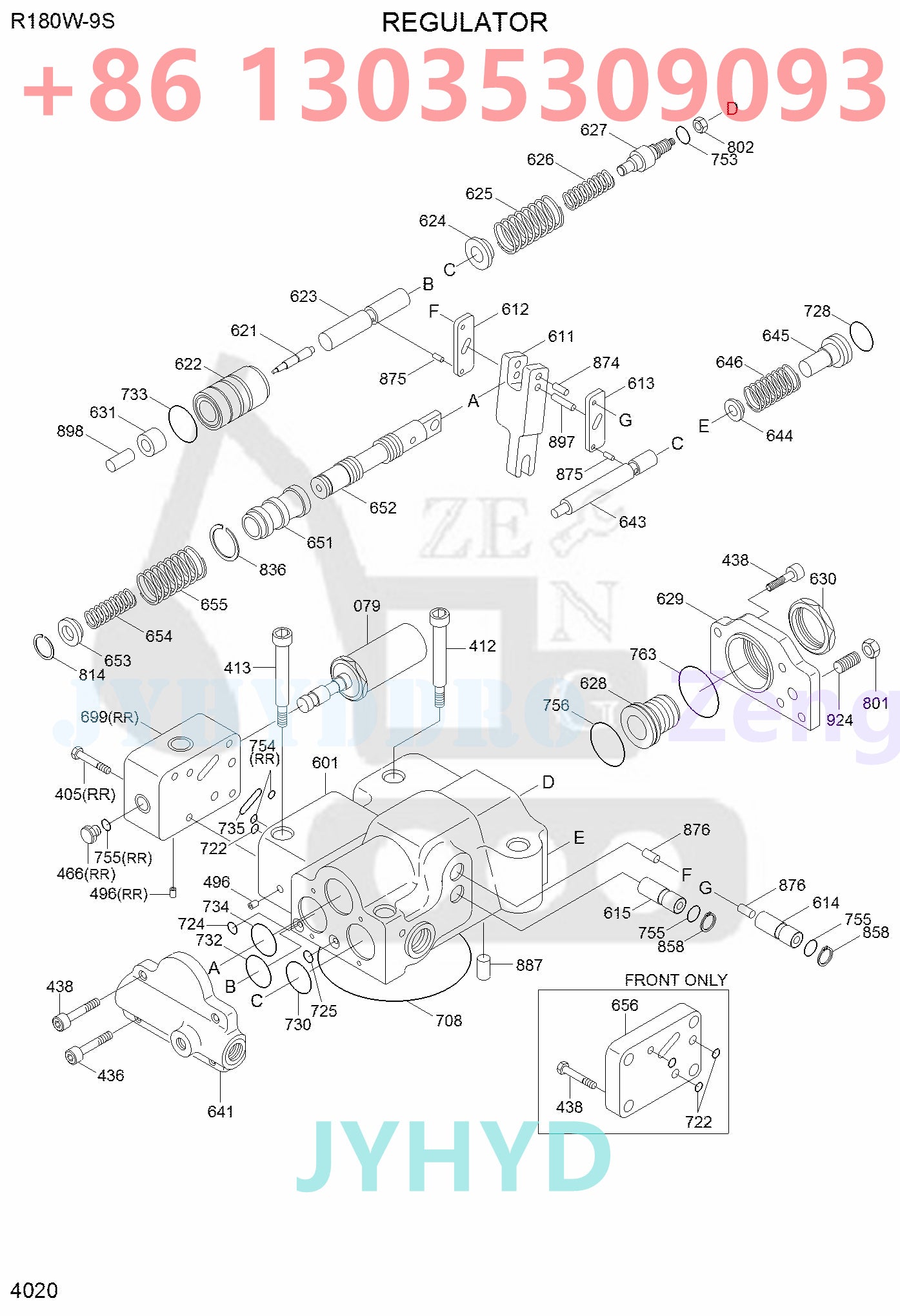

Parts on group REGULATOR:

Pos.	Part No	Qty	Parts name	Comments
*-2.	XJBN-01571	[1]	REGULATOR ASSY	REAR
*-2.	XJBN-01570	[1]	REGULATOR ASSY	FRONT
405	XJBN-00823	[4]	SCREW-HEX	REAR
412	XJBN-00321	[2]	SCREW-HEX
413	XJBN-00320	[2]	SCREW-HEX
436	XJBN-00319	[2]	SCREW-HEX
438	XJBN-00318	[6]	SCREW-HEX	REAR
438	XJBN-00318	[10]	SCREW-HEX	FRONT
466	XJBN-00030	[1]	PLUG	REAR
496	XJBN-00032	[6]	PLUG	REAR
496	XJBN-00032	[5]	PLUG	FRONT
N601.	XJBN-00317	[1]	CASING
N611.	XJBN-00824	[1]	LEVER
N612.	XJBN-00315	[1]	LEVER-1
N613.	XJBN-00314	[1]	LEVER-2
N614.	XJBN-00313	[1]	PLUG-CENTER
N615.	XJBN-00312	[1]	PLUG-ADJUST
N621.	XJBN-00580	[1]	PISTON
N622.	XJBN-00581	[1]	CASE-PISTON
N623.	XJBN-01202	[1]	ROD-COMPENSATOR
N624.	XJBN-01203	[1]	SEAT(C)-SPRING
N625.	XJBN-00582	[1]	SPRING-OUTER
N626.	XJBN-00306	[1]	SPRING-INNER
N627.	XJBN-01024	[1]	STEM(C)-ADJUST
N628.	XJBN-01025	[1]	SCREW(C)-ADJUST
N629.	XJBN-00303	[1]	COVER(C)
N630.	XJBN-00302	[1]	LOCK NUT
N631.	XJBN-00825	[1]	SLEEVE
N641.	XJBN-00871	[1]	COVER-PILOT
N643.	XJBN-01205	[1]	PISTON-PILOT
N644.	XJBN-01206	[1]	SEAT(Q)-SPRING
N645.	XJBN-00793	[1]	STEM(Q)-ADJUST
N646.	XJBN-00295	[1]	SPRING-PILOT
N651.	XJBN-00443	[1]	SLEEVE
N652.	XJBN-00291	[1]	SPOOL
N653.	XJBN-00290	[1]	SEAT-SPRING
N654.	XJBN-00289	[1]	SPRING-RETURN
N655.	XJBN-00288	[1]	SPRING-SET
N656.	XJBN-00287	[1]	COVER-BLOCK	FRONT
N699.	XJBN-00442	[1]	CASING	REAR
708	XJBN-00286	[1]	O-RING
722	XJBN-00285	[1]	O-RING	REAR
722	XJBN-00285	[3]	O-RING	FRONT
724	XJBN-00044	[9]	O-RING
725	XJBN-00231	[1]	O-RING
728	XJBN-00097	[1]	O-RING
730	XJBN-00230	[1]	O-RING
732	XJBN-00820	[1]	O-RING
733	XJBN-00282	[1]	O-RING
734	XJBN-00281	[1]	O-RING
735	XJBN-00280	[1]	O-RING
753	XJBN-01026	[1]	O-RING	FRONT
753	XJBN-00441	[2]	O-RING	REAR
754	XJBN-01026	[1]	O-RING	REAR
755	XJBN-00045	[3]	O-RING	REAR
755	XJBN-00045	[2]	O-RING	FRONT
756	XJBN-00279	[1]	O-RING
763	XJBN-00094	[1]	O-RING
801	XJBN-00278	[2]	NUT
802	XJBN-01027	[1]	NUT
814	XJBN-00277	[1]	RING-SNAP
N836.	XJBN-00276	[1]	RING-SNAP
858	XJBN-00275	[2]	RING-SNAP
N874.	XJBN-00344	[1]	PIN
N875.	XJBN-00273	[2]	PIN
N876.	XJBN-00794	[2]	PIN
N887.	XJBN-00272	[1]	PIN
N897.	XJBN-00795	[1]	PIN
N898.	XJBN-00826	[1]	PIN
924	XJBN-00269	[1]	SCREW-SET
79	XJBN-00382	[1]	EPPR VALVE
N.	@	[AR]	NOT SUPPLIED PARTS

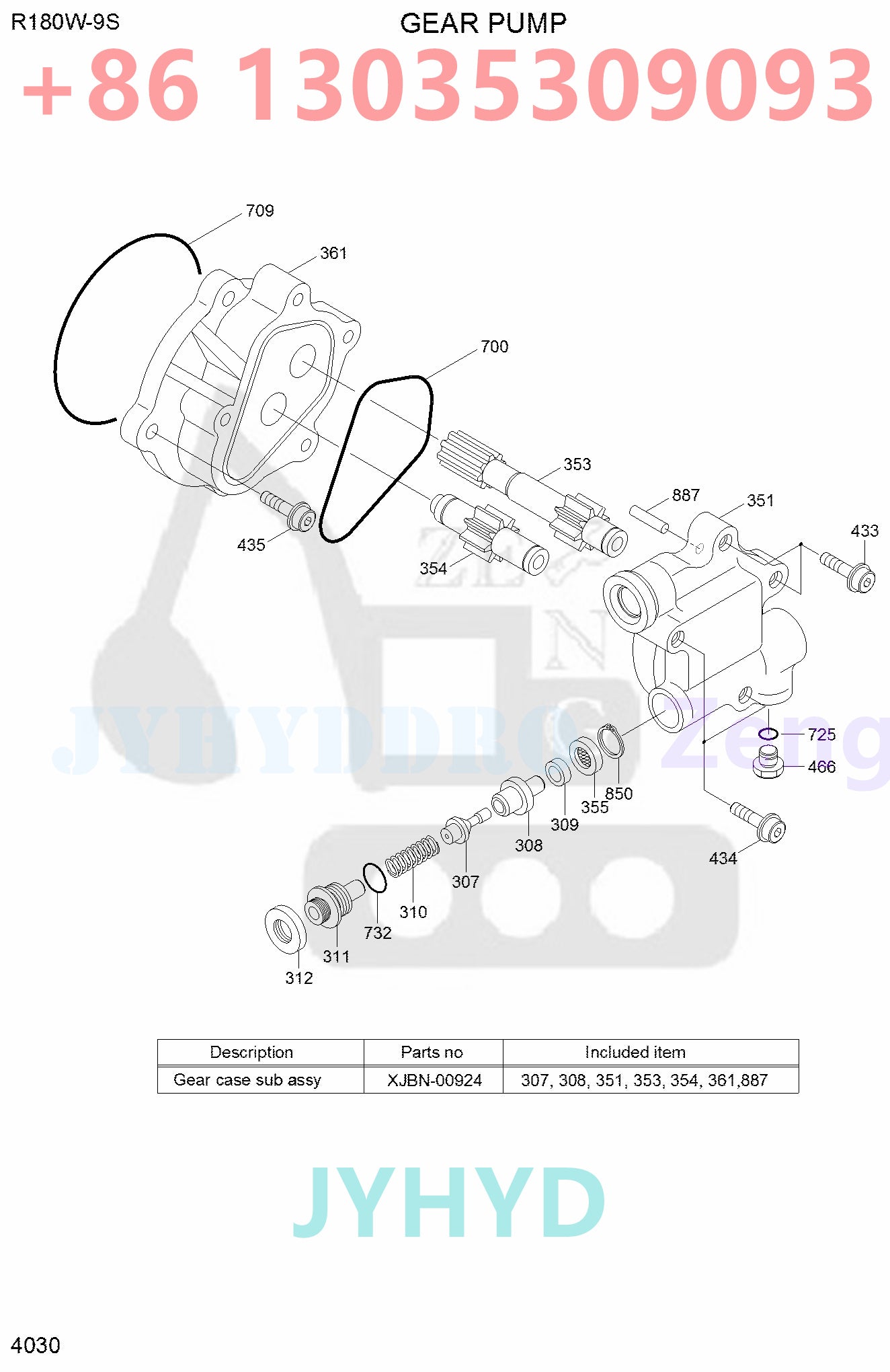

Parts on group GEAR PUMP:

Pos.	Part No	Qty	Parts name	Comments
*-51.	XJBN-00923	[1]	GEAR PUMP ASSY
