HYUNDAI R140LC-9 R140LC-9(INDIA) R140LC-9A R140LC-9S R140LC-9S(BRAZIL) R140LC-9V(INDIA) R145CR-9 R145CR-9A EXCAVATOR 31Q4-40040 XKAY-01782 TRAVEL MOTOR PARTS

HYUNDAI R140LC-9 R140LC-9(INDIA) R140LC-9A R140LC-9S R140LC-9S(BRAZIL) R140LC-9V(INDIA) R145CR-9 R145CR-9A EXCAVATOR 31Q4-40040 XKAY-01782 TRAVEL MOTOR PARTS

$5,000.00 USD
$5,000.00 USD
特價 售罄
結帳時計算運費。
31Q4-40040 XKAY-01782
R140LC-9 R140LC-9(INDIA) R140LC-9A R140LC-9S R140LC-9S(BRAZIL) R140LC-9V(INDIA) R145CR-9 R145CR-9A
Pos. Part No Qty Parts name Comments
*. 31Q4-40040 [1]   TRAVEL MOTOR ASSY      *-1, *-2
*-1. XKAY-01782 [1]   TRAVEL MOTOR UNIT
1 XKAY-01837 [1]   CASING-SHAFT
2 XKAY-01836 [1]   OIL SEAL
3 XKAY-01835 [1]   SHAFT
4 XKAY-01834 [2]   BEARING
6 XKAY-01833 [2]   BALL-SWASH
A. XKAY-01832 [1]   PISTON KIT-SWASH
N7. XKAY-01831 [1]   PISTON-SWASH
8 XKAY-01830 [1]   SPRING
9 XKAY-01829 [1]   PLATE-SWASH
B. XKAY-01828 [1]   ROTARY KIT
B-A. XKAY-01827 [1]   BLOCK KIT-CYLINDER
10 XKAY-01826 [1]   BLOCK-CYLINDER
11 XKAY-01825 [2]   SEAT-SPRING
12 XKAY-01824 [1]   SPRING
13 XKAY-01823 [1]   RING-SNAP
14 XKAY-01822 [3]   PIN
51 XKAY-01789 [1]   PLATE-VALVE
B-B. XKAY-01821 [1]   RETAINER KIT
N15. XKAY-01820 [1]   GUIDE-BALL
N16. XKAY-01819 [1]   PLATE-SET
B-C. XKAY-01818 [1]   PISTON KIT
N17. XKAY-01817 [9]   PISTON
18 XKAY-01816 [4]   PLATE-STEEL
19 XKAY-01815 [3]   PLATE-FRICTION
20 XKAY-01814 [1]   PISTON-BRAKE
21 XKAY-01813 [1]   RING
22 XKAY-01812 [1]   RING
23 XKAY-01811 [1]   O-RING
49 XKAY-01790 [1]   BEARING
51 XKAY-01789 [1]   PLATE-VALVE
53 XKAY-00136 [10]   BOLT-SOCKET
*-2. @ [1]   TRAVEL REDUCTION GEAR      SEE 4172
N. @ [AR]   NOT SUPPLIED PARTS

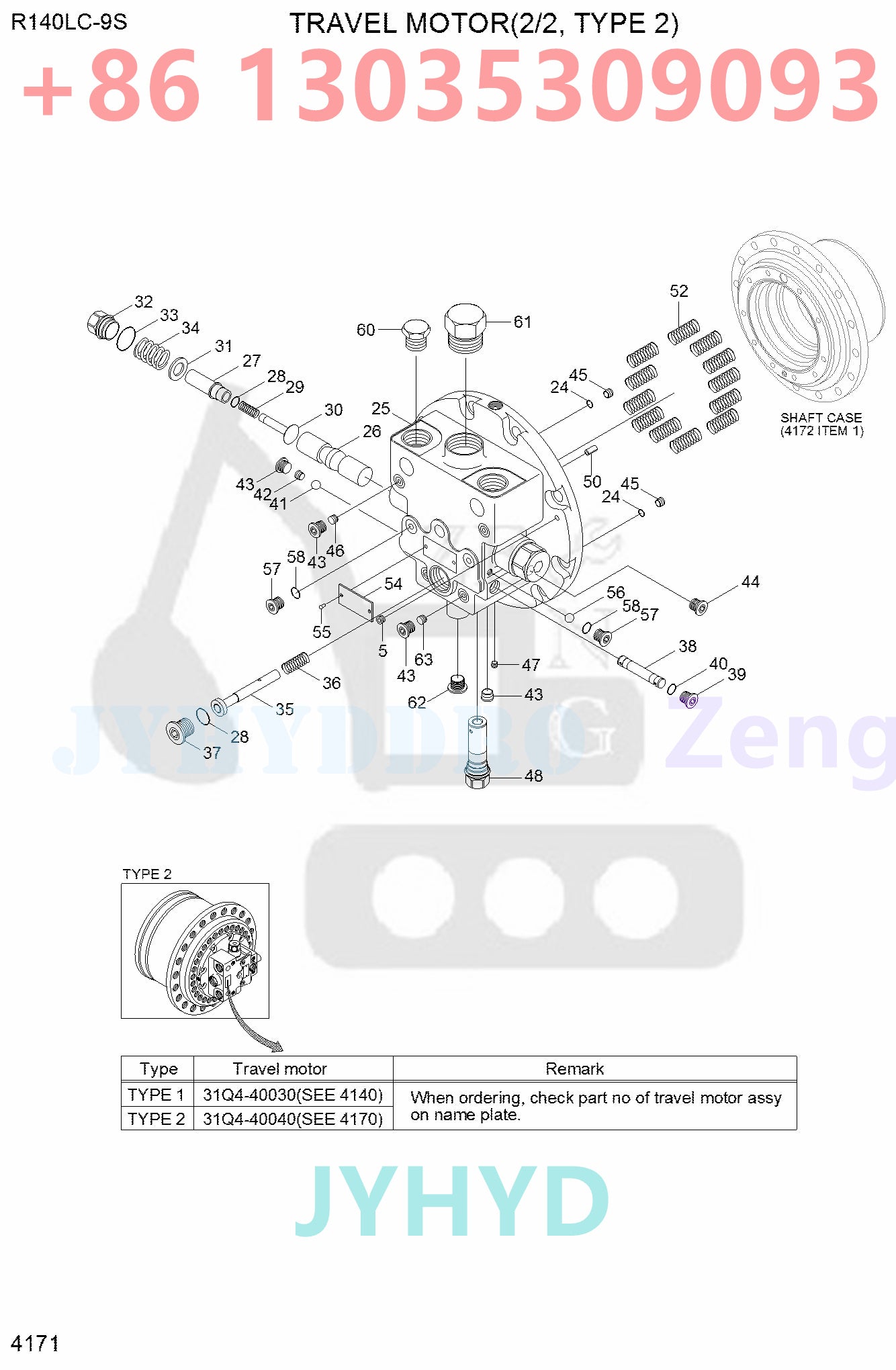

Parts on group TRAVEL MOTOR(2/2, TYPE 2):
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4170
*-1. @ [1]   TRAVEL MOTOR UNIT
5 XKAY-01303 [2]   PIN
24 XKAY-00155 [2]   O-RING
25 XKAY-01810 [1]   CASING-VALVE
C. XKAY-01809 [1]   SPOOL KIT-MAIN
26 XKAY-01808 [1]   SPOOL-MAIN
27 XKAY-01807 [2]   PLUG
28 XKAY-00155 [3]   O-RING
29 XKAY-01805 [2]   SPRING
30 XKAY-01804 [2]   CHECK
31 XKAY-01803 [2]   PLATE
32 XKAY-01802 [2]   PLUG
33 XKAY-01309 [2]   O-RING
34 XKAY-01800 [2]   SPRING
35 XKAY-01799 [1]   SPOOL
36 XKAY-01798 [1]   SPRING
37 XKAY-01797 [1]   PLUG
38 XKAY-01796 [2]   PISTON
39 XKAY-01795 [2]   PLUG
40 XKAY-00100 [1]   O-RING
41 XKAY-00487 [1]   BALL-STEEL
42 XKAY-01794 [6]   ORIFICE
43 XKAY-00065 [2]   PLUG
44 XKAY-00140 [2]   PLUG
45 XKAY-01793 [2]   ORIFICE
46 XKAY-01792 [5]   ORIFICE
47 XKAY-00880 [2]   PLUG
48 XKAY-01791 [2]   RELIEF VALVE ASSY
50 XKAY-00864 [1]   PIN
52 XKAY-01788 [12]   SPRING
N54. XKAY-01787 [2]   NAME PLATE
55 XKAY-00517 [2]   RIVET
56 XKAY-01786 [4]   BALL-STEEL
57 XKAY-00472 [4]   ORIFICE
58 XKAY-00945 [2]   O-RING
60 XKAY-01784 [2]   PLUG-PLASTIC
61 XKAY-01783 [1]   PLUG-PLASTIC
62 XKAY-00515 [1]   PLUG
63 XKAY-01603 [2]   ORIFICE
