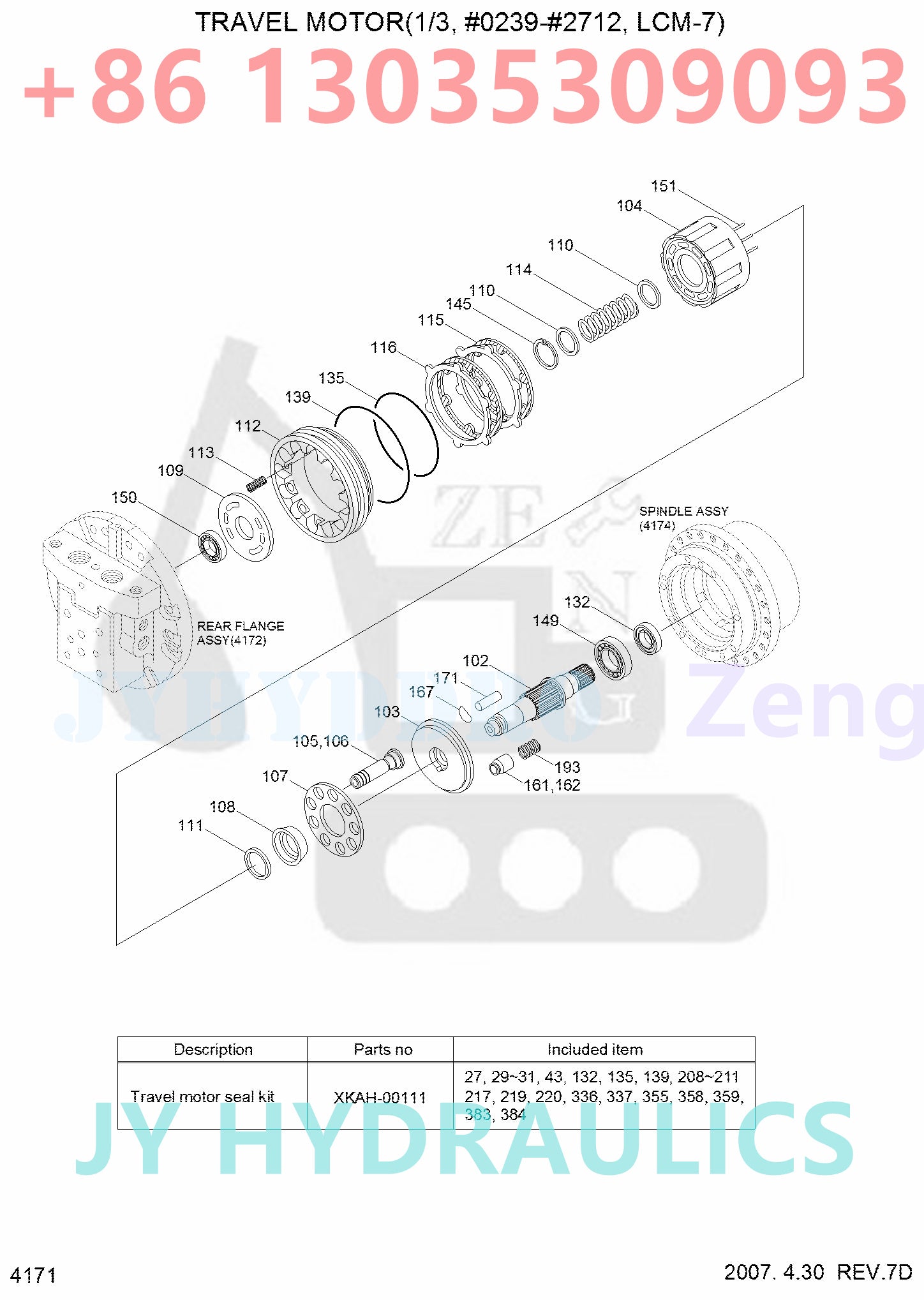

31EL-40010 XKAH-00481
R130LC-3 R140LC-7 R180LC-3 R200NLC-3 |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31EL-40010 |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *-1. |
XKAH-00481 |
[1] |
TRAVEL MOTOR UNIT |
|
| *-5. |
XKAH-00321 |
[1] |
C/BLOCK & PISTON KIT |
|
| *-51. |
XKAH-00068 |
[1] |
PISTON ASSY |
|
| N105. |
XKAH-00069 |
[9] |
PISTON |
|
| N106. |
XKAH-00070 |
[9] |
SHOE |
|
| 104 |
XKAH-00071 |
[1] |
BLOCK-CYLINDER |
|
| 107 |
XKAH-00072 |
[1] |
PLATE-RETAINER |
|
| 108 |
XKAH-00073 |
[1] |
BALL-THRUST |
|
| 110 |
XKAH-00074 |
[2] |
WASHER |
|
| 111 |
XKAH-00318 |
[1] |
COLLAR |
|
| 114 |
XKAH-00076 |
[1] |
SPRING |
|
| 151 |
XKAH-00077 |
[5] |
ROLLER |
|
| *-6. |
XKAH-00078 |
[1] |
PISTON KIT-2 SPEED |
|
| N161. |
XKAH-00079 |
[1] |
PISTON-2 SPEED |
|
| N162. |
XKAH-00080 |
[1] |
SHOE-2 SPEED |
|
| 102 |
XKAH-00081 |
[1] |
SHAFT-MAIN |
|
| 103 |
XKAH-00467 |
[1] |
PLATE-SWASH |
|
| 109 |
XKAH-00468 |
[1] |
PLATE-TIMING |
|
| 112 |
XKAH-00084 |
[1] |
PISTON-PARKING |
|
| 113 |
XKAH-00085 |
[12] |
SPRING |
|
| 115 |
XKAH-00086 |
[2] |
PLATE-FRICTION |
|
| 116 |
XKAH-00087 |
[2] |
PLATE-MATING |
|
| K132. |
XKAH-00088 |
[1] |
SEAL-OIL |
|
| K135. |
XKAH-00089 |
[1] |
O-RING |
|
| K139. |
XKAH-00090 |
[1] |
O-RING |
|
| 145 |
XKAH-00091 |
[1] |
RING-SNAP |
|
| 149 |
XKAH-00092 |
[1] |
BEARING-BALL |
|
| 150 |
XKAH-00093 |
[1] |
BEARING-BALL |
|
| 167 |
XKAH-00095 |
[1] |
PIVOT |
|
| 171 |
XKAH-00034 |
[2] |
PIN-PARALLEL |
|
| 193 |
XKAH-00094 |
[1] |
SPRING |
|
| *-2. |
@ |
[1] |
REDUCTION GEAR |
SEE 4174 |
| K. |
XKAH-00111 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|

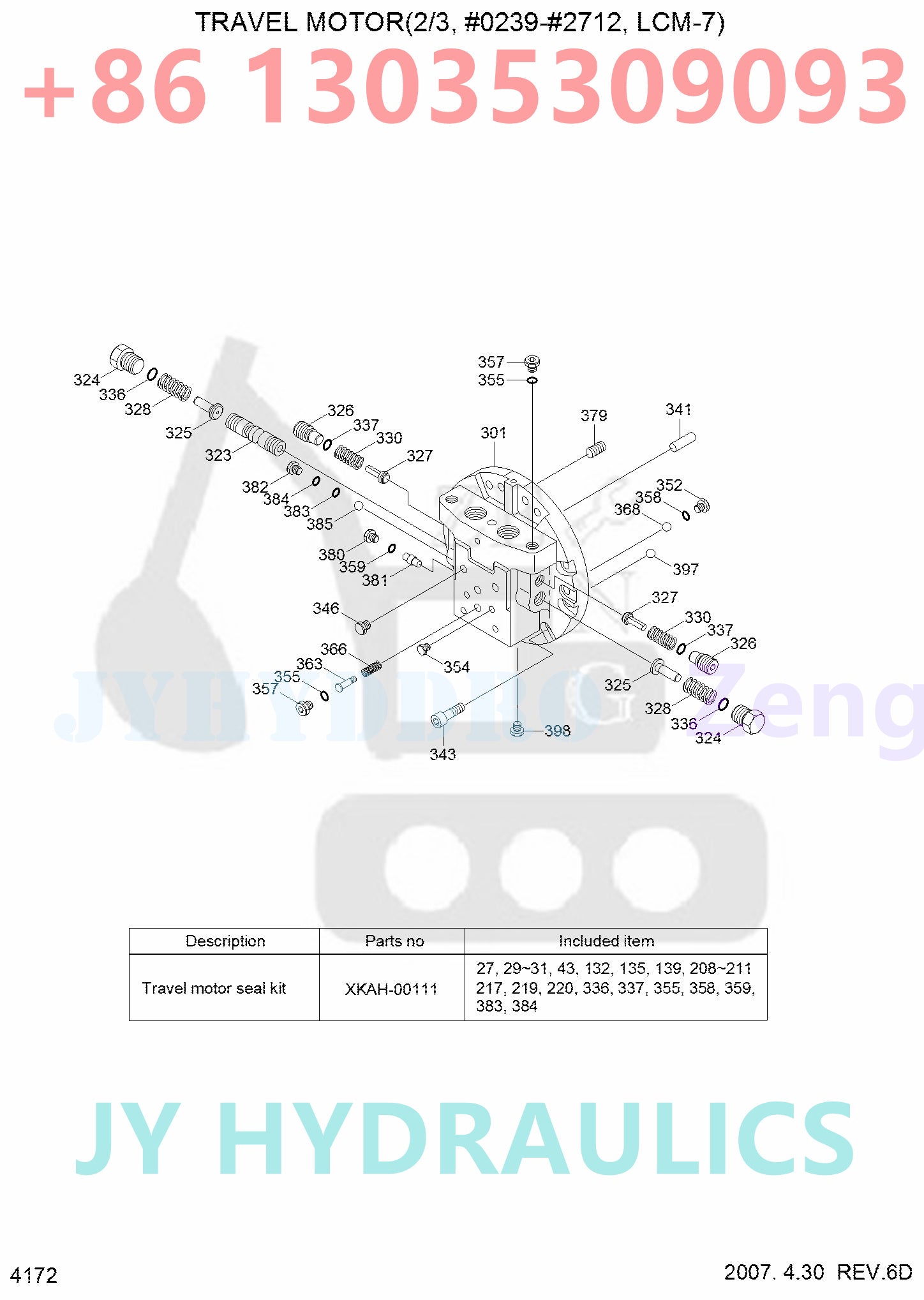

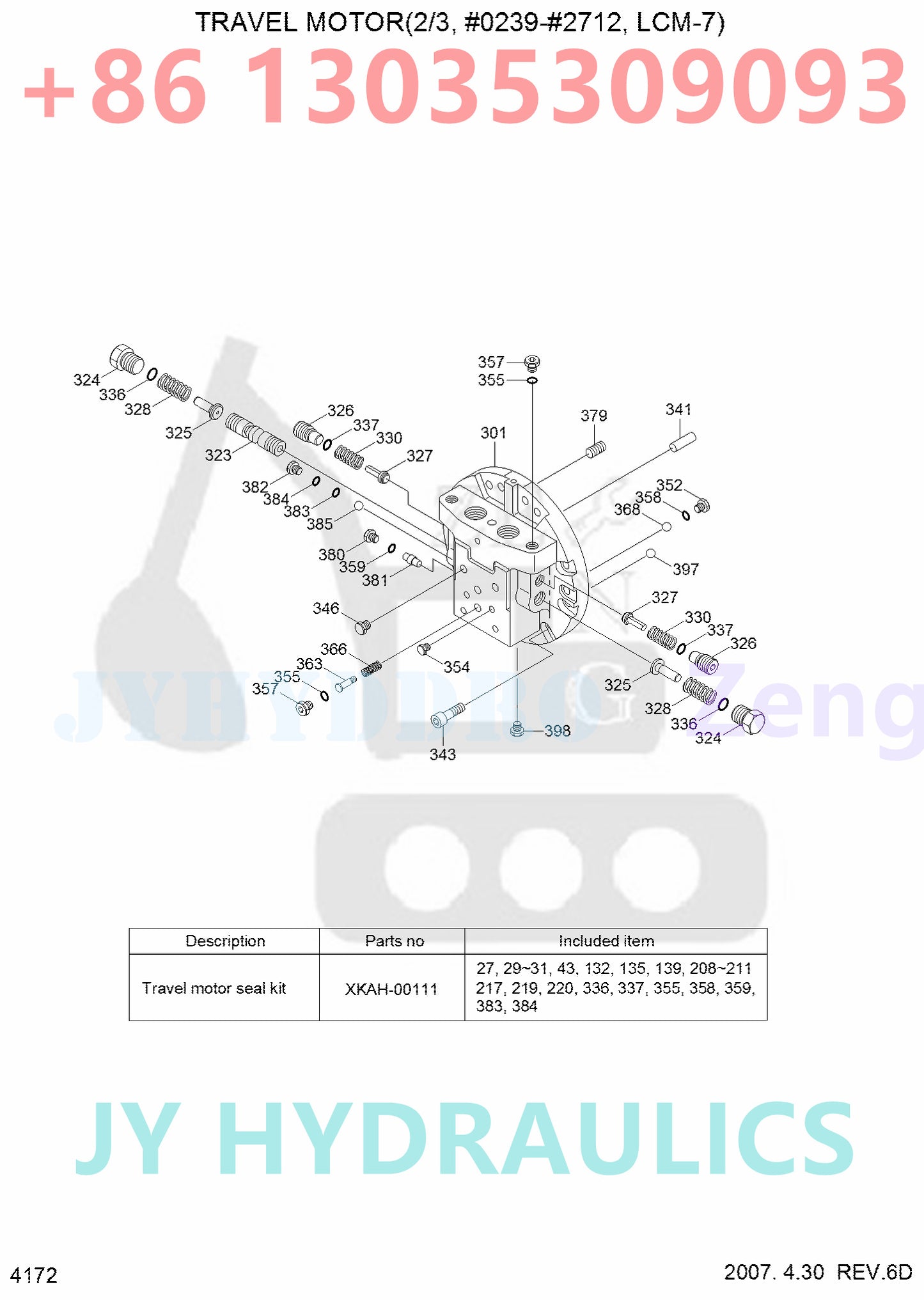

| Parts on group TRAVEL MOTOR(2/3, #0239-#2712, LCM-7): |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *-1. |
@ |
[1] |
TRAVEL MOTOR UNIT |
|
| *-7. |
XKAH-00469 |
[1] |
FLANGE ASSY-REAR |
|
| *-71. |
XKAH-00470 |
[1] |
REAR FLANGE KIT |
|
| 301 |
XKAH-00038 |
[1] |
REAR FLANGE |
|
| N323. |
XKAH-00471 |
[1] |
SPOOL |
|
| 381 |
XKAH-00040 |
[1] |
PISTON |
|
| 324 |
XKAH-00041 |
[2] |
PLUG |
|
| 325 |
XKAH-00042 |
[2] |
STOPPER |
|
| 326 |
XKAH-00043 |
[2] |
PLUG |
|
| 327 |
XKAH-00044 |
[2] |
VALVE-CHECK |
|
| 328 |
XKAH-00045 |
[2] |
SPRING |
|
| 330 |
XKAH-00046 |
[2] |
SPRING |
|
| K336. |
XKAH-00047 |
[2] |
O-RING |
|
| K337. |
XKAH-00048 |
[2] |
O-RING |
|
| 346 |
XKAH-00049 |
[2] |
PLUG-PT |
|
| 352 |
XKAH-00050 |
[2] |
PLUG-RO |
|
| 354 |
XKAH-00051 |
[8] |
PLUG-NPTF |
|
| K355. |
XKAH-00035 |
[2] |
O-RING |
|
| 357 |
XKAH-00032 |
[2] |
PLUG-RO |
|
| K358. |
XKAH-00052 |
[2] |
O-RING |
|
| K359. |
XKAH-00053 |
[2] |
O-RING |
|
| 363 |
XKAH-00054 |
[1] |
SPOOL-2 SPEED |
|
| 366 |
XKAH-00472 |
[1] |
SPRING |
|
| 368 |
XKAH-00056 |
[2] |
BALL-STEEL |
|
| 379 |
XKAH-00057 |
[1] |
FILTER |
|
| 380 |
XKAH-00058 |
[2] |
PLUG |
|
| 382 |
XKAH-00059 |
[2] |
PLUG |
|
| K383. |
XKAH-00060 |
[2] |
O-RING |
|
| K384. |
XKAH-00027 |
[2] |
O-RING |
|
| 385 |
XKAH-00061 |
[2] |
BALL-STEEL |
|
| 397 |
XKAH-00062 |
[1] |
ORIFICE |
|
| 398 |
XKAH-00063 |
[4] |
PLUG-PT |
|
| N399. |
XKAH-00473 |
[1] |
NAME PLATE |
|
| 341 |
XKAH-00065 |
[1] |
PIN-PARALLEL |
|
| 343 |
XKAH-00066 |
[12] |
BOLT-SOCKET |
|
| *-2. |
@ |
[1] |
REDUCTION GEAR |
SEE 4174 |
| K. |
XKAH-00111 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|

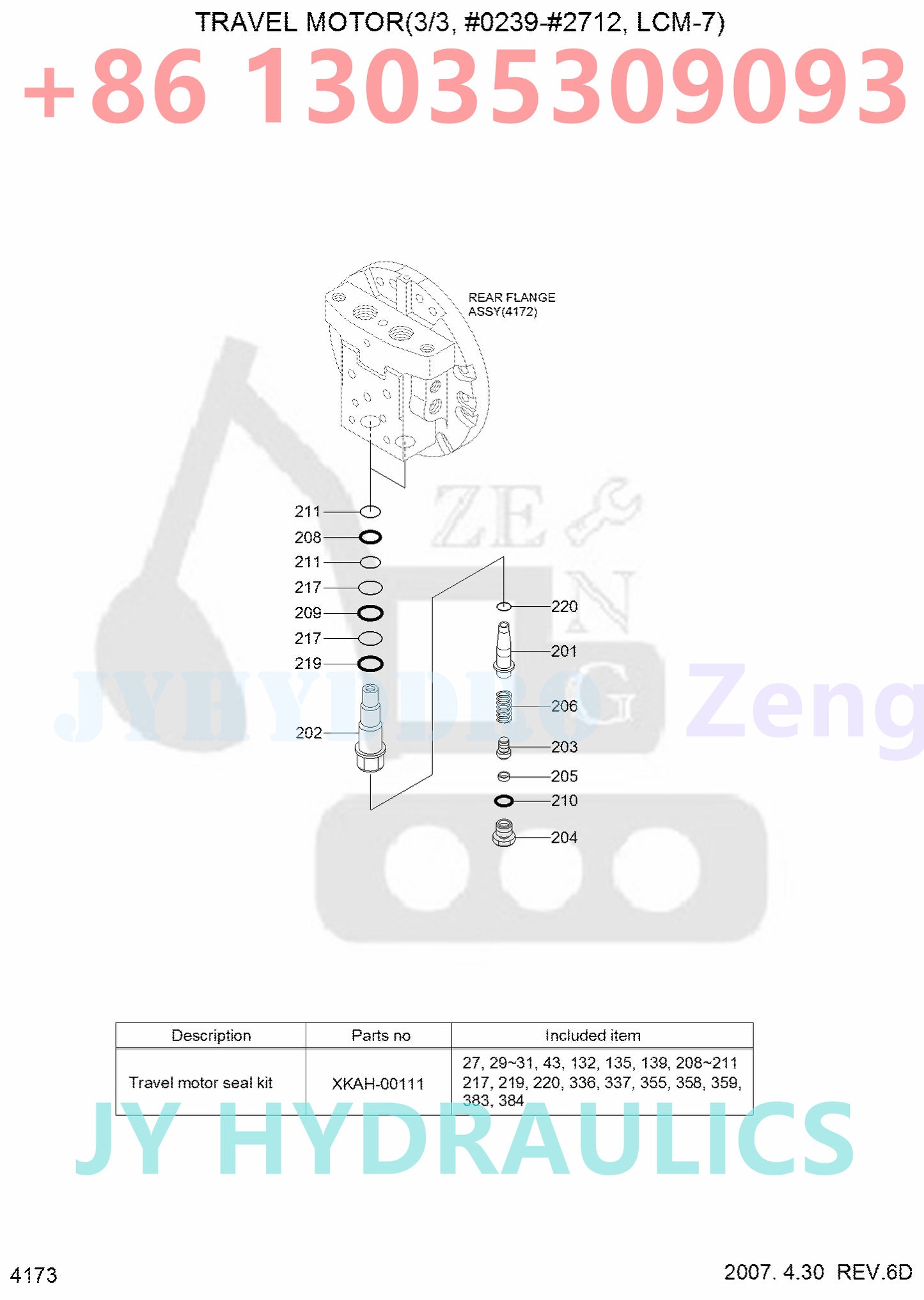

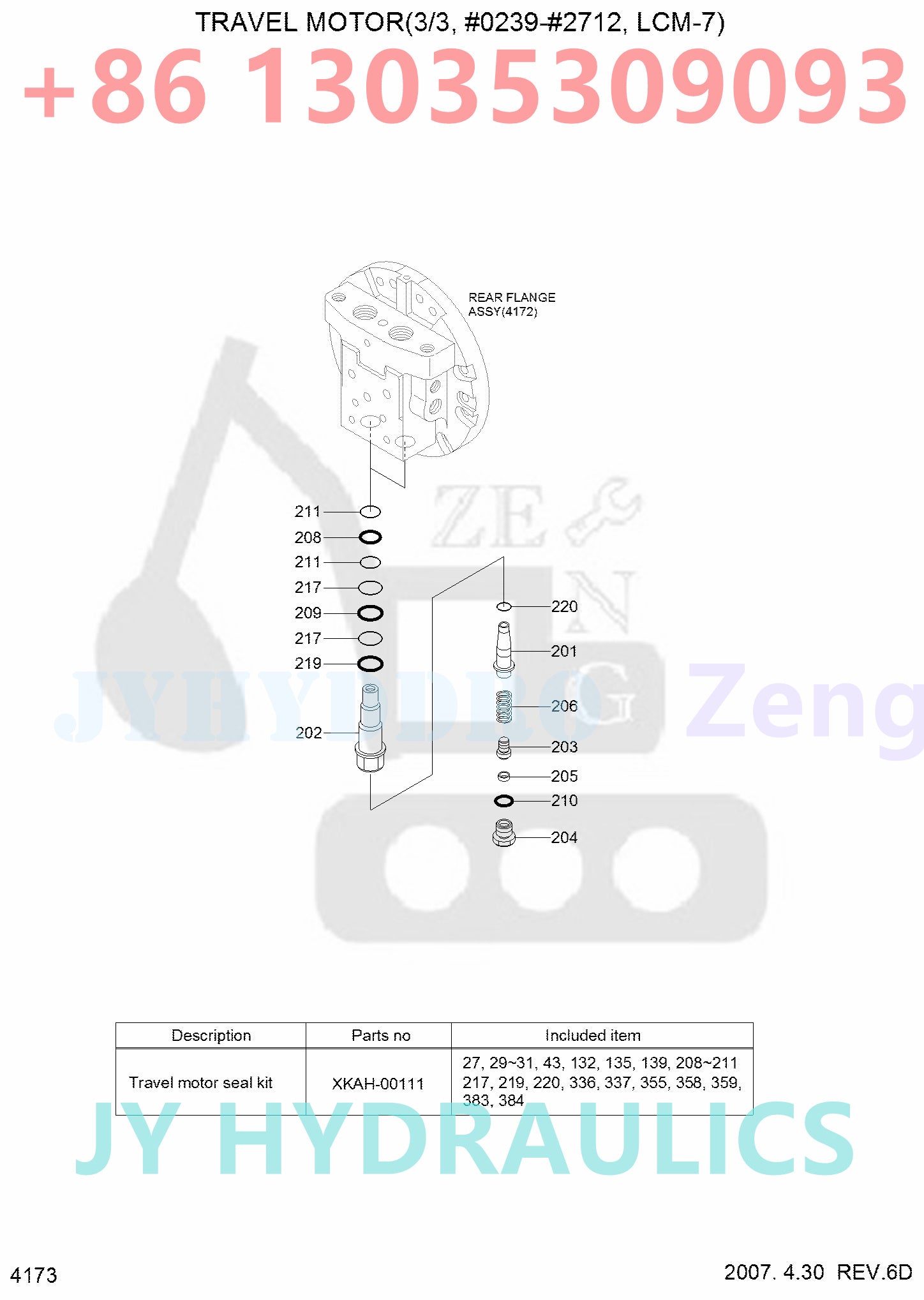

| Parts on group TRAVEL MOTOR(3/3, #0239-#2712, LCM-7): |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *-1. |
@ |
[1] |
TRAVEL MOTOR UNIT |
|
| *-8. |
XKAH-00096 |
[2] |
RELIEF VALVE ASSY |
|
| *-81. |
XKAH-00097 |
[1] |
RELIEF VALVE KIT |
|
| 201 |
XKAH-00098 |
[1] |
VALVE |
|
| 202 |
XKAH-00099 |
[1] |
SLEEVE |
|
| 203 |
XKAH-00100 |
[1] |
RETAINER-SPRING |
|
| 204 |
XKAH-00101 |
[1] |
PLUG |
|
| 205 |
XKAH-00102 |
[1] |
SHIM |
|
| 206 |
XKAH-00103 |
[1] |
SPRING |
|
| K208. |
XKAH-00104 |
[1] |
O-RING |
|
| K209. |
XKAH-00105 |
[1] |
O-RING |
|
| K210. |
XKAH-00035 |
[1] |
O-RING |
|
| K211. |
XKAH-00106 |
[2] |
RING-BACK UP |
|
| K217. |
XKAH-00107 |
[2] |
RING-BACK UP |
|
| K219. |
XKAH-00108 |
[1] |
O-RING |
|
| K220. |
XKAH-00109 |
[1] |
SEAL-PISTON |
|
| *-2. |
@ |
[1] |
REDUCTION GEAR |
SEE 4174 |
| K. |
XKAH-00111 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|
