31E6-42000 31E6-42000BG XKAH-00322
R130LC-3 R140LC-7 R140LC-7A |
|
|
|
|
|

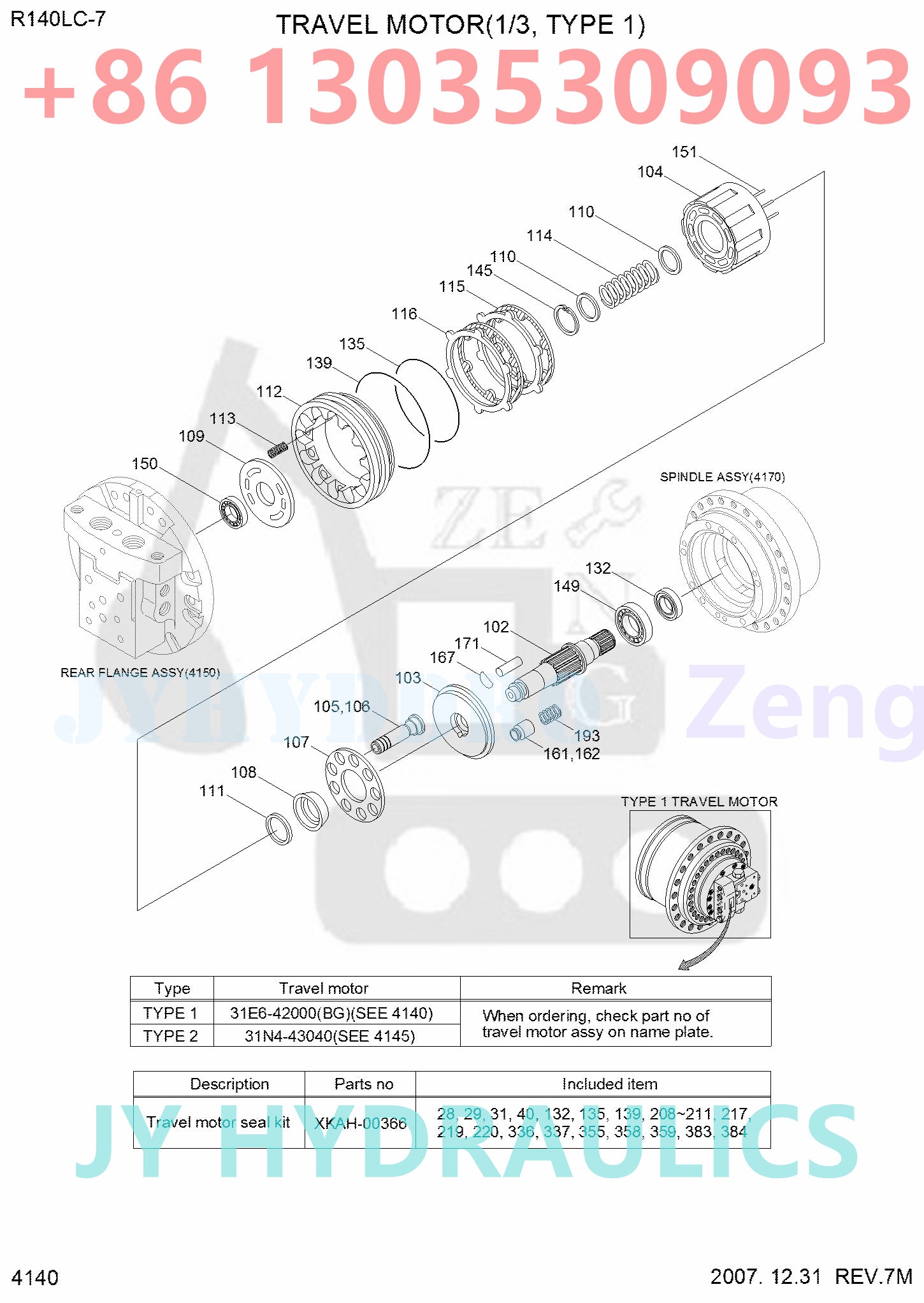

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31E6-42000 |
[1] |
TRACK MOTOR |
*-1,2,3,4 |
| *. |
31E6-42000BG |
[1] |
TRACK MOTOR |
|
| N*-3. |
XKAH-00322 |
[1] |
TRAVEL MOTOR UNIT |
|
| *-30. |
XKAH-00321 |
[1] |
C/BLOCK & PISTON KIT |
|
| *-31. |
XKAH-00068 |
[1] |
PISTON ASSY |
|
| N105. |
XKAH-00069 |
[9] |
PISTON |
|
| N106. |
XKAH-00070 |
[9] |
SHOE |
|
| 104 |
XKAH-00320 |
[1] |
BLOCK-CYLINDER |
|
| 107 |
XKAH-00072 |
[1] |
PLATE-RETAINER |
|
| 108 |
XKAH-00073 |
[1] |
BALL-THRUST |
|
| 110 |
XKAH-00074 |
[2] |
WASHER |
|
| 111 |
XKAH-00318 |
[1] |
COLLAR |
|
| 114 |
XKAH-00076 |
[1] |
SPRING |
|
| 151 |
XKAH-00077 |
[5] |
ROLLER |
|
| *-32. |
XKAH-00078 |
[1] |
PISTON KIT-2 SPEED |
|
| N161. |
XKAH-00079 |
[1] |
PISTON-2 SPEED |
|
| N162. |
XKAH-00080 |
[1] |
SHOE-2 SPEED |
|
| 102 |
XKAH-00317 |
[1] |
SHAFT-MAIN |
|
| 103 |
XKAH-00316 |
[1] |
TIMING PLATE |
|
| 109 |
XKAH-00083 |
[1] |
PLATE-TIMING |
|
| 112 |
XKAH-00084 |
[1] |
PISTON-PARKING |
|
| 113 |
XKAH-00085 |
[12] |
SPRING |
|
| 115 |
XKAH-00086 |
[2] |
PLATE-FRICTION |
|
| 116 |
XKAH-00087 |
[2] |
PLATE-MATING |
|
| K132. |
XKAH-00088 |
[1] |
SEAL-OIL |
|
| K135. |
XKAH-00089 |
[1] |
O-RING |
|
| K139. |
XKAH-00090 |
[1] |
O-RING |
|
| 145 |
XKAH-00315 |
[1] |
RING-SNAP |
|
| 149 |
XKAH-00314 |
[1] |
BEARING-BALL |
|
| 150 |
XKAH-00313 |
[1] |
BEARING-BALL |
|
| 193 |
XKAH-00094 |
[1] |
SPRING-2 SPEED |
|
| 167 |
XKAH-00095 |
[1] |
PIVOT |
|
| 171 |
XKAH-00034 |
[2] |
PIN-PARALLEL |
|
| *-1. |
XKAH-00367 |
[1] |
REDUCTION GEAR ASSY |
|
| N*-2. |
XKAH-00333 |
[1] |
CONTROL UNIT |
|
| *-4. |
XKAH-00097 |
[1] |
RELIEF VALVE KIT |
|
| K. |
XKAH-00366 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|

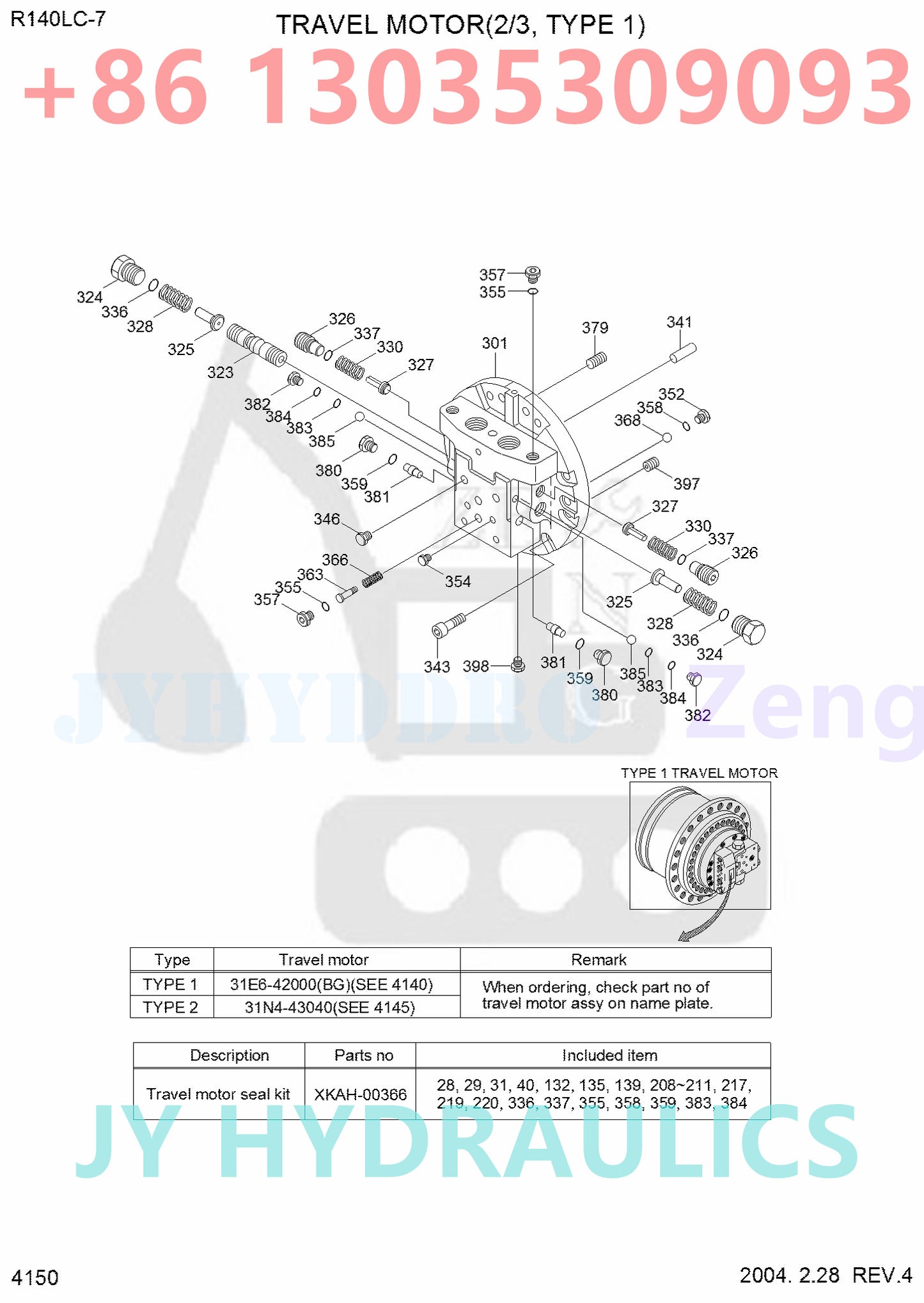

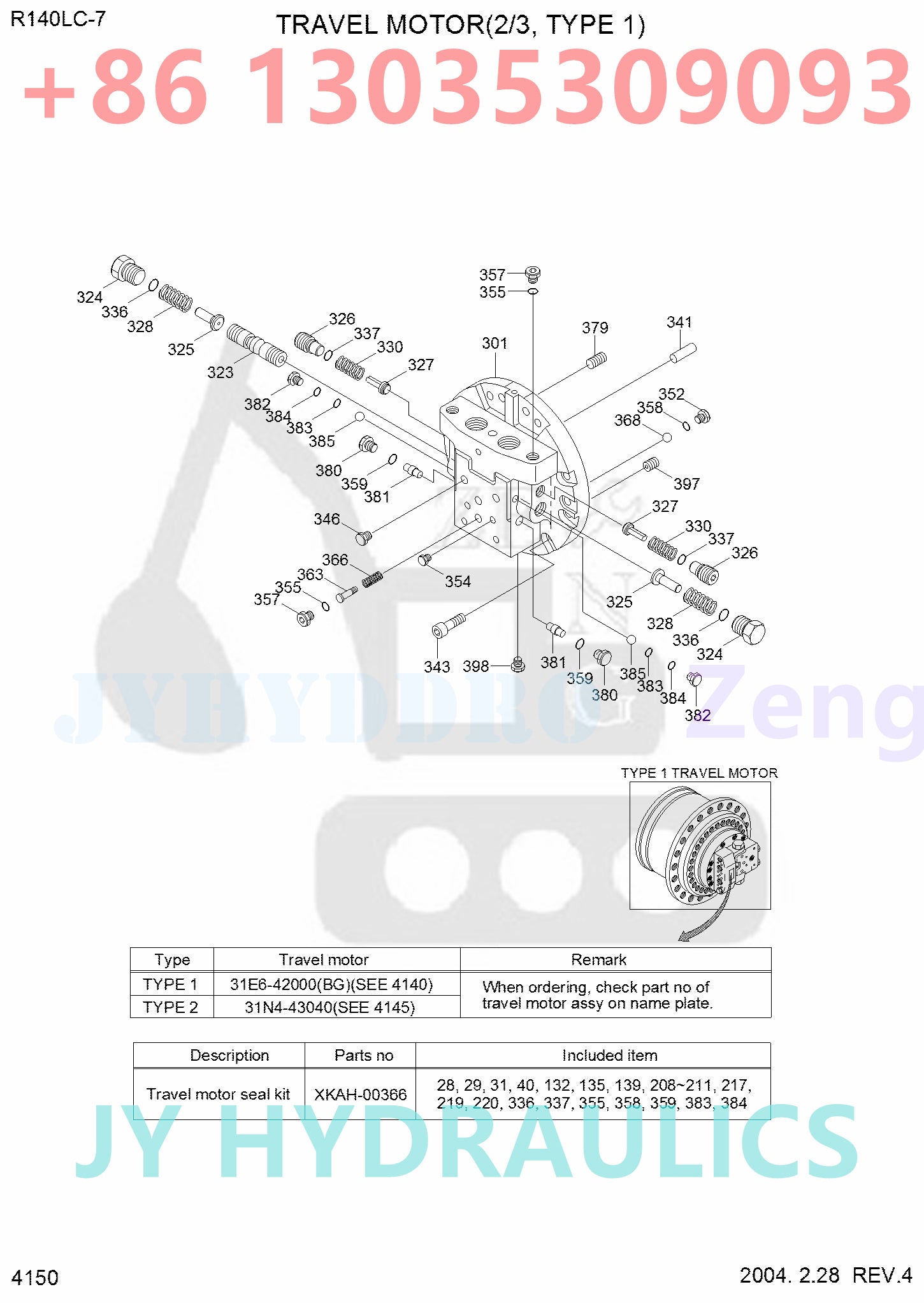

| Parts on group TRAVEL MOTOR(2/3, TYPE 1): |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR |
*-1,2,3,4 |
| N*-2. |
XKAH-00333 |
[1] |
CONTROL UNIT |
|
| *-20. |
XKAH-00332 |
[1] |
REAR FLANGE ASSY |
|
| *-21. |
XKAH-00331 |
[1] |
REAR FLANGE KIT |
|
| N301. |
XKAH-00330 |
[1] |
FLANGE-REAR |
|
| 323 |
XKAH-00329 |
[1] |
SPOOL |
|
| 323 |
XKAH-00636 |
[1] |
SPOOL |
|
| 381 |
XKAH-00040 |
[1] |
PISTON |
|
| 381 |
XKAH-00635 |
[1] |
PISTON |
|
| 324 |
XKAH-00328 |
[2] |
PLUG |
|
| 325 |
XKAH-00042 |
[2] |
STOPPER |
|
| 325 |
XKAH-00634 |
[2] |
STOPPER |
|
| 326 |
XKAH-00043 |
[2] |
PLUG |
|
| 327 |
XKAH-00044 |
[2] |
VALVE-CHECK |
|
| 328 |
XKAH-00045 |
[2] |
SPRING |
|
| 330 |
XKAH-00046 |
[2] |
SPRING |
|
| K336. |
XKAH-00047 |
[2] |
O-RING |
|
| K337. |
XKAH-00048 |
[2] |
O-RING |
|
| 346 |
XKAH-00327 |
[2] |
PLUG-PT |
|
| 352 |
XKAH-00050 |
[2] |
PLUG-RO |
|
| 354 |
XKAH-00208 |
[8] |
PLUG-PT |
|
| K355. |
XKAH-00035 |
[2] |
O-RING |
|
| 357 |
XKAH-00032 |
[2] |
PLUG-RO |
|
| K358. |
XKAH-00052 |
[2] |
O-RING |
|
| K359. |
XKAH-00326 |
[2] |
O-RING |
|
| 363 |
XKAH-00054 |
[1] |
SPOOL-2 SPEED |
|
| 366 |
XKAH-00055 |
[1] |
SPRING |
|
| 368 |
XKAH-00056 |
[2] |
BALL-STEEL |
|
| 379 |
XKAH-00057 |
[1] |
FILTER |
|
| 380 |
XKAH-00058 |
[2] |
PLUG |
|
| 382 |
XKAH-00059 |
[2] |
PLUG |
|
| K383. |
XKAH-00060 |
[2] |
O-RING |
|
| K384. |
XKAH-00194 |
[2] |
O-RING |
|
| 385 |
XKAH-00061 |
[2] |
BALL-STEEL |
|
| 397 |
XKAH-00062 |
[1] |
ORIFICE |
|
| 398 |
XKAH-00325 |
[4] |
PLUG |
|
| 399 |
XKAH-00324 |
[1] |
PLATE-NAME |
|
| 341 |
XKAH-00065 |
[1] |
PIN-PARALLEL |
|
| 343 |
XKAH-00066 |
[12] |
BOLT-SOCKET |
|
| *-1. |
XKAH-00367 |
[1] |
REDUCTION GEAR ASSY |
|
| N*-3. |
XKAH-00322 |
[1] |
TRAVEL MOTOR UNIT |
|
| *-4. |
XKAH-00097 |
[1] |
RELIEF VALVE KIT |
|
| K. |
XKAH-00366 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|

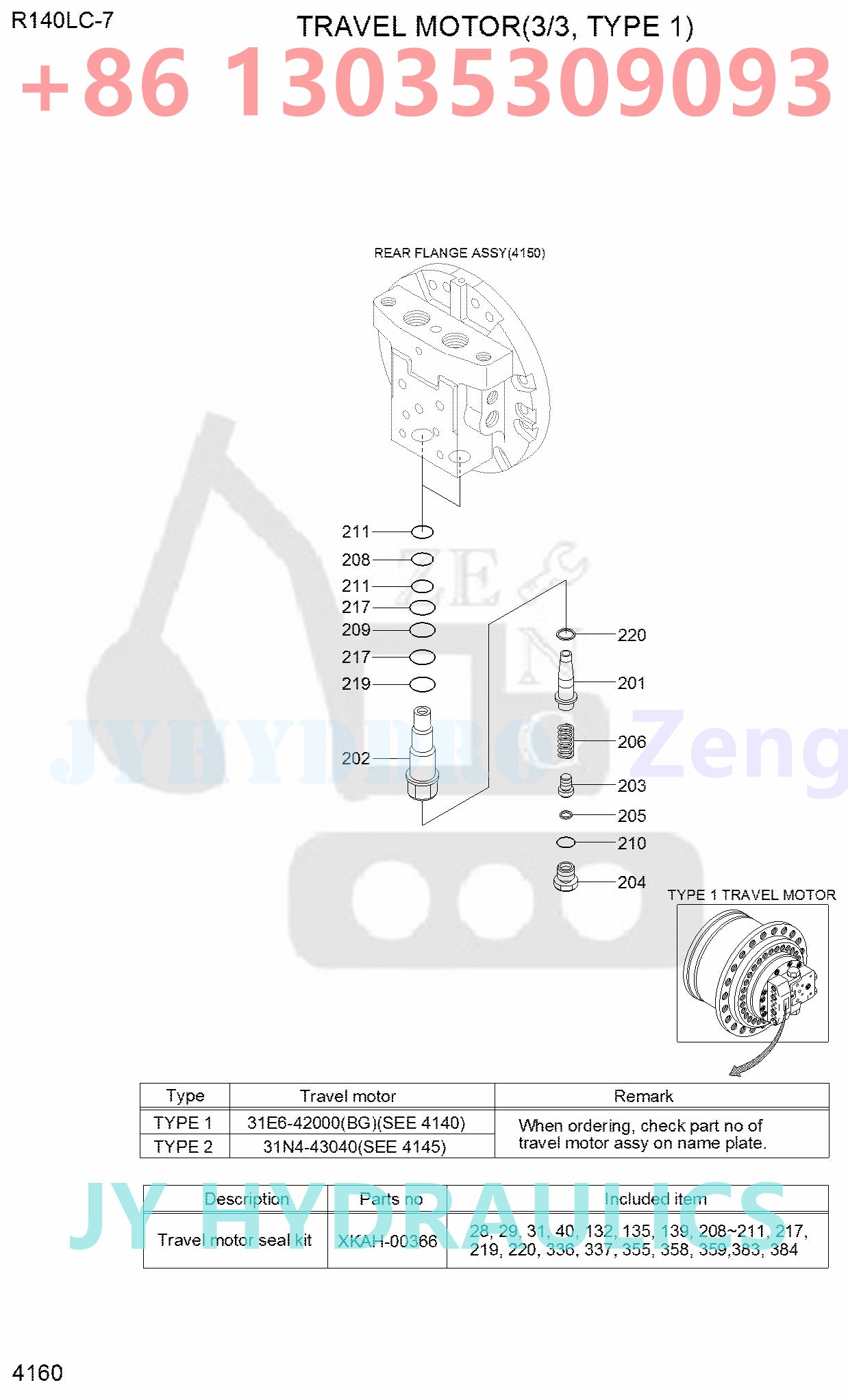

| Parts on group TRAVEL MOTOR(3/3, TYPE 1): |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR |
*-1,2,3,4 |
| *-4. |
XKAH-00097 |
[2] |
RELIEF VALVE KIT |
|
| 201 |
XKAH-00098 |
[1] |
VALVE |
|
| 202 |
XKAH-00099 |
[1] |
SLEEVE |
|
| 203 |
XKAH-00100 |
[1] |
RETAINER-SPRING |
|
| 204 |
XKAH-00101 |
[1] |
PLUG |
|
| 205 |
XKAH-00102 |
[1] |
SHIM |
|
| 206 |
XKAH-00103 |
[1] |
SPRING |
|
| 208 |
XKAH-00104 |
[1] |
O-RING |
|
| 209 |
XKAH-00105 |
[1] |
O-RING |
|
| 210 |
XKAH-00035 |
[1] |
O-RING |
|
| 211 |
XKAH-00106 |
[2] |
RING-BACK UP |
|
| 217 |
XKAH-00107 |
[2] |
RING-BACK UP |
|
| 219 |
XKAH-00108 |
[1] |
O-RING |
|
| 220 |
XKAH-00109 |
[1] |
SEAL-PISTON |
|
| *-1. |
XKAH-00367 |
[1] |
REDUCTION GEAR ASSY |
|
| N*-2. |
XKAH-00333 |
[1] |
CONTROL UNIT |
|
| N*-3. |
XKAH-00322 |
[1] |
TRAVEL MOTOR UNIT |
|
| K. |
XKAH-00366 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|
