31Q5-10010
HX160L HX180L R160LC-9 R160LC-9A R160LC-9S R160LC-9S(BRAZIL) R180LC-9 R180LC-9A R180LC-9S |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31Q5-10010 |
[1] |
MAIN PUMP |
|
| *-1. |
@ |
[1] |
MAIN PUMP UNIT |
|
| 111 |
XJBN-00802 |
[1] |
SHAFT(F)-DRIVE |
|
| 113 |
XJBN-00803 |
[1] |
SHAFT(R)-DRIVE |
|
| 116 |
XJBN-00804 |
[1] |
GEAR-1ST |
|
| 123 |
XJBN-00429 |
[2] |
BEARING-ROLLER |
|
| 124 |
XJBN-00805 |
[2] |
BEARING-NEEDLE |
|
| 127 |
XJBN-00806 |
[4] |
SPACER-BEARING |
|
| NS141. |
XJBN-00807 |
[2] |
BLOCK-CYLINDER |
|
| NS151. |
XJBN-00425 |
[18] |
PISTON |
|
| NS152. |
XJBN-01278 |
[18] |
SHOE |
|
| 153 |
XJBN-00808 |
[2] |
PLATE-SET |
|
| 156 |
XJBN-00422 |
[2] |
BUSHING-SPHERICAL |
|
| 157 |
XJBN-00421 |
[18] |
SPRING-CYLINDER |
|
| 211 |
XJBN-00420 |
[2] |
PLATE-SHOE |
|
| S212. |
XJBN-00419 |
[2] |
PLATE-SWASH |
|
| S214. |
XJBN-00418 |
[2] |
BUSHING-TILTING |
|
| 251 |
XJBN-00417 |
[2] |
SUPPORT |
|
| 261 |
XJBN-00809 |
[1] |
COVER-FR |
|
| 271 |
XJBN-01046 |
[2] |
CASING-PUMP |
|
| 312 |
XJBN-00812 |
[1] |
BLOCK-VALVE |
|
| NS313. |
XJBN-01045 |
[1] |
PLATE(R)-VALVE |
|
| NS314. |
XJBN-01044 |
[1] |
PLATE(L)-VALVE |
|
| 326 |
XJBN-00937 |
[1] |
COVER |
|
| 401 |
XJBN-00411 |
[8] |
SCREW |
|
| 406 |
XJBN-00813 |
[8] |
SCREW |
|
| 414 |
XJBN-00160 |
[4] |
SCREW-SOCKET |
|
| 466 |
XJBN-00030 |
[2] |
PLUG |
|
| 467 |
XJBN-00487 |
[4] |
PLUG |
|
| 468 |
XJBN-00814 |
[2] |
PLUG |
|
| 490 |
XJBN-00032 |
[15] |
PLUG |
|
| S531. |
XJBN-00815 |
[2] |
PIN-TILTING |
|
| 532 |
XJBN-00407 |
[2] |
PISTON-SERVO |
|
| 534 |
XJBN-00816 |
[2] |
STOPPER(L) |
|
| 535 |
XJBN-00405 |
[2] |
STOPPER(S) |
|
| NS548. |
XJBN-00360 |
[2] |
PIN-FEED BACK |
|
| K702. |
XJBN-00817 |
[2] |
O-RING |
|
| K710. |
XJBN-00387 |
[1] |
O-RING |
|
| K711. |
XJBN-00095 |
[1] |
O-RING |
|
| K717. |
XJBN-00818 |
[2] |
O-RING |
|
| K719. |
XJBN-00819 |
[2] |
O-RING |
|
| K724. |
XJBN-00044 |
[18] |
O-RING |
|
| K725. |
XJBN-00045 |
[2] |
O-RING |
|
| K727. |
XJBN-00233 |
[2] |
O-RING |
|
| K728. |
XJBN-00097 |
[4] |
O-RING |
|
| K732. |
XJBN-00820 |
[2] |
O-RING |
|
| 735 |
XJBN-00280 |
[1] |
O-RING |
|
| K774. |
XJBN-01029 |
[1] |
SEAL-OIL |
|
| K789. |
XJBN-00476 |
[2] |
RING-BACK UP |
|
| K792. |
XJBN-00454 |
[2] |
RING BACK-UP |
|
| 808 |
XJBN-00101 |
[4] |
NUT-HEX |
|
| 824 |
XJBN-00821 |
[2] |
RING-SNAP |
|
| 885 |
XJBN-00394 |
[2] |
PIN-VALVE PLATE |
|
| 886 |
XJBN-00054 |
[4] |
PIN-SPRING |
|
| 901 |
XJBN-00104 |
[2] |
BOLT-EYE |
|
| 953 |
XJBN-00105 |
[2] |
SCREW-SET |
|
| 954 |
XJBN-00392 |
[2] |
SCREW-SET |
|
| 981 |
XJBN-00156 |
[1] |
NAME PLATE |
|
| 983 |
XJBN-00455 |
[2] |
PIN |
|
| *-2. |
@ |
[1] |
REGULATOR |
SEE 4020 |
| *-3. |
@ |
[1] |
PUMP-GEAR |
SEE 4030 |
| 11 |
XJBN-01572 |
[2] |
PISTON SUB ASSY |
SEE ILLUST |
| 13 |
XJBN-01048 |
[1] |
CYLINDER SUB ASSY-RH |
SEE ILLUST |
| 14 |
XJBN-01047 |
[1] |
CYLINDER SUB ASSY-LH |
SEE ILLUST |
| 30 |
XJBN-00800 |
[2] |
SWASH PLATE SUB ASSY |
SEE ILLUST |
| 530 |
XJBN-00801 |
[2] |
TILTING PIN SUB ASSY |
SEE ILLUST |
| K. |
XJBN-01780 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
| Parts on group REGULATOR: |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
MAIN PUMP |
SEE 4010 |
| *-2. |
XJBN-01571 |
[1] |
REGULATOR ASSY |
REAR |
| *-2. |
XJBN-01570 |
[1] |
REGULATOR ASSY |
FRONT |
| 405 |
XJBN-00823 |
[4] |
SCREW-HEX |
REAR |
| 412 |
XJBN-00321 |
[2] |
SCREW-HEX |
|
| 413 |
XJBN-00320 |
[2] |
SCREW-HEX |
|
| 436 |
XJBN-00319 |
[2] |
SCREW-HEX |
|
| 438 |
XJBN-00318 |
[6] |
SCREW-HEX |
REAR |
| 438 |
XJBN-00318 |
[10] |
SCREW-HEX |
FRONT |
| 466 |
XJBN-00030 |
[1] |
PLUG |
REAR |
| 496 |
XJBN-00032 |
[6] |
PLUG |
REAR |
| 496 |
XJBN-00032 |
[5] |
PLUG |
FRONT |
| 601 |
XJBN-00317 |
[1] |
CASING |
|
| 611 |
XJBN-00824 |
[1] |
LEVER |
|
| 612 |
XJBN-00315 |
[1] |
LEVER-1 |
|
| 613 |
XJBN-00314 |
[1] |
LEVER-2 |
|
| 614 |
XJBN-00313 |
[1] |
PLUG-CENTER |
|
| 615 |
XJBN-00312 |
[1] |
PLUG-ADJUST |
|
| 621 |
XJBN-00580 |
[1] |
PISTON |
|
| 622 |
XJBN-00581 |
[1] |
CASE-PISTON |
|
| N623. |
XJBN-01202 |
[1] |
ROD-COMPENSATOR |
|
| N624. |
XJBN-01203 |
[1] |
SEAT(C)-SPRING |
|
| 625 |
XJBN-00582 |
[1] |
SPRING-OUTER |
|
| 626 |
XJBN-00306 |
[1] |
SPRING-INNER |
|
| 627 |
XJBN-01024 |
[1] |
STEM(C)-ADJUST |
|
| 628 |
XJBN-01025 |
[1] |
SCREW(C)-ADJUST |
|
| 629 |
XJBN-00303 |
[1] |
COVER(C) |
|
| 630 |
XJBN-00302 |
[1] |
NUT-LOCK |
|
| 631 |
XJBN-00825 |
[1] |
SLEEVE |
|
| 641 |
XJBN-00871 |
[1] |
COVER-PILOT |
|
| N643. |
XJBN-01205 |
[1] |
PISTON-PILOT |
|
| N644. |
XJBN-01206 |
[1] |
SEAT(Q)-SPRING |
|
| 645 |
XJBN-00793 |
[1] |
STEM(Q)-ADJUST |
|
| 646 |
XJBN-00295 |
[1] |
SPRING-PILOT |
|
| 651 |
XJBN-00443 |
[1] |
SLEEVE |
|
| 652 |
XJBN-00291 |
[1] |
SPOOL |
|
| 653 |
XJBN-00290 |
[1] |
SEAT-SPRING |
|
| 654 |
XJBN-00289 |
[1] |
SPRING-RETURN |
|
| 655 |
XJBN-00288 |
[1] |
SPRING-SET |
|
| 656 |
XJBN-00287 |
[1] |
COVER-BLOCK |
FRONT |
| 699 |
XJBN-00442 |
[1] |
CASING |
REAR |
| 708 |
XJBN-00286 |
[1] |
O-RING |
|
| 722 |
XJBN-00285 |
[1] |
O-RING |
REAR |
| 722 |
XJBN-00285 |
[3] |
O-RING |
FRONT |
| 724 |
XJBN-00044 |
[9] |
O-RING |
|
| 725 |
XJBN-00231 |
[1] |
O-RING |
|
| 728 |
XJBN-00097 |
[1] |
O-RING |
|
| 730 |
XJBN-00230 |
[2] |
O-RING |
|
| 732 |
XJBN-00820 |
[1] |
O-RING |
|
| 733 |
XJBN-00282 |
[1] |
O-RING |
|
| 734 |
XJBN-00281 |
[1] |
O-RING |
|
| 753 |
XJBN-00441 |
[2] |
O-RING |
REAR |
| 754 |
XJBN-01026 |
[1] |
O-RING |
|
| 755 |
XJBN-00045 |
[3] |
O-RING |
REAR |
| 755 |
XJBN-00045 |
[2] |
O-RING |
REAR |
| 756 |
XJBN-00279 |
[1] |
O-RING |
|
| 763 |
XJBN-00094 |
[1] |
O-RING |
|
| 801 |
XJBN-00278 |
[1] |
NUT |
|
| 802 |
XJBN-01027 |
[1] |
NUT |
|
| 814 |
XJBN-00277 |
[1] |
RING-SNAP |
|
| 836 |
XJBN-00276 |
[1] |
RING-SNAP |
|
| 858 |
XJBN-00275 |
[2] |
RING-SNAP |
|
| 874 |
XJBN-00344 |
[3] |
PIN |
|
| 875 |
XJBN-00273 |
[2] |
PIN |
|
| 876 |
XJBN-00794 |
[2] |
PIN |
|
| 887 |
XJBN-00272 |
[1] |
PIN |
|
| 897 |
XJBN-00795 |
[1] |
PIN |
|
| N898. |
XJBN-00826 |
[1] |
PIN |
|
| 924 |
XJBN-00269 |
[1] |
SCREW-SET |
|
| 79 |
XJBN-00382 |
[1] |
EPPR VALVE |
|
| N. |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|

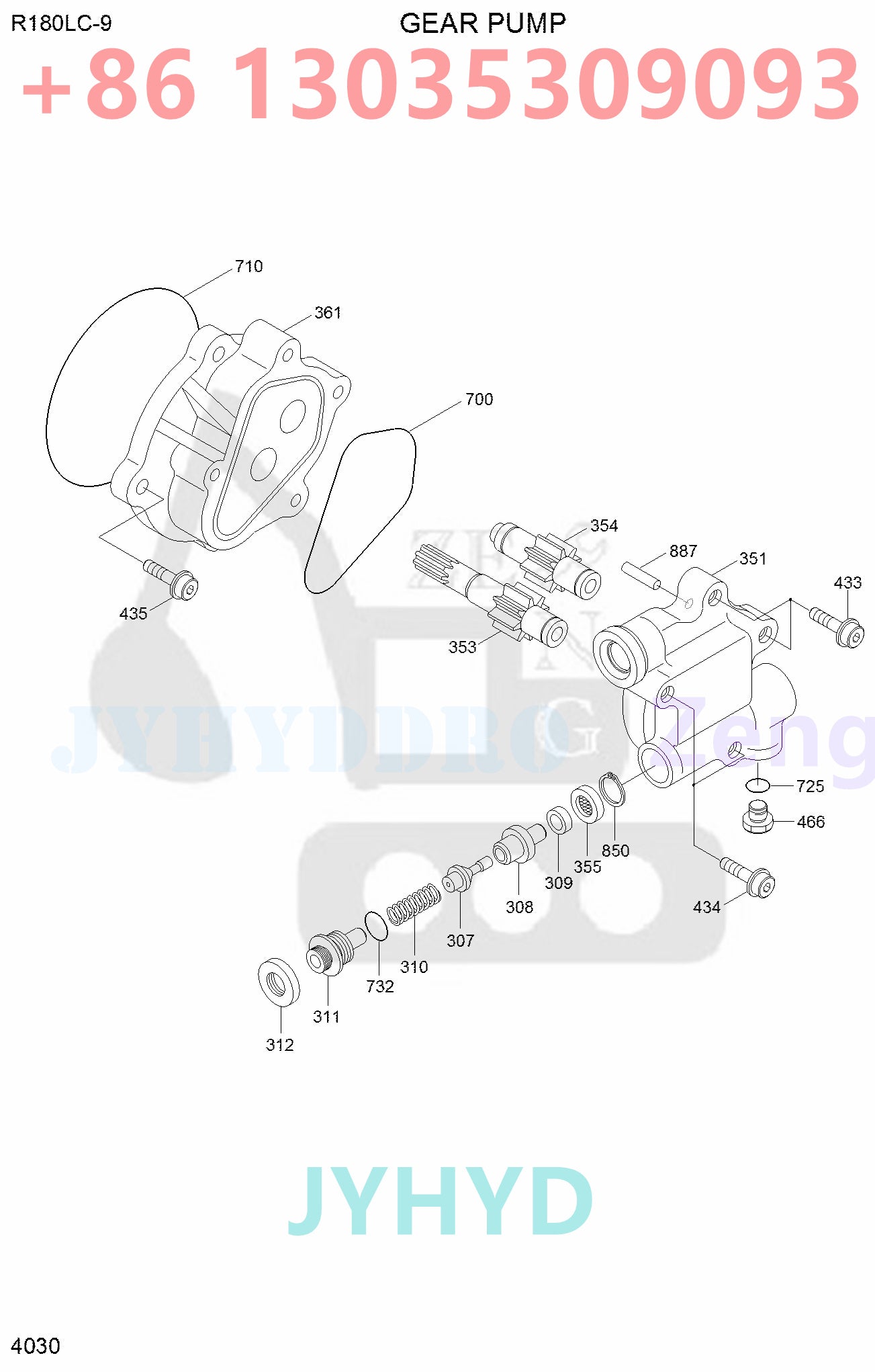

| Parts on group GEAR PUMP: |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *-3. |
XJBN-01569 |
[1] |
GEAR PUMP |
|
