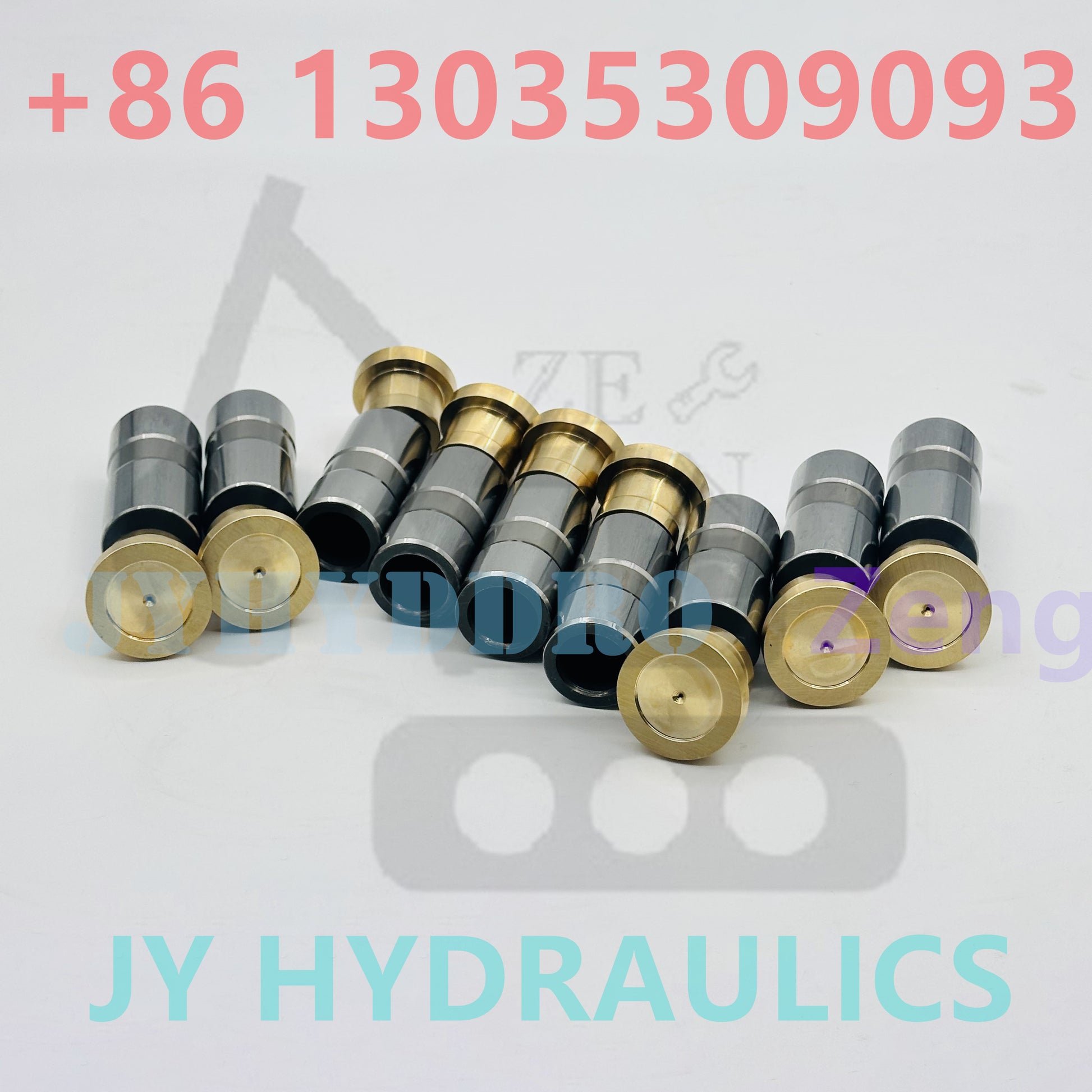

HYUNDAI 38Q6-40100 38Q6-40101 38Q6-41100 39Q6-40100 39Q6-40101 39Q6-41101 travel motor piston shoe piston subassembly

HYUNDAI 38Q6-40100 38Q6-40101 38Q6-41100 39Q6-40100 39Q6-40101 39Q6-41101 travel motor piston shoe piston subassembly

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

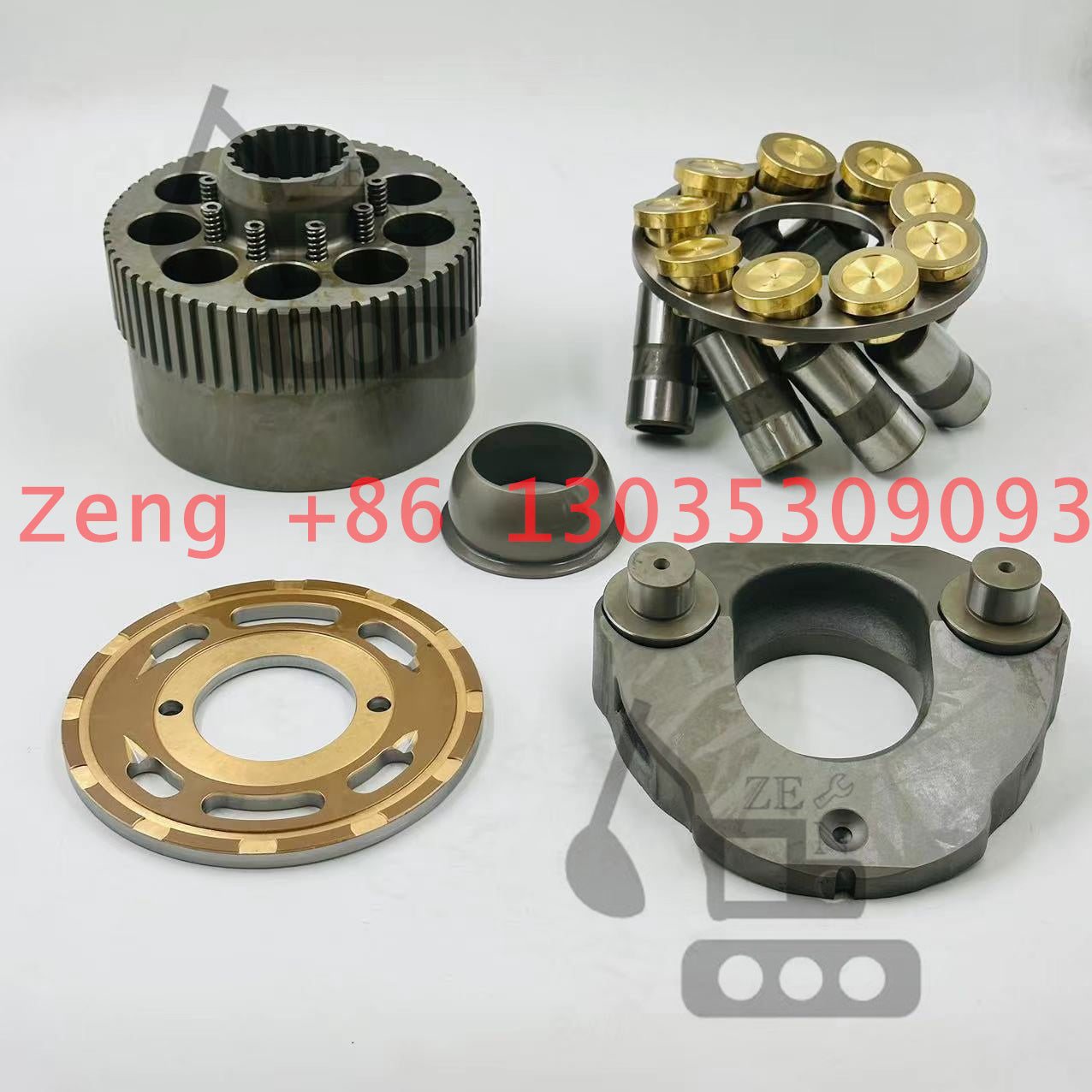

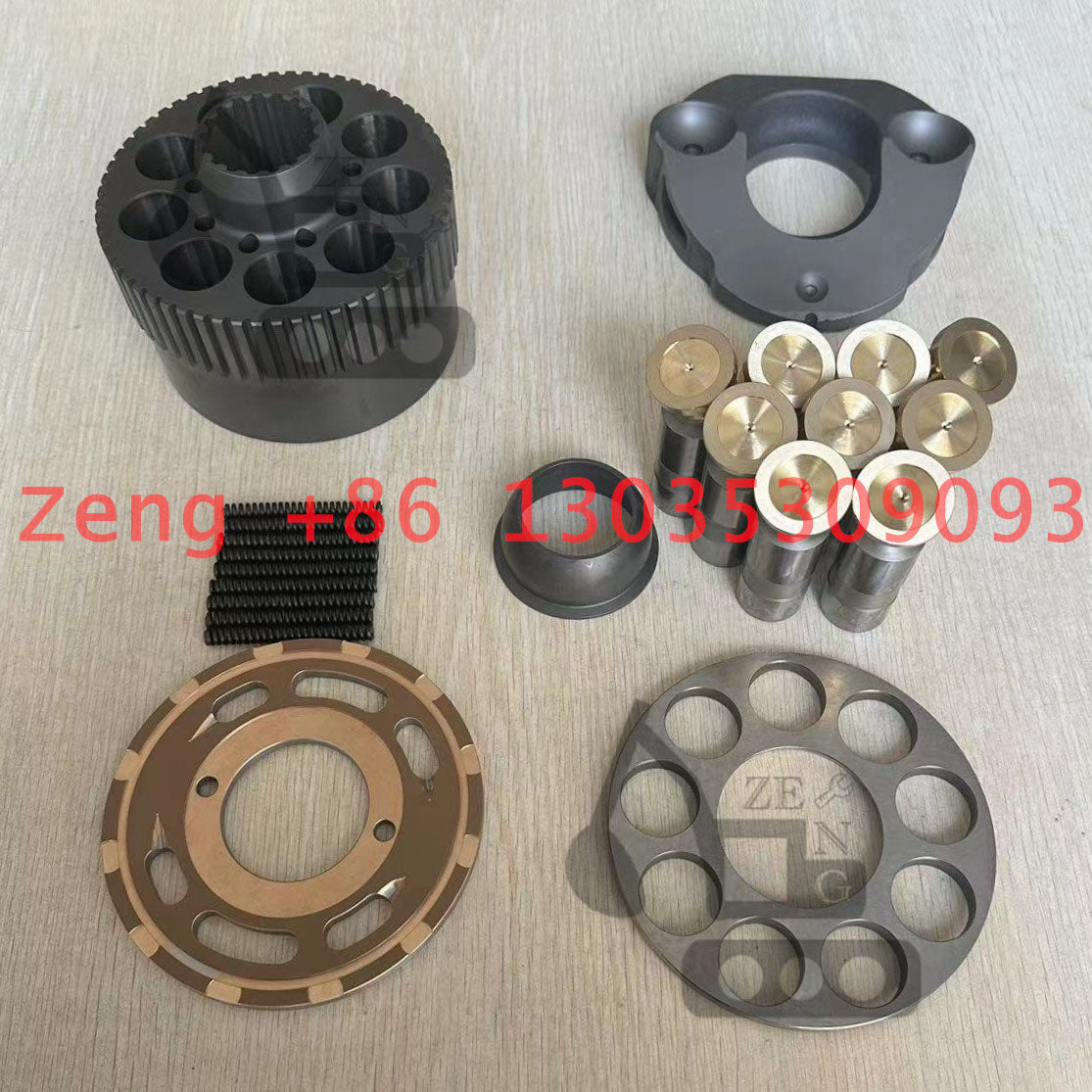

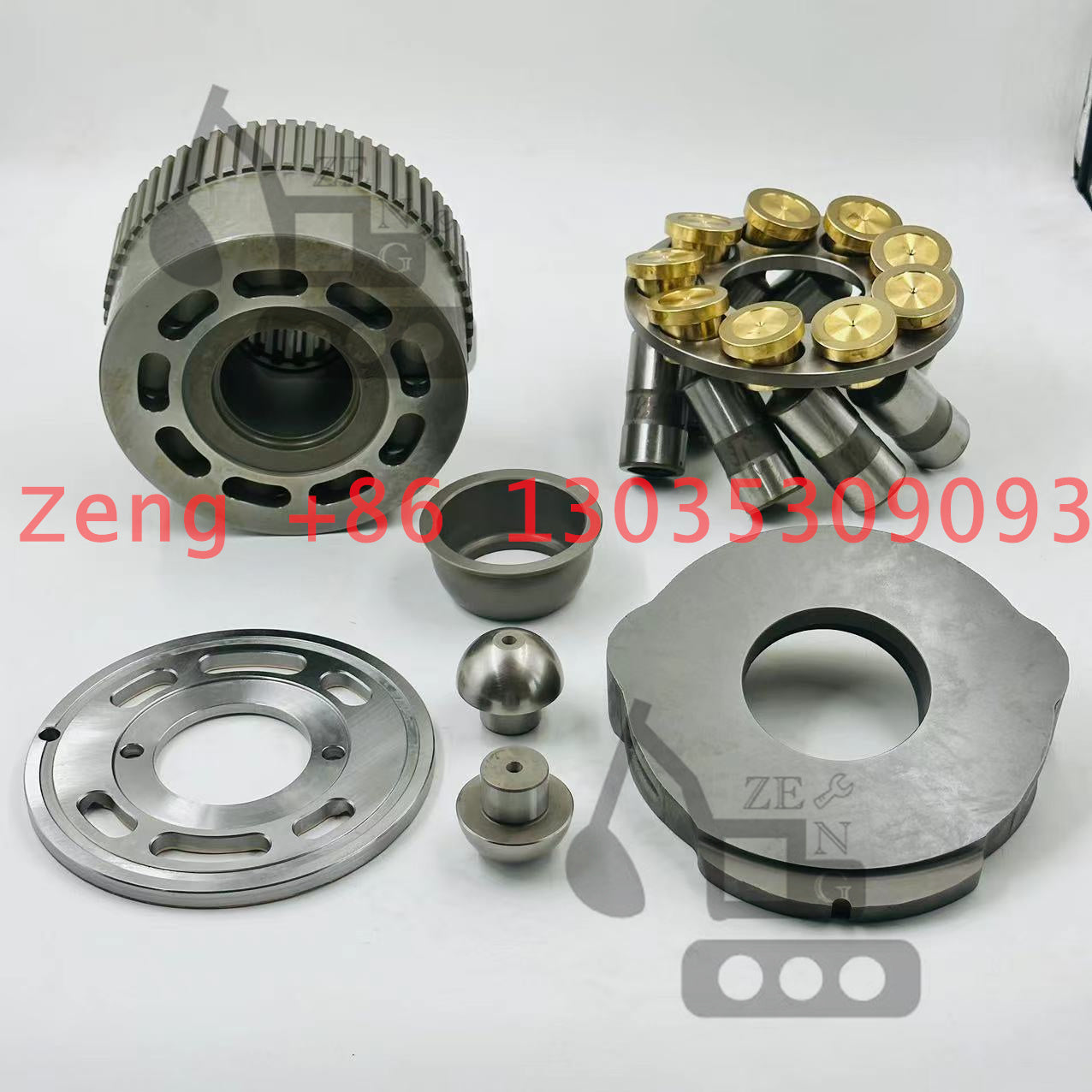

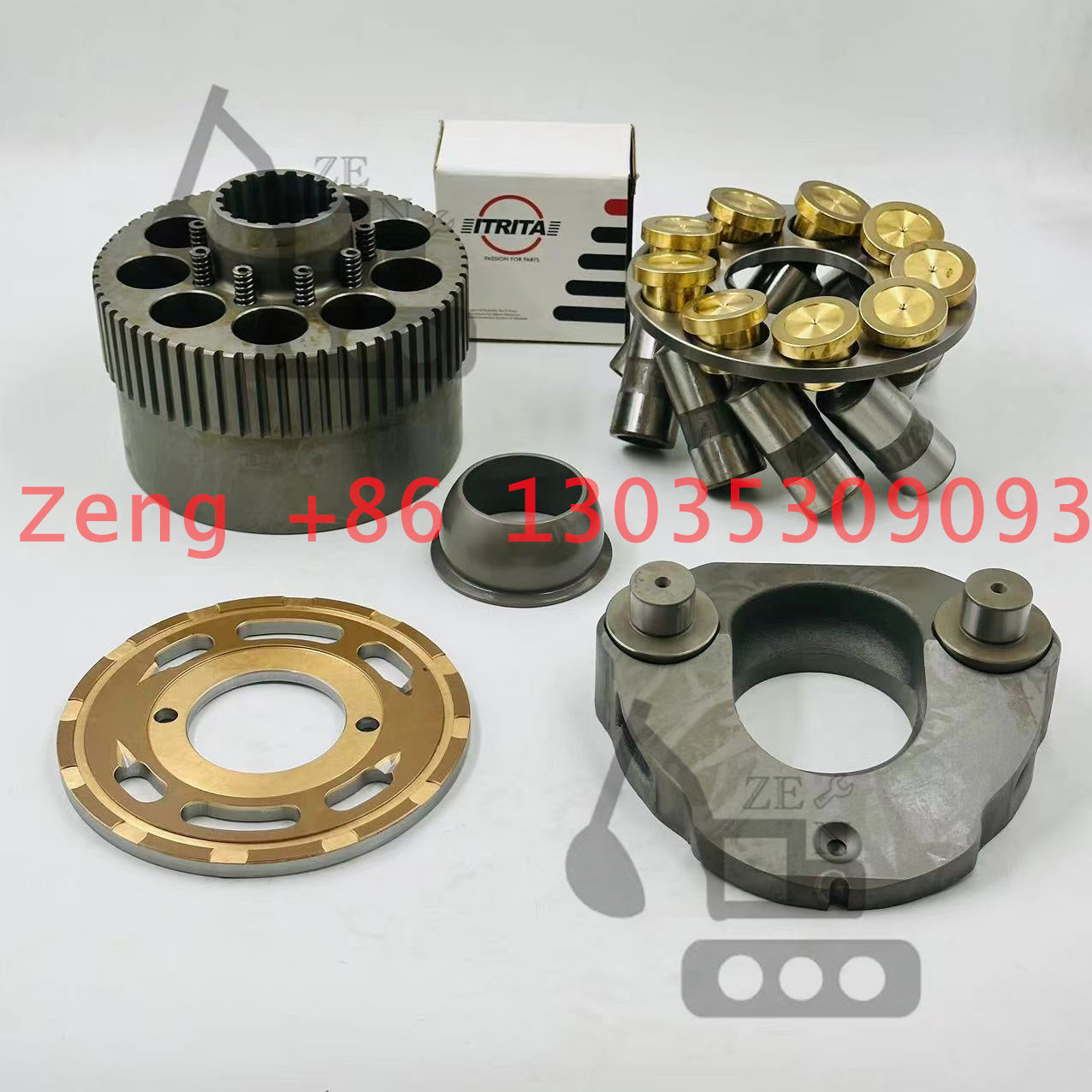

38Q6-40100 38Q6-40101 38Q6-41100 39Q6-40100 39Q6-40101 39Q6-41101  ROTARY KIT 39Q6-41260 CYLINDER BLOCK KIT 39Q6-41270 RETAINER KIT 39Q6-41300 R210LC-7A R210LC-9 R210NLC-9 R220LC-9S R220LC-9SH R220LC-9A R220NLC-9A R235LCR-9
R220LC-7(IND,EXPORT) R220LC-9S(BRAZIL) R210-7(INDIA) R210-7V(INDIA) R220LC-7(INDIA ONLY) R220LC-9(INDIA)
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL MOTOR ASSY      SEE 4155
*-1. @ [1]   TRAVEL MOTOR UNIT      SEE 4155
*-1. @ [1]   TRAVEL MOTOR UNIT      SEE 4155
1 39Q6-41110 [1]   CASING
K2. 39Q6-41120 [1]   PLUG
3 39Q6-41130 [1]   SEAL-OIL
4 39Q6-41140 [1]   PLATE-THRUST
5 S602-060001 [1]   RING-RETAINING
NK6. 39Q6-41160 [1]   PISTON
NK7. 39Q6-41170 [1]   SEAL-PISTON
8 39Q6-41180 [1]   SHAFT
9 39Q6-41190 [1]   BEARING-ROLLER
K10. 39Q6-41200 [1]   BEARING-NEEDLE
11 S602-080001 [1]   RING-RETAINING
12 S601-040001 [1]   RING-RETAINING
13 39Q6-41210 [1]   RING-SNAP
14 39Q6-41220 [1]   PLATE-THRUST
15 39Q6-41230 [1]   BALL-STEEL
16 39Q6-41240 [2]   PIVOT

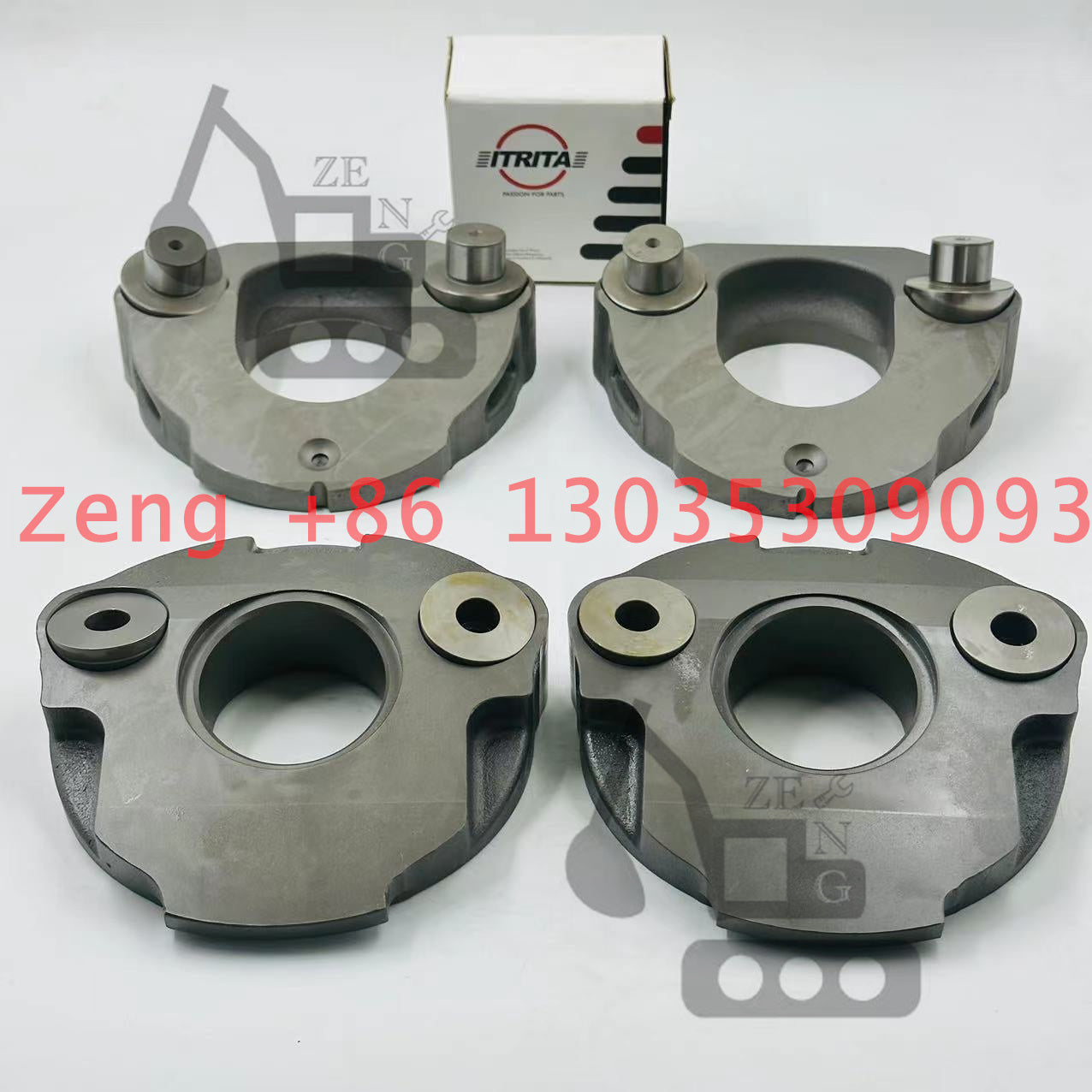

17 39Q6-41250 [1]   PLATE-SWASH
 K18. 39Q6-41280 [1]   BLOCK-CYLINDER
K19. 39Q6-41290 [9]   SPRING
K20. 39Q6-41310 [1]   GUIDE-BALL
K21. 39Q6-41320 [1]   PLATE-RETAINER

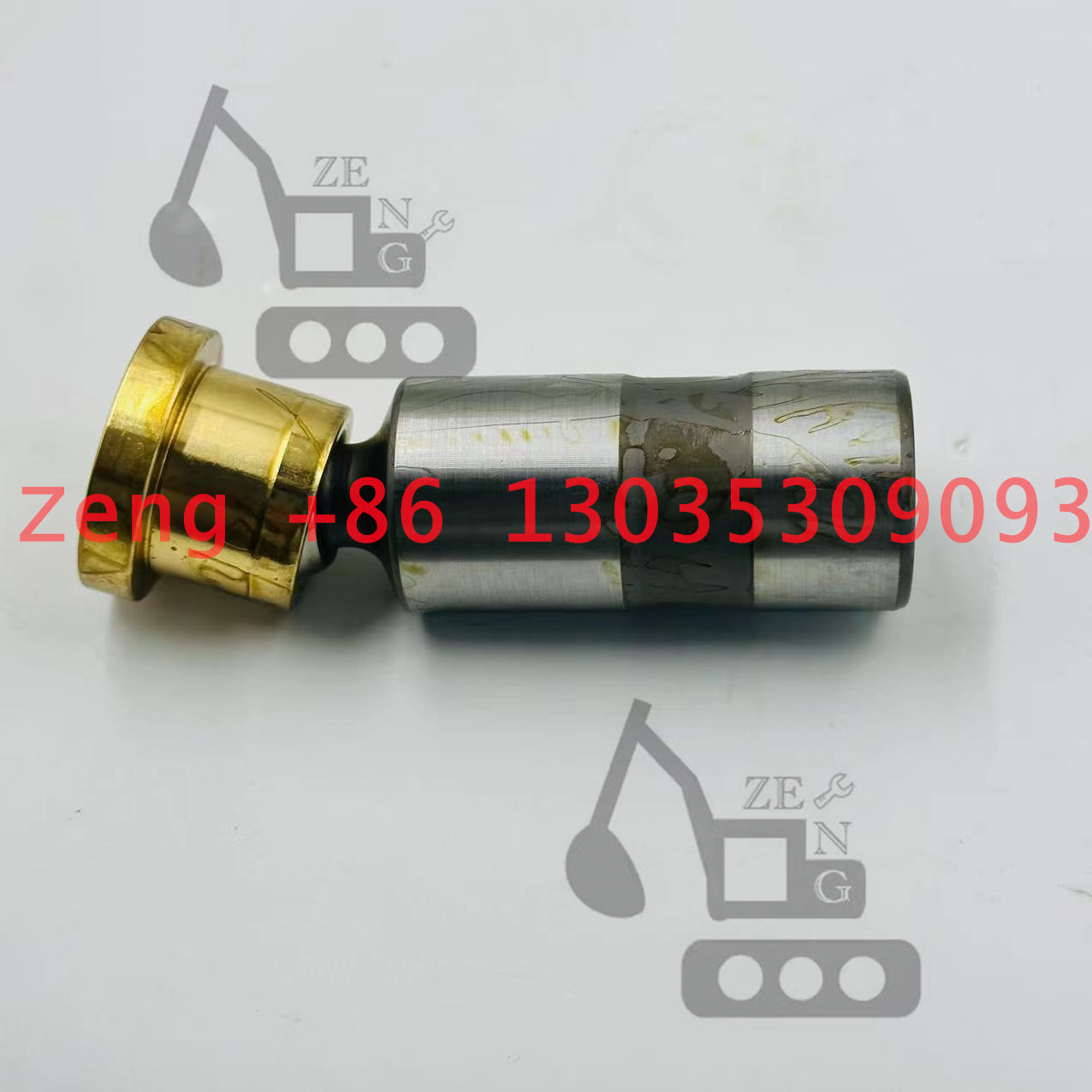

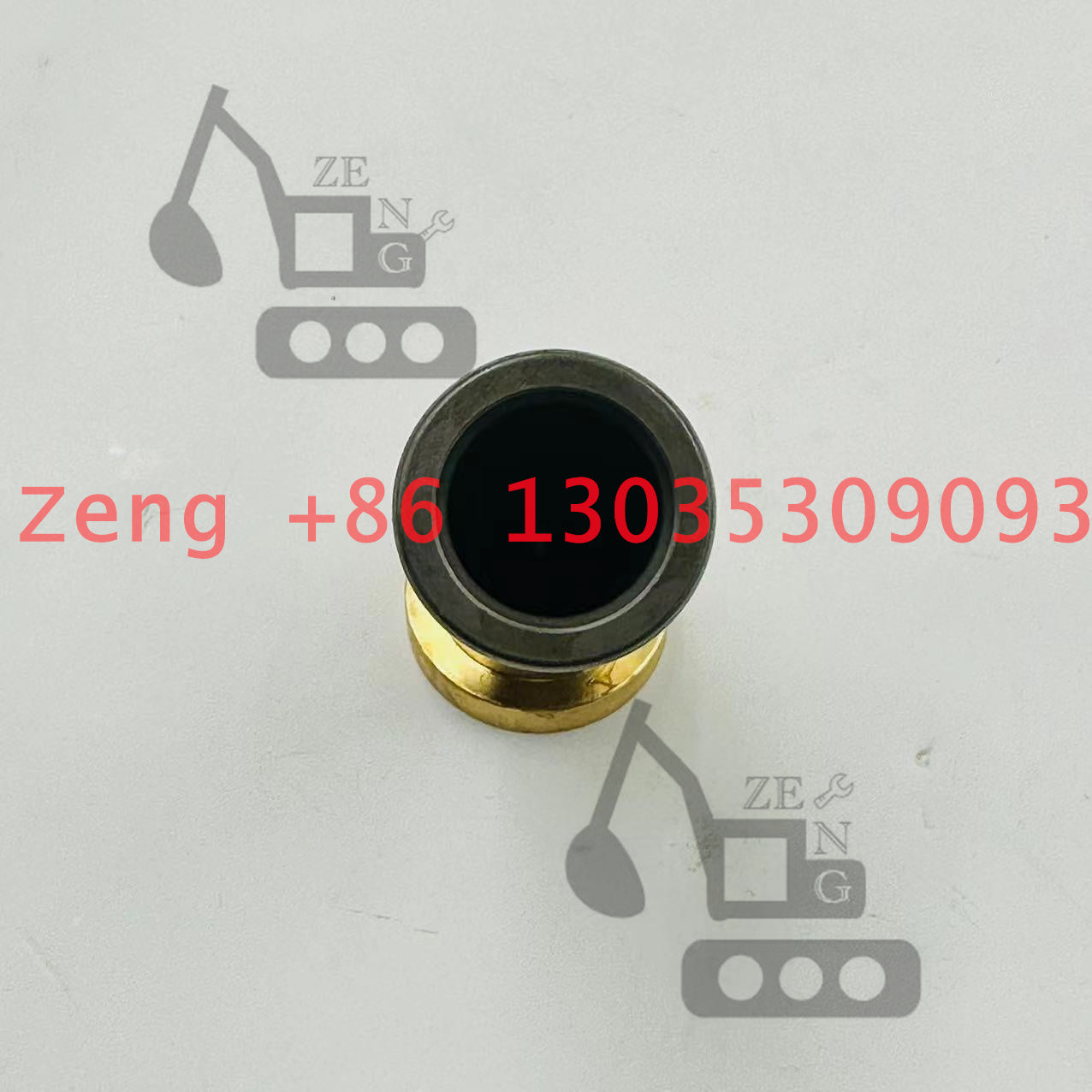

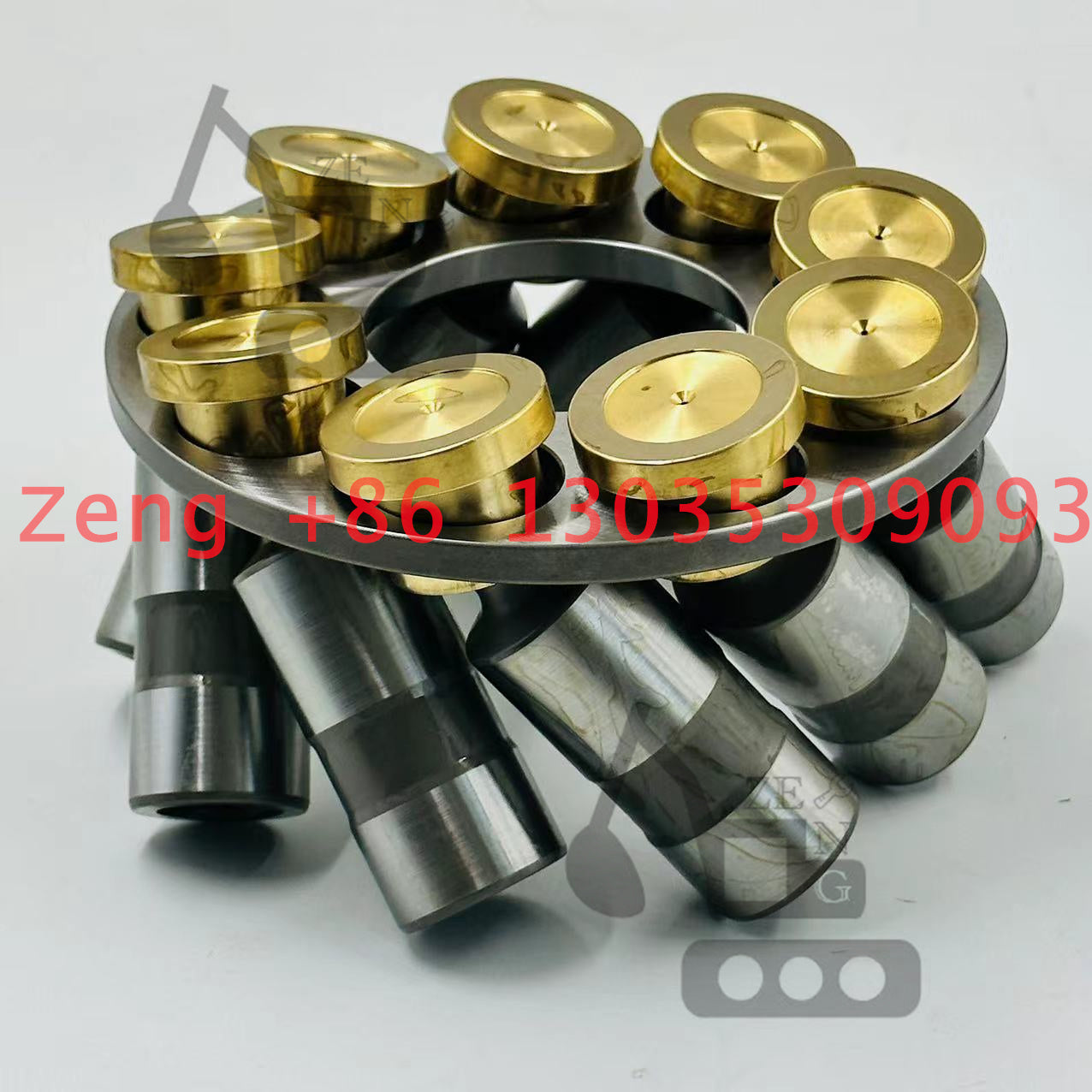

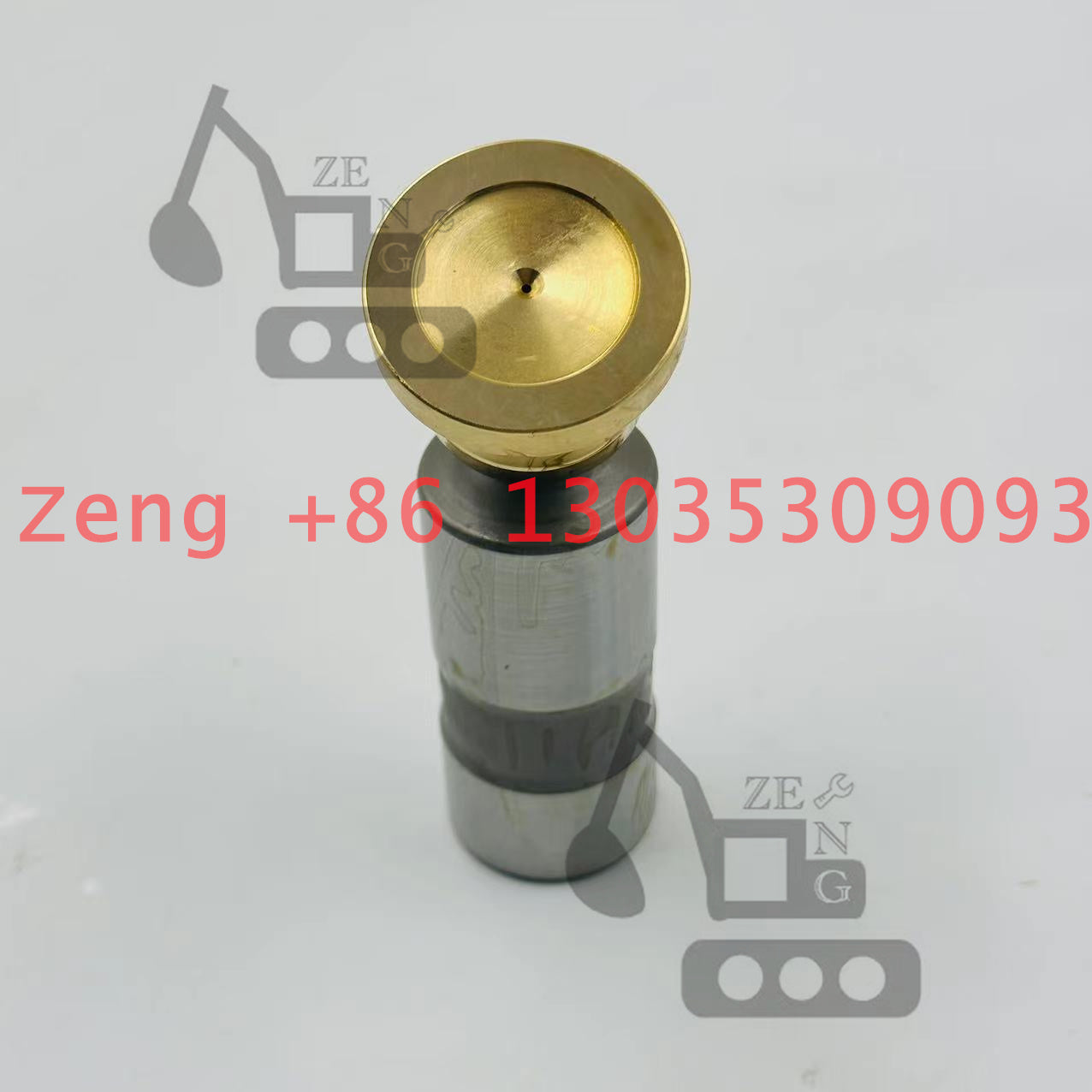

K22. 39Q6-41330 [9]   PISTON ASSY
N22-1. 39Q6-41341 [1]   PISTON

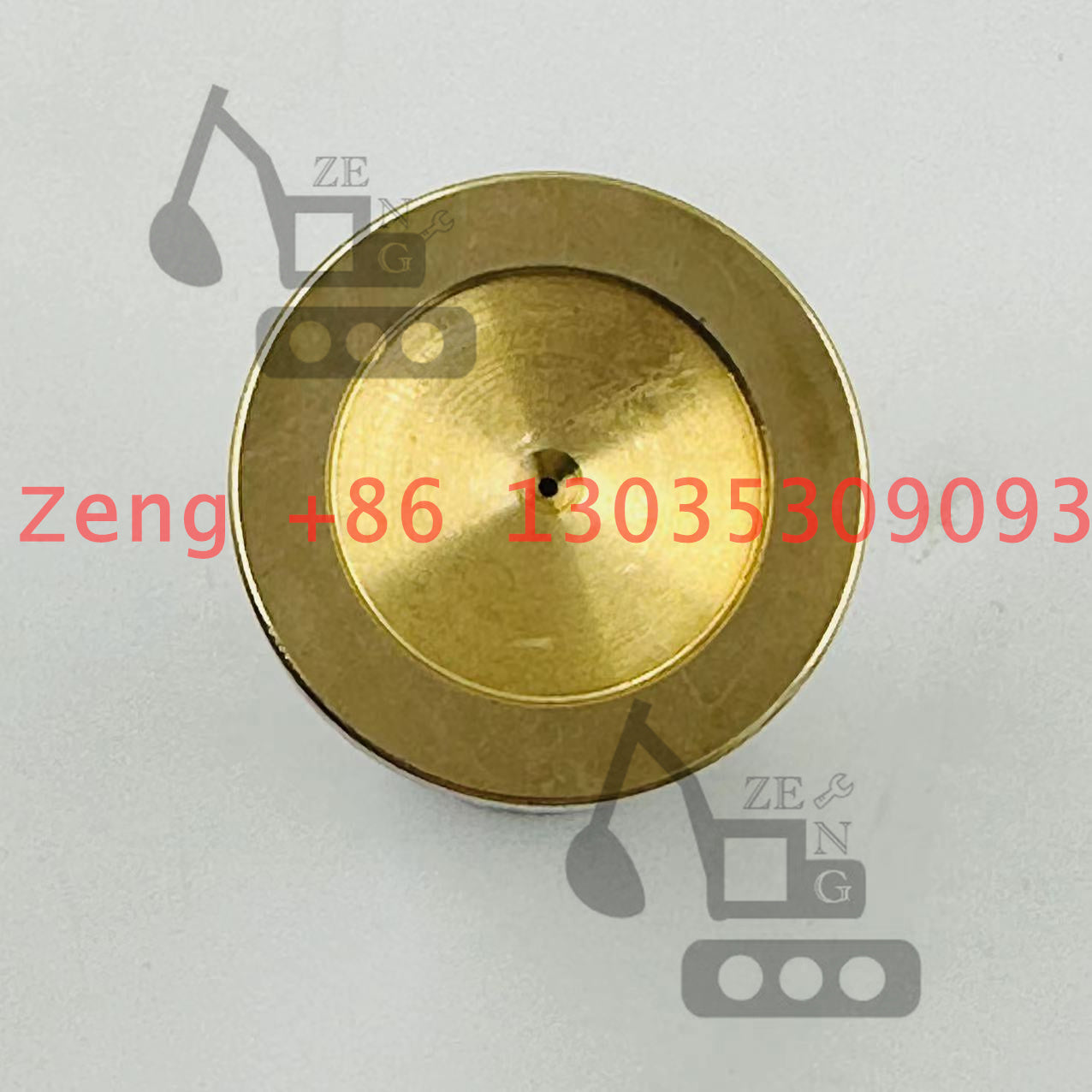

N22-2. 39Q6-41350 [1]    SHOE
23 39Q6-41361 [5]   PLATE-FRICTION
24 39Q6-41370 [6]   PLATE-SEPARATED
25 39Q6-41380 [1]   PISTON-PARKING
K26. 39Q6-41390 [1]   D-RING
K27. 39Q6-41400 [1]   D-RING
28 39Q6-41410 [1]   PLATE-VALVE
K31. 39Q6-41440 [1]   O-RING
K. 39Q6-41150 [1]   PISTON KIT

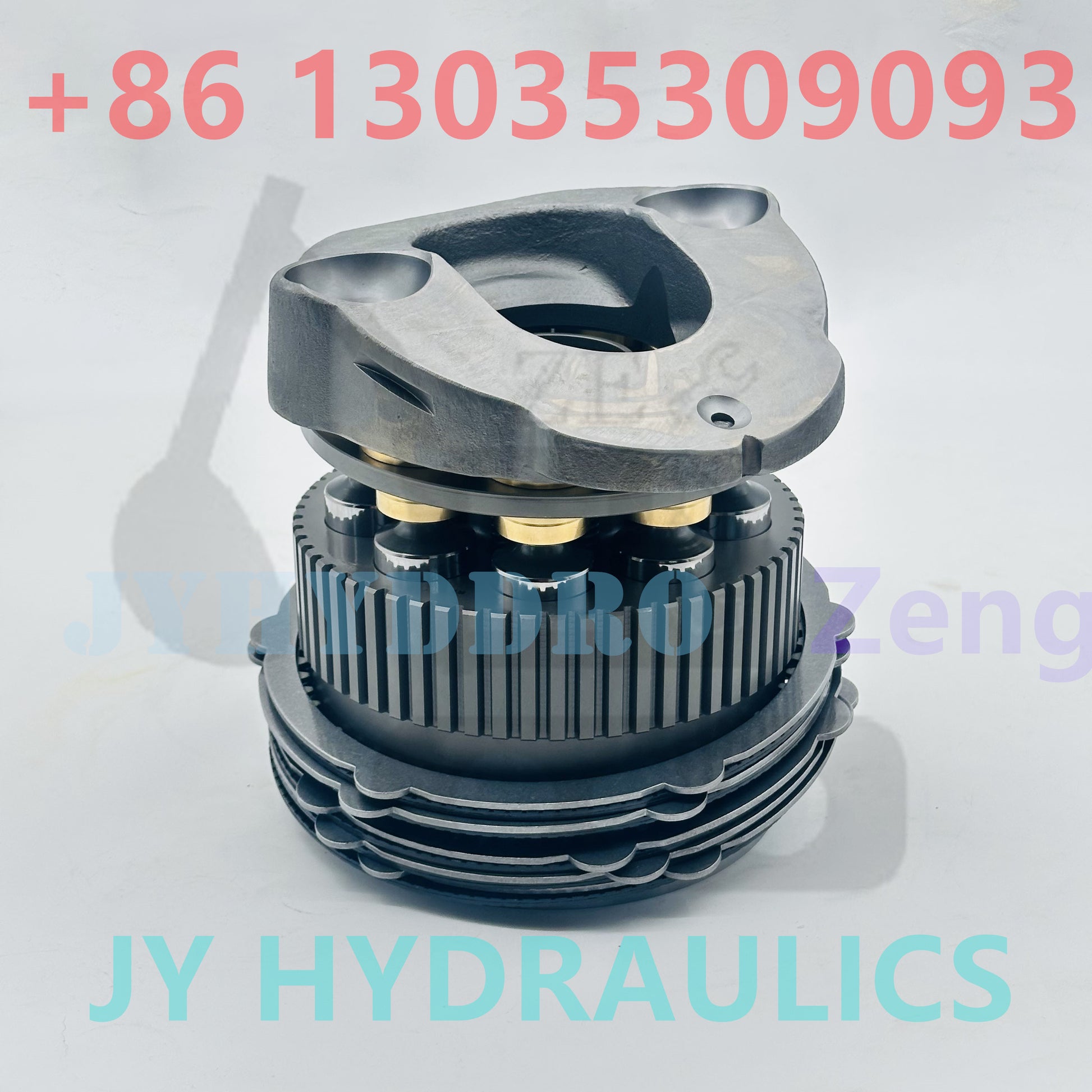

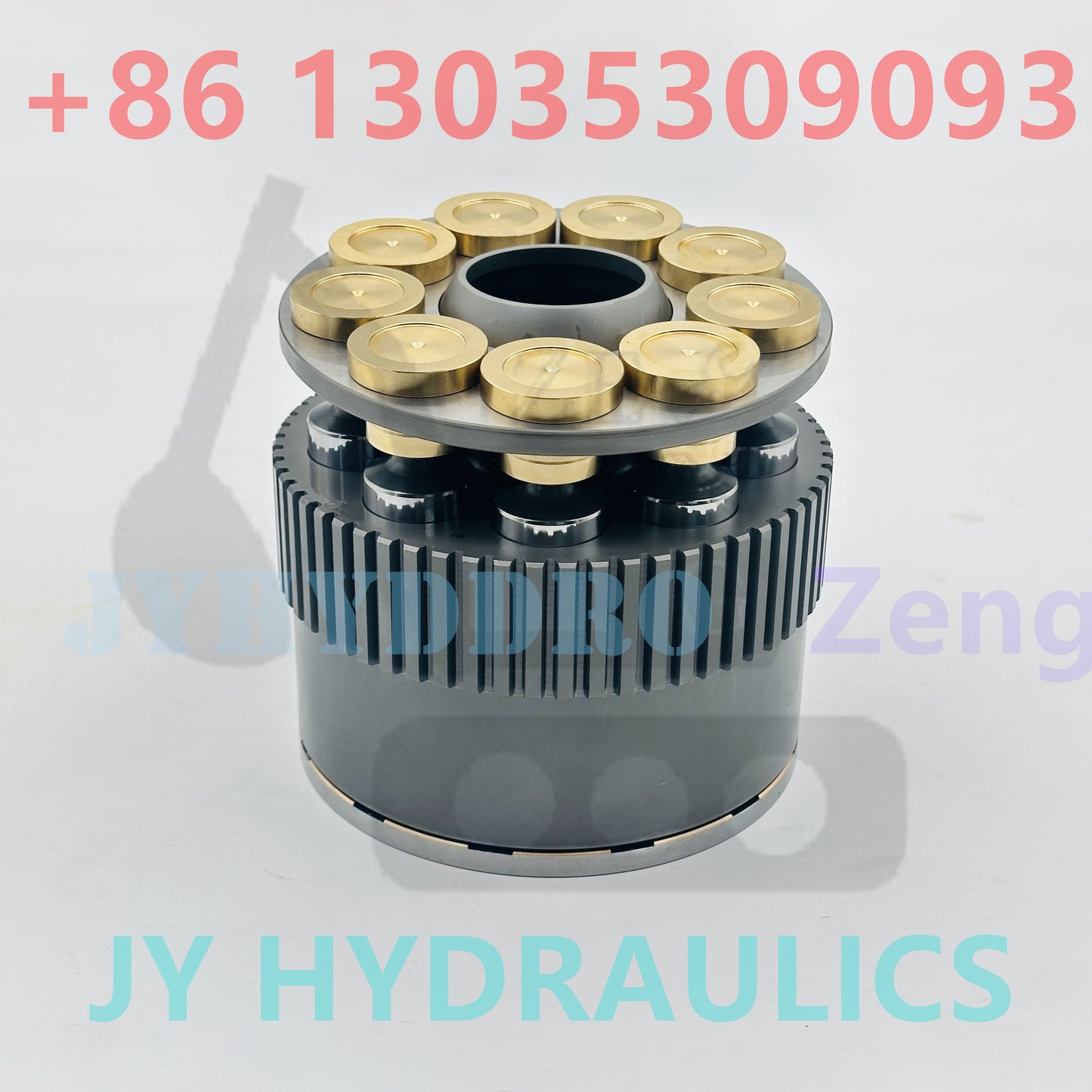

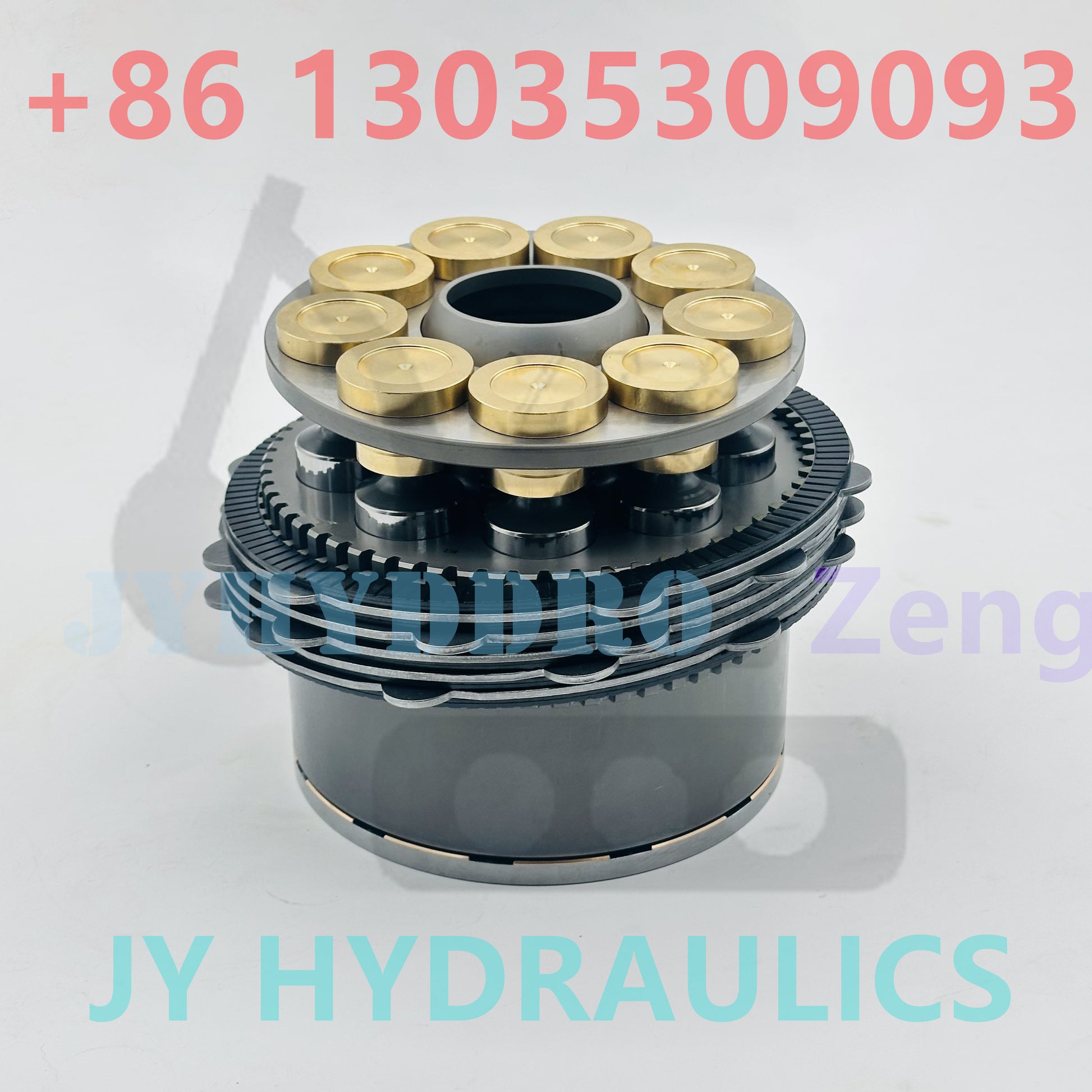

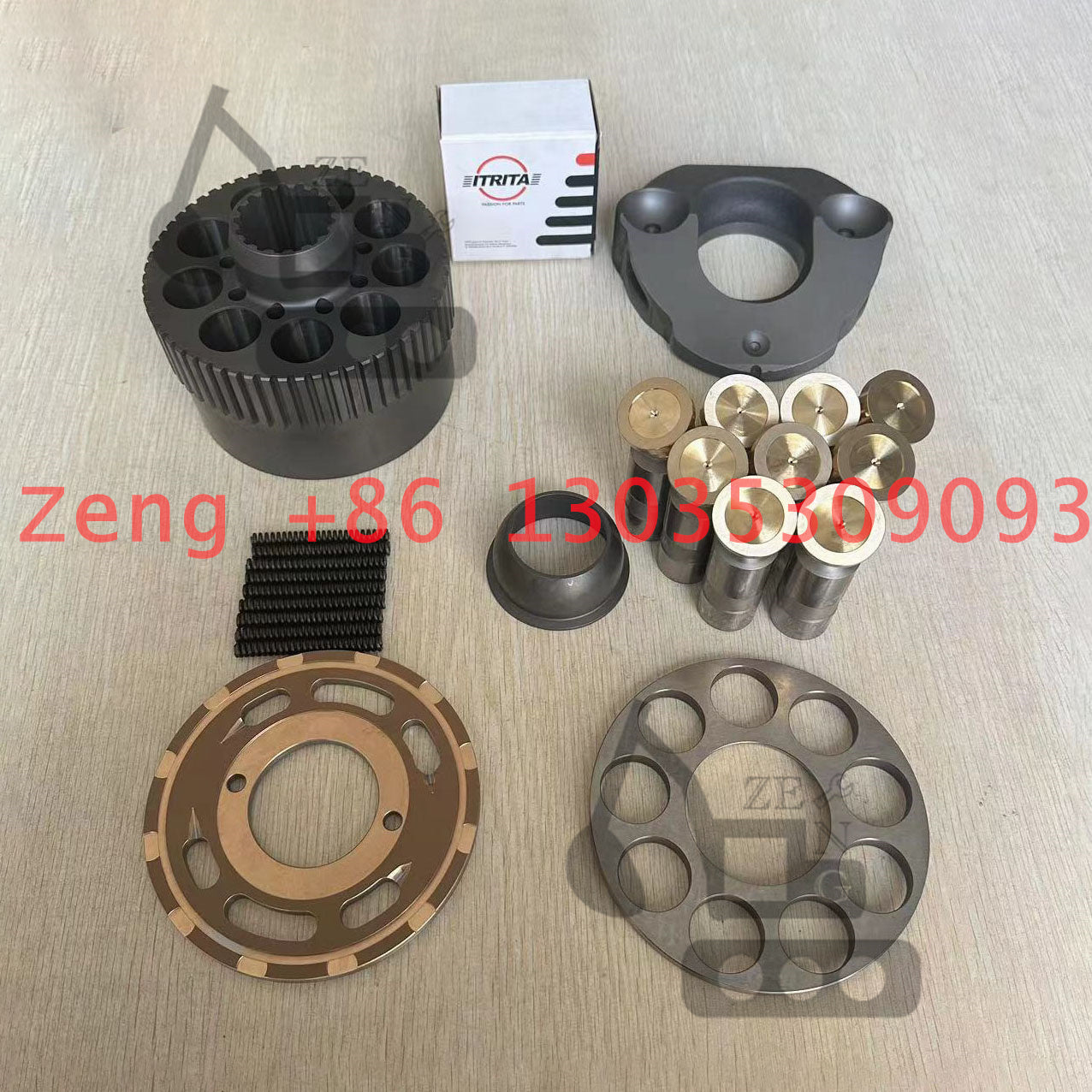

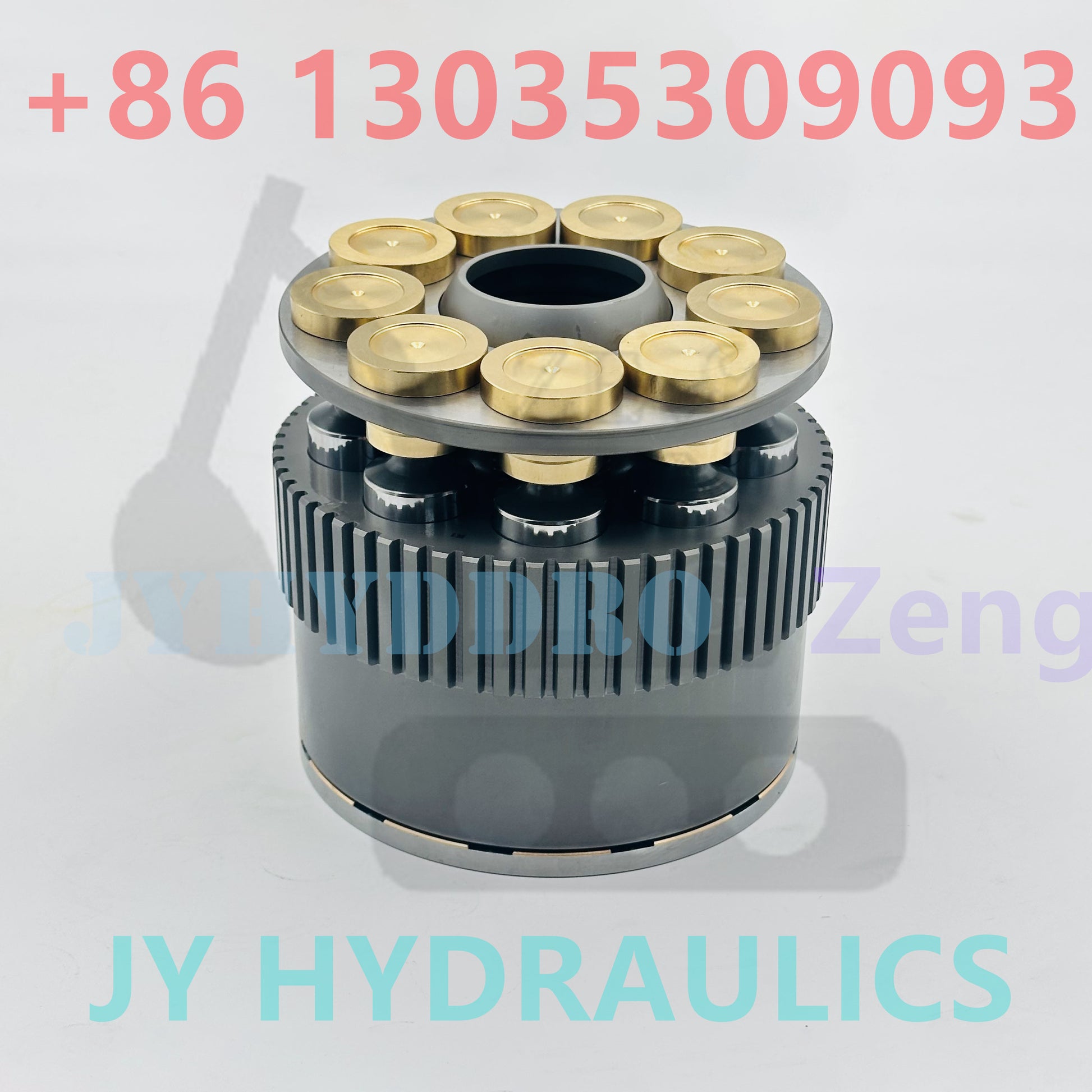

K. 39Q6-41260 [1]   ROTARY KIT

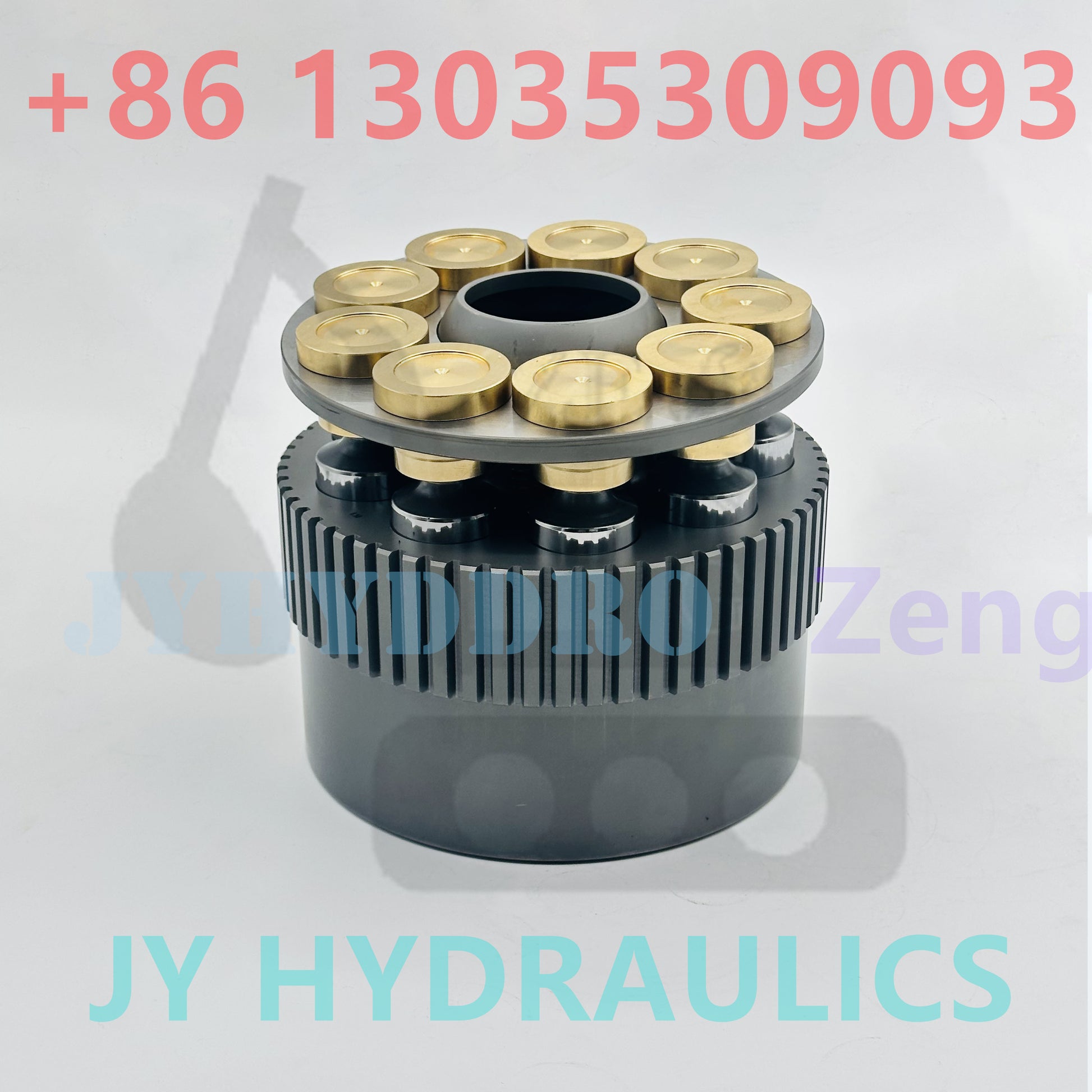

K. 39Q6-41270 [1]   CYLINDER BLOCK KIT
K. 39Q6-41300 [1]   RETAINER KIT
K. 39Q6-41810 [1]   O-RING KIT
K. 39Q6-41820 [1]   D-RING KIT
K. 39Q6-41462K [1]   REAR COVER KIT
K. 38Q6-41462K [1]   REAR COVER KIT
N. @ [AR]   NOT SUPPLIED PARTS
D
Pos. Part No Qty Parts name Comments
*. 39Q6-40100 [1]   TRAVEL MOTOR ASSY      TYPE 2
*. 39Q6-40101 [1]   TRAVEL MOTOR ASSY      TYPE 2
*. 38Q6-40100 [1]   TRAVEL MOTOR ASSY      TYPE 3
*. 38Q6-40101 [1]   TRAVEL MOTOR ASSY      TYPE 3
*-1. 39Q6-41101 [1]   TRAVEL MOTOR UNIT      TYPE 2
*-1. 38Q6-41100 [1]   TRAVEL MOTOR UNIT      TYPE 3
K2. 39Q6-41120 [8]   PLUG
K29. 39Q6-41420 [1]   PIN-PARALLEL
30 39Q6-41430 [20]   SPRING
K32. S471-600404 [1]   PIN-SPRING
K33. 39Q6-41450 [2]   PIN-PARALLEL
*. 39Q6-41462K [1]   COVER ASSY-REAR      NEW
K34. 39Q6-41462 [1]   COVER-REAR      OLD
K34. 39Q6-41462AS [1]   COVER-REAR      NEW
K35. 39Q6-41470 [1]   MAIN SPOOL ASSY
K36. 39Q6-41530 [2]   COVER
K37. 39Q6-41540 [2]   SPRING
K38. 39Q6-41550 [2]   RESTRICTOR
K39. S109-120356 [8]   BOLT-SOCKET
K40. 39Q6-41560 [2]   O-RING
K41. 39Q6-41570 [2]   SEAT-SPRING
K42. 39Q7-41580 [2]   RELIEF VALVE ASSY
42-3. S631-12S004 [1]   O-RING
42-8. S631-021004 [1]   O-RING
42-9. S641-021001 [2]   RING-BACK UP
42-12. S631-015004 [1]   O-RING
42-13. S641-015001 [2]   RING-BACK UP
42-16. 39Q6-41890 [1]   O-RING
K43. 39Q6-41670 [2]   SPRING
K44. 39Q6-41680 [2]   PLUG
K45. S631-009004 [2]   O-RING
K46. S631-011004 [4]   O-RING
K47. 39Q6-41691 [1]   SPOOL
K48. 39Q6-41700 [1]   PLUG
K49. 39Q6-41710 [1]   SEAT-SPRING
K50. 39Q6-41720 [1]   PIN-PARALLEL
K51. 39Q6-41730 [1]   SPRING
K52. 39Q6-41740 [1]   CONNECTOR
K53. S631-014004 [2]   O-RING
54 S109-180506 [4]   BOLT-SOCKET
55 S109-180406 [4]   BOLT-SOCKET
K56. 39Q6-41760 [3]   VALVE-CHECK
K57. 39Q6-41770 [3]   SPRING
K58. 39Q6-41780 [4]   PLUG
K59. S631-008004 [6]   O-RING
K60. 39Q6-41750 [2]   PLUG
K61. 39Q6-41870 [1]   RESTRICTOR
K62. 39Q6-41860 [1]   RESTRICTOR
NK63. 39Q6-41791 [1]   NAME PLATE
NK63. 38Q6-41790 [1]   NAME PLATE
K64. 39Q6-41800 [2]   RIVET
*-2. @ [1]   T/REDUCTION GEAR
*-2. @ [1]   T/REDUCTION GEAR
K. 39Q6-41150 [1]   PISTON KIT
K. 39Q6-41260 [1]   ROTARY KIT
K. 39Q6-41270 [1]   CYLINDER BLOCK KIT
K. 39Q6-41300 [1]   RETAINER KIT
K. 39Q6-41810 [1]   O-RING KIT
K. 39Q6-41820 [1]   D-RING KIT
K. 39Q6-41462K [1]   REAR COVER KIT
K. 38Q6-41462K [1]   REAR COVER KIT
N. @ [AR]   NOT SUPPLIED PARTS
