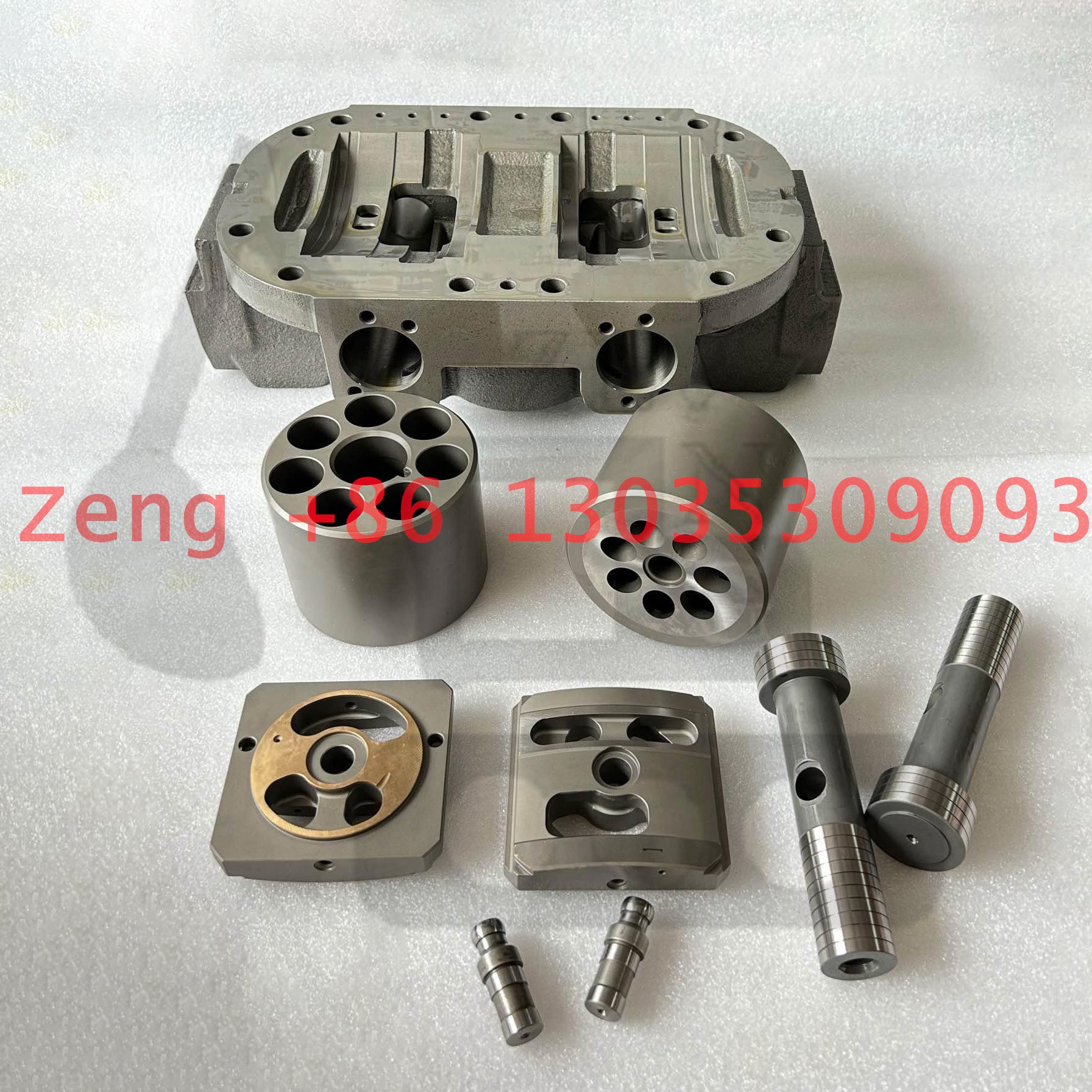

HPV102 ZX180W ZX180W-AMS 9217221 9236929
Pos. Part No Qty Parts name Comments
+++++++
[1] PUMP;UNIT
1
1026679
[1] CASING;PUMP
1
1032319
[1] CASING;PUMP
3
2036807
[1] DISC;DRIVING
3
2043207
[1] DISC;DRIVING
4
2036808
[1] DISC;DRIVING
4
2043211
[1] DISC;DRIVING
6
4337419
[2] BRG.;ROL.
6
4410050
[2] BRG.;ROL.
7
4348182
[2] RING
7
4339171
[2] RING
8
4337483
[2] BRG.;ROL.
8
4622945
[2] BRG.;ROL.
9
4178173
[2] NUT;BRG.
10
4338907
[1] RING;THRUST
12
4333170
[2] SEAL;OIL
13
4116290
[2] RING;RETAINING
15
4233165
[1] PLUG
16
957366
[1] O-RING
19
8059452
[14] PISTON
21
4337035
[2] SHAFT;CENTER
22
4198956
[2] PIN
23
4179181
[2] SPRING;COMPRES.
25
2036744
[2] ROTOR
27
2036795
[1] VALVE
28
2036786
[1] VALVE
29
4179179
[4] PIN
31
3075674
[2] LINK;E
32
9724756
[4] LEVER
33
4179177
[4] PIN
34
4179176
[2] PIN
35
4146370
[12] RING;RETAINING
36
4200227
[2] PIN
41
1027131
[1] HEAD
42
3069541
[2] PISTON;SERVO
43
4338053
[2] PIN
44
4337812
[2] SCREW;SET
46
4355085
[2] O-RING
47
4338060
[2] STOPPER
50
4355083
[2] O-RING
51
4338061
[2] STOPPER
54
4180349
[20] O-RING
55
M340825
[16] BOLT;SOCKET
57
3070581
[1] RING;BACKUP
58
4099290
[2] PIN;SPRING
59
4342840
[1] O-RING
60
M341245
[12] BOLT;SOCKET
64
4436271
[2] SENSOR;PRES.
64A. 4365826
[1] O-RING
67
9134110
[2] PLUG
67A. 957366
[1] O-RING
69
9224523
[1] REGULATOR;L I 9239008 <for assembly of machine>
69
9239008
[1] REGULATOR;L <for transportation>
70
9224524
[1] REGULATOR;R I 9239009 <for assembly of machine>
70
9239009
[1] REGULATOR;R <for transportation>
72
4515041
[4] PIN;SPRING
73
4343074
[4] O-RING
74
4348665
[2] O-RING
80
9134111
[2] PLUG
80A. 4509180
[1] O-RING
82
4252767
[1] BRACKET
83
M340613
[1] BOLT;SOCKET
84
4169516
[1] WASHER;SPRING
100
4451039
[1] KIT;SEAL
Pos. Part No Qty Parts name Comments
9217221
[1] PUMP DEVICE I 9236929 <for assembly of machine>
9236929
[1] PUMP DEVICE <for transportation>
1
1030682
[1] CASING;GEAR
3
3100991
[1] GEAR;PILOT
4
3055594
[1] SHAFT;GEAR
8
958740
[2] BRG.;BALL
9
962002
[1] RING;RETAINING
10
991725
[1] RING;RETAINING
30
3100993
[1] GEAR
31
3100994
[1] GEAR
32
4274552
[2] RING;RETAINING
34
4099290
[2] PIN;SPRING
43
4310055
[1] SEAL;OIL
44
991725
[1] RING;RETAINING
61
4438059
[1] GAUGE;LEVEL
62
9743977
[1] PIPE
63
9742779
[1] PACKING
64
M340816
[2] BOLT;SOCKET
68
4265372
[1] SENSOR;REVOL.
69
4306888
[1] O-RING
70
A590106
[1] WASHER;PLANE
71
M340616
[1] BOLT;SOCKET
86
4234782
[1] PLUG
87
4092534
[1] PLUG
87A. 4509180
[1] O-RING
103
+++++++
[1] PUMP;UNIT
112
+++++++
[1] NAME-PLATE
113
M492564
[2] SCREW;DRIVE
120
4278696
[1] PUMP;GEAR
121
M341030
[2] BOLT;SOCKET
122
984054
[2] WASHER;SPRING
123
4114402
[2] WASHER
127
4369148
[1] PIPE;E
130
4293950
[2] ELBOW;S
130A. 957366
[1] O-RING
133
4416605
[1] COUPLING
133A. 4463992
[1] HUB
133B. 4334899
[2] SCREW;SET
133C. 4101345
[4] PIN;SPRING
133D. 4463993
[4] INSERT
133E. 4334894
[4] BOLT;SOCKET
133F. 4463994
[1] ELEMENT
136
8058352
[1] PACKING
137
J901645
[6] BOLT
138
A590916
[6] WASHER;SPRING
143
4613307
[1] HOSE;OIL
144
A852133
[1] ADAPTER;S
145
4444381
[1] PLUG
200
4451036
[1] KIT;SEAL
Model：HPV102
