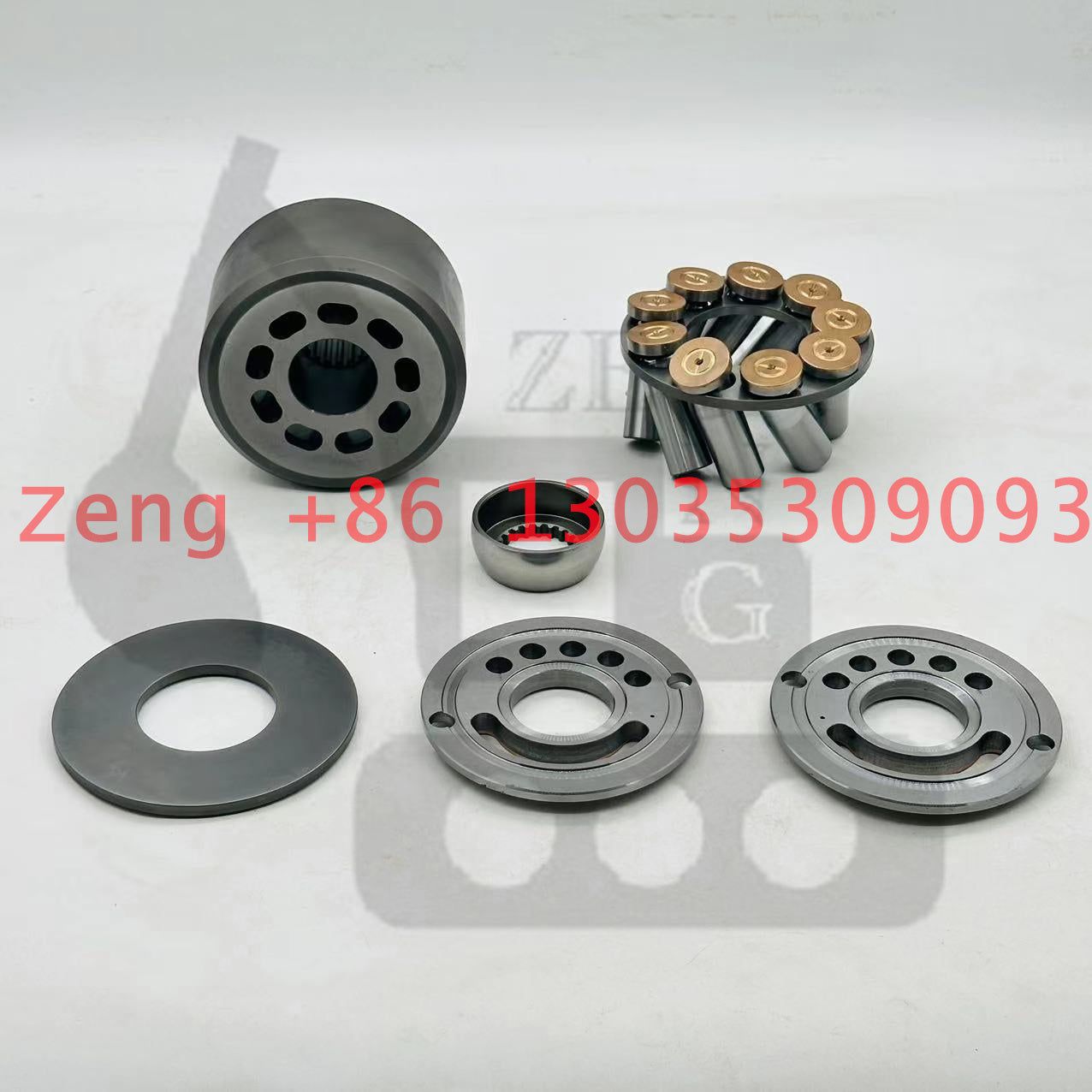

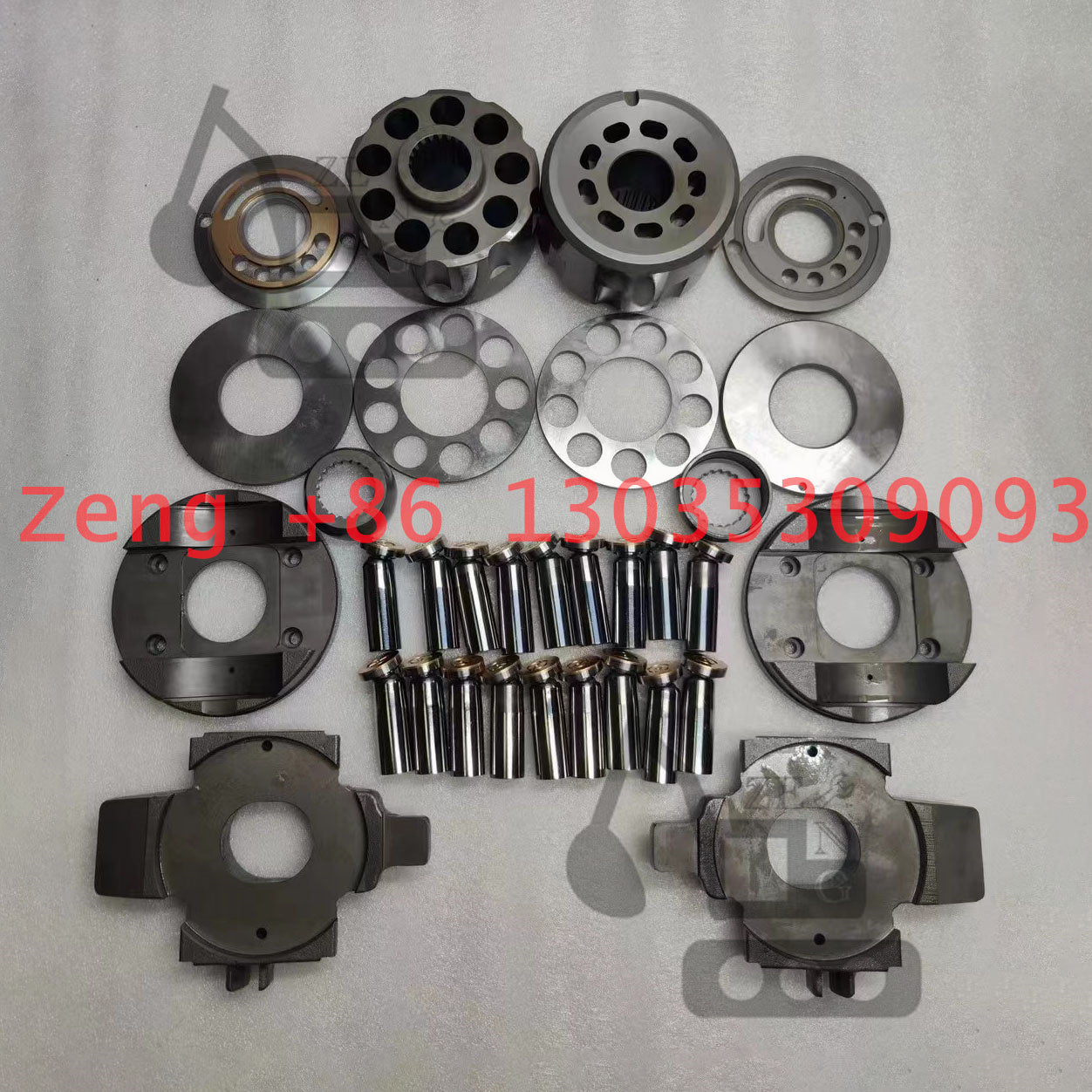

Hitachi HPK055 Hydraulic Pump Spare Parts for EX120-7 ZAX120-6 EX135 EX120-7 ZAX130

Hitachi HPK055 Hydraulic Pump Spare Parts for EX120-7 ZAX120-6 EX135 EX120-7 ZAX130

$1,000.00 USD
$1,000.00 USD
特價 售罄
結帳時計算運費。
Pos. Part No Qty Parts name Comments
+++++++ [1]   PUMP;UNIT
+++++++ [1]   PUMP;UNIT
1 1026892 [1]   CASING;FRONT
1 1026892 [1]   CASING;FRONT
2 2038178 [1]   SHAFT;DRIVE
2 2038178 [1]   SHAFT;DRIVE
3 4355286 [1]   RACE;INNER
3 4355286 [1]   RACE;INNER
4 4229543 [1]   RING;RETAINING
4 4229543 [1]   RING;RETAINING
6 4280841 [1]   BRG.;ROL.
6 4280841 [1]   BRG.;ROL.
7 991342 [2]   RING;RETAINING
7 991342 [2]   RING;RETAINING
8 4343074 [4]   O-RING
8 4343074 [4]   O-RING
9 4198956 [4]   PIN
9 4198956 [4]   PIN
10 2042069 [2]   PLATE
10 2042069 [2]   PLATE
11 M340613 [8]   BOLT;SOCKET
11 M340613 [8]   BOLT;SOCKET
12 1033540 [1]   PLATE;SWASH
12 1033540 [1]   PLATE;SWASH
13 4407464 [2]   PLATE
13 4407464 [2]   PLATE
14 9134109 [6]   PLUG
14 9134109 [6]   PLUG
14A. 4506408 [1]   O-RING
14A. 4506408 [1]   O-RING
17 2053554 [2]   ROTOR
17 2053554 [2]   ROTOR
18 4289874 [2]   SPRING;DISC
18 4289874 [2]   SPRING;DISC
19 3065991 [2]   BUSHING
19 3065991 [2]   BUSHING
20 3108109 [2]   RETAINER
20 3108109 [2]   RETAINER
22 8071391 [18]   PISTON
22 8071391 [18]   PISTON
24 4410166 [2]   O-RING
24 4410166 [2]   O-RING
26 1025540 [1]   CASING;REAR
26 1025540 [1]   CASING;REAR
27 2038174 [1]   SHAFT;DRIVE
27 2038174 [1]   SHAFT;DRIVE
28 1033541 [1]   PLATE;SWASH
28 1033541 [1]   PLATE;SWASH
29 4355279 [1]   BRG.;ROL.
29 4355279 [1]   BRG.;ROL.
30 927488 [2]   RING;RETAINING
30 927488 [2]   RING;RETAINING
34 5721 [1]   CASING;PUMP
34 5721 [1]   CASING;PUMP
35 4666849 [1]   BRG.;NEEDLE
35 4666849 [1]   BRG.;NEEDLE
36 4461927 [1]   BRG.;NEEDLE
36 4461927 [1]   BRG.;NEEDLE
37 4422627 [4]   PIN;KNOCK
37 4422627 [4]   PIN;KNOCK
38 2044792 [1]   PLATE;VALVE
38 2044792 [1]   PLATE;VALVE
39 2044793 [1]   PLATE;VALVE
39 2044793 [1]   PLATE;VALVE
42 4654751 [6]   PISTON;SERVO
42 4654751 [6]   PISTON;SERVO
45 4409640 [2]   PIN;KNOCK
45 4409640 [2]   PIN;KNOCK
47 4432356 [2]   PIN
47 4432356 [2]   PIN
48 4436322 [4]   RING;BACK-UP
48 4436322 [4]   RING;BACK-UP
49 4180349 [4]   O-RING
49 4180349 [4]   O-RING
51 4200227 [2]   PIN
51 4200227 [2]   PIN
52 3109398 [2]   LINK
52 3109398 [2]   LINK
53 4465289 [2]   PIN
53 4465289 [2]   PIN
54 4404102 [2]   PIN
54 4404102 [2]   PIN
55 4144013 [2]   PIN;SPRING
55 4144013 [2]   PIN;SPRING
56 4116299 [2]   PIN;SPRING
56 4116299 [2]   PIN;SPRING
58 M341240 [12]   BOLT;SOCKET
58 M341240 [12]   BOLT;SOCKET
59 495841 [12]   WASHER;SPRING
59 495841 [12]   WASHER;SPRING
60 4393030 [6]   BOLT
60 4393030 [6]   BOLT
61 4427347 [3]   PLUG
61 4427347 [3]   PLUG
62 9134111 [2]   PLUG
62 9134111 [2]   PLUG
62A. 4509180 [1]   O-RING
62A. 4509180 [1]   O-RING
63 9134110 [2]   PLUG
63 9134110 [2]   PLUG
63A. 957366 [1]   O-RING
63A. 957366 [1]   O-RING
64 A590912 [6]   WASHER
64 A590912 [6]   WASHER
66 4436271 [2]   SENSOR;PRES.
66 4436271 [2]   SENSOR;PRES.
66A. 4365826 [1]   O-RING
66A. 4365826 [1]   O-RING
76 4515041 [4]   PIN;SPRING
76 4515041 [4]   PIN;SPRING
77 4348665 [2]   O-RING
77 4348665 [2]   O-RING
78 4180349 [10]   O-RING
78 4180349 [10]   O-RING
79 4343074 [4]   O-RING
79 4343074 [4]   O-RING
82 4320490 [1]   SEAL;OIL
82 4320490 [1]   SEAL;OIL
83 930451 [1]   RING;RETAINING
83 930451 [1]   RING;RETAINING
100 4692565 [1]   KIT;SEAL
100 4692565 [1]   KIT;SEAL
9285568 [1]   REGULATOR
9285568 [1]   REGULATOR
9291174 [1]   REGULATOR
9291174 [1]   REGULATOR
9217993 [1]   PUMP;GEAR
Pos. Part No Qty Parts name Comments
+++++++ [1]   PUMP;UNIT
+++++++ [1]   PUMP;UNIT
1 1026892 [1]   CASING;FRONT
1 1026892 [1]   CASING;FRONT
2 2038178 [1]   SHAFT;DRIVE
2 2038178 [1]   SHAFT;DRIVE
3 4355286 [1]   RACE;INNER
3 4355286 [1]   RACE;INNER
4 4229543 [1]   RING;RETAINING
4 4229543 [1]   RING;RETAINING
6 4280841 [1]   BRG.;ROL.
6 4280841 [1]   BRG.;ROL.
7 991342 [2]   RING;RETAINING
7 991342 [2]   RING;RETAINING
8 4343074 [4]   O-RING
8 4343074 [4]   O-RING
9 4198956 [4]   PIN
9 4198956 [4]   PIN
10 2042069 [2]   PLATE
10 2042069 [2]   PLATE
11 M340613 [8]   BOLT;SOCKET
11 M340613 [8]   BOLT;SOCKET
12 1033540 [1]   PLATE;SWASH
12 1033540 [1]   PLATE;SWASH
13 4407464 [2]   PLATE
13 4407464 [2]   PLATE
14 9134109 [6]   PLUG
14 9134109 [6]   PLUG
14A. 4506408 [1]   O-RING
14A. 4506408 [1]   O-RING
17 2053554 [2]   ROTOR
17 2053554 [2]   ROTOR
18 4289874 [2]   SPRING;DISC
18 4289874 [2]   SPRING;DISC
19 3065991 [2]   BUSHING
19 3065991 [2]   BUSHING
20 3108109 [2]   RETAINER
20 3108109 [2]   RETAINER
22 8071391 [18]   PISTON
22 8071391 [18]   PISTON
24 4410166 [2]   O-RING
24 4410166 [2]   O-RING
26 1025540 [1]   CASING;REAR
26 1025540 [1]   CASING;REAR
27 2038174 [1]   SHAFT;DRIVE
27 2038174 [1]   SHAFT;DRIVE
28 1033541 [1]   PLATE;SWASH
28 1033541 [1]   PLATE;SWASH
29 4355279 [1]   BRG.;ROL.
29 4355279 [1]   BRG.;ROL.
30 927488 [2]   RING;RETAINING
30 927488 [2]   RING;RETAINING
34 5721 [1]   CASING;PUMP
34 5721 [1]   CASING;PUMP
35 4666849 [1]   BRG.;NEEDLE
35 4666849 [1]   BRG.;NEEDLE
36 4461927 [1]   BRG.;NEEDLE
36 4461927 [1]   BRG.;NEEDLE
37 4422627 [4]   PIN;KNOCK
37 4422627 [4]   PIN;KNOCK
38 2044792 [1]   PLATE;VALVE
38 2044792 [1]   PLATE;VALVE
39 2044793 [1]   PLATE;VALVE
39 2044793 [1]   PLATE;VALVE
42 4654751 [6]   PISTON;SERVO
42 4654751 [6]   PISTON;SERVO
45 4409640 [2]   PIN;KNOCK
45 4409640 [2]   PIN;KNOCK
47 4432356 [2]   PIN
47 4432356 [2]   PIN
48 4436322 [4]   RING;BACK-UP
48 4436322 [4]   RING;BACK-UP
49 4180349 [4]   O-RING
49 4180349 [4]   O-RING
51 4200227 [2]   PIN
51 4200227 [2]   PIN
52 3109398 [2]   LINK
52 3109398 [2]   LINK
53 4465289 [2]   PIN
53 4465289 [2]   PIN
54 4404102 [2]   PIN
54 4404102 [2]   PIN
55 4144013 [2]   PIN;SPRING
55 4144013 [2]   PIN;SPRING
56 4116299 [2]   PIN;SPRING
56 4116299 [2]   PIN;SPRING
58 M341240 [12]   BOLT;SOCKET
58 M341240 [12]   BOLT;SOCKET
59 495841 [12]   WASHER;SPRING
59 495841 [12]   WASHER;SPRING
60 4393030 [6]   BOLT
60 4393030 [6]   BOLT
61 4427347 [3]   PLUG
61 4427347 [3]   PLUG
62 9134111 [2]   PLUG
62 9134111 [2]   PLUG
62A. 4509180 [1]   O-RING
62A. 4509180 [1]   O-RING
63 9134110 [2]   PLUG
63 9134110 [2]   PLUG
63A. 957366 [1]   O-RING
63A. 957366 [1]   O-RING
64 A590912 [6]   WASHER
64 A590912 [6]   WASHER
66 4436271 [2]   SENSOR;PRES.
66 4436271 [2]   SENSOR;PRES.
66A. 4365826 [1]   O-RING
66A. 4365826 [1]   O-RING
76 4515041 [4]   PIN;SPRING
76 4515041 [4]   PIN;SPRING
77 4348665 [2]   O-RING
77 4348665 [2]   O-RING
78 4180349 [10]   O-RING
78 4180349 [10]   O-RING
79 4343074 [4]   O-RING
79 4343074 [4]   O-RING
82 4320490 [1]   SEAL;OIL
82 4320490 [1]   SEAL;OIL
83 930451 [1]   RING;RETAINING
83 930451 [1]   RING;RETAINING
100 4692565 [1]   KIT;SEAL
100 4692565 [1]   KIT;SEAL
9285568 [1]   REGULATOR
9285568 [1]   REGULATOR
9291174 [1]   REGULATOR
9291174 [1]   REGULATOR
9217993 [1]   PUMP;GEAR

Model：HPK055
Part number：
Application：EX120-7 ZAX120-6 EX135 EX120-7  ZAX130
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T
Warranty（in China）：3 months
