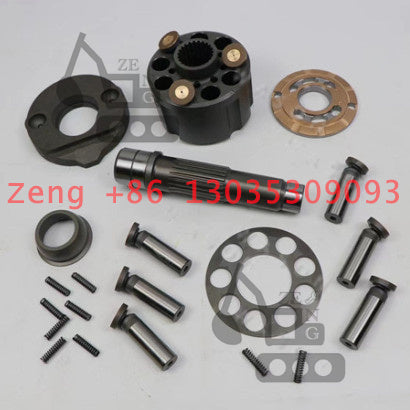

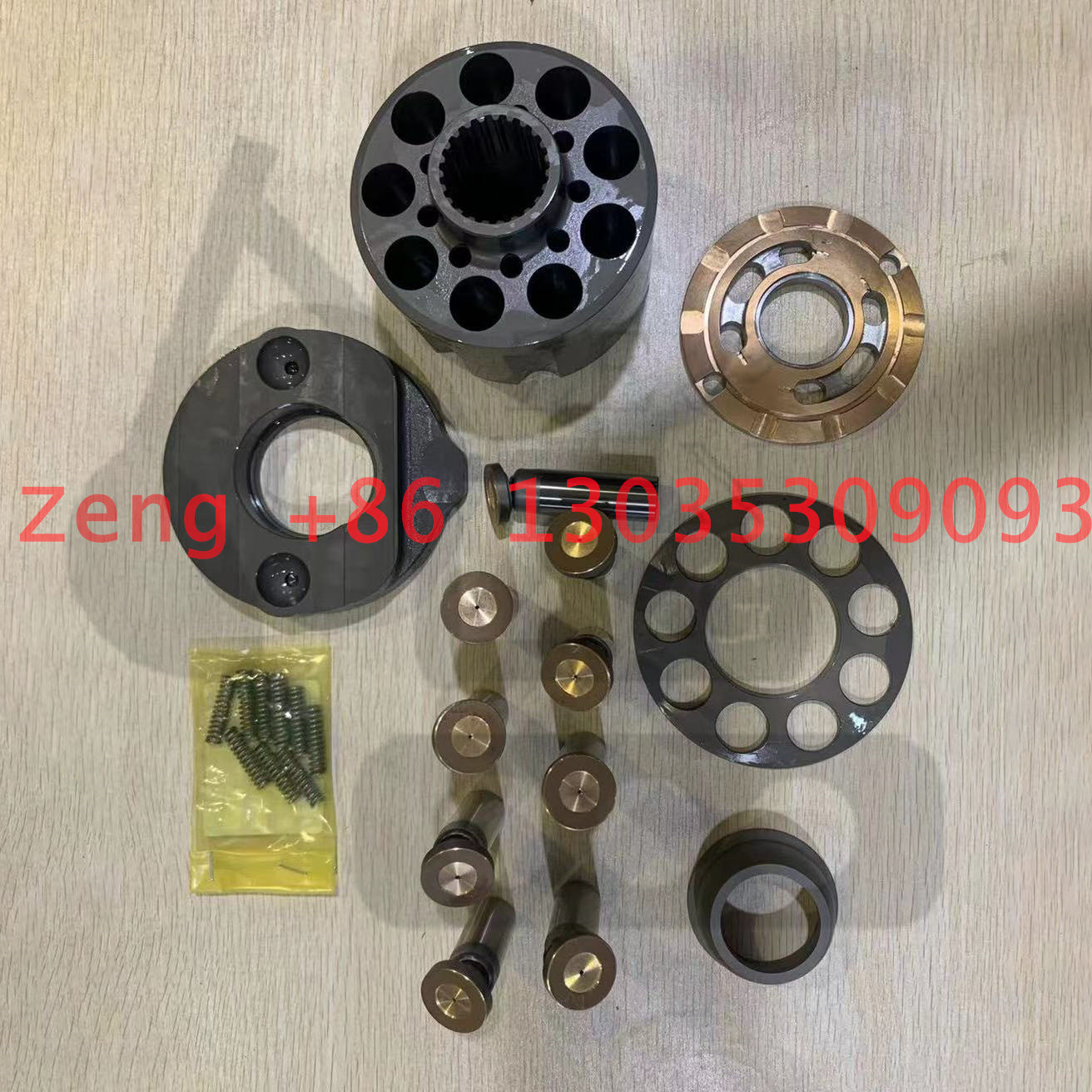

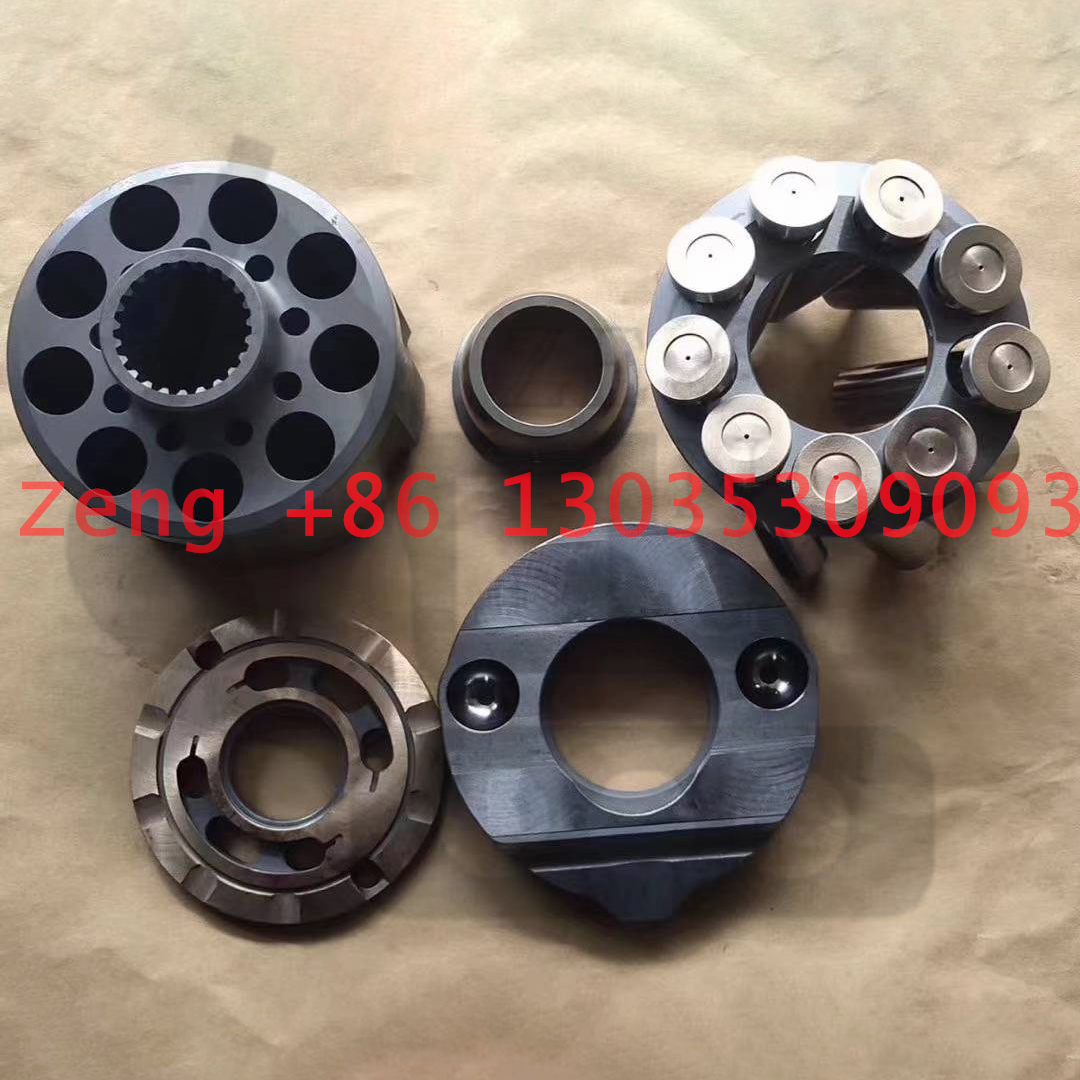

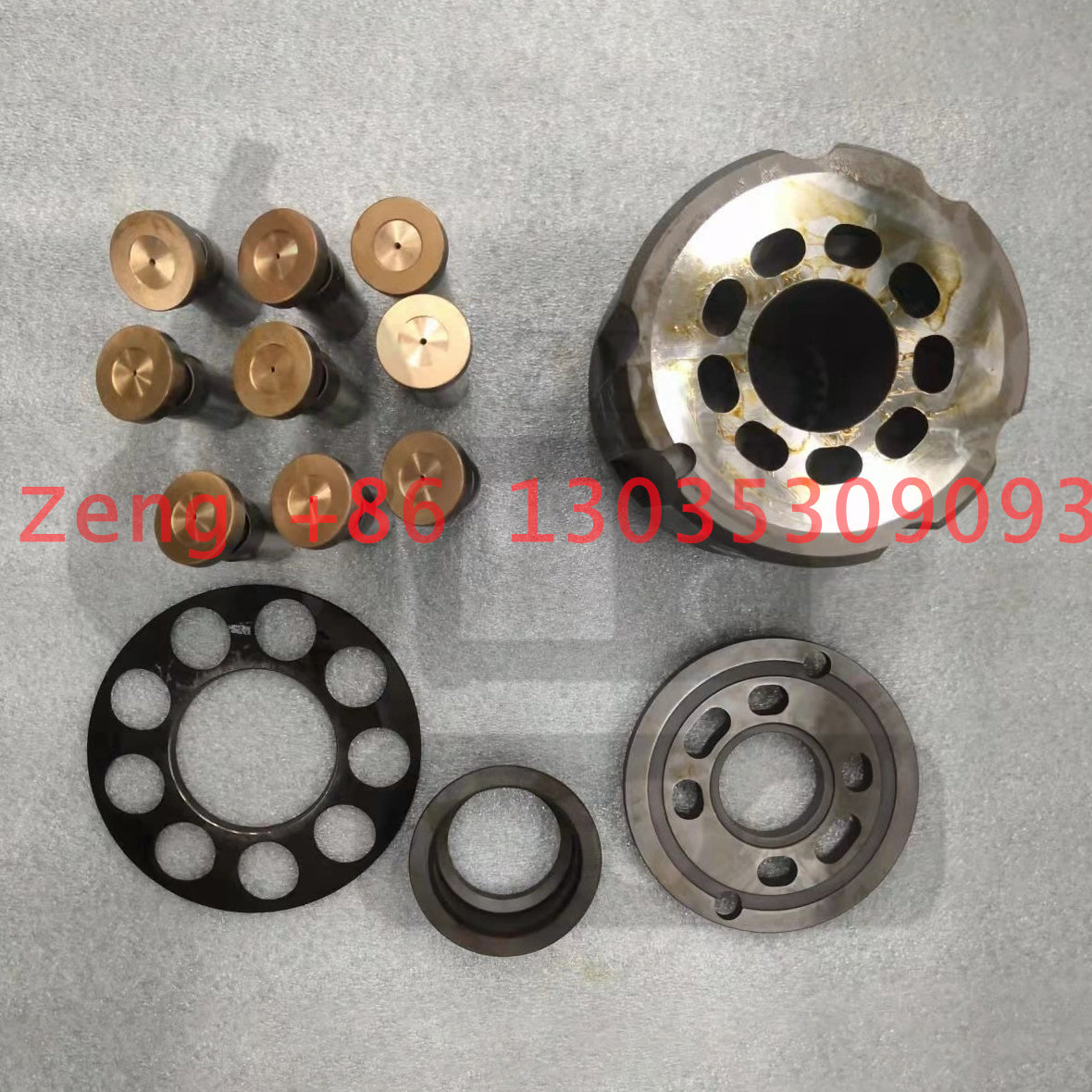

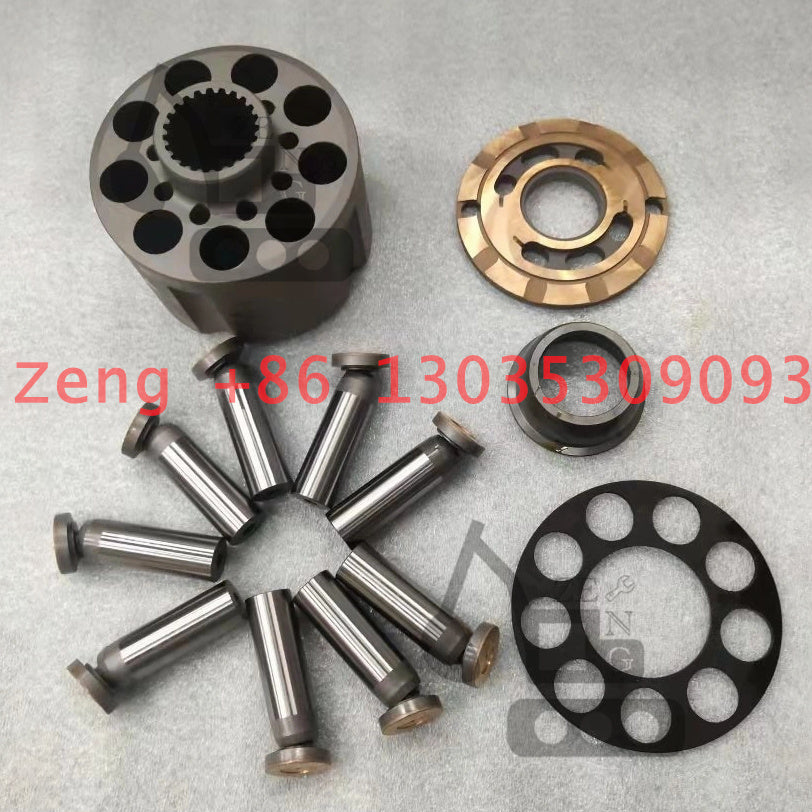

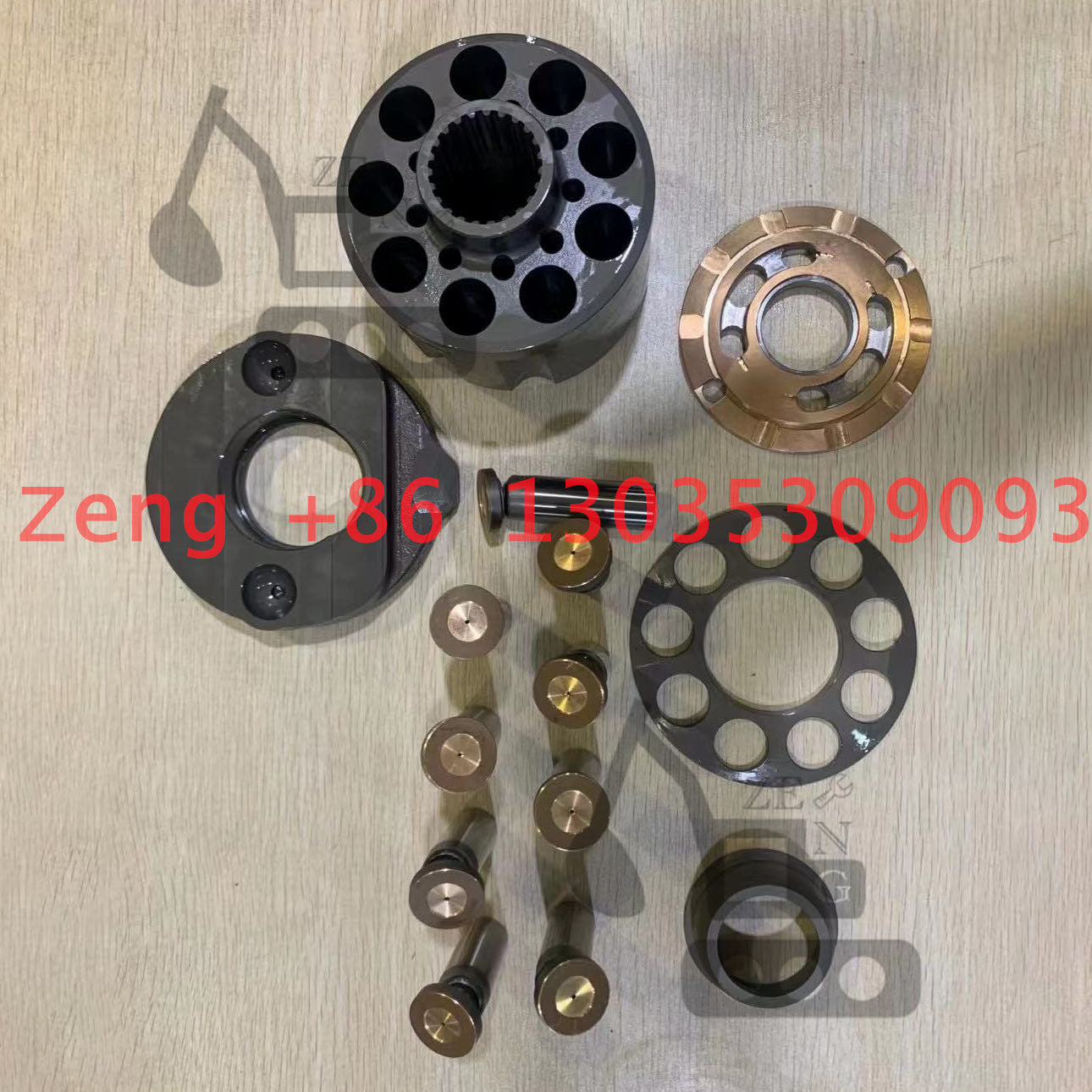

HMGE19 ZAX120-6 HMK61/72 3102353
9196238 9180429 9196238 ZX120 ZX120-3 ZX120-E ZX120-HCMC ZX125US ZX125US-E ZX130-3 ZX130-3-AMS ZX130-3-HCME ZX130-AMS ZX130-HCME ZX130H ZX130K ZX130K-3 ZX130LCN-3F-AMS ZX130LCN-3FHCME |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
9180429 |
[1] |
MOTOR;OIL |
I 9196238 <for assembly of machine> |
|
-9196238 |
[1] |
MOTOR;OIL |
<for transportation> |
| 0 |
1027085 |
[1] |
HOUSING |
|
| 3 |
4364328 |
[1] |
SEAL;OIL |
|
| 4 |
3085780 |
[1] |
SHAFT |
|
| 5 |
4427427 |
[1] |
BRG.;ROL. |
|
| 7 |
962002 |
[1] |
RING;RETAINING |
|
| 8 |
991725 |
[1] |
RING;RETAINING |
|
| 11 |
4419238 |
[2] |
BALL |
|
| 12 |
4417431 |
[1] |
PISTON |
|
| 14 |
3085761 |
[1] |
PLATE;SWASH |
|
| 16 |
2043791 |
[1] |
ROTOR |
|
| 16 |
2049901 |
[1] |
ROTOR |
|
| 17 |
4312681 |
[9] |
SPRING;COMPRES. |
|
| 18 |
4419159 |
[1] |
BUSHING |
|
| 19 |
3085713 |
[1] |
RETAINER |
|
| 20 |
8076030 |
[9] |
PISTON ASS'Y |
|
| 24 |
3085871 |
[4] |
PLATE |
|
| 25 |
3085844 |
[3] |
PLATE;FRICTION |
|
| 26 |
3082754 |
[1] |
PISTON |
|
| 29 |
4364329 |
[1] |
SPRING;DISC |
|
| 30 |
4430356 |
[1] |
O-RING |
|
| 31 |
4430357 |
[1] |
O-RING |
|
| 32 |
4506415 |
[2] |
O-RING |
|
| 33 |
4364323 |
[1] |
O-RING |
|
| 36 |
9180466 |
[1] |
VALVE;BRAKE |
I 9196236 <for assembly of machine> |
| 36 |
-9196236 |
[1] |
VALVE;BRAKE |
<for transportation> |
| 39 |
4234840 |
[1] |
BRG.;NEEDLE |
|
| 41 |
3085697 |
[1] |
PLATE;VALVE |
T 2049901 |
|
|
|
|
3102353 |
| 41 |
3102353 |
[1] |
PLATE;VALVE |
|
| 42 |
4271350 |
[2] |
PIN;KNOCK |
|
| 46 |
M341432 |
[8] |
BOLT;SOCKET |
I 4615617 |
| 46 |
4615617 |
[8] |
BOLT;SOCKET |
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
9180466 |
[1] |
VALVE;BRAKE |
I 9196236 <for assembly of machine> |
|
-9196236 |
[1] |
VALVE;BRAKE |
<for transportation> |
| 0 |
8076163 |
[1] |
CASING |
|
| 00A. |
+++++++ |
[1] |
CASING;REAR |
|
| 00B. |
+++++++ |
[1] |
SPOOL |
|
| 00C. |
+++++++ |
[1] |
SPOOL |
|
| 2 |
4372079 |
[2] |
SPRING;COMPRES. |
|
| 3 |
4154878 |
[2] |
STOPPER |
Y 4427428 |
| 3 |
4427428 |
[2] |
STOPPER |
|
| 4 |
4229631 |
[2] |
PLUG |
|
| 5 |
4506429 |
[2] |
O-RING |
|
| 10 |
4300918 |
[2] |
POPPET |
|
| 11 |
4383067 |
[2] |
SPRING;COMPRES. |
|
| 14 |
9159923 |
[2] |
VALVE;RELIEF |
|
| 15 |
4509493 |
[1] |
BALL |
|
| 16 |
4193400 |
[1] |
PLUG |
|
| 19 |
4297257 |
[1] |
SPRING;COMPRES. |
|
| 20 |
9167977 |
[1] |
PLUG |
|
| 20A. |
957366 |
[1] |
O-RING |
|
| 24 |
4050968 |
[1] |
PLUG |
|
| 25 |
9134109 |
[2] |
PLUG |
|
| 25A. |
4506408 |
[1] |
O-RING |
|
| 26 |
9134110 |
[4] |
PLUG |
|
| 26A. |
957366 |
[1] |
O-RING |
|
| 27 |
9134111 |
[1] |
PLUG |
|
| 27A. |
4509180 |
[1] |
O-RING |
|
