HITACHI ZX350LC-5B ZX350LCN-5B EXCAVATOR 9305188 9305189 9300615 YB60000171 YB6000088 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

HITACHI ZX350LC-5B ZX350LCN-5B EXCAVATOR 9305188 9305189 9300615 YB60000171 YB6000088 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
9305188 9305189
9300615 YB60000171
ZX350LC-5B ZX350LCN-5B
Pos. Part No Qty Parts name Comments
9300615 [1]   PUMP-DEVICE I YB60000171 <for assembly of machine>
YB60000171 [1]   PUMP-DEVICE <for transportation>
0 9305188 [1]   T.MISSION;PUMP
01 9314111 [1]   REGULATOR;PUMP I YB60000163 <for assembly of machine>
01 YB60000163 [1]   REGULATOR;PUMP <for transportation>
02 9305189 [1]   UNIT;PUMP
04 9314112 [1]   REGULATOR;PUMP I YB60000164 <for assembly of machine>
04 YB60000164 [1]   REGULATOR;PUMP <for transportation>
05 9217993 [1]   PUMP;GEAR
06 M341030 [2]   BOLT;SOCKET
07 984054 [2]   WASHER;SPRING
08 4114402 [2]   WASHER
09 9314113 [1]   REGULATOR;PUMP I YB60000165 <for assembly of machine>
09 YB60000165 [1]   REGULATOR;PUMP <for transportation>
10 4179833 [1]   SEAL;OIL
11 4116290 [1]   RING;RETAINING
12 4698302 [1]   COUPLING
12A. YB00000294 [1]   HUB
12B. 4183170 [2]   SCREW;SET
12C. 4101345 [4]   PIN;SPRING
12D. YB00000295 [4]   INSERT
12E. 4216948 [4]   BOLT;SOCKET
12F. YB00000296 [1]   ELEMENT
14 J901645 [10]   BOLT
15 A590916 [10]   WASHER;SPRING
18 4099290 [2]   PIN;SPRING
19 YB00000152 [1]   O-RING
20 4702856 [1]   PIPE
21 2058785 [1]   PIPE
22 2058786 [1]   PIPE
23 4710271 [3]   FITTING;PIPE
23A. 4297379 [1]   O-RING
24 4118499 [1]   FITTING;PIPE
24A. 4297379 [1]   O-RING
25 4293950 [2]   ELBOW;S
25A. 957366 [1]   O-RING
26 4179843 [2]   CLAMP
27 J900830 [1]   BOLT
28 M500807 [1]   NUT
29 A590908 [1]   WASHER;SPRING
30 4153543 [1]   O-RING
33 4234782 [1]   PLUG
34 4317633 [1]   ADAPTER
35 4645330 [1]   PLUG
36 J901216 [2]   BOLT
37 A590112 [2]   WASHER;PLANE
100 YB00000298 [1]   KIT;SEAL NOTE) This KIT;SEAL consists of "PUMP DEVICE" and "T.MISSION(PUMP)".

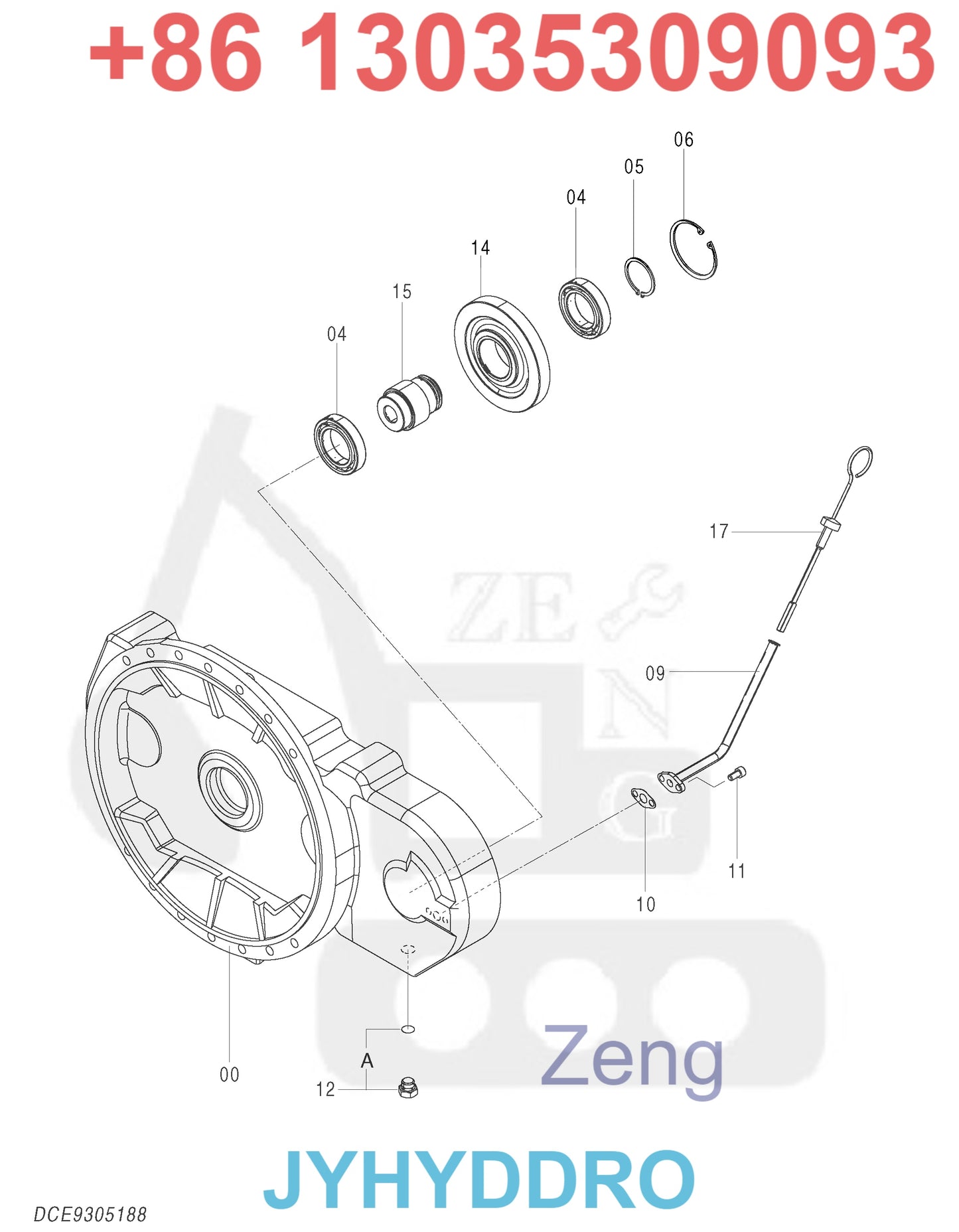

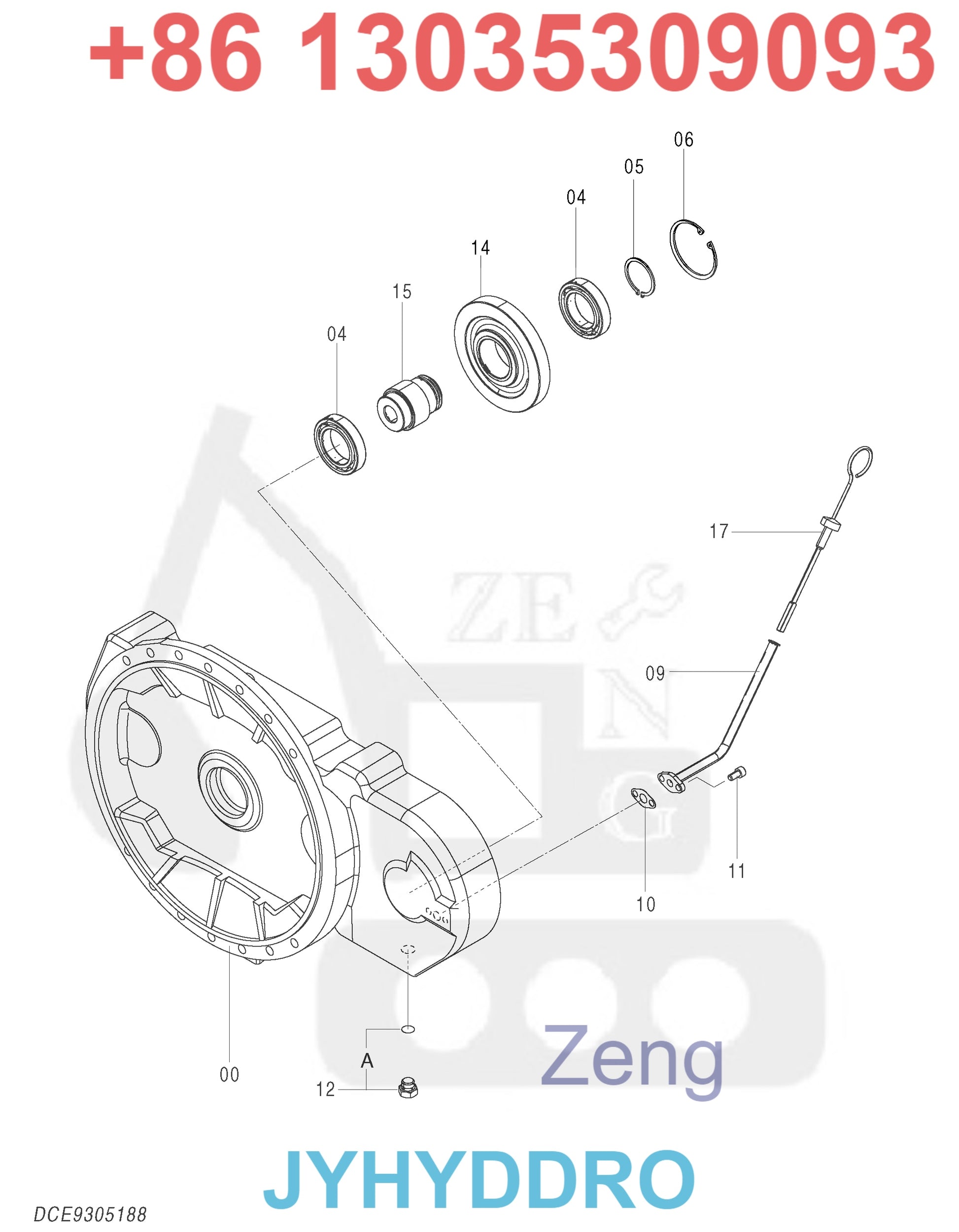

Parts on group T. MISSION (PUMP):
Pos. Part No Qty Parts name Comments
9305188 [1]   T.MISSION;PUMP
00 0007082 [1]   CASING;GEAR
04 4696739 [2]   BRG.;BALL
05 991345 [1]   RING;RETAINING
06 988850 [1]   RING;RETAINING
09 9743977 [1]   PIPE
10 9742779 [1]   PACKING
11 M340816 [2]   BOLT;SOCKET
12 4092534 [1]   PLUG
12A. 4509180 [1]   O-RING
14 3118426 [1]   GEAR;PILOT
15 3118405 [1]   SHAFT;GEAR
17 4721762 [1]   GAUGE;LEVEL
+++++++ [1]   KIT;SEAL NOTE) The KIT;SEAL of this system is indicated at "PUMP DEVICE".

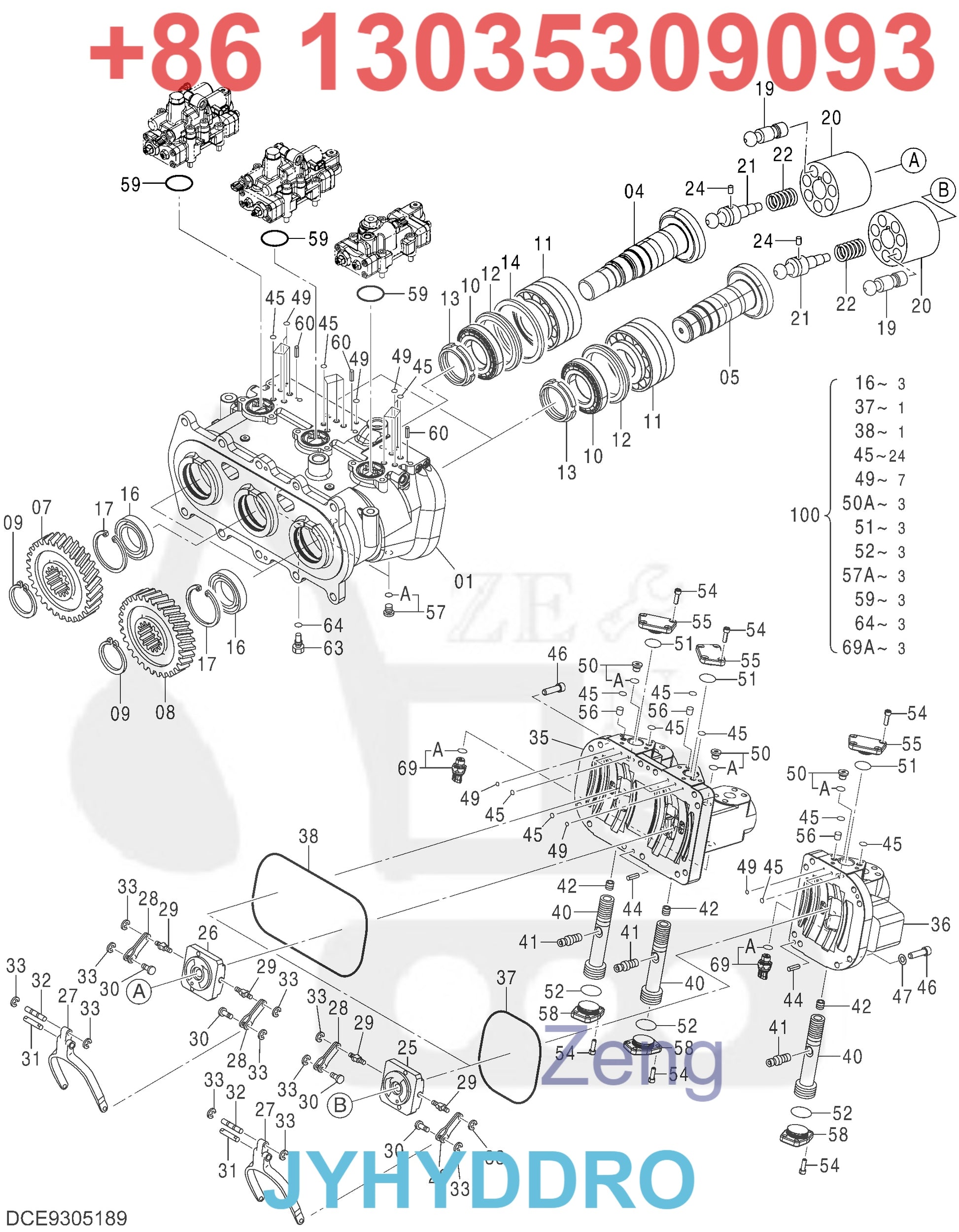

Parts on group PUMP;UNIT:
Pos. Part No Qty Parts name Comments
9305189 [1]   UNIT;PUMP
01 0007080 [1]   CASING;PUMP
04 1036135 [1]   DISC;DRIVING
05 2057436 [2]   DISC
07 3115128 [1]   GEAR
08 3115129 [2]   GEAR
09 4103152 [3]   RING;RETAINING
10 4695163 [3]   BRG.;ROL.
11 4366256 [3]   BRG.;ROL.
12 4695139 [3]   RING
13 4695164 [3]   NUT;BRG.
14 4695138 [1]   RING;THRUST
16 4695159 [3]   SEAL;OIL
17 959501 [3]   RING;RETAINING
19 8051275 [21]   PISTON
20 2022744 [3]   ROTOR
21 3081023 [3]   SHAFT;CENTER
22 4194362 [3]   SPRING;COMPRES.
24 4198956 [3]   PIN
25 9749142 [2]   VALVE
26 9770465 [1]   VALVE
27 3039569 [3]   LINK
28 9724756 [6]   LEVER
29 4179179 [6]   PIN
30 4179177 [6]   PIN
31 4200227 [3]   PIN
32 4179176 [3]   PIN
33 4146370 [18]   RING;RETAINING
35 1036148 [1]   HEAD
36 1036178 [1]   HEAD
37 4699401 [1]   O-RING
38 4699402 [1]   O-RING
40 3106174 [3]   PISTON;SERVO
41 4641714 [3]   PIN
42 4337812 [3]   SCREW;SET
44 4099290 [4]   PIN;SPRING
45 4180349 [24]   O-RING
46 M341245 [20]   BOLT;SOCKET
47 495841 [20]   WASHER;SPRING
49 4343074 [7]   O-RING
50 9134110 [3]   PLUG
50A. 957366 [1]   O-RING
51 4355081 [3]   O-RING
52 4294621 [3]   O-RING
54 M340820 [24]   BOLT;SOCKET
55 4693857 [3]   STOPPER
56 4427347 [3]   PLUG
57 9134111 [3]   PLUG
57A. 4509180 [1]   O-RING
58 4718722 [3]   STOPPER
59 4348665 [3]   O-RING
60 4515041 [6]   PIN;SPRING
63 4233165 [3]   PLUG
64 957366 [3]   O-RING
69 4703324 [3]   SENSOR;PRES.
69A. 4365826 [1]   O-RING
100 YB00000300 [1]   KIT;SEAL

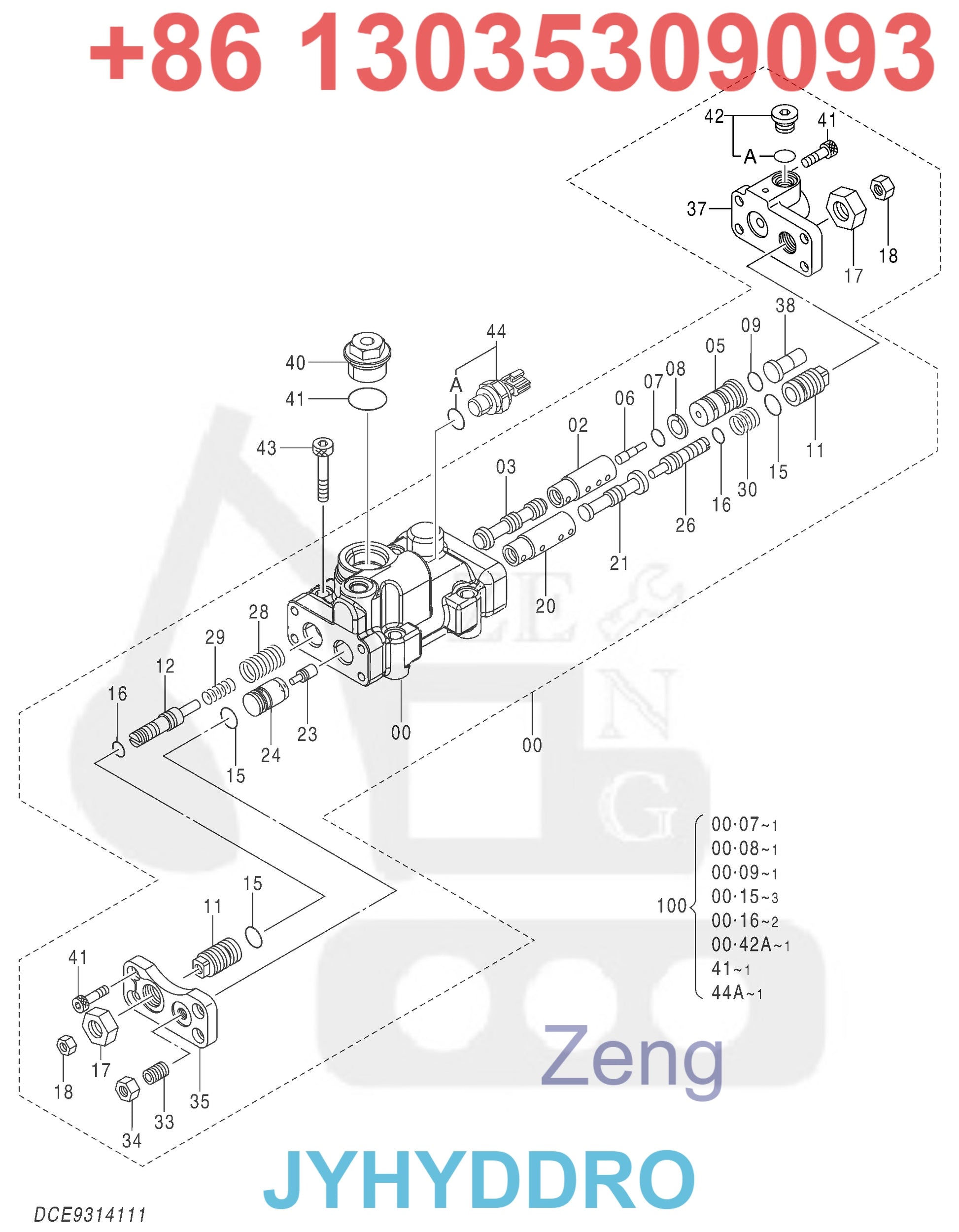

Parts on group REGULATOR;PUMP(1):
Pos. Part No Qty Parts name Comments
9314111 [1]   REGULATOR;PUMP I YB60000163 <for assembly of machine>
YB60000163 [1]   REGULATOR;PUMP <for transportation>
0 9322884 [1]   REGULATOR;ASSY
00-00. 1036669 [1]   CASING;REG.
00-02. 4179155 [1]   SLEEVE
00-03. 4179156 [1]   SPOOL
00-05. 4375722 [1]   CYL.;LOAD
00-06. 4360590 [1]   PISTON
00-07. 4150302 [1]   O-RING
00-08. 4085607 [1]   RING;BACK-UP
00-09. 4297380 [1]   O-RING
00-11. 4179161 [2]   STOPPER
00-12. 4368619 [1]   STOPPER
00-15. 4342843 [3]   O-RING
00-16. 4342841 [2]   O-RING
00-17. 4068898 [2]   NUT
00-18. M500807 [2]   NUT
00-20. 4346522 [1]   SLEEVE
00-21. 4346521 [1]   SPOOL
00-23. 4179171 [1]   PISTON
00-24. 4451498 [1]   CYL.
00-26. 4347107 [1]   STOPPER;INNER
00-28. 4616531 [1]   SPRING;COMPRES.
00-29. 4616533 [1]   SPRING;COMPRES.
00-30. 4713683 [1]   SPRING;COMPRES.
00-33. 4265964 [1]   SCREW;SET
00-34. J950010 [1]   NUT
00-35. 4433327 [1]   COVER
00-37. 3107927 [1]   COVER;REAR
00-38. 4653849 [1]   PISTON
00-41. M340820 [8]   BOLT;SOCKET
00-42. 9134110 [1]   PLUG
00-42A. 957366 [1]   O-RING
40 4447264 [1]   PLUG
41 4342846 [1]   O-RING
43 M341056 [4]   BOLT;SOCKET
44 4436536 [1]   SENSOR;PRES.
44A. 4153095 [1]   O-RING
100 4455719 [1]   KIT;SEAL

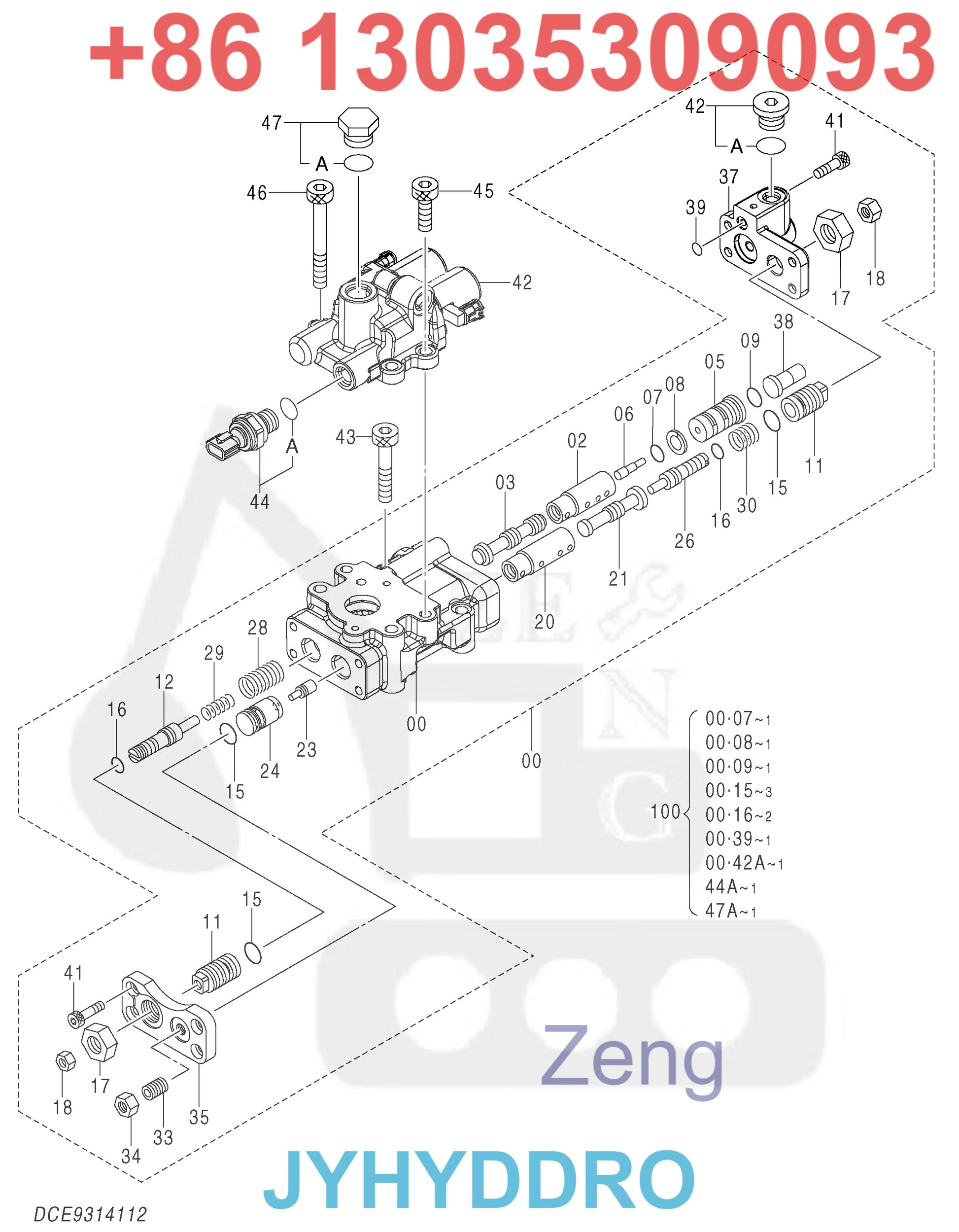

Parts on group REGULATOR;PUMP(2):
Pos. Part No Qty Parts name Comments
9314112 [1]   REGULATOR;PUMP I YB60000164 <for assembly of machine>
YB60000164 [1]   REGULATOR;PUMP <for transportation>
0 9322885 [1]   REGULATOR;ASSY
00-00. 1036579 [1]   CASING;REG.
00-02. 4179155 [1]   SLEEVE
00-03. 4179156 [1]   SPOOL
00-05. 4375722 [1]   CYL.;LOAD
00-06. 4360590 [1]   PISTON
00-07. 4150302 [1]   O-RING
00-08. 4085607 [1]   RING;BACK-UP
00-09. 4297380 [1]   O-RING
00-11. 4179161 [2]   STOPPER
00-12. 4368619 [1]   STOPPER
00-15. 4342843 [3]   O-RING
00-16. 4342841 [2]   O-RING
00-17. 4068898 [2]   NUT
00-18. M500807 [2]   NUT
00-20. 4346522 [1]   SLEEVE
00-21. 4346521 [1]   SPOOL
00-23. 4179171 [1]   PISTON
00-24. 4451498 [1]   CYL.
00-26. 4347107 [1]   STOPPER;INNER
00-28. 4616531 [1]   SPRING;COMPRES.
00-29. 4616533 [1]   SPRING;COMPRES.
00-30. 4713683 [1]   SPRING;COMPRES.
00-33. 4265964 [1]   SCREW;SET
00-34. J950010 [1]   NUT
00-35. 4433327 [1]   COVER
00-37. 3117719 [1]   COVER;REAR
00-38. 4653849 [1]   PISTON
00-39. 4180349 [1]   O-RING
00-41. M340820 [8]   BOLT;SOCKET
00-42. 9134110 [1]   PLUG
00-42A. 957366 [1]   O-RING
42 9312792 [1]   VALVE;SOLENOID
43 M341056 [2]   BOLT;SOCKET
44 4436536 [1]   SENSOR;PRES.
44A. 4153095 [1]   O-RING
45 M341030 [2]   BOLT;SOCKET
46 M341090 [2]   BOLT;SOCKET
47 4174541 [1]   PLUG
47A. 4506418 [1]   O-RING
100 YB00000330 [1]   KIT;SEAL

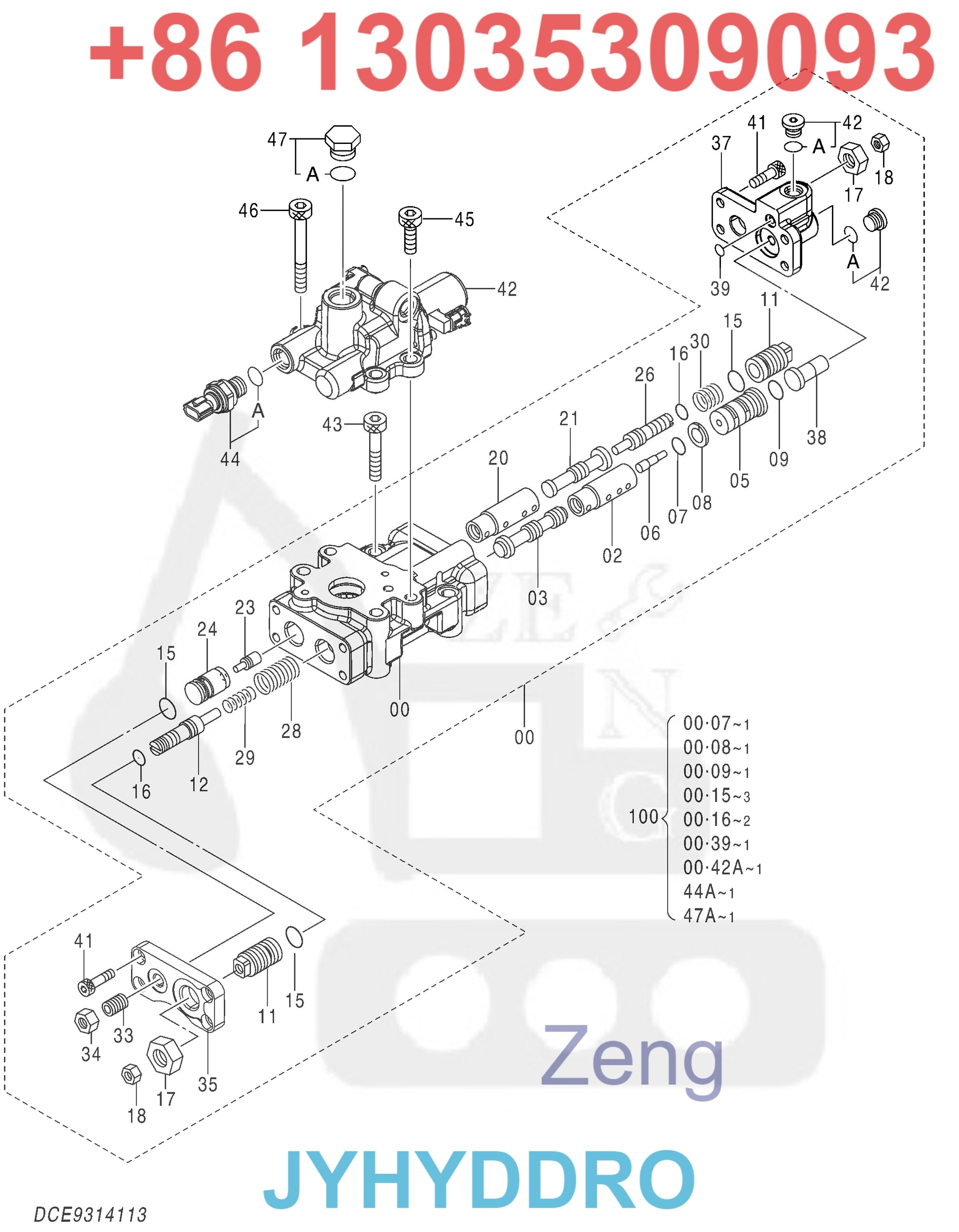

Parts on group REGULATOR;PUMP(3):
Pos. Part No Qty Parts name Comments
9314113 [1]   REGULATOR;PUMP I YB60000165 <for assembly of machine>
YB60000165 [1]   REGULATOR;PUMP <for transportation>
0 9322886 [1]   REGULATOR;ASSY
00-00. 1036553 [1]   CASING;REG.
00-02. 4179155 [1]   SLEEVE
00-03. 4179156 [1]   SPOOL
00-05. 4710905 [1]   CYL.;LOAD
00-06. 4360590 [1]   PISTON
00-07. 4150302 [1]   O-RING
00-08. 4085607 [1]   RING;BACK-UP
00-09. 4297380 [1]   O-RING
00-11. 4179161 [2]   STOPPER
00-12. 4368619 [1]   STOPPER
00-15. 4342843 [3]   O-RING
00-16. 4342841 [2]   O-RING
00-17. 4068898 [2]   NUT
00-18. M500807 [2]   NUT
00-20. 4346522 [1]   SLEEVE
00-21. 4346521 [1]   SPOOL
00-23. 4179171 [1]   PISTON
00-24. 4451498 [1]   CYL.
00-26. 4347107 [1]   STOPPER;INNER
00-28. 4616531 [1]   SPRING;COMPRES.
00-29. 4616533 [1]   SPRING;COMPRES.
00-30. 4713683 [1]   SPRING;COMPRES.
00-33. 4265964 [1]   SCREW;SET
00-34. J950010 [1]   NUT
00-35. 4433327 [1]   COVER
00-37. 3114906 [1]   COVER;REAR
00-38. 4611012 [1]   PISTON
00-39. 4180349 [1]   O-RING
00-41. M340820 [8]   BOLT;SOCKET
00-42. 9134110 [2]   PLUG
00-42A. 957366 [1]   O-RING
42 9312791 [1]   VALVE;SOLENOID
43 M341056 [2]   BOLT;SOCKET
44 4436536 [1]   SENSOR;PRES.
44A. 4153095 [1]   O-RING
45 M341030 [2]   BOLT;SOCKET
46 M341090 [2]   BOLT;SOCKET
47 4174541 [1]   PLUG
47A. 4506418 [1]   O-RING
100 YB00000330 [1]   KIT;SEAL

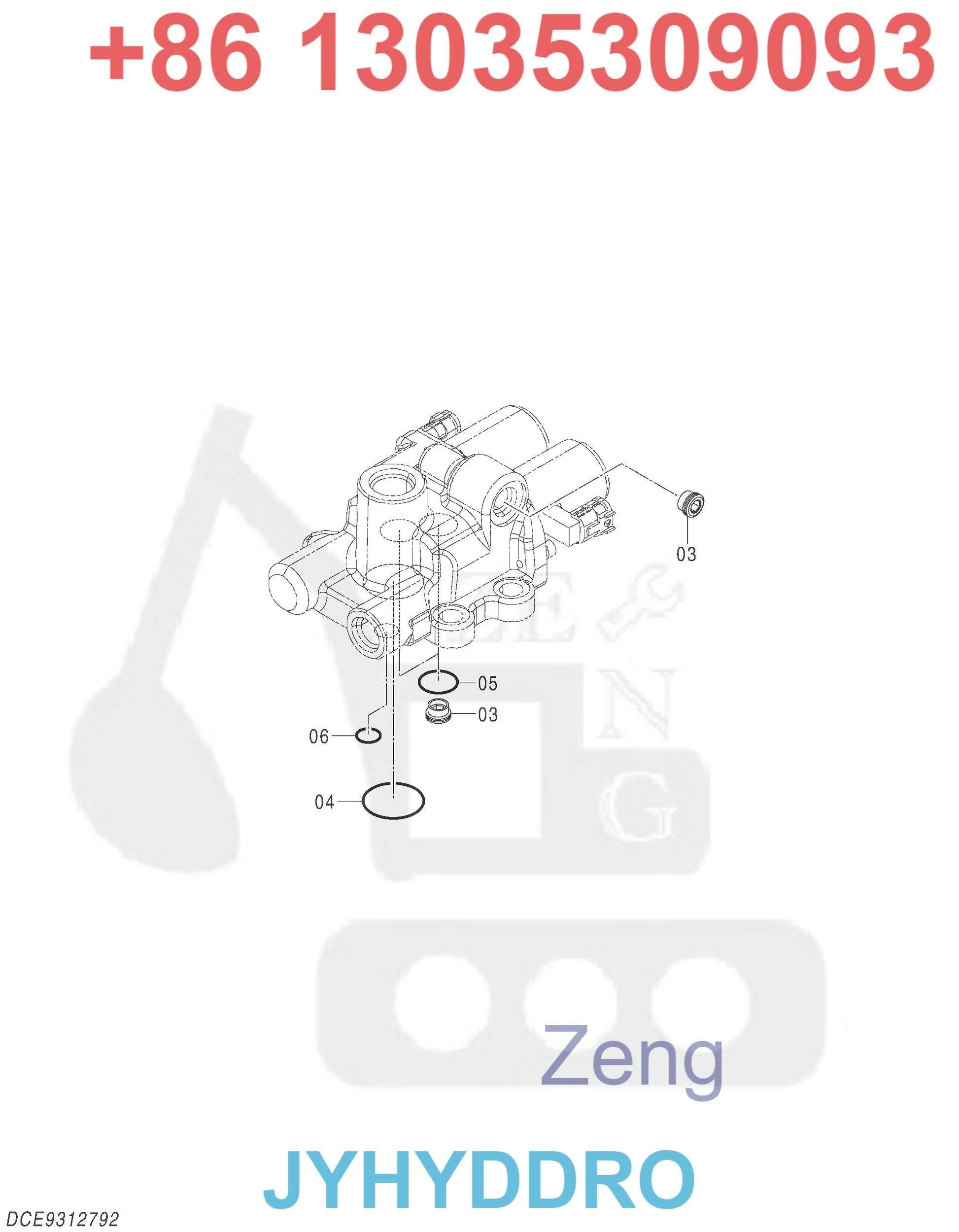

Parts on group VALVE;SOLENOID:
Pos. Part No Qty Parts name Comments
9312792 [2]   VALVE;SOLENOID
3 9761179 [3]   PLUG
4 4153534 [1]   O-RING
5 4150302 [2]   O-RING
6 4153087 [1]   O-RING

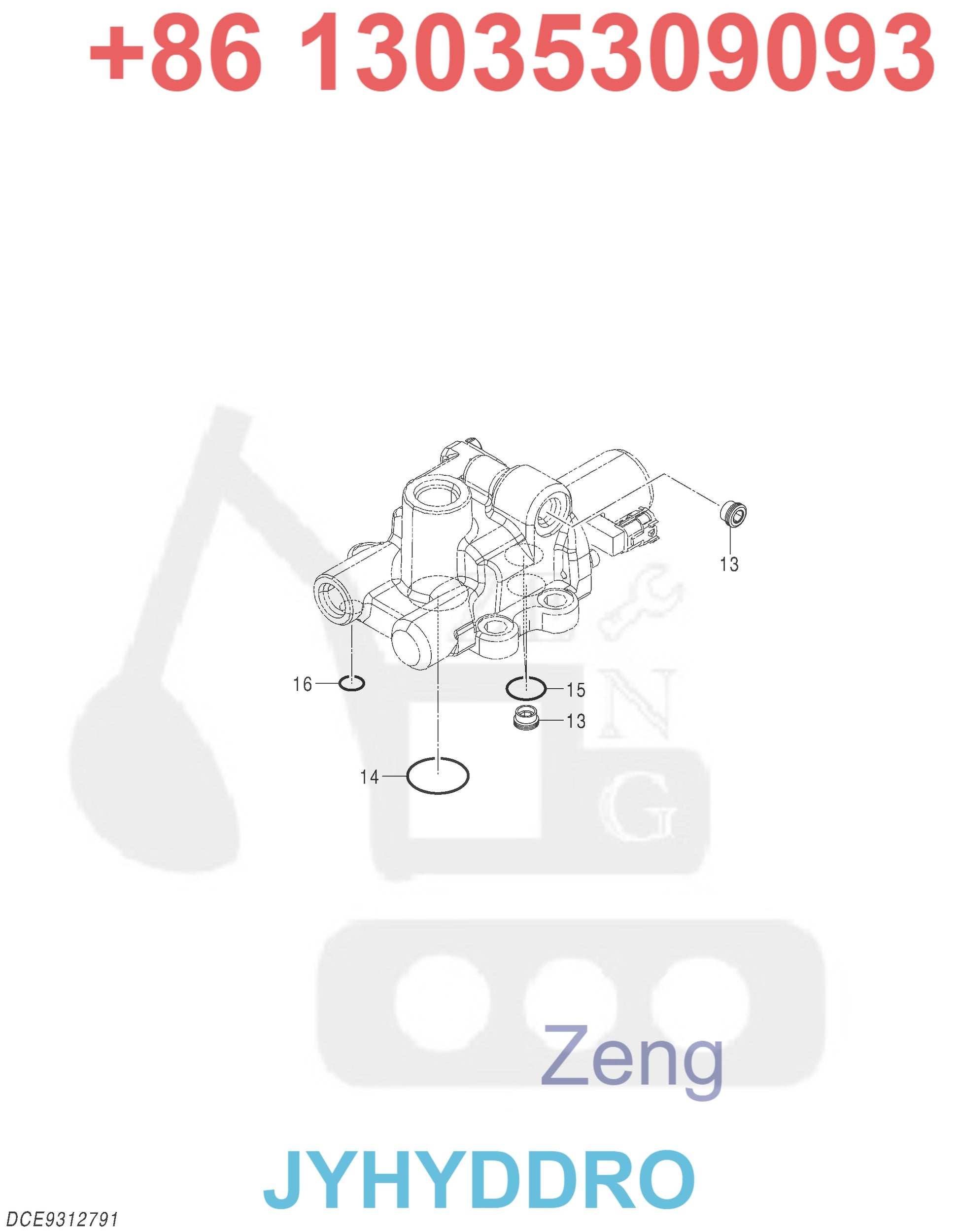

Parts on group VALVE;SOLENOID:
Pos. Part No Qty Parts name Comments
9312791 [1]   VALVE;SOLENOID
13 9761179 [3]   PLUG
14 4153534 [1]   O-RING
15 4150302 [2]   O-RING
16 4153087 [1]   O-RING
Parts on group PUMP;GEAR:
Pos. Part No Qty Parts name Comments
9217993 [1]   PUMP;GEAR
2 2050209 [1]   FRANGE
3 3097272 [1]   SEAL;OIL
5 4601409 [1]   RING;RETAINING
6 1031045 [2]   SEAL
7 4605732 [1]   COVER
9 4487250 [2]   RING;BACK-UP
10 4484119 [2]   KEY
12 4488720 [2]   O-RING
13 +++++++ [1]   GEAR
14 +++++++ [1]   GEAR
15 4605742 [4]   WASHER;PLANE
26 +++++++ [2]   BUSHING
27 +++++++ [2]   BUSHING
28 J400613 [2]   PIN
29 4710315 [4]   BOLT
41 +++++++ [1]   HOUSING
100 4487340 [1]   KIT;SEAL
