HITACHI EX30UR EXCAVATOR TRAVEL REDUCTION GEAR

HITACHI EX30UR EXCAVATOR TRAVEL REDUCTION GEAR

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

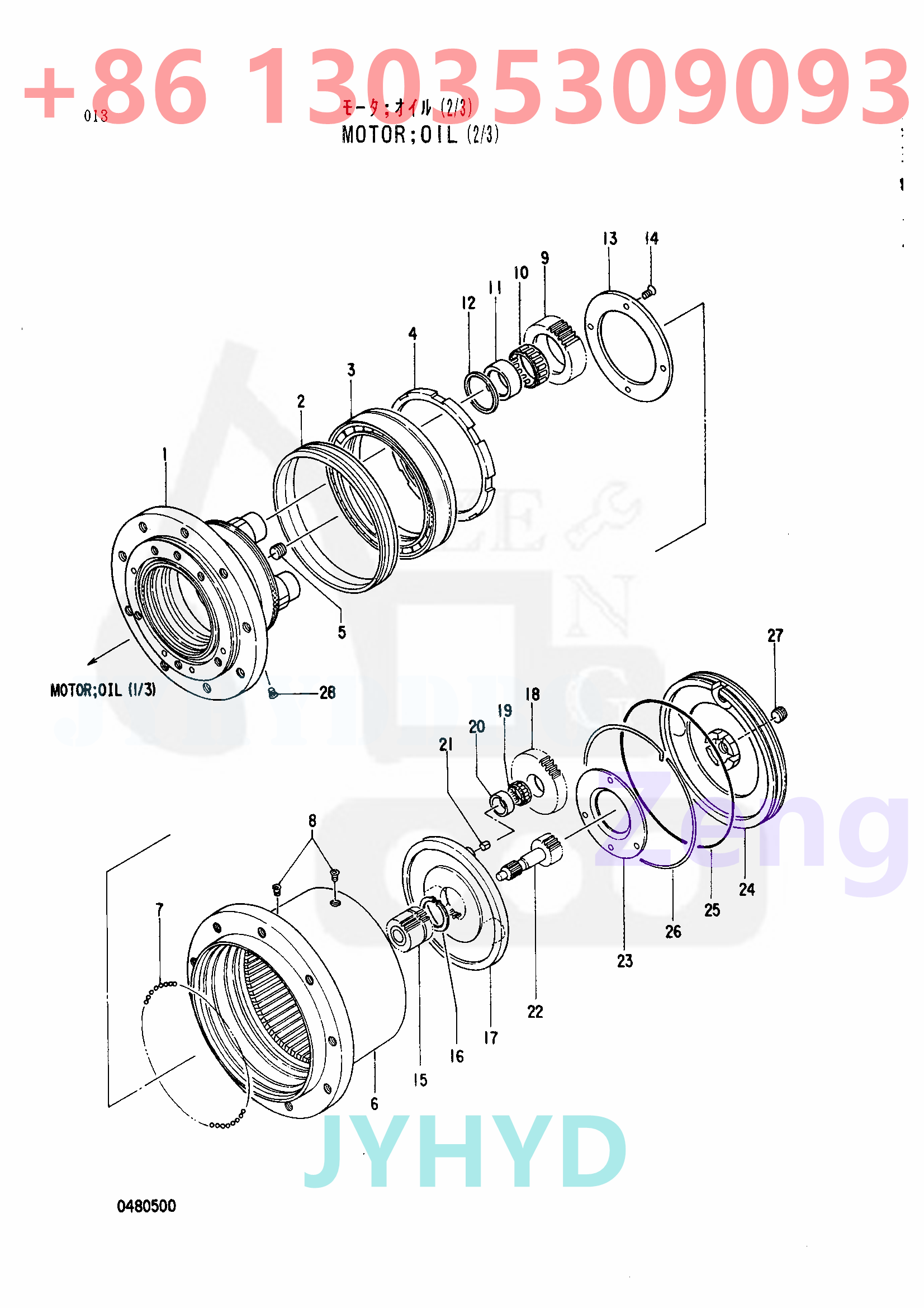

Parts on group MOTOR;OIL (2/3):
Pos. Part No Qty Parts name Comments
4309476 [1]   MOTOR;OIL (2/3) This PART NO. consists of all parts shown in MOTOR;OIL(1/3) to (3/3).
1 +++++++ [1]   HOLDER
2 0436501 [1]   SEAL
3 0436502 [1]   BRG.
4 0436503 [1]   NUT
5 0436504 [2]   PLUG
6 +++++++ [1]   HOUSING
7 0431910 [132]   BALL;STEEL
8 94-2010 [2]   PLUG
9 0436505 [4]   GEAR;PLANETARY
10 0436506 [4]   CAGE
11 0436507 [4]   COLLAR
12 0436508 [4]   WASHER;THRUST
13 0436509 [1]   PLATE;THRUST
14 0397810 [4]   SCREW
15 0436510 [1]   GEAR;SUN
16 991342 [1]   RING;RETAINING
17 0472401 [1]   HOLDER
18 0472402 [3]   GEAR;PLANETARY
19 0436513 [3]   CAGE
20 0436514 [3]   RACE;INNER
21 988975 [3]   PIN;SPRING
22 0472403 [1]   GEAR;DRIVE
23 0436516 [1]   PLATE;THRUST
23 0436517 [1]   PLATE;THRUST
23 0436518 [1]   PLATE;THRUST
24 0436520 [1]   COVER
25 0234115 [1]   O-RING
26 0436521 [1]   WIRE
27 94-2012 [3]   PLUG
28 0352225 [2]   PLUG
