HITACHI 9281841 9281842 TRAVEL MOTOR ROTARY GROUP

HITACHI 9281841 9281842 TRAVEL MOTOR ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
9281841 9281842
ZX290L-5G ZX330-3 ZX330-3G ZX330-3-HCMC ZX330-5G ZX330LC-5G ZX350-3-AMS ZX350H-3 ZX350H-3G ZX350H-5G ZX350K-3 ZX350K-3G ZX350K-5G
ZX350LC-3-HCME ZX350LC-5B ZX350LCH-5G ZX350LCK-5G ZX350LCN-5B ZX360H-3G

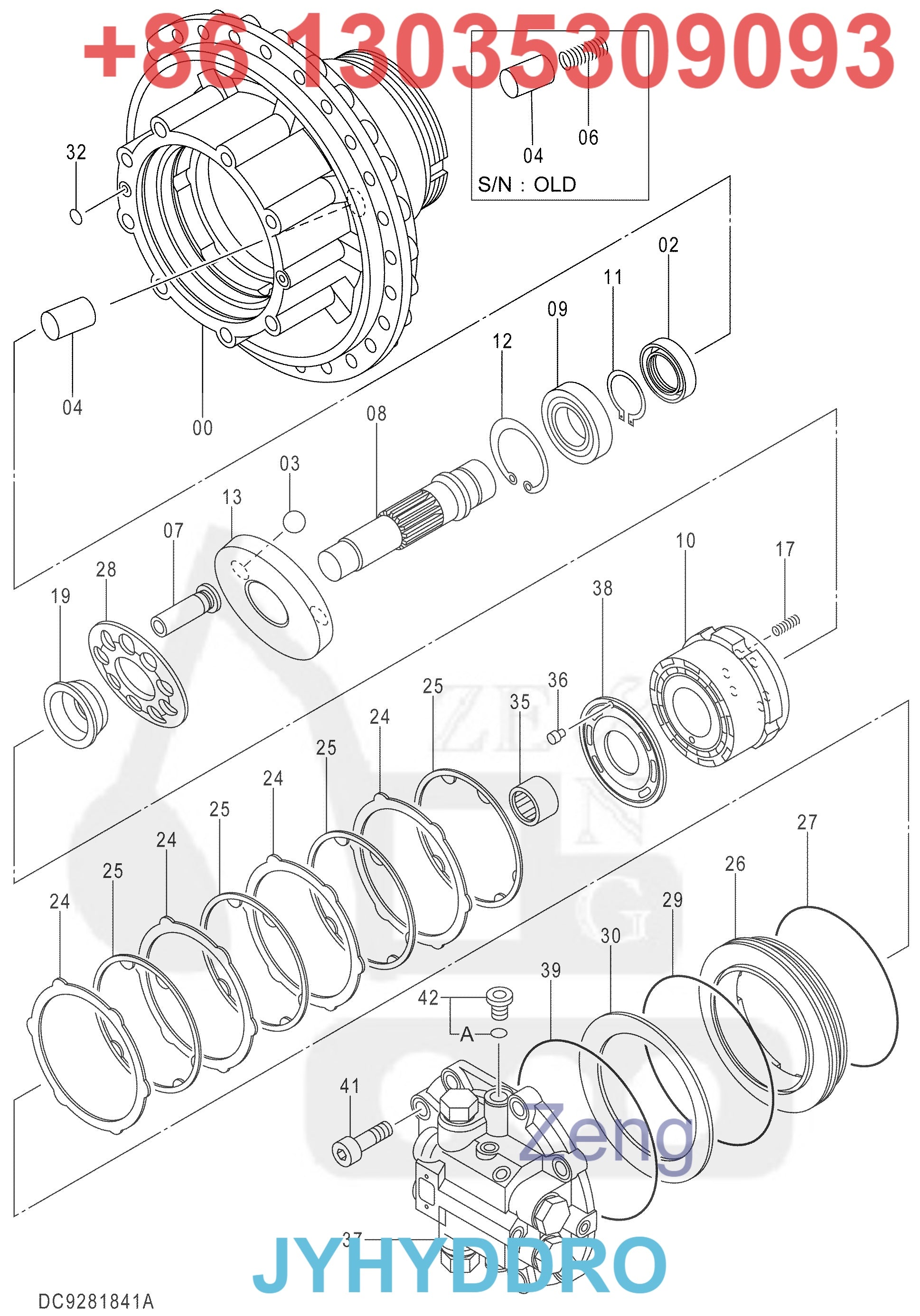

Pos. Part No Qty Parts name Comments
9281841 [1]   MOTOR:OIL I 9281842
9281842 [1]   MOTOR;OIL
00 0005207 [1]   HOUSING
02 4396696 [1]   SEAL;OIL
03 4355728 [2]   BALL
04 4462038 [1]   PISTON I 4706126
04 4706126 [1]   PISTON;SERVO
06 4475147 [1]   SPRING;COMPRES.
07 8107650 [9]   PISTON
08 2047884 [1]   SHAFT
09 4396755 [1]   BRG.;ROL.
10 2053333 [1]   ROTOR
11 991345 [1]   RING;RETAINING
12 959501 [1]   RING;RETAINING
13 3107140 [1]   PLATE;SWASH
17 4468258 [6]   SPRING;COMPRES.
19 4642740 [1]   BUSHING
24 3094376 [4]   PLATE
25 3107797 [4]   PLATE;FRICTION
26 3094377 [1]   PISTON
27 4468248 [1]   O-RING
28 3107859 [1]   RETAINER
29 4468249 [1]   O-RING
30 4468250 [1]   SPRING;DISC
32 4506415 [2]   O-RING
35 4472355 [1]   BRG.;NEEDLE
36 4461910 [1]   PIN;KNOCK
37 9263062 [1]   VALVE;BRAKE I 9264565
37 9264565 [1]   VALVE;BRAKE
38 3103258 [1]   PLATE;VALVE
39 4468244 [1]   O-RING
41 M342056 [8]   BOLT;SOCKET
42 9134112 [1]   PLUG
42A. 4506418 [1]   O-RING

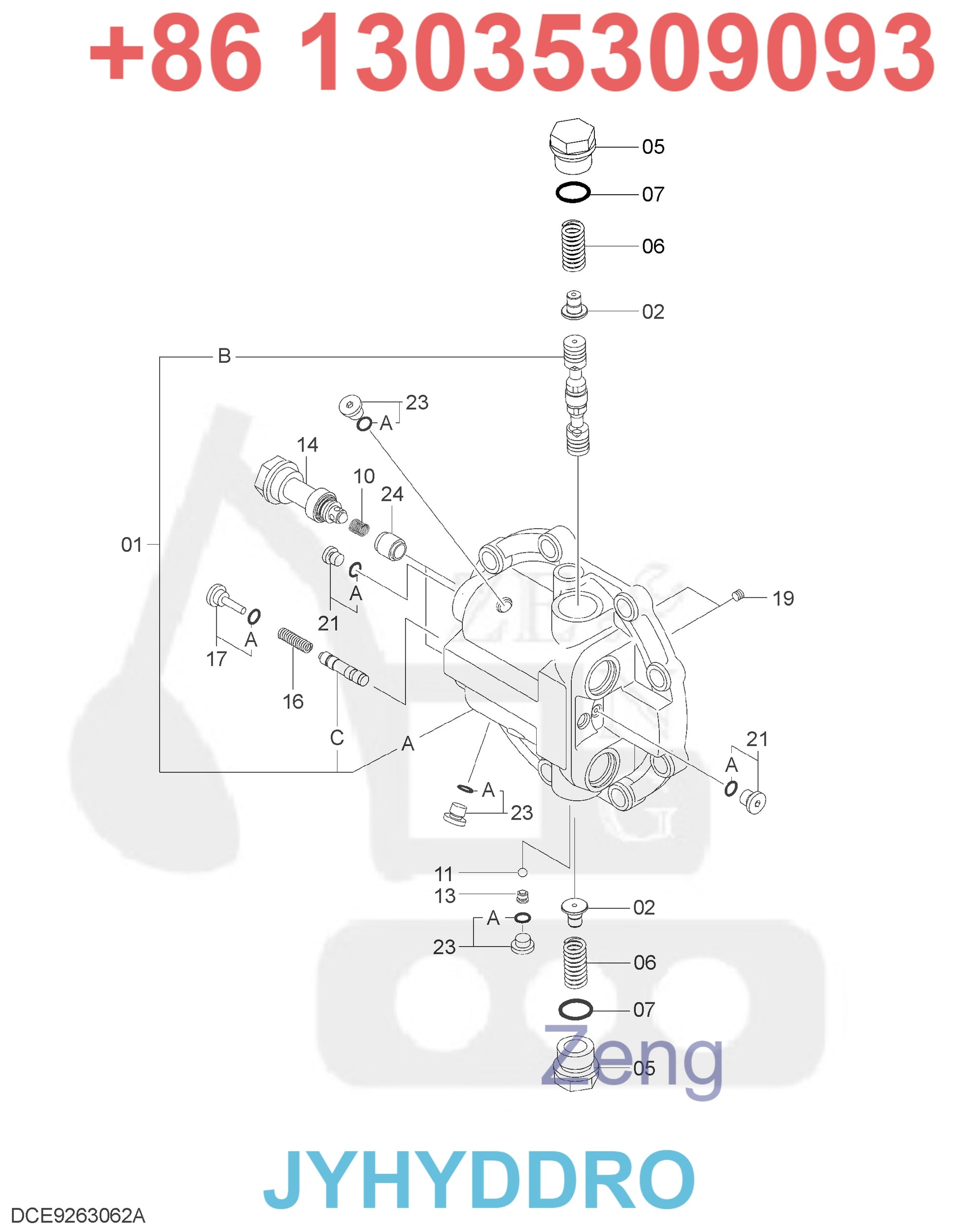

Parts on group VALVE;BRAKE:
Pos. Part No Qty Parts name Comments
9263062 [1]   VALVE;BRAKE I 9264565
9264565 [1]   VALVE;BRAKE
01 8104695 [1]   CASING
01A. +++++++ [1]   CASING;REAR
01B. +++++++ [1]   SPOOL
01C. +++++++ [1]   SPOOL
02 4461905 [2]   STOPPER
05 4276526 [2]   PLUG
06 4485473 [2]   SPRING;COMPRES.
07 4506429 [2]   O-RING
10 4396771 [2]   SPRING;COMPRES.
11 4509493 [1]   BALL
13 4311662 [1]   SEAT
14 9213855 [2]   VALVE;RELIEF
16 4297257 [1]   SPRING;COMPRES.
17 9167977 [1]   PLUG
17A. 957366 [1]   O-RING
19 4050968 [2]   PLUG
21 9089484 [2]   PLUG
21A. 4506408 [1]   O-RING
23 9089485 [3]   PLUG
23A. 957366 [1]   O-RING
24 4644361 [2]   POPPET

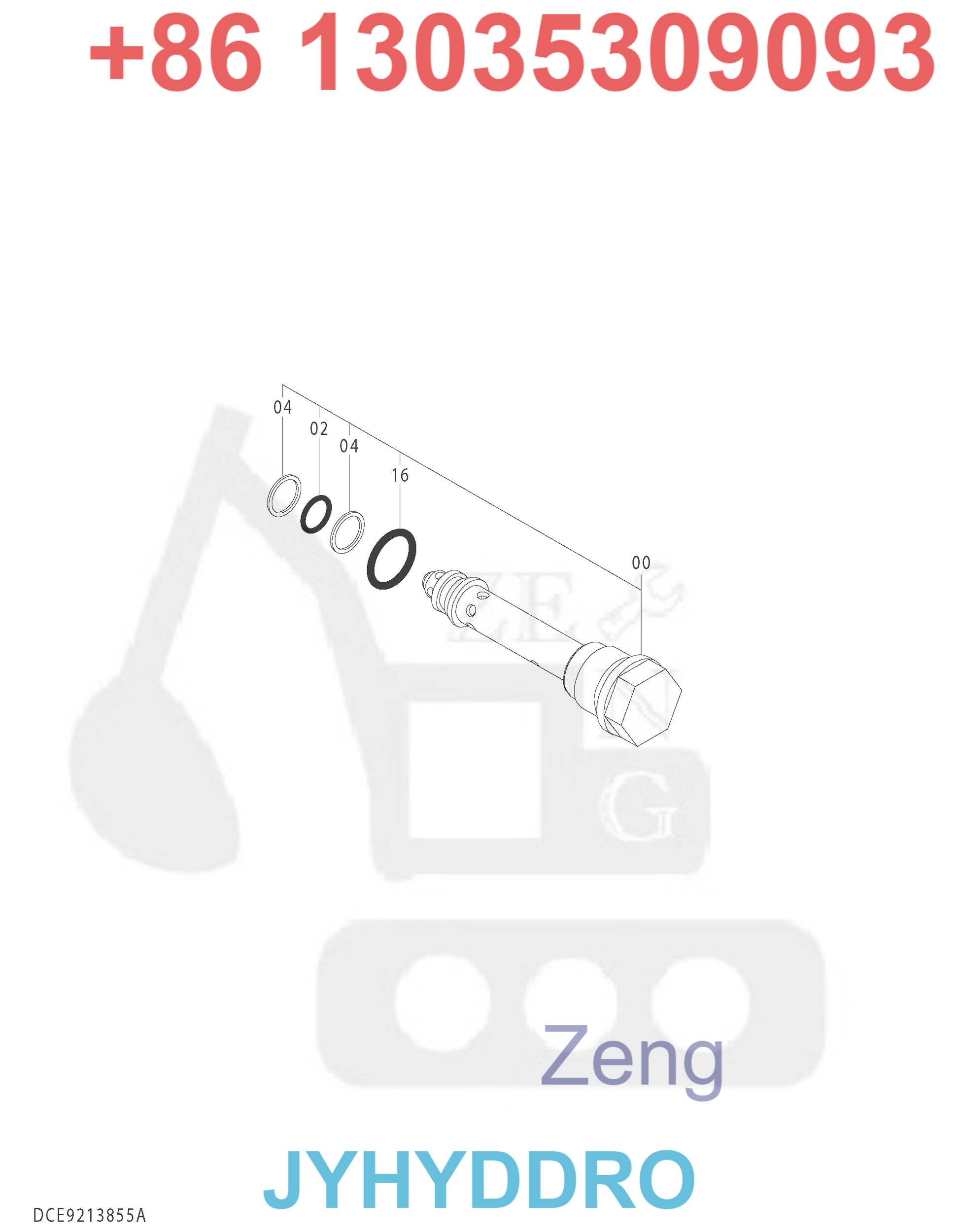

Parts on group VALVE;RELIEF:
Pos. Part No Qty Parts name Comments
00 9213855 [1]   VALVE;RELIEF
02 4506418 [1]   O-RING
04 4033725 [2]   RING;BACK-UP
16 4506429 [1]   O-RING
