HITACHI 9262852 9275946 TRAVEL DEVICE 4637796 4652345 OIL MOTOR PARTS

HITACHI 9262852 9275946 TRAVEL DEVICE 4637796 4652345 OIL MOTOR PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
9262852 9275946 TRAVEL DEVICE 4637796 4652345 OIL MOTOR
ZX450 ZX450-3 ZX450-3F ZX450H ZX450H-HHE ZX450LC-3-DH ZX460LCH-AMS ZX460LCH-HCME ZX470H-3 ZX470H-3-HCMC ZX470H-3F ZX470R-3 ZX470R-3F ZX480MT ZX480MTH ZX500LC-3 ZX500LC-3F ZX520LCH-3 ZX520LCH-3F ZX520LCR-3 ZX520LCR-3F ZX600 ZX650H

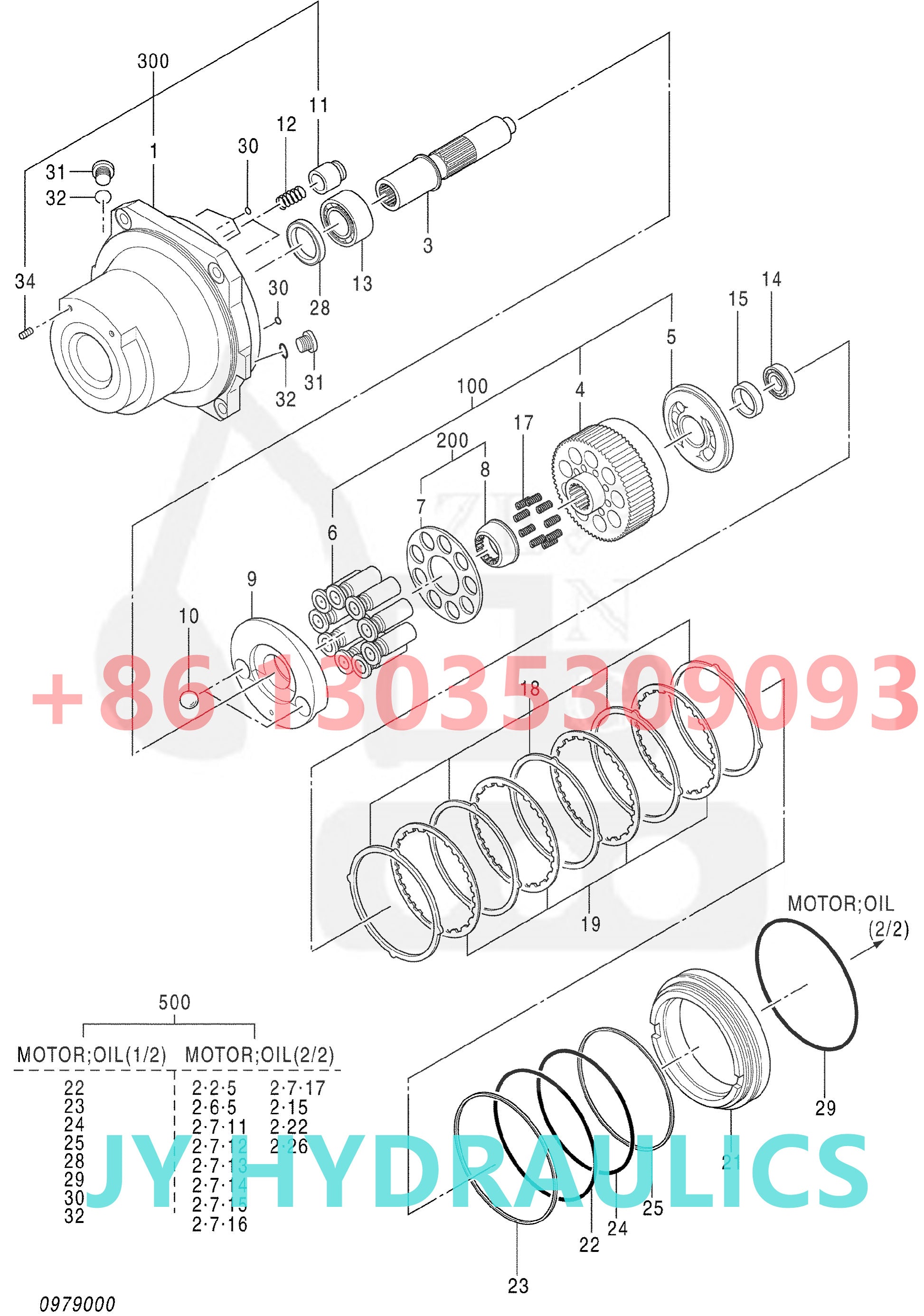

ROTARY GROUP 0853403
Pos. Part No Qty Parts name Comments

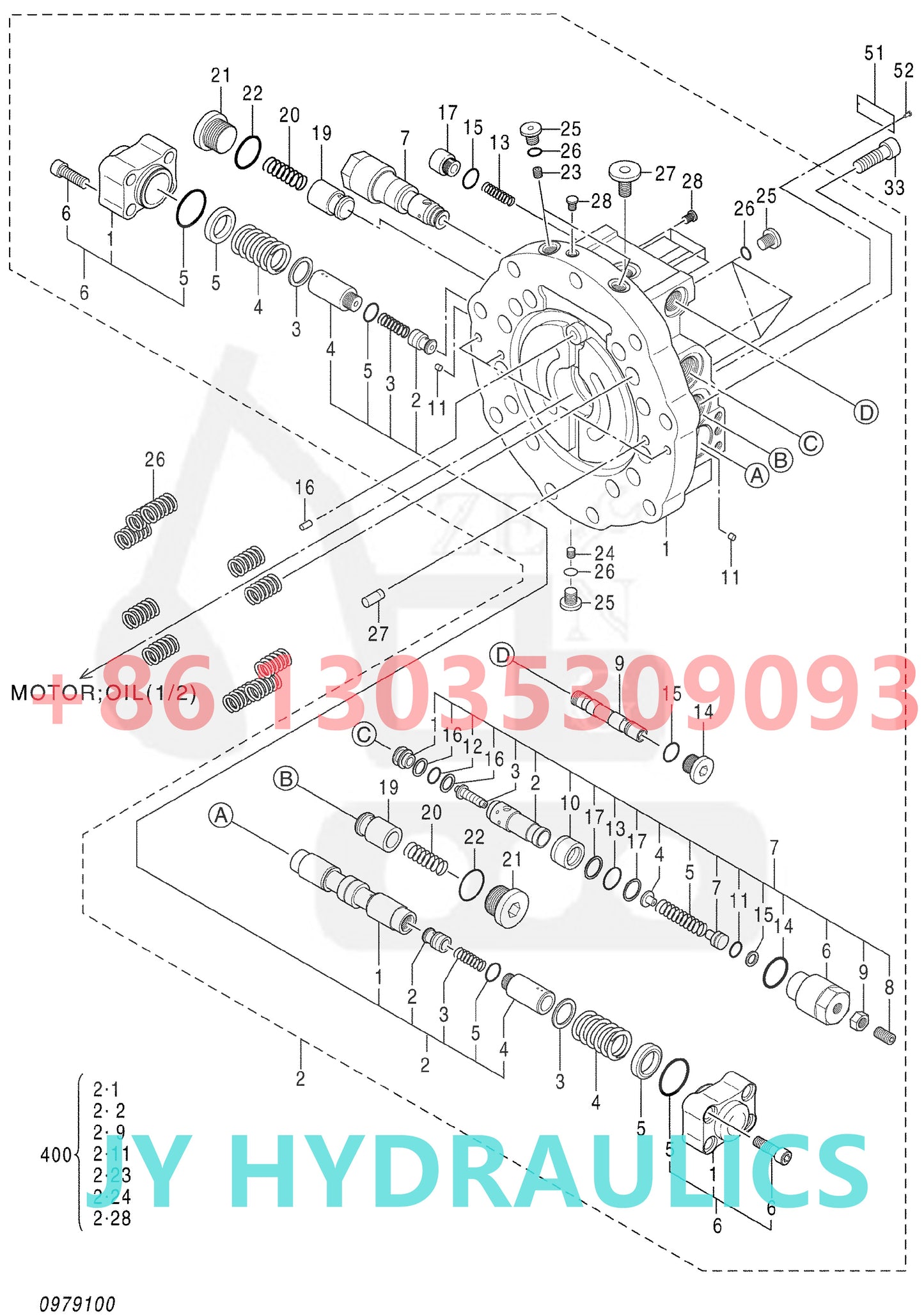

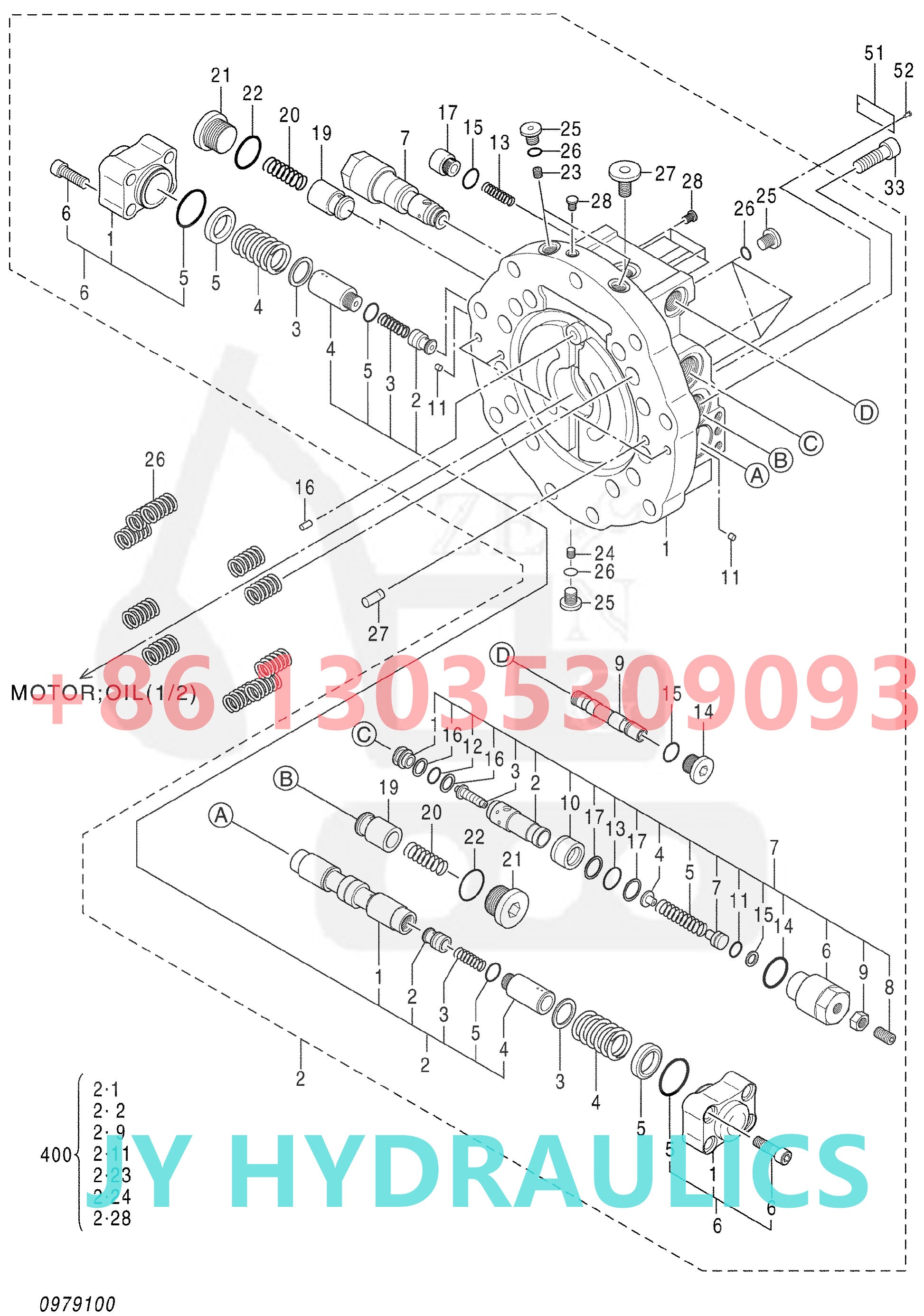

4637796 [1]   MOTOR;OIL (1/2)
1 +++++++ [1]   CASE
3 0809501 [1]   SHAFT
4 +++++++ [1]   CYL.
5 +++++++ [1]   PLATE
6 +++++++ [9]   PISTON
7 +++++++ [1]   PLATE
8 +++++++ [1]   HOLDER
9 0820101 [1]   PLATE
10 0682706 [2]   BALL;STEEL
11 +++++++ [2]   PISTON
12 0809503 [2]   SPRING
13 0809504 [1]   BRG.;ROL.
14 0809505 [1]   BRG.;ROL.
15 0809506 [1]   COLLAR
17 0419805 [9]   SPRING
18 0979001 [5]   PLATE;FRICTION
19 0419808 [4]   PLATE;DISC
21 0809509 [1]   PISTON;BRAKE
22 0411419 [1]   O-RING
23 0809510 [1]   RING;BACK-UP
24 0419806 [1]   O-RING
25 0419812 [1]   RING;BACK-UP
28 0979002 [1]   SEAL;OIL
29 A811260 [1]   O-RING
30 4506320 [4]   O-RING
31 0809511 [2]   PLUG
32 4506424 [2]   O-RING
34 +++++++ [2]   PLUG
100 0820103 [1]   CYL. ASS'Y
200 0809513 [1]   RETAINER ASS'Y
300 0809514 [1]   CASE ASS'Y
500 0979004 [1]   KIT;SEAL
2･7. 0806602 [2]   VALVE;RELIEF
4652345 [1]   MOTOR;OIL (1/2)
9 0806701 [1]   PLATE
100 0853403 [1] ROTARY GROUP
Parts on group TRAVEL DEVICE <500LC,520LCH,520LCR>:
Pos. Part No Qty Parts name Comments
9262852 [1]   TRAVEL DEVICE
1 4271596 [1]   O-RING
2 J911860 [4]   BOLT
3 A590918 [4]   WASHER;SPRING
4 4652345 [1]   MOTOR;OIL
5 9189960 [1]   T.MISSION (TRAVEL)
6 4388621 [1]   SPROCKET
8 J932270 [24]   BOLT
10 4089822 [24]   WASHER
11 431578 [2]   CORK
13 +++++++ [1]   NAME-PLATE
14 M492564 [2]   SCREW;DRIVE
100 9217847 [1]   TRAVEL DEVICE (WITHOUT MOTOR)
100A. 4455314 [1]   COVER <for transportation>
100B. J931845 [4]   BOLT <for transportation>
100C. A590918 [4]   WASHER;SPRING <for transportation>
Parts on group TRAVEL DEVICE <500LC,520LCH,520LCR>:
Pos. Part No Qty Parts name Comments
9275946 [1]   TRAVEL DEVICE
1 4271596 [1]   O-RING
2 J911860 [4]   BOLT
3 A590918 [4]   WASHER;SPRING
4 4652345 [1]   MOTOR;OIL
5 9189960 [1]   T.MISSION (TRAVEL)
6 4639374 [1]   SPROCKET
8 J932270 [24]   BOLT
10 4089822 [24]   WASHER
11 431578 [2]   CORK
13 +++++++ [1]   NAME-PLATE
14 M492564 [2]   SCREW;DRIVE
100 9217847 [1]   TRAVEL DEVICE
  (WITHOUT MOTOR)
100A. 4455314 [1]   COVER
100B. J931845 [4]   BOLT
100C. A590918 [4]   WASHER;SPRING
