9196318 9234159
9237803
ZX200 ZX225US ZX225US-E ZX225US-HCME ZX225USR ZX225USR-E ZX225USR-HCME ZX225USRK ZX230 ZX230-HHE ZX240H ZX240K ZX240LC-HHE ZX250-AMS ZX250-HCME ZX450 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
9234159 |
[1] |
MOTOR;OIL |
9196318 |
|
9237803 |
[1] |
MOTOR;OIL |
|
| 0 |
1031123 |
[1] |
HOUSING |
|
| 2 |
4212841 |
[1] |
SEAL;OIL |
Y 4613831 |
|
|
|
|
HMGF40CA:-H004050 |
|
|
|
|
HMGF40DA:-H000284 |
| 2 |
4613831 |
[1] |
SEAL;OIL |
|
|
|
|
|
HMGF40CA:H004051- |
|
|
|
|
HMGF40DA:H000285- |
| 3 |
4601724 |
[1] |
PISTON |
|
| 7 |
2049166 |
[1] |
SHAFT |
|
| 8 |
Z959499 |
[1] |
RING;RETAINING |
|
| 9 |
4600108 |
[2] |
PIN |
|
| 10 |
4600133 |
[1] |
BRG.;ROL. |
|
| 15 |
8075190 |
[9] |
PISTON |
|
| 16 |
3081570 |
[1] |
RETAINER |
|
| 17 |
4397757 |
[1] |
BUSHING |
|
| 18 |
2050569 |
[1] |
PLATE;SWASH |
|
| 19 |
4396747 |
[6] |
SPRING;COMPRES. |
|
| 20 |
2042060 |
[1] |
ROTOR |
|
| 22 |
3081593 |
[4] |
PLATE;FRICTION |
|
| 23 |
3081592 |
[4] |
PLATE |
|
| 25 |
3081595 |
[1] |
PISTON |
|
| 26 |
4396775 |
[1] |
O-RING |
|
| 28 |
4396774 |
[1] |
O-RING |
|
| 29 |
3081594 |
[1] |
SPRING;DISC |
|
| 30 |
4420958 |
[1] |
O-RING |
|
| 31 |
4506415 |
[2] |
O-RING |
|
| 34 |
9234016 |
[1] |
VALVE;BRAKE |
|
| 34 |
-9237801 |
[1] |
VALVE;BRAKE |
|
| 35 |
4396759 |
[1] |
BRG.;NEEDLE |
|
| 36 |
4610452 |
[2] |
PIN;KNOCK |
|
| 38 |
3101081 |
[1] |
PLATE;VALVE |
|
| 40 |
M341850 |
[9] |
BOLT;SOCKET |
|

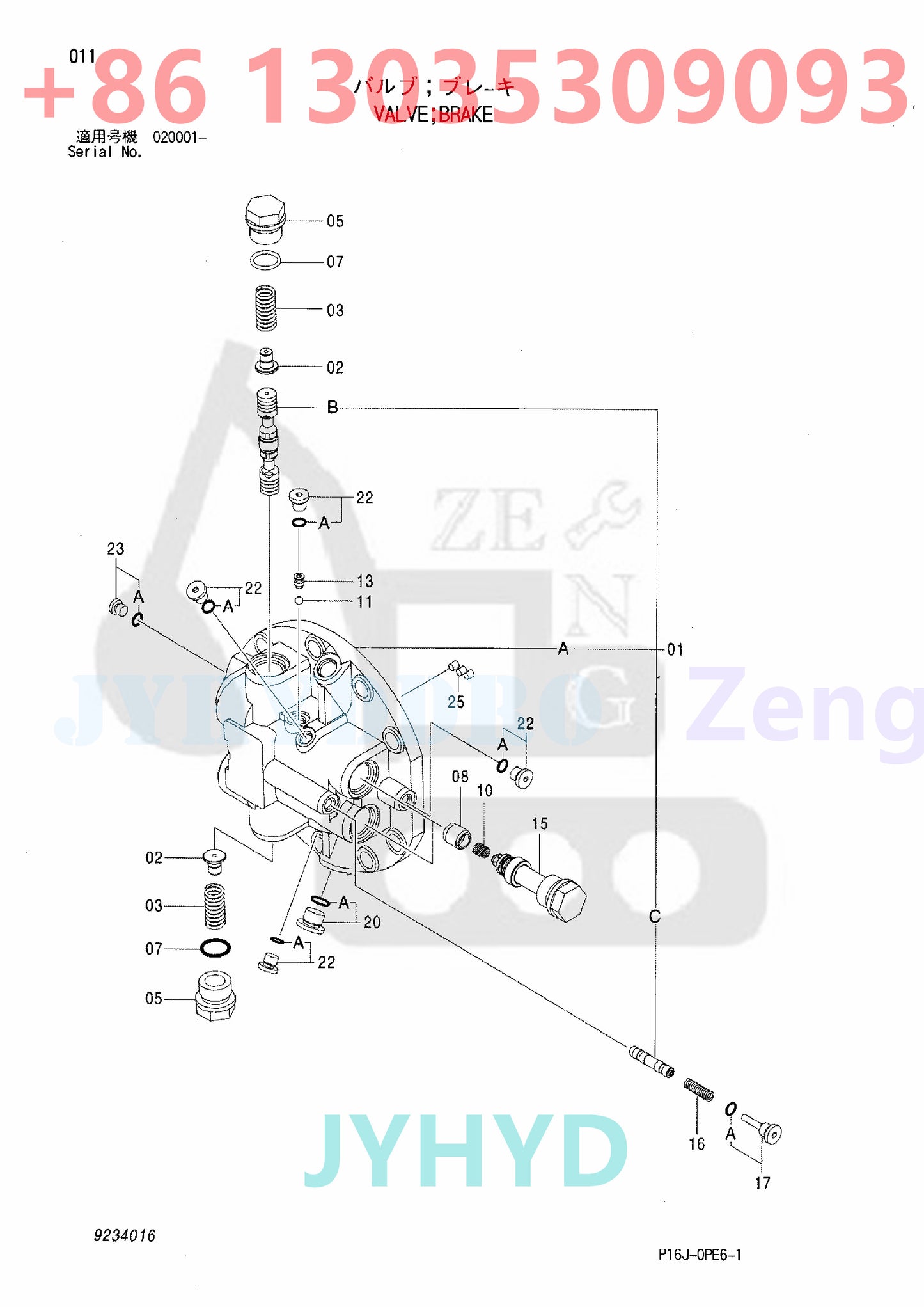

| Parts on group VALVE;BRAKE: |
|
|
|
|
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
9234016 |
[1] |
VALVE;BRAKE |
I 9195450 <for assembly of machine> |
|
-9237801 |
[1] |
VALVE;BRAKE |
<for transportation> |
| 1 |
8091818 |
[1] |
CASING ASS'Y |
|
| 01A. |
+++++++ |
[1] |
CASING;REAR |
|
| 01B. |
+++++++ |
[1] |
SPOOL |
|
| 01C. |
+++++++ |
[1] |
SPOOL |
|
| 2 |
4602024 |
[2] |
STOPPER;SPOOL |
|
| 3 |
4409389 |
[2] |
SPRING;COMPRES. |
|
| 5 |
4229631 |
[2] |
PLUG |
|
| 7 |
4506429 |
[2] |
O-RING |
|
| 8 |
4397022 |
[2] |
POPPET |
|
| 10 |
4396771 |
[2] |
SPRING;COMPRES. |
|
| 11 |
4509493 |
[1] |
BALL |
|
| 13 |
4398281 |
[1] |
SEAT |
|
| 15 |
9185757 |
[2] |
VALVE;RELIEF |
|
| 16 |
4297257 |
[1] |
SPRING;COMPRES. |
|
| 17 |
9167977 |
[1] |
PLUG |
|
| 17A. |
957366 |
[1] |
O-RING |
|
| 20 |
9134112 |
[1] |
PLUG |
|
| 20A. |
4506418 |
[1] |
O-RING |
|
| 22 |
9134110 |
[4] |
PLUG |
|
| 22A. |
957366 |
[1] |
O-RING |
|
| 23 |
9134109 |
[1] |
PLUG |
|
| 23A. |
4506408 |
[1] |
O-RING |
|
| 25 |
4050968 |
[3] |
PLUG |
|
