HITACHI 9195238 9195241 9195242 9207291 HYDRAULIC PUMP PARTS

Name: HITACHI 9195238 9195241 9195242 9207291 HYDRAULIC PUMP PARTS
Brand: +8613035309093
Price: 2000.0 USD
Availability: InStock

HITACHI 9195238 9195241 9195242 9207291 HYDRAULIC PUMP PARTS

$2,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

9195238 9195241 9195242 9207291 ZX330 ZX330-3G ZX330-HHE ZX330LC-3G ZX350H ZX350H-3G ZX350K ZX350K-3G ZX350LC-AMS ZX350LCH-3G ZX350LC-HCME ZX350LCK-3G ZX350W ZX360H-3G ZX360LC-HHE ZX370MTH ZX500W

Pos.	Part No	Qty	Parts name	Comments
0	9195241	[1]	PUMP DEVICE	I 9195238 (for assembly of machine)
0	9195238	[1]	PUMP DEVICE	(for transportation)

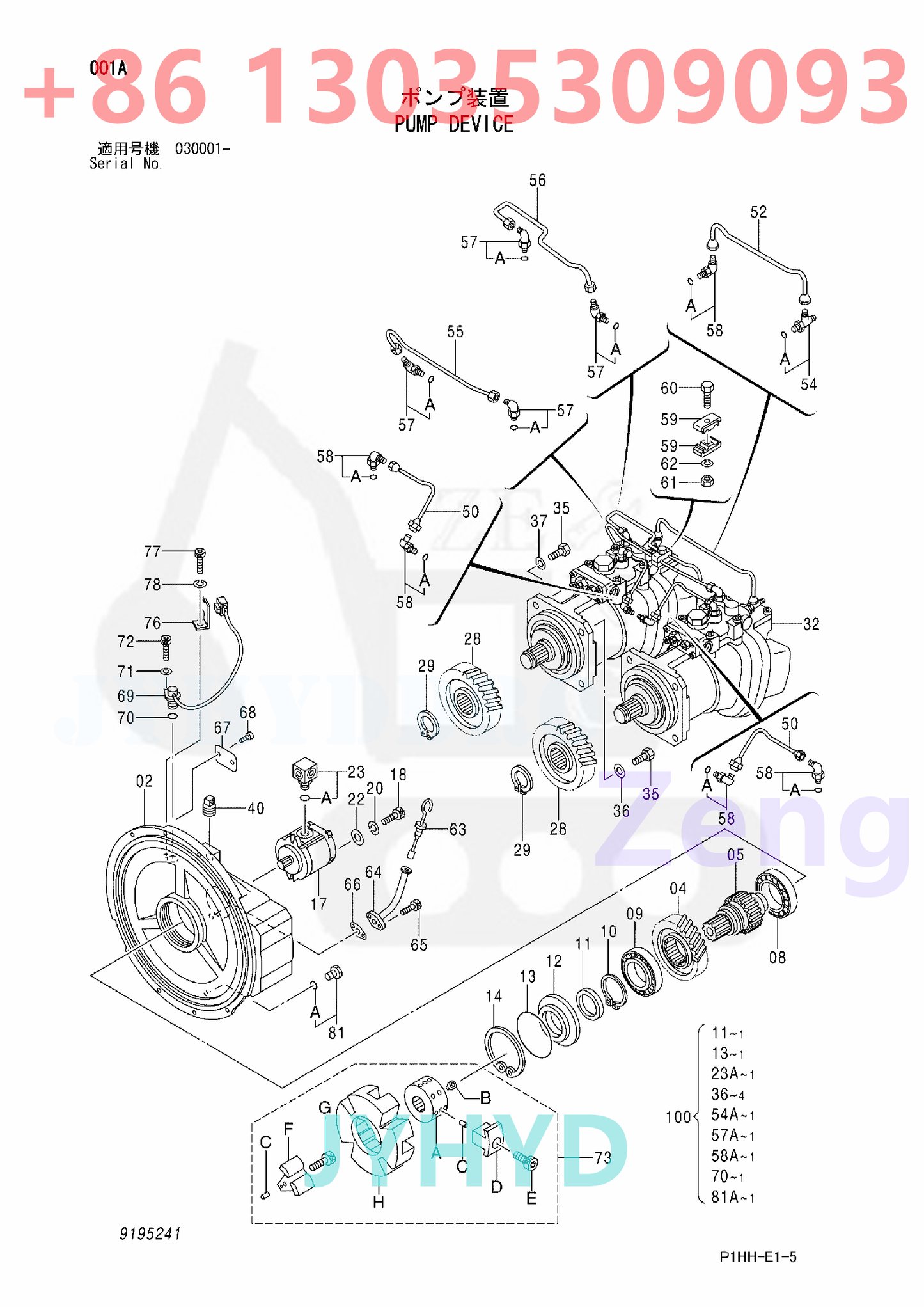

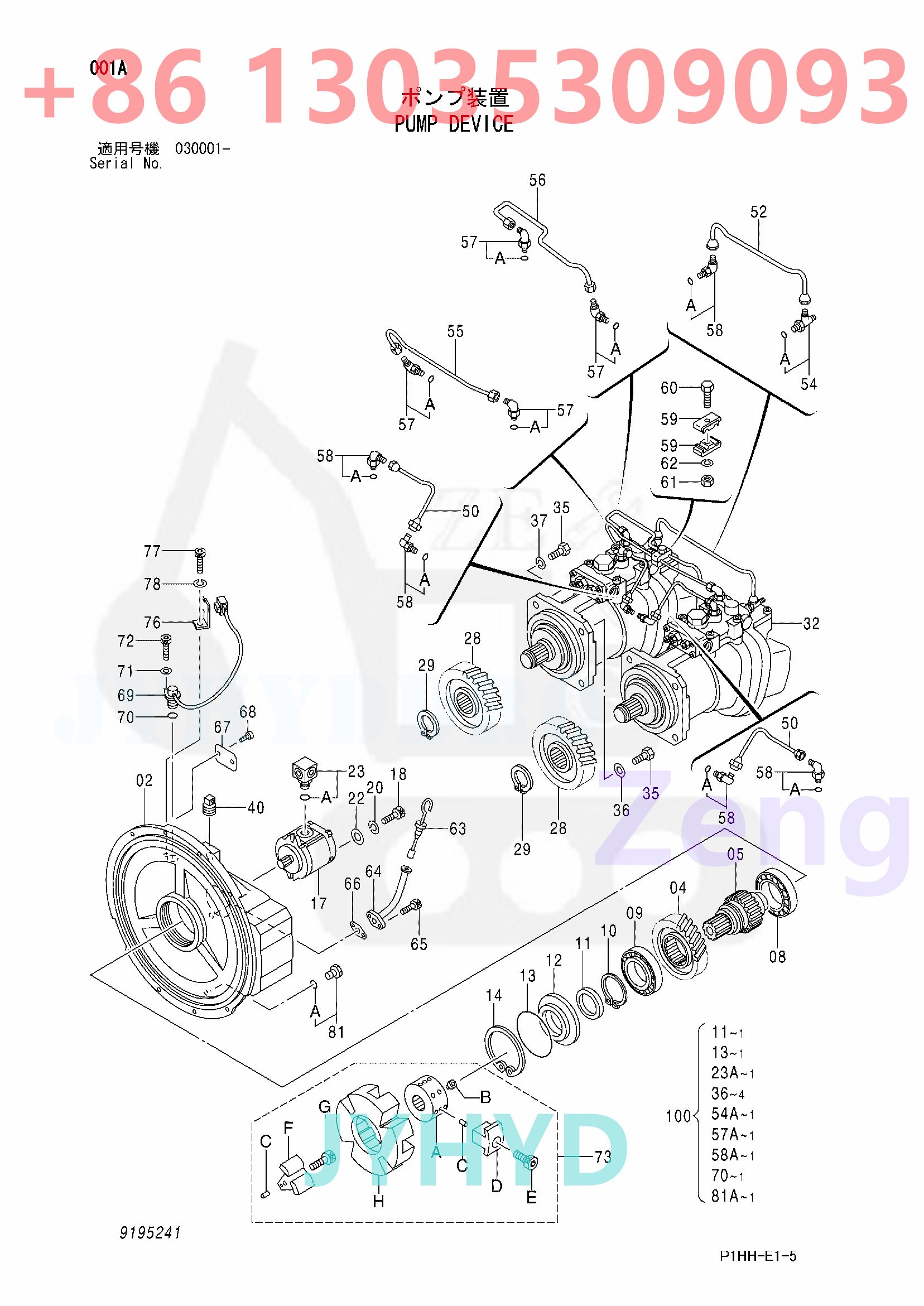

Parts on group PUMP DEVICE:

Pos.	Part No	Qty	Parts name	Comments
	9195241	[1]	PUMP DEVICE	I 9195238 <for assembly of machine>
	-9195238	[1]	PUMP DEVICE	<for transportation>
02	1028405	[1]	CASING;GEAR
04	3089266	[1]	GEAR;CENTER
05	3081085	[1]	SHAFT;CENTER
08	4395453	[1]	BRG.;BALL
09	4395457	[1]	BRG.;BALL
10	4191219	[1]	RING;RETAINING
11	4179833	[1]	SEAL;OIL
12	3033593	[1]	COVER;T.MISSION
13	4179834	[1]	O-RING
14	991733	[1]	RING;RETAINING
17	4181700	[1]	PUMP;GEAR
18	M341030	[2]	BOLT;SOCKET
20	984054	[2]	WASHER;SPRING
22	4114402	[2]	WASHER
23	4191974	[1]	ADAPTER
23A.	4506418	[1]	O-RING
28	3035853	[2]	GEAR;DRIVE
29	991345	[2]	RING;RETAINING
32	9195242	[2]	PUMP;UNIT	<for assembly of machine>
32	-9207291	[2]	PUMP;UNIT	I 9207291 <for transportation>
35	J901645	[8]	BOLT
36	4126090	[4]	WASHER;SEAL
37	A590916	[4]	WASHER;SPRING
40	4234782	[1]	PLUG
50	4438889	[2]	PIPE
52	4438888	[1]	PIPE
54	4203485	[1]	FITTING;PIPE
54A.	957366	[1]	O-RING
55	3089617	[1]	PIPE
56	3089618	[1]	PIPE
57	4118499	[4]	FITTING;PIPE
57A.	957366	[1]	O-RING
58	4293950	[5]	ELBOW;S
58A.	957366	[1]	O-RING
59	4179843	[2]	CLAMP
60	J900828	[1]	BOLT	I J900830
60	J900830	[1]	BOLT
61	M500807	[1]	NUT
62	A590908	[1]	WASHER;SPRING
63	4242263	[1]	GAUGE;LEVEL
64	4242262	[1]	PIPE
65	M340816	[2]	BOLT;SOCKET
66	9742779	[1]	PACKING
67	+++++++	[1]	NAME-PLATE
68	M492564	[2]	SCREW;DRIVE
69	4265372	[1]	SENSOR;REVOL.
70	4306888	[1]	O-RING
71	A590106	[1]	WASHER;PLANE
72	M340616	[1]	BOLT;SOCKET
73	4191663	[1]	COUPLING	P 4479978
				4613100
73	4479978	[1]	COUPLING
73A.	4216945	[1]	HUB
73A.	4613100	[1]	HUB
73B.	4183170	[2]	SCREW;SET
73C.	4101345	[12]	PIN;SPRING
73D.	4216947	[4]	INSERT
73E.	4216949	[4]	BOLT;SOCKET
73F.	4216946	[4]	INSERT
73G.	4216948	[4]	BOLT;SOCKET
73H.	4216944	[1]	COUPLING
76	4252767	[1]	BRACKET
77	M340613	[1]	BOLT;SOCKET
78	4169516	[1]	WASHER;SPRING
81	4092534	[1]	PLUG
81A.	4509180	[1]	O-RING
100	4471487	[1]	KIT;SEAL

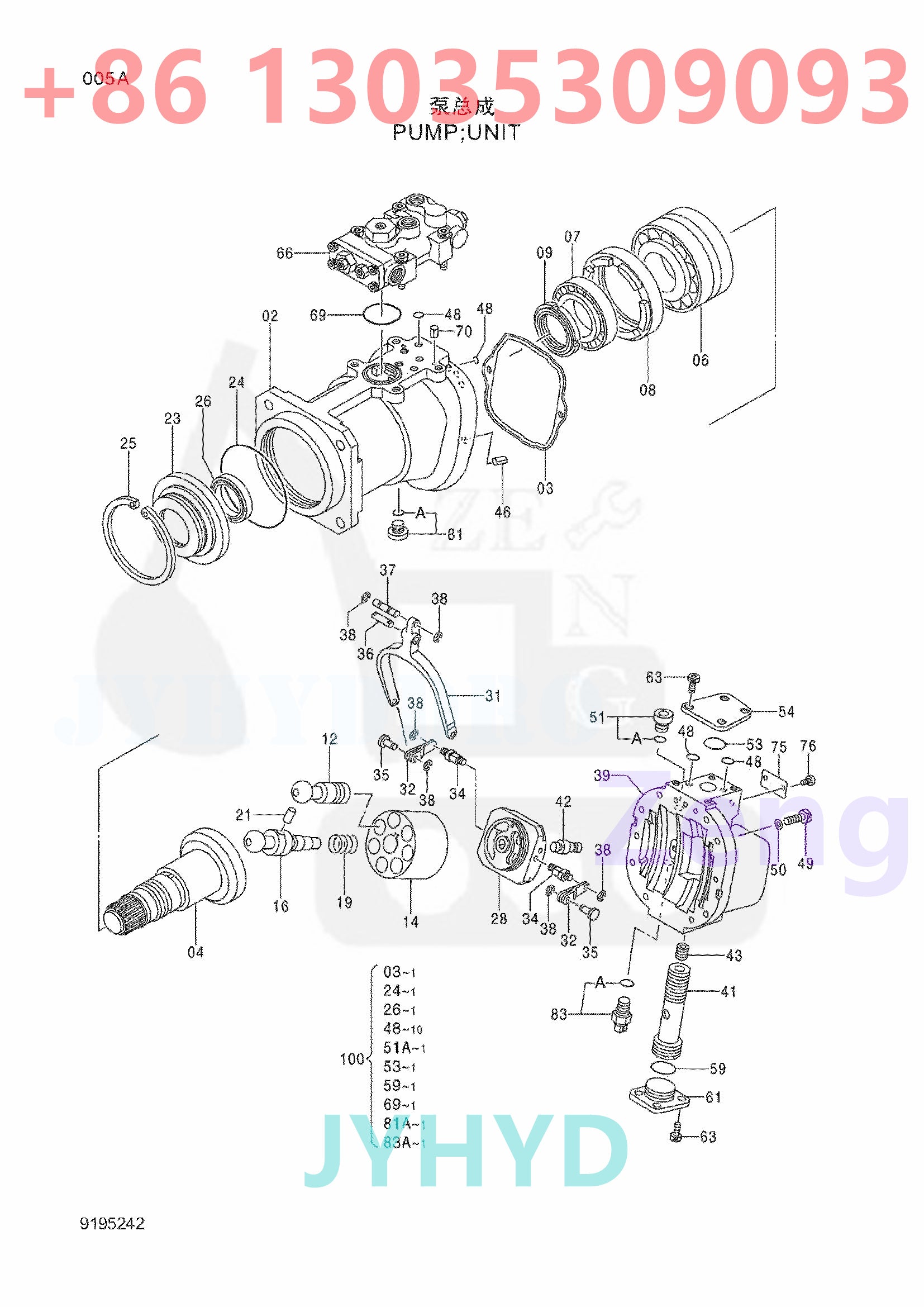

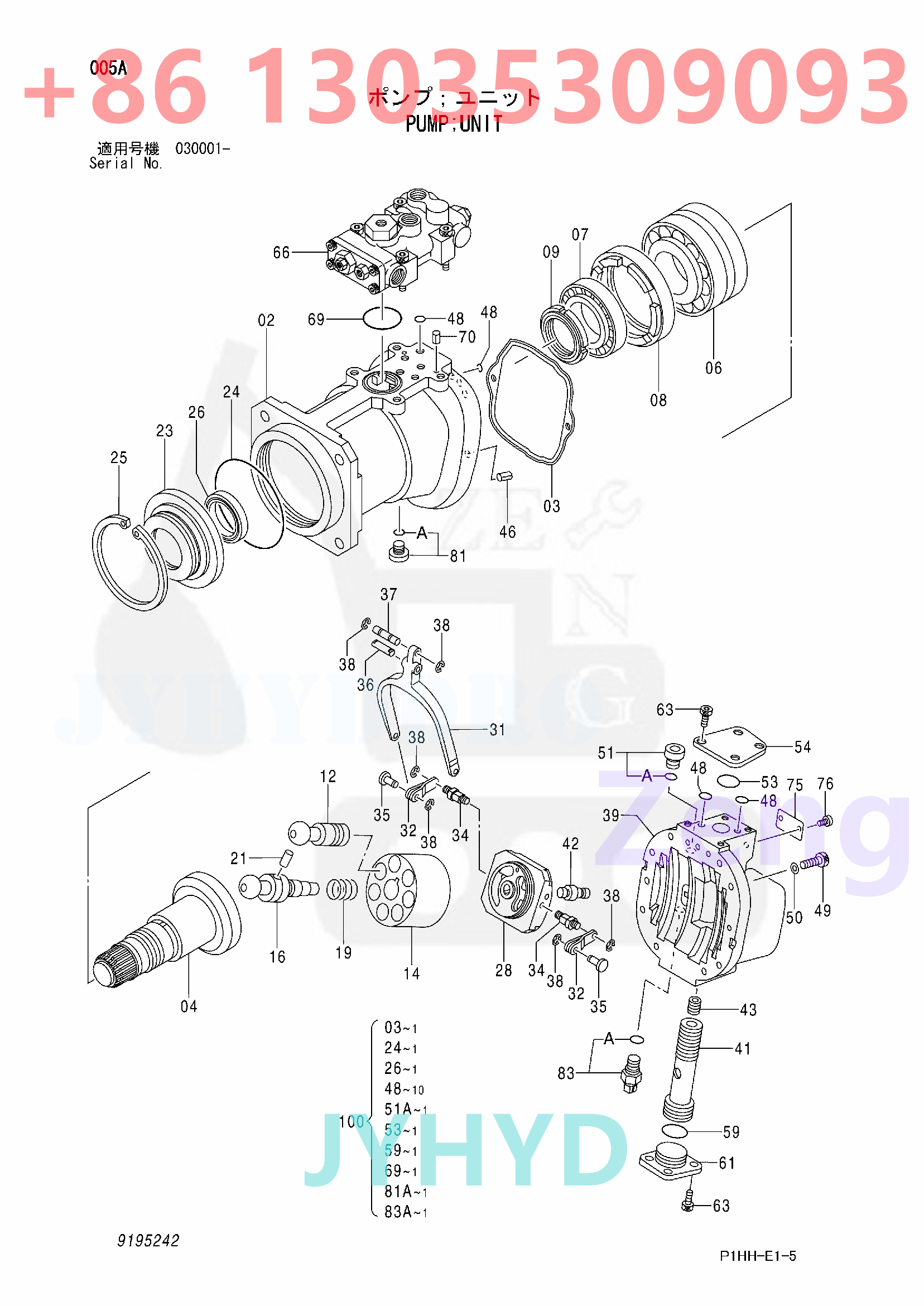

Parts on group PUMP;UNIT:

Pos.	Part No	Qty	Parts name	Comments
	9195242	[2]	PUMP;UNIT	I 9207291 <for assembly of machine>
	-9207291	[2]	PUMP;UNIT	<for transportation>
02	1014184	[1]	CASING;PUMP
03	8068521	[1]	PACKING
04	2038877	[1]	DISC;DRIVING
06	4366256	[1]	BRG.;ROL.
07	4366356	[1]	BRG.;ROL.
08	3035965	[1]	SPACER
09	4191665	[1]	NUT;BRG.
12	8051275	[7]	PISTON
14	2022744	[1]	ROTOR
16	3081023	[1]	SHAFT;CENTER
19	4194362	[1]	SPRING;COMPRES.
21	4198956	[1]	PIN
23	3035966	[1]	COVER;SEAL
24	4191664	[1]	O-RING
25	4094325	[1]	RING;RETAINING
26	4232070	[1]	SEAL;OIL	I 4639126
26	4639126	[1]	SEAL;OIL
28	9749142	[1]	VALVE
31	3039569	[1]	LINK
32	9724756	[2]	LEVER
34	4179179	[2]	PIN
35	4179177	[2]	PIN
36	4200227	[1]	PIN
37	4179176	[1]	PIN
38	4146370	[6]	RING;RETAINING
39	1022441	[1]	HEAD
41	3036326	[1]	PISTON;SERVO
42	4193245	[1]	PIN
43	4179838	[1]	SCREW;SET
41	3106174	[1]	PISTON;SERVO
42	4641714	[1]	PIN
43	4337812	[1]	SCREW;SET
46	4099290	[2]	PIN;SPRING
48	4180349	[10]	O-RING
49	M341245	[8]	BOLT;SOCKET
50	495841	[8]	WASHER;SPRING
51	9134110	[1]	PLUG
51A.	957366	[1]	O-RING
53	4355081	[1]	O-RING
54	4204862	[1]	STOPPER
59	4294621	[1]	O-RING
61	4216295	[1]	STOPPER
63	M340820	[8]	BOLT;SOCKET
66	9195243	[1]	REGULATOR	I 9207292 <for assembly of machine>
66	-9207292	[1]	REGULATOR	<for transportation>
69	4348665	[1]	O-RING
70	4515041	[2]	PIN;SPRING
75	+++++++	[1]	NAME-PLATE
76	M492564	[2]	SCREW;DRIVE
81	9134111	[1]	PLUG
81A.	4509180	[1]	O-RING
83	4436271	[1]	SENSOR;PRES.
83A.	4365826	[1]	O-RING
100	4467592	[1]	KIT;SEAL
