HITACHI 4688059 9219274 YB60000031 TRAVEL DEVICE ROTARY GROUP AND SPARE PARTS

Name: HITACHI 4688059 9219274 YB60000031 TRAVEL DEVICE ROTARY GROUP AND SPARE PARTS
Brand: +8613035309093
Price: 5000.0 USD
Availability: InStock

HITACHI 4688059 9219274 YB60000031 TRAVEL DEVICE ROTARY GROUP AND SPARE PARTS

$5,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

4688059 9219274 YB60000031 EX1200-6 ZX670LC-5B ZX670LC-5G ZX670LCH-5B ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870H-5G ZX870LC-5B ZX870LC-5G ZX870LCH-5G ZX870LCR-5G

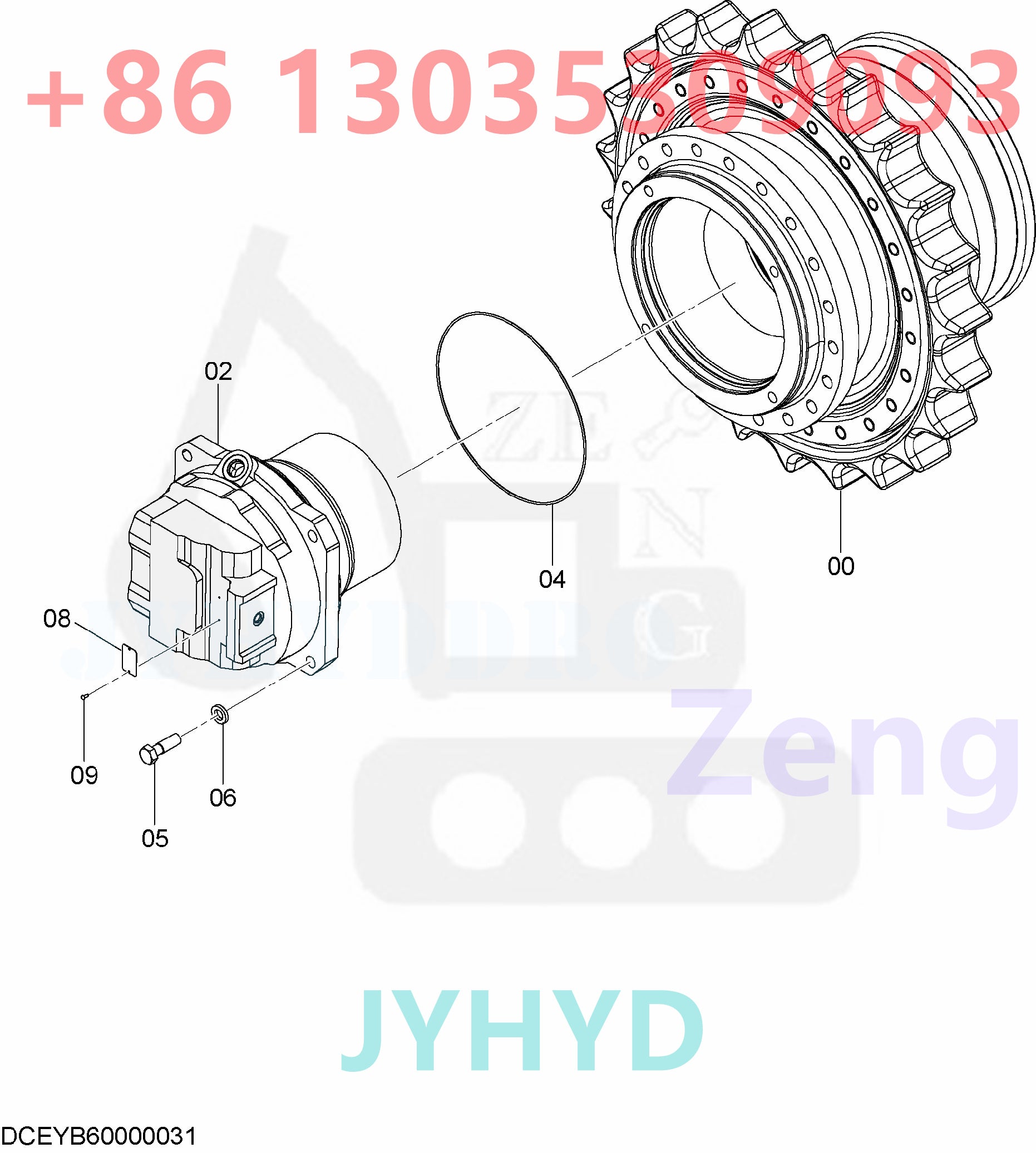

Pos.	Part No	Qty	Parts name	Comments
	YB60000031	[1]	TRAVEL-DEVICE
0	9219274	[1]	TRAVEL-DEVICE
2	4688059	[1]	MOTOR;OIL (TRAVEL)
			MOTOR;OIL (1/2)
			MOTOR;OIL (2/2)
4	4271596	[1]	O-RING
5	J911860	[4]	BOLT
6	A590918	[4]	WASHER;SPRING
8	+++++++	[1]	NAME-PLATE
9	M492564	[2]	SCREW;DRIVE

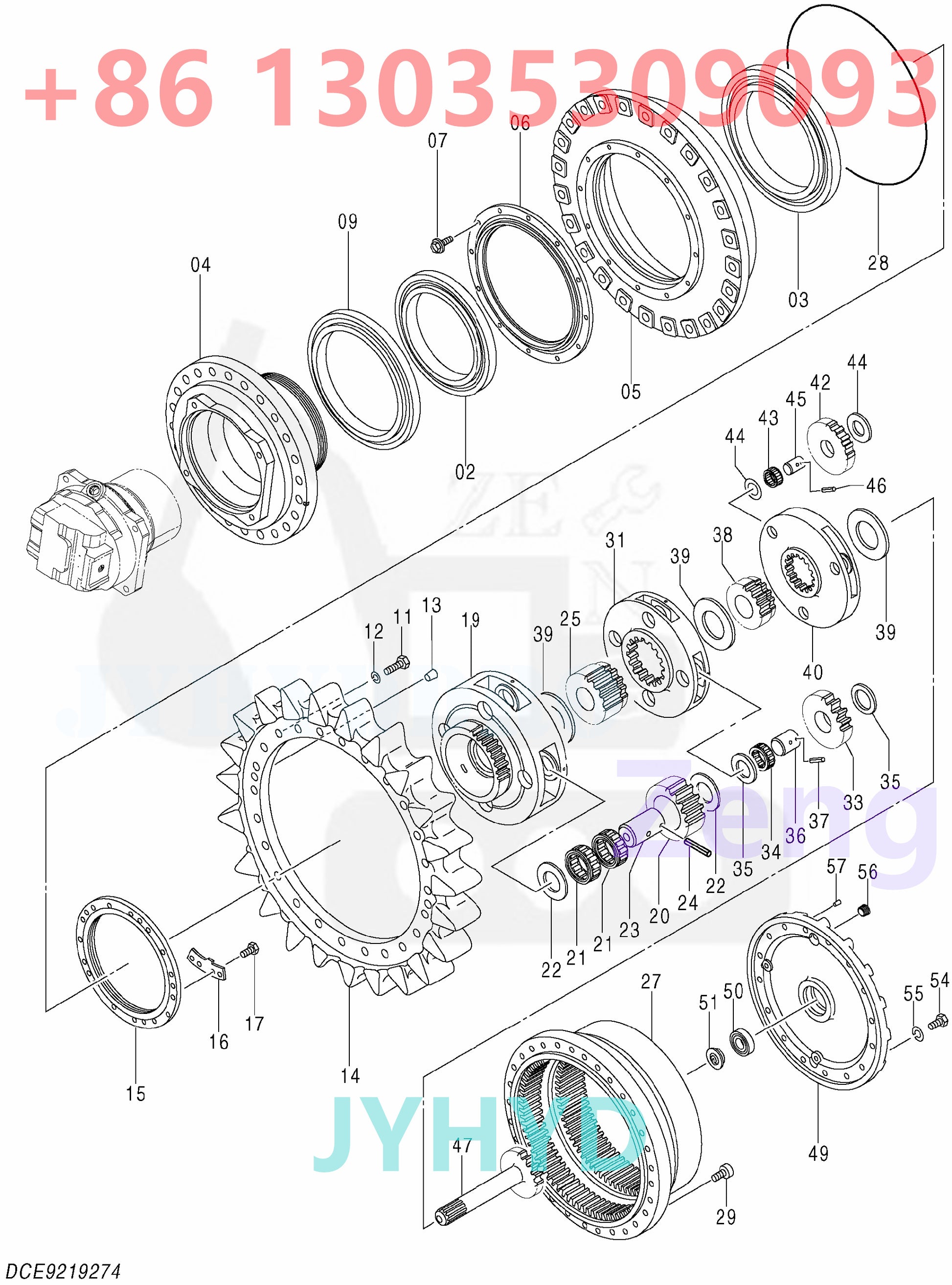

Parts on group TRAVEL DEVICE:

Pos.	Part No	Qty	Parts name	Comments
	9219274	[1]	TRAVEL-DEVICE
2	4219329	[1]	BRG.;ROL.
3	4219328	[1]	BRG.;ROL.
4	1030160	[1]	HOUSING
5	1012131	[1]	DRUM
6	2025832	[1]	SUPPORT
7	4609016	[12]	BOLT;SEMS
9	4245703	[1]	SEAL;GROUP
11	J932785	[24]	BOLT
12	A590927	[24]	WASHER;SPRING
13	425175	[2]	CORK
14	4430291	[1]	SPROCKET
15	3069875	[1]	NUT
16	3041462	[1]	PLATE;LOCK
17	J901225	[2]	BOLT
19	1028874	[1]	CARRIER
20	3090709	[4]	GEAR;PLANETARY
21	4464369	[8]	BRG.;NEEDLE
22	4219640	[8]	PLATE;THRUST
23	4447037	[4]	PIN
24	4222029	[4]	PIN;SPRING
25	3090710	[1]	GEAR;SUN
27	1028886	[1]	GEAR;RING
28	4223568	[1]	O-RING
29	M342260	[30]	BOLT;SOCKET
31	1028881	[1]	CARRIER
33	3090930	[4]	GEAR;PLANETARY
34	4371402	[4]	BRG.;NEEDLE
35	4269470	[8]	PLATE;THRUST
36	4447032	[4]	PIN
37	4203180	[4]	PIN;SPRING
38	3090711	[1]	GEAR;SUN
39	4657080	[3]	SPACER
40	1028898	[1]	CARRIER
42	3089538	[3]	GEAR;PLANETARY
43	4445529	[3]	BRG.;NEEDLE
44	4210851	[6]	PLATE;THRUST
45	4309995	[3]	PIN
46	4246358	[3]	PIN;SPRING
47	2045895	[1]	SHAFT;PROP.
49	1028899	[1]	COVER
50	4284195	[1]	BRG.;BALL
51	4277474	[1]	PIN;STOPPER
54	4257967	[18]	BOLT;SHOE
55	A590914	[18]	WASHER;SPRING
56	4462824	[3]	PLUG
57	429597	[2]	CORK

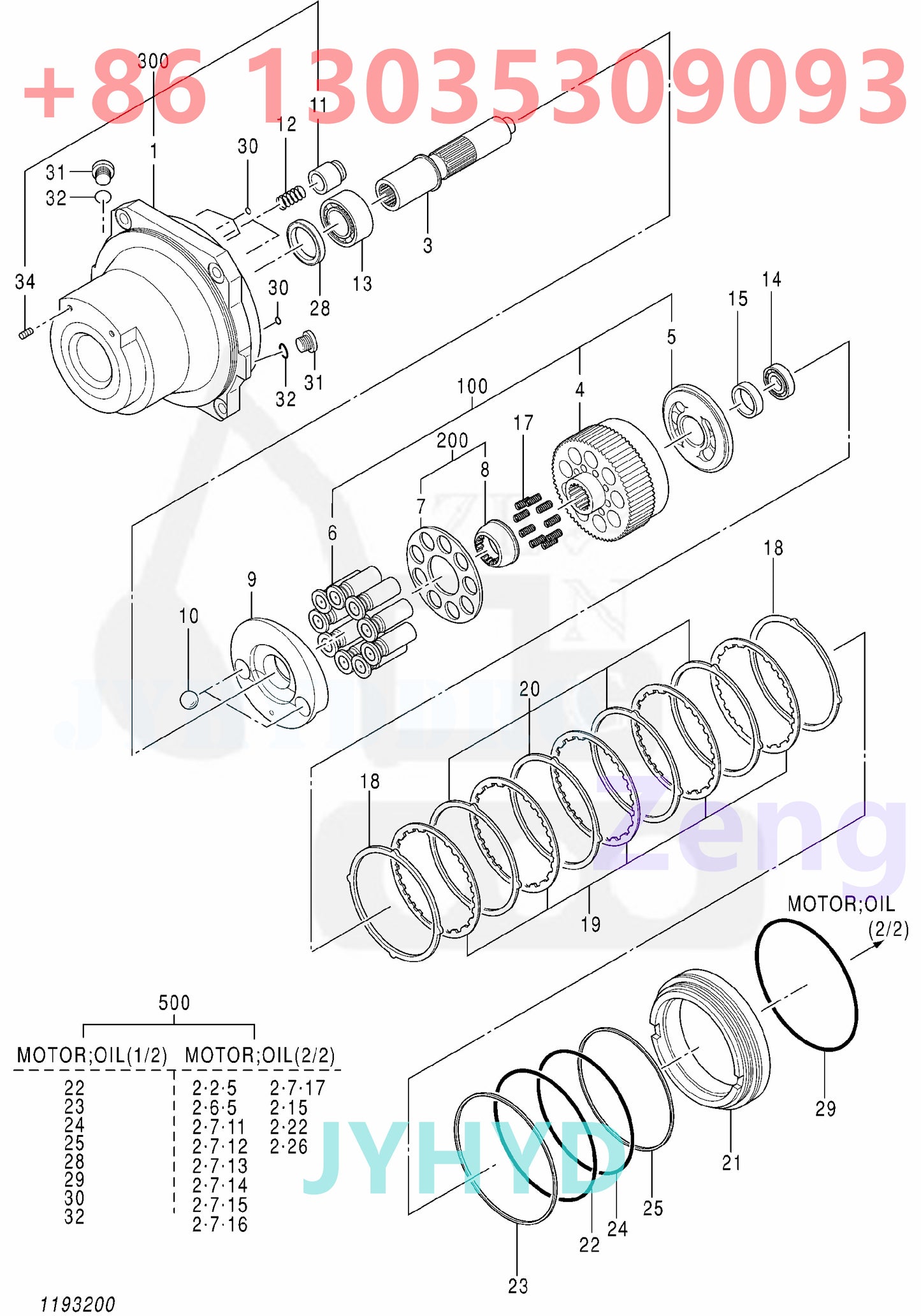

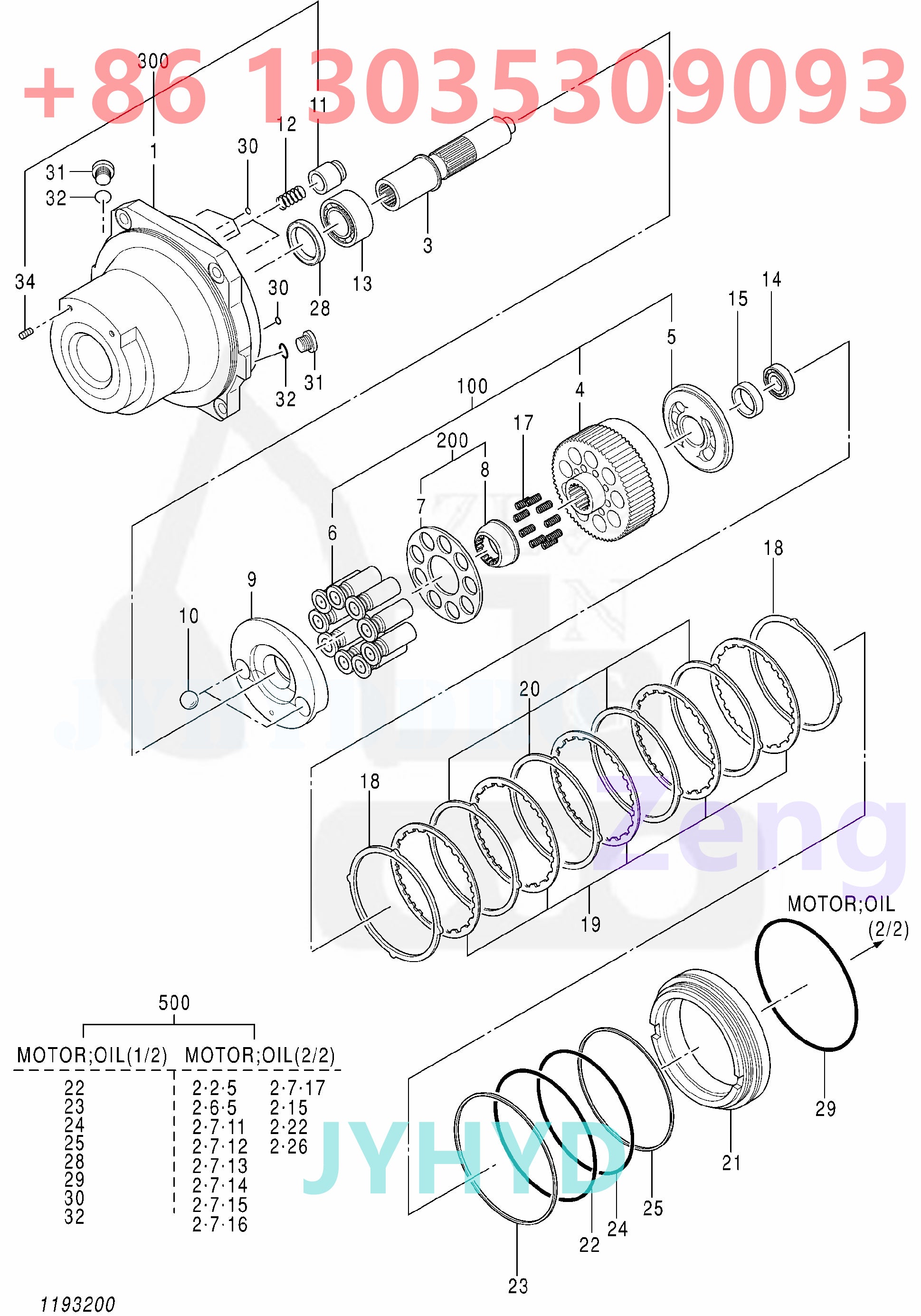

Parts on group MOTOR;OIL (1/2):

Pos.	Part No	Qty	Parts name	Comments
	4688059	[1]	MOTOR;OIL (1/2)	This PART NO. consists of all parts shown in MOTOR;OIL(1/2) to (2/2).
1	+++++++	[1]	CASE
3	0809501	[1]	SHAFT
4	+++++++	[1]	CYL.
5	+++++++	[1]	PLATE
6	+++++++	[9]	PISTON
7	+++++++	[1]	PLATE
8	+++++++	[1]	HOLDER
9	0809502	[1]	PLATE ASS'Y
10	0682706	[2]	BALL;STEEL
11	+++++++	[2]	PISTON
12	0809503	[2]	SPRING
13	0809504	[1]	BRG.;ROL.
14	0809505	[1]	BRG.;ROL.
15	0809506	[1]	COLLAR
17	0806502	[9]	SPRING
18	0979001	[2]	PLATE;FRICTION
19	0419808	[5]	PLATE;DISC
20	0981602	[4]	PLATE;FRICTION
21	0809509	[1]	PISTON;BRAKE
22	0411419	[1]	O-RING
23	0809510	[1]	RING;BACK-UP
24	0419806	[1]	O-RING
25	0419812	[1]	RING;BACK-UP
28	0979002	[1]	SEAL;OIL
29	A811260	[1]	O-RING
30	4506320	[4]	O-RING
31	0809511	[2]	PLUG
32	4506424	[2]	O-RING
34	+++++++	[2]	PLUG
100	0853403	[1]	CYL. ASS'Y
200	0809513	[1]	RETAINER ASS'Y
300	0809514	[1]	CASE
500	0979004	[1]	KIT;SEAL	NOTE) This KIT;SEAL consists of ｢MOTOR;OIL(1/2)｣ and ｢MOTOR;OIL(2/2)｣.

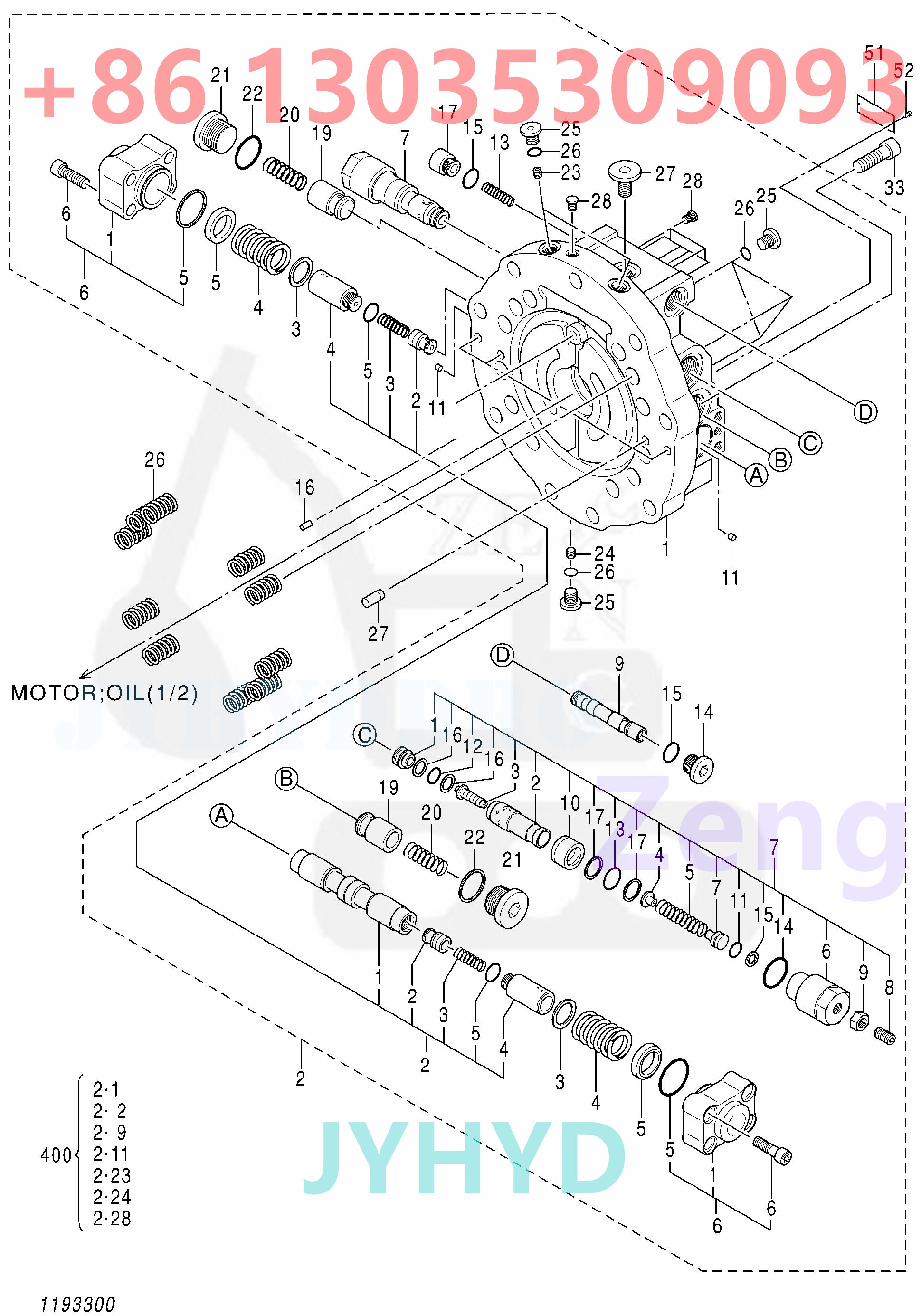

Parts on group MOTOR;OIL (2/2):

Pos.	Part No	Qty	Parts name	Comments
	4688059	[1]	MOTOR;OIL (2/2)	This PART NO. consists of all parts shown in MOTOR;OIL(1/2) to (2/2).
2	+++++++	[1]	PLATE ASS'Y
2･1.	+++++++	[1]	PLATE
2･2.	+++++++	[1]	SPOOL ASS'Y
2･2･1.	+++++++	[1]	SPOOL
2･2･2.	+++++++	[2]	VALVE;CHECK
2･2･3.	+++++++	[2]	SPRING
2･2･4.	+++++++	[2]	PLUG
2･2･5.	+++++++	[2]	O-RING
2･3.	0163601	[2]	SEAT;SPRING
2･4.	0420002	[2]	SPRING
2･5.	0809601	[2]	SEAT;SPRING
2･6.	0981701	[2]	CAP ASS'Y
2･6･1.	+++++++	[1]	CAP
2･6･5.	+++++++	[1]	O-RING
2･6･6.	+++++++	[4]	BOLT;SOCKET
2･7.	0806602	[2]	VALVE;RELIEF
2･7･1.	+++++++	[1]	SEAT
2･7･2.	+++++++	[1]	HOUSING;RELIEF
2･7･3.	+++++++	[1]	POPPET
2･7･4.	+++++++	[1]	SEAT;SPRING
2･7･5.	+++++++	[1]	SPRING
2･7･6.	+++++++	[1]	PLUG
2･7･7.	+++++++	[1]	GUIDE;SPRING
2･7･8.	+++++++	[1]	SCREW;SET
2･7･9.	+++++++	[1]	NUT;LOCK
2･7･10.	+++++++	[1]	PISTON
2･7･11.	+++++++	[1]	O-RING
2･7･12.	+++++++	[1]	O-RING
2･7･13.	+++++++	[1]	O-RING
2･7･14.	+++++++	[1]	O-RING
2･7･15.	+++++++	[1]	RING;BACK-UP
2･7･16.	+++++++	[2]	RING;BACK-UP
2･7･17.	+++++++	[2]	RING;BACK-UP
2･9.	+++++++	[1]	SPOOL
2･11.	+++++++	[2]	ORIFICE
2･13.	0820203	[1]	SPRING
2･14.	0671002	[1]	PLUG
2･15.	04506418	[2]	O-RING
2･17.	0820204	[1]	PLUG
2･19.	0352304	[2]	VALVE;CHECK
2･20.	0352305	[2]	SPRING
2･21.	0352306	[2]	PLUG
2･22.	4506429	[2]	O-RING
2･23.	+++++++	[2]	ORIFICE
2･24.	+++++++	[1]	ORIFICE
2･25.	0436608	[6]	PLUG
2･26.	0957366	[6]	O-RING
2･27.	+++++++	[1]	PLUG
2･28.	+++++++	[7]	PLUG
16	0682803	[1]	PIN
26	0809604	[10]	SPRING
27	0251319	[4]	PIN
33	0168008	[9]	BOLT;SOCKET
51	+++++++	[1]	NAME-PLATE
52	+++++++	[2]	SCREW;DRIVE
400	1193301	[1]	PLATE ASS'Y
	+++++++	[1]	KIT;SEAL	NOTE) The KIT;SEAL of this system is indicated at ｢MOTOR;OIL(1/2)｣.
