HITACHI 4666665 9295139 YD0002228 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

HITACHI 4666665 9295139 YD0002228 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
4666665 9295139
ZX70-3 ZX70-3-HCME ZX80LCK-3
Pos. Part No Qty Parts name Comments

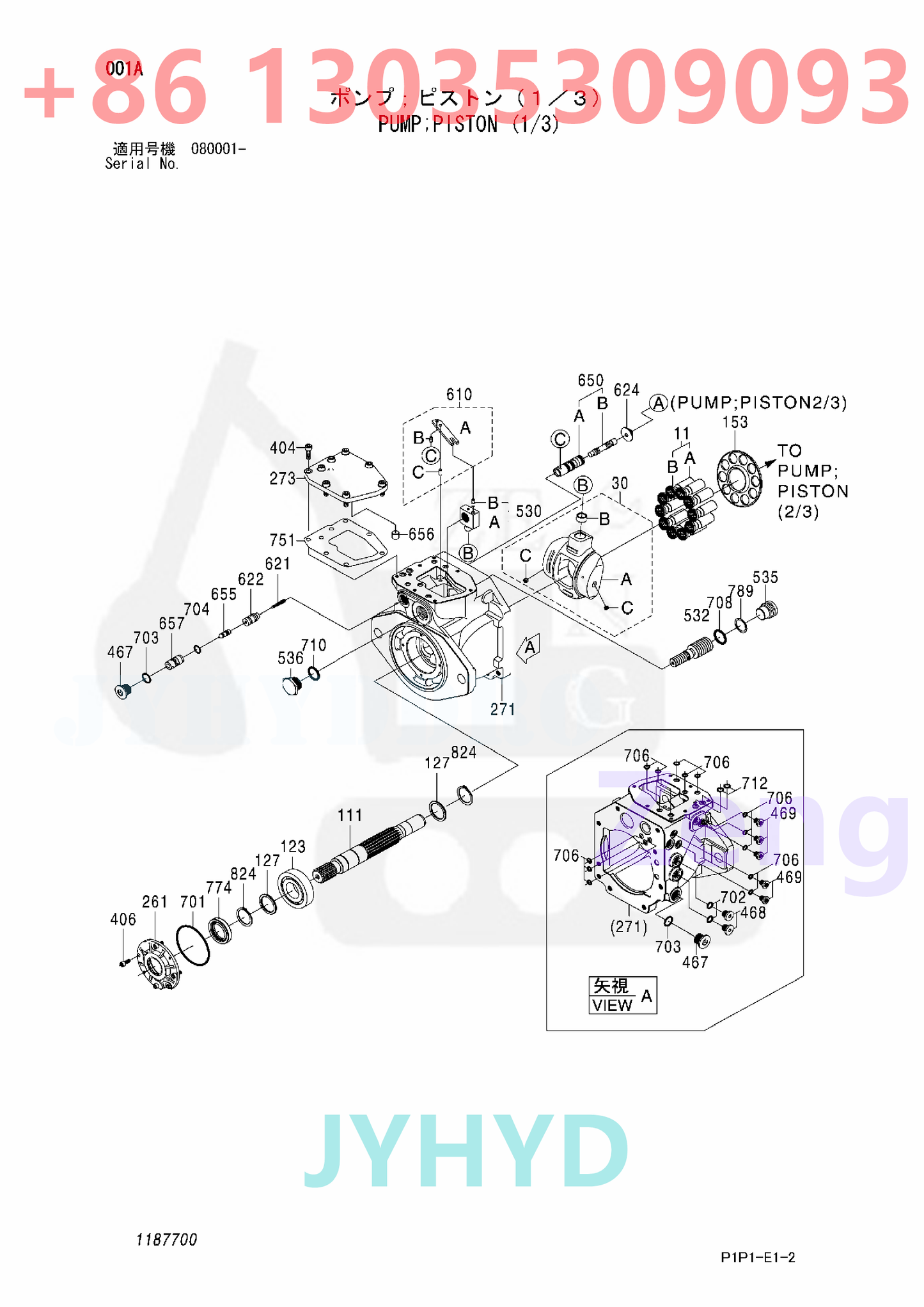

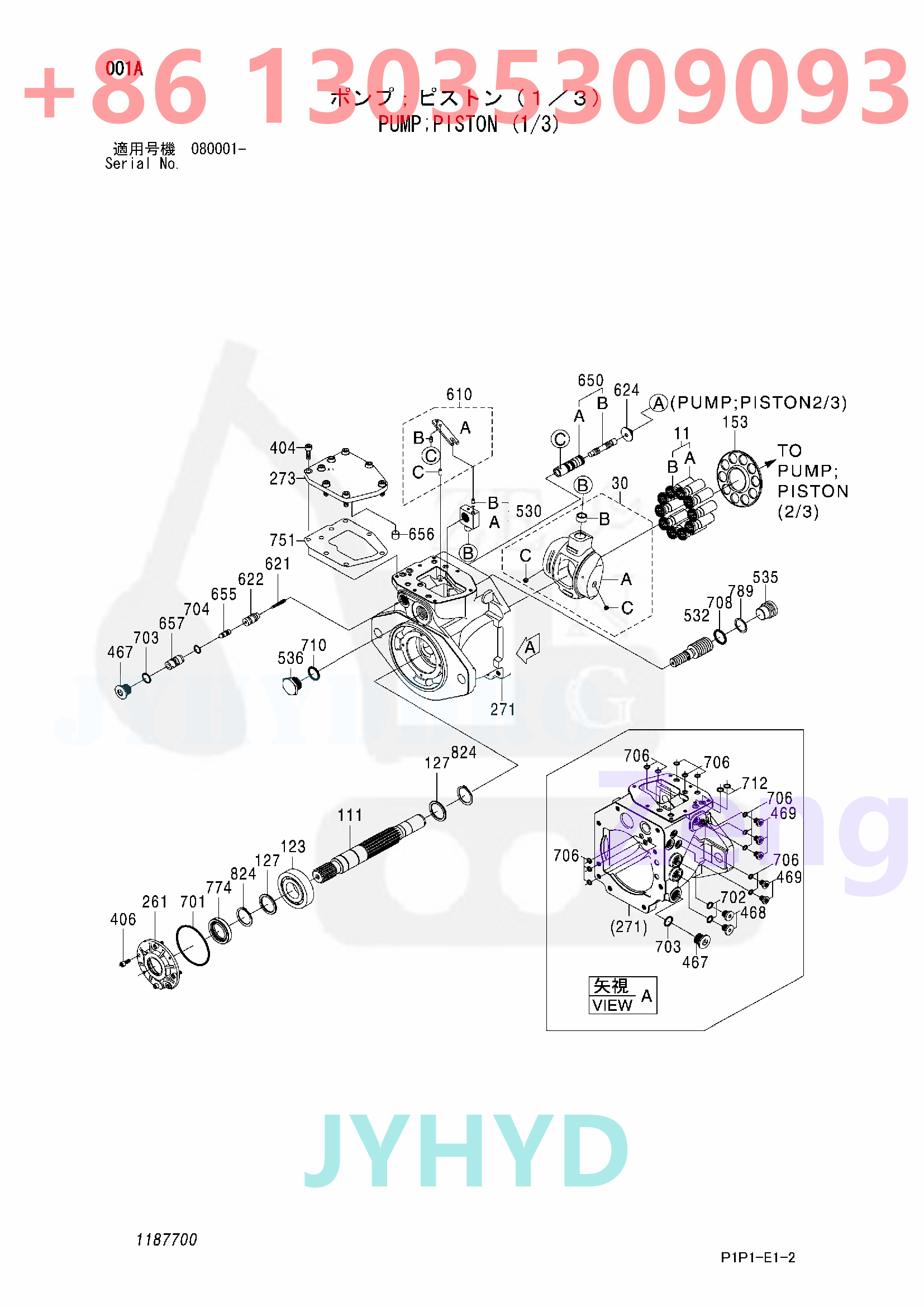

4666665 [1]   PUMP;PISTON (1/3) This PART NO. consists of all parts shown in PUMP;PISTON(1/3) to (3/3).
11 1184201 [1]   PISTON ASS'Y
11A. +++++++ [10]   PISTON
11B. +++++++ [10]   SHOE
30 1184202 [1]   PLATE ASS'Y
30A. +++++++ [1]   PLATE
30B. +++++++ [1]   BUSHING
30C. 0263019 [2]   PLUG
111 1184203 [1]   SHAFT
123 1184204 [1]   BRG.
127 818508 [2]   SPACER
153 1184205 [1]   PLATE
261 0818514 [1]   COVER
271 1184206 [1]   CASING
273 1184207 [1]   COVER
404 0130520 [8]   BOLT;SOCKET
406 0237902 [4]   BOLT;SOCKET
467 0719101 [2]   PLUG
468 0629404 [2]   PLUG
469 0719004 [5]   PLUG
530 1184208 [1]   PIN ASS'Y
530A. +++++++ [1]   PIN
530B. +++++++ [1]   PIN
532 1184209 [1]   PISTON
535 1187701 [1]   STOPPER
536 1184211 [1]   PLUG
610 1184212 [1]   LEVER ASS'Y
610A. +++++++ [1]   LEVER
610B. +++++++ [1]   PIN
610C. +++++++ [1]   PIN
621 1184218 [1]   PISTON
622 1184219 [1]   CASE
624 1184220 [1]   SEAT
650 1184213 [1]   SPOOL ASS'Y
650A. +++++++ [1]   SLEEVE
650B. +++++++ [1]   SPOOL
655 1184214 [1]   PISTON
656 1184215 [1]   PIN
657 1184216 [1]   CASE
701 A811085 [1]   O-RING
702 957366 [2]   O-RING
703 4506418 [2]   O-RING
704 928403 [1]   O-RING
706 4506408 [13]   O-RING
708 682503 [1]   O-RING
710 4506424 [1]   O-RING
712 4506320 [2]   O-RING
751 1184217 [1]   PACKING
774 1168617 [1]   SEAL;OIL
789 0135804 [1]   RING;BACK-UP
824 991342 [2]   RING;RETAINING

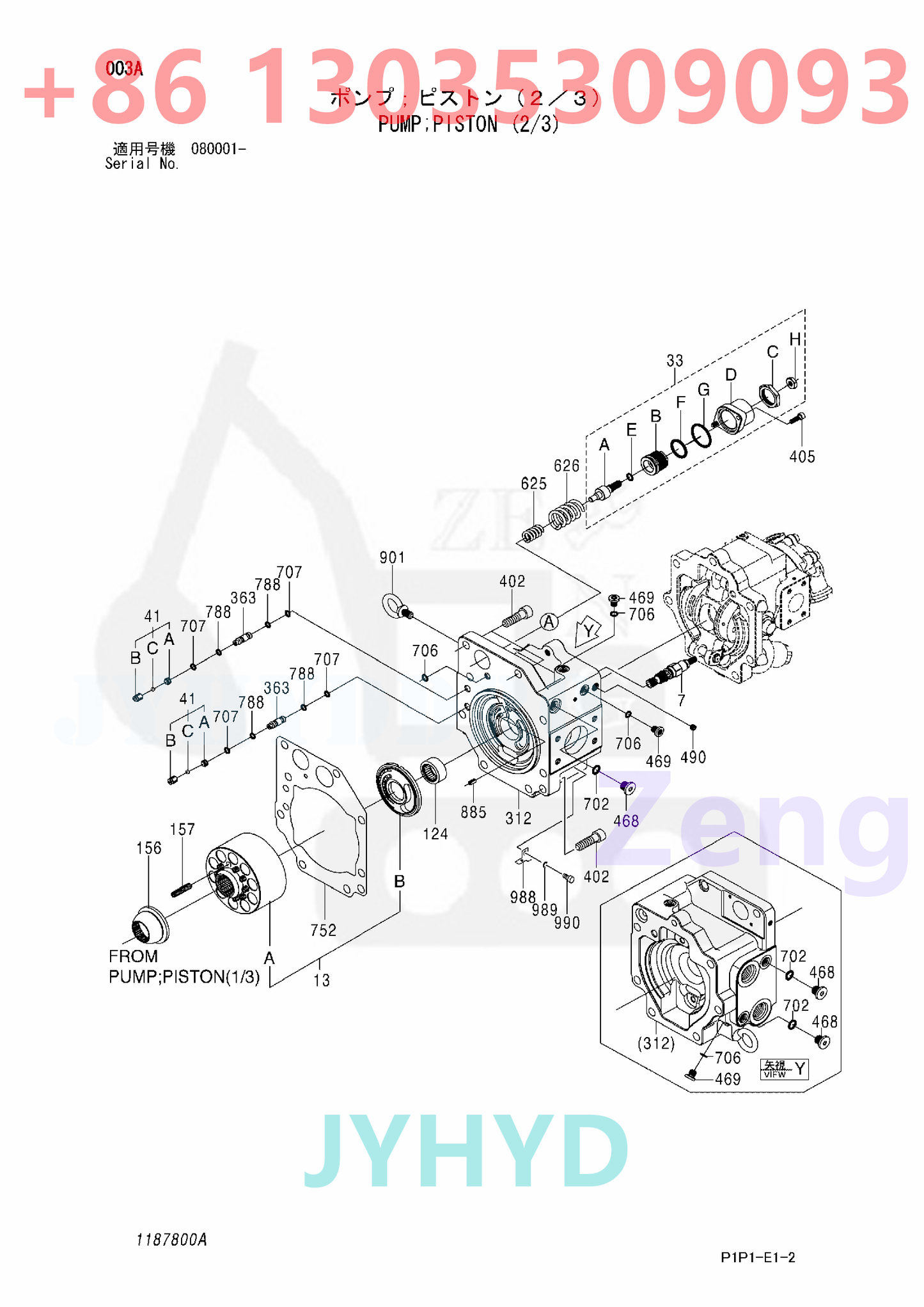

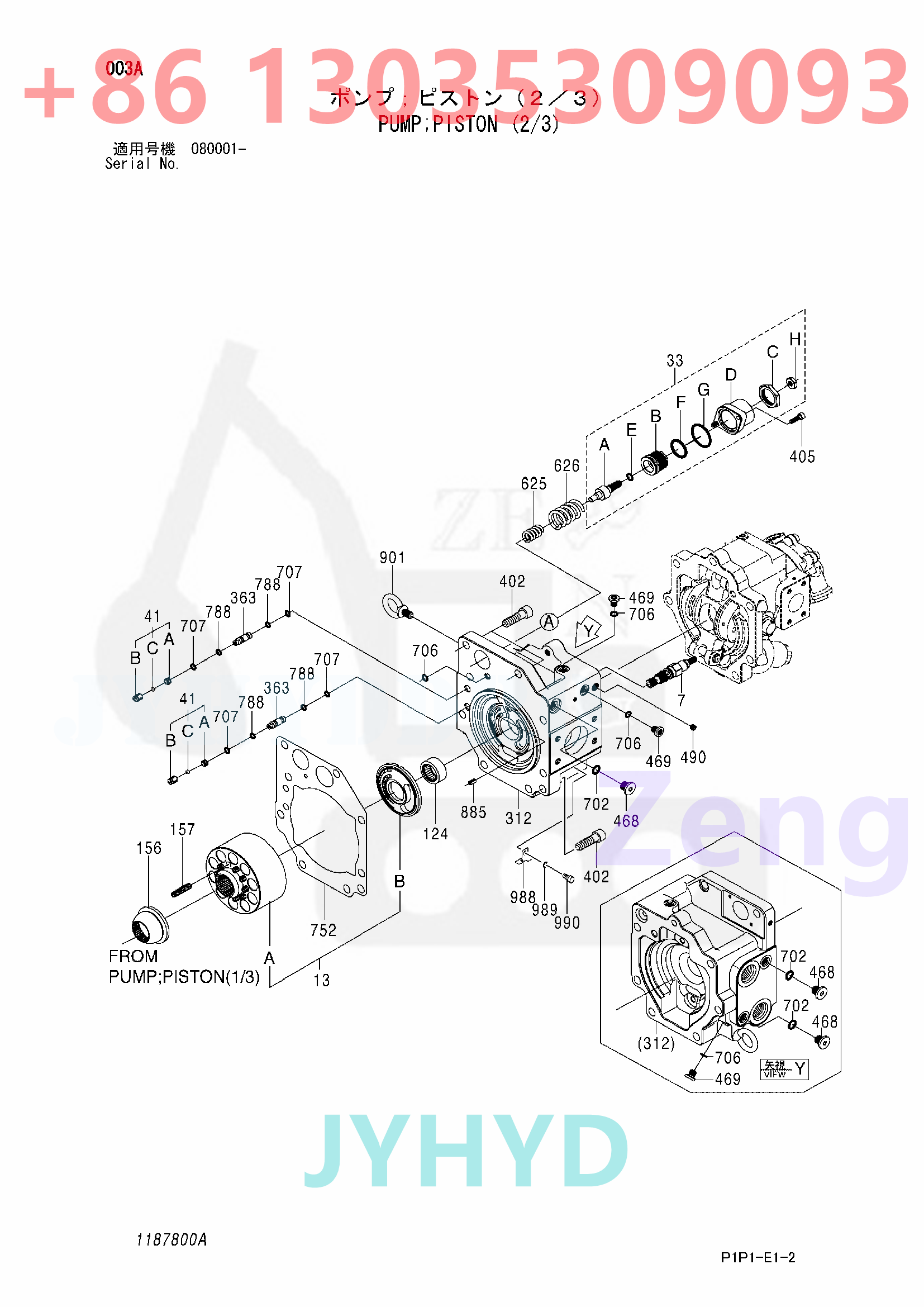

Parts on group PUMP;PISTON (2/3):
Pos. Part No Qty Parts name Comments
4666665 [1]   PUMP;PISTON (2/3) This PART NO. consists of all parts shown in PUMP;PISTON(1/3) to (3/3).
7 1184301 [1]   VALVE;REDUCING
13 1184302 [1]   CYL. ASS'Y
13A. +++++++ [1]   BLOCK
13B. +++++++ [1]   PLATE
33 1184303 [1]   COVER;SPRING ASS'Y
33A. 1184304 [1]   ROD
33B. 1184305 [1]   SCREW;ADJUSTING
33C. 1184306 [1]   NUT;LOCK
33D. 1184307 [1]   COVER;SPRING
33E. 4506412 [1]   O-RING
33F. 4509182 [1]   O-RING
33G. A811035 [1]   O-RING
33H. 1184308 [1]   NUT
41 708004 [2]   VALVE;CHECK
41A. +++++++ [1]   SEAT
41B. +++++++ [1]   STOPPER
41C. +++++++ [1]   BALL;STEEL
124 1184309 [1]   BRG.
156 1184310 [1]   BUSHING
157 0708012 [10]   SPRING
312 1184311 [1]   BLOCK
363 1184312 [2]   PIPE
402 4040040 [3]   BOLT;SOCKET
405 0102411 [2]   BOLT;SOCKET
468 0629404 [3]   PLUG
469 0719004 [3]   PLUG
490 0263019 [1]   PLUG
625 1184313 [1]   SPRING
626 1184314 [1]   SPRING
702 957366 [3]   O-RING
706 4506408 [4]   O-RING
707 4506407 [4]   O-RING
752 1184315 [1]   PACKING
788 4046168 [4]   RING;BACK-UP
885 0242814 [1]   PIN;SPRING
901 4091248 [2]   BOLT;EYE
988 4336874 [1]   BRACKET
989 1184316 [1]   WASHER;SPRING
990 0437405 [1]   BOLT;SOCKET

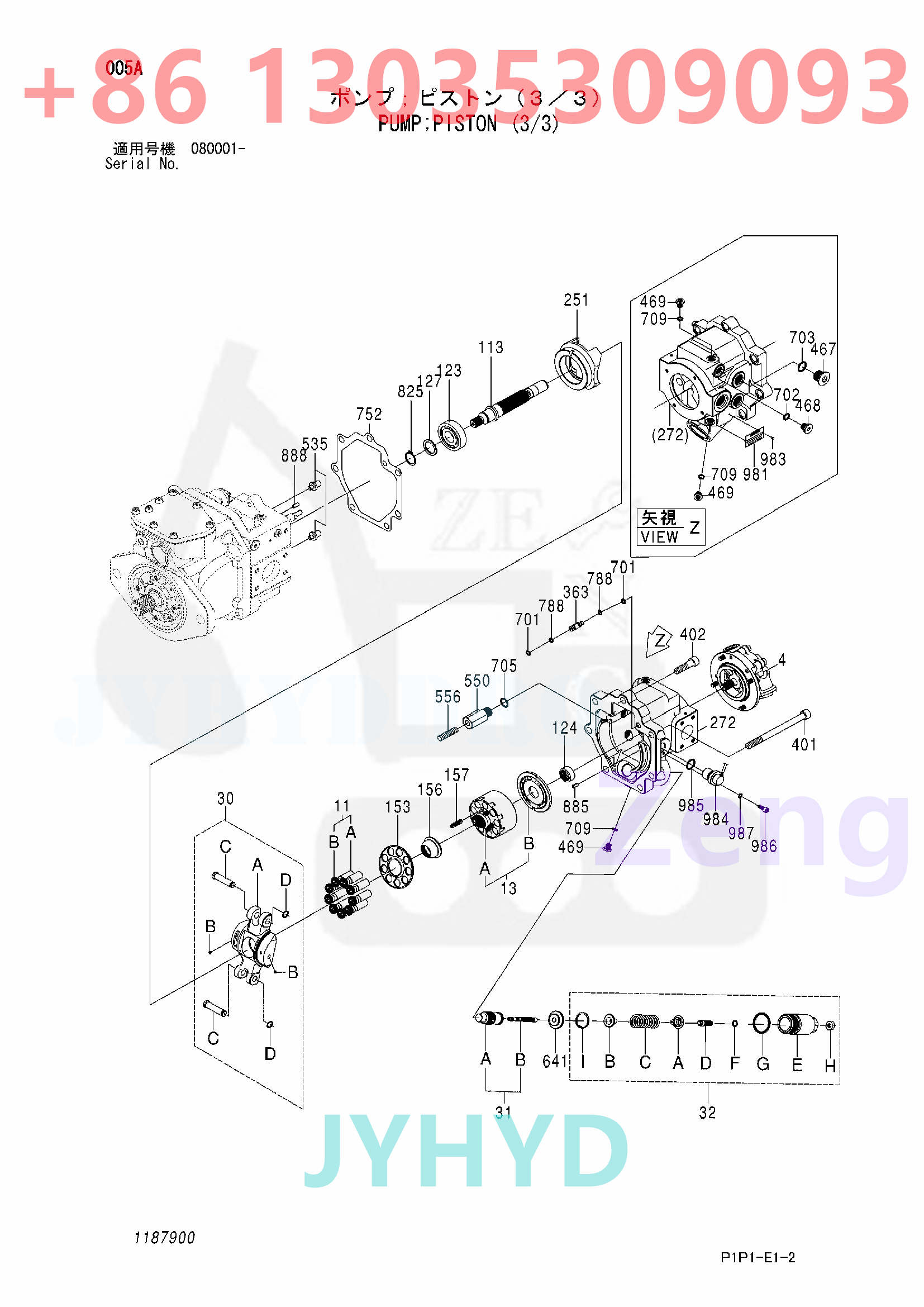

Parts on group PUMP;PISTON (3/3):
Pos. Part No Qty Parts name Comments
4666665 [1]   PUMP;PISTON (3/3) This PART NO. consists of all parts shown in PUMP;PISTON(1/3) to (3/3).
4 4694758 [1]   PUMP;GEAR
11 1184402 [1]   PISTON ASS'Y
11A. +++++++ [9]   PISTON
11B. +++++++ [9]   SHOE
13 1184403 [1]   CYL. ASS'Y
13A. +++++++ [1]   BLOCK
13B. +++++++ [1]   PLATE
30 1184404 [1]   PLATE ASS'Y
30A. +++++++ [1]   PLATE
30B. 1184405 [2]   PLUG
30C. +++++++ [2]   ROD
30D. +++++++ [2]   RING
31 1184406 [1]   PISTON ASS'Y
31A. +++++++ [1]   PISTON
31B. +++++++ [1]   SPOOL
32 1184407 [1]   SPRING ASS'Y
32A. +++++++ [1]   SEAT;SPRING
32B. +++++++ [1]   SEAT;SPRING
32C. +++++++ [1]   SPRING
32D. +++++++ [1]   SCREW;ADJUSTING
32E. +++++++ [1]   PLUG
32F. 4506412 [1]   O-RING
32G. 4095210 [1]   O-RING
32H. 0124325 [1]   NUT;LOCK
32I. 443964 [1]   RING;RETAINING
113 1184408 [1]   SHAFT
123 1184409 [1]   BRG.;BALL
124 1184410 [1]   BRG.;NEEDLE
127 1184411 [1]   SPACER
153 1184412 [1]   PLATE
156 1184413 [1]   BUSHING
157 0818511 [6]   SPRING
251 1184414 [1]   SUPPORT
272 1184415 [1]   CASING
363 1184312 [1]   PIPE
401 1184416 [6]   BOLT;SOCKET
402 0229813 [1]   BOLT;SOCKET
467 0719101 [1]   PLUG
468 0629404 [1]   PLUG
469 0719004 [3]   PLUG
535 1184417 [2]   PIN
550 +++++++ [1]   CASE
556 +++++++ [1]   PIN
641 +++++++ [1]   BUSHING
701 4506407 [2]   O-RING
702 957366 [1]   O-RING
703 4506418 [1]   O-RING
705 4506416 [1]   O-RING
709 4506408 [3]   O-RING
752 1184418 [1]   PACKING
788 4046168 [2]   RING;BACK-UP
825 942517 [1]   RING;RETAINING
885 0242814 [1]   PIN;SPRING
888 1184419 [1]   PIN
981 +++++++ [1]   PLATE
983 0625509 [2]   PIN
984 4265372 [1]   SENSOR
985 4306888 [1]   O-RING
986 M340616 [1]   BOLT;SOCKET
987 A590106 [1]   WASHER;PLANE

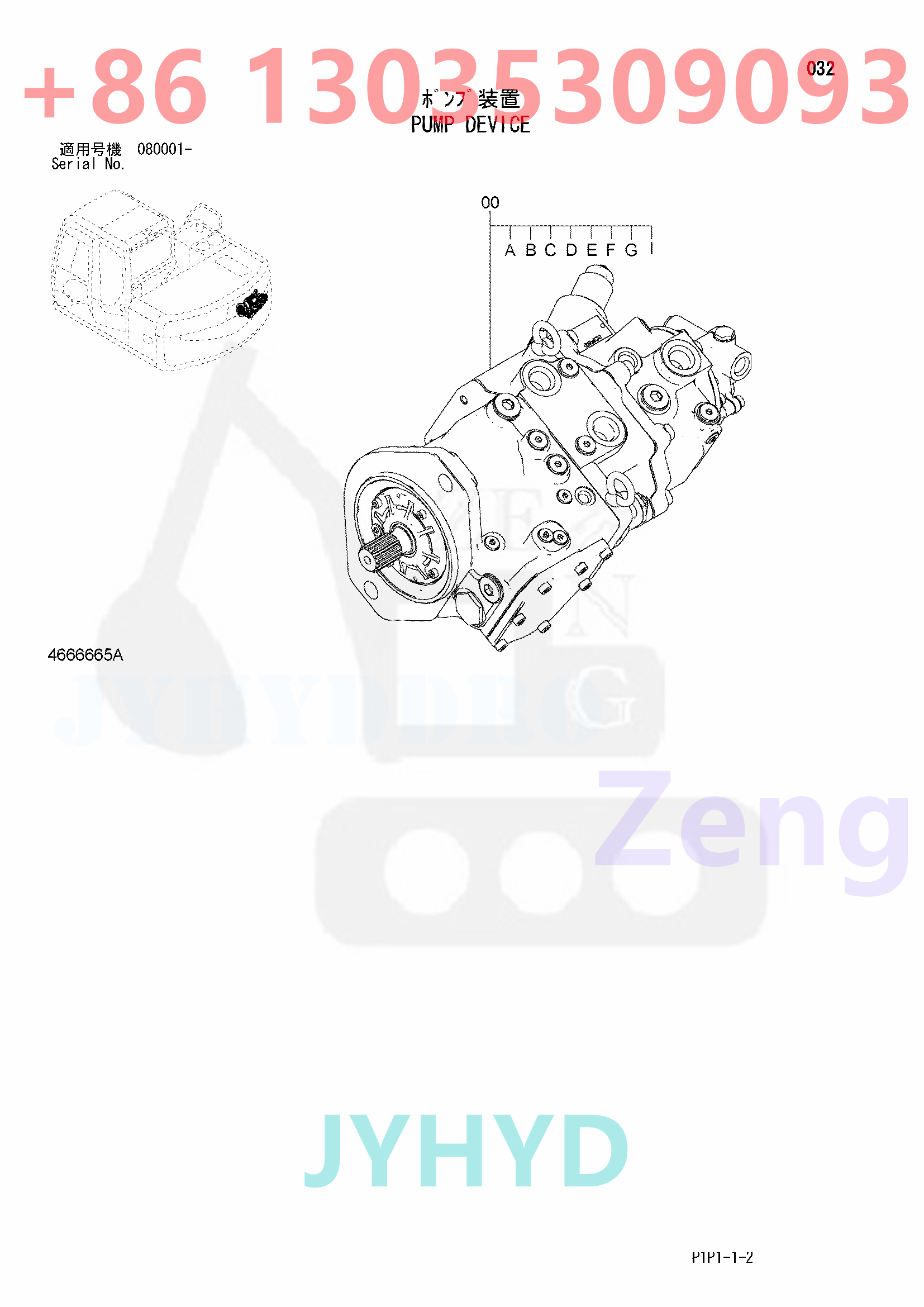

Parts on group PUMP DEVICE:
Pos. Part No Qty Parts name Comments
0 9295139 [1]   PUMP;PISTON ASS'Y
00A. 4666665 [1]   PUMP;PISTON
00B. 4265372 [1]   SENSOR;REVL.
00C. 4306888 [1]   O-RING
00D. A590106 [1]   WASHER;PLANE
00E. M340616 [1]   BOLT;SOCKET
00F. A590906 [1]   WASHER;SPRING
00G. M340613 [1]   BOLT;SOCKET
00I. 4336874 [1]   BRACKET

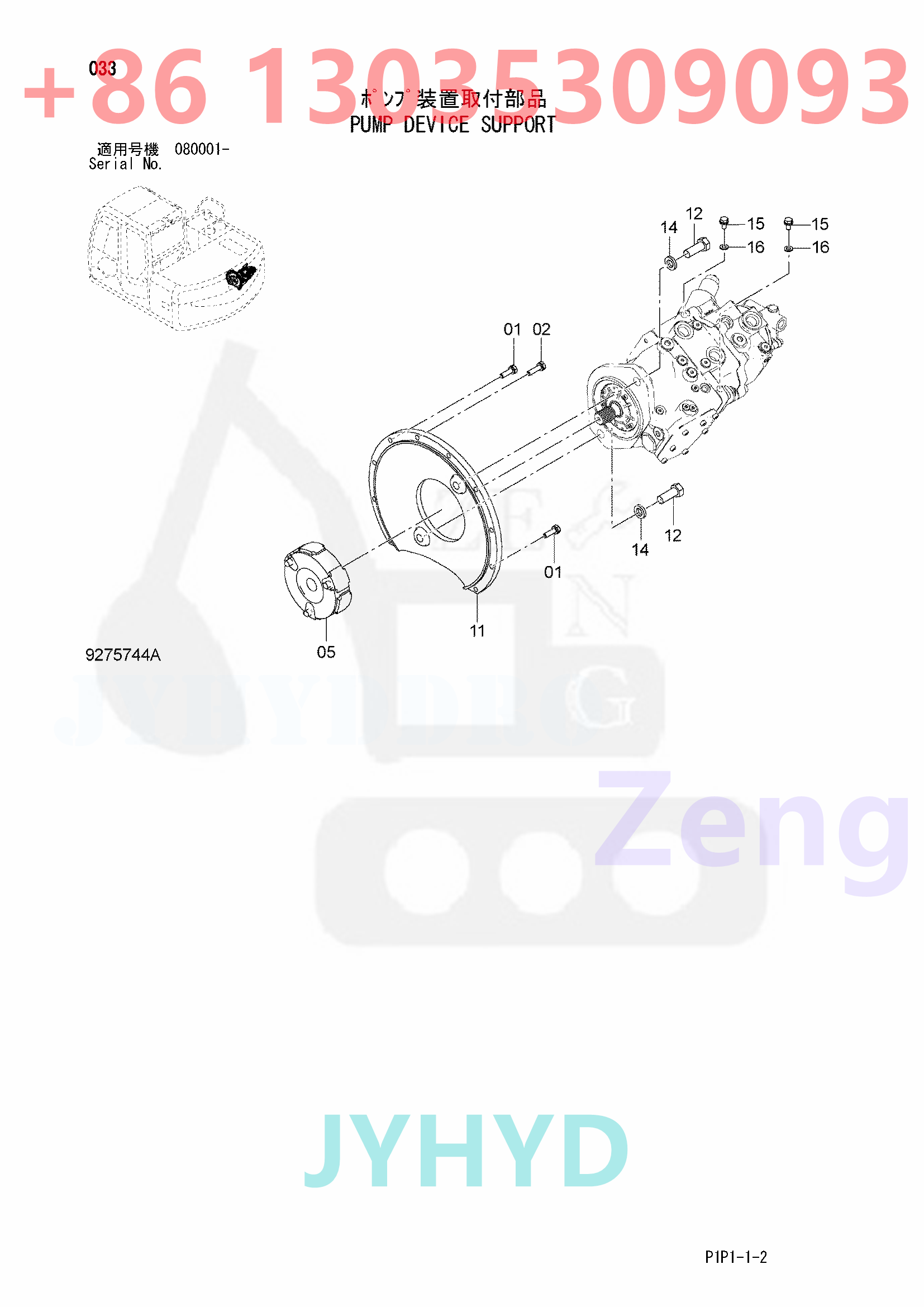

Parts on group PUMP DEVICE SUPPORT:
Pos. Part No Qty Parts name Comments
1 4609015 [7]   BOLT;SEMS
2 4614636 [3]   BOLT;SEMS
5 4668196 [1]   COUPLING
11 2054976 [1]   COVER;PUMP
12 J921850 [2]   BOLT
14 J257218 [2]   WASHER;SPRING
15 J901016 [2]   BOLT
16 A590110 [2]   WASHER;PLANE
