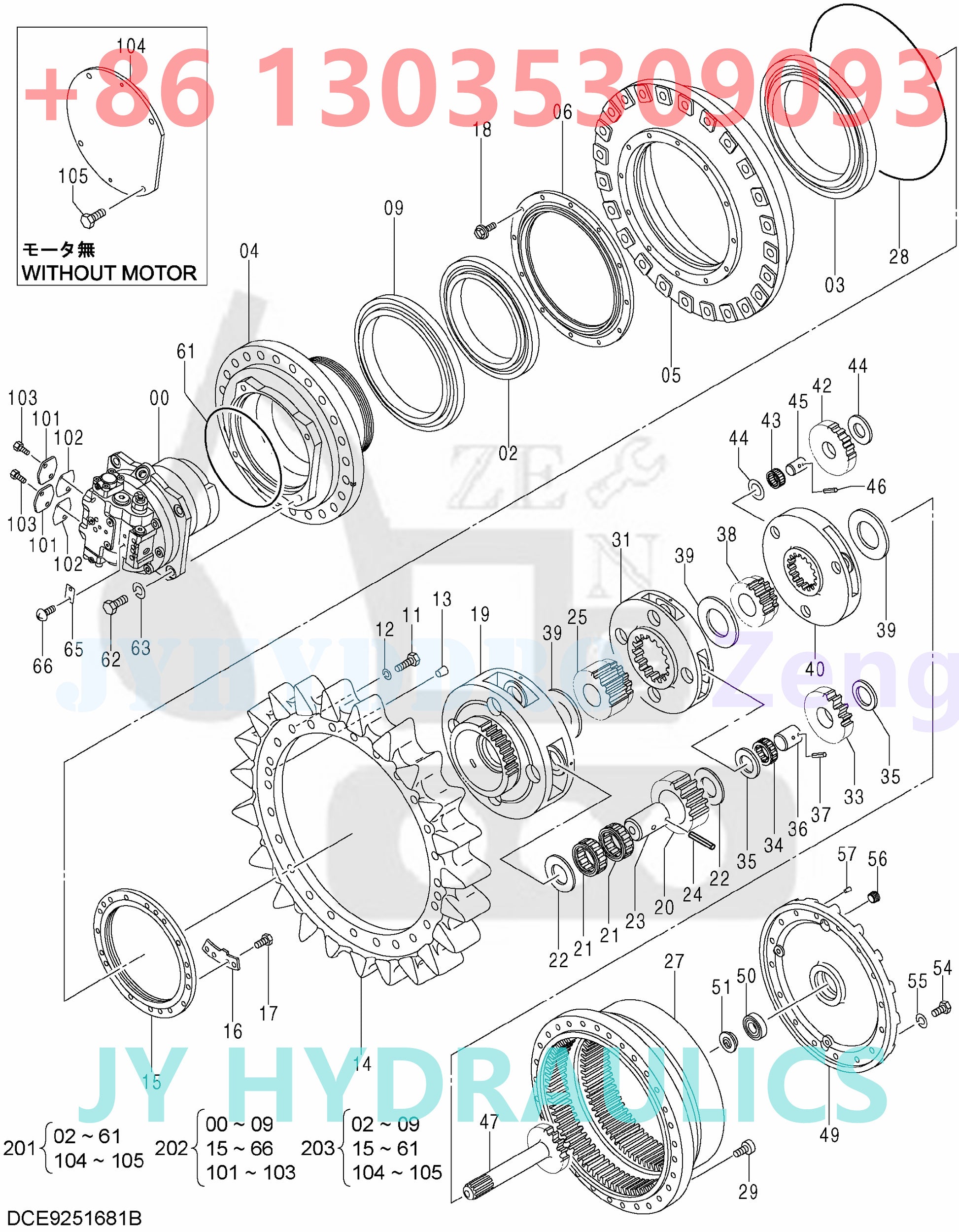

| Parts on group TRAVEL DEVICE:ZX850-3 TRAVEL DEVICE Hitachi HOP online |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 00-66. |
9251681 |
[1] |
TRAVEL DEVICE |
|
| 0 |
4636857 |
[1] |
MOTOR;OIL |
|
| 2 |
4219329 |
[1] |
BRG.;ROL. |
|
| 3 |
4219328 |
[1] |
BRG.;ROL. |
|
| 4 |
1030160 |
[1] |
HOUSING |
|
| 5 |
1012131 |
[1] |
DRUM |
|
| 6 |
2025832 |
[1] |
SUPPORT |
|
| 9 |
4245703 |
[1] |
SEAL;GROUP |
|
| 11 |
J932785 |
[24] |
BOLT |
|
| 12 |
A590927 |
[24] |
WASHER;SPRING |
|
| 13 |
425175 |
[2] |
CORK |
|
| 14 |
4430291 |
[1] |
SPROCKET |
|
| 15 |
3069875 |
[1] |
NUT |
|
| 16 |
3041462 |
[1] |
PLATE;LOCK |
|
| 17 |
J901225 |
[2] |
BOLT |
|
| 18 |
4609016 |
[12] |
BOLT;SEMS |
|
| 19 |
1028874 |
[1] |
CARRIER |
|
| 20 |
3090709 |
[4] |
GEAR;PLANETARY |
|
| 21 |
4464369 |
[8] |
BRG.;NEEDLE |
|
| 22 |
4219640 |
[8] |
PLATE;THRUST |
|
| 23 |
4447037 |
[4] |
PIN |
|
| 24 |
4222029 |
[4] |
PIN;SPRING |
|
| 25 |
3090710 |
[1] |
GEAR;SUN |
|
| 27 |
1028886 |
[1] |
GEAR;RING |
|
| 28 |
4223568 |
[1] |
O-RING |
|
| 29 |
M342260 |
[30] |
BOLT;SOCKET |
|
| 31 |
1028881 |
[1] |
CARRIER |
|
| 33 |
3090930 |
[4] |
GEAR;PLANETARY |
|
| 34 |
4455088 |
[4] |
BRG.;NEEDLE |
Y 4371402 |
| 34 |
4371402 |
[4] |
BRG.;NEEDLE |
|
| 35 |
4269470 |
[8] |
PLATE;THRUST |
|
| 36 |
4447032 |
[4] |
PIN |
|
| 37 |
4203180 |
[4] |
PIN;SPRING |
|
| 38 |
3090711 |
[1] |
GEAR;SUN |
|
| 39 |
4657080 |
[3] |
SPACER |
|
| 40 |
1028898 |
[1] |
CARRIER |
|
| 42 |
3089538 |
[3] |
GEAR;PLANETARY |
|
| 43 |
4445529 |
[3] |
BRG.;NEEDLE |
|
| 44 |
4210851 |
[6] |
PLATE;THRUST |
|
| 45 |
4309995 |
[3] |
PIN |
|
| 46 |
4246358 |
[3] |
PIN;SPRING |
|
| 47 |
2045895 |
[1] |
SHAFT;PROP. |
|
| 49 |
1028899 |
[1] |
COVER |
|
| 50 |
4284195 |
[1] |
BRG.;BALL |
|
| 51 |
4277474 |
[1] |
PIN;STOPPER |
|
| 54 |
4257967 |
[18] |
BOLT;SHOE |
|
| 55 |
A590914 |
[18] |
WASHER;SPRING |
|
| 56 |
4462824 |
[3] |
PLUG |
|
| 57 |
429597 |
[2] |
CORK |
|
| 61 |
4271596 |
[1] |
O-RING |
|
| 62 |
J911860 |
[4] |
BOLT |
|
| 63 |
A590918 |
[4] |
WASHER;SPRING |
|
| 65 |
+++++++ |
[1] |
NAME-PLATE |
|
| 66 |
M492564 |
[2] |
SCREW;DRIVE |
|
| 101 |
4279079 |
[2] |
PLATE |
|
| 102 |
4279078 |
[2] |
PACKING |
|
| 103 |
J901216 |
[4] |
BOLT |
|
| 104 |
3096382 |
[1] |
COVER |
|
| 105 |
J931835 |
[4] |
BOLT |
|
| 201 |
9219275 |
[1] |
T.MISSION |
(WITHOUT MOTOR) (ITEM 02-61,104-105) |
| 202 |
YB60000075 |
[1] |
TRAVEL DEVICE |
(WITHOUT SPROCKET) (ITEM 00-09,15-66,101-103) |
| 203 |
YB60000249 |
[1] |
TRAVEL DEVICE |
(WITHOUT MOTOR,SPROCKET) (ITEM 02-09,15-61,104-105) |
