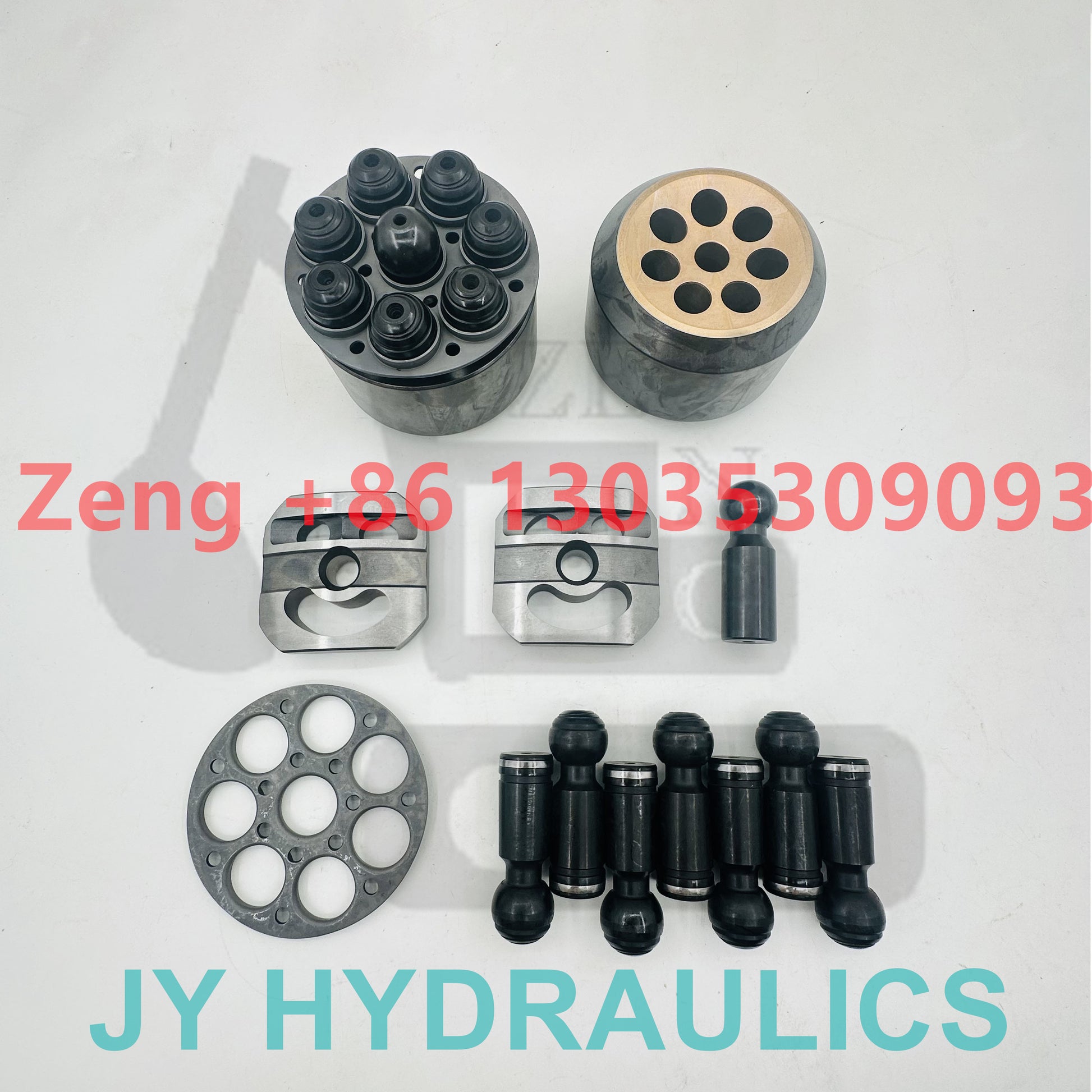

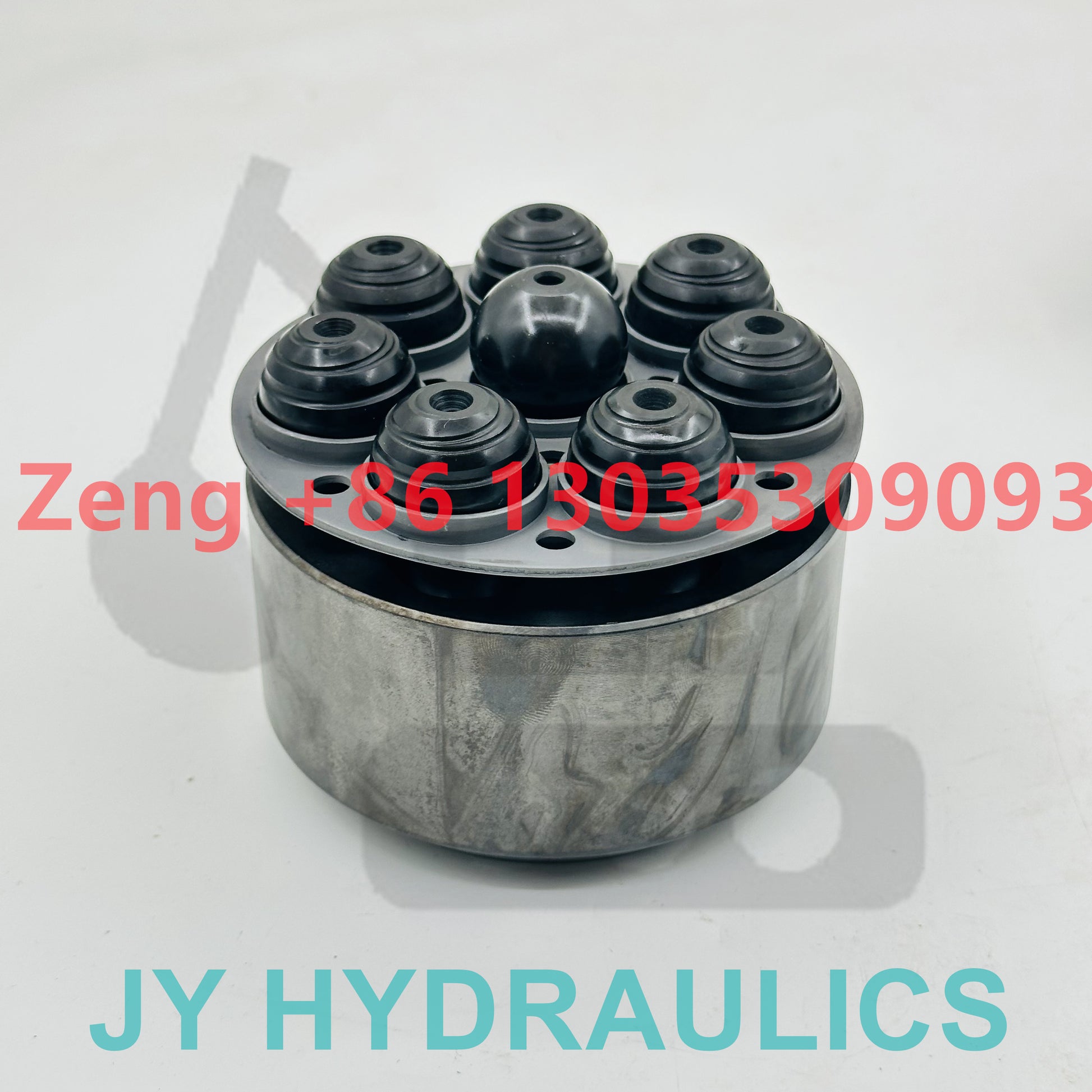

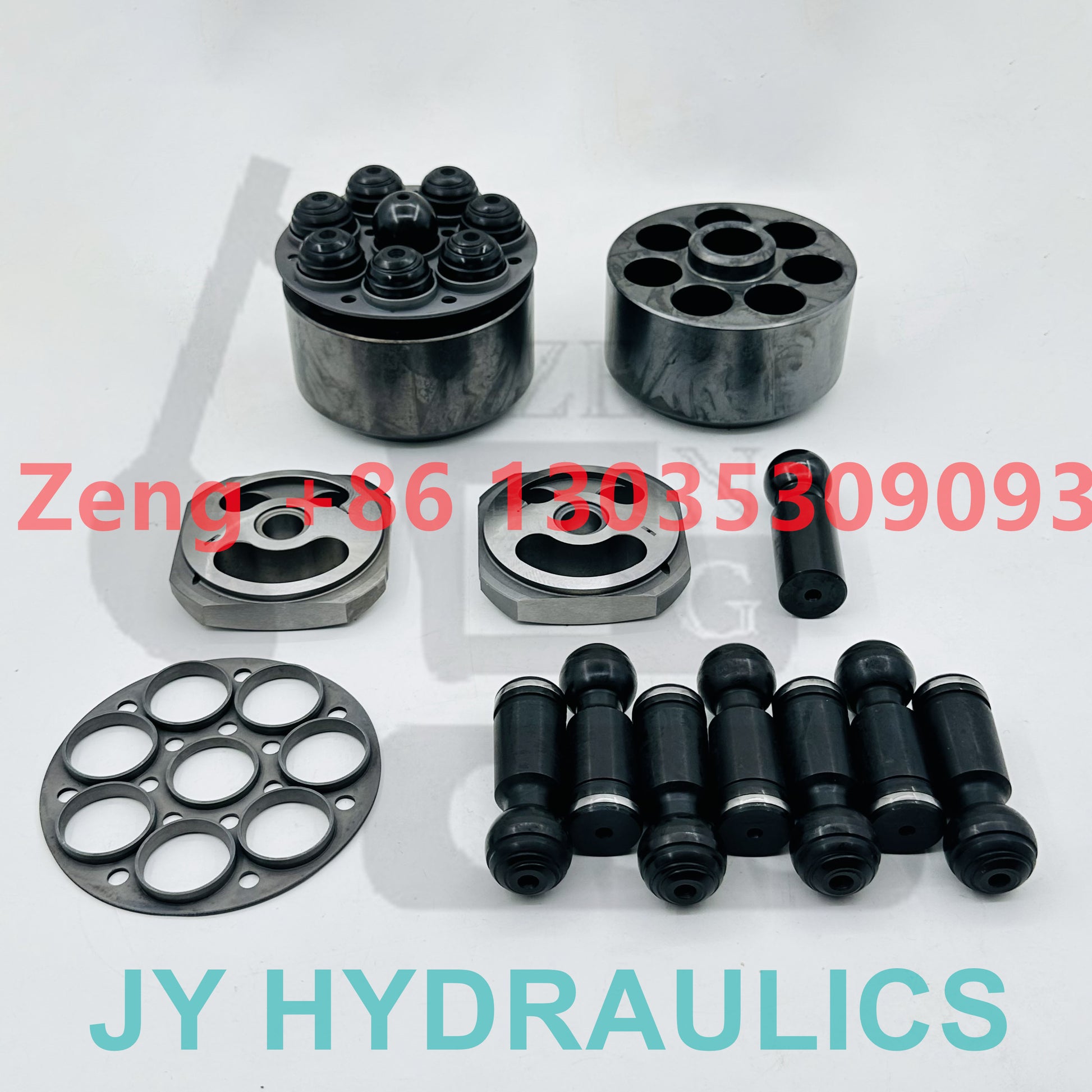

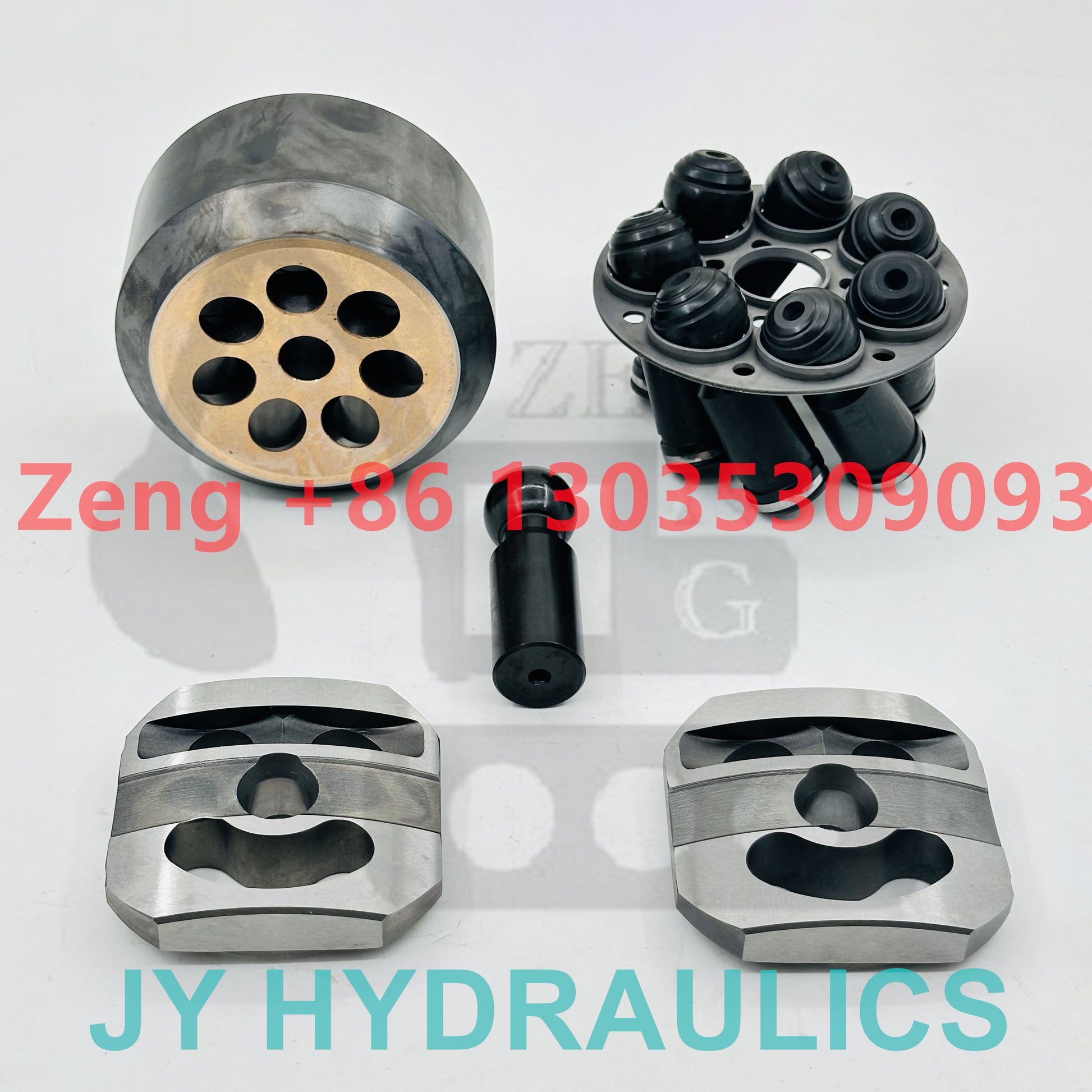

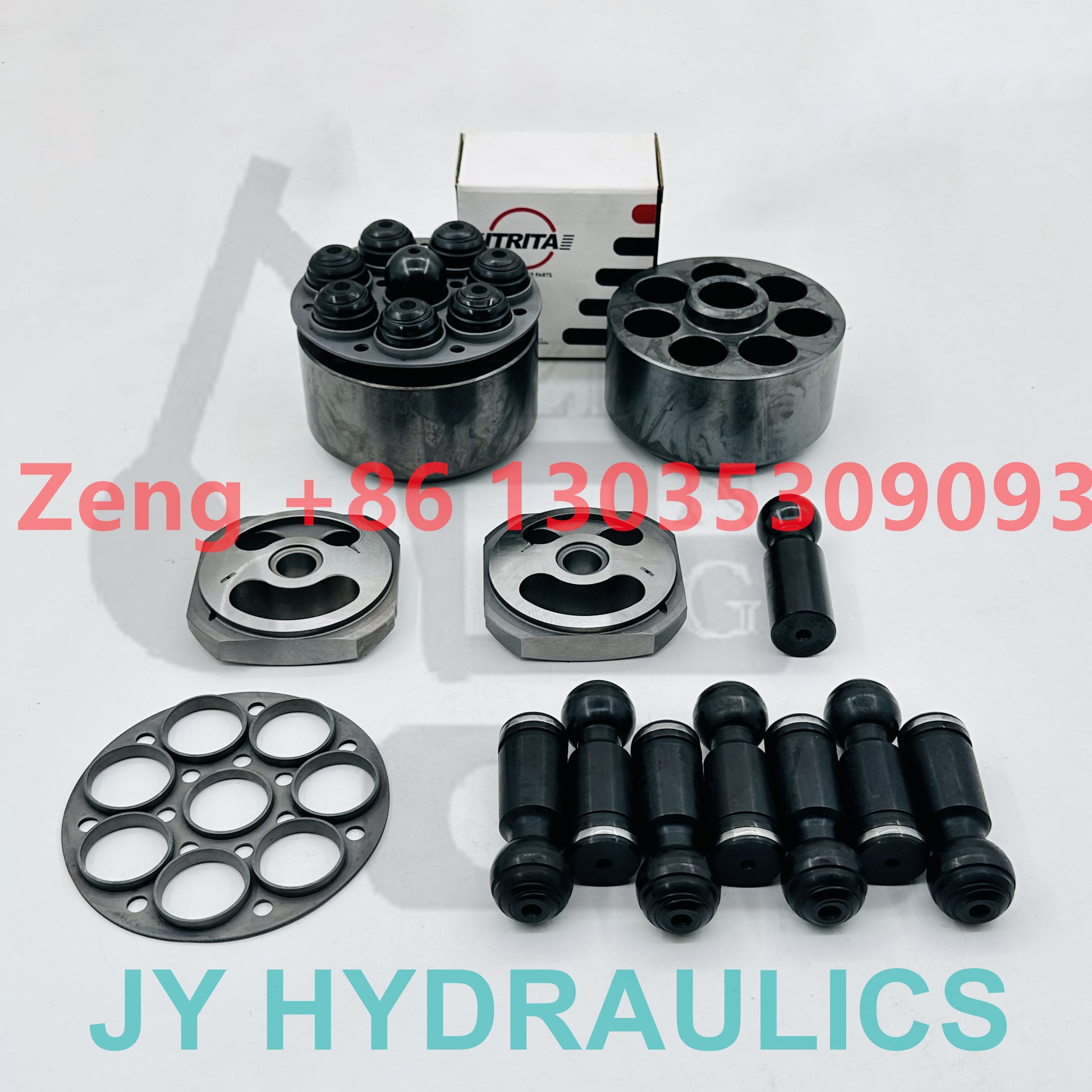

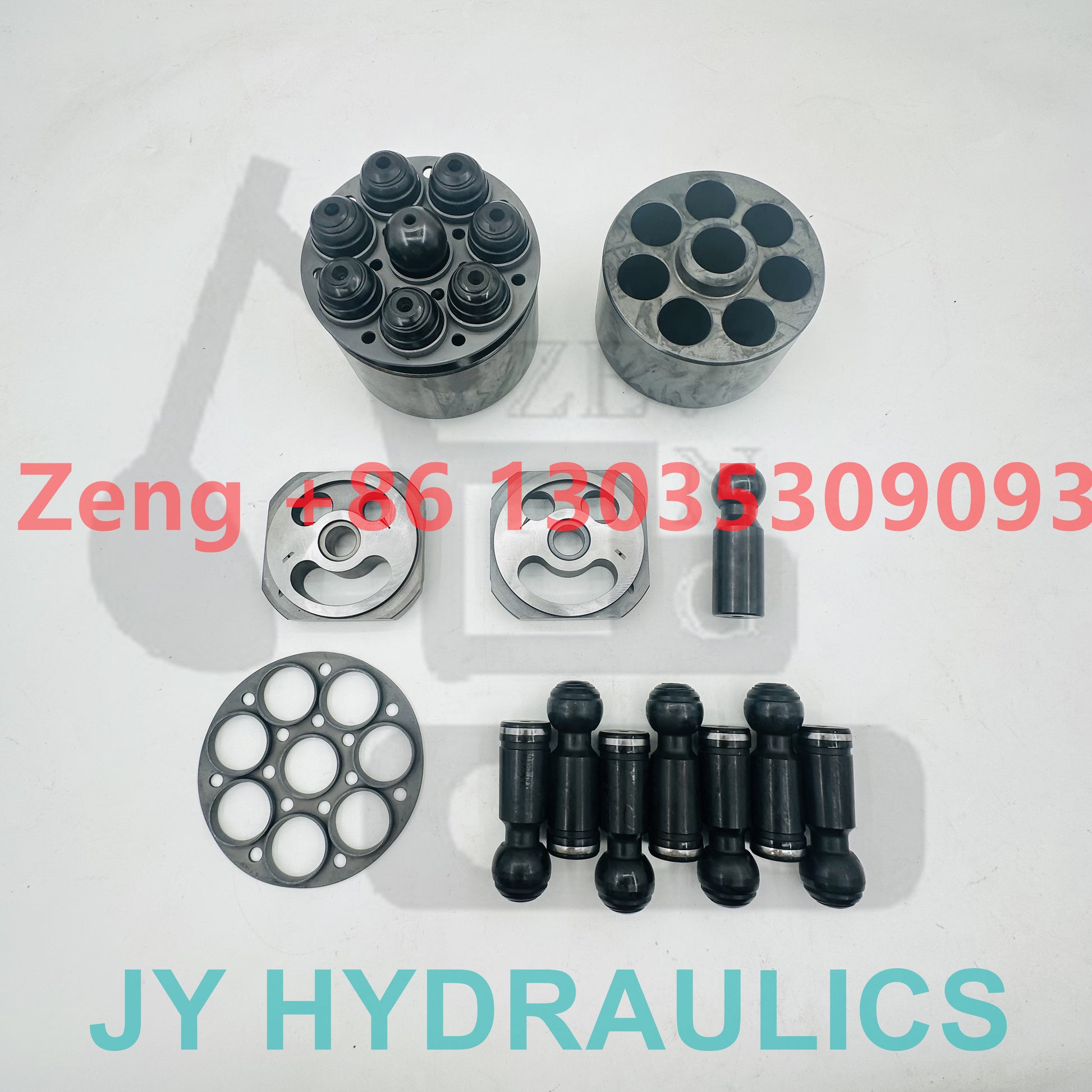

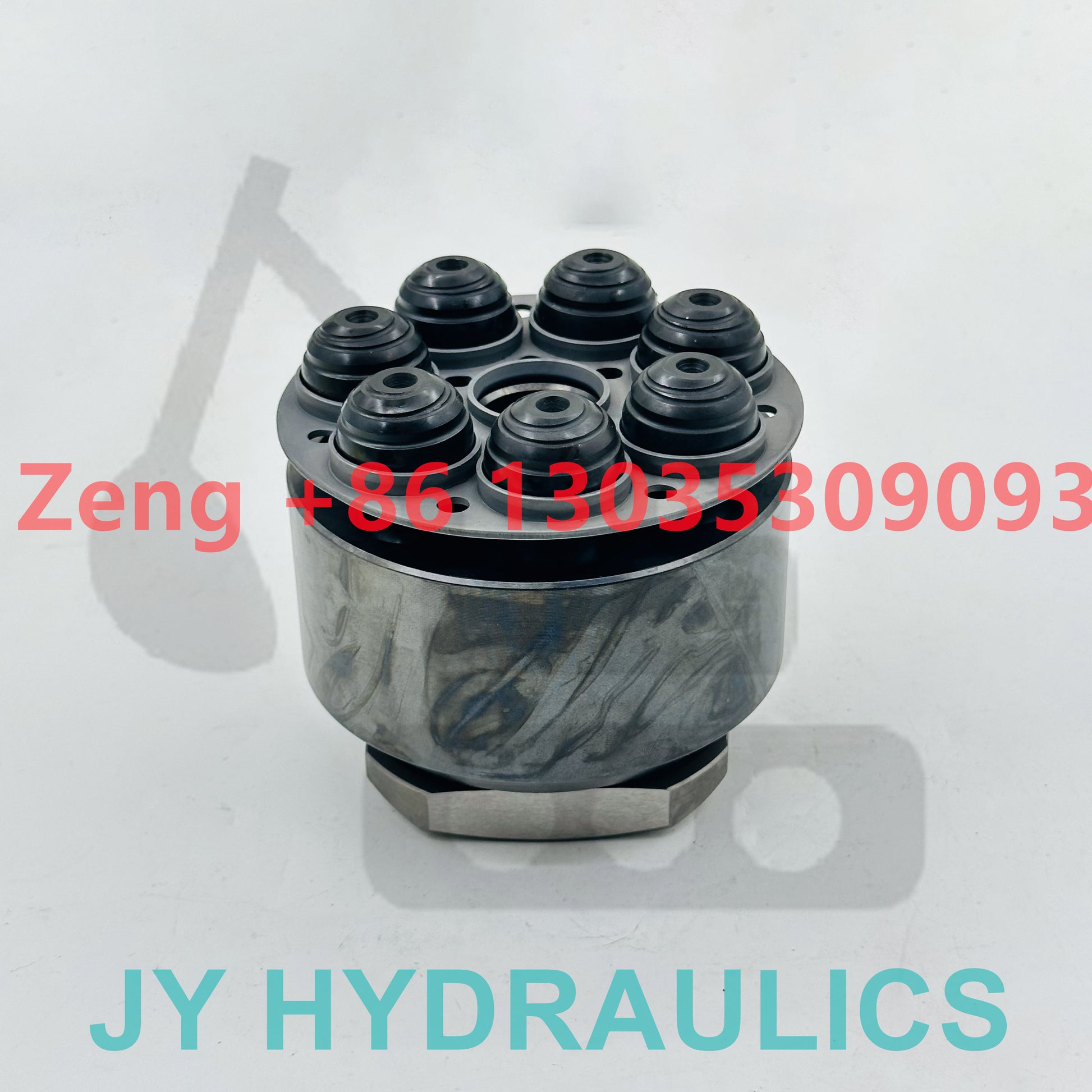

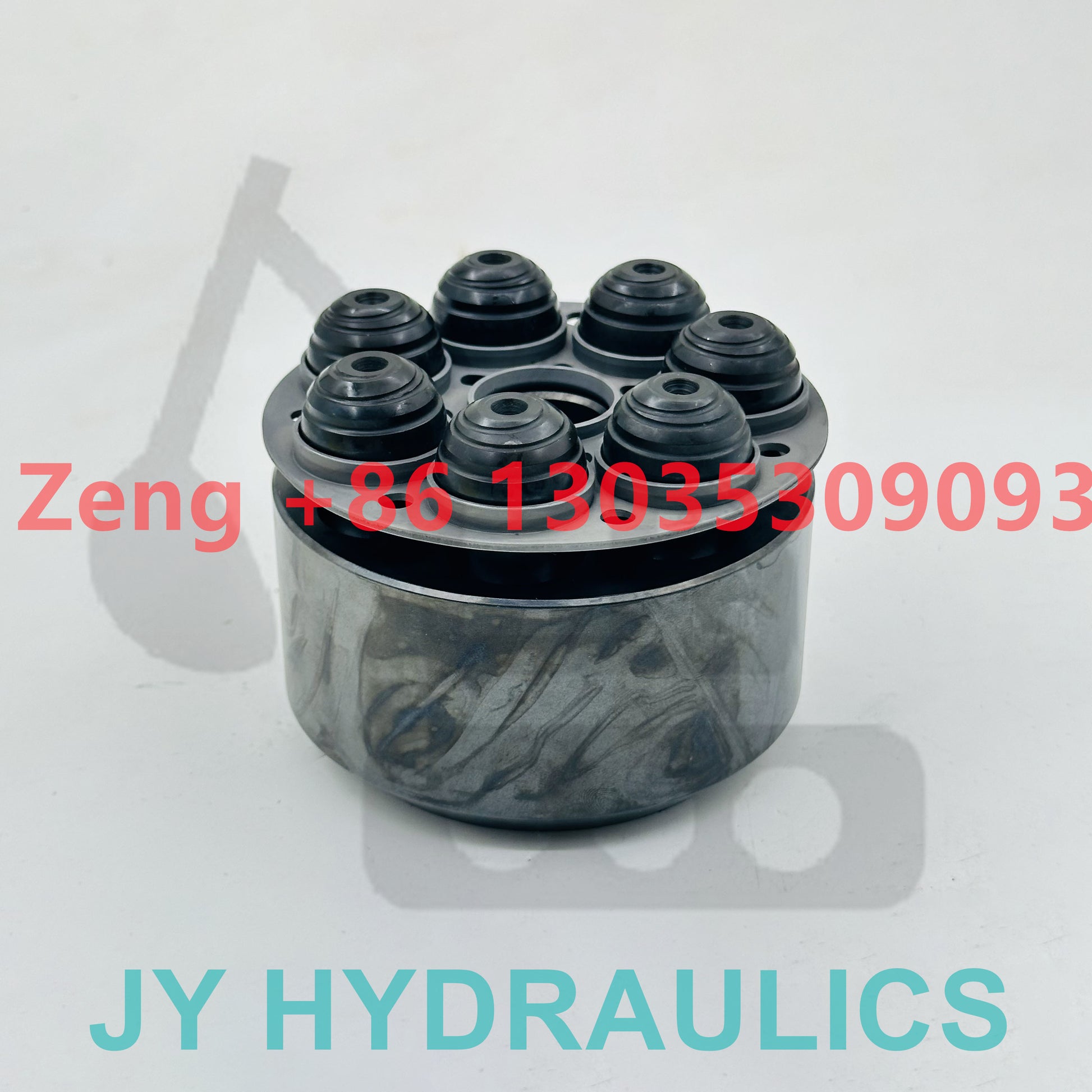

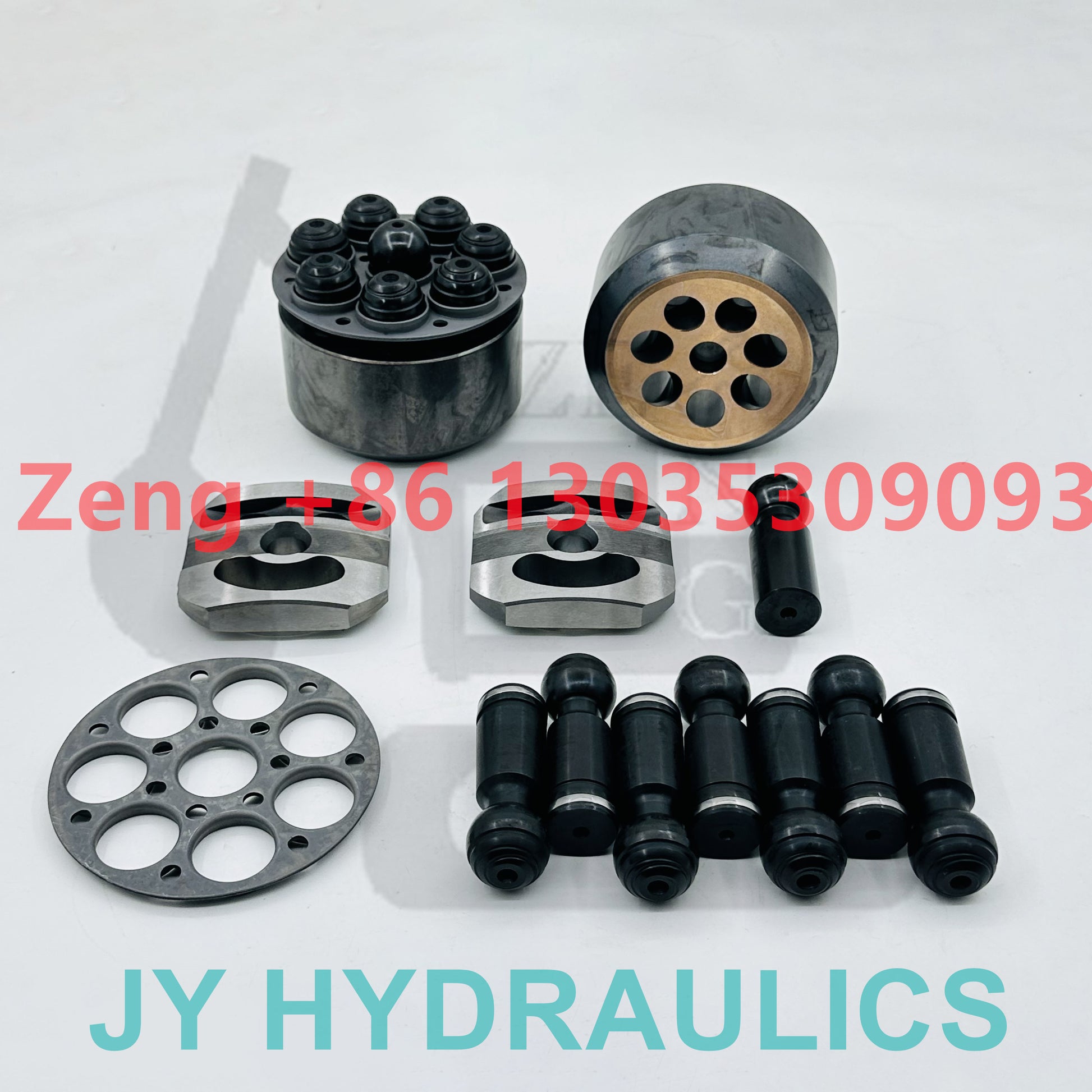

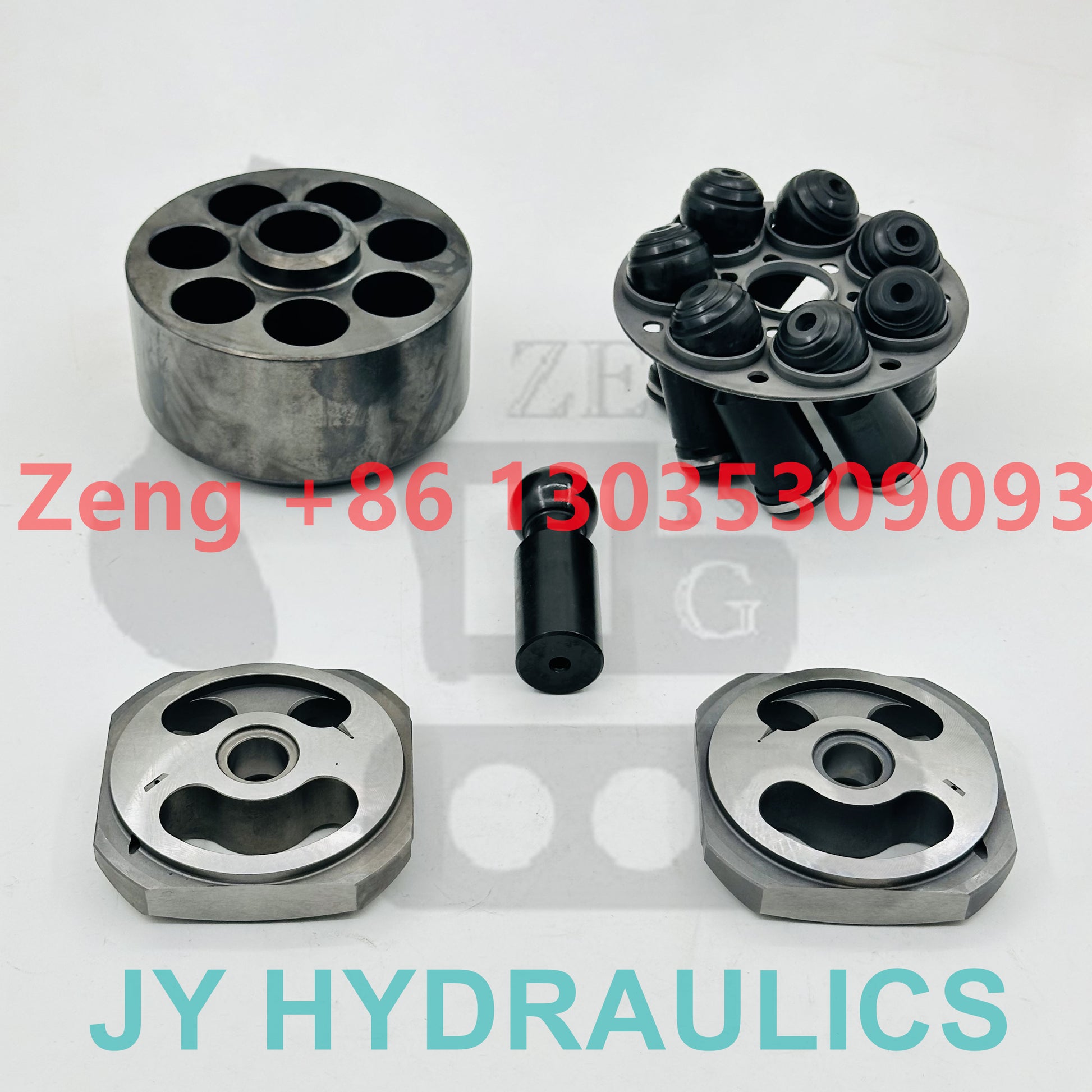

| 401-00379 Doosan Solar S170W-V S180W-V S185W-V ROTARY GROUP RH 2054851/2038842 ROTAYR GROUP LH 2042095/2038842 |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2 |
2054851 |
[1] |
ROTARY GROUP |
|
| 20 |
9083408 |
[1] |
RING;RETAINING |
|
| 21 |
9832131 |
[1] |
RING;SHAFT SEAL |
|
| 22 |
9084989 |
[1] |
SHIM |
|
| 23 |
9153364 |
[1] |
SCREW;LOCKING |
|
| 24 |
9151979 |
[3] |
SCREW;LOCKING |
|
| 25 |
9153268 |
[1] |
BEARING;PLAIN ROLLER |
|
| 26 |
9083979 |
[1] |
SHAFT;KEY |
|
| 27 |
9153268 |
[1] |
BEARING;PLAIN ROLLER |
|
| 2A. |
2038842 |
[1] |
ROTARY GROUP. HYDR. SECTION |
|
| 2Aa. |
2038760 |
[1] |
CYLINDER |
|
| 2Ab. |
2038759 |
[1] |
PIN;CENTER |
|
| 2Ac. |
2047357 |
[7] |
PISTON & PISTON RINGS |
|
| 2Ac1. |
2047266 |
[1] |
PISTON |
|
| 2Ac2. |
9831893 |
[1] |
RING;STEEL SEALING |
|
| 2Ad. |
9412411 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412412 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412413 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412414 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412415 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412416 |
[1] |
COLLAR;SPRING |
|
| 2Ad. |
9412417 |
[1] |
COLLAR;SPRING |
|
| 2Ae. |
9408894 |
[4] |
CUP SPRING |
|
| 2Af. |
9062847 |
[1] |
PLATE;RETAINING |
|
| 2Ag. |
9831106 |
[14] |
SCREW;PAN HEAD |
|
| 2B. |
2054850 |
[1] |
SHAFT;DRIVE |
|
| 2C. |
9651571 |
[1] |
SHIM |
|
| 2C. |
9651572 |
[1] |
SHIM |
|
| 2C. |
9651573 |
[1] |
SHIM |
|
| 2C. |
9651574 |
[1] |
SHIM |
|
| 2C. |
9651575 |
[1] |
SHIM |
|
| 2D. |
2063765 |
[1] |
CONTROL LENS;RIGHT-HAND |
|
| 2E. |
2028800 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028801 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028802 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028803 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028804 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028805 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028806 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028807 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028808 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
2028809 |
[1] |
PLATE;BACK-UP |
|
| 2E. |
9084737 |
[1] |
PLATE;BACK-UP |
|
| 2F. |
9083363 |
[1] |
RING;RETAINING |
|
| 2G. |
9154607 |
[1] |
BEARING;UNIT TAPERED-ROLLER |
|
| 2H. |
9151100 |
[1] |
BEARING;TAPERED-ROLLER |
|
| 3 |
2042095 |
[1] |
ROTARY GROUP |
|
| 3A. |
2038842 |
[1] |
ROTARY GROUP. HYDR. SECTION |
|
| 3Aa. |
2038760 |
[1] |
CYLINDER |
|
| 3Ab. |
2038759 |
[1] |
PIN;CENTER |
|
| 3Ac. |
2047357 |
[7] |
PISTON & PISTON RINGS |
|
| 3Ac1. |
2047266 |
[1] |
PISTON |
|
| 3Ac2. |
9831893 |
[1] |
RING;STEEL SEALING |
|
| 3Ad. |
9412411 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412412 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412413 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412414 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412415 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412416 |
[1] |
COLLAR;SPRING |
|
| 3Ad. |
9412417 |
[1] |
COLLAR;SPRING |
|
| 3Ae. |
9408894 |
[4] |
CUP SPRING |
|
| 3Af. |
9062847 |
[1] |
PLATE;RETAINING |
|
| 3Ag. |
9831106 |
[14] |
SCREW;PAN HEAD |
|
| 3B. |
2038776 |
[1] |
SHAFT;DRIVE |
|
| 3C. |
9651571 |
[1] |
SHIM |
|
| 3C. |
9651572 |
[1] |
SHIM |
|
| 3C. |
9651573 |
[1] |
SHIM |
|
| 3C. |
9651574 |
[1] |
SHIM |
|
| 3C. |
9651575 |
[1] |
SHIM |
|
| 3D. |
2063766 |
[1] |
CONTROL LENS;LEFT-HAND |
|
| 3E. |
2028800 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028801 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028802 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028803 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028804 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028805 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028806 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028807 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028808 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
2028809 |
[1] |
PLATE;BACK-UP |
|
| 3E. |
9084737 |
[1] |
PLATE;BACK-UP |
|
| 3F. |
9083363 |
[1] |
RING;RETAINING |
|
| 3G. |
9154607 |
[1] |
BEARING;UNIT TAPERED-ROLLER |
|
| 3H. |
9151100 |
[1] |
BEARING;TAPERED-ROLLER |
|
| 4 |
2018107 |
[1] |
GEAR PUMP ASS'Y |
|
| 4A. |
9831782 |
[1] |
PUMP;GEAR |
|
| 4B. |
9083036 |
[2] |
SCREW;SOCKET M8X20 |
|
| 4C. |
9157500 |
[2] |
SCREW;SOCKET M8X75 |
|
| 5 |
2063901 |
[1] |
HOUSING;PUMP |
|
| 7 |
2038816 |
[1] |
GEAR |
|
| 8 |
9650267 |
[1] |
SHAFT;STUB |
