DOOSAN SOLAR 75-V SWING REDUCTION GEAR

DOOSAN SOLAR 75-V SWING REDUCTION GEAR

$5,000.00 USD
$5,000.00 USD
特價 售罄
結帳時計算運費。

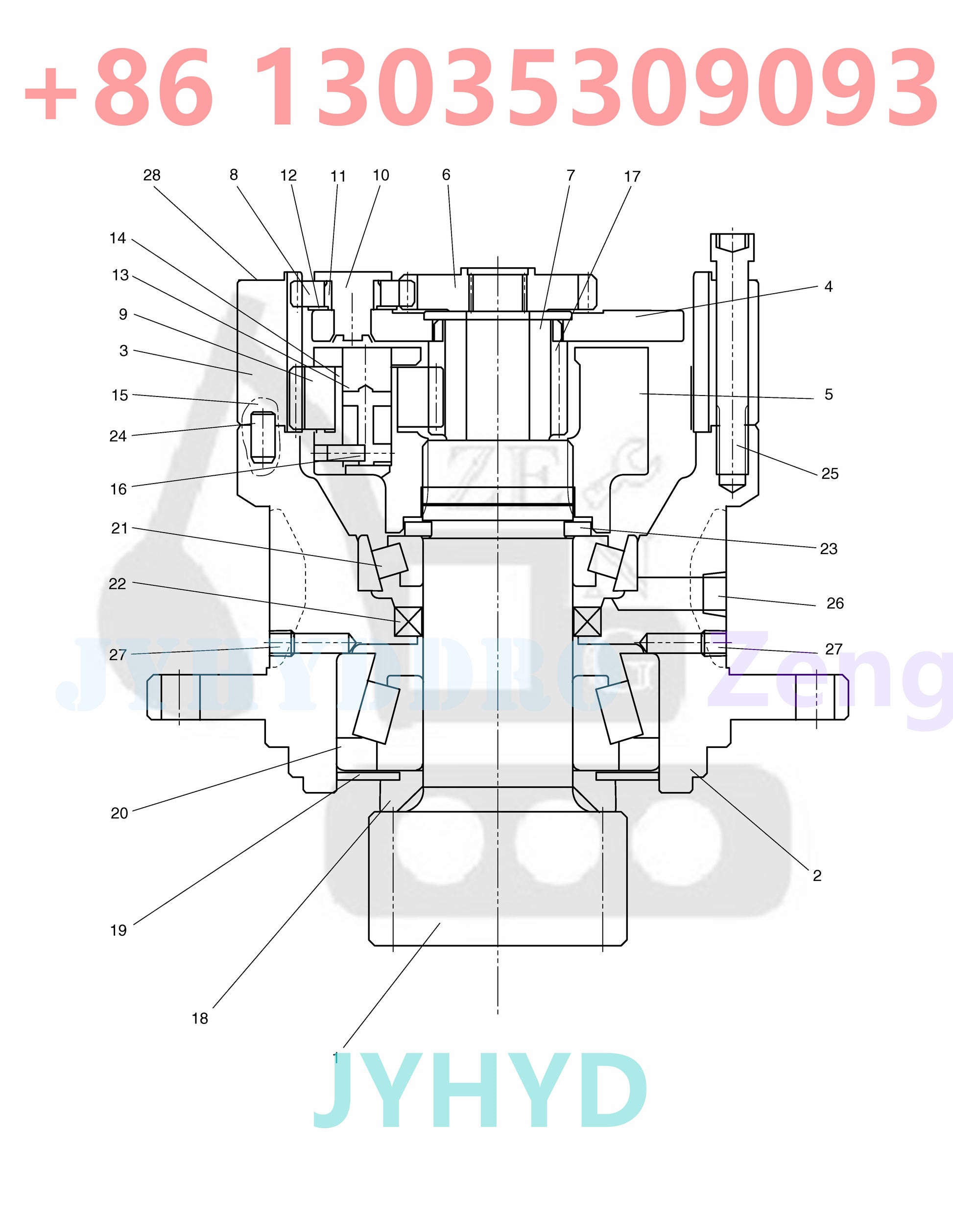

Parts on group SOLAR 75-V:
Pos. Part No Qty Parts name Comments
-. 2404-9007 [1]   GEAR;REDUCTION
1 2101-6018 [1]   SHAFT
10 2112-1204 [3]   SHAFT 1
11 2110-1203 [3]   BUSH 1
12 2412-1028 [3]   PLATE;THRUST
13 2112-1205 [3]   SHAFT 2
14 2110-1204 [3]   BUSH
15 2412-1029 [3]   PLATE;THRUST
16 S5741162 [3]   PIN;SPRING
17 2412-1027 [1]   PLATE;THRUST
18 2114-6040 [1]   COLLAR
19 2412-1026 [1]   PLATE
2 2212-6003 [1]   CASE;GEAR
20 2109-9041 [1]   BEARING;TAPER
21 2109-9042 [1]   BEARING;TAPER
22 2180-9154 [1]   SEAL;OIL D90XD65
23 2114-1633 [1]   COLLAR
24 2123-1778 [2]   PIN
25 2120-1445 [6]   BOLT;SOCKET M12X1.75X95
26 2181-1116D1 [1]   PLUG
27 2181-1116D6 [2]   PLUG PT3/8
28 2180-1220 [1]   GASKET
3 2404-1041 [1]   GEAR;RING
4 2230-6004 [1]   CARRIER 1
5 2514-1010 [1]   CARRIER(NO.2)
6 2101-6019 [1]   GEAR;SUN 1
7 2404-1040 [1]   GEAR;SUN 2
8 2101-6021 [3]   PLANETARY 1
9 2404-1044 [3]   PLANETARY(NO.2)
