DOOSAN DX80R DX85R-3 E80 E85 SOLAR 75-V EXCAVATOR 401-00327 HYDRAULIC PUMP ASSY ROTARY GROUP AND SAPRE PARTS

DOOSAN DX80R DX85R-3 E80 E85 SOLAR 75-V EXCAVATOR 401-00327 HYDRAULIC PUMP ASSY ROTARY GROUP AND SAPRE PARTS

$5,000.00 USD
$5,000.00 USD
特價 售罄
結帳時計算運費。
401-00327
DX80R DX85R-3 E80 E85 SOLAR 75-V
Pos. Part No Qty Parts name Comments
-. 401-00327 [1]   PUMP ASS'Y
1 02428571 [1]   PUMP
2 02400579 [1]   COVER;FLANGE
3 02400591 [1]   COVER;FLANGE
4 02600170 [1]   PLUG
5 02600174 [1]   PLUG
6 00904881 [1]   PRESERVATION SET
6-1. 00904880 [2]   PLATE
6-2. 00679399 [2]   O-RING
6-3. 00104485 [4]   SCREW;HEXAGON
Parts on group SOLAR 75-V:
Pos. Part No Qty Parts name Comments
-. 02428333 [1]   BASE UNIT
1 00985876 [1]   ROTARY GROUP
1-1. 00993461 [1]   ROTARY GROUP
1-1A. 00924554 [9]   PISTON COMPLETE
1-1B. 02407689 [1]   CYLINDER
1-1C. 00978874 [1]   PLATE;RATAINING
1-1D. 00939847 [1]   BALL;RETAINING
1-1E. 00720178 [1]   SPRING
1-1F. 02400741 [3]   PIN;PRESSURE
1-1G. 00919038 [1]   RING;SEEGER V
1-1H. 00720186 [1]   WASHER;THRUST
1-2. 00985841 [1]   PLATE;DISTRIBUTOR
10 00943545 [1]   COUPLER;GEAR SHAFT
12 00939005 [1]   SHIM
15 00720224 [1]   BEARING;TAPERED ROLLER
16 00720232 [1]   BEARING;TAPERED ROLLER
17 00902777 [2]   SHELL;CRADLE
2 00910873 [1]   UNIT;CONTROL
2-1. 00910642 [1]   PISTON;CONTROL
2-2. 00910644 [1]   GUIDE;PISTON
2-3. 00908935 [1]   PISTON;COUNTER
2-4. 00737305 [1]   GUIDE;PISTON
2-6. 00790052 [1]   SPRING
20 00764701 [1]   SEAL;SHAFT
22 00764728 [1]   O-RING
23 00764736 [4]   O-RING
24 00357049 [1]   O-RING
25 00941918 [1]   RING;SAFETY
27 00110272 [4]   SCREW;SOCKET
28 00109606 [2]   SCREW;SOCKET
30 00967343 [1]   PLUG
31 00977663 [1]   PLUG
33 00707481 [1]   PIN;DOWEL
36 02650189 [2]   DISC S
5 00917320 [1]   HOUSING;PUMP
6 00990469 [1]   PLATE;PORT
7 00961022 [1]   PLATE;SWASH
8 02412024 [1]   SHAFT;DRIVE

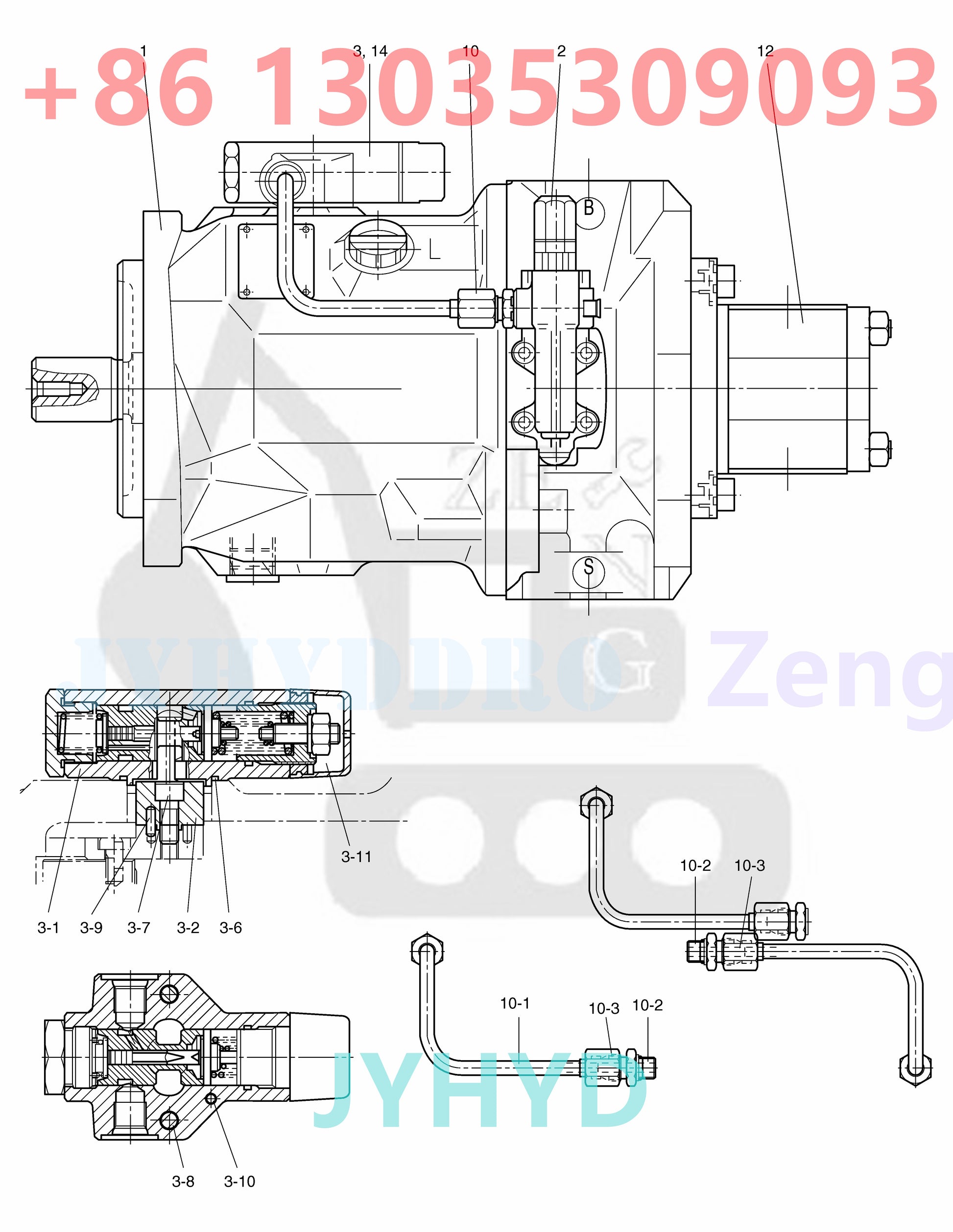

Parts on group SOLAR 75-V:
Pos. Part No Qty Parts name Comments
-. 02428571 [1]   PUMP
1 02428333 [1]   BASE UNIT
10 00963807 [1]   PIPING
10-1. 00963793 [1]   PIPE WITH NUT
10-2. 00948773 [2]   NIPPLE;GREASE
10-3. 00948774 [2]   RING;SPACER
12 02650070 [1]   PUMP;GEAR
14 00764647 [1]   PLUG
2 02428574 [1]   VALVE;PILOT
3 02415397 [1]   VALVE;PILOT
3-1. 02415390 [1]   VALVE;PILOT
3-10. 00106712 [1]   PIN;SELF LOCKING
3-11. 00783277 [1]   CAP;INSULATION
3-2. 00905186 [1]   CARRIER LR
3-6. 00756601 [1]   O-RING
3-7. 00109282 [1]   SCREW;SOCKET
3-8. 00109312 [2]   SCREW;SOCKET
3-9. 00106607 [1]   PIN;SELF LOCKING
