DOOSAN DX520LC DX520LCA TRAVEL REDUCTION GEAR 5001-10098

DOOSAN DX520LC DX520LCA TRAVEL REDUCTION GEAR 5001-10098

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

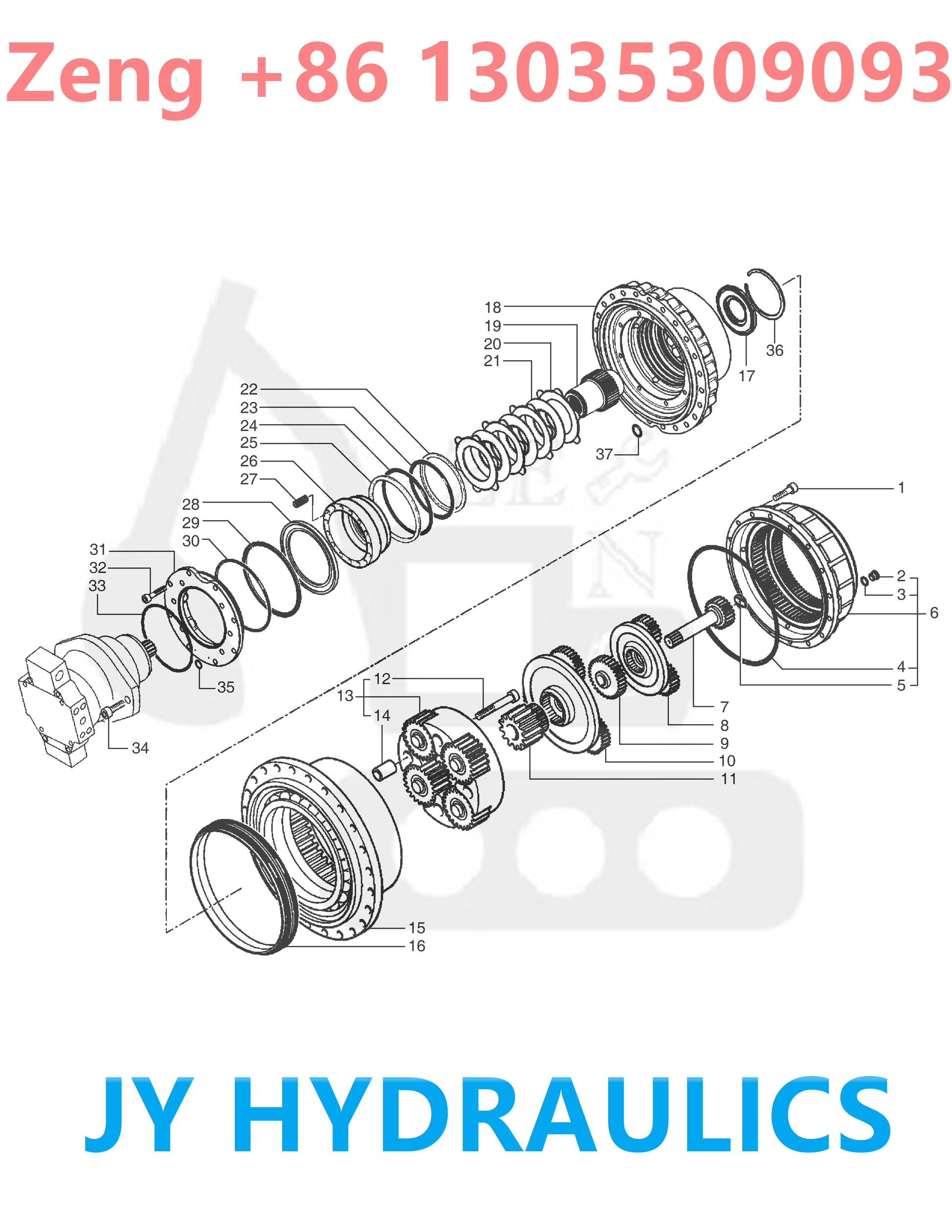

Parts on group DX520LC / DX520LCA:TRAVEL REDUCTION GEAR 5001-10098
Pos. Part No Qty Parts name Comments
-. 170402-00023 [2]
-. 2401-9229A [2]   GEAR;REDUCTION   170402-00023
1 S2218461 [16]   BOLT;SOCKET M14X2.0X40
10 2.234-00007 [1]   2ND. RED. ASS'Y
11 2.403-00274 [1]   GEAR;SUN
12 S2290973 [4]
13 2.234-00008 [1]   3RD. RED. ASS'Y
14 2.408-00040 [4]   BUSH
15 2.109-00086 [1]   BEARING ASS'Y
16 400602-00599 [1]
16 2.180-00158 [1]   GASKET;LIFETIME
17 401003-00082 [1]
18 900122-00030 [1]
19 2.405-00072 [1]   BRAKE;SHAFT
2 2.181-00342 [2]   PLUG;BREATHER M22X1.5
20 400813-00014 [7]
21 2.115-00436 [6]   RING;STEEL
22 2.180-01036 [1]   RING;BACK-UP 4.65X191.21
23 2.180-00502 [1]   O-RING 5.33X189.87
24 2.180-00503 [1]   O-RING 5.33X215.27
25 2.115-00430 [1]   RING;SPIRAL
26 2.409-00096 [1]   PISTON
27 2.131-00229 [21]   SPRING
28 2.114-00760 [1]   SPACER
29 2.124-00059 [1]   CIRCLIP
3 2.114-00885 [2]   WASHER
30 2180-1217D165 [1]   O-RING 3.53X266.29
31 430215-00087 [1]
32 2.120-00479 [8]   SCREW M16X35-8.8
33 401002-00210 [1]
34 2.120-00478 [2]   SCREW M20X50-8.8
35 2.180-00504 [1]   O-RING 1.78X8.74
36 401009-00005 [1]
37 2180-1217D48 [1]   O-RING 2.62X12.37
4 2180-1217D174 [1]   O-RING 3.5X380.59
5 2.161-00019A [1]
5 2.161-00019 [1]   PAD
6 110508-00771A [1]
6 110508-00771 [1]
7 2.403-00272 [1]   GEAR;SUN
8 2.234-00006 [1]   1ST. RED. ASS'Y
9 2.403-00273 [1]   GEAR;SUN Z=20
