DOOSAN DX480LC DX520LC DX520LCA SOLAR 450LC-V SOLAR 470LC-V SOLAR 500LC-V EXCAVATOR 2401-6292A TRAVEL MOTOR ROTARY GROUP

DOOSAN DX480LC DX520LC DX520LCA SOLAR 450LC-V SOLAR 470LC-V SOLAR 500LC-V EXCAVATOR 2401-6292A TRAVEL MOTOR ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
2401-6292A
DX480LC DX520LC DX520LCA SOLAR 450LC-V SOLAR 470LC-V SOLAR 500LC-V

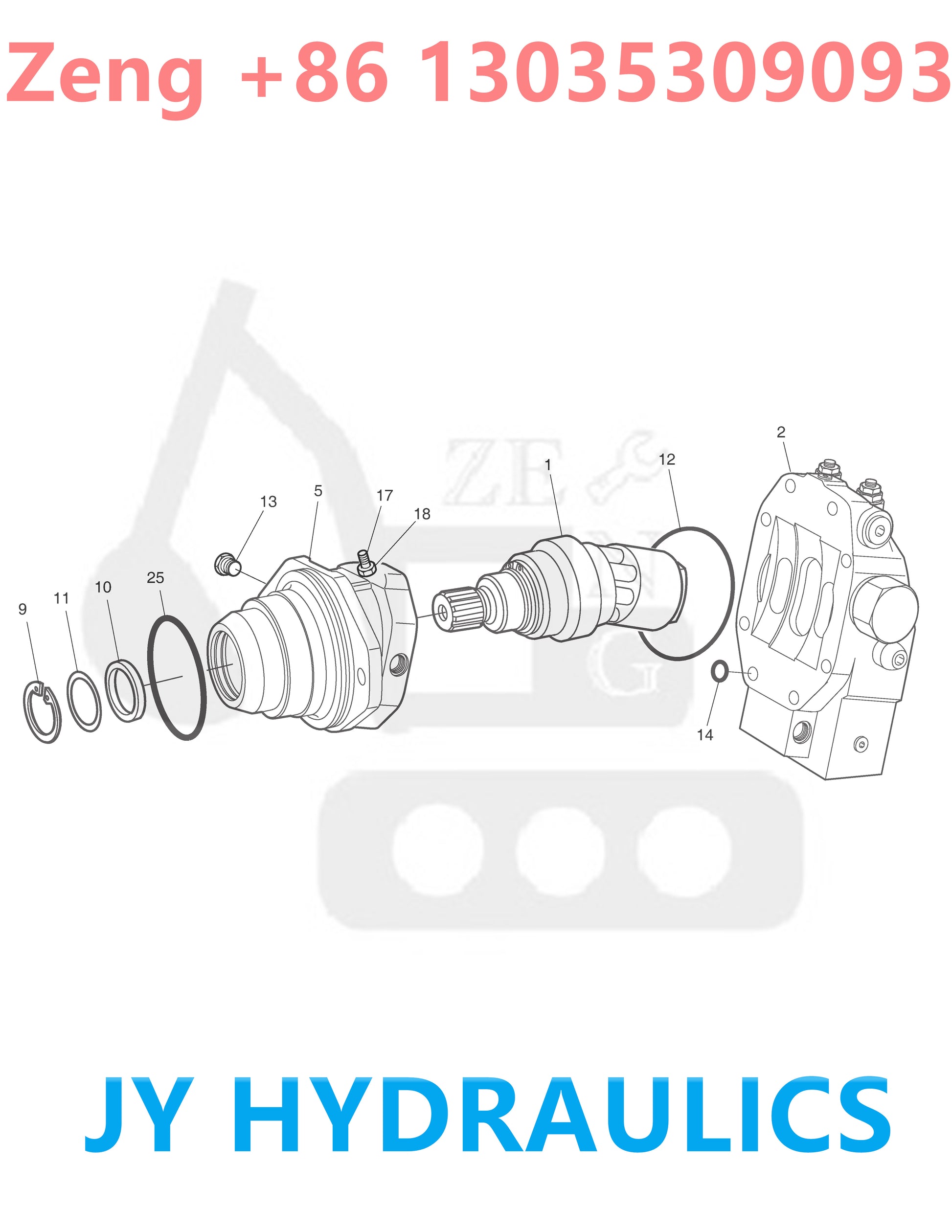

Pos. Part No Qty Parts name Comments
-. 2401-6292A [2]   MOTOR;TRAVEL
1 2.407-00027 [1]   GROUP;ROTARY
2 2.409-00243 [1]   CONTROL

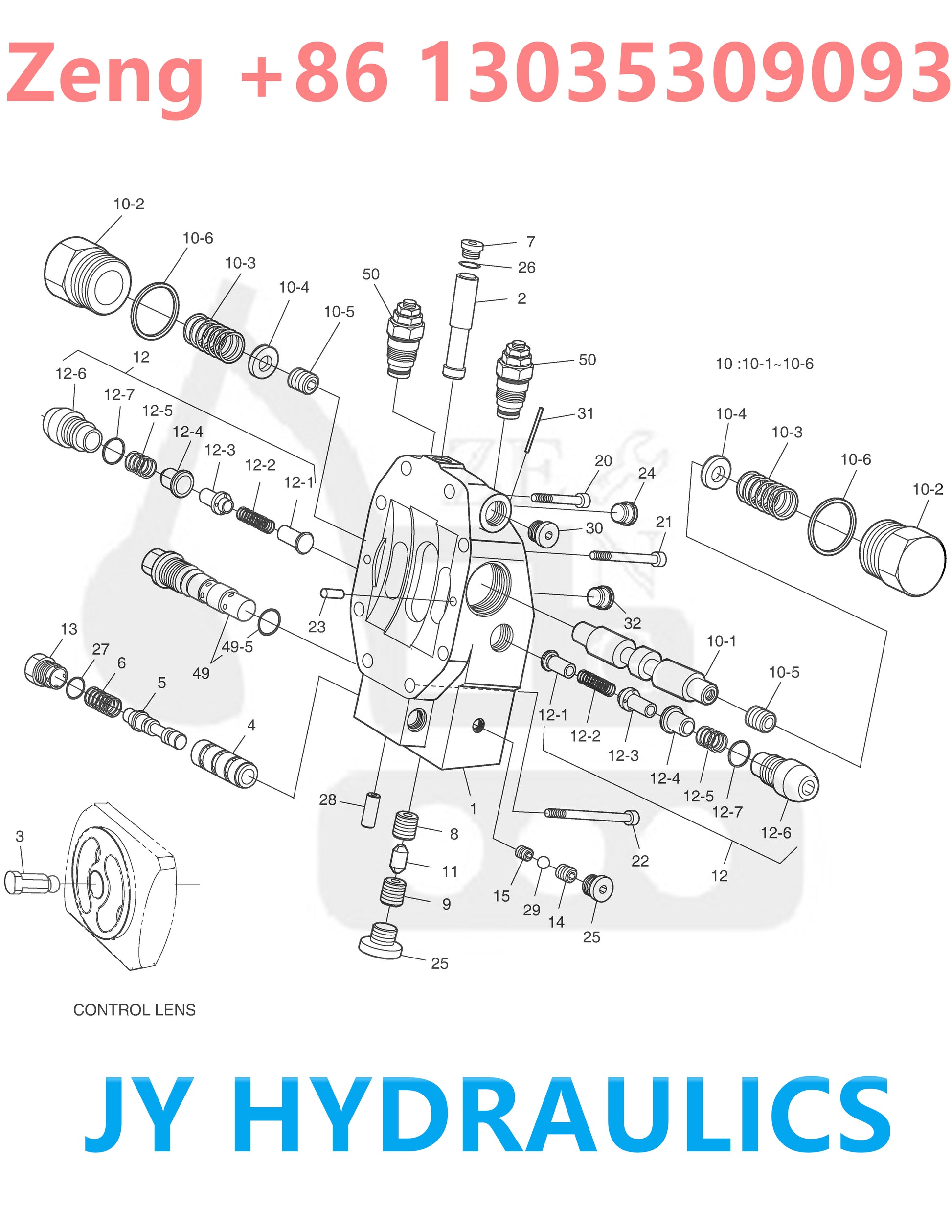

Pos. Part No Qty Parts name Comments
-. 2.409-00243 [1]   CONTROL
1 *NA00828 [1]
10 2.421-00364 [1]   VALVE;BRAKE
10-1. 2.409-00167 [1]   PISTON;BRAKE
10-2. *NA01061 [2]
10-3. 2.131-00432 [2]   SPRING;PRESSURE
10-4. *NA01315 [2]   RONDELLE
10-5. 2.120-00687 [2]   SCREW;THROTTLE
10-6. 2180-1216D62 [2]   O-RING 34.59X2.62
11 2.123-00299 [1]   PIN;THROTTLE
12 2.421-00361 [2]   VALVE
12-1. *NA00898 [1]
12-2. 2.131-00434 [1]   SPRING;PRESSURE
12-3. *NA01110 [1]
12-4. *NA00898 [1]
12-5. 2.131-00435 [1]   SPRING;PRESSURE
12-6. *NA01061 [1]
12-7. 2180-1217D61 [1]   O-RING 32.99X2.62
13 2.120-00804 [1]   SCREW;LOCKING
14 2.120-00843 [1]   SCREW;VALVE
15 2.110-00001 [1]   BUSH
2 *NA00809 [1]
20 S2222461 [2]   SCREW;SOCKET M16X90
21 S2222461 [2]   SCREW;SOCKET M16X90
22 S2223071 [4]   BOLT;SOCKET M16X120
23 2.123-00286 [2]   PIN;CYLINDER
24 2.120-00813 [3]   SCREW;LOCKING
25 2.120-00814 [2]   PLUG
26 2.180-01200 [1]   O-RING
27 2.180-01194 [1]   O-RING
28 2.123-00288 [5]   PIN;DOUBLE BREAK-OFF
29 1.109-00141 [1]   BALL
3 2.428-00075 [1]   TRUNNION;POSITIONING
30 *NA01061 [1]
31 2.123-00300 [2]   PIN;DOUBLE BREAK-OFF
32 2.120-00817 [1]   SCREW;LOCKING
4 2.110-00016 [1]   BUSH;CONTROL
49 2.421-00368 [1]   VALVE;PRESSURE CONTROL
49-5. 2180-1217D47 [1]   O-RING 10.77X2.62
5 2.452-00008 [1]   PISTON;CONTROL
50 2.421-00372 [2]   VALVE;PRESSURE RELIEF
6 2.129-00017 [1]   SPRING;PRESSURE
7 2.120-00819 [1]   SCREW;LOCKING
8 2.421-00379 [1]   SCREW;THROTTLE
9 2.421-00380 [1]   SCREW;THROTTLE

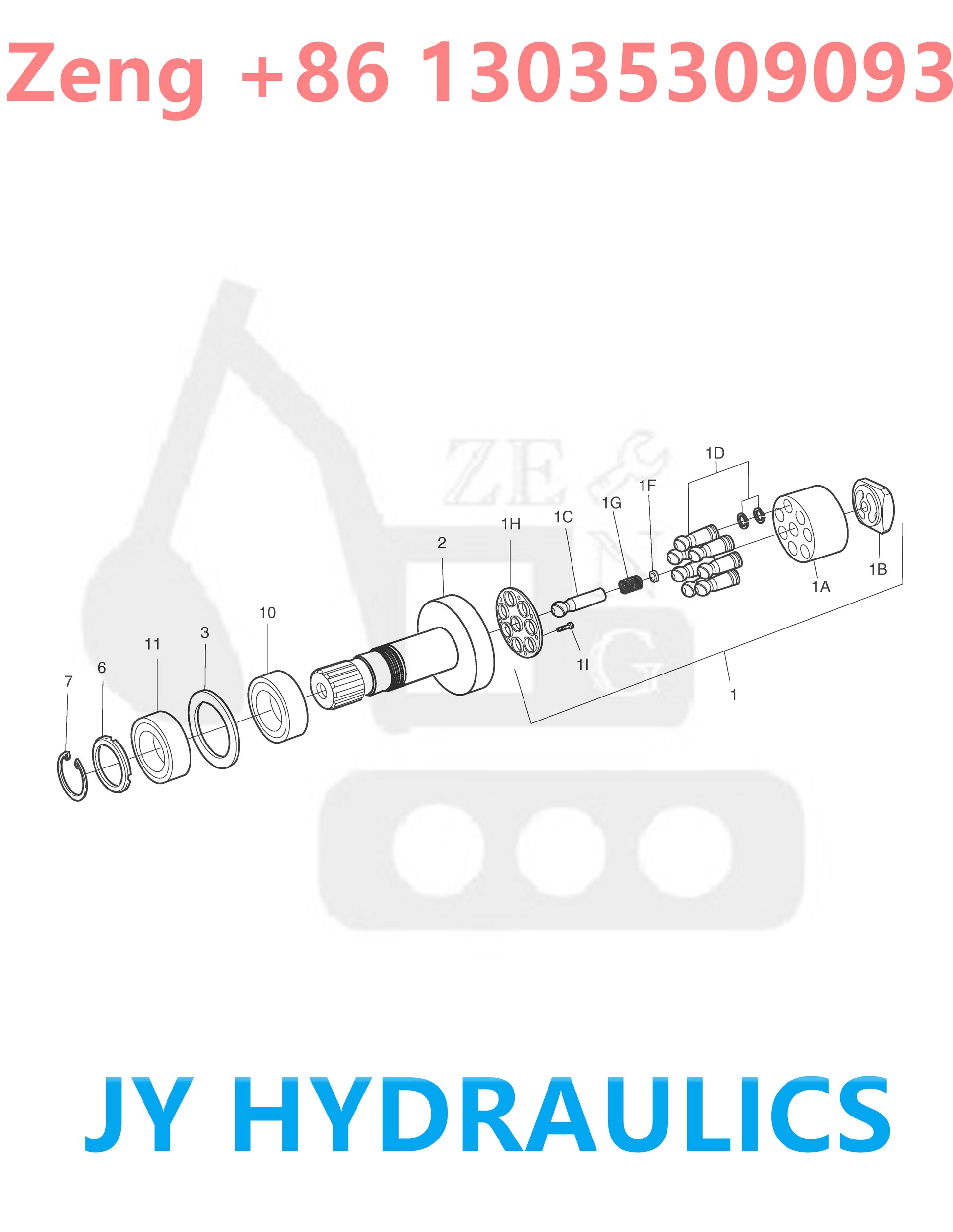

Pos. Part No Qty Parts name Comments
-. 2.407-00027 [1]   GROUP;ROTARY
1 2.409-00245 [1]   ROTARY
10 2.109-00334 [1]   BEARING;TAPER ROLLER
11 2.109-00245 [1]   BEARING;TAPER ROLLER
1A. 2.424-00354 [1]   CYLINDER
1B. 2.412-00353 [1]   LENS;CONTROL
1C. 2.123-00285 [1]   PIN;CENTER
1D. 409-00039 [7]   PISTON & SHOE ASS'Y
1F. 2.114-01342 [1]   SHIM;ADJUSTMENT
1G. 2.129-00020 [1]   SPRING;PRESSURE
1H. 2.115-00537 [1]   PLATE;RETAINING
1I. 2.120-00800 [14]   SCREW
2 2.405-00238 [1]   SHAFT;DRIVE
3 2.114-01334 [1]   SHIM
6 2.180-01207 [1]   PLATE;BACK UP
7 S6500750 [1]   RING;RETAINING
