DOOSAN DX480LC DX520LC DX520LCA EXCAVATOR K1000288B 400914-00252 *NA00911 HYDRAULIC PUMP ROTARY GROUP

DOOSAN DX480LC DX520LC DX520LCA EXCAVATOR K1000288B 400914-00252 *NA00911 HYDRAULIC PUMP ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
K1000288B 400914-00252  *NA00911 DX480LC DX520LC DX520LCA

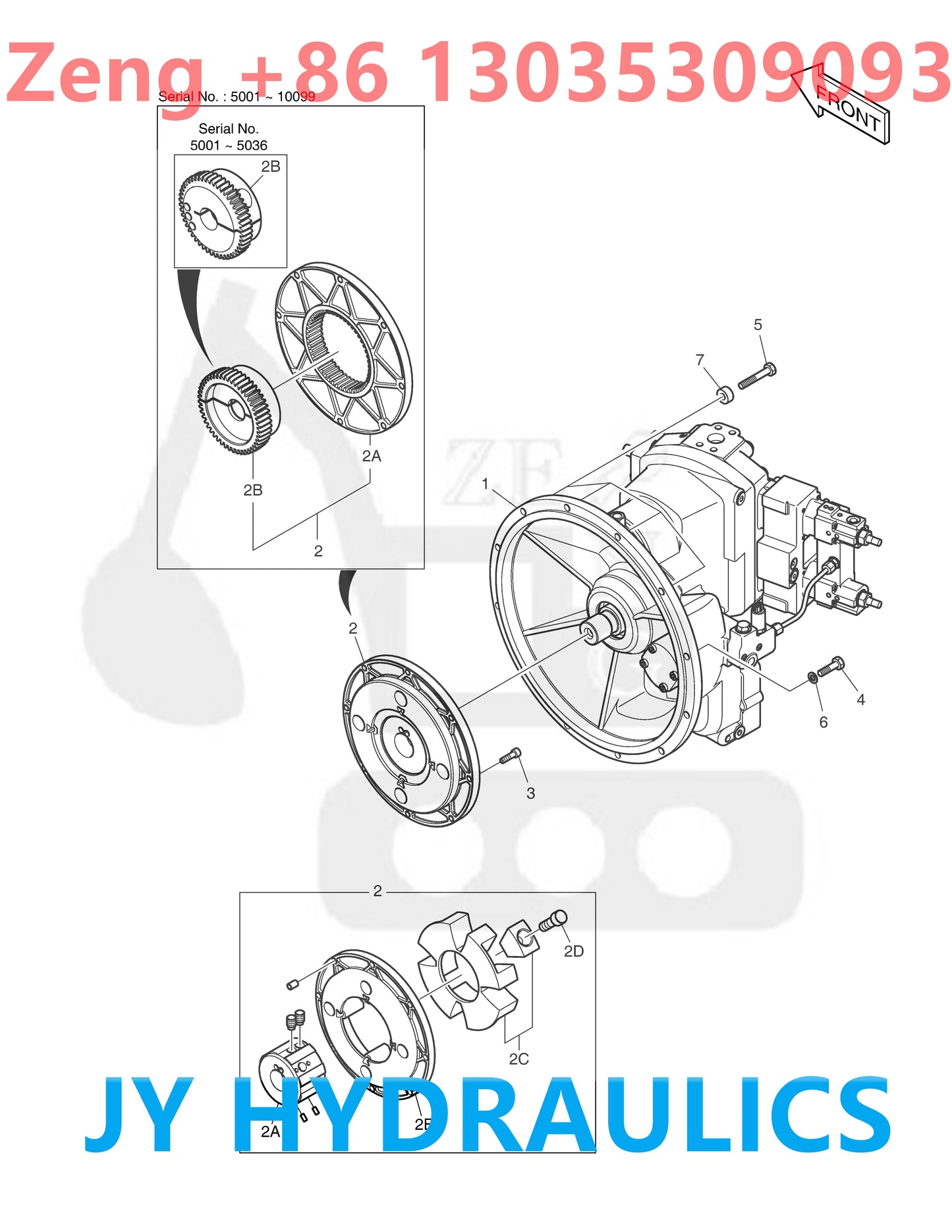

Pos. Part No Qty Parts name Comments
-. K1000674B [-]   PUMP MOUNTING
-. 400914-00258 [-]
1 K1000288B [1]   PUMP;MAIN   400914-00252
1 400914-00252 [1]
2 414-00061 [1]   COUPLING   K1018984
2 K1018984 [1]   COUPLING
2 130801-00027 [1]
2A. 414-00063 [1]   FLANGE;COUPLING
2A. 430215-00998 [1]
2B. 414-00064 [1]   HUB;COUPLING   K1018999
2B. K1018999 [1]   HUB;COUPLING
2B. *NA00546 [1]   HUB
2C. 130801-00053 [4]
2D. S2227866 [4]   BOLT
3 S2212366 [8]   BOLT
4 S0560566 [8]   BOLT
5 S0561266 [4]   BOLT
6 120804-00045 [8]
7 K1007011 [4]   SPACER
Pos. Part No Qty Parts name Comments
-. K1000288B [1]   PUMP;MAIN   400914-00252
-. 400914-00252 [1]
1 *NA00911 [1]   POMPE
Pos. Part No Qty Parts name Comments
1 2.430-00228 [2]   COVER
10 *NA00534 [1]
11 2.180-00086 [1]   GASKET
12 2.409-00205 [2]   PISTON;POSITIONING
13 2.428-00065 [2]   TRUNNION;POSITIONING
14 K9001925 [2]   COLLAR;SPRING
15 2.131-00430 [2]   SPRING;PRESSURE
16 K9001926 [2]   PISTON
17 2.123-00248 [2]   PIN;THREADED
1A. 2.430-00229 [1]   COVER
1B. 2.180-01196 [1]   O-RING
1C. 2.180-01189 [1]   O-RING
1D. 2.120-00836 [4]   SCREW;SOCKET-HEAD
1E. 2.120-00615 [1]   SCREW;LOCKING
1F. 2.123-00291 [1]   PIN;THREADED
1G. 2.121-00263 [1]   NUT;SEAL LOCK
2 K9001921 [1]   CONTROL MODULE
26 2.120-00801 [2]   SCREW;HEX
2A. K9001922 [1]   CONTROL MODULE
2Aa. *NA00534 [1]
2Ab. 2.409-00177 [2]   PISTON;CONTROL
2Ac. 2.408-00063 [2]   BUSH;CONTROL
2Ad. 2.409-00200 [2]   PISTON;POSITIONING
2Ae. 2.123-00065 [2]   PIN
2Af. 2.114-00039 [4]   COLLAR;SPRING
2Ag. 2.131-00415 [2]   SPRING;PRESSURE
2Ah. 2.120-00613 [2]   SCREW;LOCKING
2Ai. 2.123-00235 [2]   PIN;THREADED
2Aj. K9001923 [2]   PISTON;CONTROL
2Ak. K9001924 [2]   BUSH;CONTROL
2Al. 2.121-00202 [2]   NUT;SEAL LOCK
2Am. 2.180-01191 [2]   O-RING
2An. 2.180-00471 [2]   O-RING
2Ao. 2.180-01181 [2]   O-RING
2Ap. 2.120-00826 [6]   SCREW;SOCKET-HEAD
2Aq. 2.123-00288 [5]   PIN;DOUBLE BREAK-OFF
2Ar. 2.123-00131 [2]   PIN;CYLINDER
2As. 2.123-00300 [1]   PIN;DOUBLE BREAK-OFF
2At. 2.181-00262 [1]   PLUG
2Au. 2.120-00612 [1]   PLUG
2B. *NA00534 [1]
2C. 2.409-00180 [2]   PISTON;CONTROL
2D. 2.408-00083 [2]   BUSH;SPRING
2E. 2.131-00418 [2]   SPRING;PRESSURE
2F. 2.123-00249 [2]   PIN;THREADED
2G. 2.114-00067 [2]   COLLAR;SPRING
2H. 2.114-00068 [2]   COLLAR;SPRING
2I. 2.131-00428 [2]   SPRING;PRESSURE
2J. 2.131-00429 [2]   SPRING;PRESSURE
2N. 2.180-00471 [4]   O-RING
2O. 2.180-01197 [2]   O-RING
2P. 2.120-00611 [2]   SCREW;LOCKING
2R. 2.121-00202 [2]   NUT;SEAL LOCK
2S. 2.120-00828 [6]   SCREW;SOCKET-HEAD
2U. 2.120-00616 [1]   SCREW;LOCKING
37 K9001927 [4]   RING;SQUARE
42 2.120-00837 [8]   SCREW;SOCKET M16X60
43 S2222461 [4]   SCREW;SOCKET M16X90
44 2.123-00134 [2]   PIN;CYLINDER
44 120501-01852 [2]
2I. K9001933 [1]   VALVE   410116-00395
Pos. Part No Qty Parts name Comments
2 K9001908 [1]   ROTARY GROUP
2 210204-00029 [1]
20 2.115-00311 [1]   RING;RETAINING
21 2.115-00327 [1]   RING;SHAFT SEAL
21 401106-00202 [1]
22 2.114-00175 [1]   SHIM
23 2.120-00611 [1]   SCREW;LOCKING
24 2.120-00624 [3]   SCREW;LOCKING
25 2.109-00192 [2]   BEARING;PLAIN ROLLER
27 2.405-00154 [1]   SHAFT;KEY
28 2.180-01203 [1]   O-RING
2A. K9001909 [1]   ROTARY GROUP;SECTION
2Aa. 2.410-00138 [1]   CYLINDER
2Ab. K9001910 [1]   PIN;CENTER
2Ac. K9001911 [7]   PISTON & PISTON RINGS
2Ac1. *NA00796 [1]   PISTON
2Ac2. *NA00986 [2]
2Ad. K9001912 [1]   COLLAR;SPRING
2Ae. 2.453-00025 [4]   CUP SPRING
2Af. 2.412-00224 [1]   PLATE;RETAINING
2Ag. K9001916 [14]   SCREW;PAN HEAD
2B. K9001913 [1]   SHAFT;DRIVE
2C. 2.114-00167 [1]   SHIM
2C. 2.114-00168 [1]   SHIM
2C. 2.114-00169 [1]   SHIM
2D. 2.412-00131 [1]   CONTROL LENS;RIGHT-HAND   250201-01408
2D. 250201-01408 [1]
2E. 2.180-01026 [1]   PLATE;BACK-UP
2E. 2.180-01027 [1]   PLATE;BACK-UP
2E. 2.180-01028 [1]   PLATE;BACK-UP
2E. 2.180-01029 [1]   PLATE;BACK-UP
2E. 2.180-01030 [1]   PLATE;BACK-UP
2E. 2.180-01031 [1]   PLATE;BACK-UP
2E. 2.180-01032 [1]   PLATE;BACK-UP
2F. K9001914 [1]   RING;RETAINING
2G. 2.109-00264 [1]   BEARING;UNIT TAPERED-ROLLER
2H. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
3 K9001915 [1]   ROTARY GROUP
3 210204-00030 [1]
3A. K9001909 [1]   ROTARY GROUP;SECTION
3Aa. 2.410-00138 [1]   CYLINDER
3Ab. K9001910 [1]   PIN;CENTER
3Ac. K9001911 [7]   PISTON & PISTON RINGS
3Ac1. *NA00796 [1]   PISTON
3Ac2. *NA00986 [2]
3Ad. K9001912 [1]   COLLAR;SPRING
3Ae. 2.453-00025 [4]   CUP SPRING
3Af. 2.412-00224 [1]   PLATE;RETAINING
3Ag. K9001916 [14]   SCREW;PAN HEAD
3B. K9001917 [1]   SHAFT;DRIVE
3C. 2.114-00170 [1]   SHIM
3C. 2.114-00171 [1]   SHIM
3C. 2.114-00172 [1]   SHIM
3C. 2.114-00173 [1]   SHIM
3C. 2.114-00174 [1]   SHIM
3D. 2.412-00128 [1]   CONTROL LENS;LEFT-HAND   250201-01409
3D. 250201-01409 [1]
3E. 2.180-01026 [1]   PLATE;BACK-UP
3E. 2.180-01033 [1]   PLATE;BACK-UP
3E. 2.180-01027 [1]   PLATE;BACK-UP
3E. 2.180-01028 [1]   PLATE;BACK-UP
3E. 2.180-01029 [1]   PLATE;BACK-UP
3E. 2.180-01030 [1]   PLATE;BACK-UP
3E. 2.180-01031 [1]   PLATE;BACK-UP
3E. 2.180-01032 [1]   PLATE;BACK-UP
3F. K9001914 [1]   RING;RETAINING
3G. 2.109-00265 [1]   BEARING;UNIT TAPERED-ROLLER
3H. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
4 K9001918 [1]   PUMP;GEAR
4 400910-00134 [1]
4A. 2.120-00829 [2]   BOLT;SOCKET M10X20
5 *NA00539 [1]
7 K9001919 [1]   GEAR
8 K9001920 [1]   SHAFT;STUB
9 2.317-00047 [1]   STUD;CONNECT
